Yamaha R-N803 - Network Stereo Receiver

Rs. 62,990

  • • Free Shipping (India)
  • • Brand New Unit(s)
  • • Price Includes GST
  • • Official Manufacturers Warranty
  • • EMI Payment Option Available

Out of stock



Notify Me

Description

R-N803

Enjoy music from a variety of sources with the Yamaha R-N803 Stereo Network Receiver. This 2-channel receiver produces up to 100W of RMS power per channel at 8 Ohms. Built-in AirPlay and Bluetooth allow you to wirelessly stream music from compatible audio sources such as computers, smartphones, and tablets. On-board Wi-Fi and Ethernet connectivity gives you the ability to stream music from Internet radio sources and use DLNA technology to share content with compatible networked devices. Furthermore, the free MusicCast app allows you to control the receiver from your favorite smart device.

In addition to the receiver's aforementioned wireless connectivity, the R-N803 has a coaxial, optical, four stereo RCA, and a phono input for connecting different types of audio sources. Its 1/4" headphone output enables private listening when connecting headphones. This receiver's integrated AM and FM tuners allow you to enjoy free over-the-air content.

ToP-ART Design

The ToP-ART (Total Purity Audio Reproduction Technology) design of the R-N803 is engineered to faithfully preserve the integrity of the audio signals by combining a symmetrical left/right circuit layout and signal directness (straight, short signal paths), a rigid, low-vibration chassis, and an "Art Base" resin frame fashioned to absorb and block unnecessary vibration for enhanced sonic purity and accurate stereo imaging of the music.

Low-Impedance, High-Power Amp

The R-N803 utilizes a high-power amp featuring a single push-pull structure using eight bipolar-type power transistors (four each for left and right) as its output terminals. Impedance is lowered by minimizing the lengths of the audio signal paths in the circuit design to achieve an enhanced drive power with a maximum output of 145W per channel.

YPAO (Yamaha Parametric Room Acoustic Optimizer)

The R-N803 is equipped with YPAO technology, which is designed to measure the shape of the room, the material of the wall, and the position of the speaker, then automatically adjust the sound to create the appropriate response and sonic quality. Other YPAO functions are also available, including YPAO - Reflected Sound Control, which is designed to actively correct the early reflection sounds that influence sound quality, and YPAO Volume, engineered to apply high-precision EQ (equalization), with 192 kHz/64-bit operation for an enhanced listening environment. Additionally, after a scheduled future firmware update, you can control the YPAO feature and display the analysis results with the MusicCast app.

Supports High-Resolution Music

The R-N803 is compatible with high-resolution sound sources, such as DSD 5.6 MHz native and AIFF, WAV, FLAC 192 kHz/24-bit, as well as Apple Lossless 96 kHz/24-bit files. It uses a SABRE 9006AS 192 kHz/24-bit DAC (from ESS Technology) to deliver enhanced S/N performance.

Hi-Fi Everything

From your smartphone, networked audio, streaming services, or the TV, you'll enjoy Hi-Fi quality with enhances sonic integrity on everything you hear with the R-N803.

Digital Audio Input for TV or Blu-ray Players

The R-N803 is equipped for digital audio with both optical and coaxial inputs. The optical is for receiving audio from a display, and the coaxial is for receiving audio from a Blu-ray player. The audio stays in the digital domain, helping to provide pure, dynamic sound for all your entertainment sources.

Vinyl-Ready

Enjoy playback of your vinyl records by plugging your turntable into the phono input of the R-N803.

Fingertip Control

Tap, swipe, and control your music with the free MusicCast app, which can also control other optional MusicCast devices.

Additional Features

  • 505.2 VA power transformer with 12,000uF/71 V block capacitors
  • Pure Direct Mode for enhanced sound purity
  • Compatible with popular music streaming services, including Spotify, TIDAL, and Deezer
  • Trigger control
  • Gapless playback compatibility
  • Energy-saving design for low power consumption

SPECIFICATIONS

Channels

2

Power Output per Channel

  • 100 W at 8 Ohms / 20 Hz to 20 kHz / 0.019% THD
  • 145 W at 8 Ohms / 1 kHz / 10% THD

Dynamic Power per Channel

  • 140 W at 8 Ohms
  • 170 W at 6 Ohms
  • 220 W at 4 Ohms
  • 290 W at 2 Ohms

Auro 3D Support

No

Supported File Formats

5.6 MHz DSD, AAC, AIFF, ALAC, FLAC, MP3, WAV, WMA

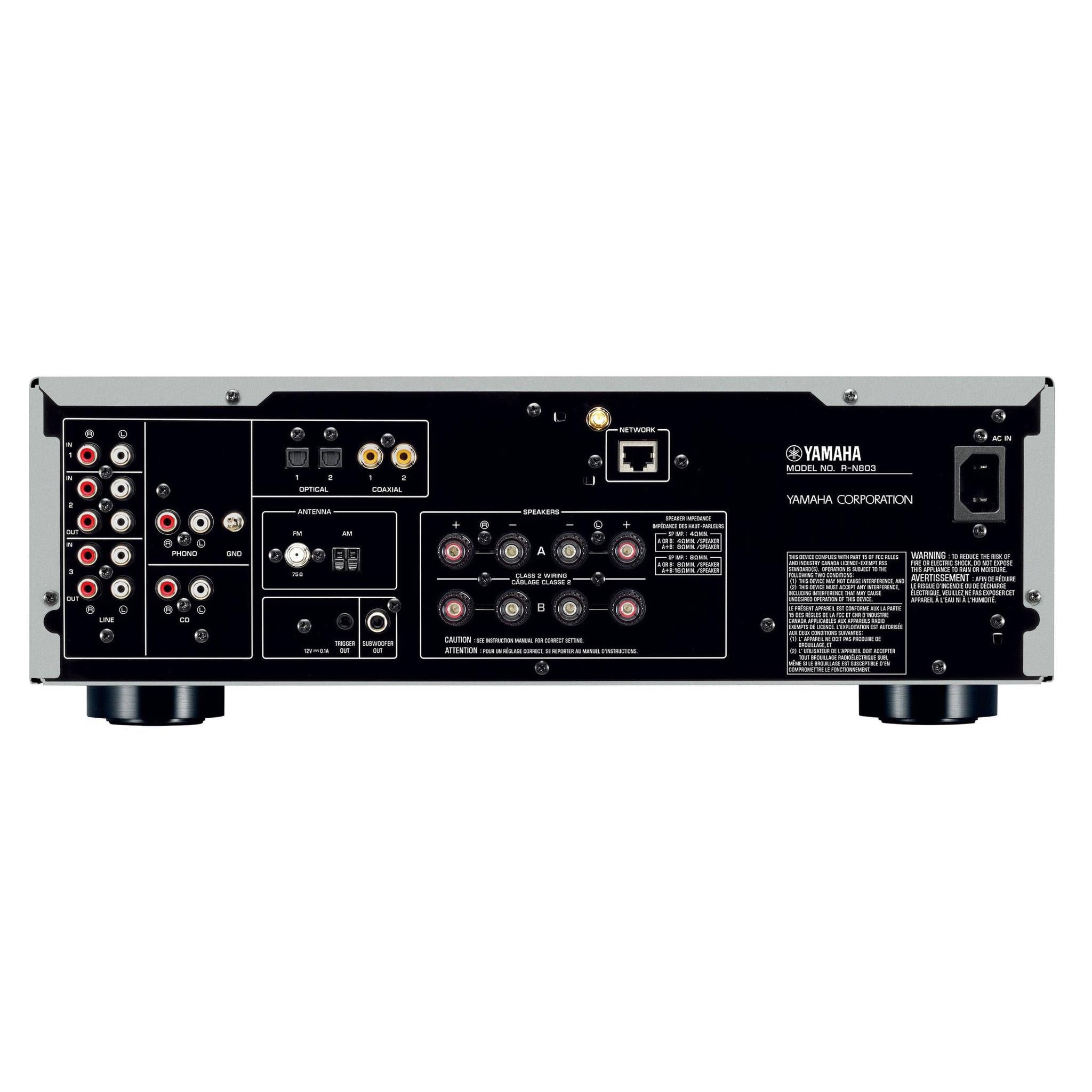

Rear A/V Inputs

  • 2 x Optical TOSLINK
  • 2 x Digital Coaxial
  • 1 x Stereo RCA (Phono) with Ground Screw
  • 4 x Stereo RCA

Rear A/V Outputs

  • 1 x RCA Subwoofer Pre-Out
  • 2 x Stereo RCA

Front I/O

  • 1 x 1/4" / 6.35 mm Headphone Output
  • 1 x USB Type-A

Other Rear I/O

  • 1 x RJ45 (Ethernet)
  • 1 x FM Antenna Terminal
  • 1 x AM Antenna Terminal
  • 1 x 1/8" / 3.5 mm (12 V Trigger) Output

Speaker Connectors

1 x Binding Post Pair

Bluetooth

2.1 + EDR

Bluetooth Profiles

A2DP, AVRCP

Supported Audio Codecs

AAC, SBC

Wireless Audio Protocols

AirPlay, Wi-Fi Direct

DLNA Support

Yes

Tuner Type

AM, FM

Power Consumption

  • Standby: 0.1 W
  • Network Standby: 1.8 W

Dimensions (W x H x D)

  • 17.1 x 6.0 x 15.4" / 43.5 x 15.2 x 39.2 cm (Antenna Removed)
  • 17.1 x 8.5 x 15.4" / 43.5 x 21.6 x 39.2 cm (Antenna Up)

Weight

24.3 lb / 11.02 kg
