Velodyne Acoustics Deep Waves 12 - Active Subwoofer
Tax included.
GET GST INPUT
Ever wondered why speakers, amplifiers, projectors etc. come with a slightly heftier price tag in India compared to their overseas counterparts? Well, part of the answer lies in our country's Goods & Services Tax (GST).
But here's the kicker: Don't let that GST input slip through your fingers! Especially when some of the products we supply carry a GST rate of 18% and 28%.
At AVStore, we provide you with a GST compliant invoice for every purchase.
Simply put in your GST number during the checkout to avail an offset.
- Description
- Specifications
- Reviews
Extensive customization options for best low frequency performance

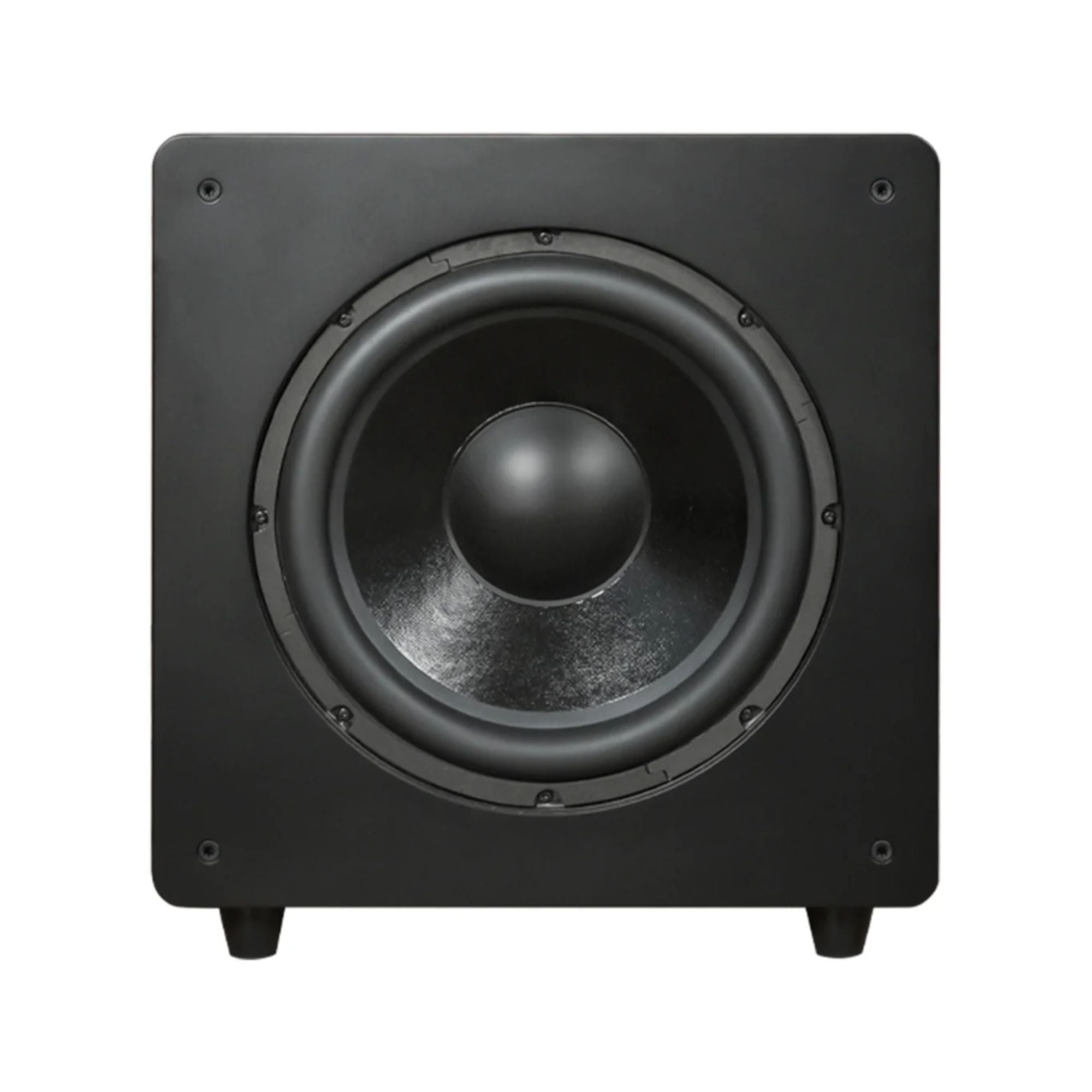

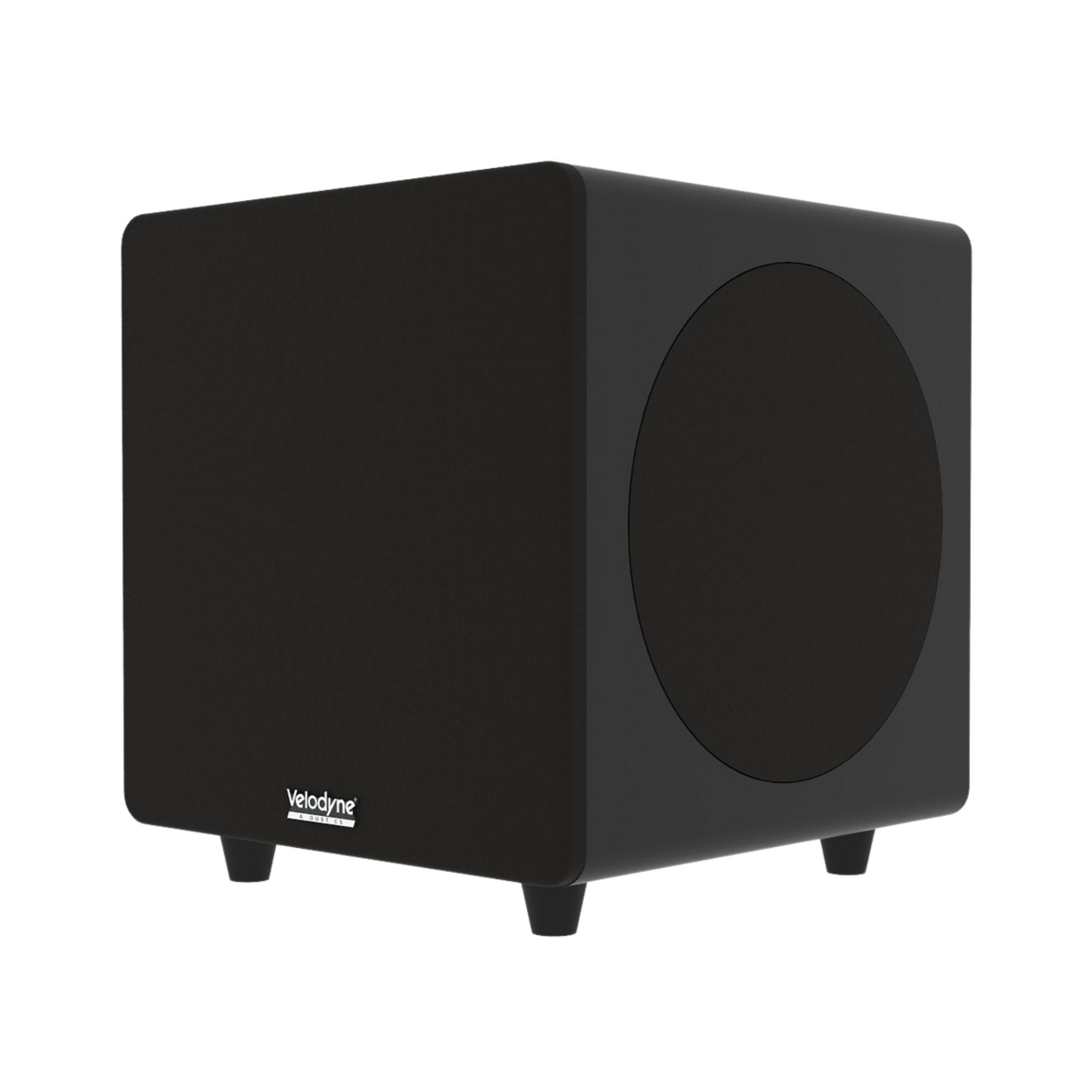

With the high-quality, matte black enclosure and a front-firing active driver with side-firing passive radiators, the Deep Waves series ensures an undreamt-of presence in the home theater. New technology also makes app control from the listening position a uniquely convenient experience.
The Features
- A 2.5-inch voice coil with four-layer winding provides a high and extremely precise aligned excursion
- High-quality MDF cabinet and additional bracing minimize disturbing resonances
- The iWoofer™ app supports the optimal adjustment of the subwoofer to the room and your own listening preferences

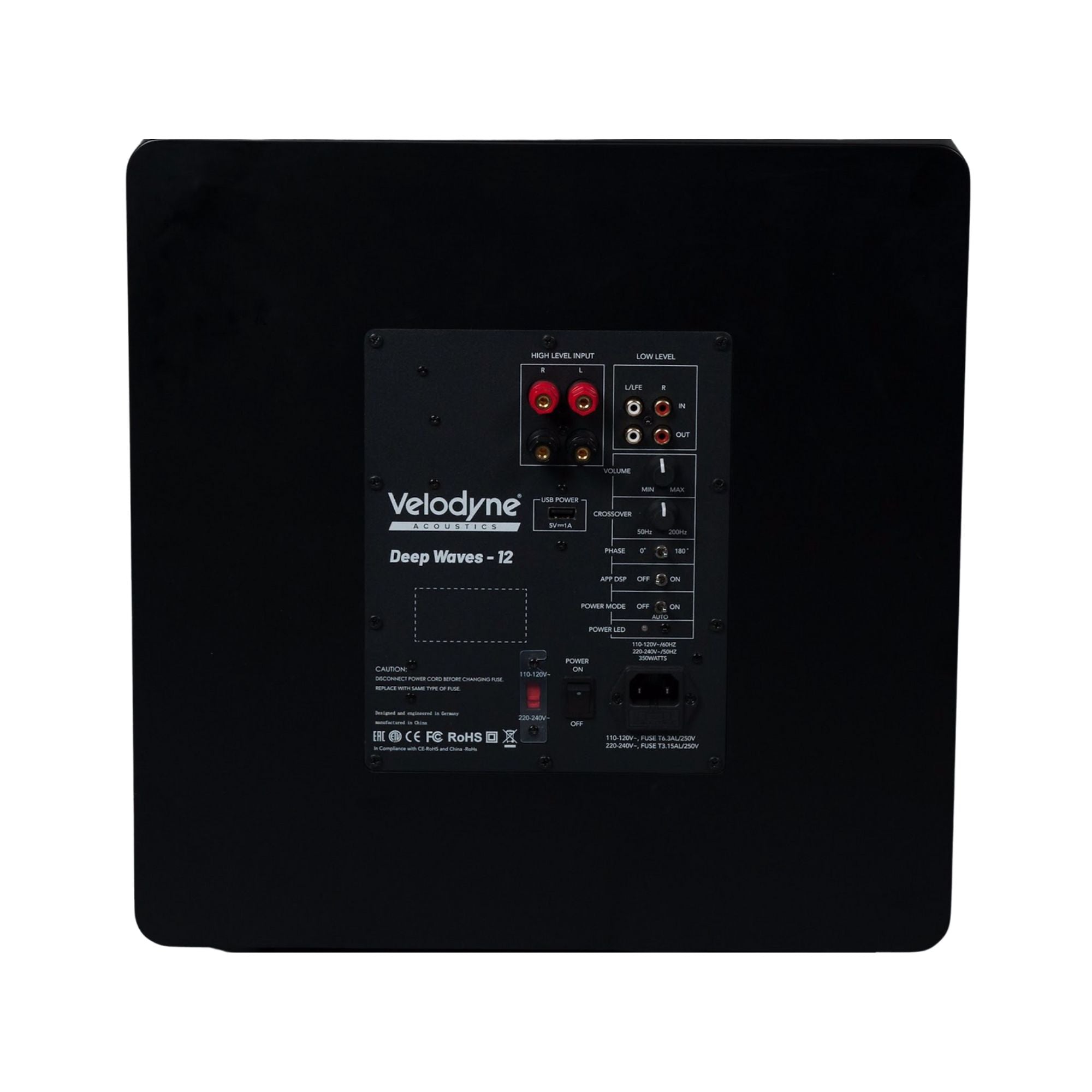

- Connection options on the rear panel include RCA jacks for the LFE channel and high-level terminals
|
Driver |
12″ front firing driver 12” side radiating passive radiators |
|
Amplifier Class D |
800 watt dynamic 400 watt RMS |
|
Overall Frequency Response: (± 3 dB) |
25 Hz – 180 Hz |
|
Overall Frequency Response: (± 10 dB) |
22 Hz – 220 Hz |
|
Low Pass Crossover |
50 Hz to 180 Hz (12 dB/Octave) |
|
Phase |
0 to 180 degrees |
|
Cabinet Design |
22 mm MDF |
|
Magnet Structure |
Dual ferrite magnet motor |
|
Woofer |
12” high excursion double vented basket driver with pp Membrane and convex cone |
|
Voice Coil |
Four Layer 2,5″ / 63 mm voice coil |
|
Input |
Gold plated Stereo/LFE RCA, Nickel plated High level in |
|
Output |
Gold plated Stereo/ LFE RCA |
|
Power Selector |
Off / Auto / On |
|
Dimensions (W/H/D) (includes feet and connectors) |
41 cm x 48 cm x 41 cm |
|
Weight (approx) |
25 kg |
|
Shipping Weight (approx) |
28 kg |
