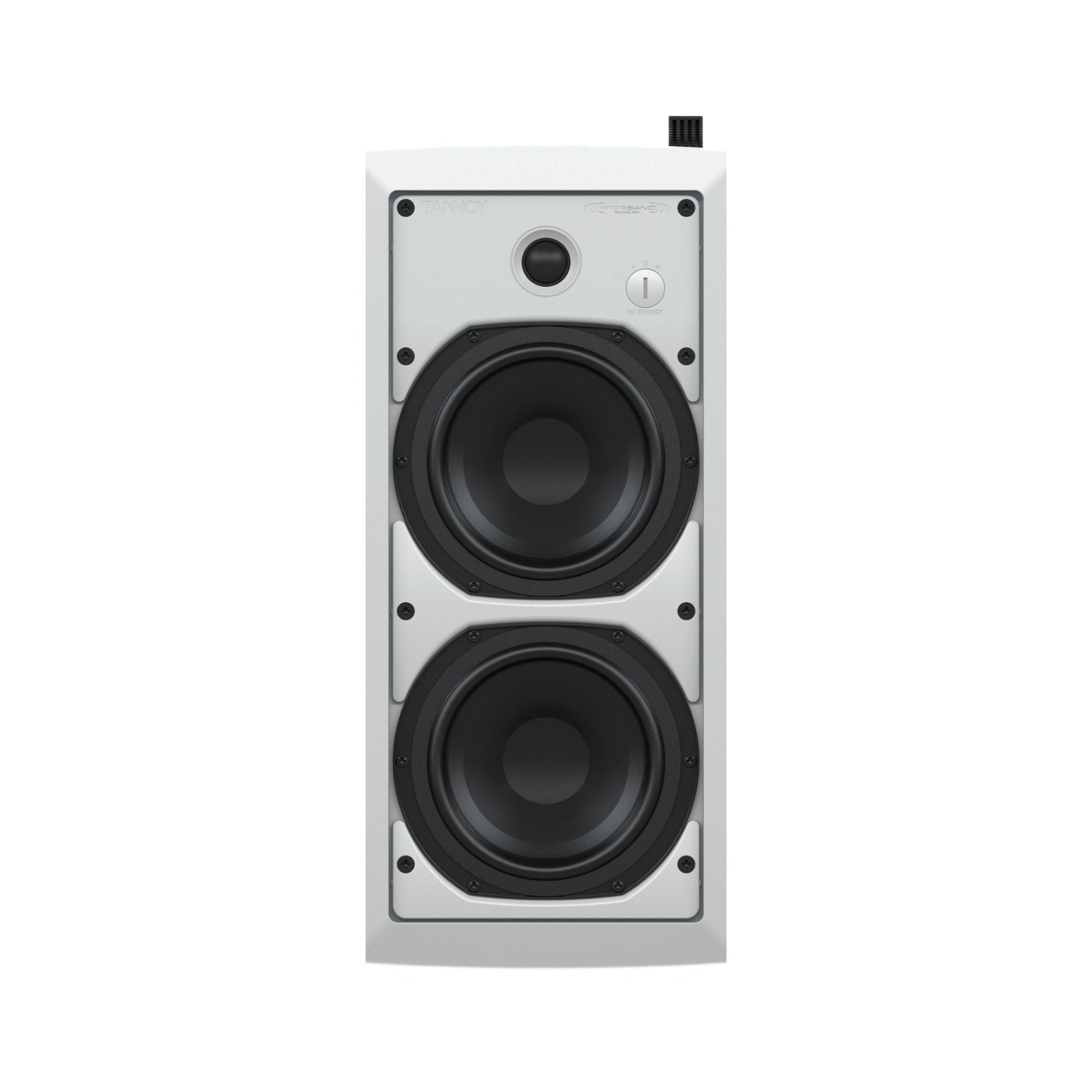

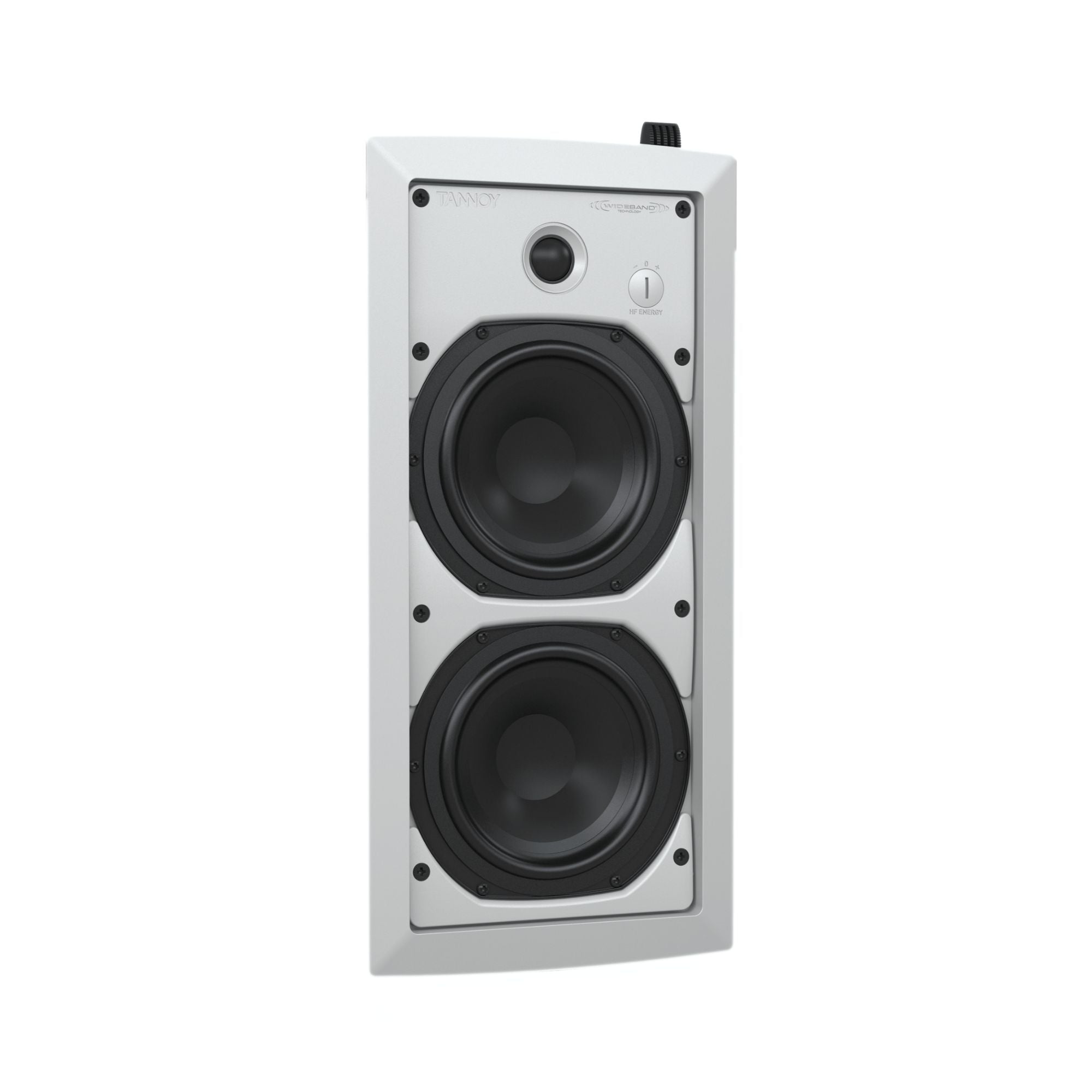

iW 62DS-WH
Designed to excel in a wide variety of sound reinforcement applications, the full range iW 62DS-WH is a compact 320-watt wall mount loudspeaker that provides inspiring acoustic performance with exceptional clarity and articulation. The iW 62DS-WH is ideally suited for paging systems, boardrooms, offices, business music systems, reception rooms, houses of worship, retail outlets, shopping malls and bars.
Superb Performance
iW 62DS-WH’s design comprises dual 150 mm (6.00") bass drivers with a 25 mm (1.00") titanium diaphragm high-frequency
unit mounted in an enclosure that is robust enough for commercial applications. This configuration handles up to 320 Watts to deliver exceptional dynamics, realism, and enhanced intelligibility, all in a compact and highly efficient system that is well-suited to a wide range of amplifier options - including entry-level amplifiers.
Attractive & Easy to Install

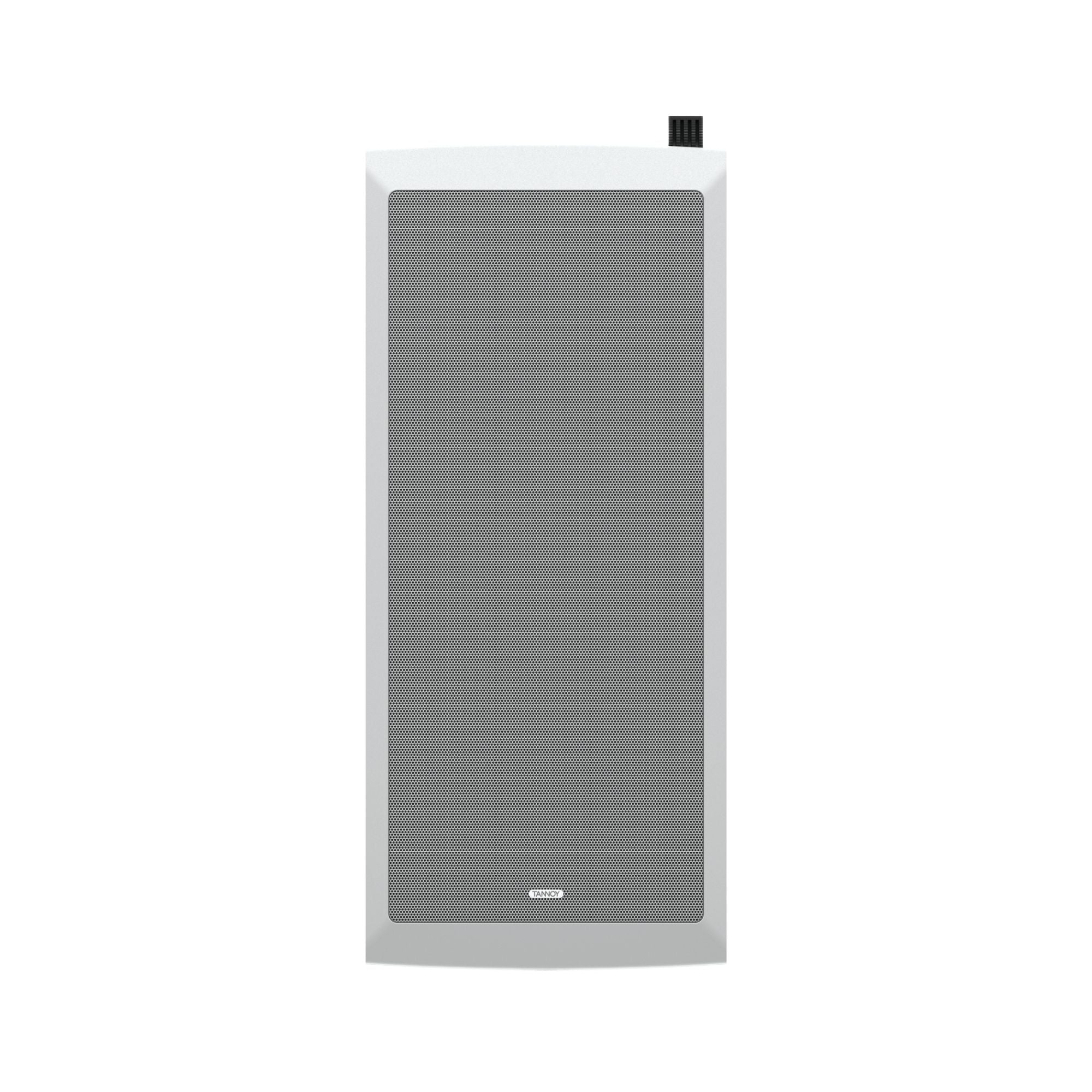

The semi-matt white, weather-resistant grille and enclosure can be painted to match any décor and features an innovative self-aligning clamping system for easy installation into standard stud partition walls.
|
System Type |
In-wall loudspeaker |
|
Frequency response |
70 Hz-51 kHz (/-3dB) |
|
Low-Frequency Alignment |
34Hz (-6dB) Recommended Amplifier Power 20-210W @ 8 Ohms |
|
Power Handling |
Average: 105W Programme: 210W Peak: 420W |
|
Sensitivity 2.38 Volts @ 1 metre |
Anechoic: 92dB Half space: 95dB |
|
Maximum SPL @ 1 metre |
Average: 112dB Peak: 118dB |
|
Impedance |
8 Ohms |
|
Dispersion |
90 degrees |
|
Driver Complement |
SuperTweeter ™: 25mm (1.00") titanium dome Dual Concentric™™: 165mm (6.50") Bass driver: 165mm (6.50") |
|
Maximum SPL |
107dB |
|
Wattage Tap Selections |
60, 30, 15, 7.5 Watts |
|
Frequency |
750Hz, 1.8kHz, 16kHz |
|
Type |
Passive |
|
Finish |
White - paintable |
|
Connectors |
Gold-plated spring terminals |
|
Dimensions (H x W) |
Front Baffle: 473.5 x 227mm (18.64 x 8.94") Maximum wall thickness: 25mm (1.00") |
|
Cut-out Dimensions (H x W) |
426.10 x 187.60mm (16.76 x 7.39") |
|
Rec. in-wall Mounting Volume |
30 litres (1.1 cu.ft.) |
|
Mounting Depth |
99mm (3.89") |
|
Weight (each) |
5kg (11lbs) |
