SVS Sound Ultra Evolution Pinnacle - Floor Standing Speaker - Pair


Color: Piano Gloss Black
*4 - 6 weeks for delivery once ordered
  • Description
  • Specifications
  • Reviews

Key Features

  • 3-Way Tower Speaker Design
  • 1" Diamond Coated Tweeter
  • Dual 5.25" Midrange Drivers
  • Quad 8" Woofers
  • Dual Gold-Plated 5-Way Binding Posts
  • Dual 3" Wide-Flared Rear-Firing Ports
  • Leveling Feet & Carpet Spikes Included

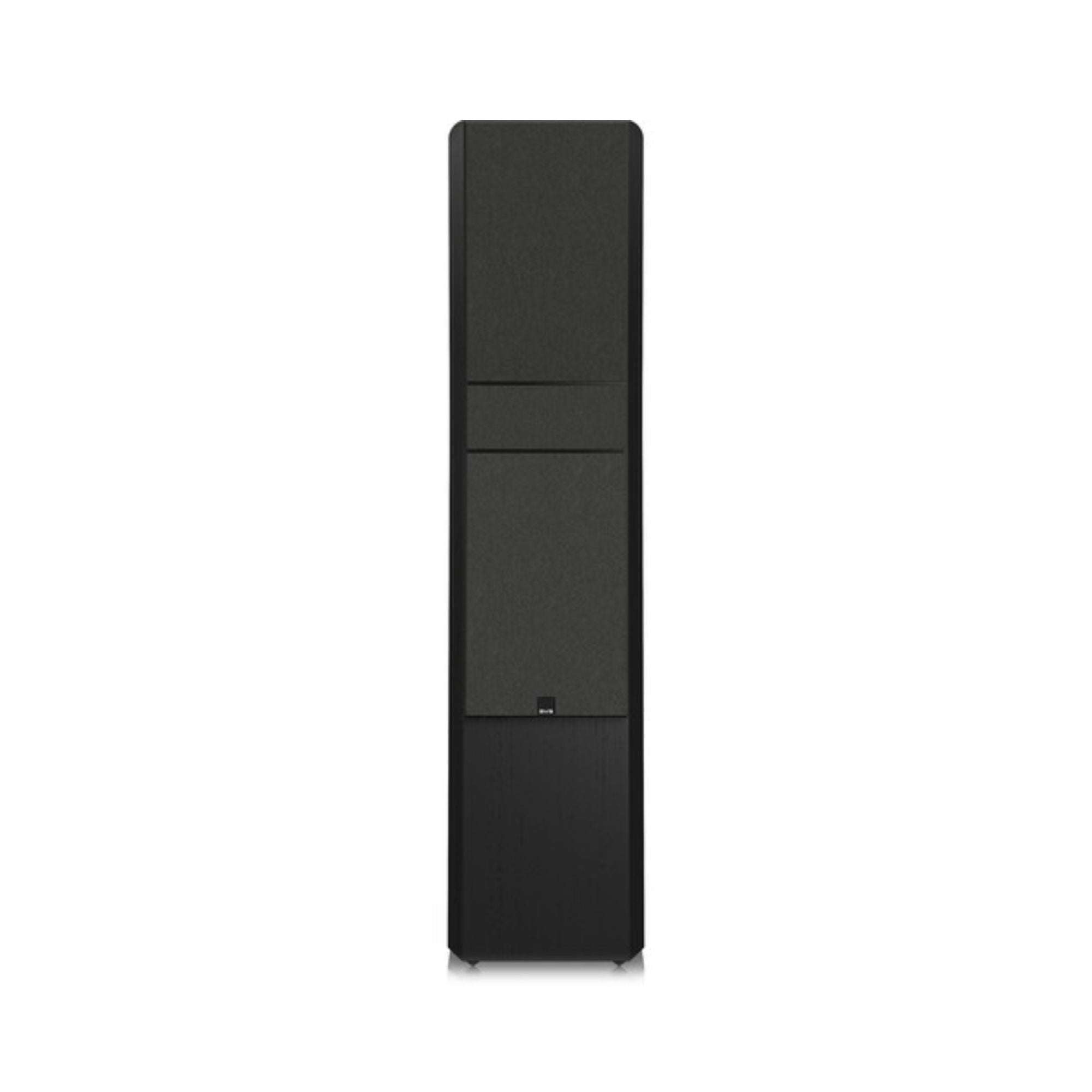

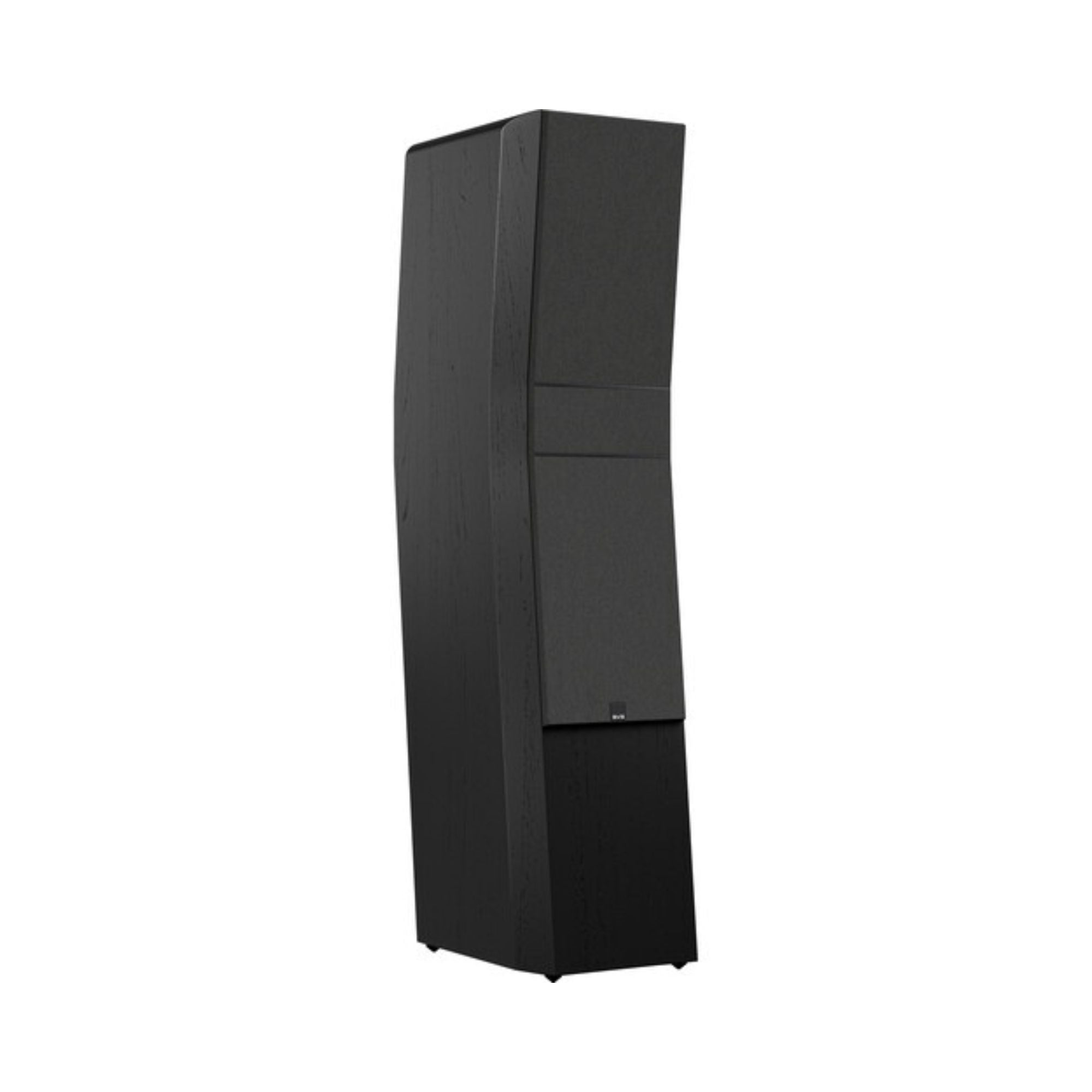

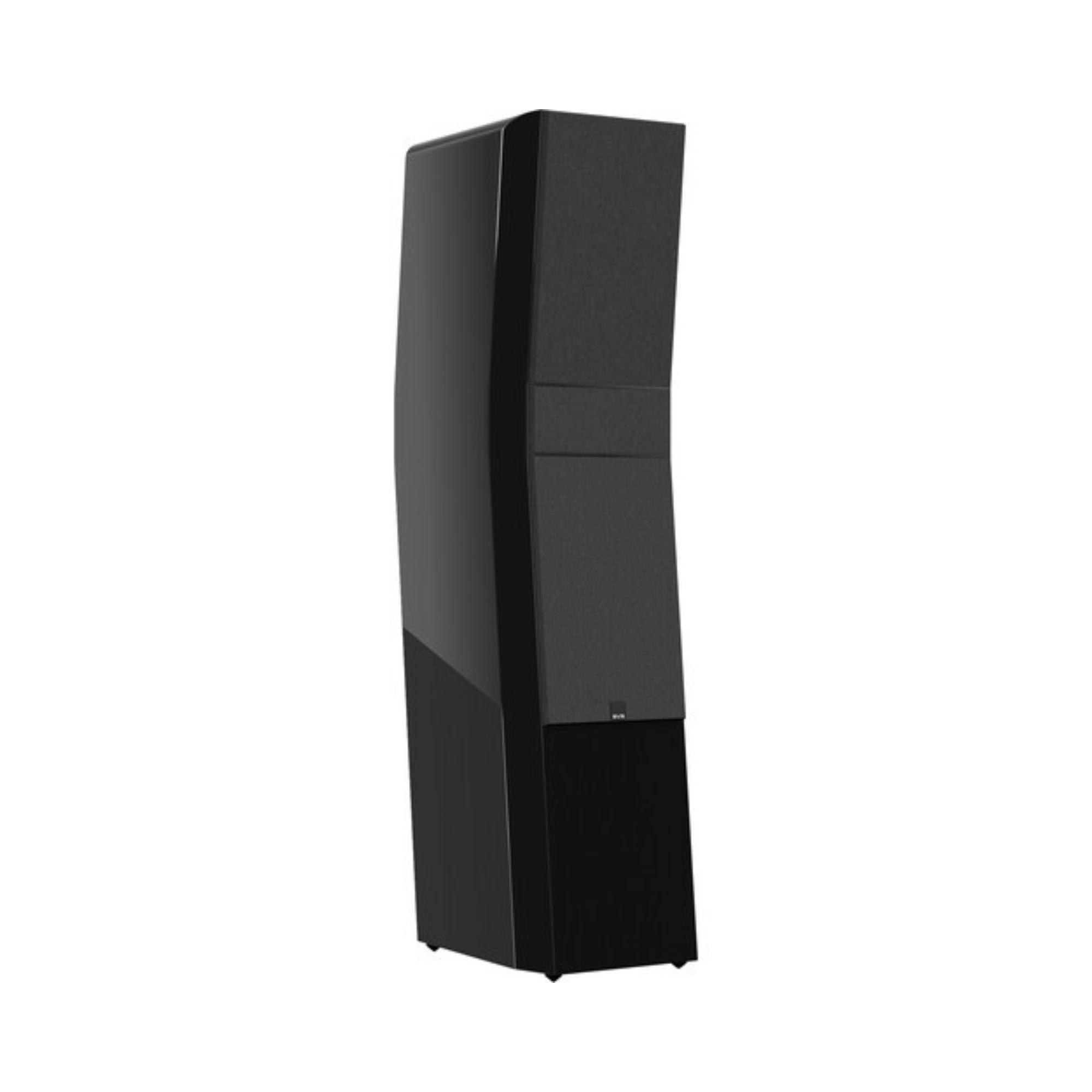

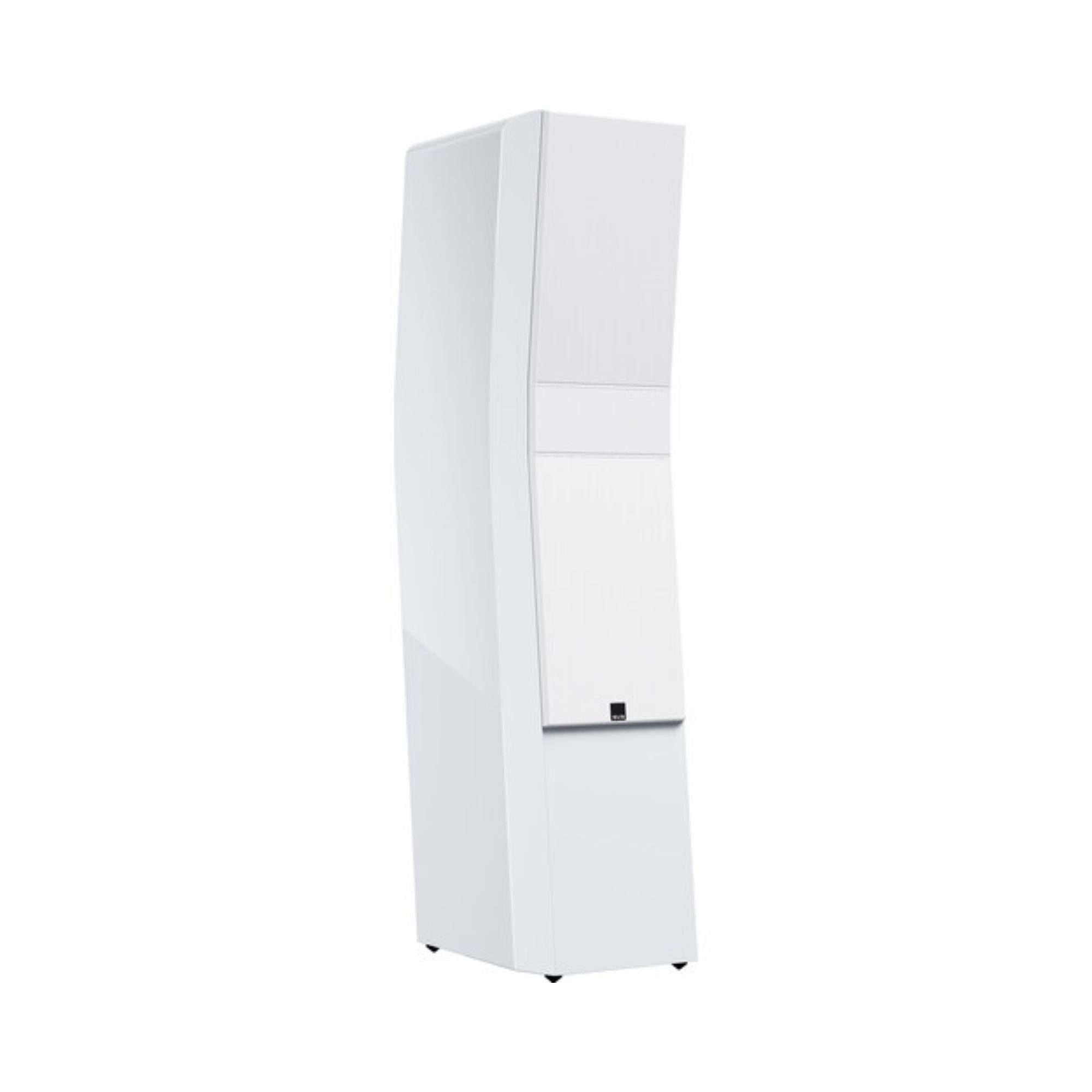

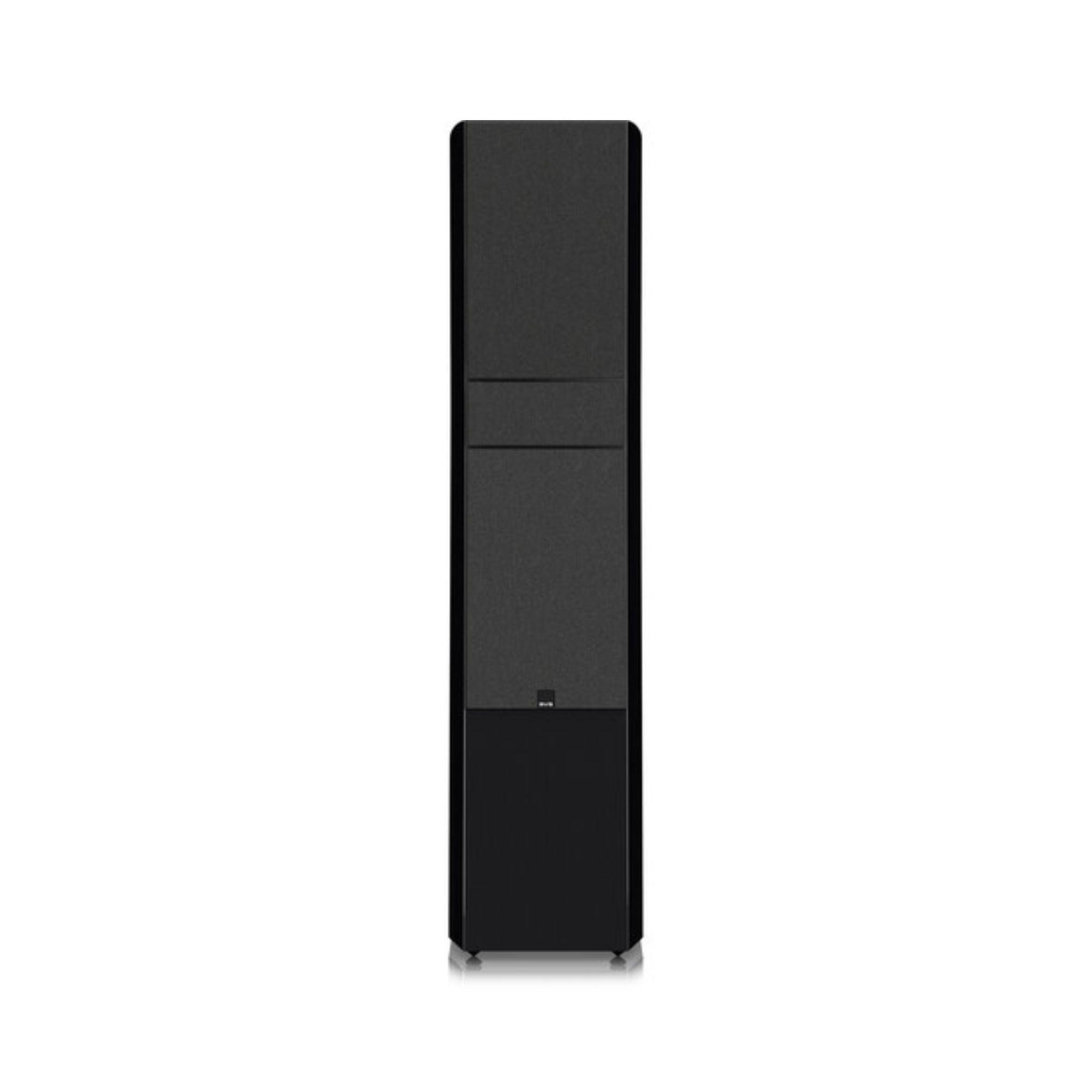

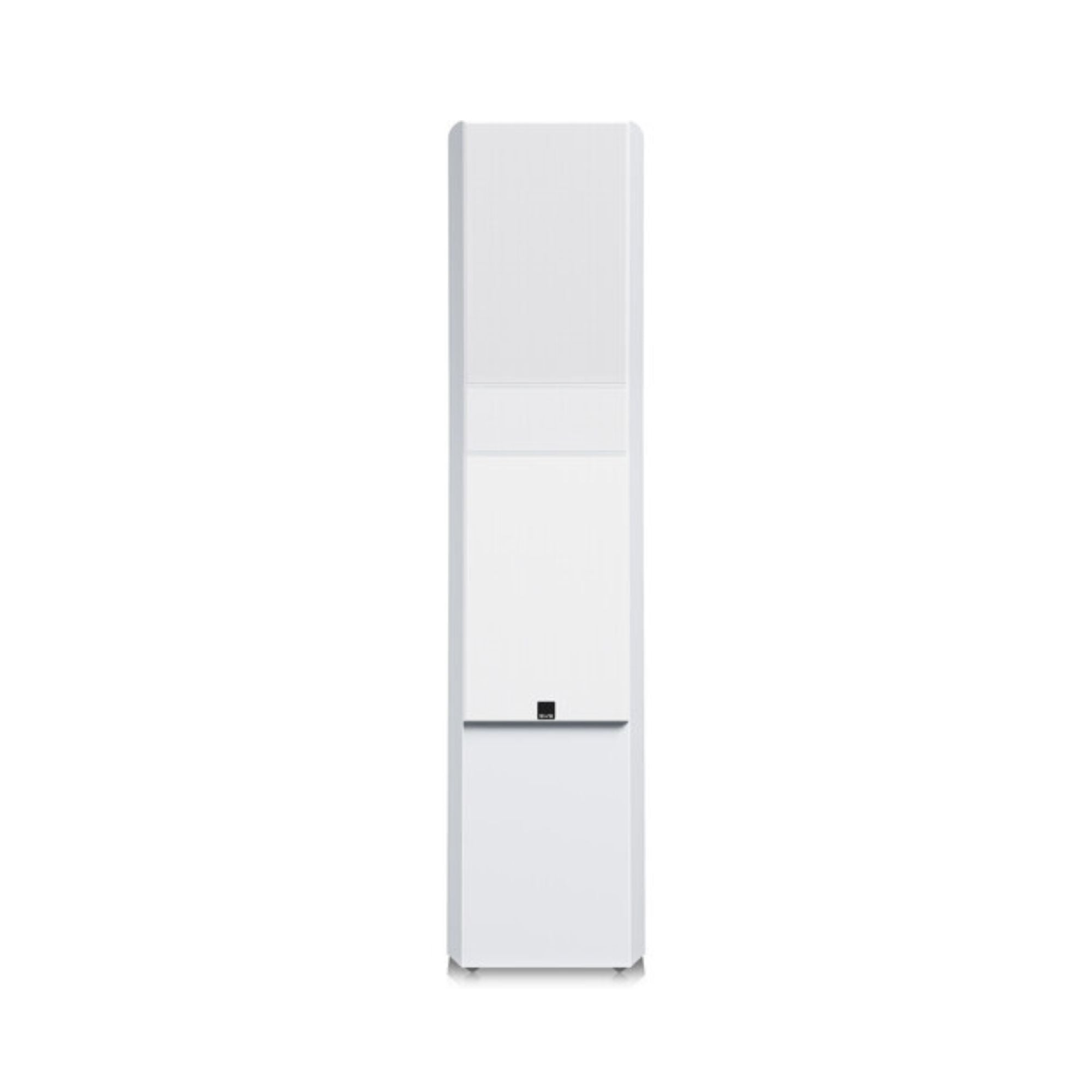

  • Magnetic Cloth Grille

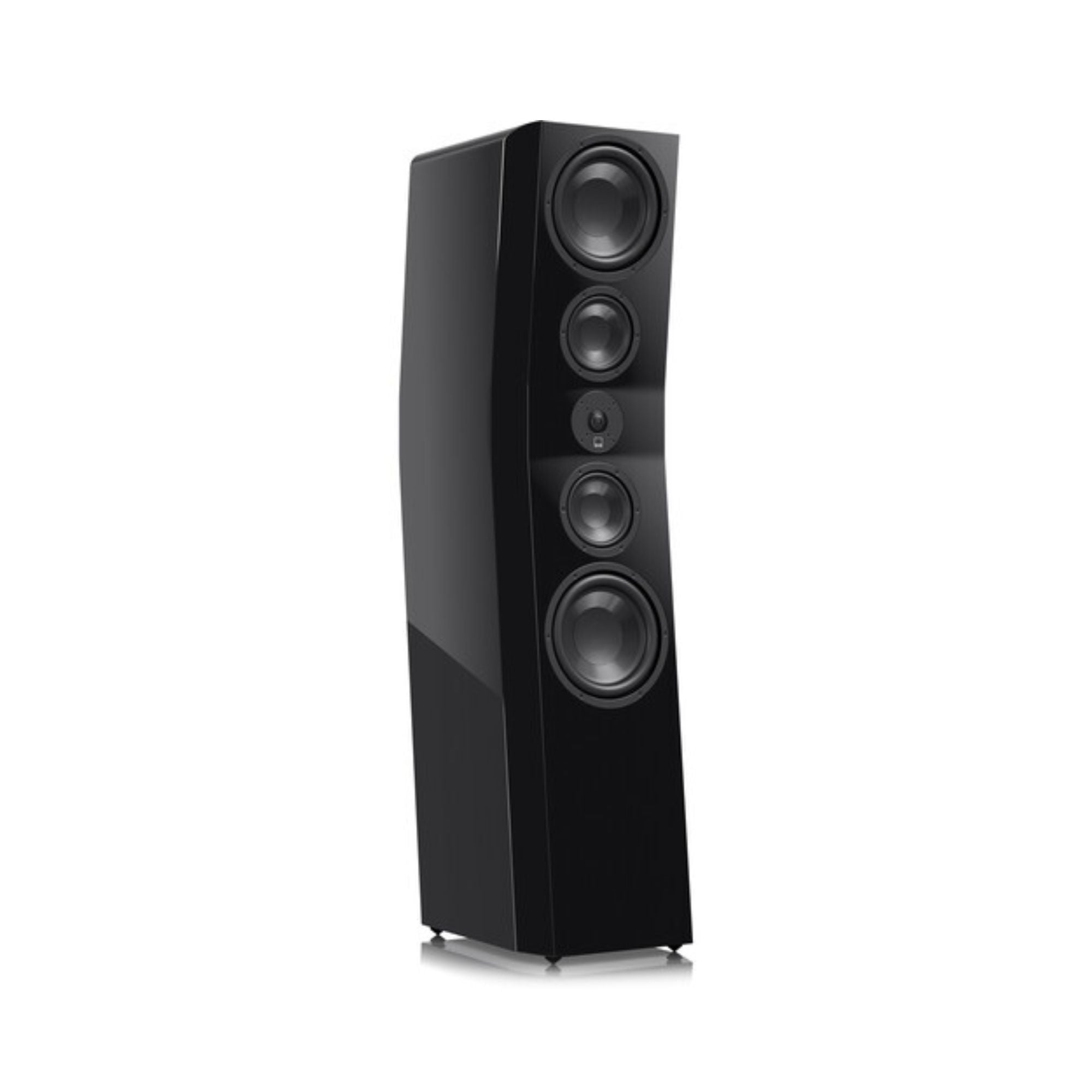

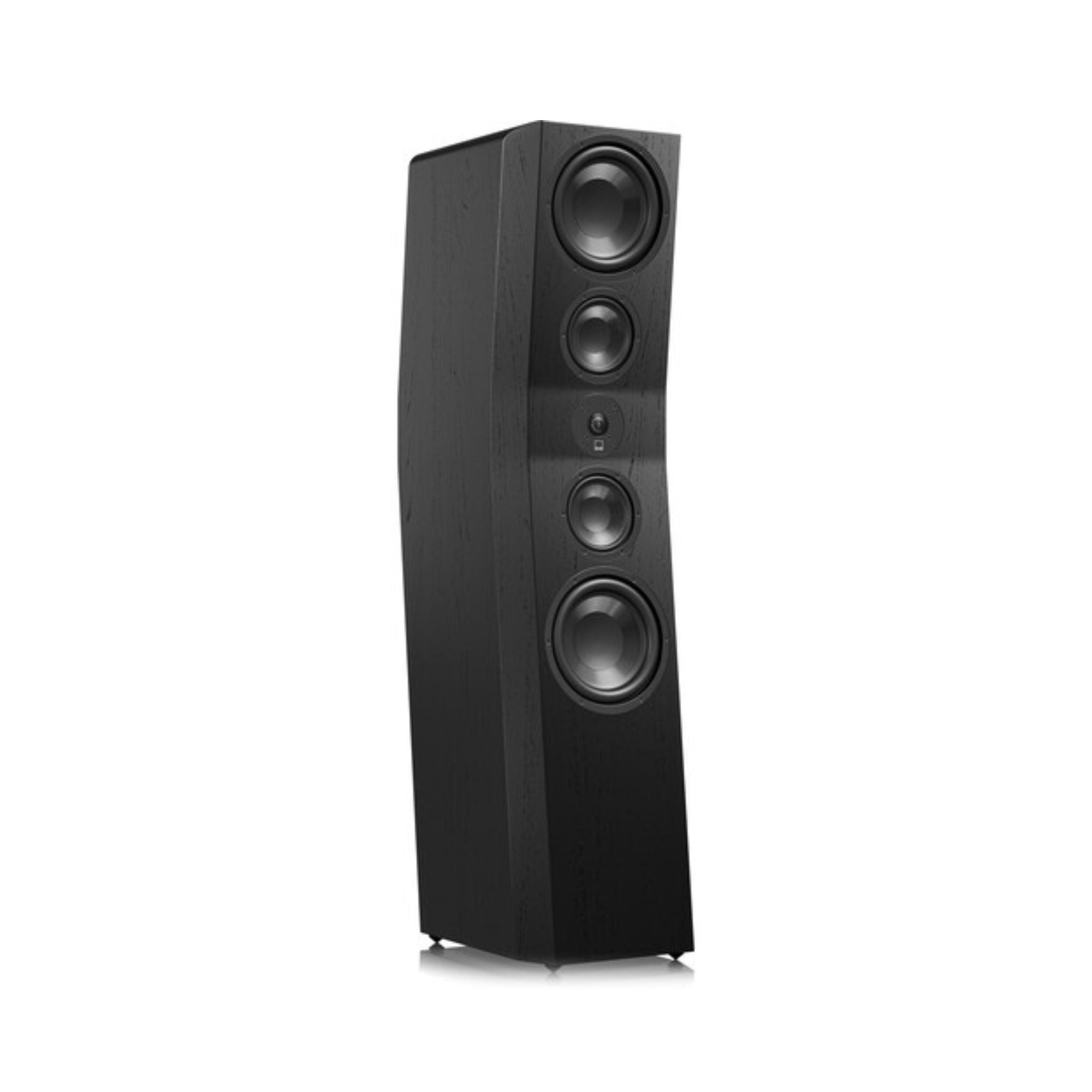

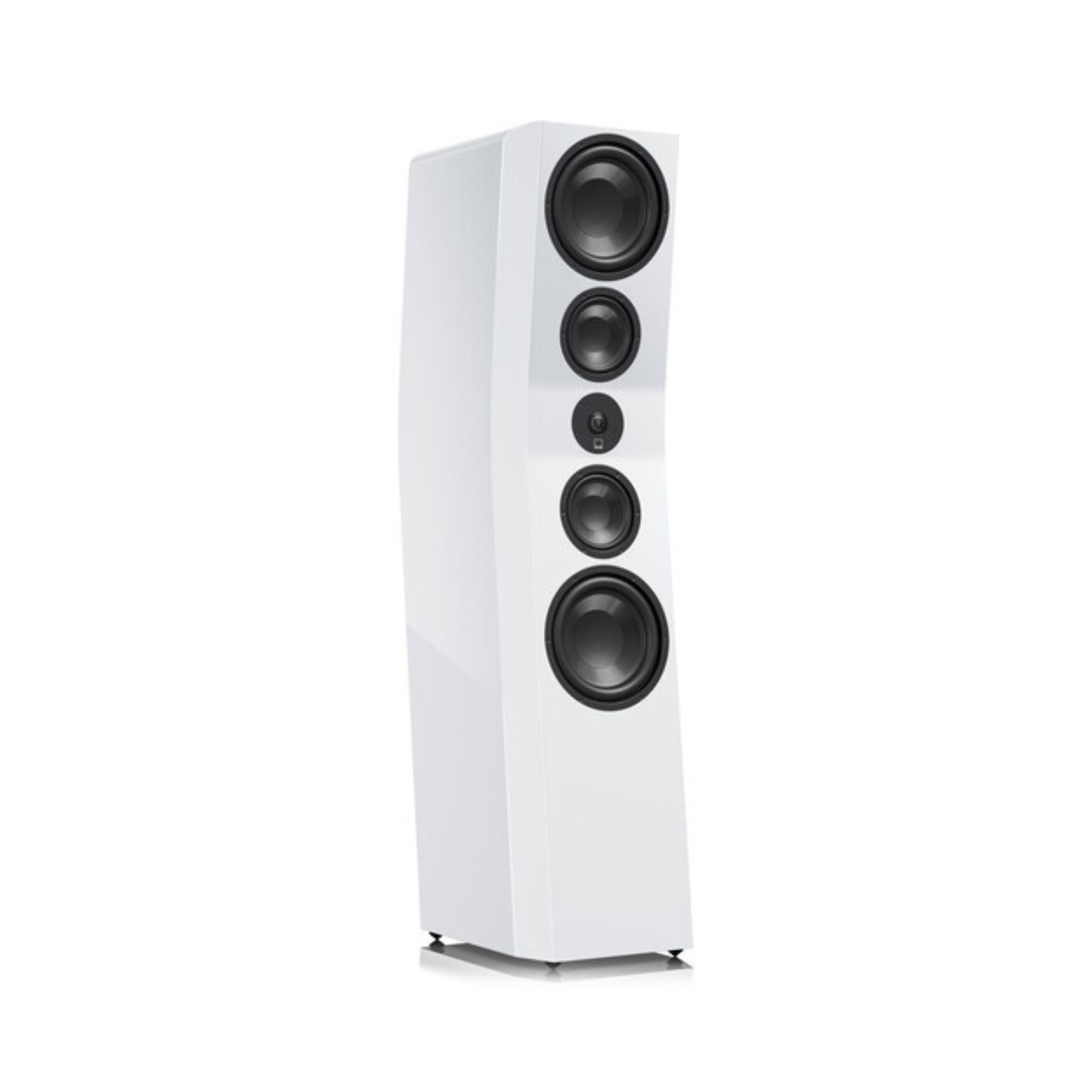

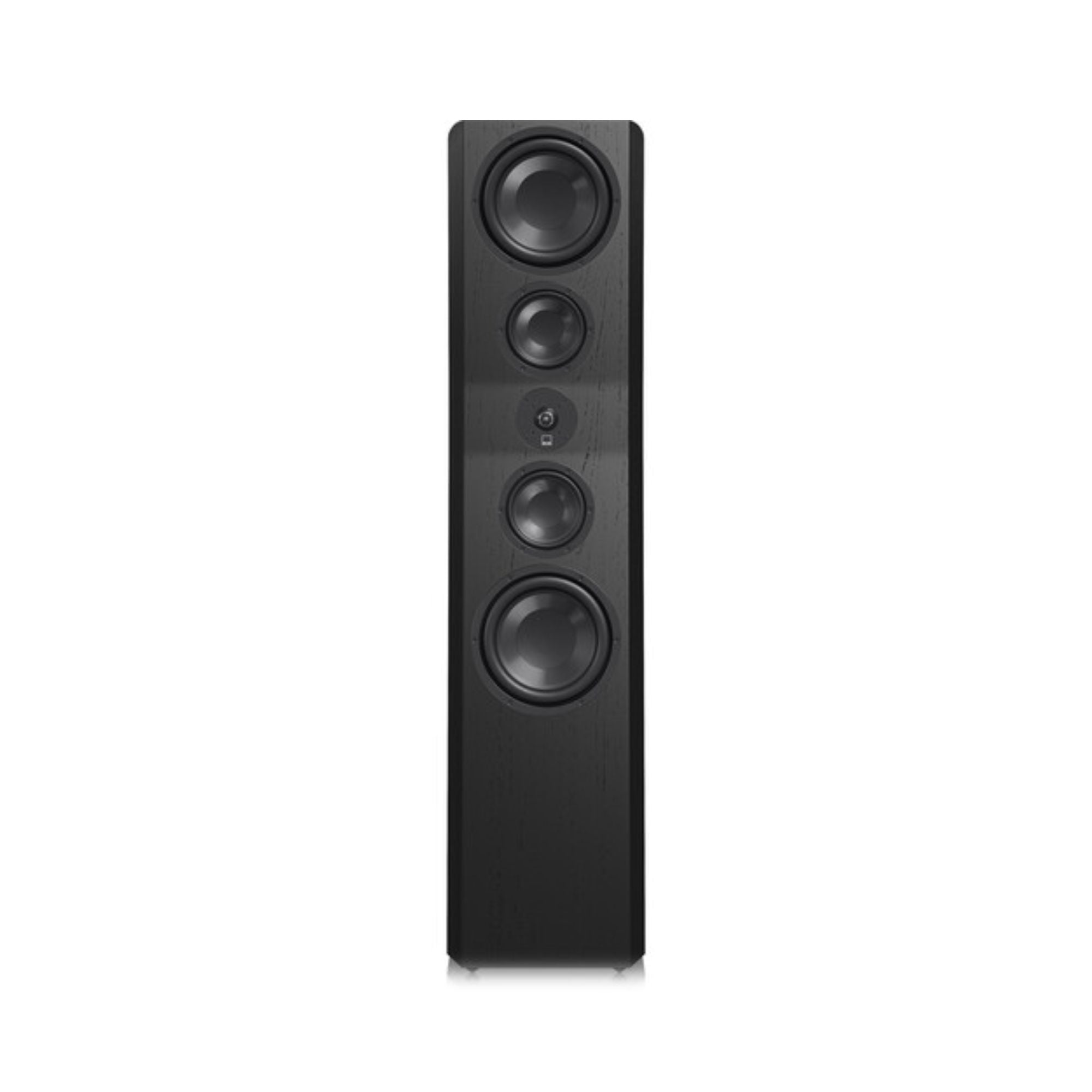

Experience accurate and immersive sound with the Ultra Evolution Pinnacle 3-Way Floor-Standing Speaker in piano gloss black from SVS. The Ultra Evolution Pinnacle is a 3-way tower speaker consisting of seven total drivers in a time-aligned, rear-ported, bass-reflex cabinet. This speaker represents the culmination of SVS engineering, designed to stand toe-to-toe with some of the world's finest speakers.

The Pinnacle includes a 1" Diamond Coated Tweeter with Organic Cell Lattice Diffuser for clear highs and smooth off-axis response, two 5.25" glass fiber composite midrange drivers to render stunning dynamics with a broad soundstage, and four 8" glass fiber woofers in a Force Balanced array to deliver deep, potent, and accurate bass. The cabinet's chamfered front baffle and time-aligned, flush-mounted drivers reduce edge diffraction and improve off-axis high-frequency response. Adjustable elastomer feet and metal spikes are provided for level placement on any surface.

Acoustically Centered Time Alignment Cabinet Architecture

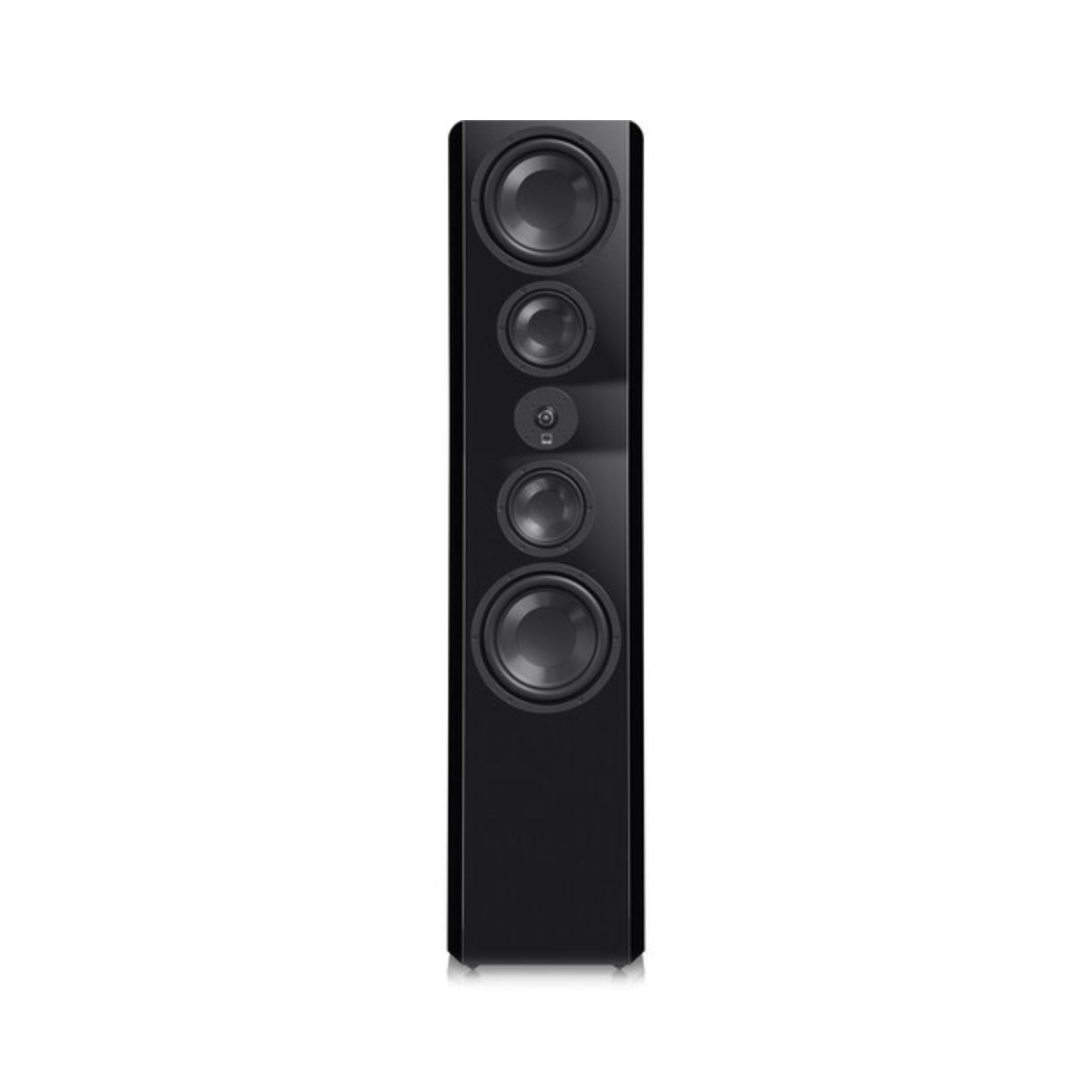

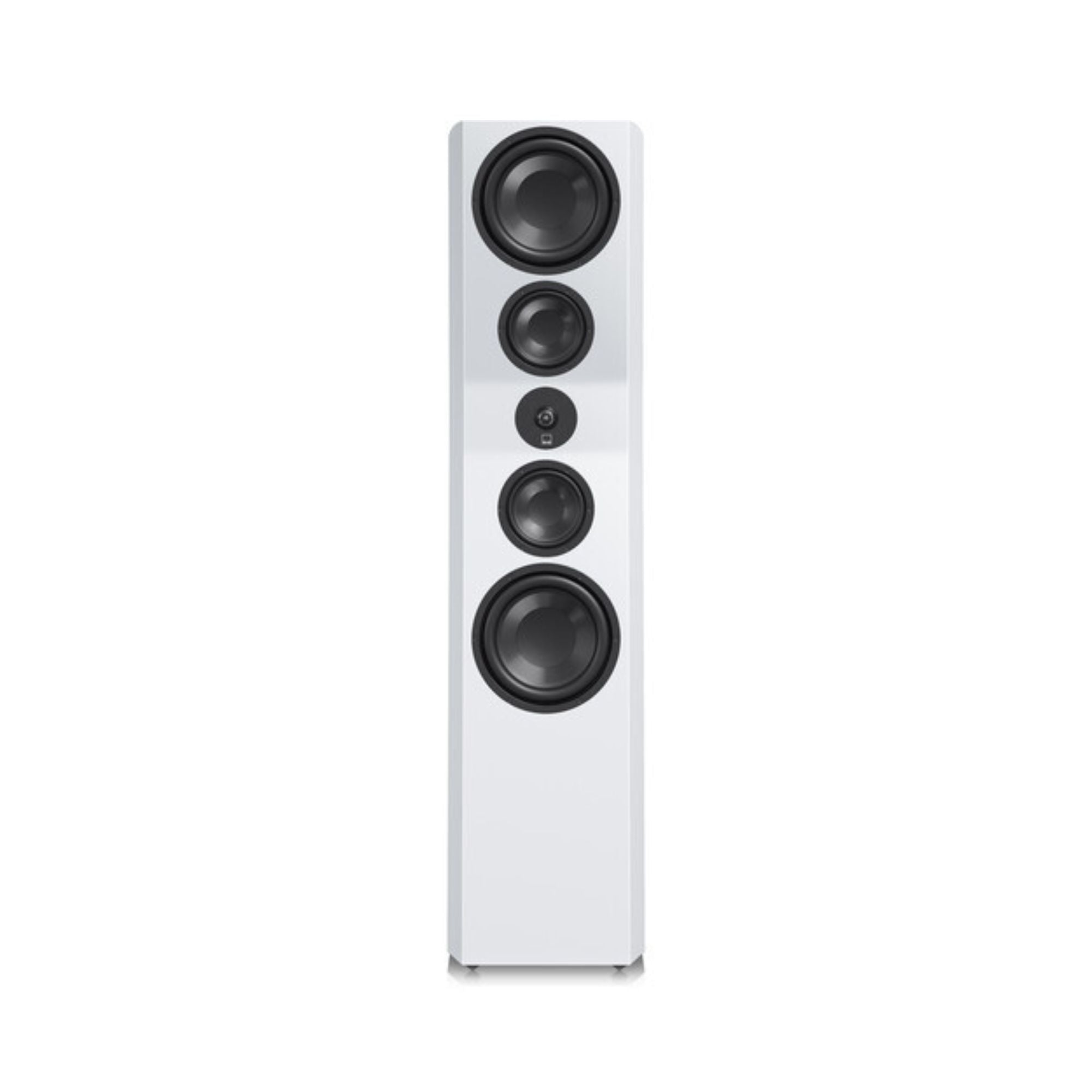

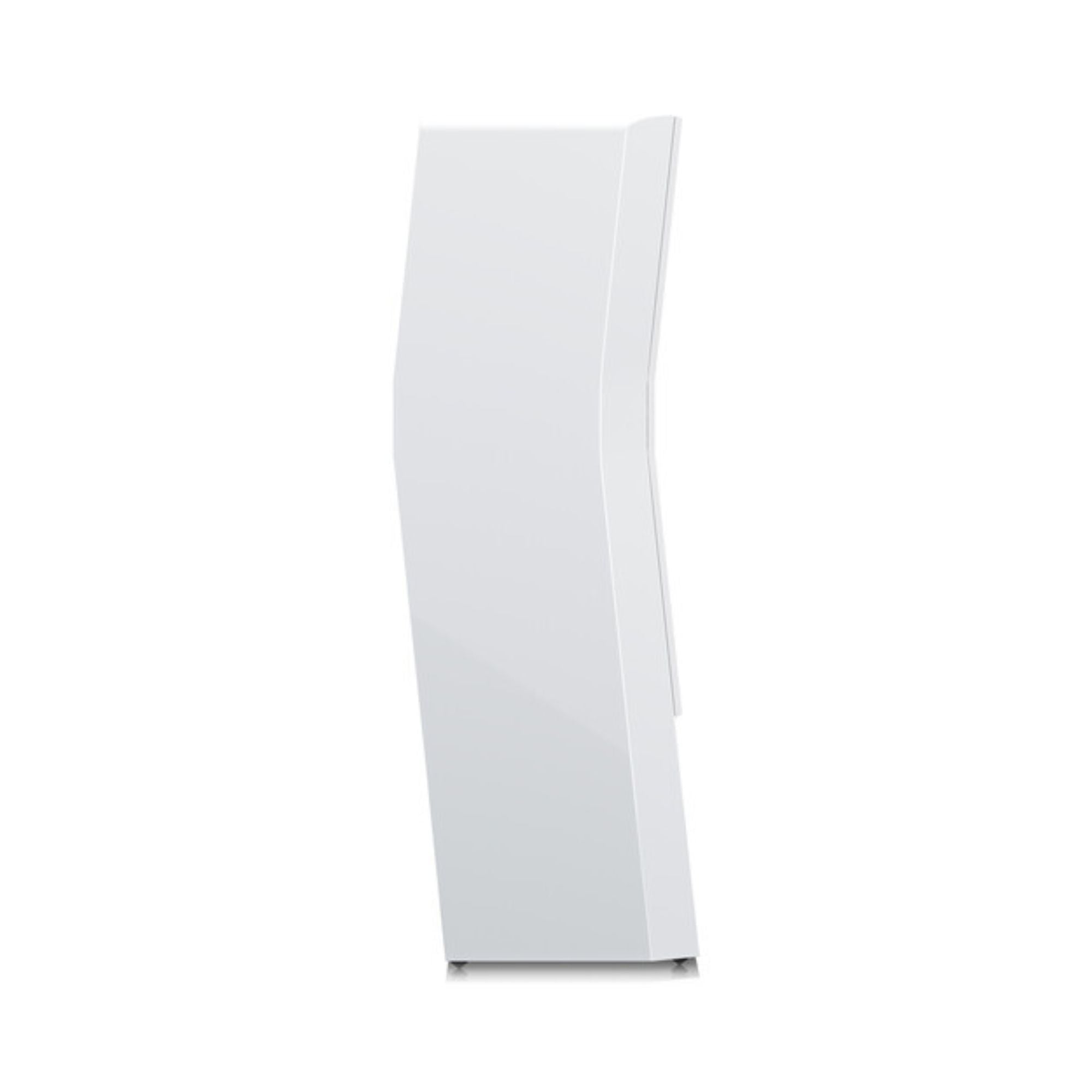

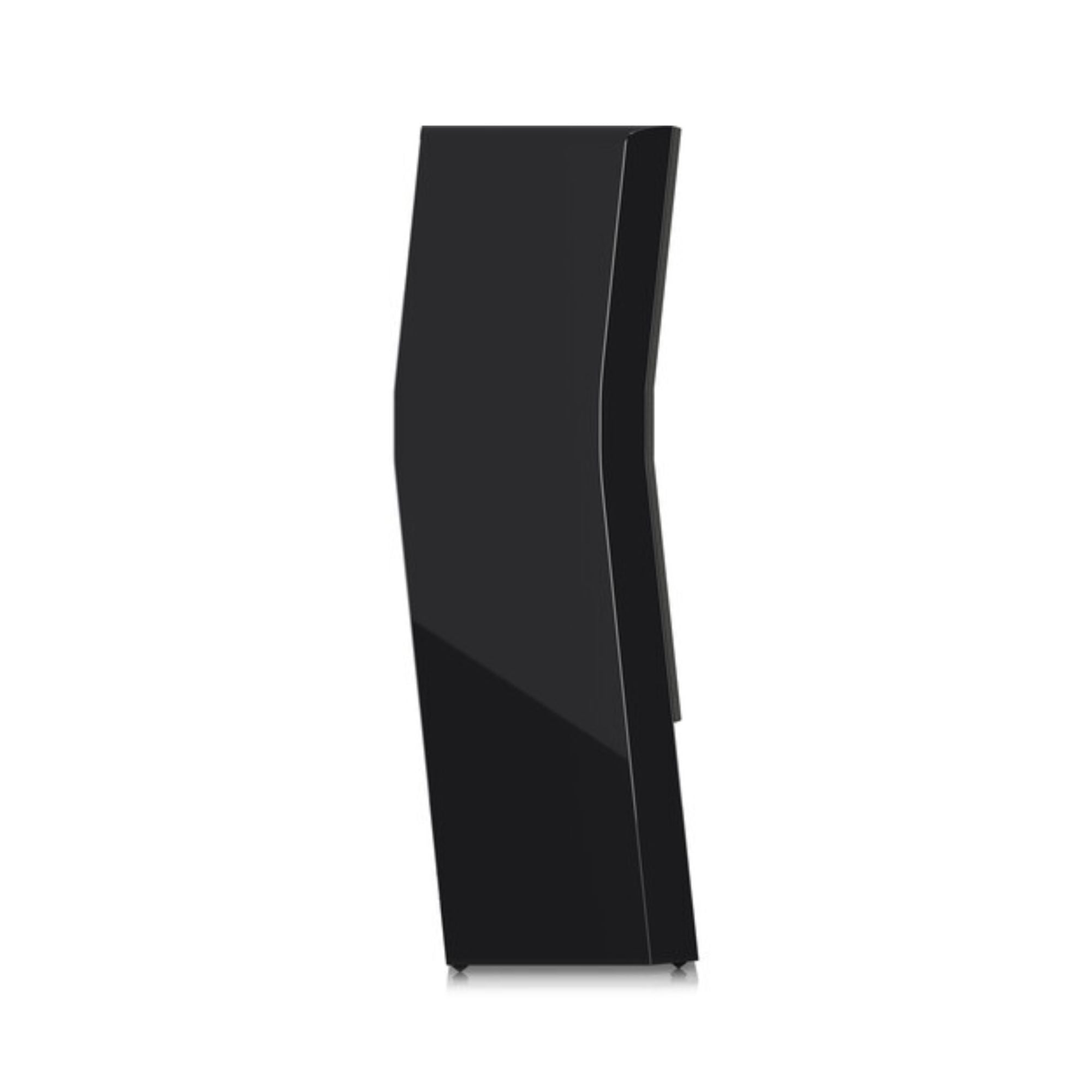

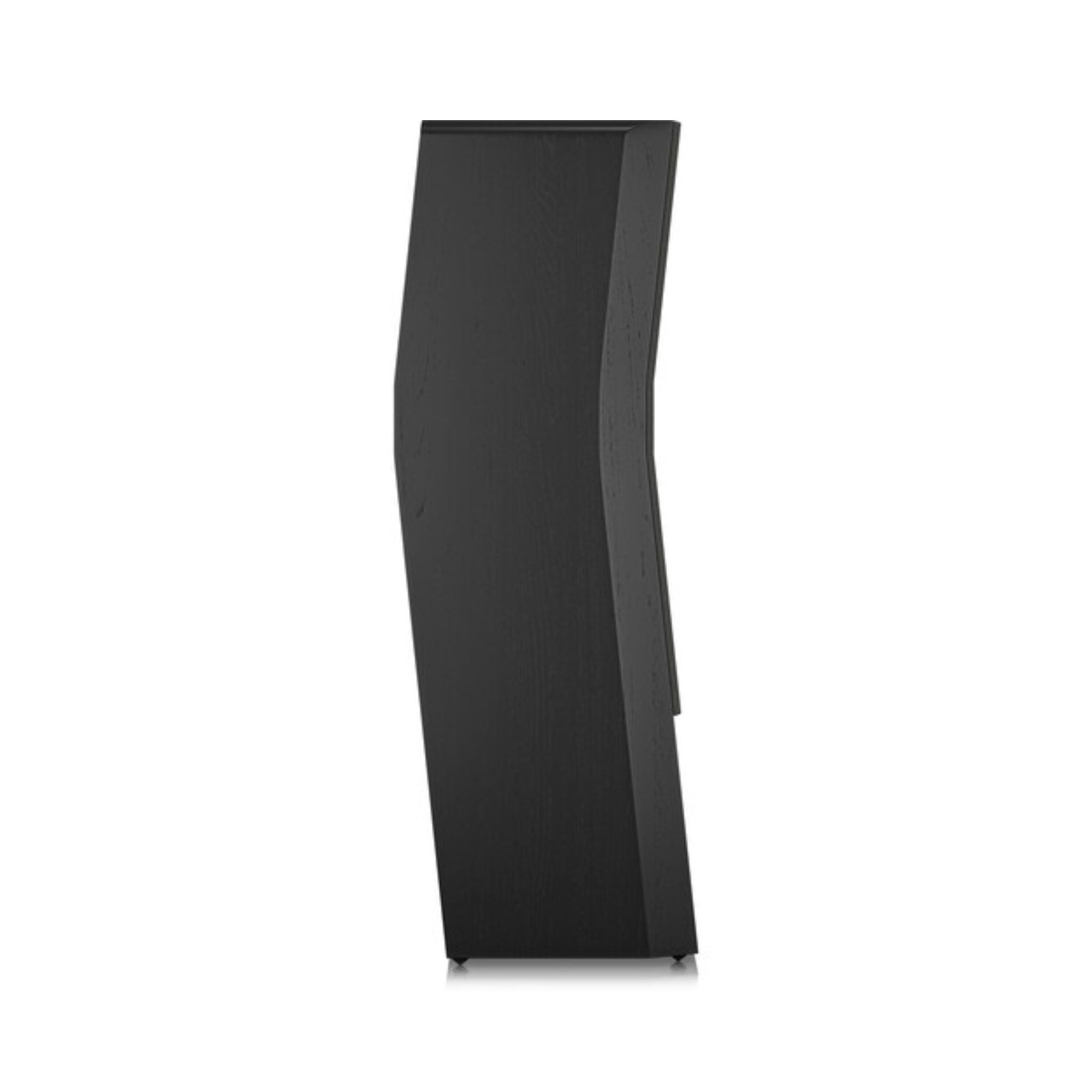

A curved front baffle aligns all drivers on a vertical plane ensuring sound from each driver reaches your ears at the exact same instant. It is able to maximize phase coherence with pinpoint accuracy and imaging. Midrange drivers and woofers are positioned above and below the tweeter resulting in improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage.

Diamond Coated Aluminum Dome Tweeter

Through a process called Vapor Deposition, a layer of diamond carbon is applied to the aluminum dome tweeters to vastly improve rigidity and acoustic properties. This breakthrough in material science raises the frequency response well beyond the limits of human hearing resulting in effortless, airy, and clear highs with no measurable distortion. The diamond coating also pushes low frequency extension of the tweeter deeper for more seamless blending with the midrange. An organic cell lattice tweeter diffuser protects the dome and employs semi-random patterns derived from organic cell structures to improve off-axis response and maximize the listening sweet spot.

Quad 8" Glass Fiber Woofers in Force-Balanced Array

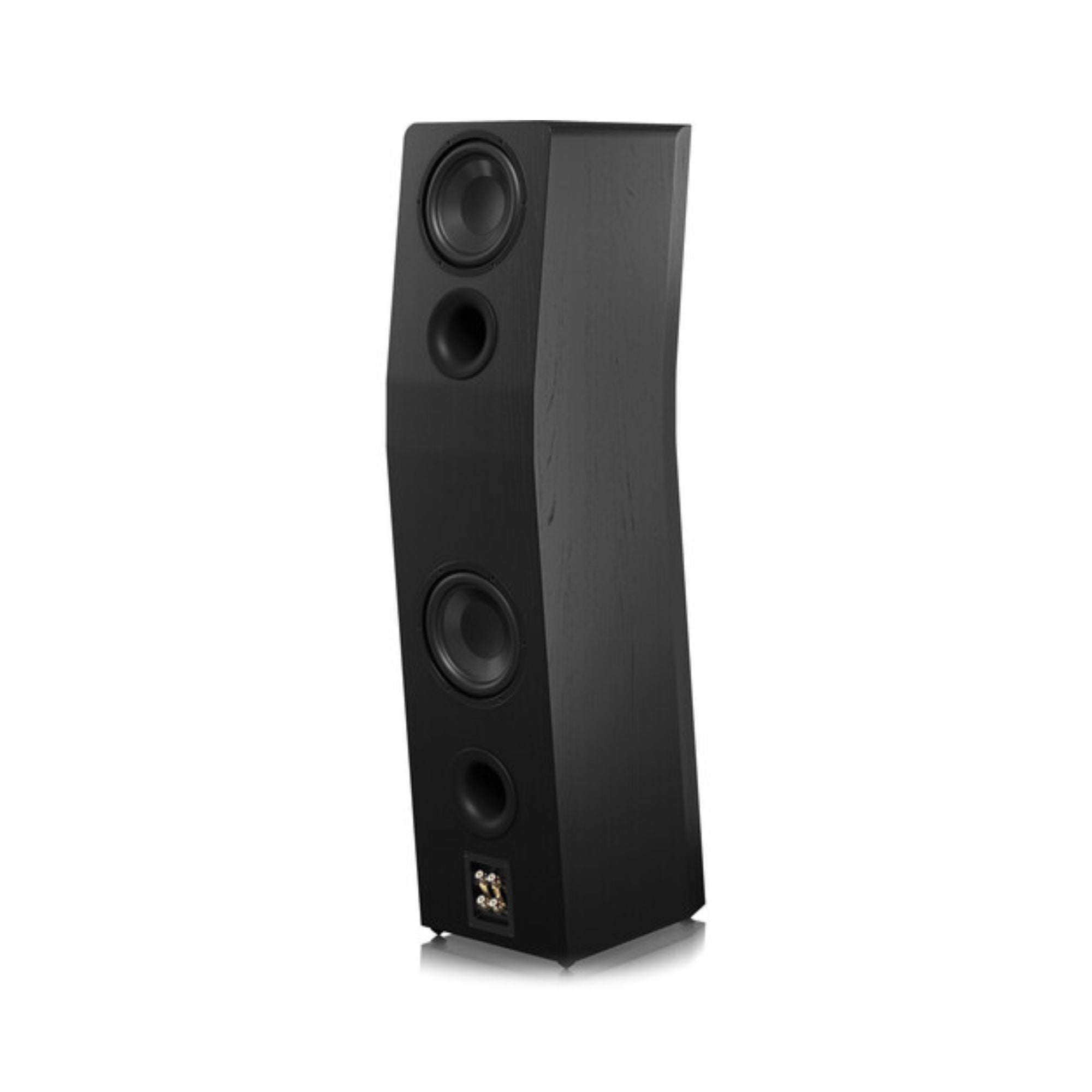

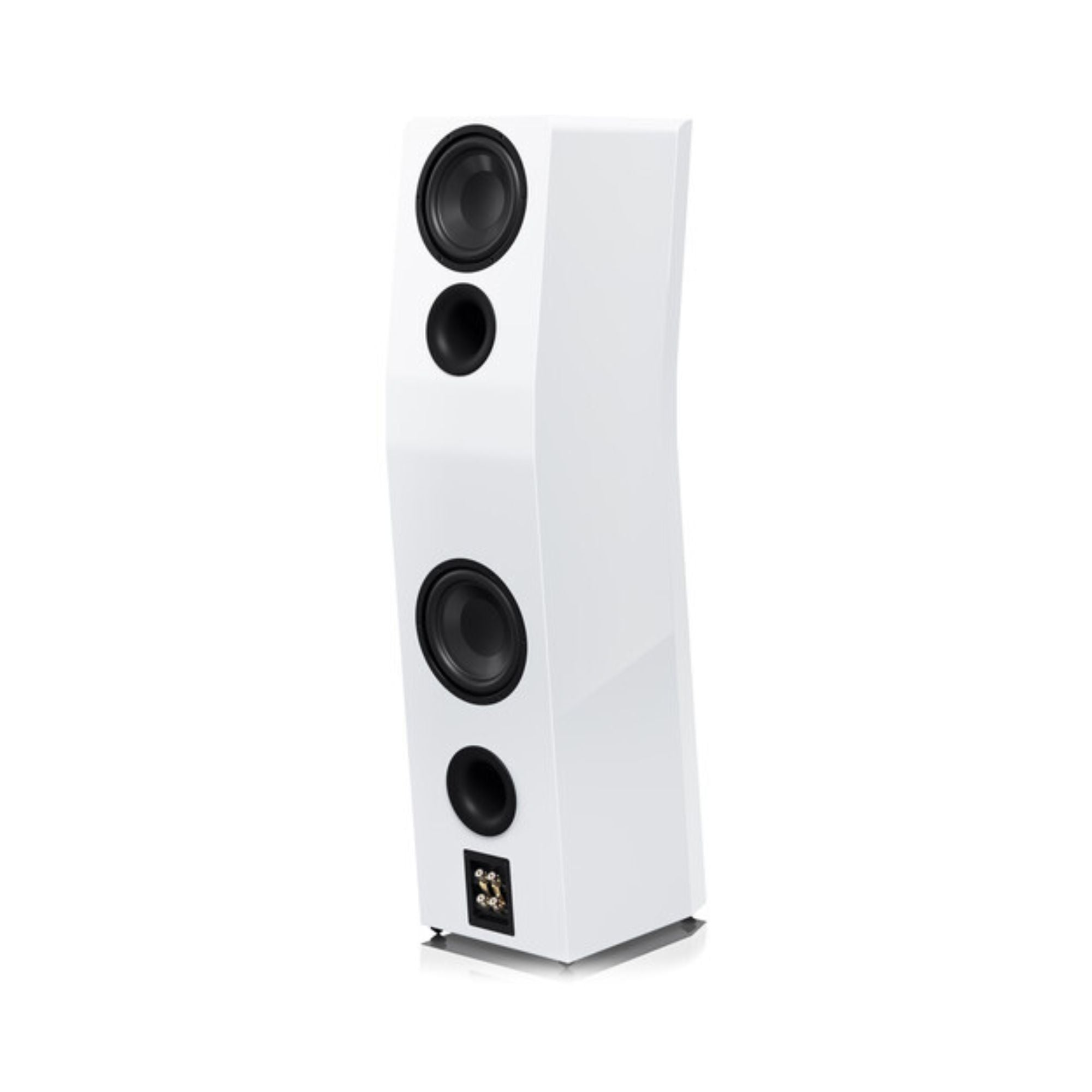

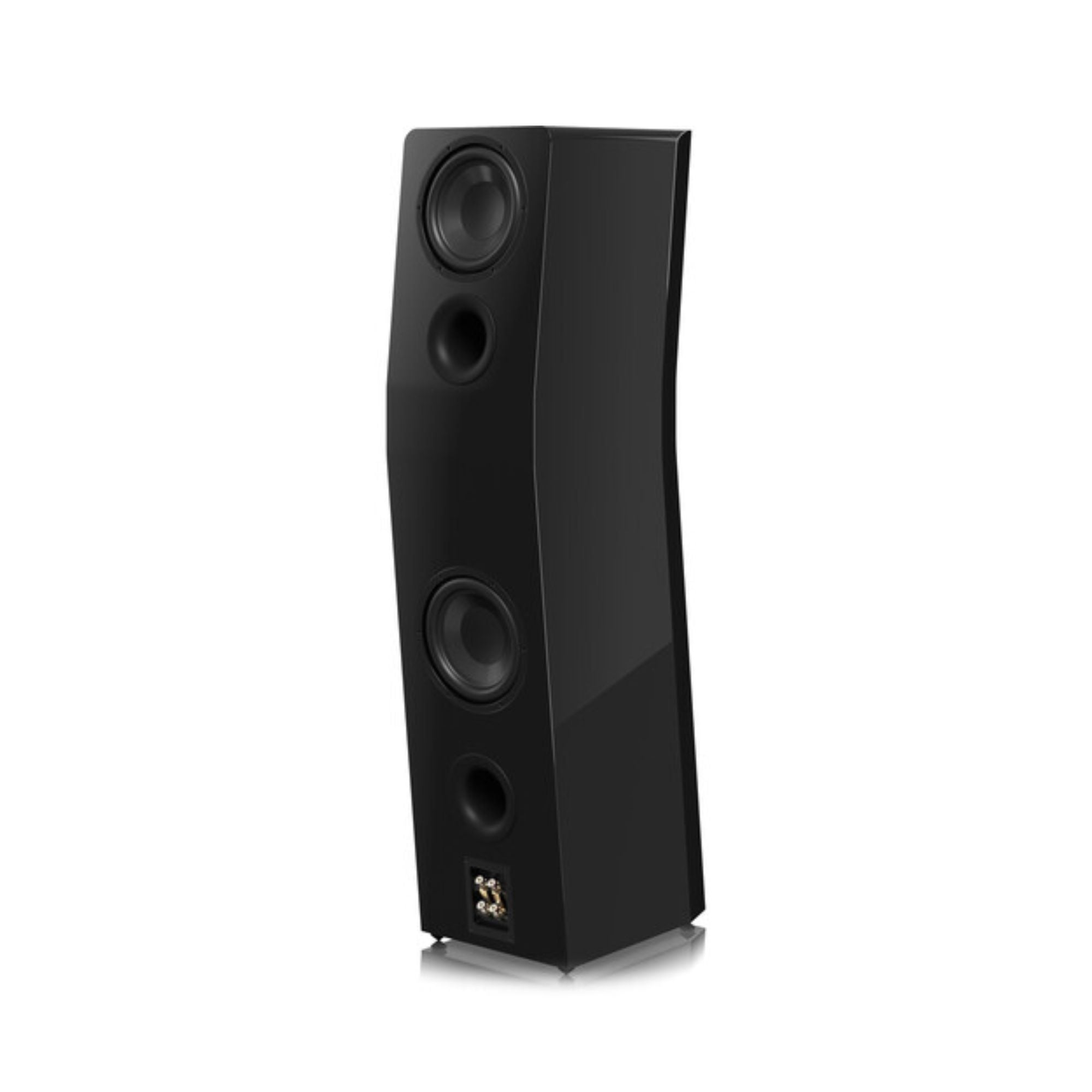

Dual opposing 8" woofers on the top and bottom of the cabinet render effortless low frequency response while addressing room modes with deep, authoritative bass evenly spread throughout the listening area. Mechanical energy from each front-firing woofer is equaled inside the cabinet by the rear-firing woofer, creating a net-zero vibration force to the cabinet and other components, and eliminating mechanical coloration for pure, accurate low frequencies at any playback level.

Attention to Detail

Separate, acoustically tuned internal chambers for the woofers and midrange drivers optimize separation and eliminate any potential for cabinet resonances. An integrated 3-Way crossover with premium components seamlessly blends driver output, providing clarity in musical details. Precision-cast aluminum-alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.

Speaker Configuration

3-Way

Recommended Amplifier Power

20 to 300 W

Bi-Amp Capability

Yes

Drivers

1x 1" / 25.4 mm Aluminum/Carbon Dome Tweeter (Front-Firing)

2x 5.25" / 133.35 mm Glass-Fiber Cone Midrange (Front-Firing)

2x 8" / 203.2 mm Glass-Fiber Cone Woofer (Front-Firing)

2x 8" / 203.2 mm Glass-Fiber Cone Woofer (Rear-Firing)

Passive Radiators

No

Enclosure Type

Bass-Reflex

Ports

2x 3" / , Rear-Firing

Frequency Response

24 Hz to 40 kHz (±3 dB)

Impedance

6 Ohms

Magnetic Shielding

No

Inputs/Outputs

2x 5-Way Binding Post Pair Input

Crossover

High-Pass:

1.8 kHz

Low-Pass:

140 Hz

Sensitivity

88 dB

Color

Piano Gloss Black

Environmental Protection

No

Placement & Mounting Options

Floorstanding (with Included Hardware)

Floor Contacts

Rubber Feet, Metal Spikes (Adjustable)

Grille

Cloth (Removable)

Dimensions

11.8 x 50.2 x 18.1" / 300 x 1275 x 460.7 mm (with Feet, with Grille)

Weight

96.8 lb / 43.9 kg
