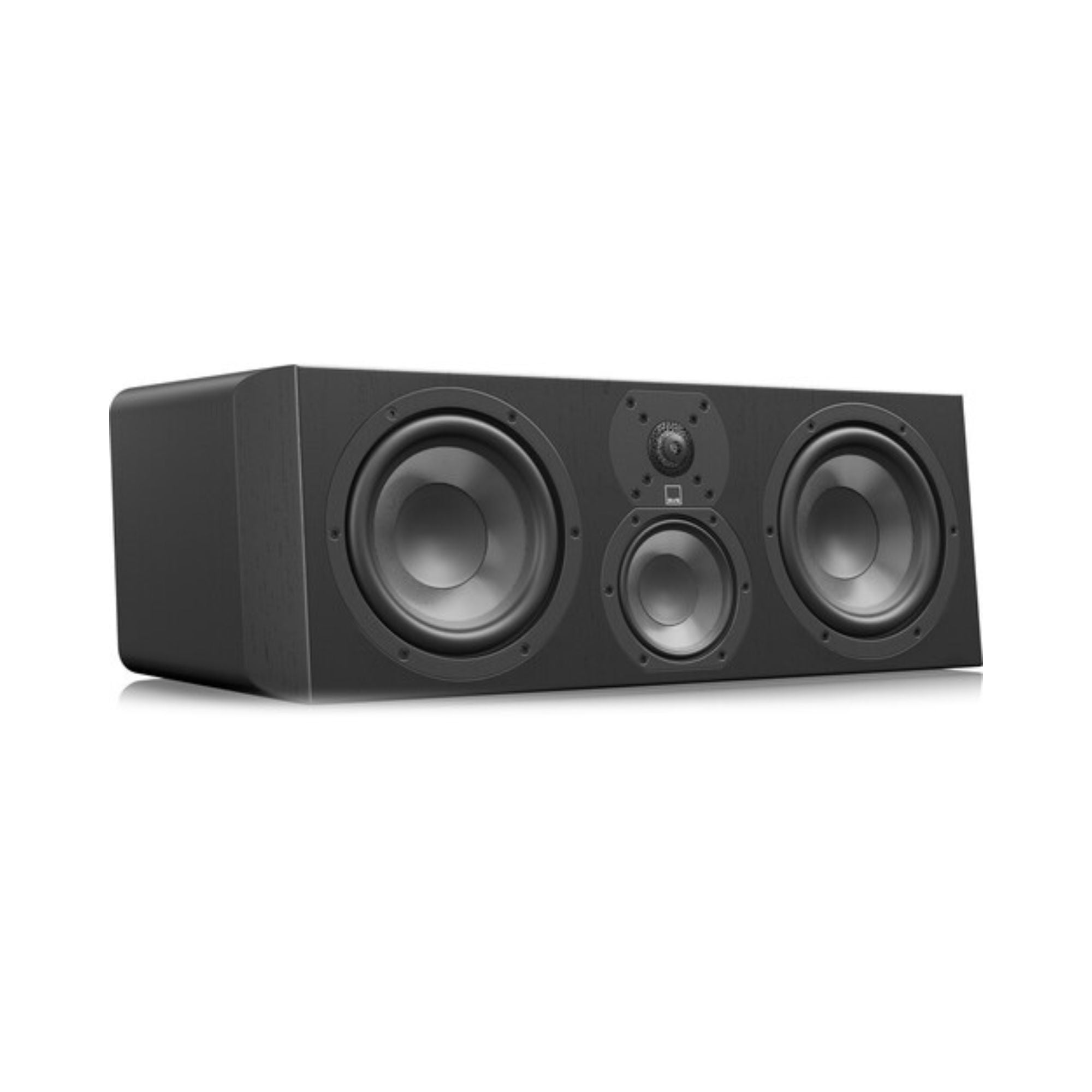

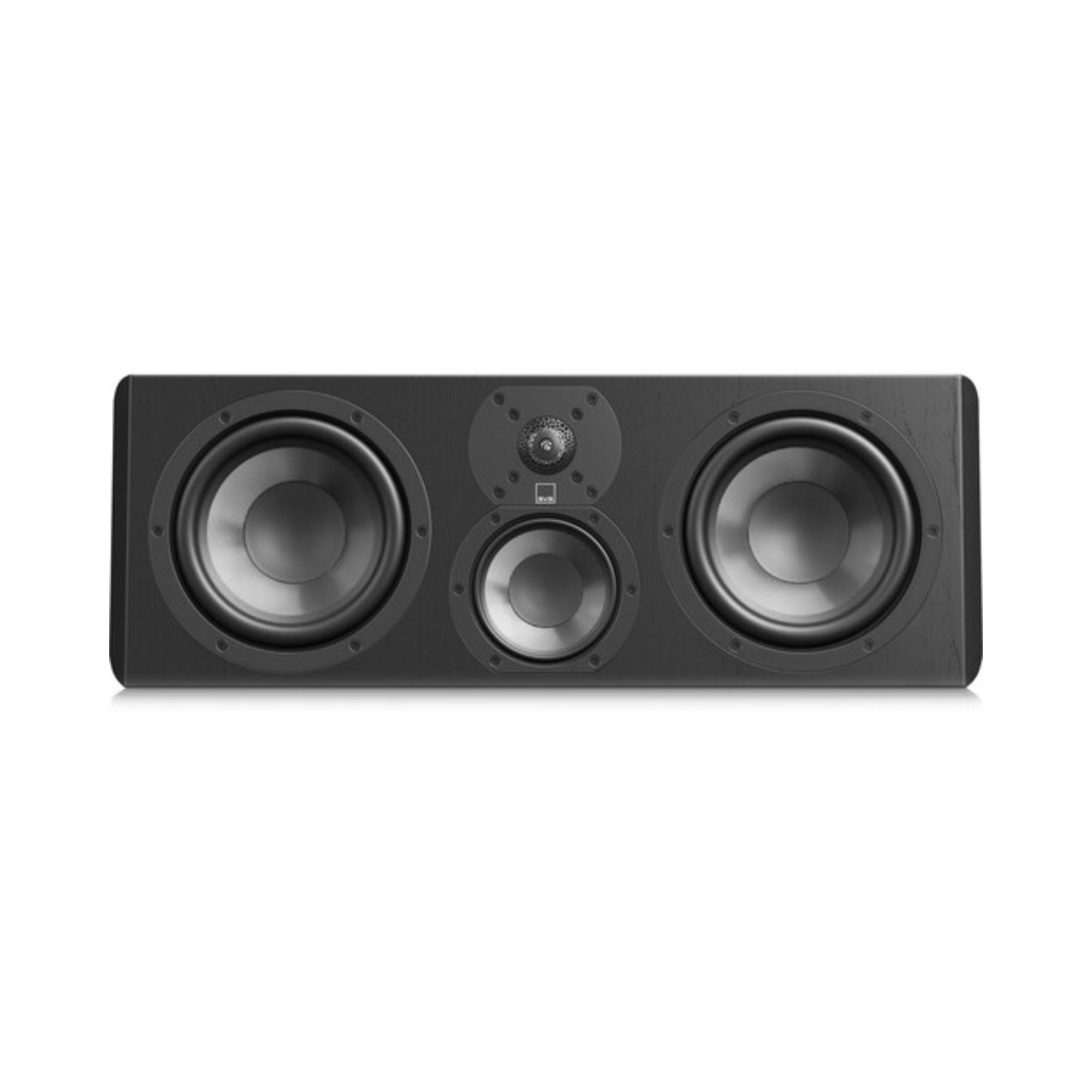

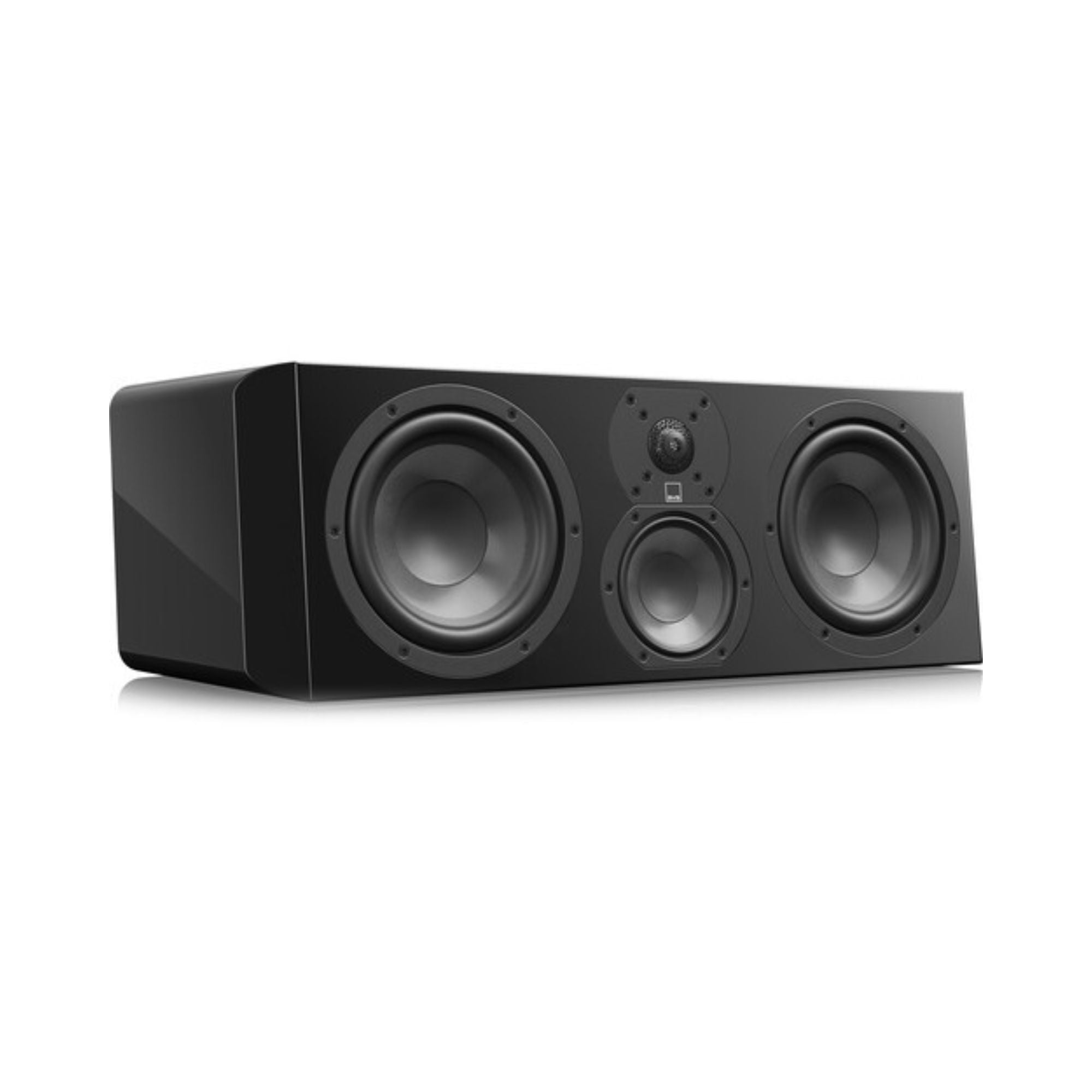

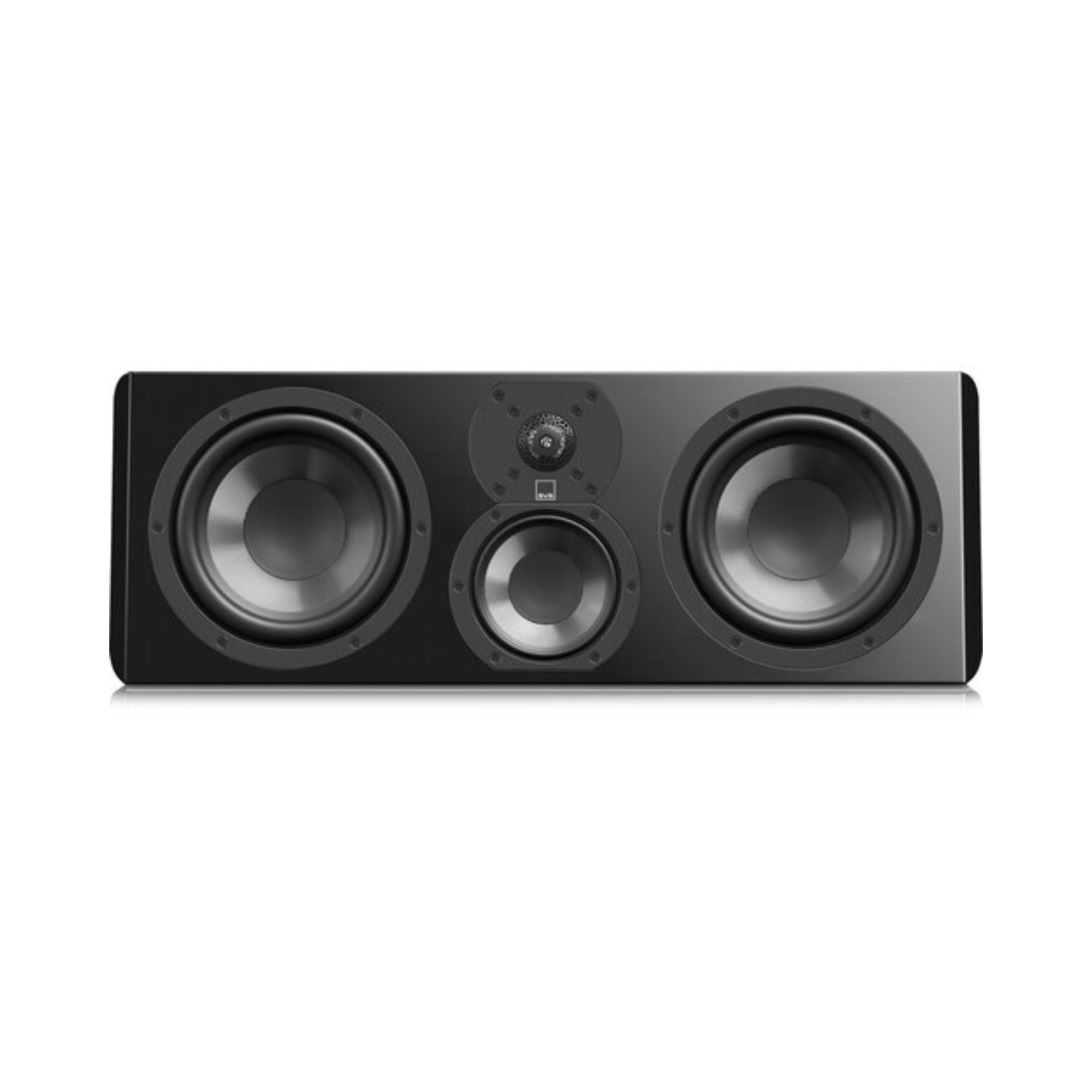

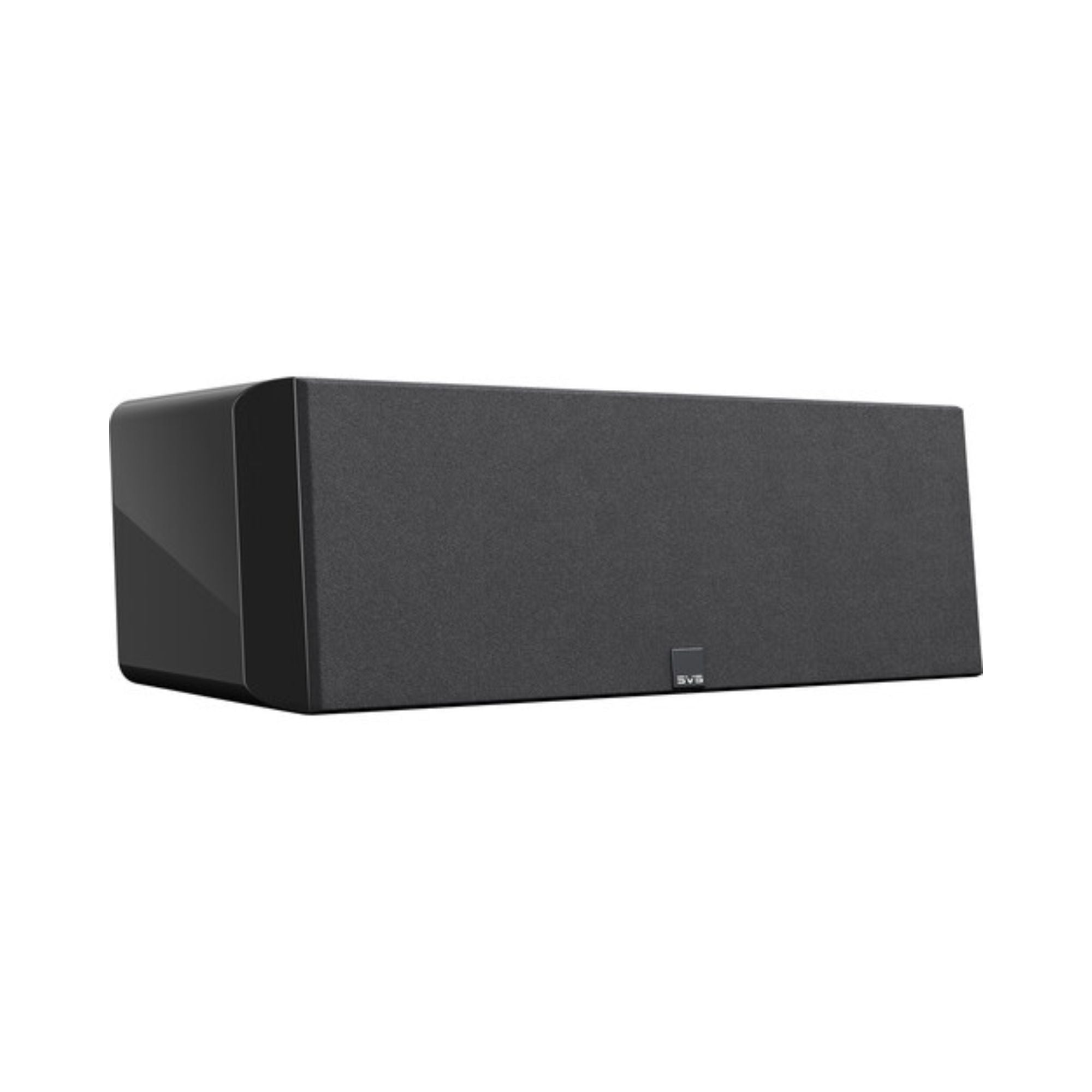

SVS Sound Ultra Evolution - 3-Way Center-Channel Speaker


Color: Piano Gloss Black
*4 - 6 weeks for delivery once ordered
  • Description
  • Specifications
  • Reviews

Key Features

  • 3-Way Center-Channel Design
  • 1" Diamond Coated Tweeter
  • 4.5" Midrange Driver
  • Dual 6.5" Woofers
  • Dual Gold-Plated 5-Way Binding Posts

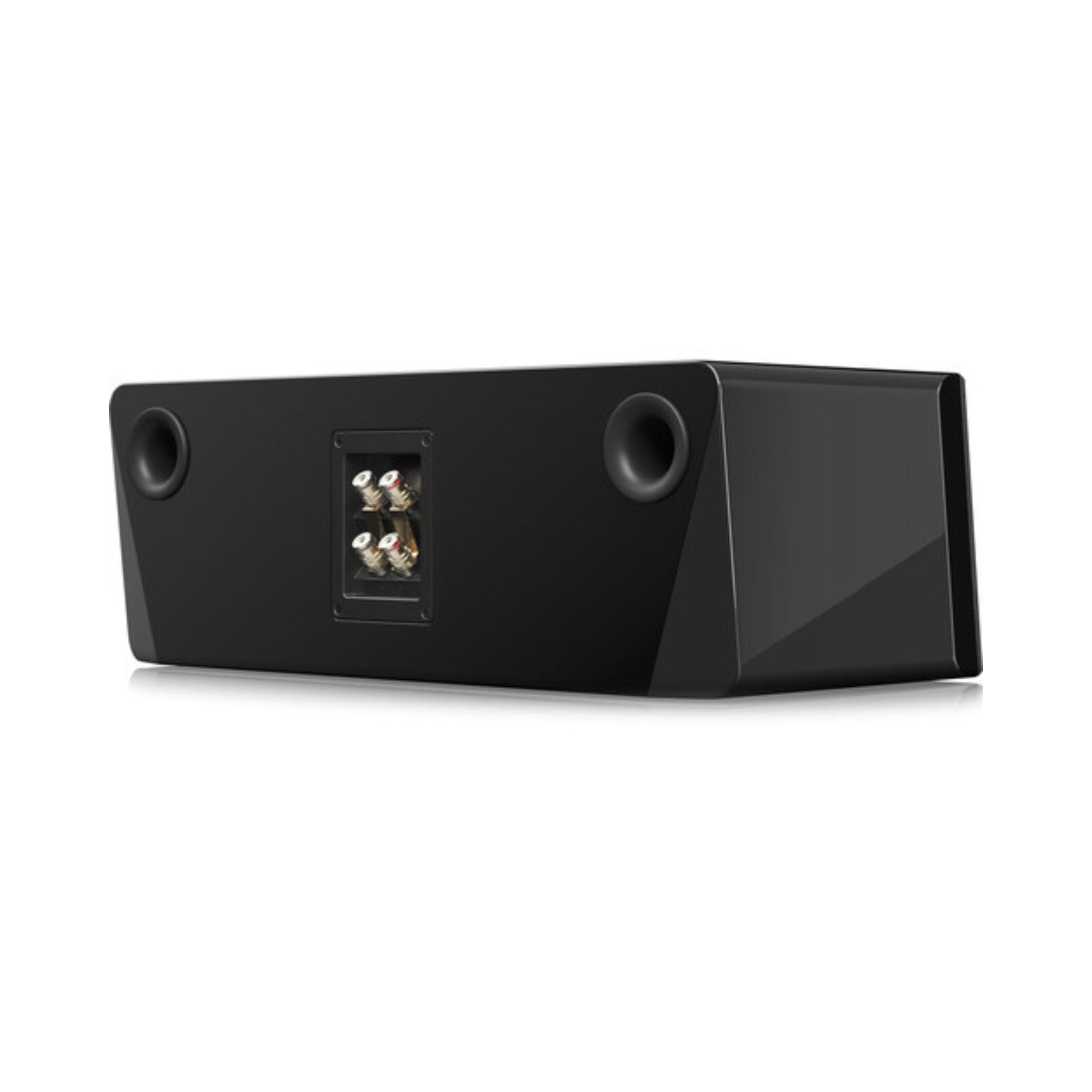

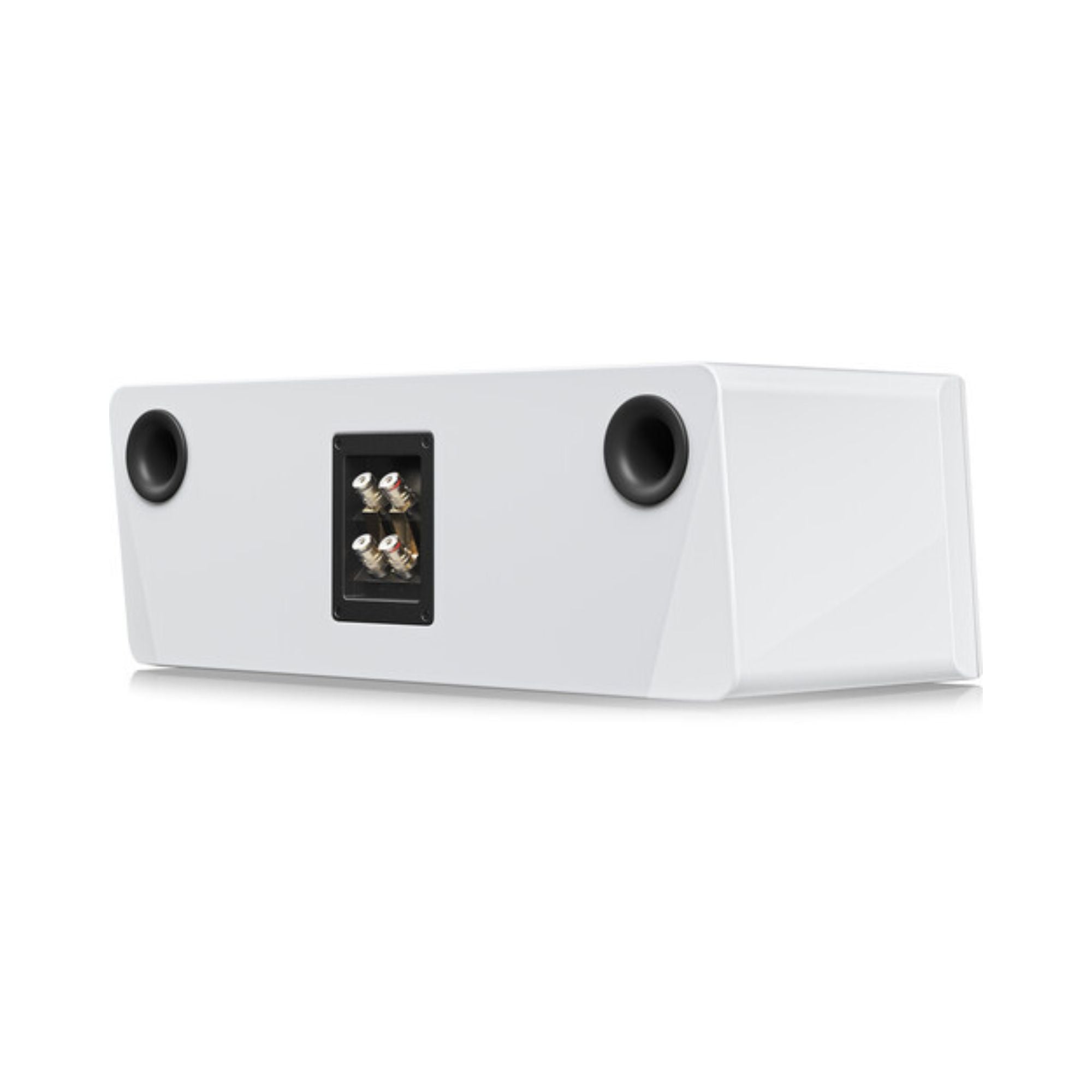

  • Dual 1.6" Wide-Flared Rear-Firing Ports
  • Rubber Feet Included

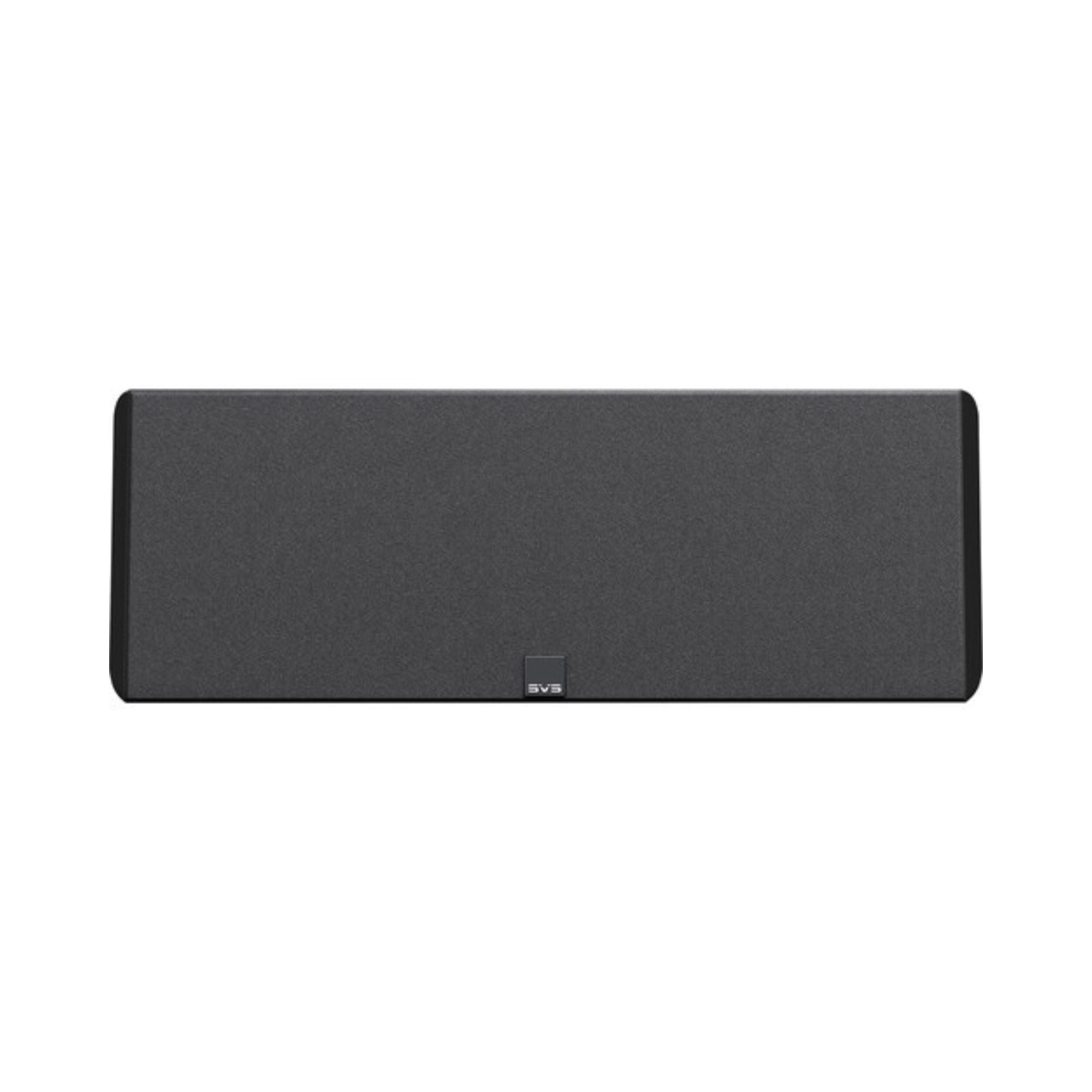

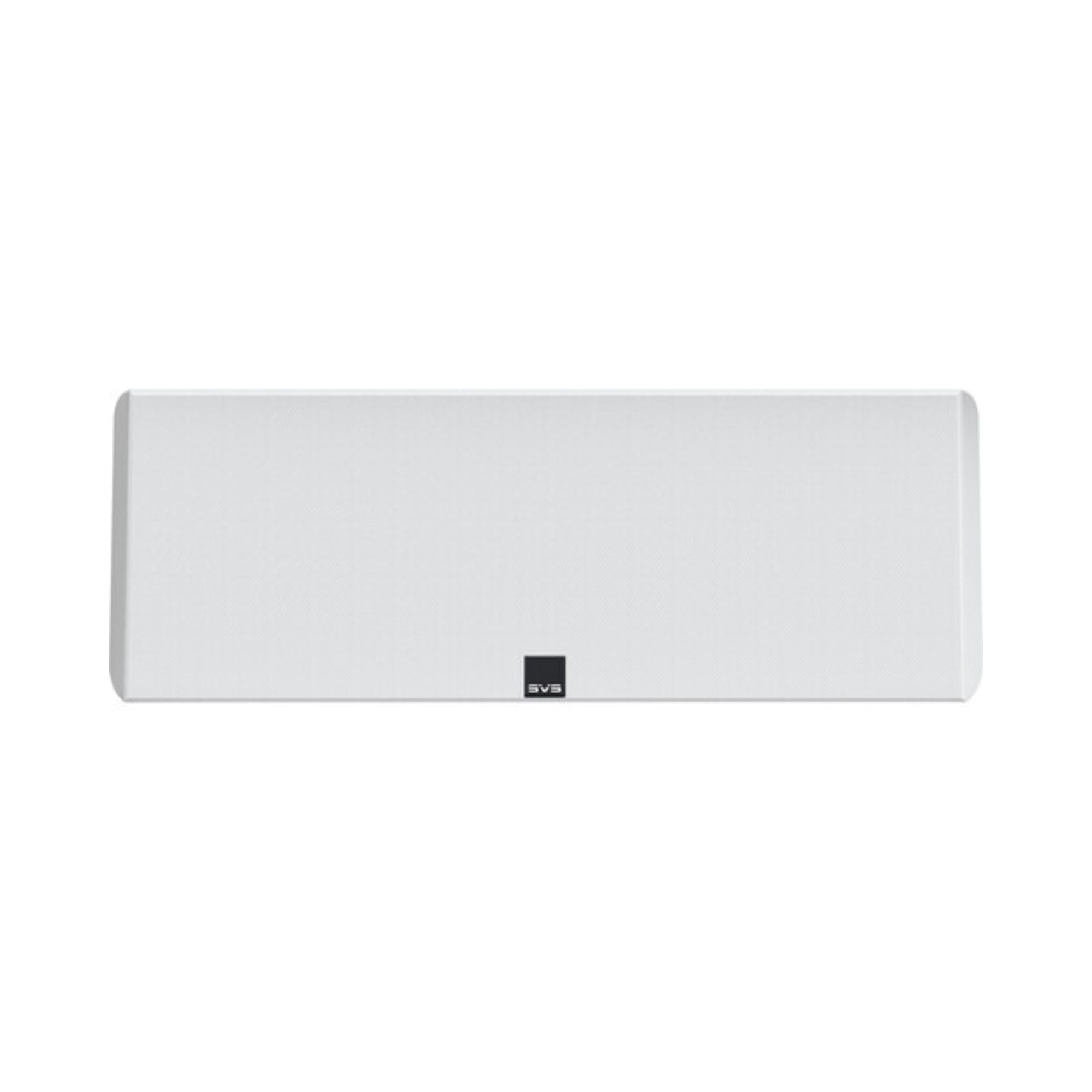

  • Magnetic Cloth Grille

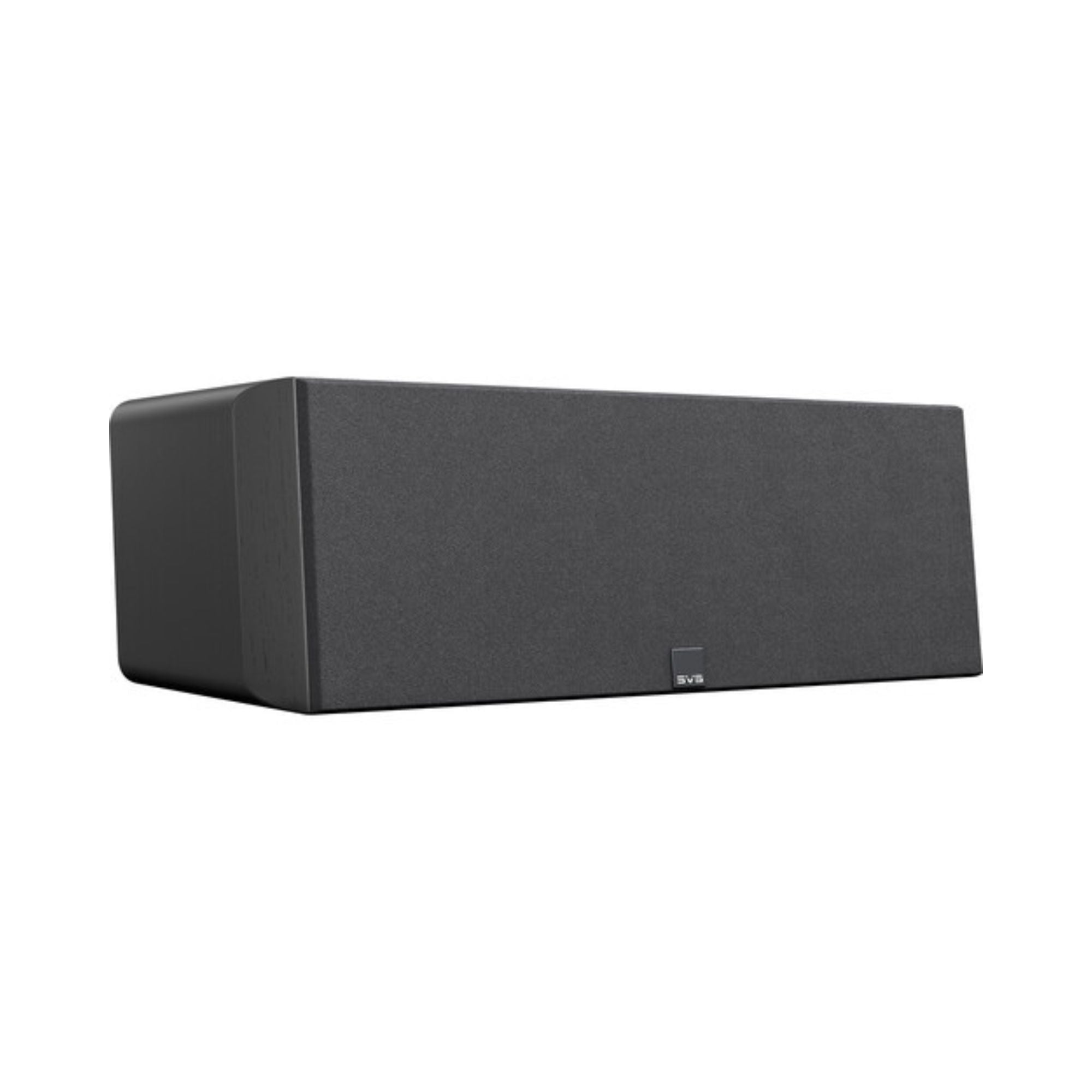

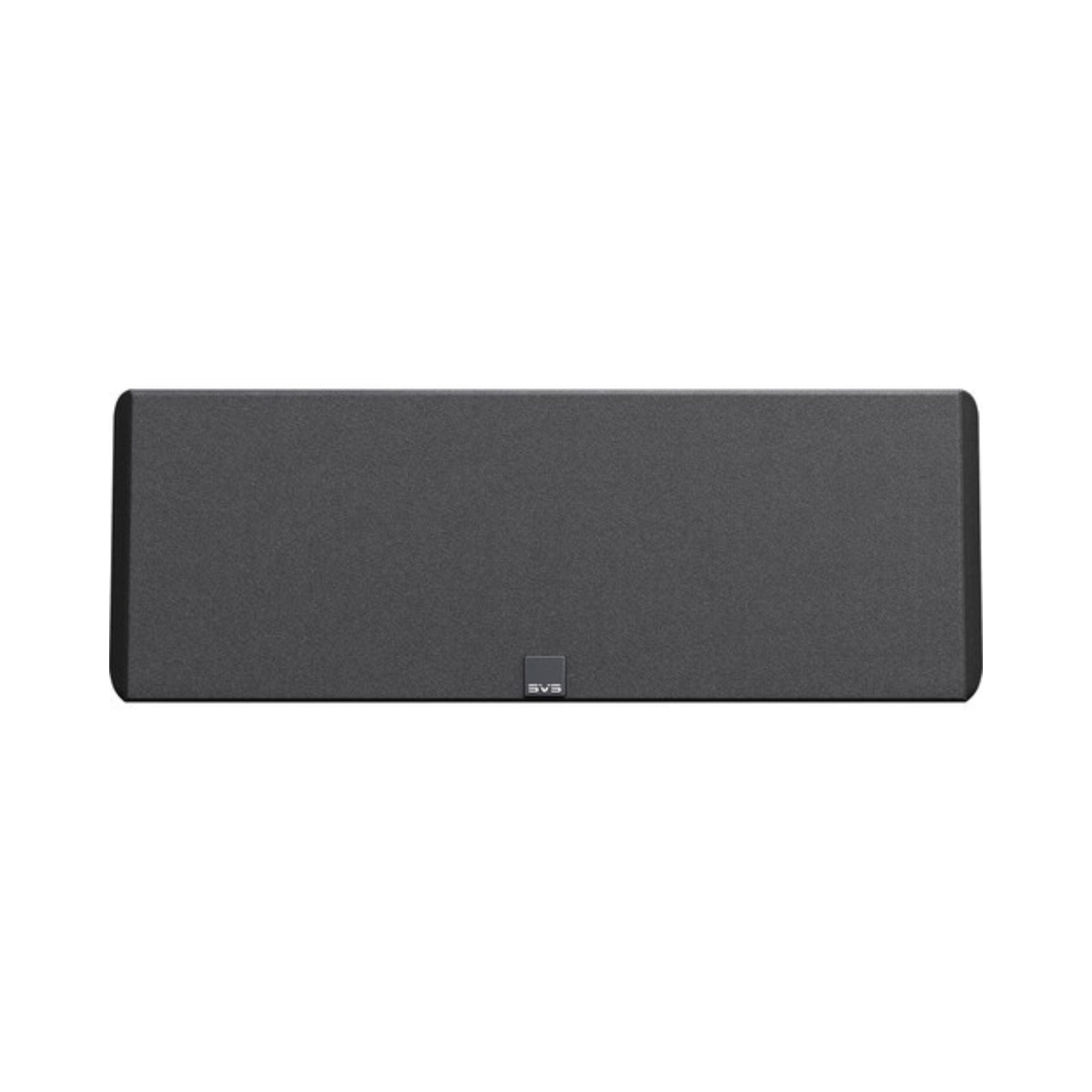

Experience dialog with impressive clarity and dispersion with the Ultra Evolution Center-Channel Speaker in black ash from SVS. The Ultra Evolution Center Speaker is a 3-way speaker consisting of four total drivers in a time-aligned, rear-ported, bass-reflex cabinet. This speaker is designed to complement the other Ultra Evolution series speakers in surround sound applications.

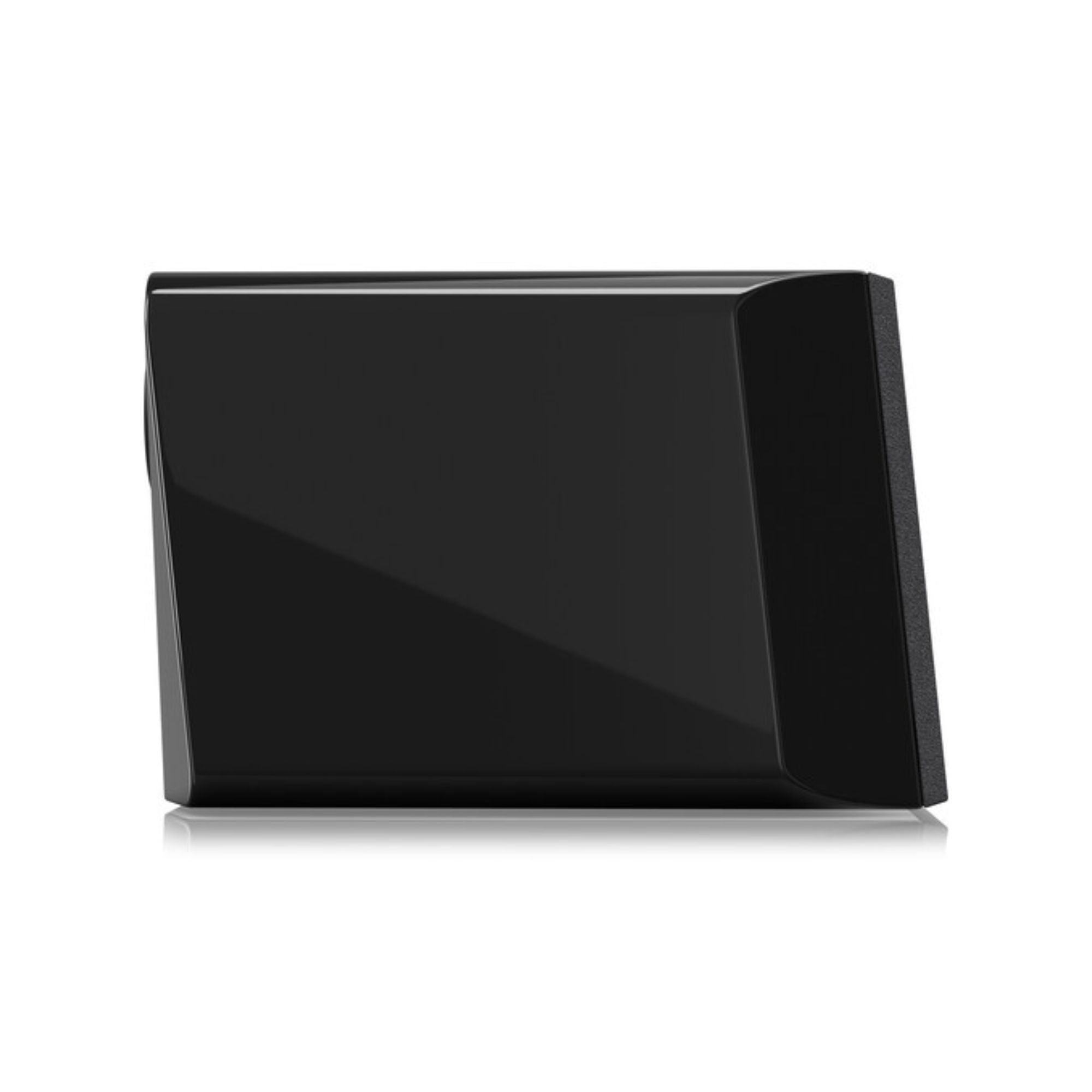

The Center Speaker includes a 1" Diamond Coated Tweeter with Organic Cell Lattice Diffuser for clear highs and smooth off-axis response, a 4.5" glass fiber composite midrange driver to render stunning dynamics with a broad soundstage, and two 6.5" glass fiber woofers to deliver deep, potent, and accurate bass. The cabinet's chamfered front baffle and time-aligned, flush-mounted drivers reduce edge diffraction and improve off-axis high-frequency response.

Time Aligned Cabinet Geometry

A curved front baffle aligns all drivers on a vertical plane ensuring sound from each driver reaches your ears at the exact same instant. It is able to maximize phase coherence with pinpoint accuracy and imaging.

Diamond Coated Aluminum Dome Tweeter

Through a process called Vapor Deposition, a layer of diamond carbon is applied to the aluminum dome tweeter to vastly improve rigidity and acoustic properties. This breakthrough in material science raises the frequency response well beyond the limits of human hearing resulting in effortless, airy, and clear highs with no measurable distortion. The diamond coating also pushes low frequency extension of the tweeter deeper for more seamless blending with the midrange. An organic cell lattice tweeter diffuser protects the dome and employs semi-random patterns derived from organic cell structures to improve off-axis response and maximize the listening sweet spot.

3-Way Crossover Design with Vertical Tweeter Midrange Array

Am integrated 3-Way crossover with premium components seamlessly blends driver output. Precisely tuned crossover frequencies and slopes between tweeter, midrange, and woofers result in truthful phase coherency and a precise, robust soundstage. The design enhances on and off-axis frequency response ensuring transparency and clear vocals at every listening position.

Attention to Detail

A separate, acoustically tuned internal chamber for the midrange optimizes separation and eliminates any potential for cabinet resonances, resulting in pristine sound across the frequency spectrum. Precision-cast aluminum-alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.

Speaker Configuration

3-Way

Recommended Amplifier Power

20 to 225 W

Bi-Amp Capability

Yes

Drivers

1x 1" / 25.4 mm Aluminum/Carbon Dome Tweeter (Front-Firing)

1x 4.5" / 114.3 mm Glass-Fiber Cone Midrange (Front-Firing)

2x 6.5" / 165.1 mm Glass-Fiber Cone Woofer (Rear-Firing)

Passive Radiators

No

Enclosure Type

Bass-Reflex

Ports

2x 1.6" / , Rear-Firing

Frequency Response

40 Hz to 40 kHz (±3 dB)

Impedance

6 Ohms

Magnetic Shielding

No

Inputs/Outputs

2x 5-Way Binding Post Pair Input

Crossover

High-Pass: 2.2 kHz

Low-Pass: 450 Hz

Sensitivity

87 dB

Color

Black Ash Woodgrain

Environmental Protection

No

Placement & Mounting Options

Tabletop/Bookshelf (with Included Hardware)

Floor Contacts

Rubber Feet

Grille

Cloth (Removable)

Dimensions

22 x 7.8 x 11.8" / 560 x 199 x 299.2 mm (with Feet, with Grille)

Weight

26.9 lb / 12.2 kg
