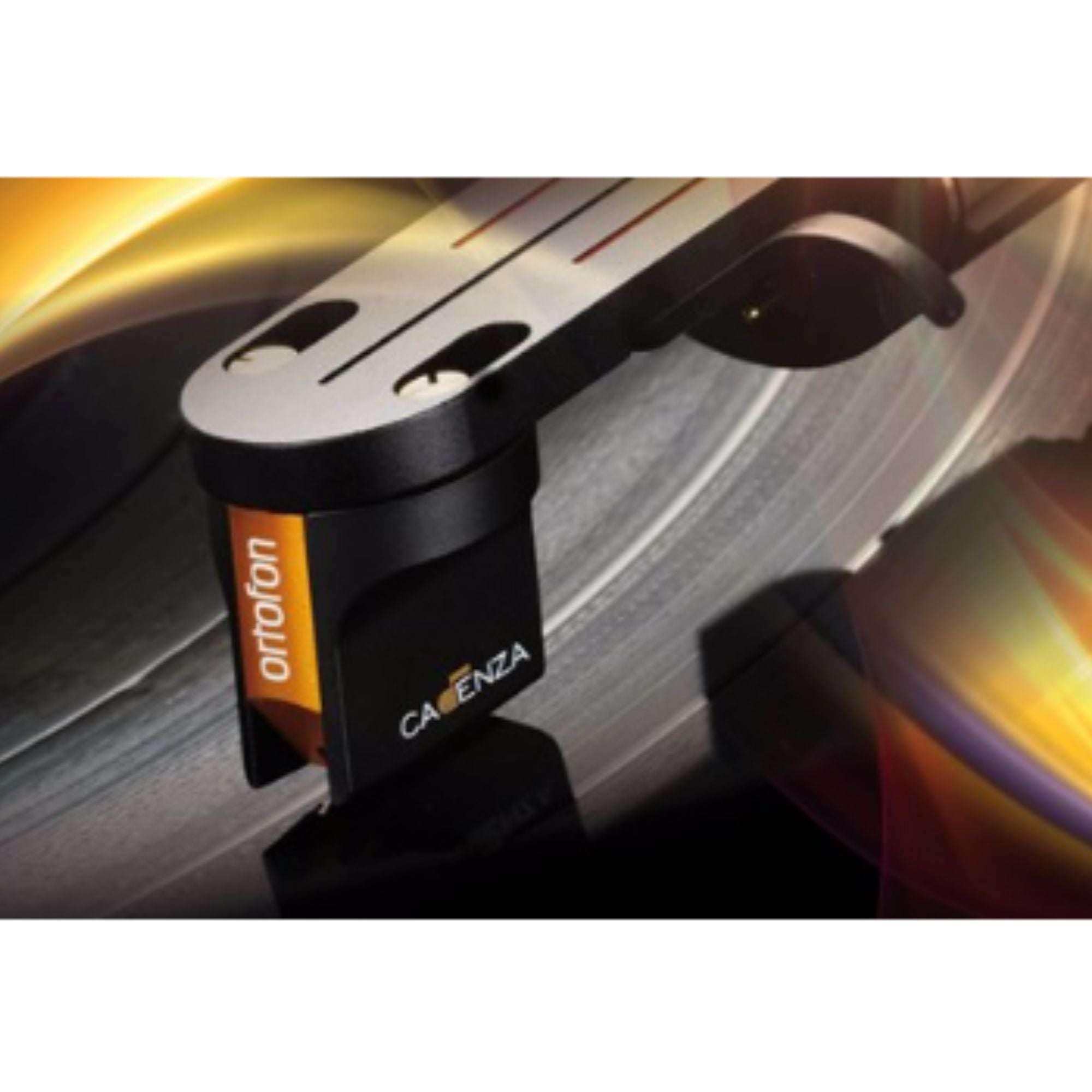

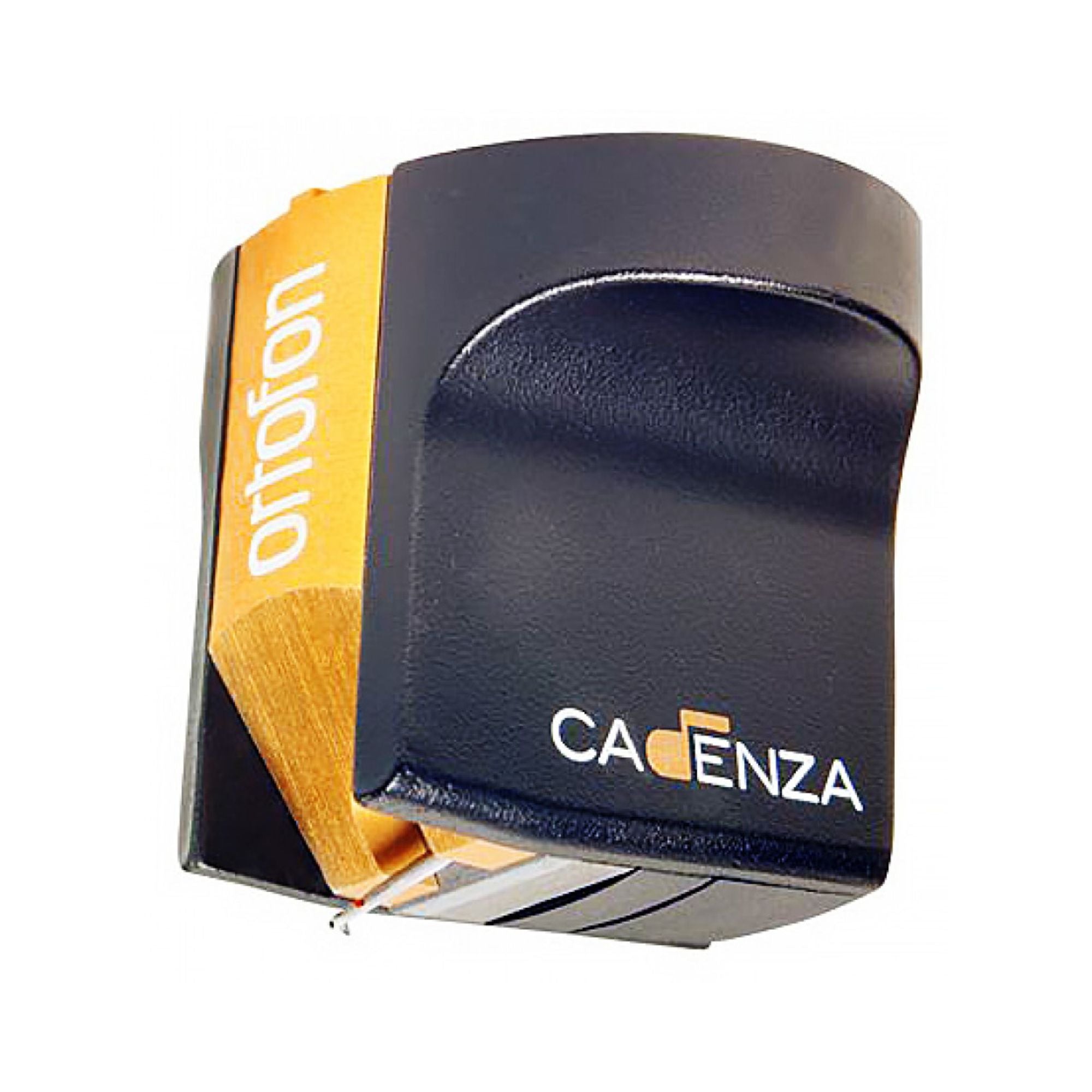

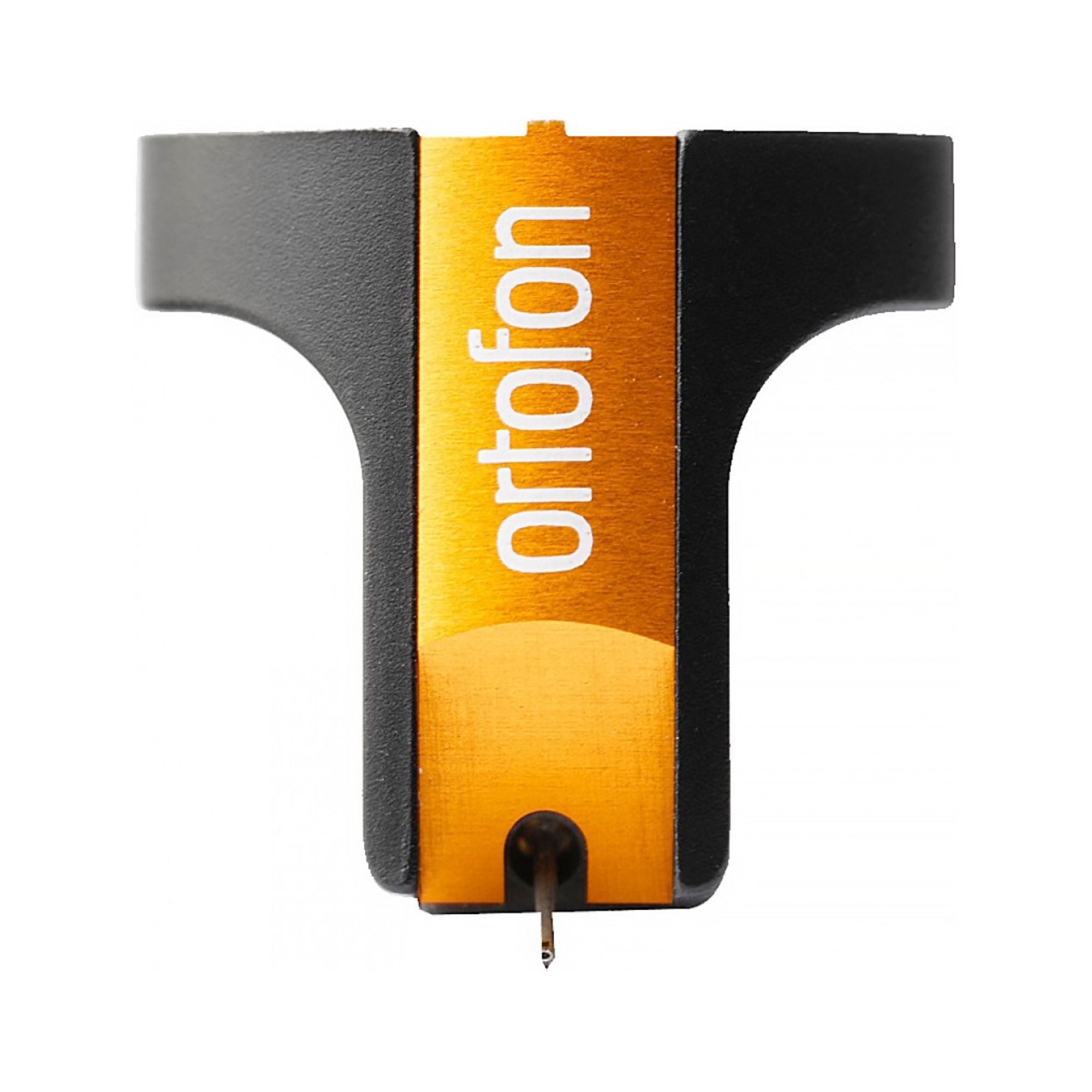

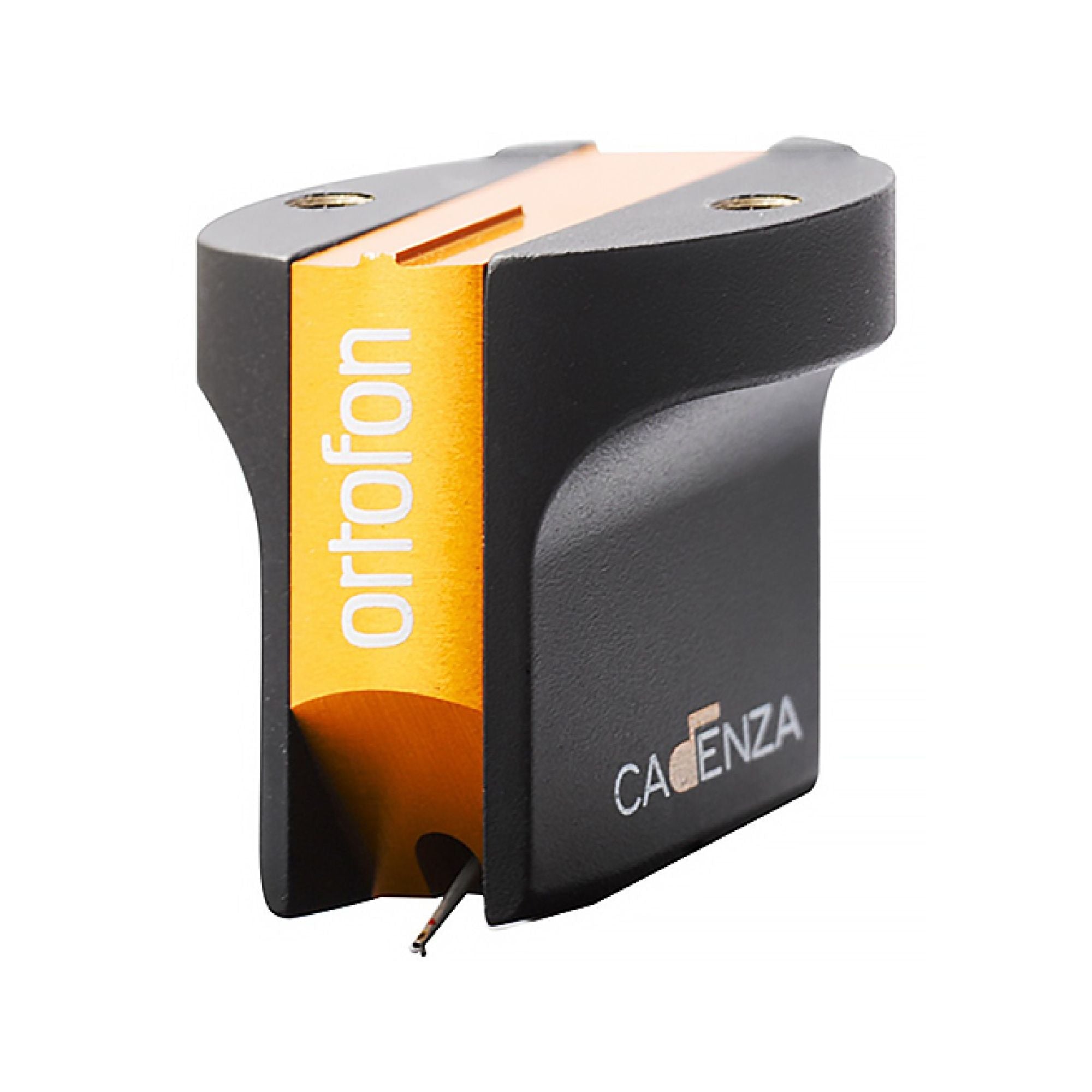

Cadenza Bronze is a true high-end reference cartridge, conveying music with supreme precision, impact and dynamics.

The Cadenza Bronze model is using a Replicant 100 stylus and a conical aluminium cantilever.

The coil wire is the famous Ortofon Aucurum wire, which is a gold plated 6NX copper wire.

Field Stabilizing Element/FSE, is used for optimal linearity especially during complex crescendo passages.

Cadenza Bronze stereo imaging capabilities illuminate the farthest corners of the soundstage in all three dimensions.

STYLUS RAKE ANGLE (SRA)

With a complex stylus shape like the Replicant 100, there must be special attention paid to positioning the diamond in the groove.

The Stylus Rake Angle (SRA - see figure) is very important to the performance of the Replicant 100 stylus, and the long contact surface (the sharp edge) of the diamond should be almost perpendicular to the record surface when viewed from the side.  The angle between the record surface and the cantilever is close to 23 degrees when SRA is 90 degrees.

A perfect starting point is to set the tonearm parallel to the record surface and to use the recommended tracking force. The contact surface will be close to perpendicular to the record surface with this setting. The SRA can now gradually and carefully be changed be adjusting VTF and, if necessary, the tonearm height. The target should be an SRA around 92 degrees, determined by the listening experience. In other words, the point of the stylus should point slightly towards the tonearm base.

The Cadenza series

At Ortofon, they constantly look for new technology to be used in their products and push the performance of existing technology. Thus Ortofon assure the highest level of performance and quality. The Kontrapunkt models and MC Jubilee became market standards and are among Ortofon’s most popular cartridges. Nevertheless Ortofon decided to develope a new cartridge series that is even more ambitious.

By carefully implementing cobalt-iron pole pieces, new improved winding process on the armature, using extruded aluminium housing in the models as well as other changes, Ortofon’s have been able to reveal new possibilities in performing the analogue information. It was also decided to make a more complete range of cartridges, which meant an introduction of a moving coil Cadenza Mono model to support their customers, who have an extended interest in micro groove mono records.

Each of the five Cadenza Series cartridges has its own individual sonic expression, and all five models together represent the ensemble of five classic variations

• MC Cadenza Mono is a true mono cartridge for playing mono microgroove vinyl records
• MC Cadenza Red delivers open, dynamic sound with a touch of warmth
• MC Cadenza Blue adds more dynamics and resolution, sounds more open and reproduces more details
• MC Cadenza Bronze adds even more details and resolution but in a very evenhanded way that pays respect to all elements
• MC Cadenza Black is the best of everything, true to the groove with resolution and accurate insight into each recording

MC Cadenza Series' accessories included the package

• 1 x Stylus brush, fibre
• 1 x Screwdriver
• Leadwires, pair LW-6N
• Screws, pair M2,5 x 3
• Screws, pair M2,5 x 5
• Screws, pair M2,5 x 6
