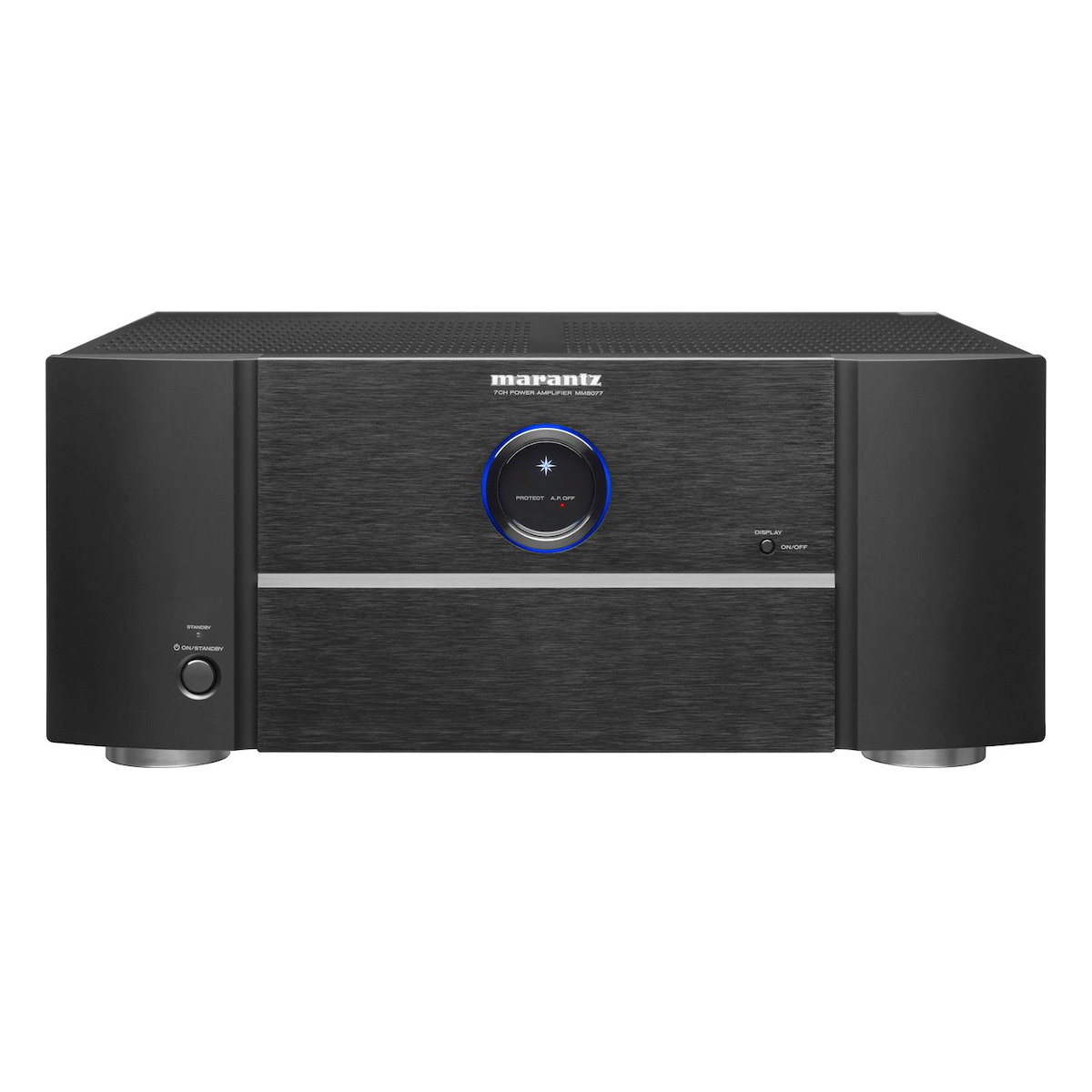

Marantz MM8077 - 7 Channel Power Amplifier

Rs. 249,900

  • • Free Shipping (India)
  • • Brand New Unit(s)
  • • Price Includes GST
  • • Official Manufacturers Warranty
  • • EMI Payment Option Available

×

EMI for Rs. 249,900

Below EMI options can be availed while making payment. To avail EMI continue to check out and chose the Credit Card option for payment.

American Express Bank

Tenure EMI Interest Total Amount
3
Months
Rs.84971.53 12% Rs.254915
6
Months
Rs.43119.84 12% Rs.258719
9
Months
Rs.29173.42 12% Rs.262561
12
Months
Rs.22203.31 12% Rs.266440
18
Months
Rs.15239.41 12% Rs.274309
24
Months
Rs.11763.66 12% Rs.282328

Axis Bank

Tenure EMI Interest Total Amount
3
Months
Rs.85110.76 13% Rs.255332
6
Months
Rs.43242.91 13% Rs.259457
9
Months
Rs.29401.89 14% Rs.264617
12
Months
Rs.22428.4 14% Rs.269141
18
Months
Rs.15589.96 15% Rs.280619
24
Months
Rs.12116.81 15% Rs.290804

Bank of Baroda Bank

Tenure EMI Interest Total Amount
3
Months
Rs.85110.76 13% Rs.255332
6
Months
Rs.43242.91 13% Rs.259457
9
Months
Rs.29291.82 13% Rs.263626
12
Months
Rs.22319.92 13% Rs.267839
18
Months
Rs.15589.96 15% Rs.280619
24
Months
Rs.12116.81 15% Rs.290804

CITI Bank

Tenure EMI Interest Total Amount
3
Months
Rs.85110.76 13% Rs.255332
6
Months
Rs.43242.91 13% Rs.259457
9
Months
Rs.29530.82 15% Rs.265777
12
Months
Rs.22555.55 15% Rs.270667
18
Months
Rs.15589.96 15% Rs.280619
24
Months
Rs.12116.81 15% Rs.290804

HDFC Bank

Tenure EMI Interest Total Amount
3
Months
Rs.85391.12 15% Rs.256173
6
Months
Rs.43491.05 15% Rs.260946
9
Months
Rs.29530.82 15% Rs.265777
12
Months
Rs.22555.55 15% Rs.270667
18
Months
Rs.15589.96 15% Rs.280619
24
Months
Rs.12116.81 15% Rs.290804

ICICI Bank

Tenure EMI Interest Total Amount
3
Months
Rs.85109.92 12.99% Rs.255330
6
Months
Rs.43365.9 13.99% Rs.260195
9
Months
Rs.29410.24 13.99% Rs.264692
12
Months
Rs.22436.62 13.99% Rs.269239
18
Months
Rs.15588.77 14.99% Rs.280598
24
Months
Rs.12115.62 14.99% Rs.290775

IndusInd Bank

Tenure EMI Interest Total Amount
3
Months
Rs.85110.76 13% Rs.255332
6
Months
Rs.43242.91 13% Rs.259457
9
Months
Rs.29291.82 13% Rs.263626
12
Months
Rs.22319.92 13% Rs.267839
18
Months
Rs.15589.96 15% Rs.280619
24
Months
Rs.12116.81 15% Rs.290804

Kotak Mahindra Bank

Tenure EMI Interest Total Amount
3
Months
Rs.84971.53 12% Rs.254915
6
Months
Rs.43119.84 12% Rs.258719
9
Months
Rs.29401.89 14% Rs.264617
12
Months
Rs.22428.4 14% Rs.269141
18
Months
Rs.15589.96 15% Rs.280619
24
Months
Rs.12116.81 15% Rs.290804

RBL Bank

Tenure EMI Interest Total Amount
3
Months
Rs.85110.76 13% Rs.255332
6
Months
Rs.43242.91 13% Rs.259457
9
Months
Rs.29291.82 13% Rs.263626
12
Months
Rs.22319.92 13% Rs.267839
18
Months
Rs.15355.29 13% Rs.276395
24
Months
Rs.11880.23 13% Rs.285126

State Bank of India

Tenure EMI Interest Total Amount
3
Months
Rs.85239.99 14% Rs.255720
6
Months
Rs.43357.24 14% Rs.260143
9
Months
Rs.29401.89 14% Rs.264617
12
Months
Rs.22428.4 14% Rs.269141

Standard Chartered Bank

Tenure EMI Interest Total Amount
3
Months
Rs.85110.76 13% Rs.255332
6
Months
Rs.43242.91 13% Rs.259457
9
Months
Rs.29401.89 14% Rs.264617
12
Months
Rs.22428.4 14% Rs.269141

YES Bank

Tenure EMI Interest Total Amount
3
Months
Rs.85110.76 13% Rs.255332
6
Months
Rs.43242.91 13% Rs.259457
9
Months
Rs.29401.89 14% Rs.264617
12
Months
Rs.22428.4 14% Rs.269141
18
Months
Rs.15589.96 15% Rs.280619
24
Months
Rs.12116.81 15% Rs.290804
Description

MM8077

Enjoy powerful multi-channel sound with the MM8077 7-Channel Power Amplifier from Marantz. This amplifier features a discrete amplification design for robust sonic delivery. Each channel in the amplifier delivers up to 150W of power at 8 ohms and 180W at 6 ohms. It's even equipped with balanced and unbalanced input options, allowing you to connect a wide variety of pre-amplifiers and processors. Furthermore, this amplifier is capable of efficiently driving stereo, 5-channel, and 7-channel home entertainment systems, as well as being a component in larger 11-channel systems.

Current Feedback Discrete Power Amplifier

This model is equipped with a current feedback amplifier section that uses the same push-pull circuit found in Marantz's SM-11S1 Hi-Fi power amplifier. This amp is designed to provide increased operating stability, high-speed, and wide ranging high-density playback. The current/voltage conversion amplification section in the latter part of the power amp is equipped with a Wilson current mirror circuit that amplifies to the high sound range with low distortion.

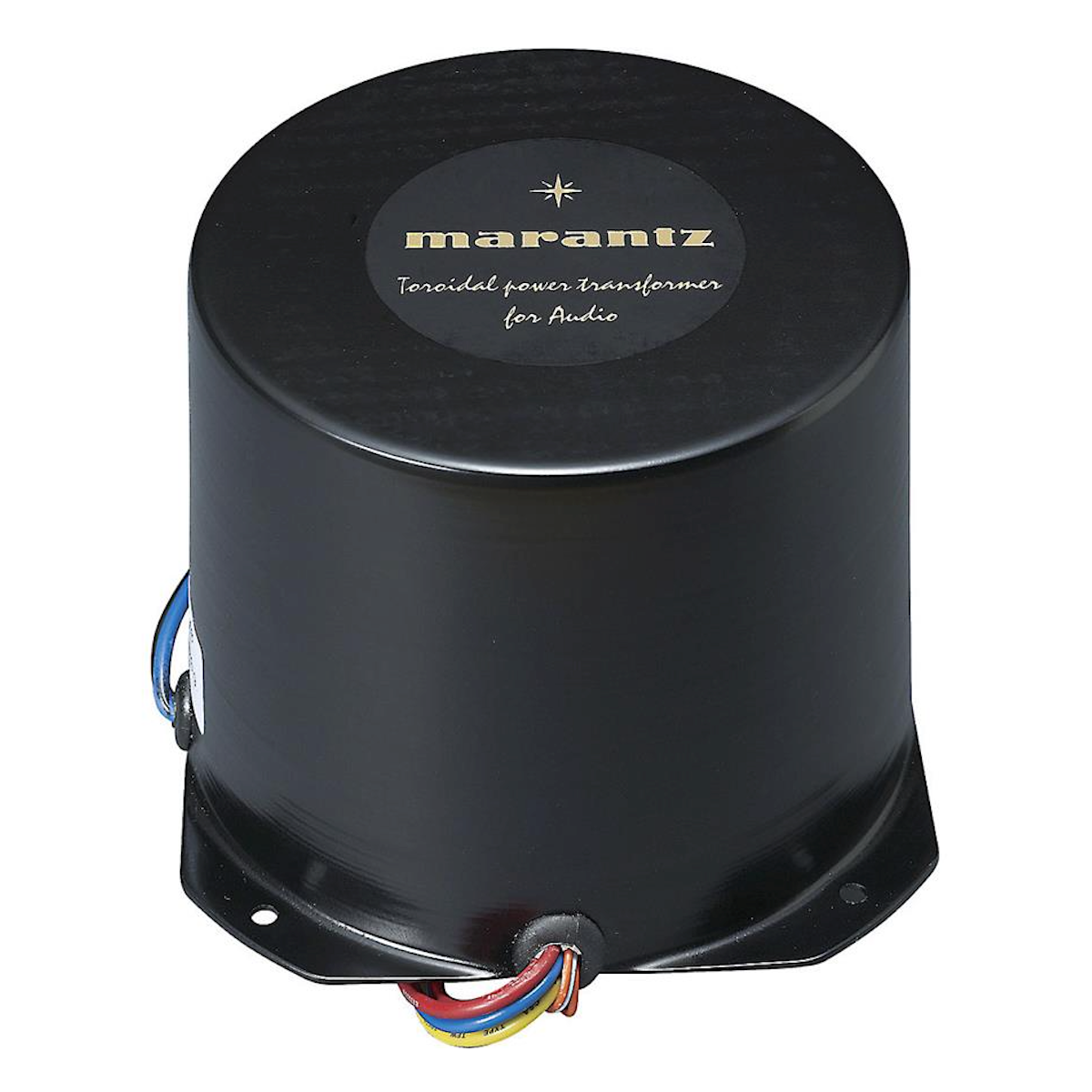

Large Toroidal Power Transformer

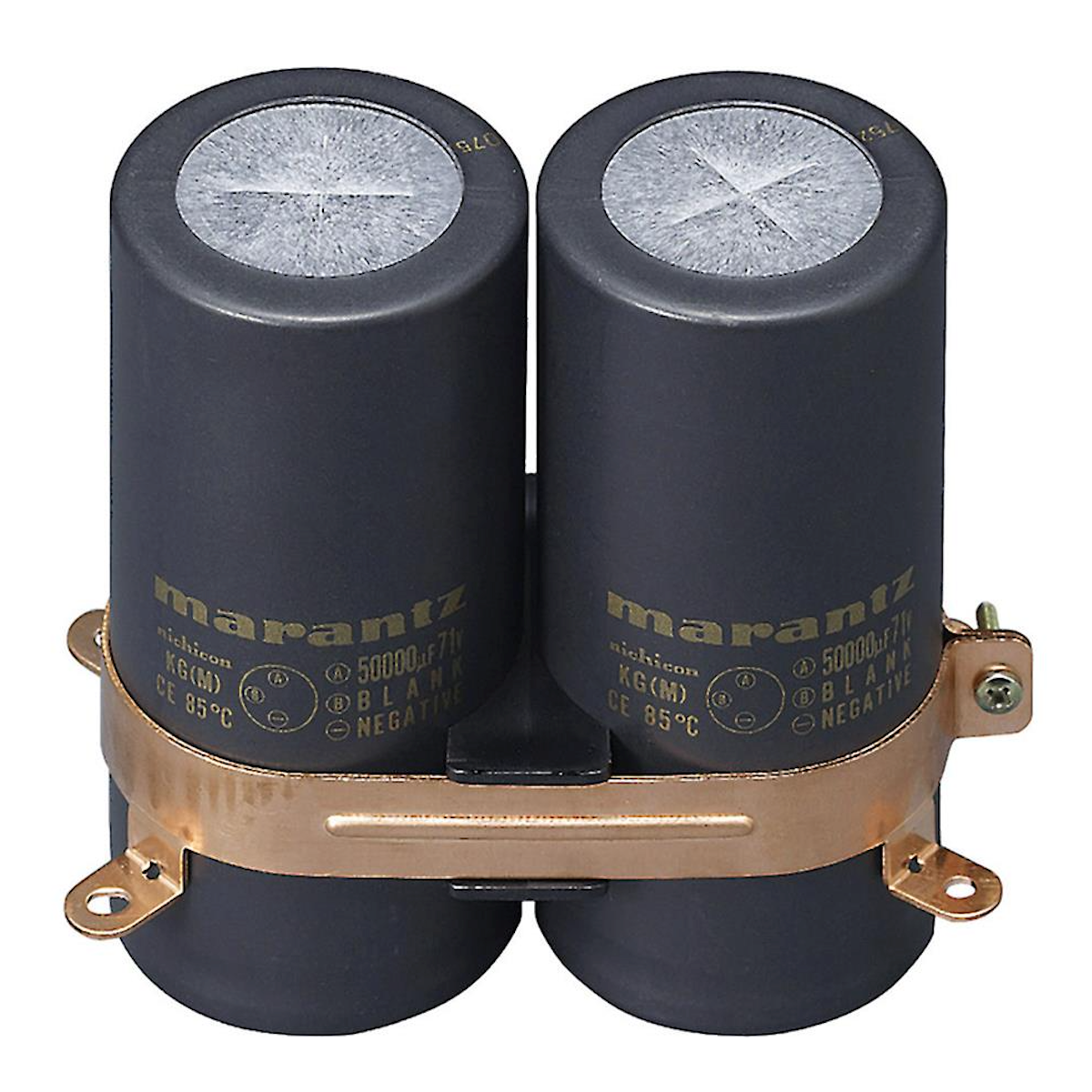

The high power, high current power supply features a massive toroidal power transformer that can handle substantial short term power peaks. The high capacity power supply capacitors, 100,000µ total, contribute to the amplifier's ability to deliver short term bursts of power when needed, which is helpful when driving difficult-to-drive lower impedance speakers.

High-Quality Design

This amplifier is equipped with a chimney-shaped heat sink to efficiently process the heat emitted from each channel along with quiet cooling fans. A high-sensitivity temperature sensor IC is used to control the cooling fans, adjusting the rotation speed to match the amount of heat generated by the amp.

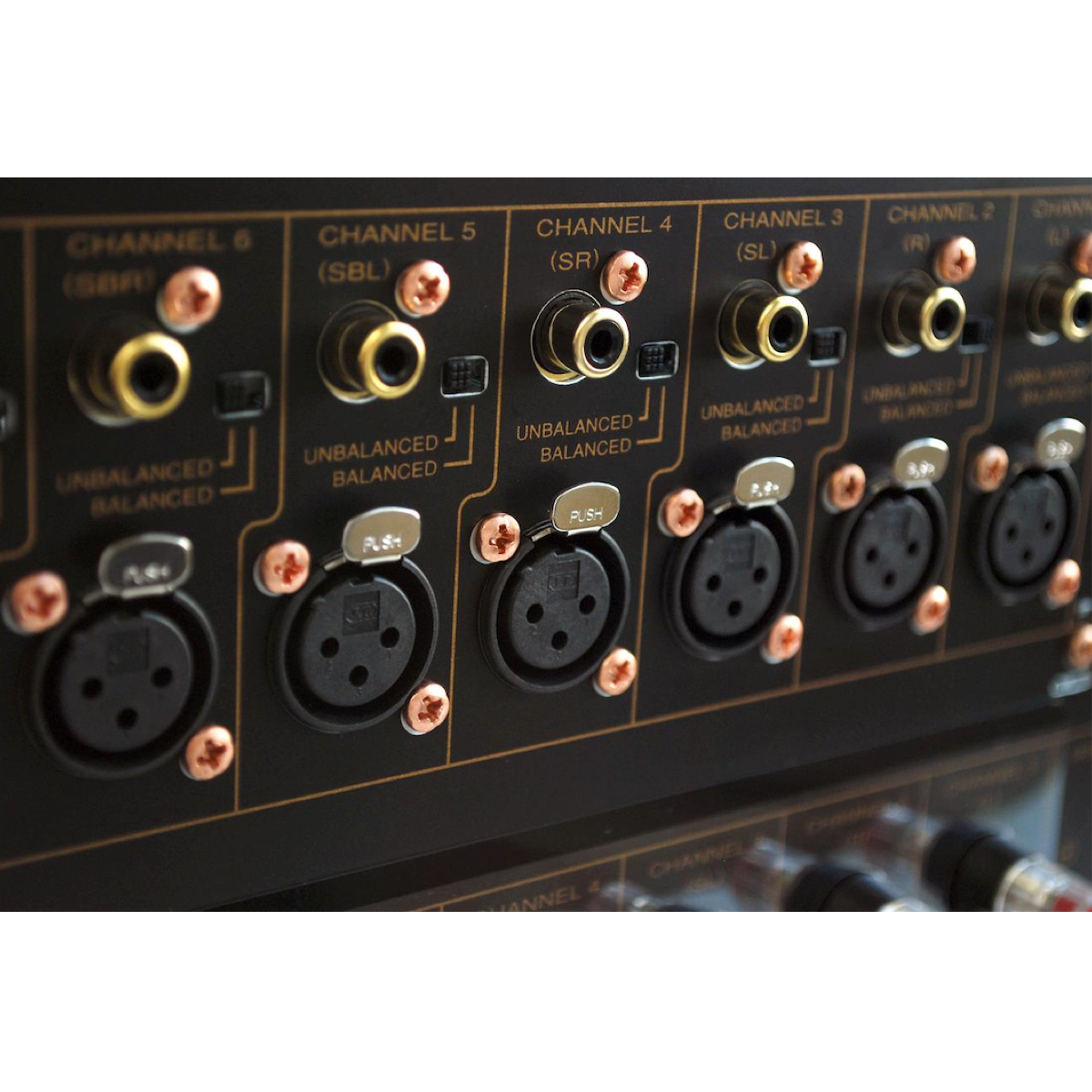

Balanced and Unbalanced Inputs

For installation flexibility and maximum compatibility, each channel on this amplifier is equipped with balanced and unbalanced inputs.

Custom Installation-Ready

This amplifier has an IR flash input that supports custom installations and DC trigger input and output terminals.

Remote Power Control

When the Marantz AV8801 or AV7701 pre-amplifier is connected to the MM8077, the remote power control feature links the power on/off function of the pre-amplifier to the MM8077.

Low-Power Standby Mode

For environmental and energy-saving considerations, power consumption during standby mode has been reduced to less than 0.4 W

Auto-Standby Mode

The MM8077 automatically switches to standby mode when there has been no signal for 30 minutes. This prevents power from being wasted whenever you forget to turn the power off.

Additional Features

  • Porthole display with blue illumination accent
  • Gold plated, high grade loudspeaker terminals
  • Low impedance continuous drive capability
  • Marantz reference-grade power supply filter capacitors and high current discrete power transistors

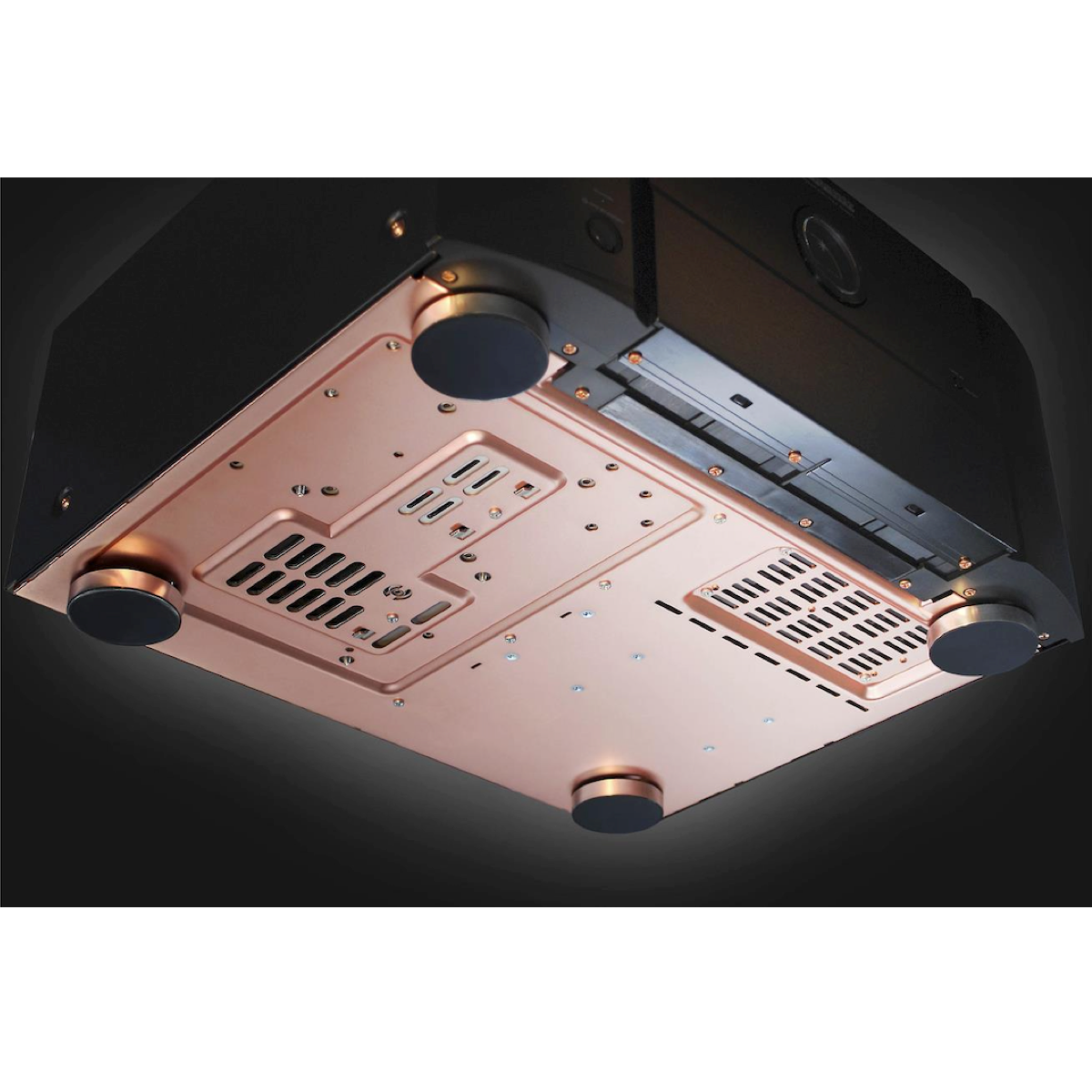

  • Copper-plated chassis

SPECIFICATIONS

Channels

7

Power Output

  • 8 ohms Rated: 150 W per channel (20 Hz to 20 kHz, THD = 0.08%, 2-channels driven)
  • 6 ohms Rated: 180 W per channel (20 Hz to 20 kHz, THD = 0.08%, 2-channels driven)
  • 6 ohms Maximum: 210 W per channel (1 kHz, THD = 10%, 2-channels driven)

Output Connectors

6 to 8 ohms

Frequency Response

8 Hz to 100 kHz (1 W, 8 ohms) (± 3 dB)

Damping Factor

100

Input Sensitivity/Impedance

  • 1.2 V / 22 k ohms (unbalanced)
  • 2.4 V / 30 k ohms (balanced)

Signal-to-Noise Ratio

105 dB (IHF-A)

Voltage Amplification Level

29 dB

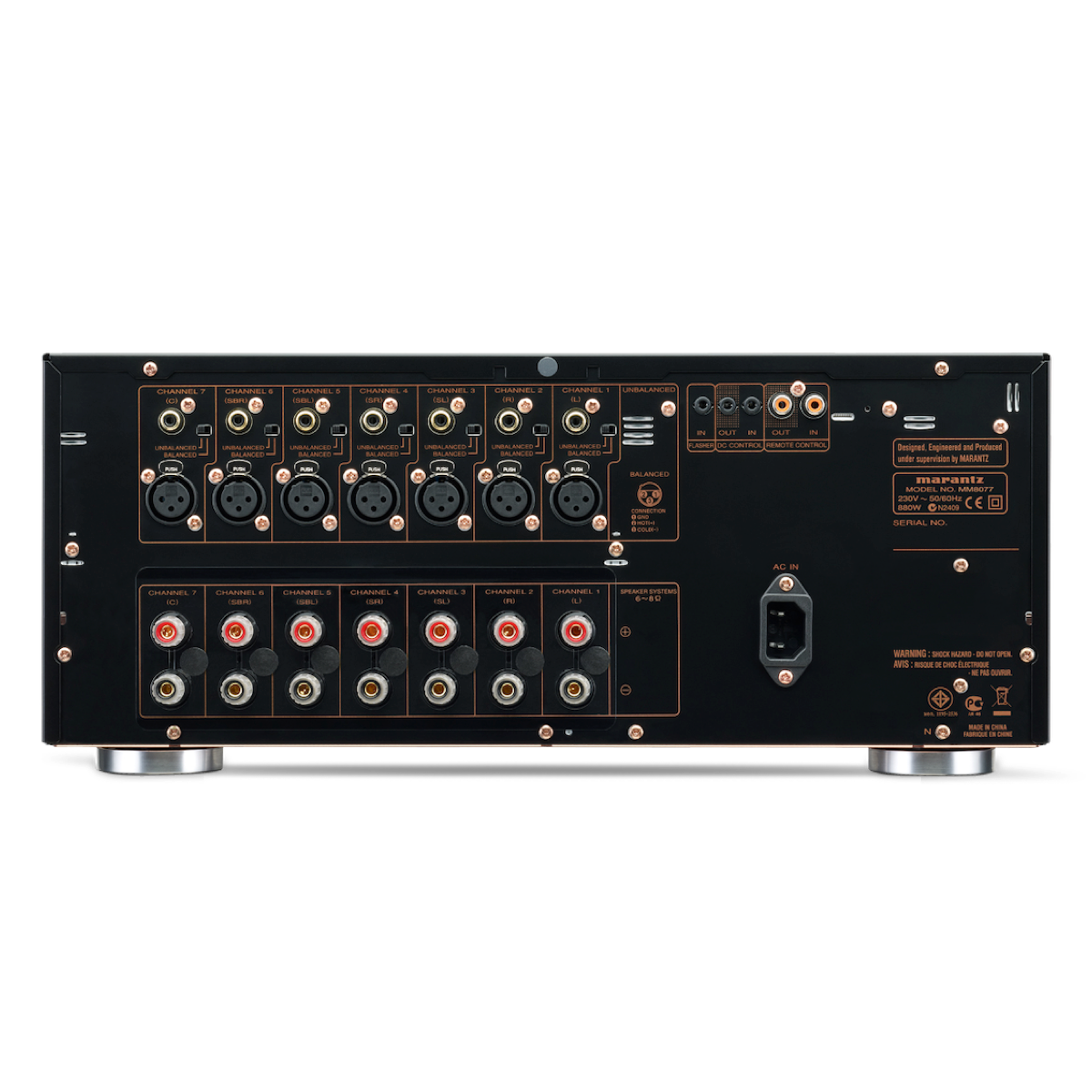

Input & Output

  • 7 x Balanced inputs
  • 7 x Unbalanced inputs
  • 7 x Speaker channels
  • 1 x IR flasher input
  • 1 x DC control input
  • 1 x DC control output
  • 1 x Remote control input
  • 1 x Remote control output

Switch

Balanced and unbalanced

Power Consumption

  • Operational: 800 W
  • Standby: 0.4 W

Dimensions (WxHxD)

17.3 x 7.3 x 15.1" / 440.0 x 185.0 x 383.5 mm

Weight

39.7 lb / 18.0 kg
