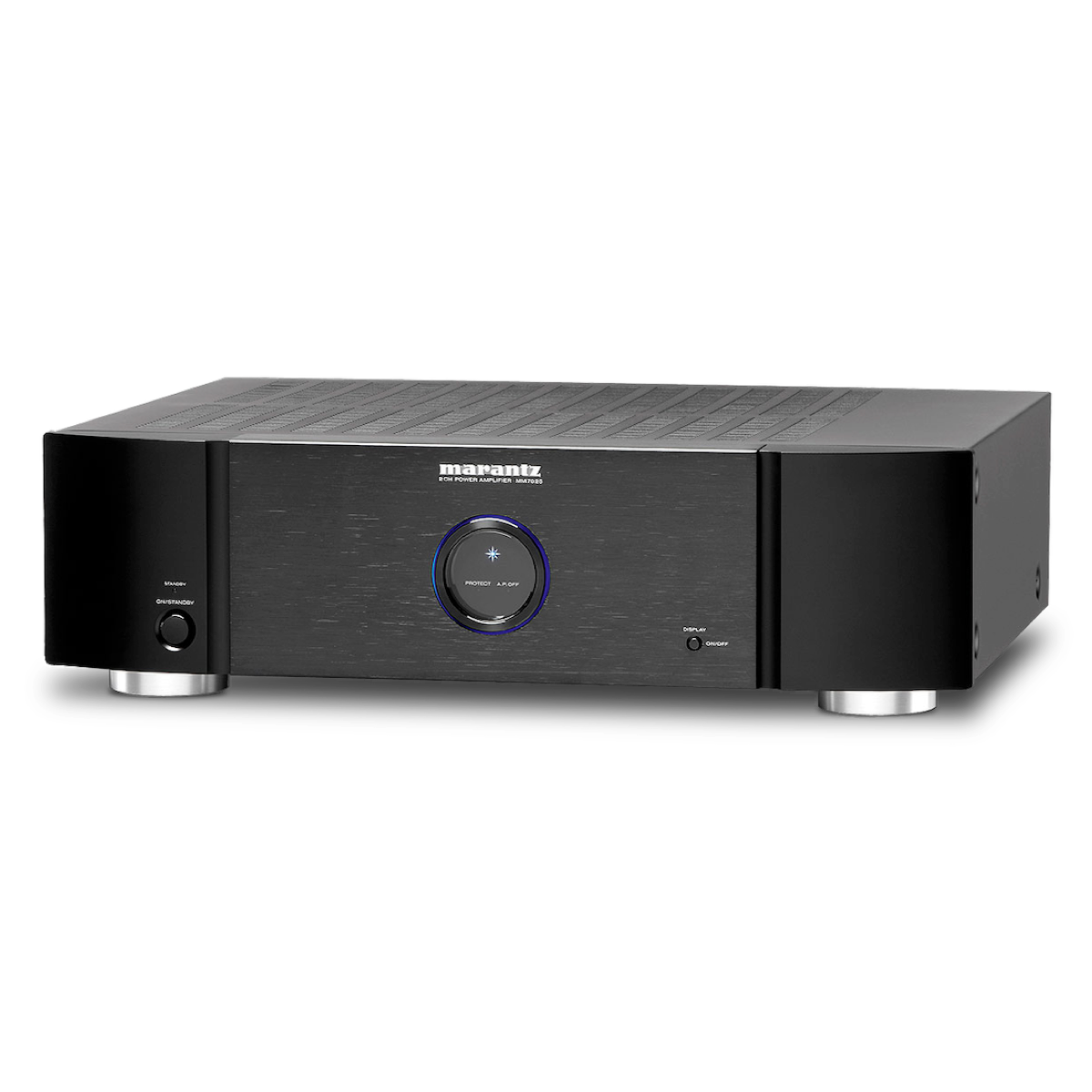

Marantz MM7025 - 2 Channel Power Amplifier
Includes GST of Rs. 18,290
GET GST INPUT
Ever wondered why speakers, amplifiers, projectors etc. come with a slightly heftier price tag in India compared to their overseas counterparts? Well, part of the answer lies in our country's Goods & Services Tax (GST).
But here's the kicker: Don't let that GST input slip through your fingers! Especially when some of the products we supply carry a GST rate of 18% and 28%.
At AVStore, we provide you with a GST compliant invoice for every purchase.
Simply put in your GST number during the checkout to avail an offset.
- Description
- Specifications
- Reviews
MM7025
The MM7025 2-Channel Power Amplifier from Marantz is designed to deliver powerful stereo sound. This amplifier features a discrete amplification design for robust sonic delivery. Each channel in the amplifier delivers up to 140W of power at 8 ohms and 170W at 6 ohms. It is also equipped with balanced and unbalanced input options, allowing you to connect a wide variety of pre-amplifiers and processors. This amplifier is suitable for use in dedicated 2-channel audio systems or as an addition to multi-channel surround systems.
Current Feedback Discrete Power Amplifier
This model is equipped with a current feedback amplifier section that uses the same push-pull circuit found in Marantz's SM-11S1 Hi-Fi power amplifier. This amp is designed to provide increased operating stability, and high-speed, wide-ranging, high-density playback. The current/voltage conversion amplification section in the latter part of the power amp is equipped with a Wilson current mirror circuit that amplifies to the high sound range with low distortion.
Large Power Transformer
The final stage of the power amp is equipped with the same LAPT (high-efficiency power transistor) that is installed in the SM-11S1 Marantz Hi-Fi power amp, providing improved instant power supply capability. The power section is equipped with a large-sized transformer. As one of the essential parts of the power section, this unit is equipped with a notable Marantz 15,000 μF / 71 V×2 block condenser. These improvements to the power supply are engineered to provide a powerful and presence-filled sound.
High-Quality Design
This amplifier is equipped with a chimney-shaped heat sink to efficiently process the heat emitted from each channel along with quiet cooling fans. A high-sensitivity temperature sensor IC is used to control the cooling fans, adjusting the rotation speed to match the amount of heat generated by the amp.
Balanced and Unbalanced Inputs
For installation flexibility and maximum compatibility, each channel on this amplifier is equipped with balanced and unbalanced inputs.
Custom-Installation-Ready
This amplifier has an IR flash input that supports custom installations and DC trigger input and output terminals.
Remote Power Control
When a Marantz AV pre-amplifier/process such as the AV8003 or AV7005 is connected to this unit, this amplifier's power can be switched On/Off together with the pre-amplifier's power supply. This connection is designed to reduce sonic interface as much as possible.
Additional Features
- Marantz reference-grade filter capacitors and high-speed output transistors
- Gold-plated, high-grade loudspeaker terminals
- Flasher input, DC trigger input/output, and RC-5 remote control connectivity
- Detachable power cord (IEC320 2-pin type)
- Porthole display with blue illumination accent
- High instantaneous peak current design
- Low impedance continuous drive capability
|
Channels |
2 |
|
Power Output |
|
|
Output Bandwidth |
5 Hz to 40 kHz (8 ohm load, 0.09 %) |
|
Frequency Response |
8 Hz to 100 kHz (1 W, 8 ohms) (± 3 dB) |
|
Damping Factor |
100 |
|
Input Sensitivity/Impedance |
|
|
Signal-to-Noise Ratio |
105 dB (IHF-A) |
|
Voltage Amplification Level |
29 dB |
|
Input & Output |
|
|
Switch |
Balanced and unbalanced |
|
Power Consumption |
|
|
Dimensions (WxHxD) |
17.3 x 5.0 x 13.9" / 440.0 x 126.0 x 352.0 mm |
|
Weight |
23.8 lb / 10.8 kg |
