Marantz AMP 10 - 16 Channel Power Amplifier
Tax included.
GET GST INPUT
Ever wondered why speakers, amplifiers, projectors etc. come with a slightly heftier price tag in India compared to their overseas counterparts? Well, part of the answer lies in our country's Goods & Services Tax (GST).
But here's the kicker: Don't let that GST input slip through your fingers! Especially when some of the products we supply carry a GST rate of 18% and 28%.
At AVStore, we provide you with a GST compliant invoice for every purchase.
Simply put in your GST number during the checkout to avail an offset.
- Description
- Specifications
- Reviews
Key Features
- 200W per Channel RMS at 8 Ohms
- Bi-Amp Mode for a Purer Sound
- 400W at 8 Ohms in Combined Bridge Mode
- Unbalanced RCA & Balanced XLR Inputs
- Class-D Amplification
- BTL Drive
- Soft-Illuminated Porthole Analog Meter
- Automatic Power Off
- Copper-Plated Chassis
- Metal Front Panel

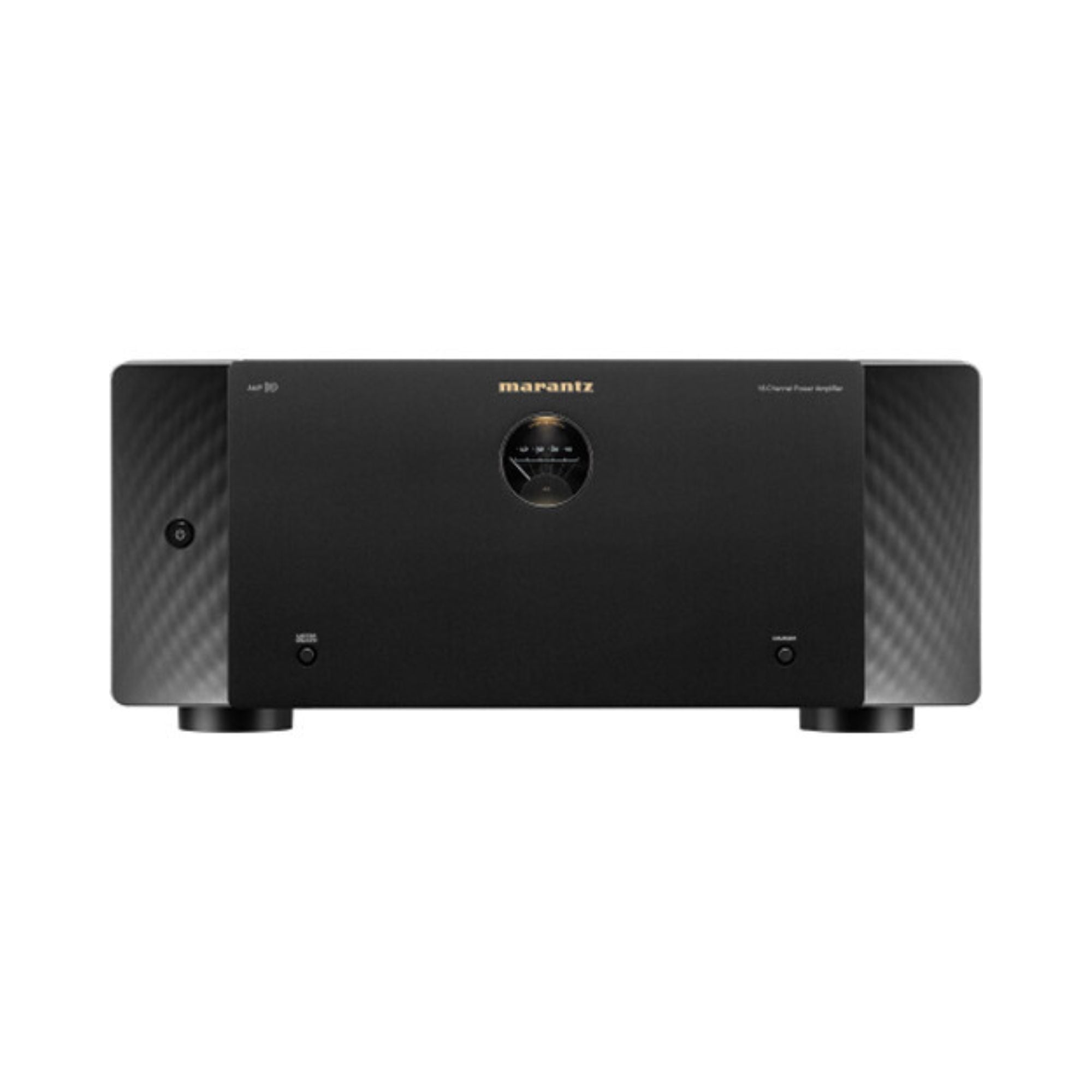

Supporting some of the largest home theaters, the AMP 10 16-Channel 200W Power Amplifier from Marantz makes for a fine addition to your home audio system, delivering a total of 16 separate speaker channel connections that take advantage of switchable unbalanced RCA or balanced XLR inputs. By default, you get a whopping 200W per channel at 8 ohms, but can utilize bridge mode to combine two channels for 400W per channel at 8 ohms. You also have the option of bi-amping if desired, further purifying your audio by separately driving high and low frequencies. On the front is a sleek metal face with a single porthole that houses a softly illuminated analog output meter.
Plenty of power for an array of speakers
The Marantz AMP 10 is an absolute beast of an amplifier that's built to impress home theater lovers. It delivers clean, robust power into 16 channels, which can be configured for an expansive 15.2 surround-sound setup, or a muscular bi-amped 7.1 system. The amp's beefy toroidal transformer, Hyper Dynamic Amplifier Module, and current feedback amplification offer impressive accuracy and control under high-drive conditions.

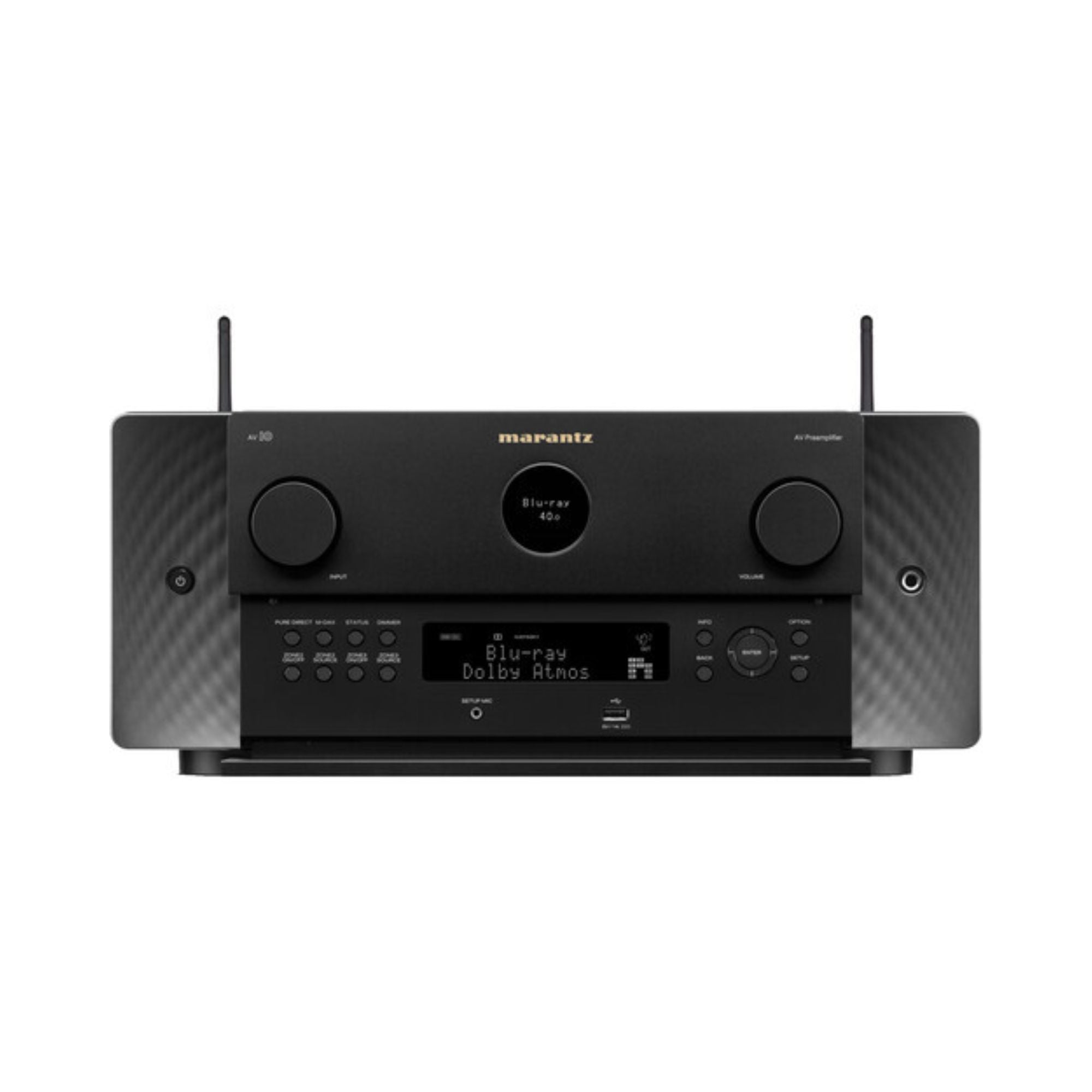

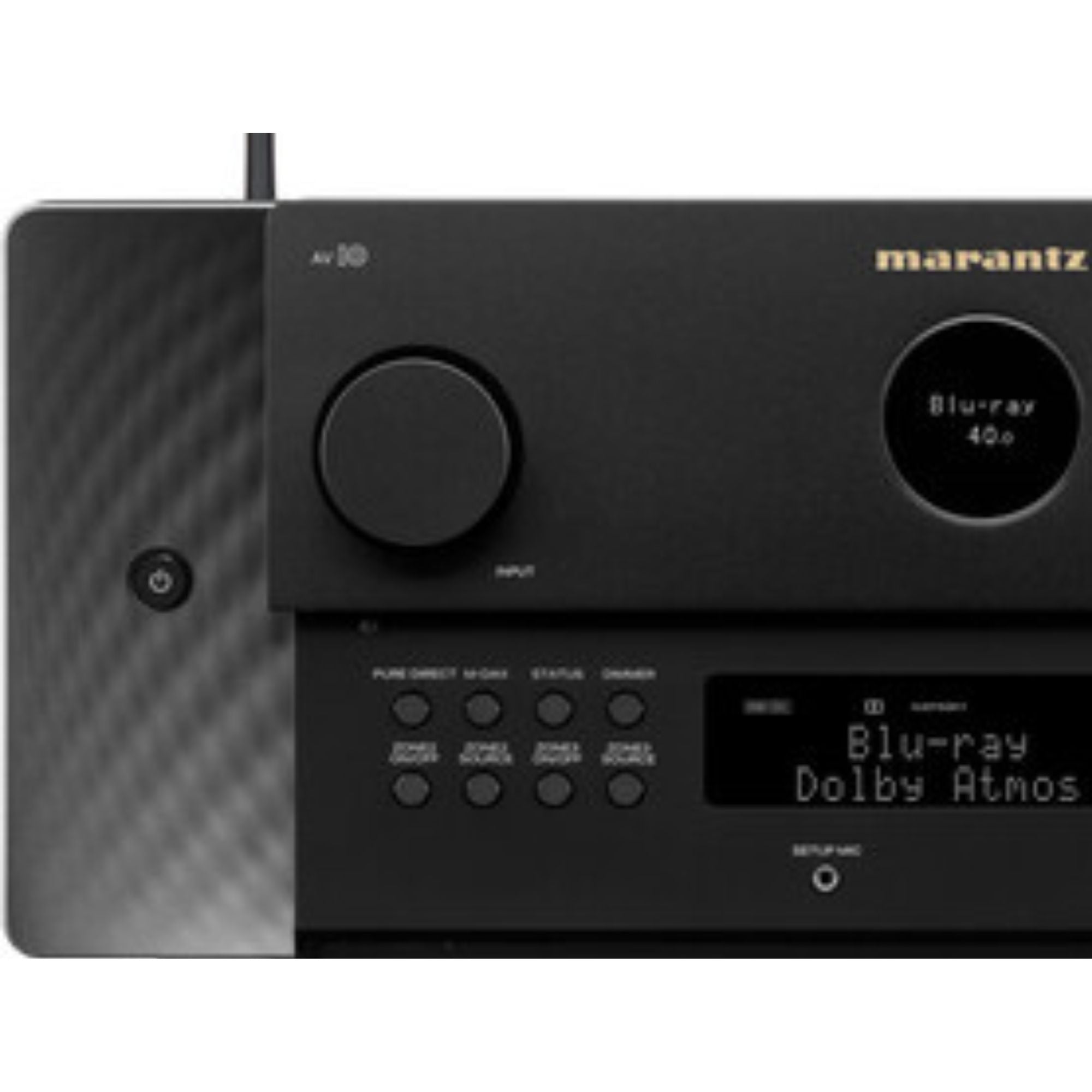

Make the most of its power by pairing it with the Marantz AV 10 home theater preamp.
Convenient connections

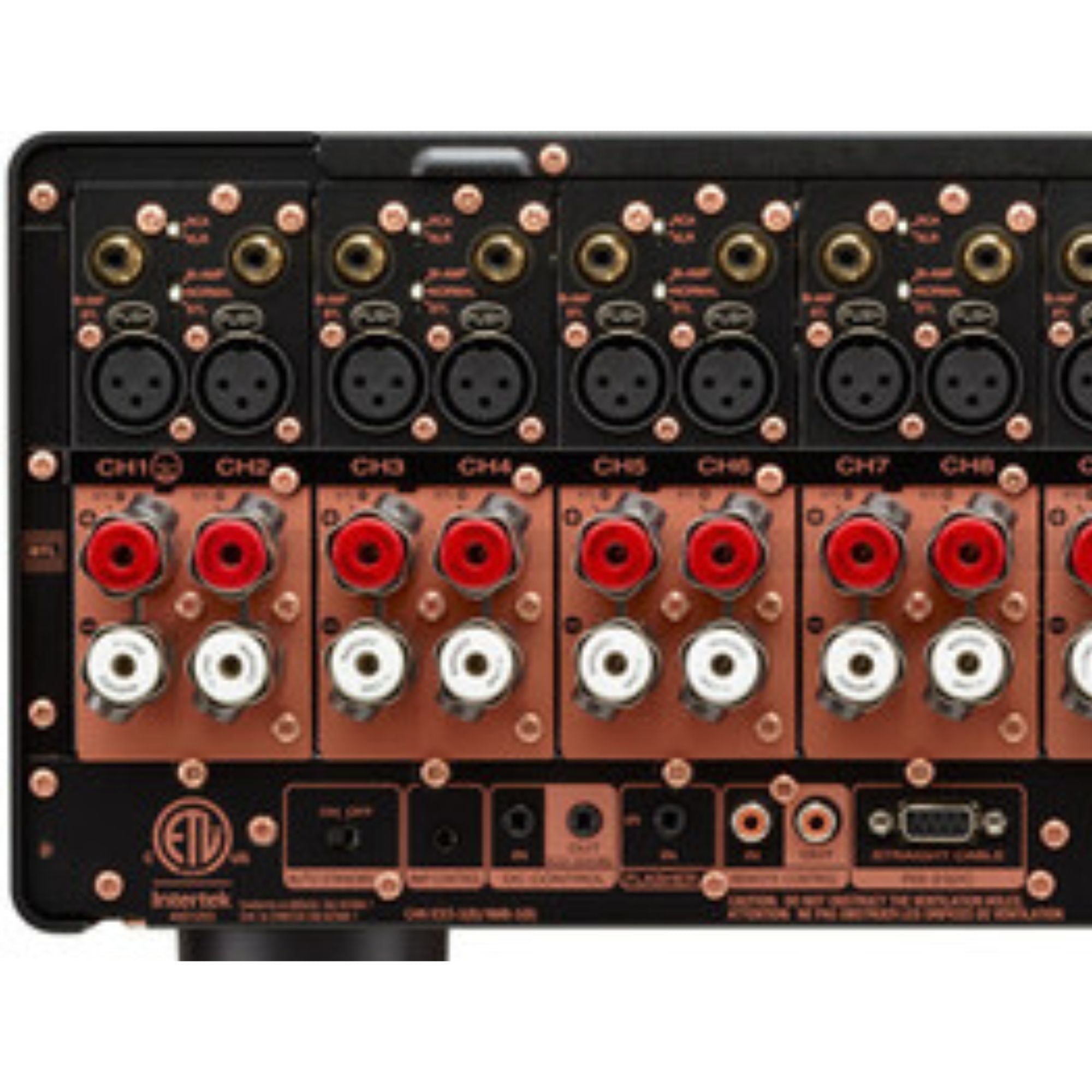

Each channel features an unbalanced RCA input and a balanced XLR input, and the input to each pair is selectable via a handy switch. Another switch lets you control how each set of output terminals are configured: normal, bi-amp, or BTL. The ability to tailor how power is output allows your speakers to work hard and smart, so they can perform at their peak.

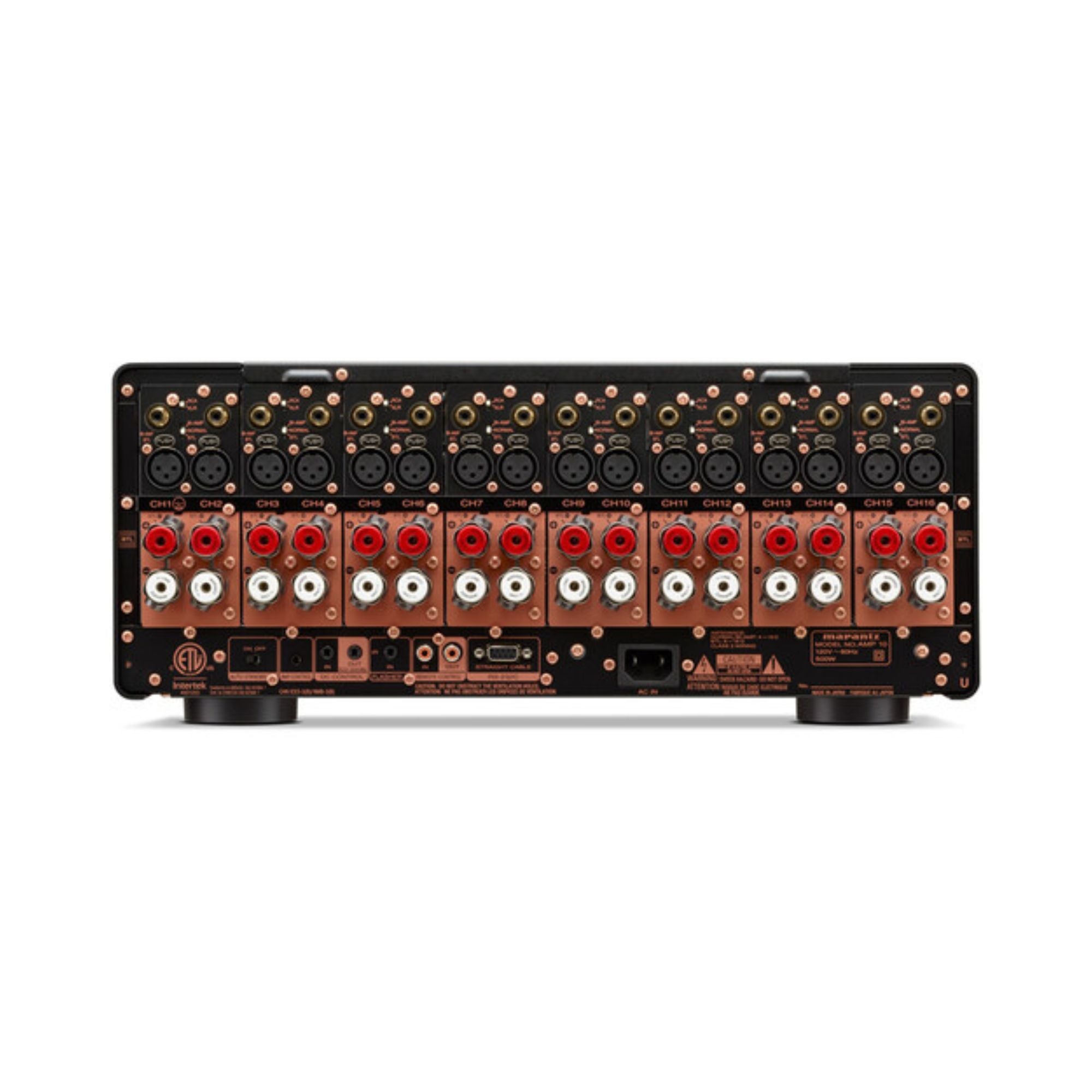

The back panel also gives you multiple options for controlling the amp. There's a 3.5mm amp control input for syncing functions with a compatible preamp/processor, as well as a 3.5mm DC trigger input and output. If you use an IR flasher, there's an input for that, too. You'll also find a Marantz RCA remote control input and output and a multi-pin RS-232C port for third-party remote control.
Additional Features
- Marantz HDAM
- Class-D amplification
- BTL drive
- Copper-plated chassis
- Auto power off
- Firmware updatable via RS-232C
|
Amplifier Type |
Power Amplifier |
|
Channels |
16.0 |
|
Amplifier Class |
Class-D |
|
Power Output per Channel |
|
|
Speaker Impedance |
4 to 16 Ohms |
|
Rear A/V Inputs |
16x RCA Unbalanced 16x Mono XLR Balanced |
|
Other Rear I/O |
1x 1/8" / 3.5 mm (Service) Input 1x 1/8" / 3.5 mm (Power) Input 1x 1/8" / 3.5 mm (Power) Output 1x 1/8" / 3.5 mm (IR) Input 1x RCA (Remote) Input 1x RCA (Remote) Output 1x DE-9 (RS-232C) Input/Output |
|
Speaker I/O |
16x Gold-Plated Binding Post Pairs |
|
Bi-Amp Capability |
Yes |
|
Control By Mobile App Compatible |
No |
|
AC Input Power |
120 VAC, 60 Hz |
|
Power Consumption |
Active: 500 W No Sound: 140 W Standby: 0.2 W |
|
Dimensions (W x H x D) |
17.4 x 7.4 x 19.2" / 44.2 x 18.8 x 48.8 cm |
|
Box Dimensions (LxWxH) |
23 x 21.5 x 13" |
|
Weight |
43.7 lb / 19.8 kg |
|
Package Weight |
54 lb |
