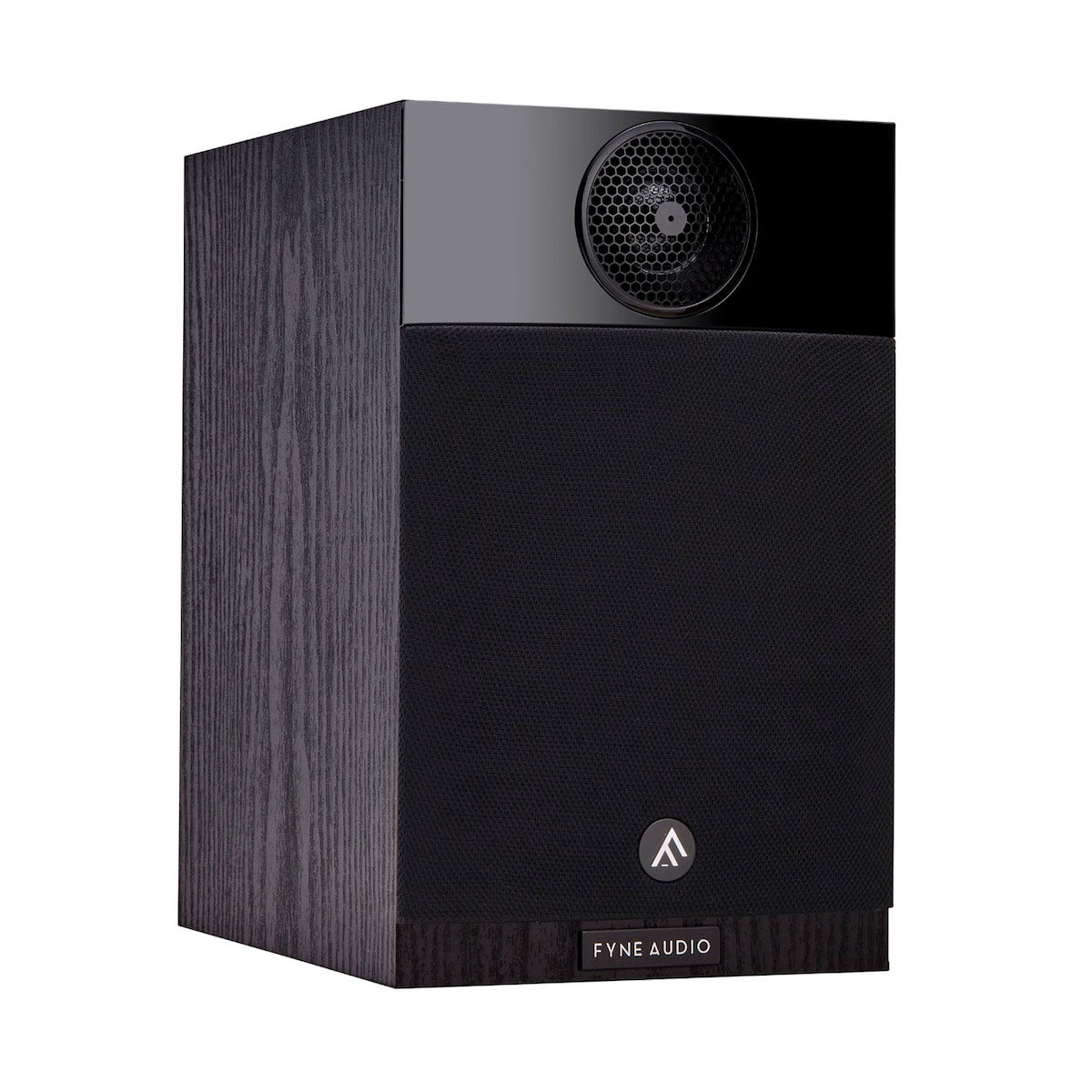

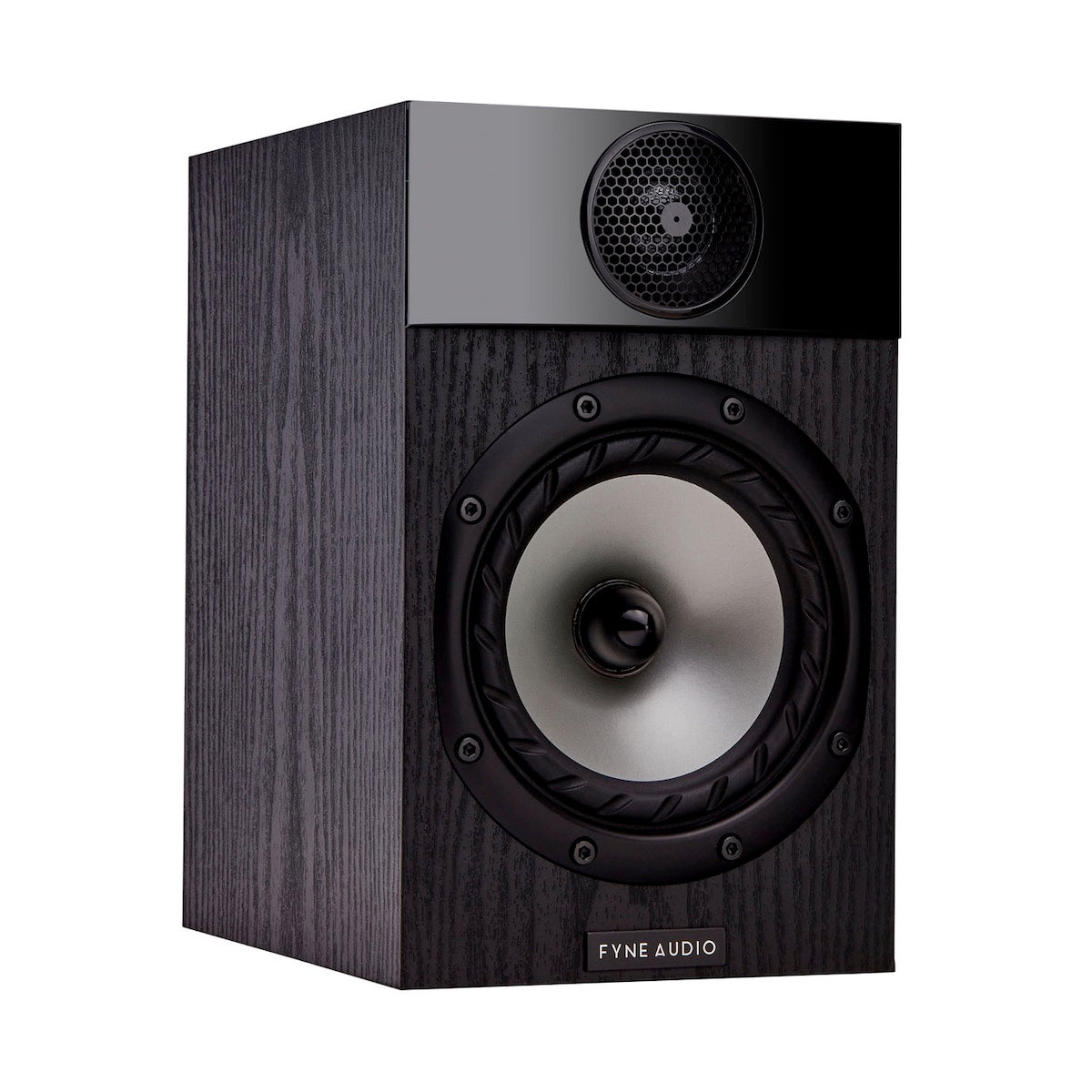

F300

Packing a punch well beyond its diminutive size the versatile F300 bookshelf speaker can be used for two channel Hi-Fi or home theatre applications. Pre-fitted to the rear panel of the F300 is a bracket allowing the speaker to be easily flush-mounted to a wall. This is a really handy feature where space is at an absolute premium, or for using the speaker as a rear effects speaker in home cinema set up.

CABINET

A well-constructed speaker cabinet is the starting point for any high-performance loudspeaker. Exceptional rigidity is provided on all F300 models through a combination of MDF panels which are cross-braced internally. Additional stiffness is achieved by coupling the low frequency driver’s magnet to the cabinet bracing using a resonant absorbing mastic. Widening the footprint on the floorstanding models, using a plinth with floor coupling spikes, provides stability for tight bass and accurate stereo imaging.

CROSSOVER

Optimal performance of each of the F300 models is assured by using high quality precision components within the crossover, including low loss LF laminated core inductor and HF polypropylene capacitors. Although the designs are computer optimised, fine tuning is always undertaken through critical auditioning. The gold plated speaker terminals ensure a clean signal path and the top of the range F303 has bi-wire terminals fitted to further enhance performance.

DRIVER TECHNOLOGY

Fyne Audio aims to provide best in class performance at all price levels and the careful component selection for the F300 drivers helps to meet this goal.

Utilising a multi-fibre paper cone on the bass / midrange drivers delivers a natural sounding midrange and clean transient behaviour. Fitted to the centre of the driver is a phase plug which provides smooth midrange roll-off characteristics. FyneFlute technology, used on the driver’s roll rubber surround, provides a non-homogeneous interface which very effectively terminates the speaker cone energy.

TWEETER

The tweeter combines a powerful Neodymium magnet system with a 25mm Polyester dome producing crisp and controlled high frequency detail. Integrated within the protective mesh cover is a phase loss compensator which delays the output from specific areas of the dome to give a smooth and extended response.
