- Alpha OCC-DUCC
- DAS-4.1
- Balanced Interconnect Bulk Cable (30m/98.4ft/Reel)
Features
D.U.C.C. (Dia Ultra Crystallized Copper)
α (Alpha) OCC - DUCC is constructed using a combination of DUCC Ultra Crystallized High Purity Copper and Furutech’s world famous Pure Transmission α (Alpha)-OCC.
Furutech DUCC Ultra Crystallized High Purity Copper - supplied and regulated with strict quality and supply control by Mitsubishi Materials Industries - is one of the best conductors Furutech engineers have found for signal transmission.
Mitsubishi process this extremely pure oxygen-free copper with new technology that optimally aligns the crystals while reducing the number of crystal-grain boundaries resulting in a tremendously efficient conductor. Furutech combines DUCC with Furutech’s world famous Pure Transmission α-OCC and treats this optimized dual conductor configuration with Furutech’s Alpha Super Cryogenic and Demagnetizing process to take purity and conductivity a significant step further.
D.U.C.C. is a registered trademark of Mitsubishi Cable Industries Ltd.
|

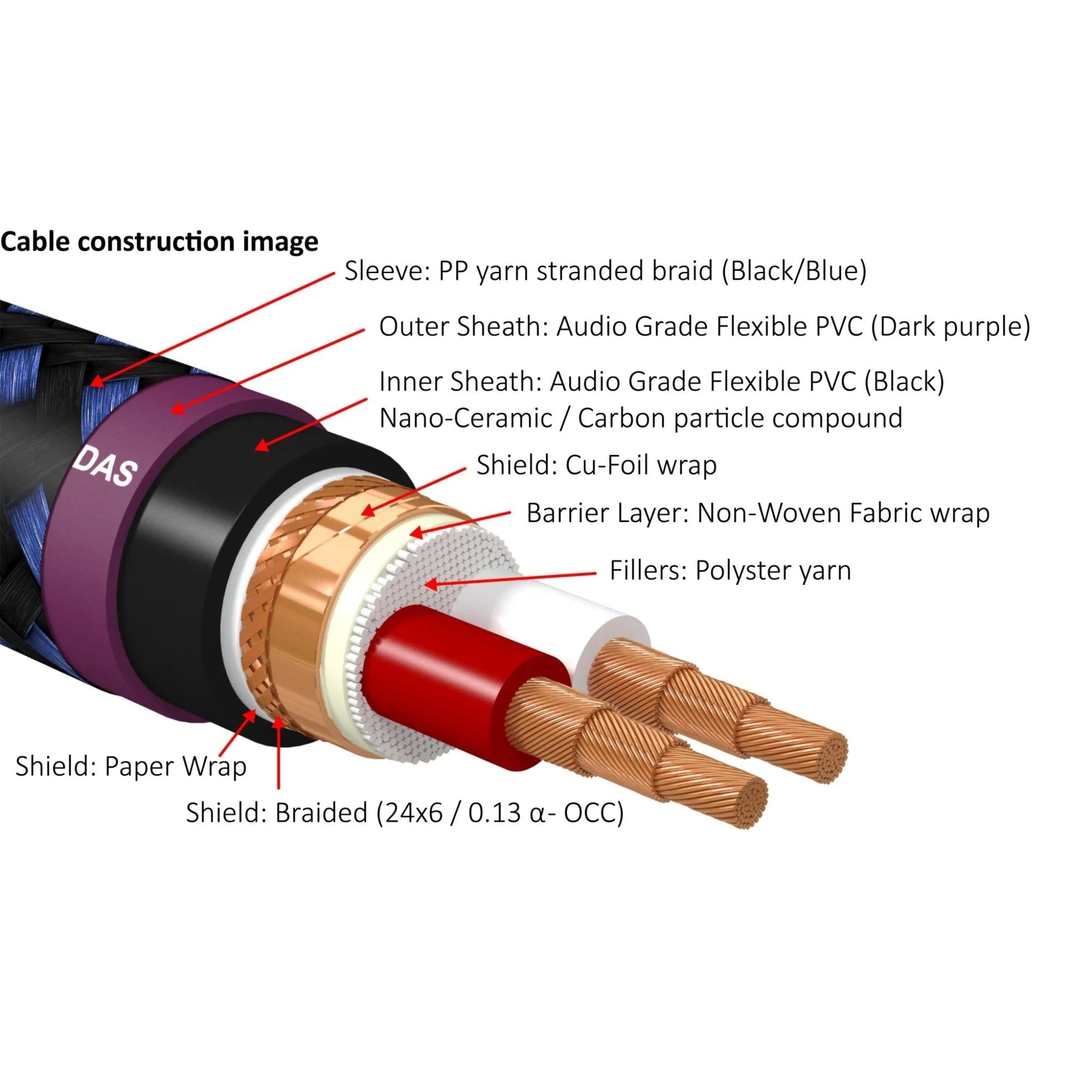

Conductor Material |
Alpha-OCC + α-DUCC (7N Class) |
|

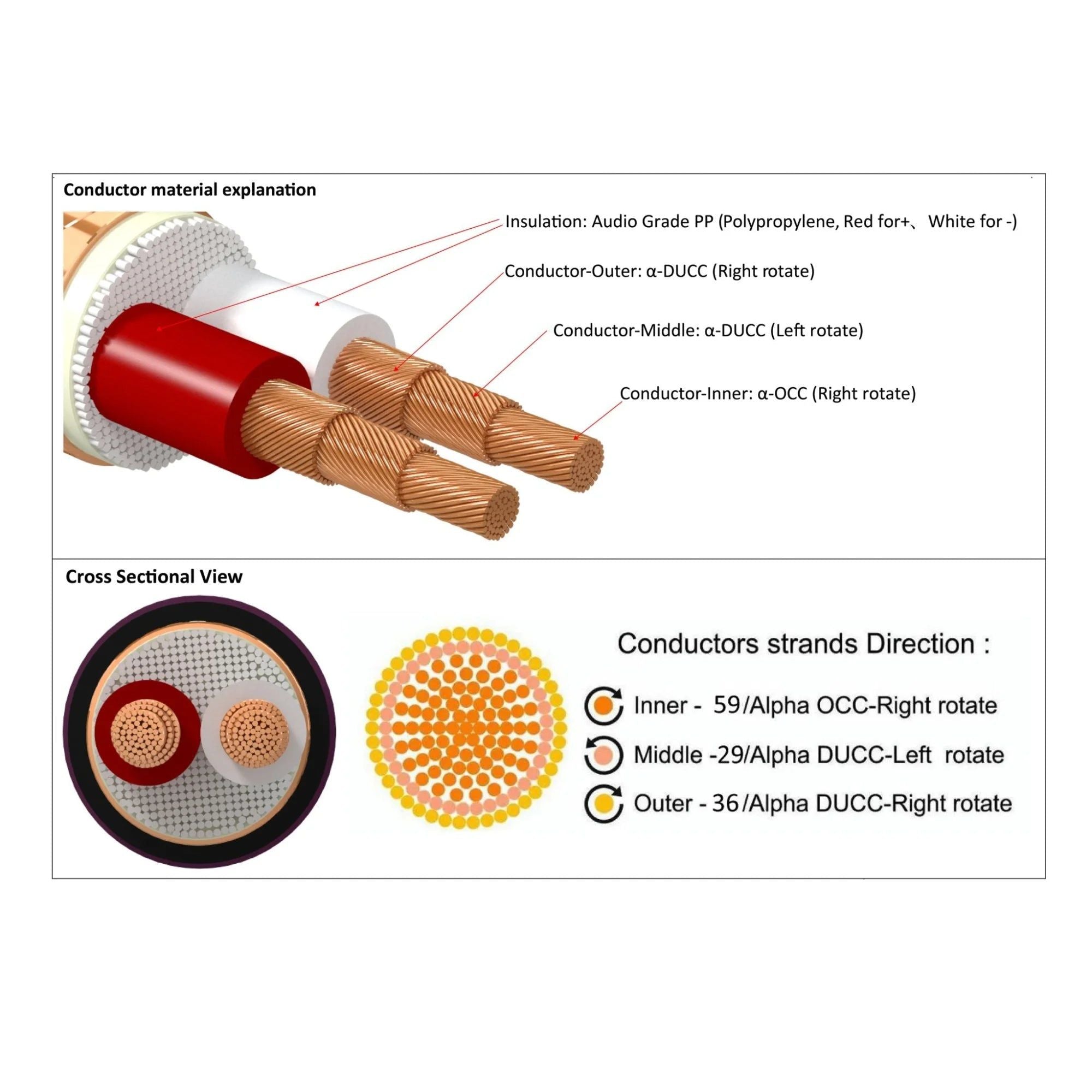

Conductor Construction (pcs／mm) |
Inner – 21 / 0.18 α-OCC (Right rotate) Middle – 19 / 0.18 α-DUCC (Left rotate) Outer – 25 / 0.18 α-DUCC (Right rotate) |
|
Conductor Diameter (mm) |
1.65 Approx. |
|
Conductor Size |
15AWG / 1.65 Sq.mm |
|
Insulation Material |
Audio Grade PP (Polypropylene, Red for”+”、White for “-“) |
|
Insulation Mom. Thickness (mm) |
0.47 Approx. |
|
Insulation Diameter (mm) |
2.6 Approx. |
|
Twisting Method |
2 Cores Twisted Together |
|
Fillers |
Polyester yarn |
|
Barrier Layer |
Non-Woven Fabric wrap |
|
Shield Method |
Cu-Foil wrap + Braided (24×6 / 0.13 α- OCC) + Paper wrap |
|
Inner Sheath Material |
Audio Grade Flexible PVC (Black) Nano-Ceramic / Carbon particle compound |
|
Inner Sheath Diameter (mm) |
7.8 Approx. |
|
Outer Sheath Material |
Audio Grade Flexible PVC (Dark purple) |
|
Outer Sheath Nom. Thickness (mm) |
0.7 Approx. |
|
Outer Sheath Diameter (mm) |
9.2 Approx. |
|
Outer Sleeve Material |
PP yarn stranded braid(Black/Blue) |
|
Overall Diameter (mm) |
10.0 Approx. |
