Eversolo AMP-F2 Power Amplifier
Tax included.
GET GST INPUT
Ever wondered why speakers, amplifiers, projectors etc. come with a slightly heftier price tag in India compared to their overseas counterparts? Well, part of the answer lies in our country's Goods & Services Tax (GST).
But here's the kicker: Don't let that GST input slip through your fingers! Especially when some of the products we supply carry a GST rate of 18% and 28%.
At AVStore, we provide you with a GST compliant invoice for every purchase.
Simply put in your GST number during the checkout to avail an offset.
- Description
- Specifications
- Reviews
Dynamic Power
Detailed Presentation
The AMP-F2, developed in collaboration between the Starke Sound team and the Eversolo team, is based on the innovative NS600 module created by the Starke Sound team. It boasts a high sampling rate of up to 600KHz. Simultaneously, it significantly reduces noise and enhances dynamic performance through the newly designed SAPS audio-specific switch power supply. It employs an efficient Class D amplification structure, cou-pled with optimized circuits to maximize audio quality. The AMP-F2 is bridgeable, allowing flexible configura-tion for 2-channel or mono-channel setups when needed.
Vigorous Output
Bridged Support
The AMP-F2 is equipped with Starke Sound's NS600 amplifier module, each channel can output a con-stant 250W RMS (42) @ 1% THD+N. When bridged, it can support up to 450W RMS (22) with THD+N still below 1%. This ability to handle extremely low-impedance loads ensures ample energy even in large and challenging speaker setups, particularly during high-dynamic low-frequency outputs.
Accurate Sound
Perfect Experience
The NS600 module employs PurePath™™™ Ultra-HD technology and advanced integrated feedback design, fea-turing high-speed gate driver error correction functions. This technology achieves ultra-low distortion across the entire audio frequency range, delivering perfect high-end audio quality.
Powerful Power Drive
Utilizing a 600W high-efficiency, low-ripple, low-EMI switch power supply, it delivers consistent and powerful output, extremely low noise, enhancing the overall dy-namic performance of the system.
Environmentally Friendly Low Power Consumption
AMP-F2 has an extremely low standby power (0.5W) and idle power consumption (14W), com-plying with the European Union ErP standards.
Aluminum Body
Shielding Design
Complete self-protection and anti-interference design to avoid disturbances from various electrical environments.
One-Touch Activation Seamless Control

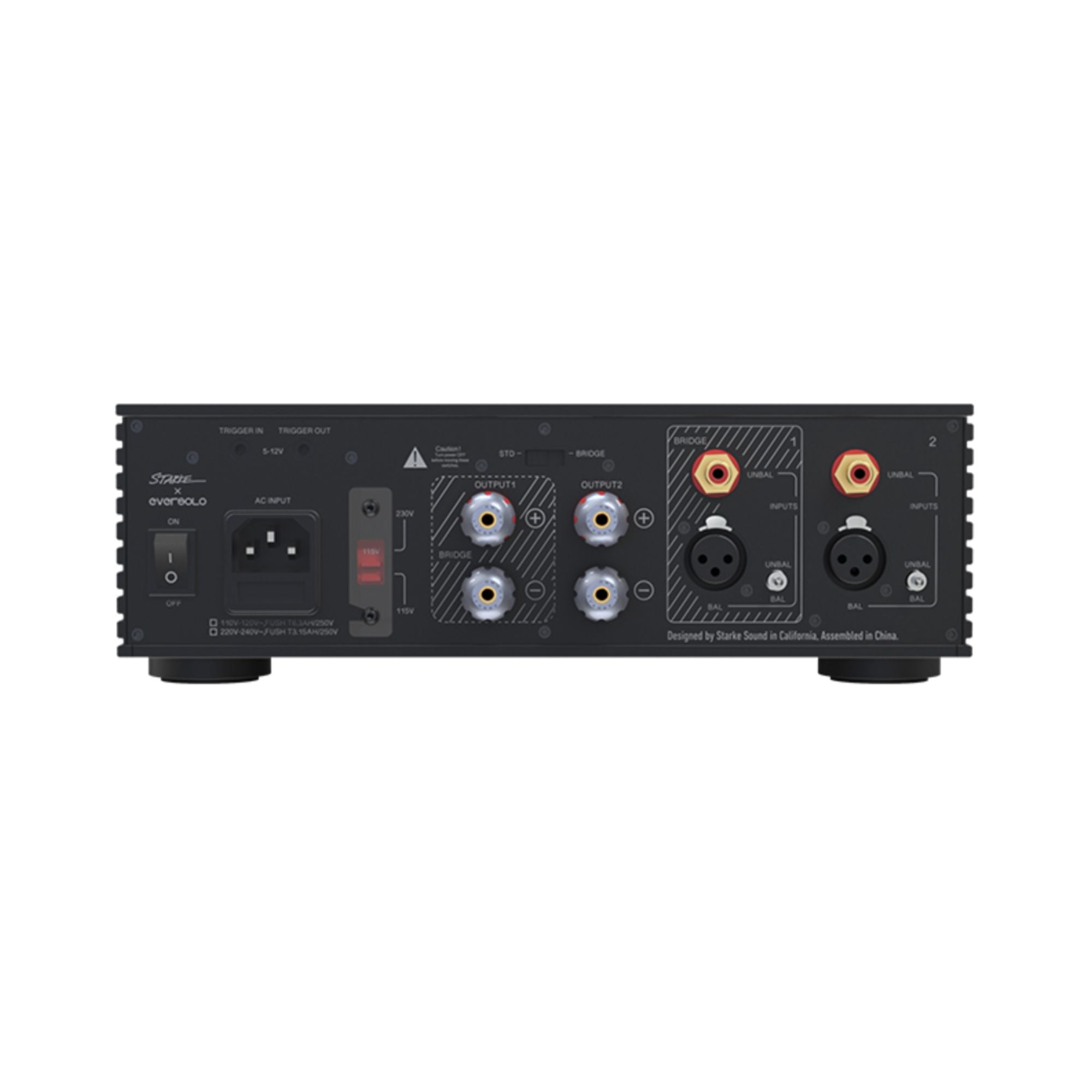

The AMP-F2 is equipped with standard 12V TRIGGER IN and TRIGGER OUT function, allowing it to be synchronized with other devices that support the standard TRIGGER interface for power on and off; using the USB to TRIGGER adapter cable provided with the AMP-F2, you can connect the USB Type A interface of the DMP-A6 to the TRIGGER IN of the AMP-F2 to achieve synchronization.
|
Output Power |
250W RMS at 4Ω（1%THD，per channel）145W RMS at 8Ω (1%THD，per channel |
|
Bridge Mode Output Power |
450W RMS at 2Ω（Bridge Mode) |
|
Channel quantity |
2 Channels |
|
Amplifier type |
Class D |
|
Frequency Response |
10Hz-20kHz -1.2dB |
|
Maximum output current |
16.5A（per channel）/ 33A（Bridge) |
|
Signal-To-Noise Ratio |
(SNR) >110dB,”A" weighted 4Ω 260W |
|
Input terminals |
2-Channel RCA Input ；2-ChannelXLR Input |
|
Input Impedance |
RCA 10.5K ohm /XLR 21.7K ohm |
|
Output terminals |
2 pairs beryllium copper binding post，custom made by Starke Sound |
|
Output Impedance |
0.09 ohm 1kHz |
|
Damping coefficient |
100 |
|
Full size |
W 270 mm x D 228 mm x H 90 mm (w/ foot) |
|
Weight |
3.65Kg |
