Dali Phantom E-80 WR - In-Ceiling Weather Resistant Speaker - Pair

Sale priceRs. 88,000
Sold out

Tax included.

GET GST INPUT

Ever wondered why speakers, amplifiers, projectors etc. come with a slightly heftier price tag in India compared to their overseas counterparts? Well, part of the answer lies in our country's Goods & Services Tax (GST).

But here's the kicker: Don't let that GST input slip through your fingers! Especially when some of the products we supply carry a GST rate of 18% and 28%.

At AVStore, we provide you with a GST compliant invoice for every purchase.

Simply put in your GST number during the checkout to avail an offset.


  • Description
  • Specifications
  • Reviews

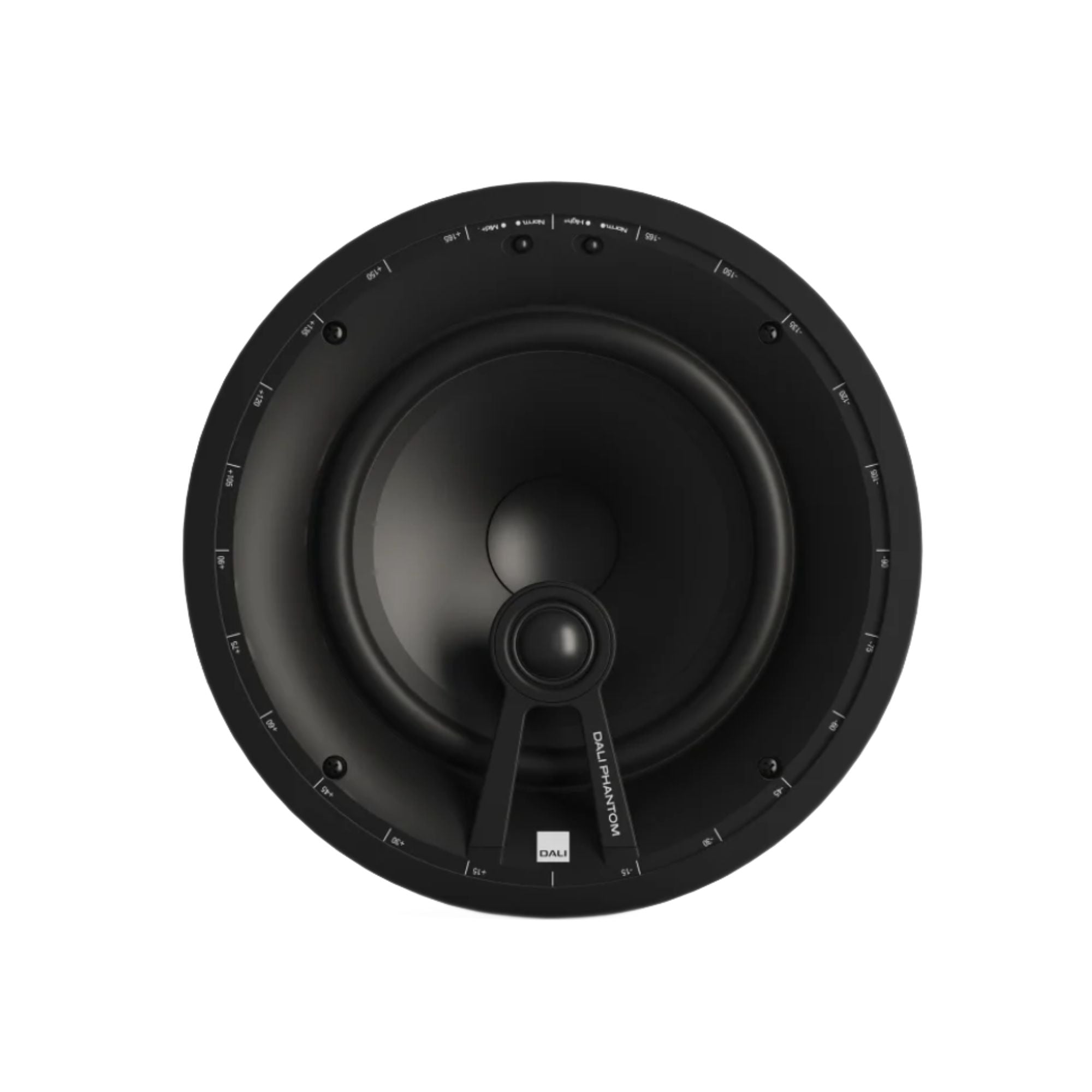

The E-80 WR offers class-leading performance and versatility. With added weather resistance and IP65-rated ingress protection, the E-80 WR in-ceiling loudspeaker is suitable for almost any location, from high-humidity bathrooms to covered outdoor terraces.

Engineered weather resistance

With its engineered weather-resistant features suitable for covered outdoor and high-humidity locations, the in-ceiling loudspeaker can fill almost every space with high-quality and wide bandwidth sound.

Class-leading sound quality

The E-80 WR offers class-leading sound quality, thanks to features like the tilted driver, which minimises driver and baffle resonance for reduced distortion and colouration.

Functional versatility

It's more than just an in-ceiling loudspeaker - it's a high-performance sound solution for almost any ceiling location and any application.

Easy installation

The intuitive dogleg clamp system makes installation simple – no special tools required.

Engineered Weather Resistance

Suitable for outdoor & high humidity

With its engineered, weather-resistant features, the E-80 WR in-ceiling loudspeaker is suitable for covered outdoor and high-humidity locations. With a working range of -20 to +60°C and IP65 rating, it's ready to take on the elements. So whether you want background music for the laundry room, bathroom or spa, or immersive multi-channel sound on the terrace, the E-80 WR delivers.

Class-Leading Sound Quality

High-performance drivers and low-loss surround

The large diameter bass/midrange driver incorporates a stiff yet light polypropylene cone and a very low-loss rubber surround for uncoloured and natural midrange combined with deep and rich low frequency performance. The E-80 WR's 25 mm textile dome tweeter offers an impressively extended and detailed upper frequency response.

Functional Versatility

Fine-tuned for any space

The E-80 WR is more than just an in-ceiling loudspeaker – it's a high-performance sound solution for almost any ceiling and application. Install one or two speakers in your bathroom for high-quality tunes as you shower or several on the terrace for an immersive multi-channel audio space.

Easy Installation

No special tools required

The dogleg clamp system makes for straightforward installation without the need for special tools. Simply connect the cables to the spring terminals, insert the speaker and turn the four clamp screws to tighten it into place. The speaker is also slim enough to fit into almost any standard ceiling.

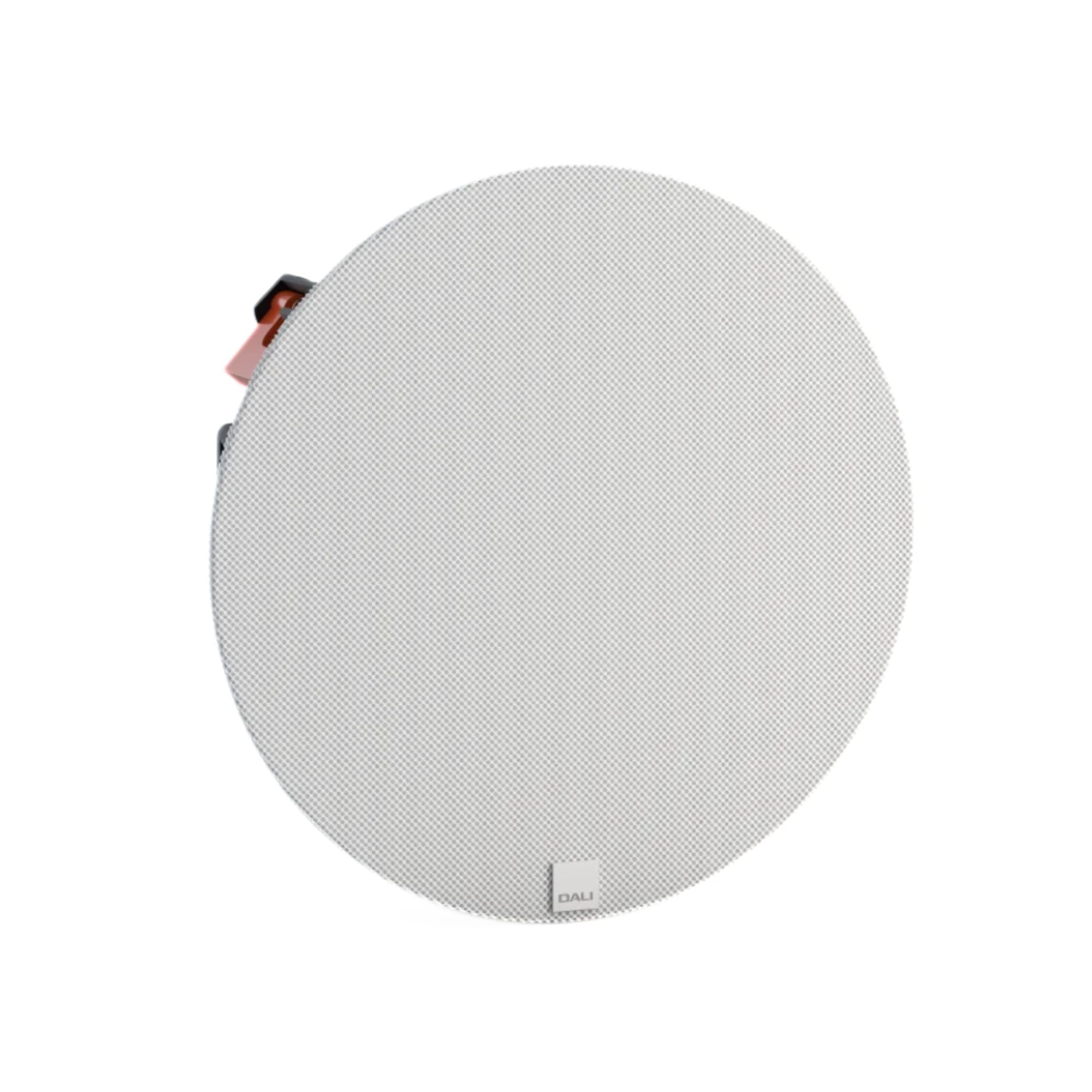

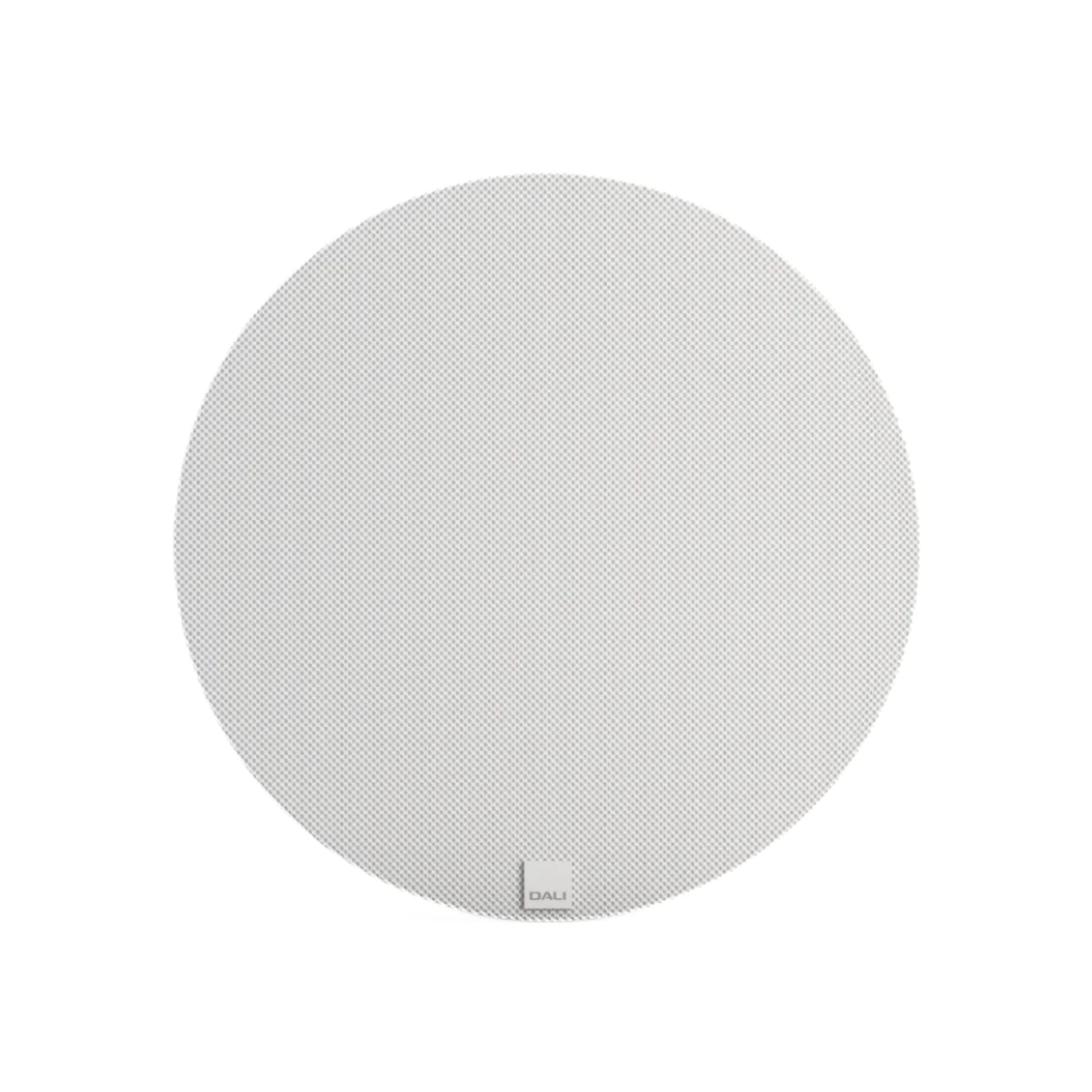

Paintable Magnetic Grille

Add a splash of colour to your home

The white magnetic grille helps the E-80 WR blend discreetly into any room, while the paintable surface lets you add a splash of colour for an aesthetic twist. The grille is also electroplated to add extra protection against the elements.

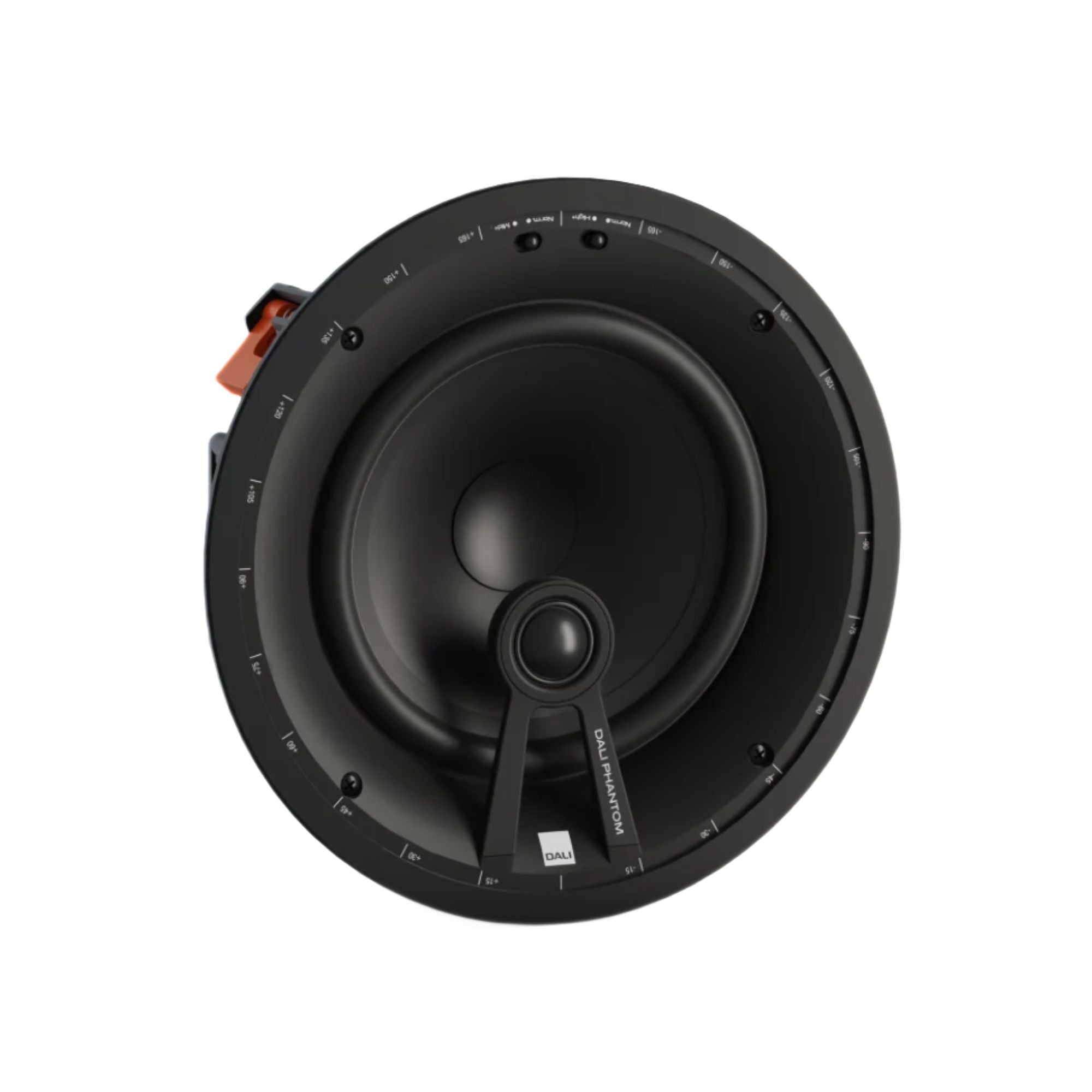

Tilted Drivers

Directional sound for a better experience

The 5° off-axis tilt of the E-80 WR drivers means you can rotate the speaker to direct more sound toward the primary listening position. The tilted design also minimises resonance from the driver and baffle, which helps to lower distortion and colouration for a more accurate audio reproduction.

Frequency Range (+/-3 DB) [HZ]

49 - 25,000

Sensitivity [2.83V/1M, DB]

89 dB

Nominal Impedance [ohms]

6 ohm

Maximum SPL [dB]

107 dB

Recommended Amp. Power [Watts]

30 - 150

Crossover Frequency [HZ]

3,200

Crossover Principle

2-way

High Frequency Driver

1 x 25 mm soft dome / soft woven fabric

Low Frequency/midrange Driver(s)

1 x 8 " Polypropylene

Connection input

Single wire

Enclosure Type

Open back

Other features

Normal/High+

Normal/Mid+

Galvanized grille

Installation location

In-ceiling/In-wall

Recommended Placement

Ceiling/Front/Centre/Surround

IP Rating

IP65

Outer dimensions incl. grille (H x W x D)

Ø 295 x 116 mm

Ø 11.61 x 4.57 inches

Outer dimensions excl. grille (H x W x D)

Ø 278 x 113 mm

Ø 10.94 x 4.45 inches

Cut-out dimensions

Ø  261 mm

Ø 10.28 inches

Mounting depth

109 mm

4.29 inches

Recommended rear volume (backbox)

5 - 100 litres

Optimum rear volume

30 litres

Ceiling/wall thickness (total dog-leg span)

10 - 70 mm

0.39 - 2.76 inches

Weight incl.grille

2.50 kg / 5.51 lb

Shipping weight

3.50 kg 7.71 lb

Finish

White

Accessories

Manual

Cut-out template

Front grille

Logo badge
