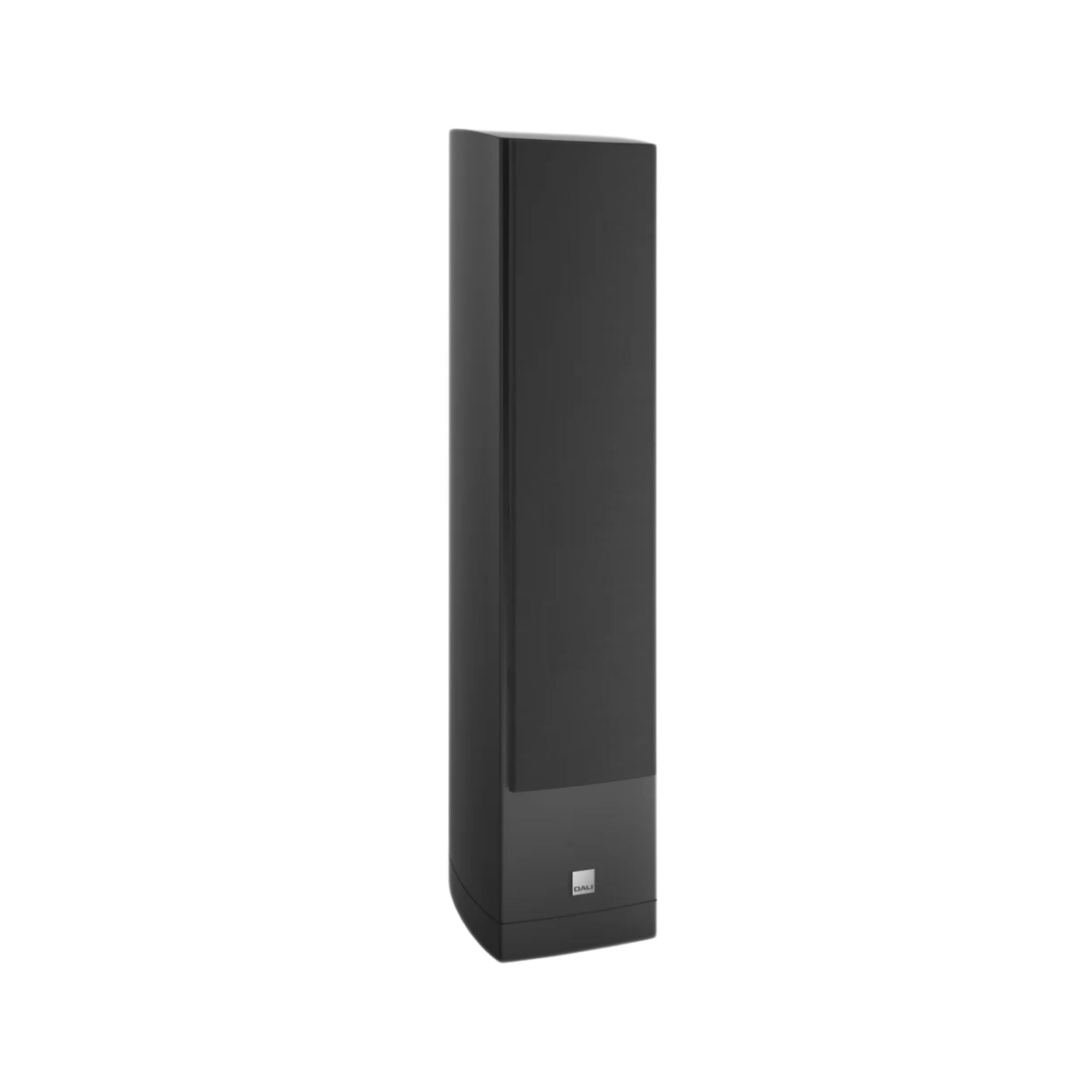

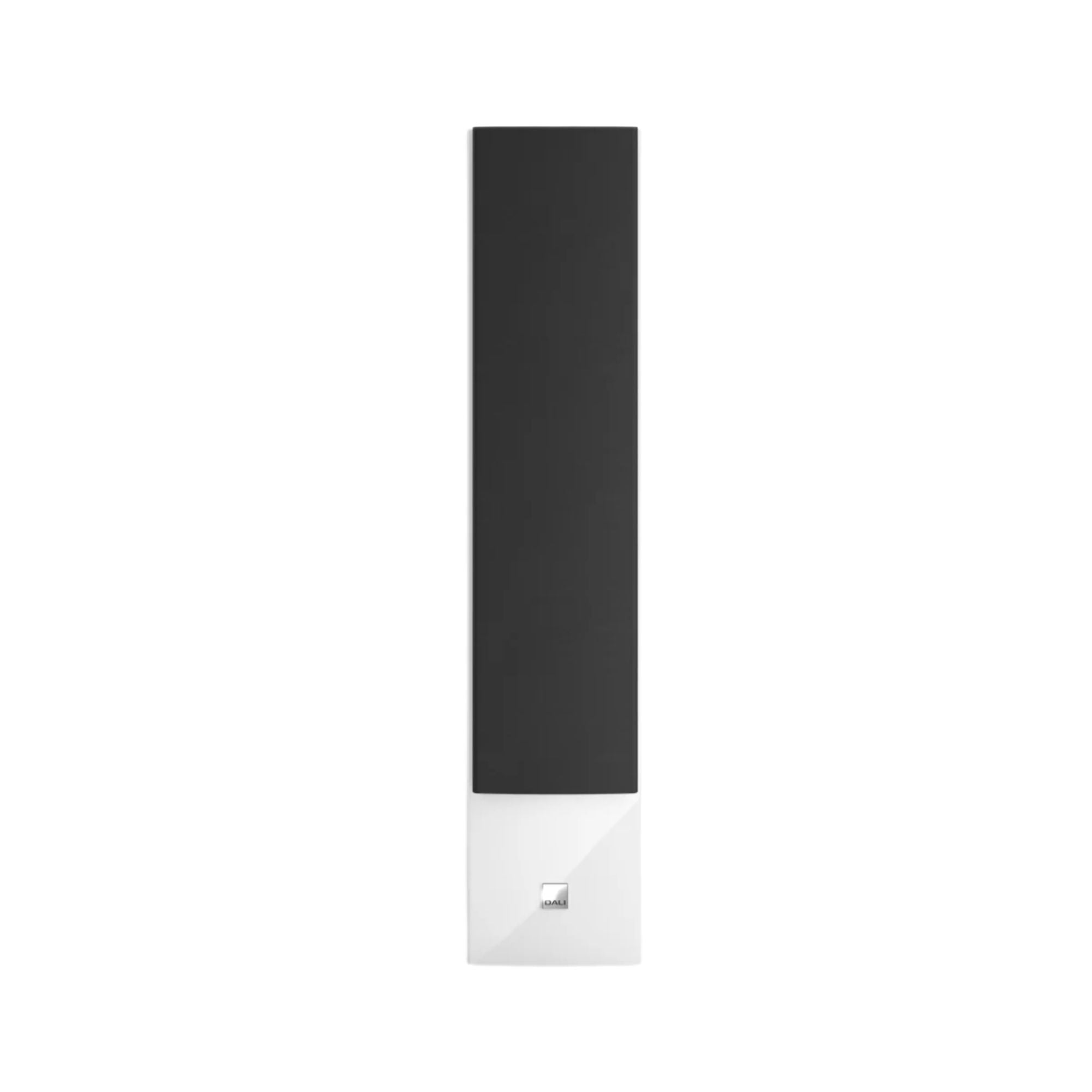

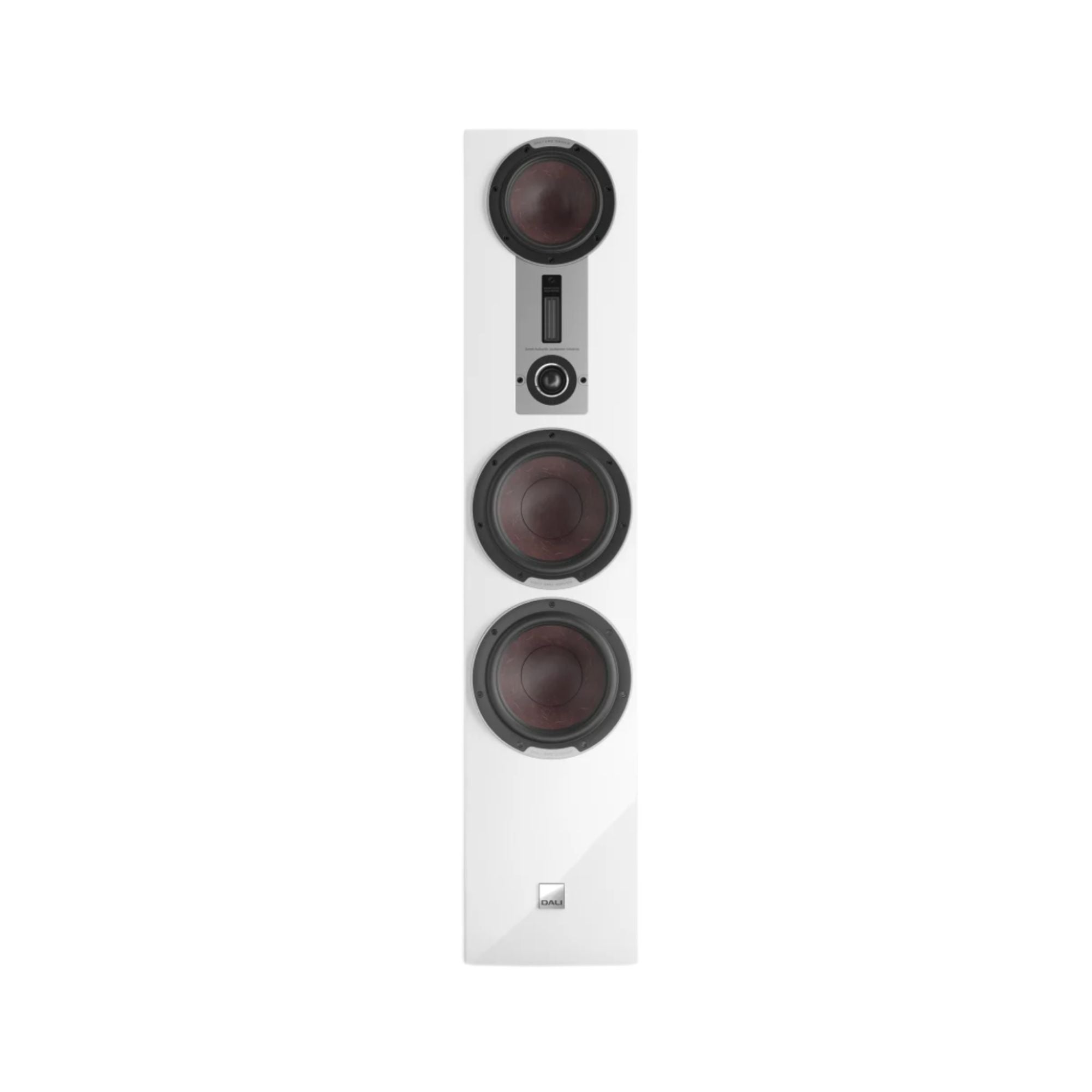

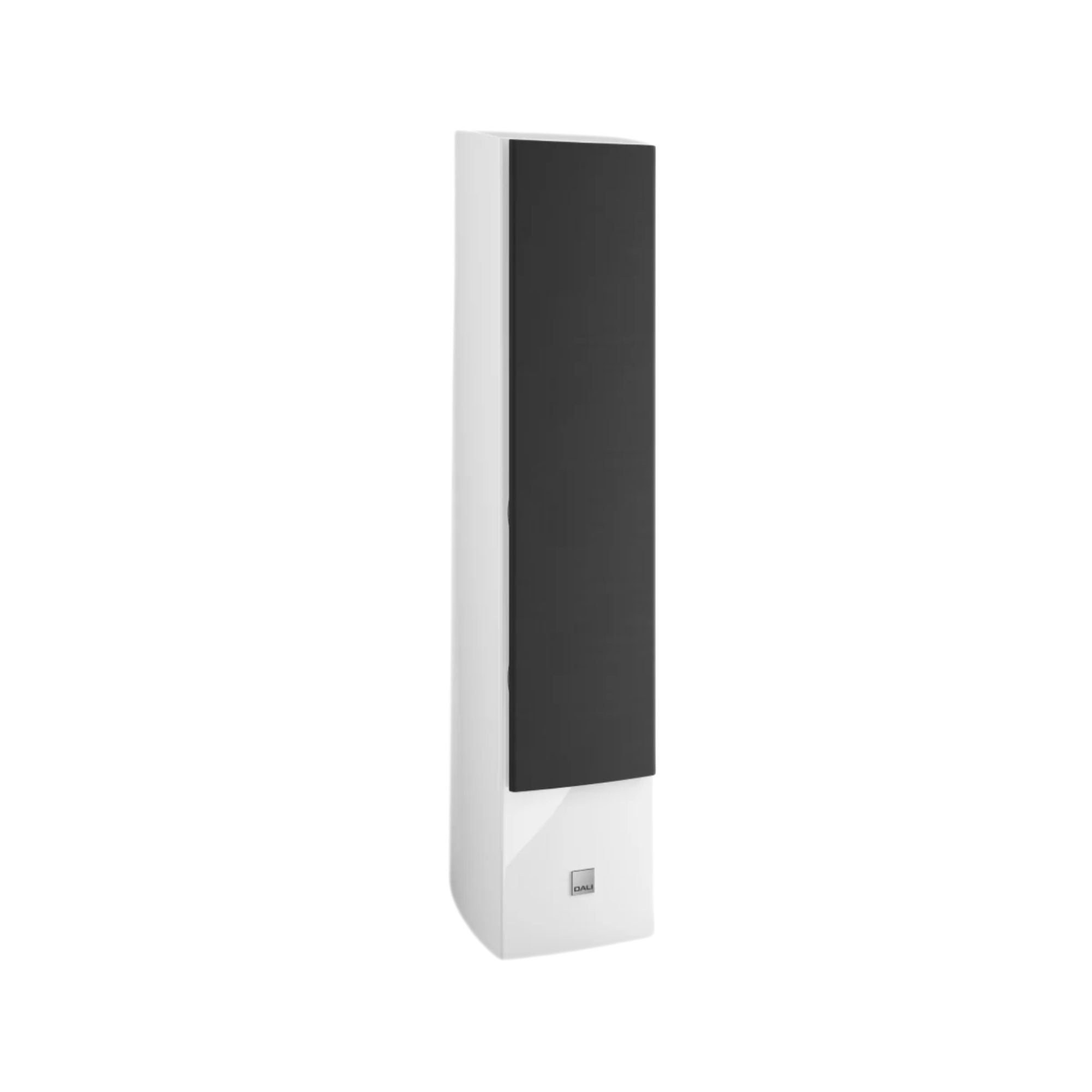

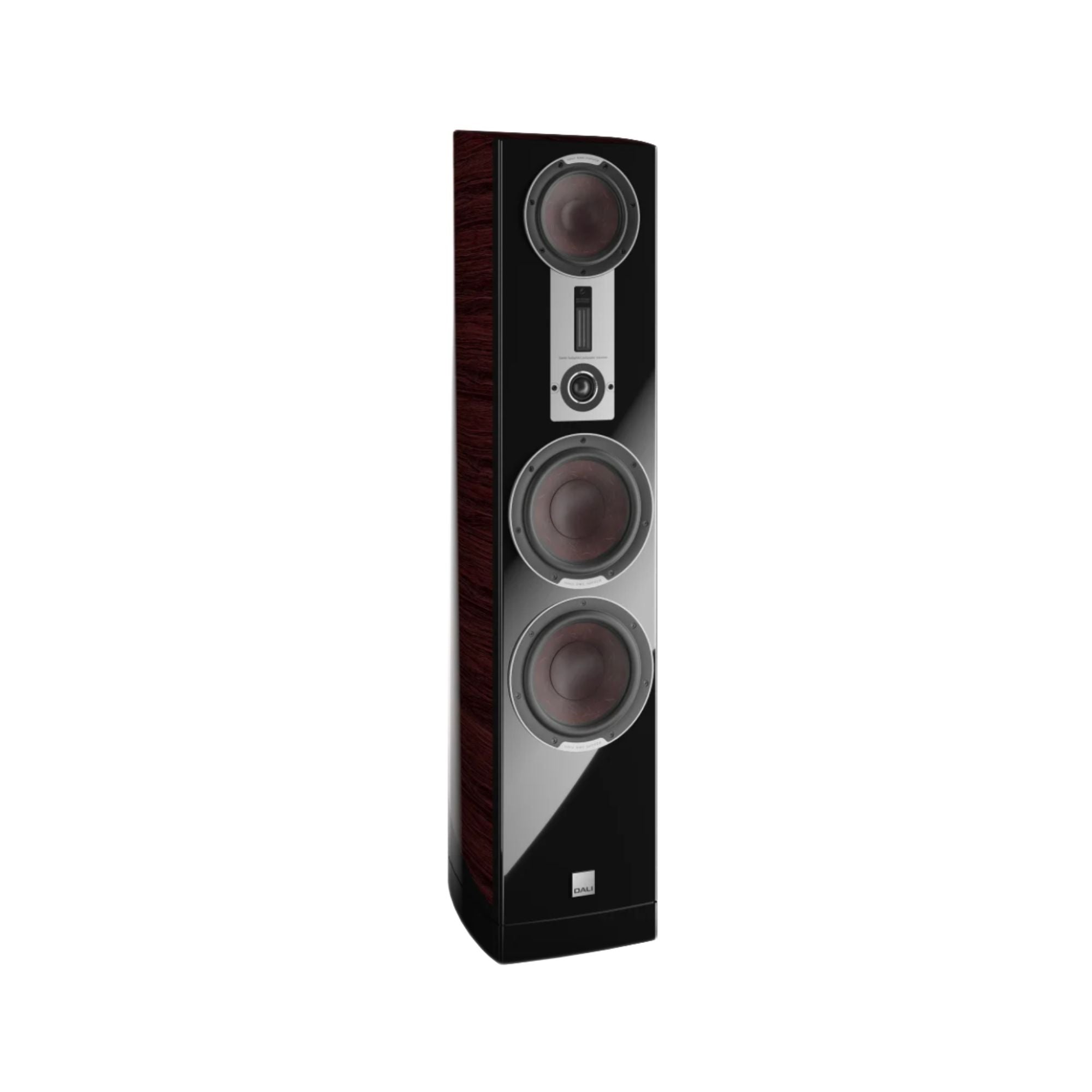

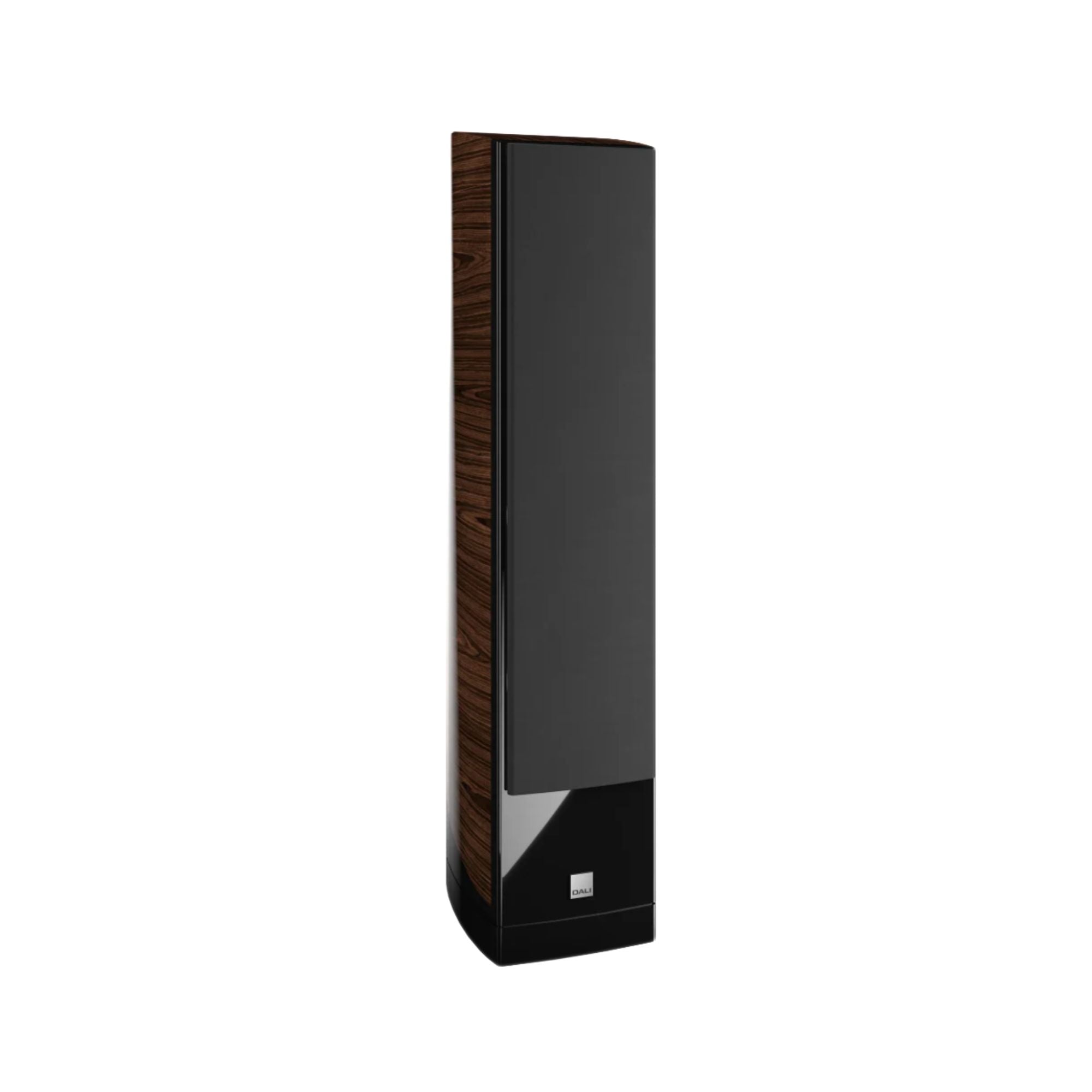

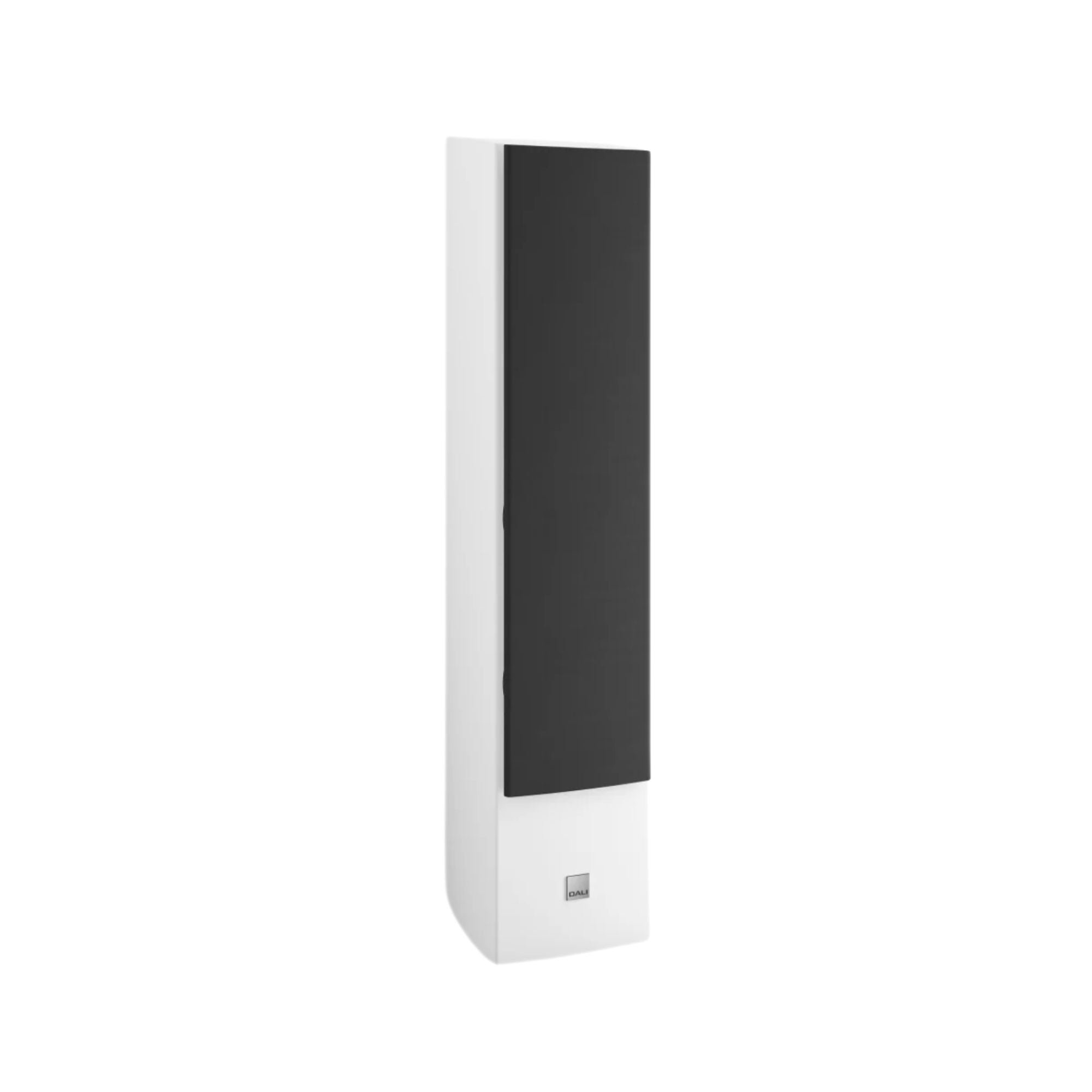

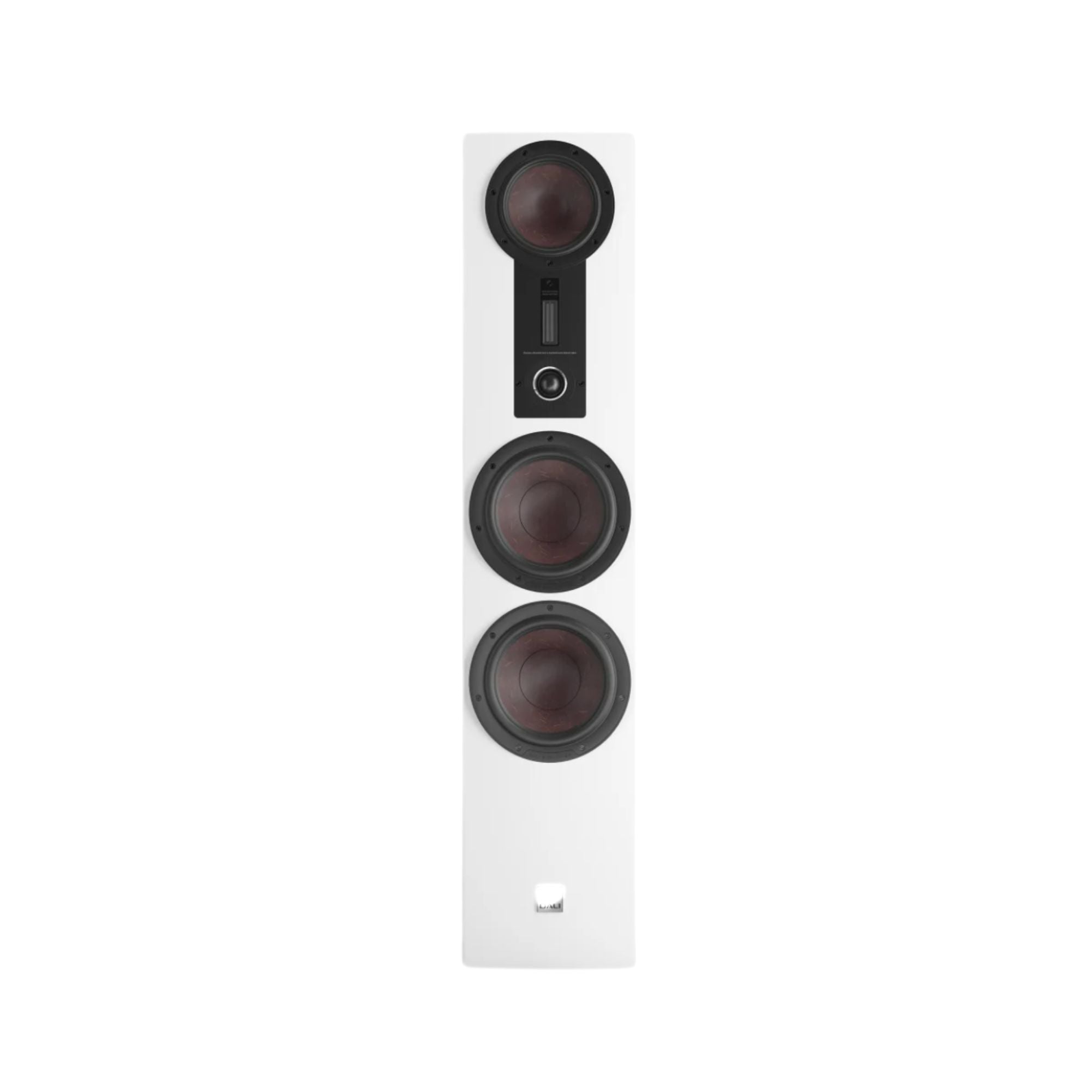

Dali Epicon 8 - Floor Standing Speaker - Pair

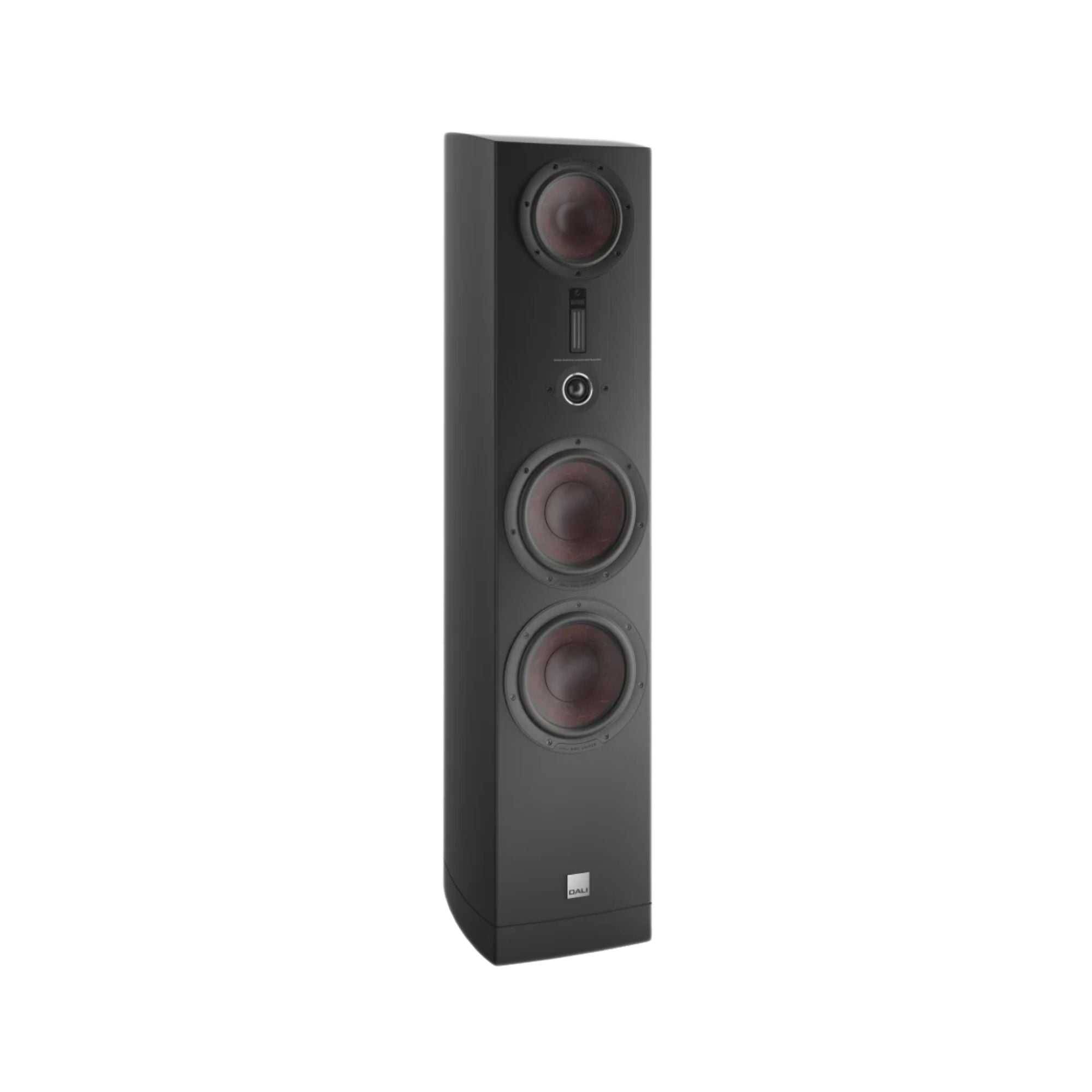

Color: Satin Black
  • Description
  • Specifications
  • Reviews

Delivers a dramatically rich and detailed sound that will blow your mind and captivate your senses. Prepare yourself for true musical indulgence and beautiful design that will grace any home.

Patented SMC

Their patented Soft Magnetic Composite (SMC) is the heart of the magnet motor system, minimising coloration and distortion.

In-House Woofers

The latest generation of wood fibre based woofers are developed and manufactured at their production facilities in Denmark.

Multilayer Laminate

6 layers of MDF form a rigid construction that reduces cabinet resonances, while the rounded form practically eliminates standing waves.

Hybrid Tweeter

Optimised for the EPICON series, featuring an extremely smooth and wide horizontal dispersion.

THE ABSOLUTE PINNACLE

Musical indulgence like never before

The absolute pinnacle of the EPICON series, the EPICON 8 delivers a dramatically rich and detailed sound that will blow your mind and captivate your senses. The loudspeaker is the result of a passionate, tireless quest for perfection. Prepare yourself for musical indulgence like never before and a beautifully striking design that you will love to own.

PATENTED SMC

Reducing distortion for superior sound

For years, designing magnet systems has been a DALI speciality. For the EPICON 8, they decided to challenge the highest performance standards and to take magnet system design further than ever before. The answer was Soft Magnetic Composite (SMC) material, which combines extremely high magnetic conductivity and very low electrical conductivity to deliver a dramatic reduction in distortion caused by mechanical loss in the magnet system.

DALI HYBRID TWEETER

The master of wide dispersion

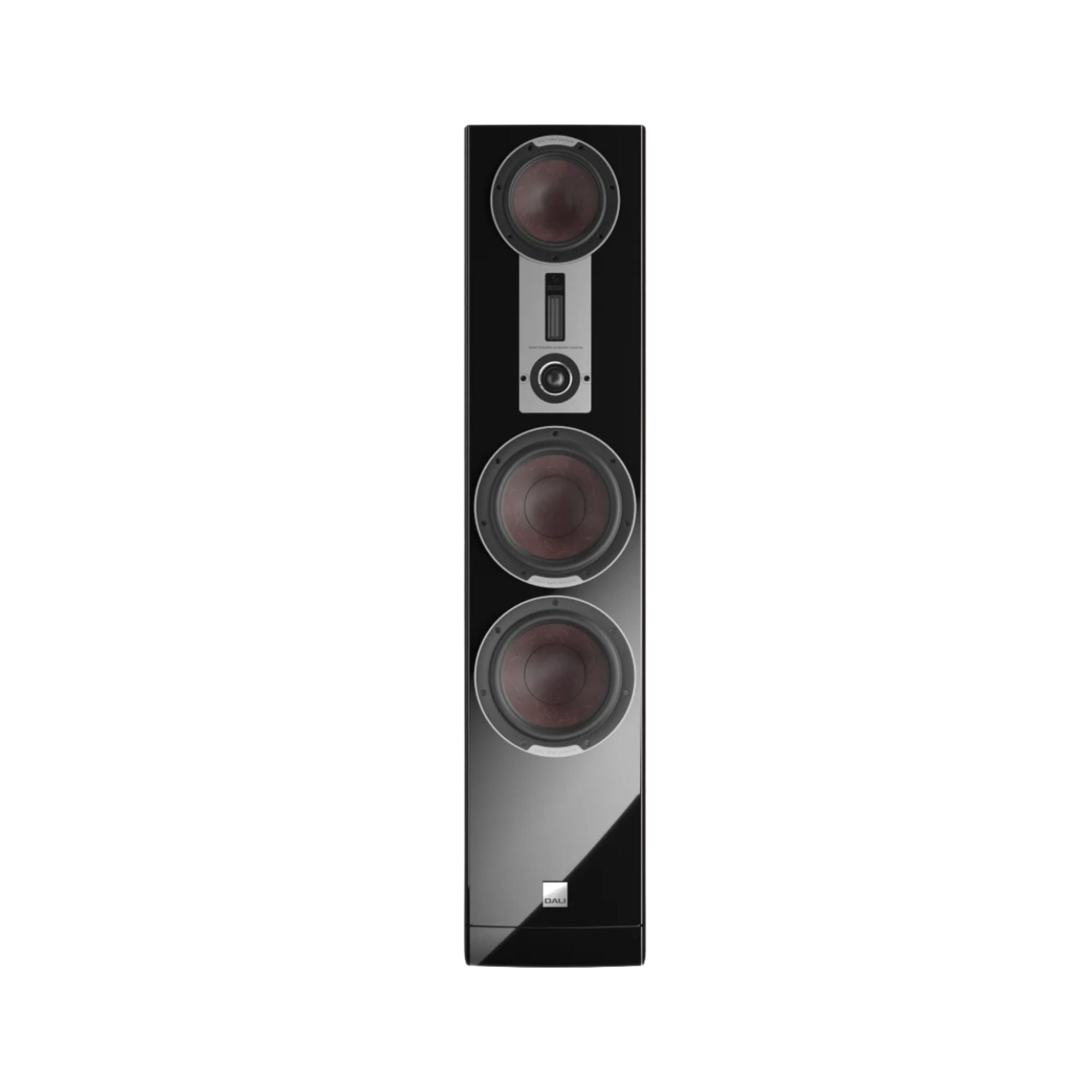

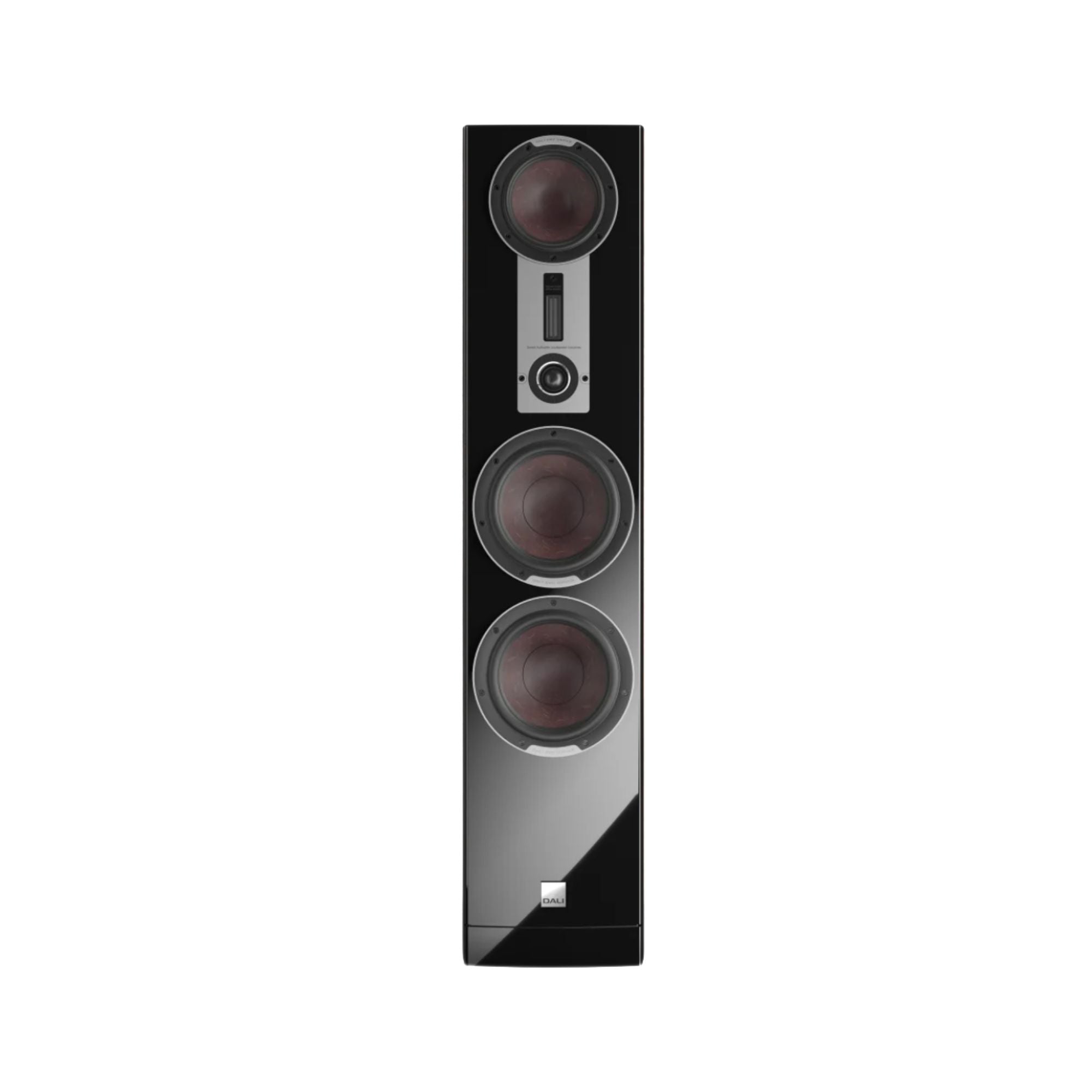

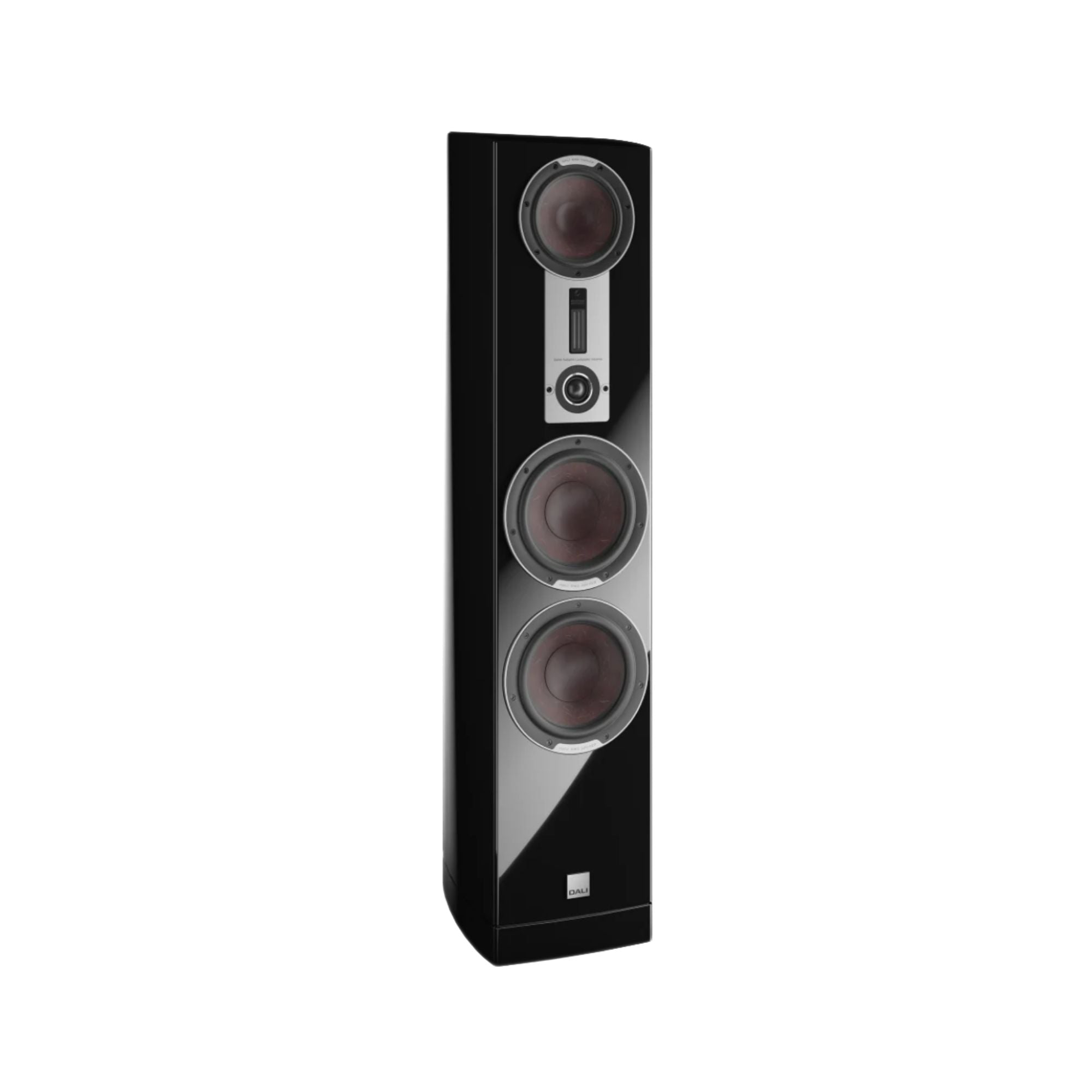

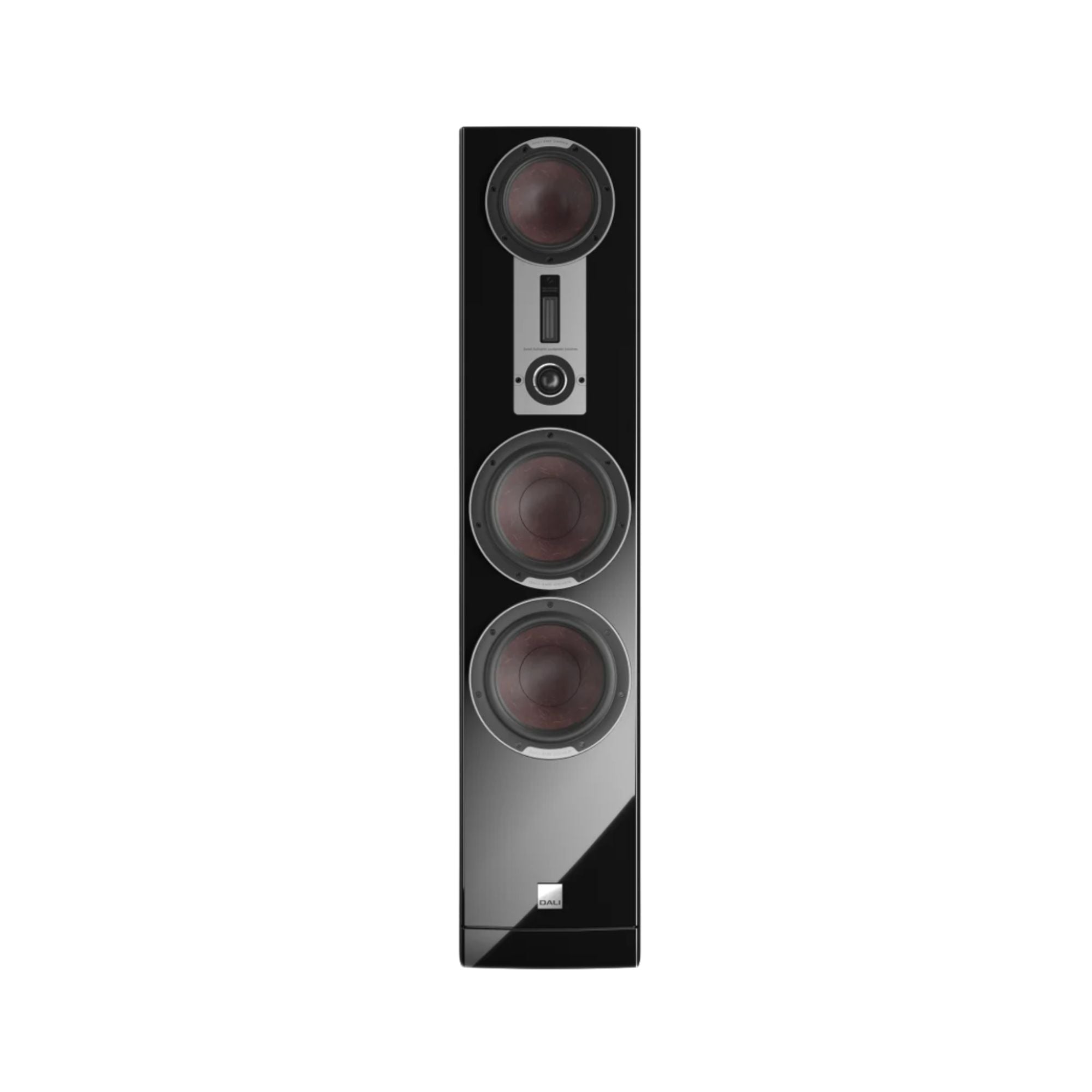

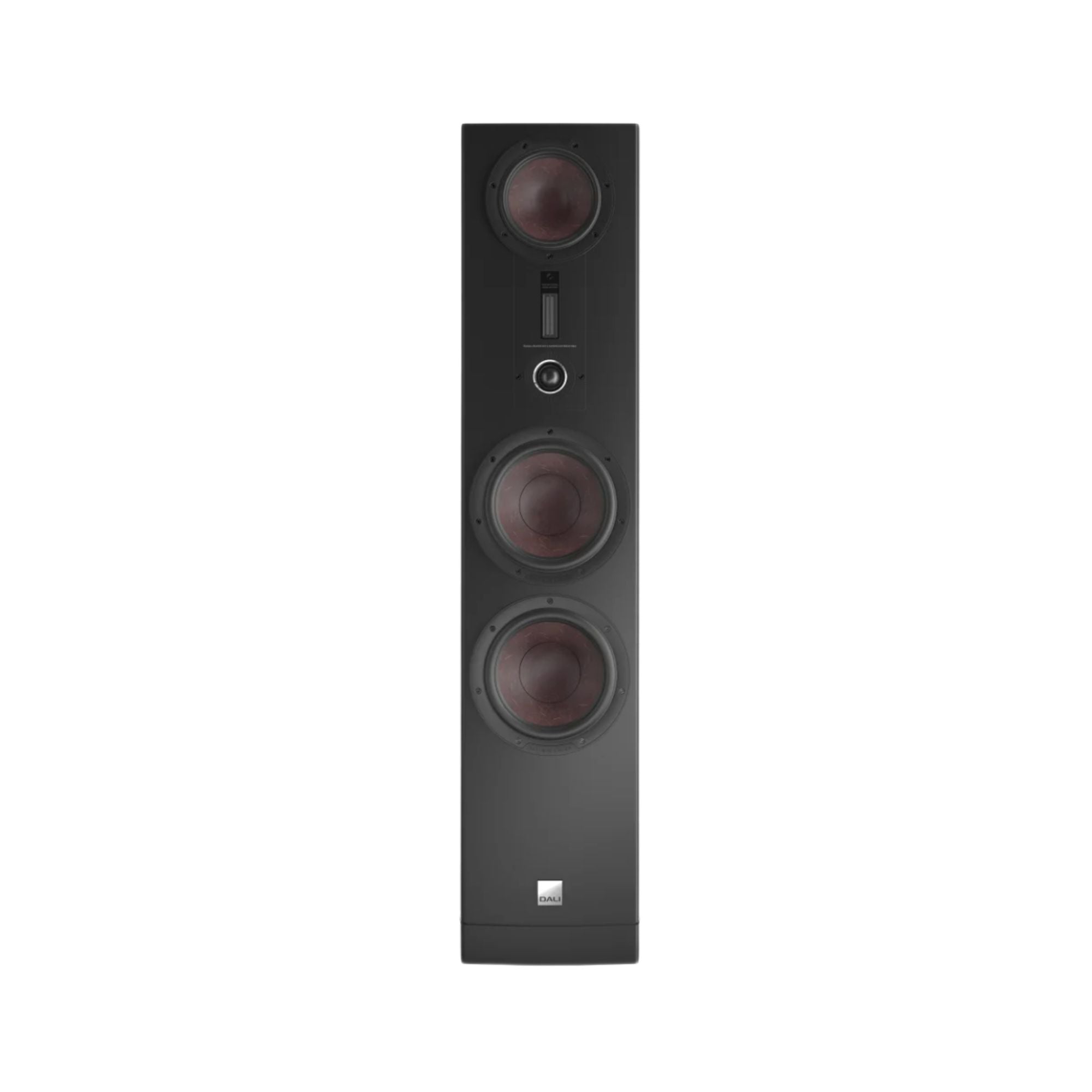

The DALI hybrid tweeter module features a soft dome tweeter and a planar tweeter that combine to create an amazing rendition of high-frequency details. The voice-coil used in the EPICON 6 soft dome is extremely light and agile, which helps it deliver a broader bandwidth. The planar tweeter is the master of wide dispersion and, in combination with the soft dome, reaches as low as 2.5 kHz, providing continuous wide dispersion as the soft dome becomes more directional at higher frequencies. This extreme bandwidth and ultra-wide dispersion is an important part of DALI's sound philosophy.

WOOD FIBRE WOOFERS

Manufactured at DALI facility in Denmark

At DALI, they believe in designs based on low mechanical loss, and they were among the first to master the control of frequency response through carefully balanced design. Designs such as their wood fibre cone with its light, rigid and randomly uneven structure that reproduces the finest details and dynamics in the music with very low loss of information.

CABINET DESIGN

Blending elegant design & functionality

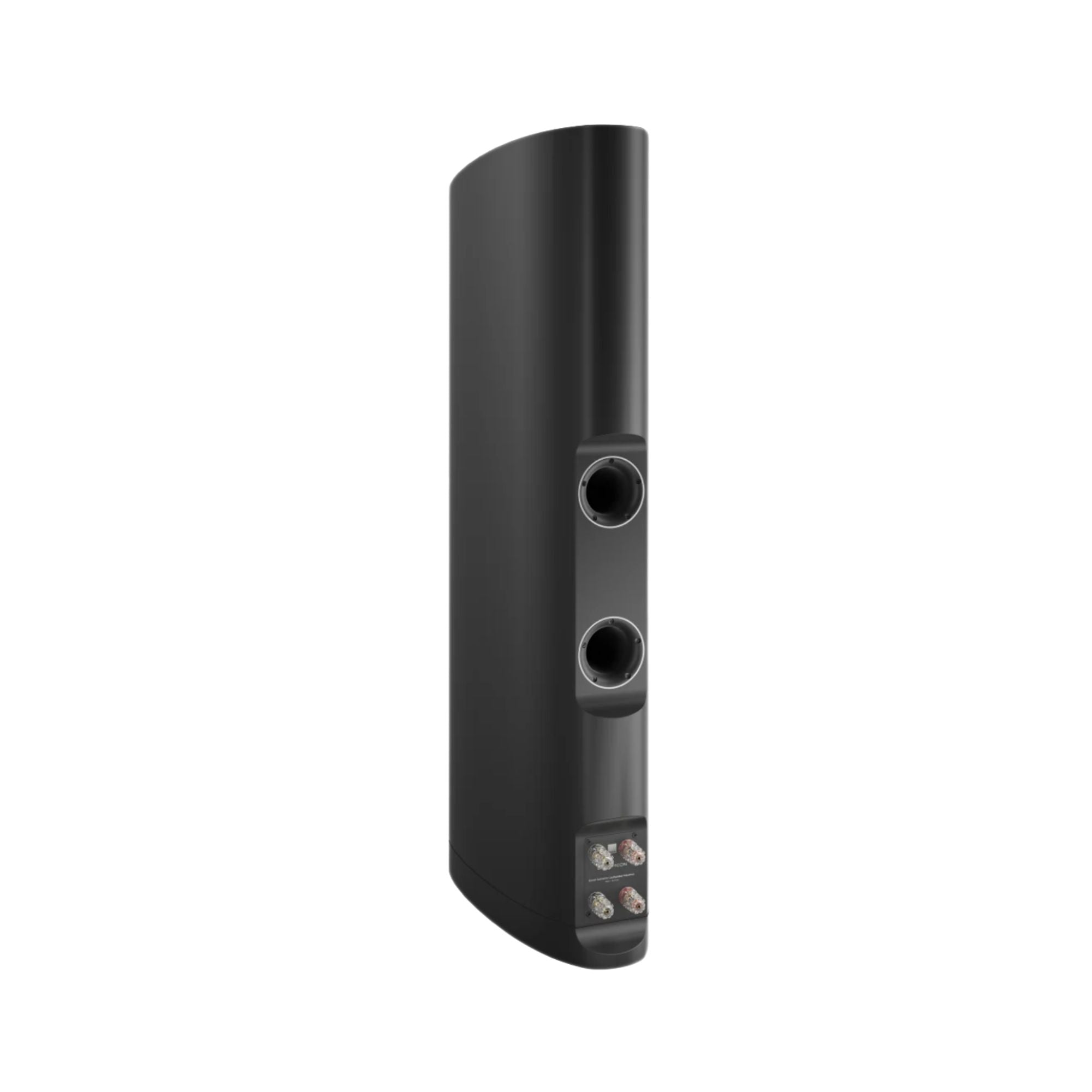

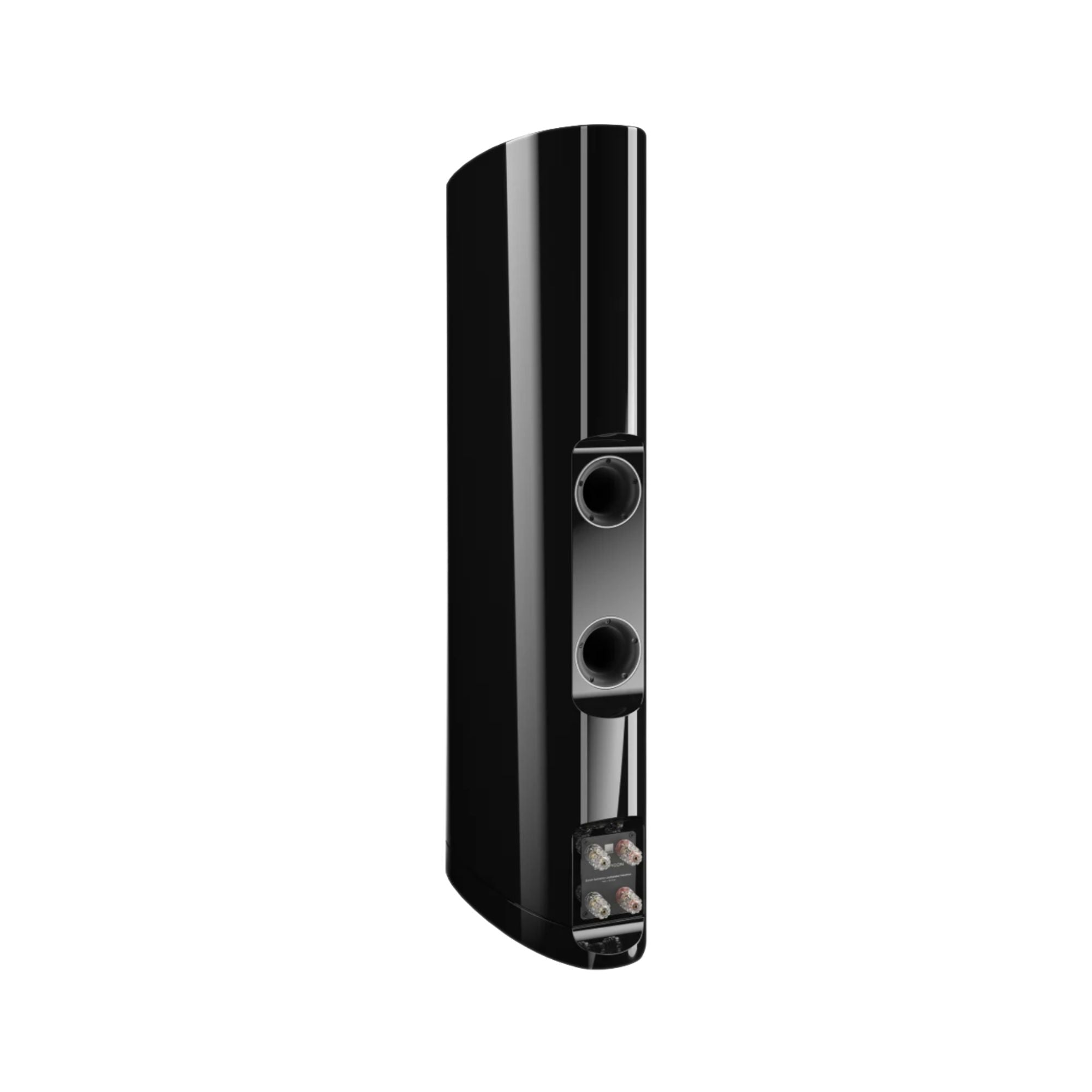

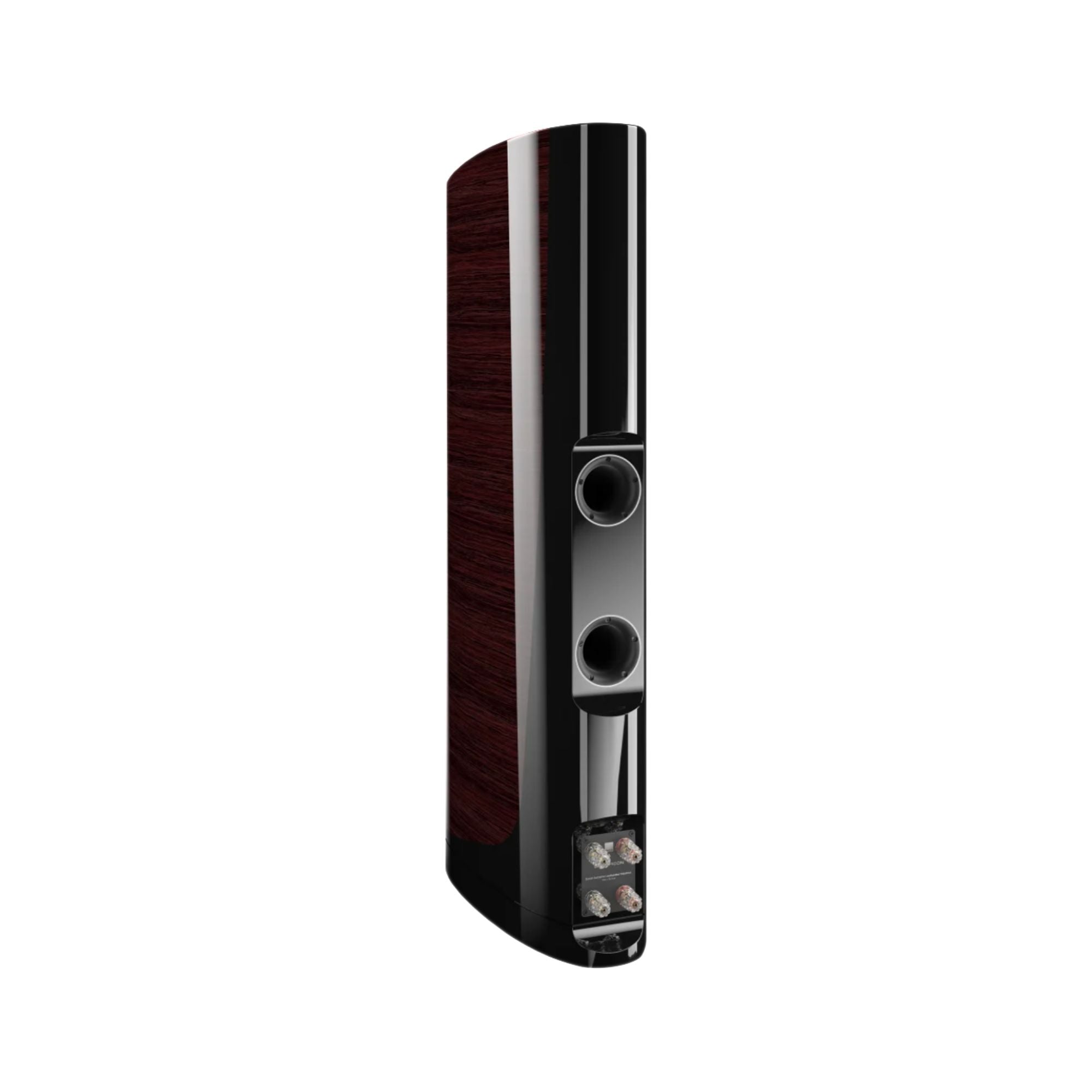

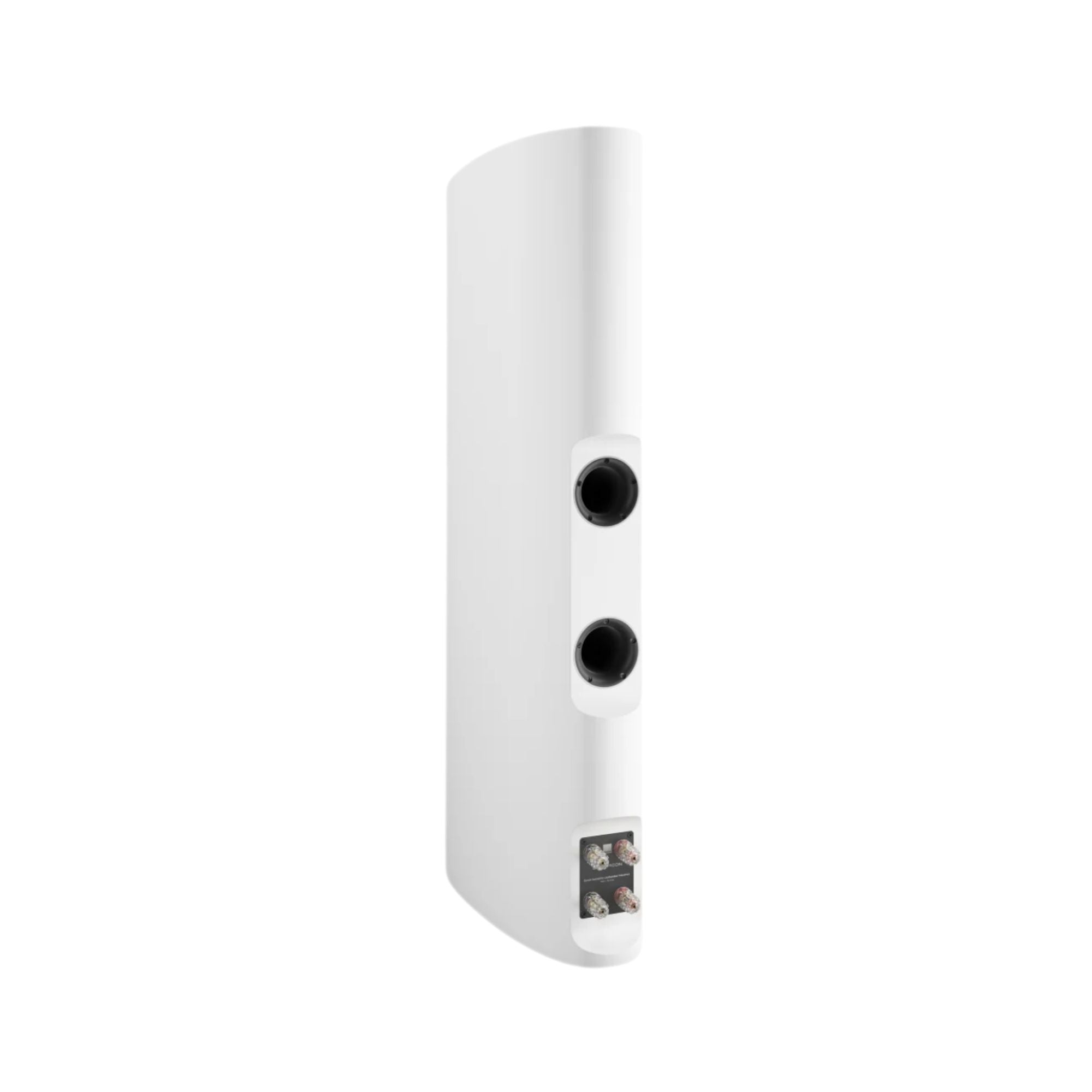

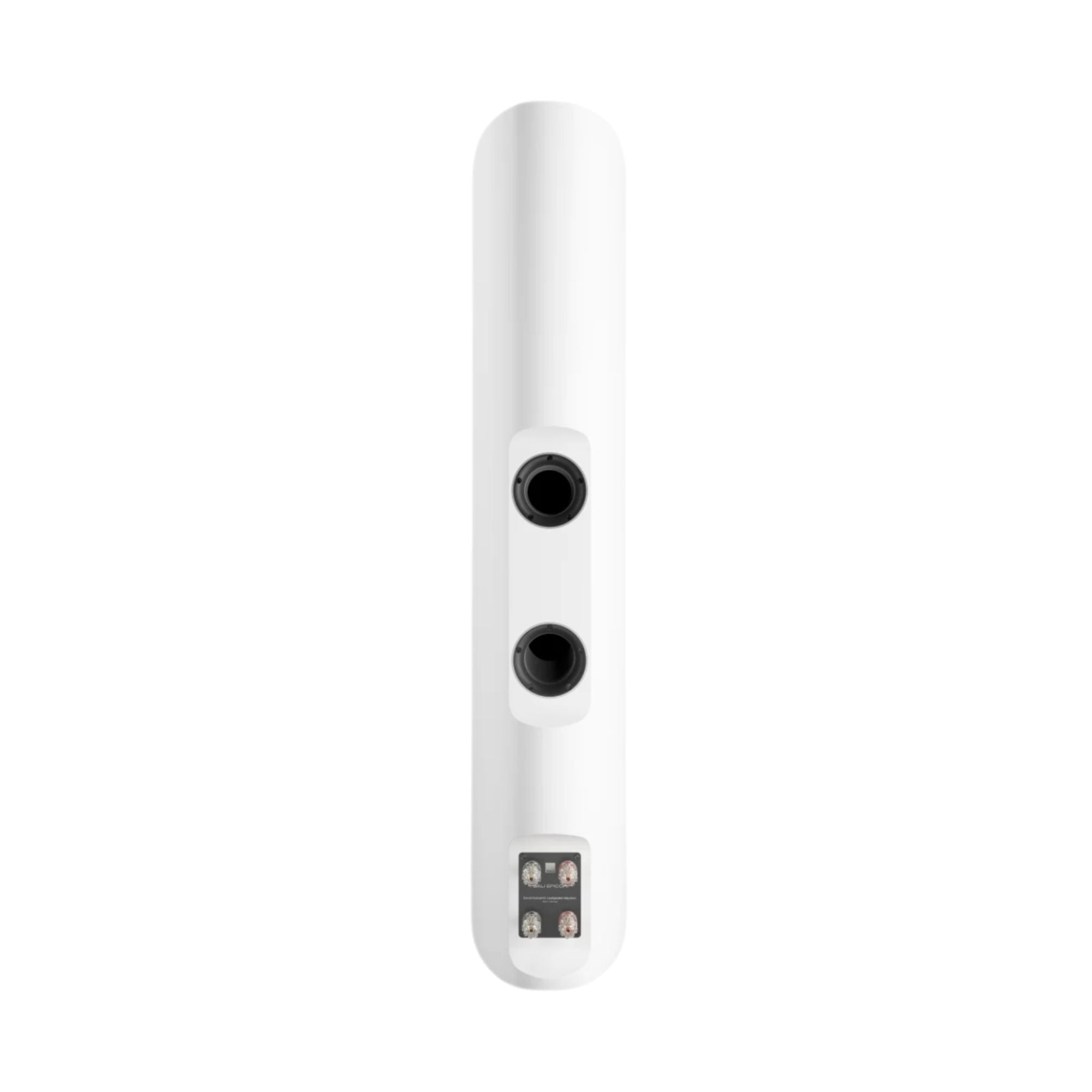

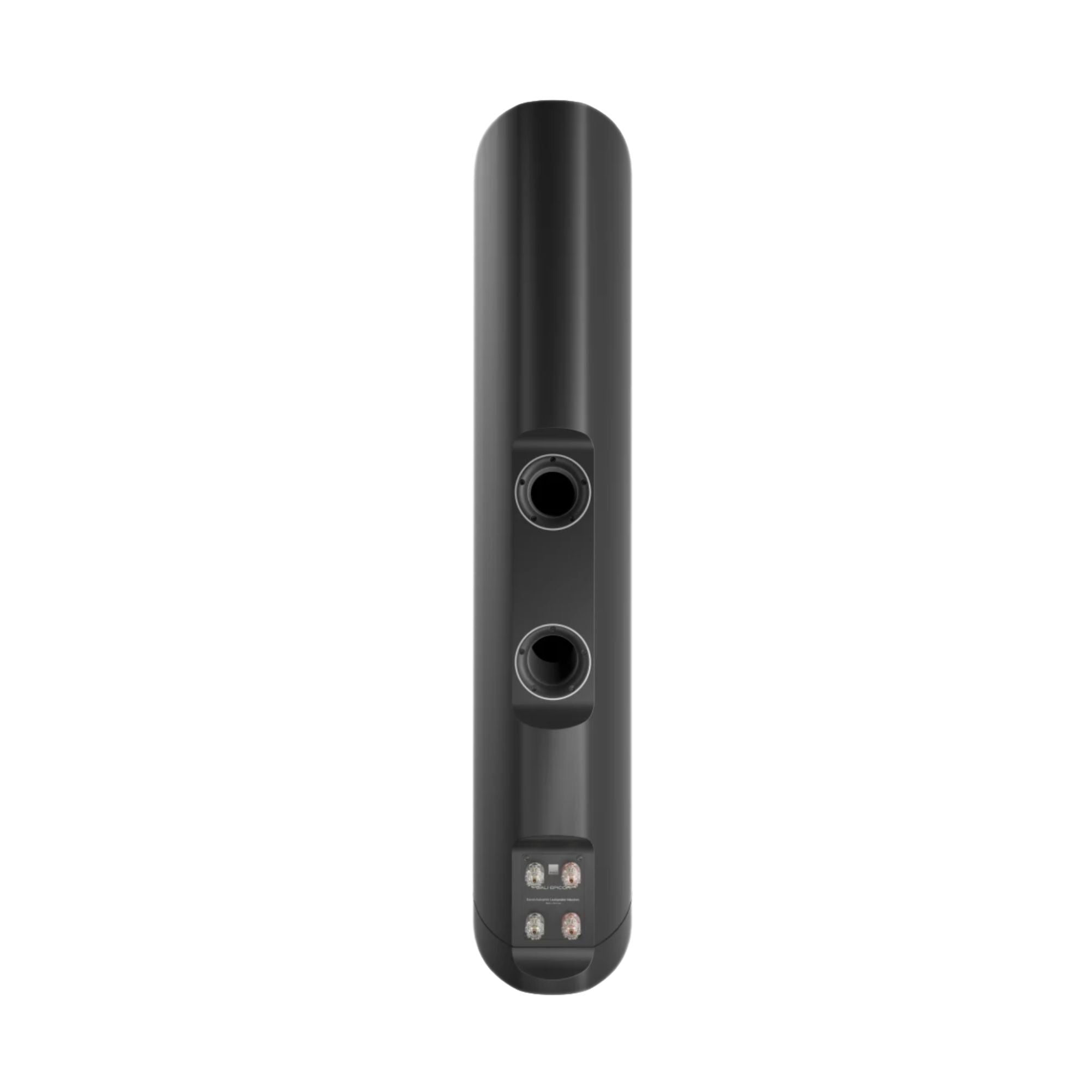

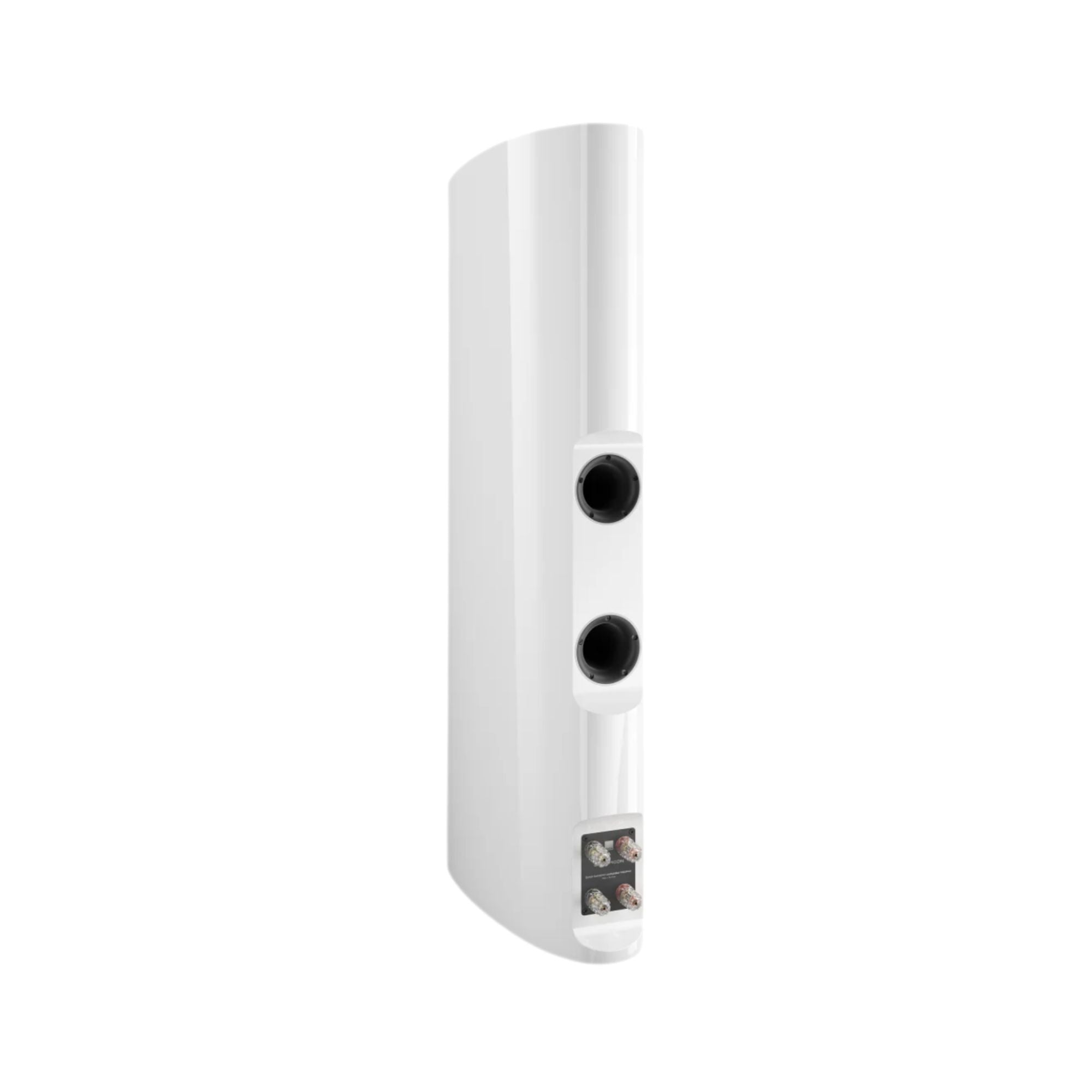

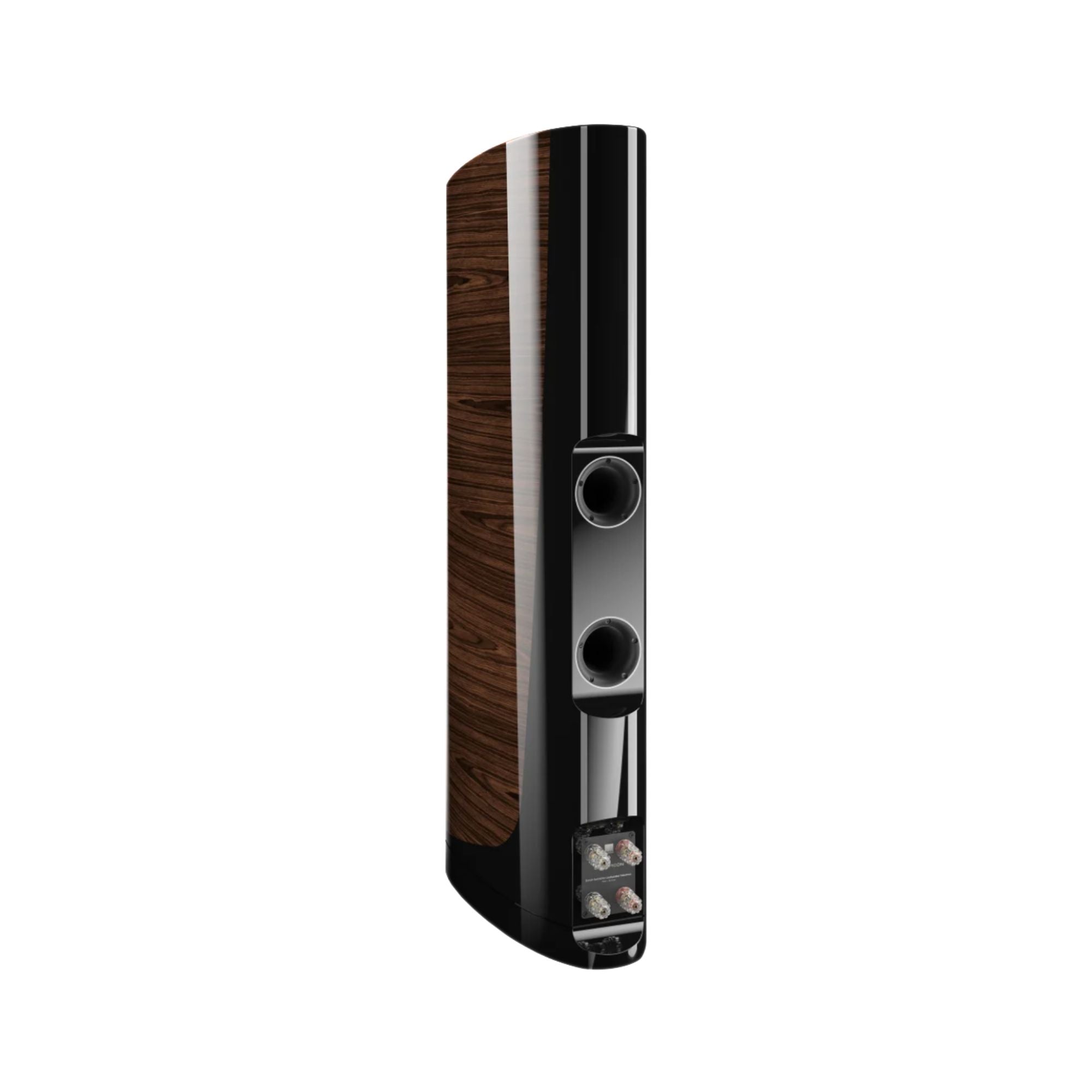

The EPICON 8 is a masterclass in elegant loudspeaker design, with curved lines and a real-wood veneer finished with 10 layers of lacquer, each hand polished to a deep gloss. But the cabinet is also functional. With no parallel surfaces, unwanted reflections are practically eliminated, while the rigid construction provides a solid platform and an acoustically tuned 'spring' for the drivers, which helps to eliminate resonant energy. Separate chambers inside the cabinet also allow each woofer to be individually tuned to perfection, and bass ports located directly behind the bass and midrange drivers minimise turbulence.

Frequency Range (+/-3 DB) [HZ]

35-30.000

Sensitivity [2.83V/1M, DB]

89.0

Nominal Impedance [ohms]

5.0

Maximum SPL [dB]

112

Recommended Amp. Power [Watts]

50 - 500

Crossover Frequency [HZ]

550/3.100/15.000

Crossover Principle

3+½-way

High Frequency Driver

1 x 29 mm soft dome

1 x 10 x 55 mm ribbon

Low Frequency/midrange Driver(s)

2 x 8” / 1 x 6½”

Enclosure Type

Bass reflex

Bass Reflex Tuning Frequency [Hz]

28.0

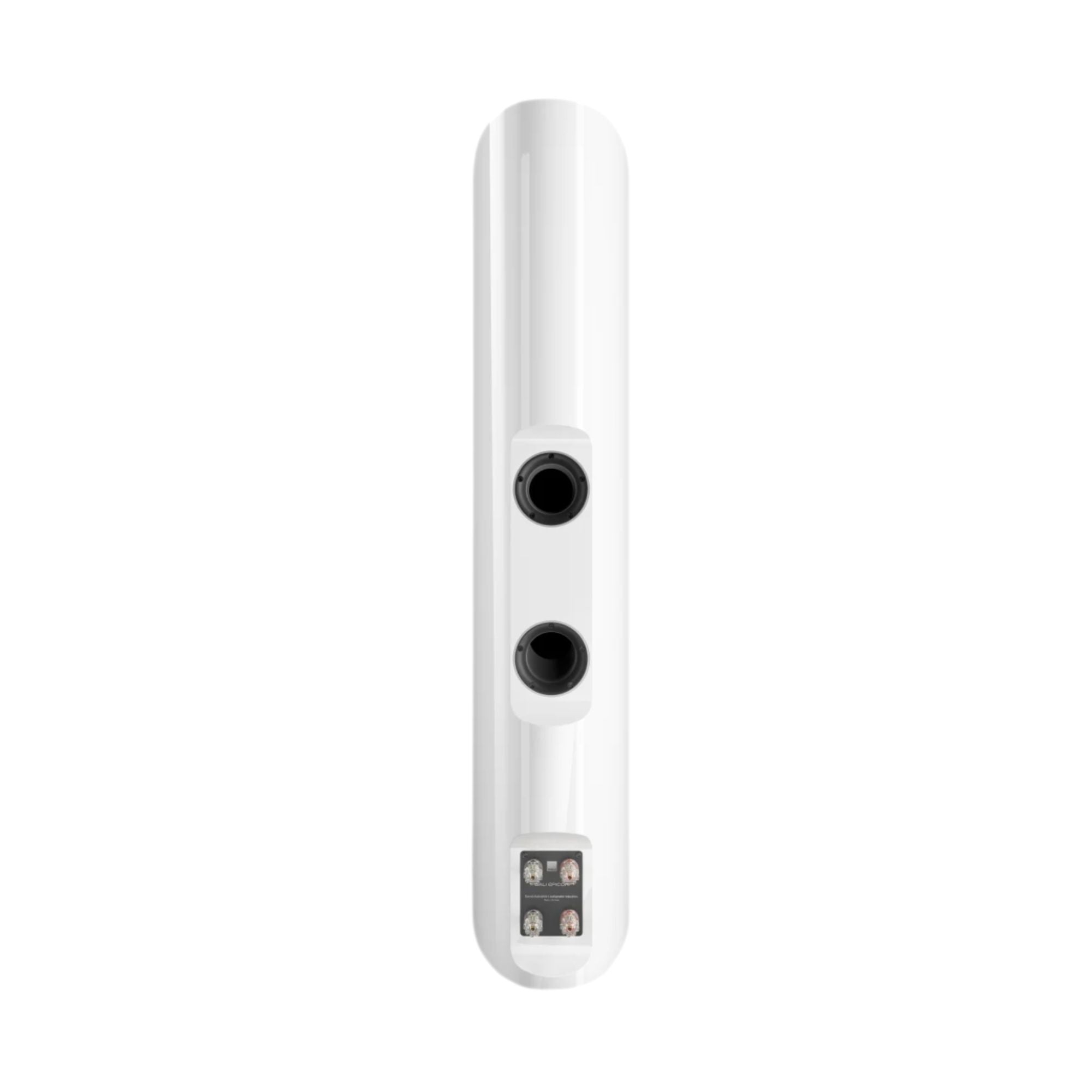

Connection Input(s)

Bi-wire / Bi-Amp

Recommended Placement

Floor

Recommended distance from rear

wall to speaker’s rear side [cm]

>35

Magnetic Shielding

No

Dimensions (H x W x D)

1225 x 264 x 485 mm

48.23 x 10.39 x 19.09 Inch

Dimensions with base (H x W x D)

1262 x 353 x 497 mm

49.69 x 13.90 x 19.57 inches

Weight [kg/lb]

47.5 kg / 104.7 lb

Accessories

DALI SPIKE SET,

DALI TERMINAL LINK

SET,

Base plate,

Polishing cloth,

Rubber feet, Manual
