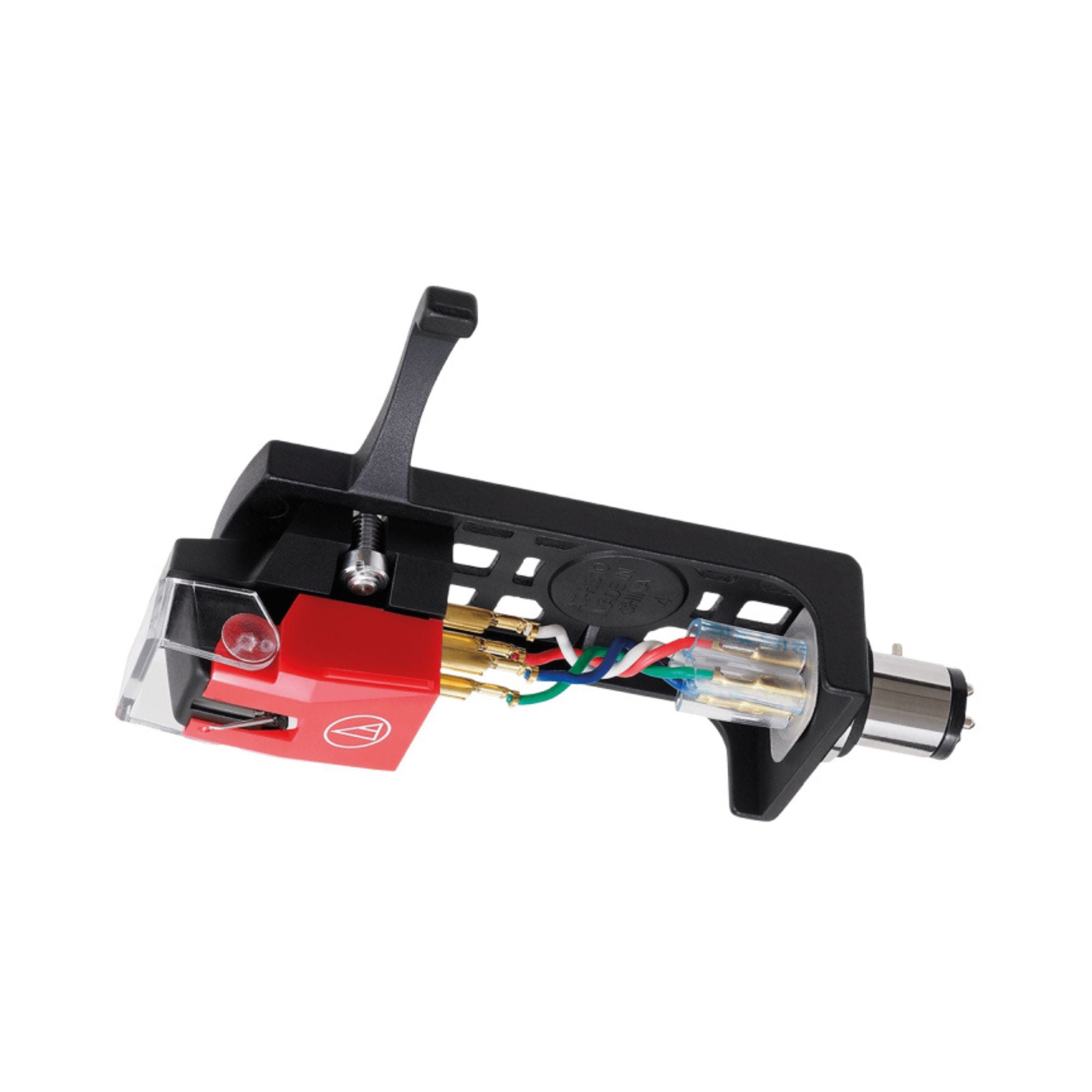

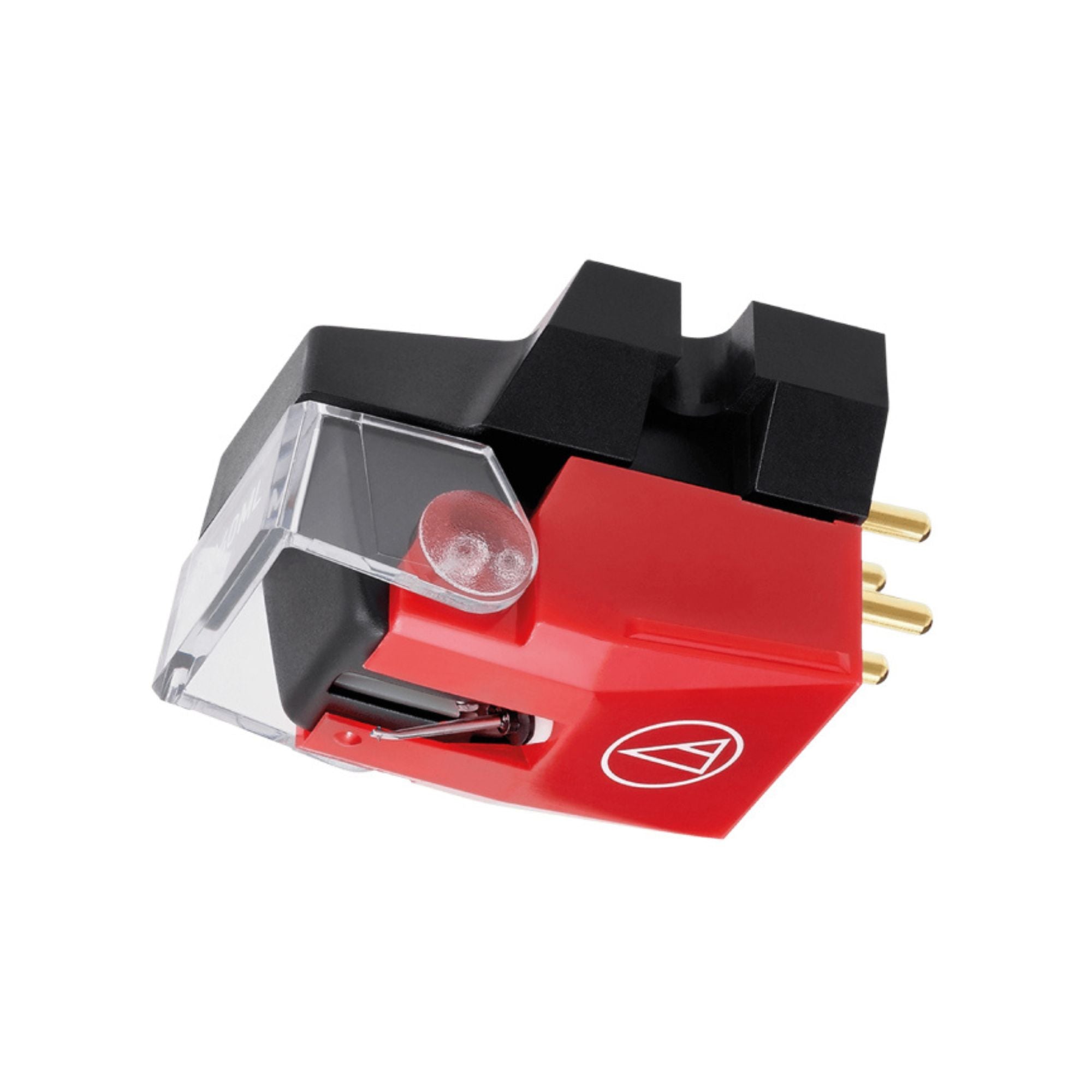

The VM540ML/H combo kit includes the VM540ML MicroLine® dual moving magnet cartridge premounted on the AT-HS10BK universal 1/2″-mount headshell. The VM540ML MicroLine® stylus cartridge is the premier 500 Series model in Audio-Technica’s new VM cartridge line - a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology.
FEATURES
- VM dual magnet cartridge with MicroLine® stylus
- Aluminum cantilever
- Paratoroidal coils improve generating efficiency
- Center shield plate between the left and right channels reduces crosstalk
- Durable low-resonance polymer cartridge housing

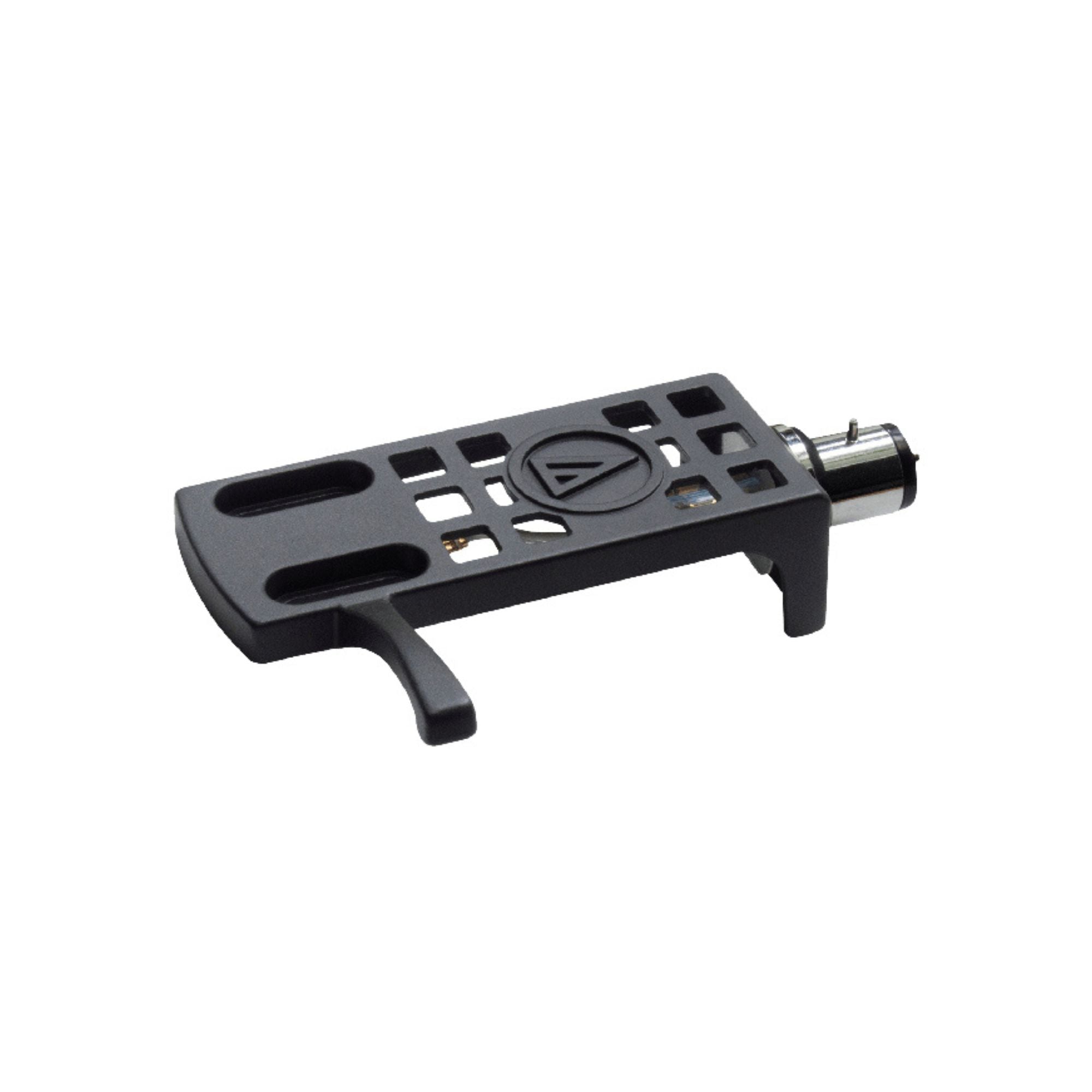

- Universal ½”-mount headshell for 4-pin turntable cartridges
|
Frequency Response |
20-27,000 Hz |
|
Channel Separation |
28 dB (1 kHz) |
|
Vertical Tracking Angle |
23° |
|
Vertical Tracking Force |
1.8-2.2 g (2.0 g standard) |
|
Stylus Construction |
Nude square shank |
|
Recommended Load Impedance |
47,000 ohms |
|
Coil Impedance |
2,700 ohms (1 kHz) |
|
DC Resistance |
800 ohms |
|
Coil Inductance |
460 mH (1 kHz) |
|
Output Voltage |
4.0 mV (at 1 kHz, 5 cm/sec) |
|
Output Channel Balance |
1.0 dB (1 kHz) |
|
Stylus Shape |
2.2 x 0.12 mil MicroLine® |
|
Cantilever |
Aluminum tapered pipe |
|
Static Compliance |
40 x 10-6 cm/dyne |
|
Dynamic Compliance |
10 x 10-6 cm/dyne (100 Hz) |
|
Mounting |
Half-inch |
|
Mounting Feature |
Half-inch mount |
|
Recommended Load Capacitance |
100-200 pF |
|
Replacement Stylus |
VMN40ML |
|
Stylus Size |
0.12 x 2.2 mil |
|
Type |
VM Type |
|
Dimensions |
Cartridge 17.3 mm (0.7″) H x 17.0 mm (0.7″) W x 28.2 mm (1.1″) D; Cartridge & Headshell 21.3 mm (0.8″) H x 21.0 mm (0.8″) W x 60.4 mm (2.4″) D |
|
Weight |
Cartridge 6.4 g (0.2 oz); Cartridge & Headshell 16.8 g (0.6 oz) |
