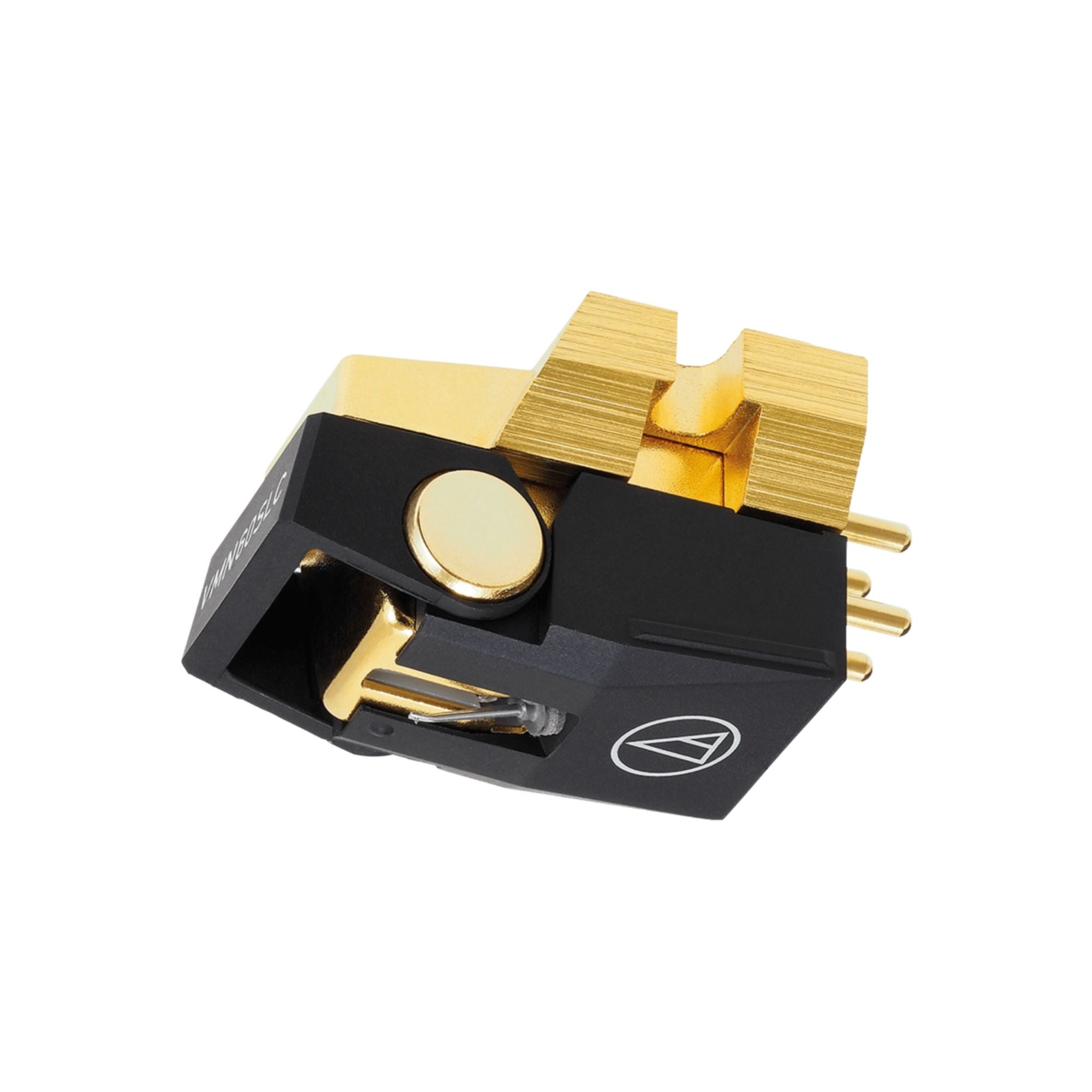

Audio Technica AT-VM760SLC Dual Moving Magnet Cartridge
Inclusive of all taxes
GET GST INPUT
Ever wondered why speakers, amplifiers, projectors etc. come with a slightly heftier price tag in India compared to their overseas counterparts? Well, part of the answer lies in our country's Goods & Services Tax (GST).
But here's the kicker: Don't let that GST input slip through your fingers! Especially when some of the products we supply carry a GST rate of 18% and 28%.
At AVStore, we provide you with a GST compliant invoice for every purchase.
Simply put in your GST number during the checkout to avail an offset.
- Description
- Specifications
- Reviews
The VM760SLC special line contact stylus cartridge is the flagship model in Audio-Technica’s new VM cartridge line - a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM760SLC is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s ultra-lightweight special line contact stylus allows it to trace the record groove with incredible accuracy and minimum abrasion, resulting in nuanced audio reproduction, low distortion and low record wear. Includes mounting hardware.
Features
- VM dual magnet cartridge with special line contact stylus
- Aluminum tapered cantilever

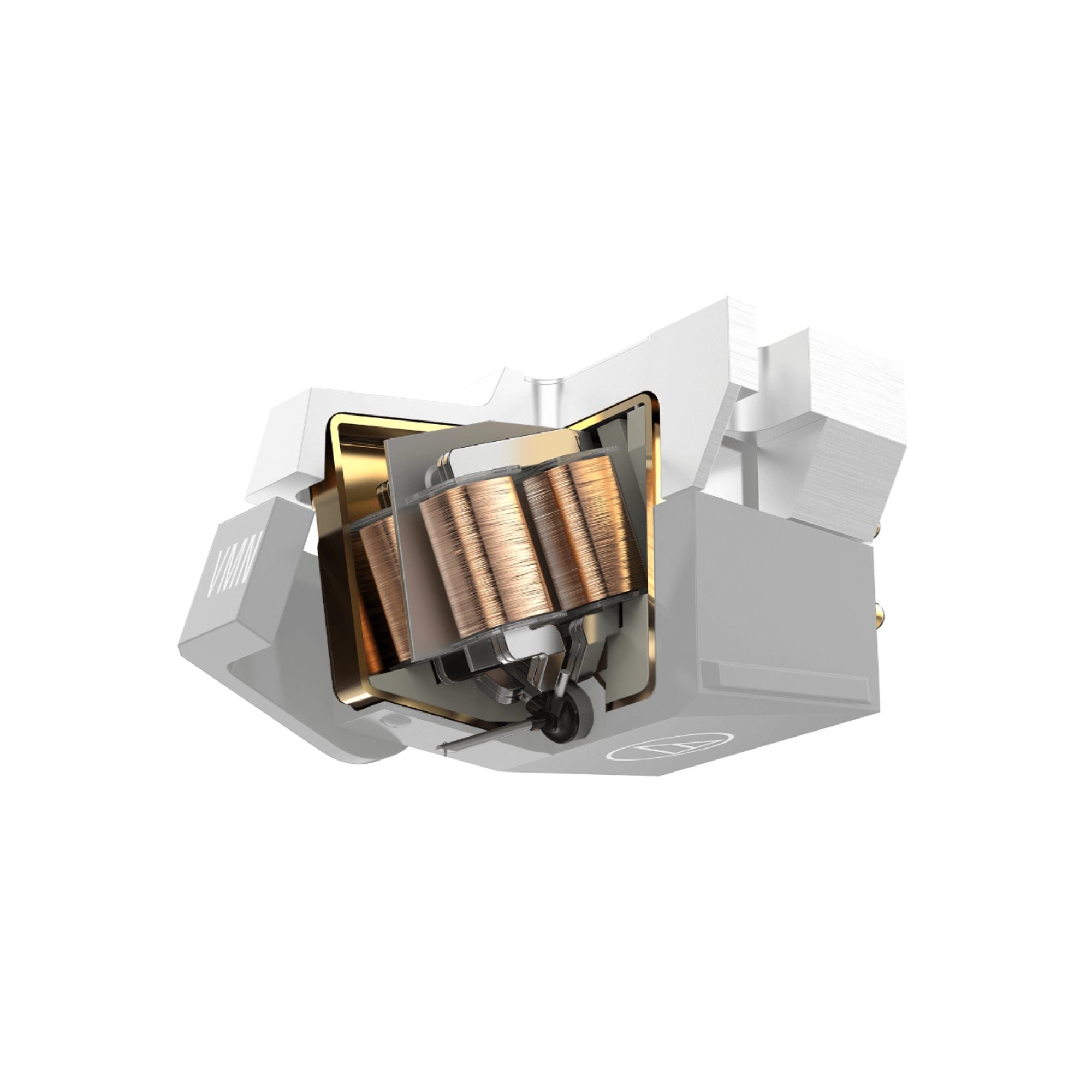

- Paratoroidal coils improve generating efficiency
- Center shield plate between the left and right channels reduces crosstalk
- Die-cast aluminum alloy housing reduces vibration and adds a natural electrical shield
|
Frequency Response |
20-30,000 Hz |
|
Channel Separation |
30 dB (1 kHz) |
|
Vertical Tracking Angle |
23° |
|
Vertical Tracking Force |
1.8-2.2 g (2.0 g standard) |
|
Stylus Construction |
Nude rectangular shank |
|
Recommended Load Impedance |
47,000 ohms |
|
Coil Impedance |
2,700 ohms (1 kHz) |
|
DC Resistance |
800 ohms |
|
Coil Inductance |
460 mH (1 kHz) |
|
Output Voltage |
4.0 mV (at 1 kHz, 5 cm/sec) |
|
Output Channel Balance |
1.0 dB (1 kHz) |
|
Stylus Shape |
1.5 x 0.28 mil special line contact |
|
Cantilever |
Aluminum tapered pipe |
|
Static Compliance |
40 x 10-6 cm/dyne |
|
Dynamic Compliance |
10 x 10-6 cm/dyne (100 Hz) |
|
Mounting |
Half-inch |
|
Accessories Included |
Four cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts, non-magnetic screwdriver, brush, lead wire set |
|
Mounting Feature |
Half-inch mount |
|
Recommended Load Capacitance |
100-200 pF |
|
Replacement Stylus |
VMN60SLC |
|
Stylus Size |
0.28 x 1.5 mil |
|
Type |
VM Type |
|
Dimensions |
17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D |
|
Weight |
8.0 g (0.3 oz) |
