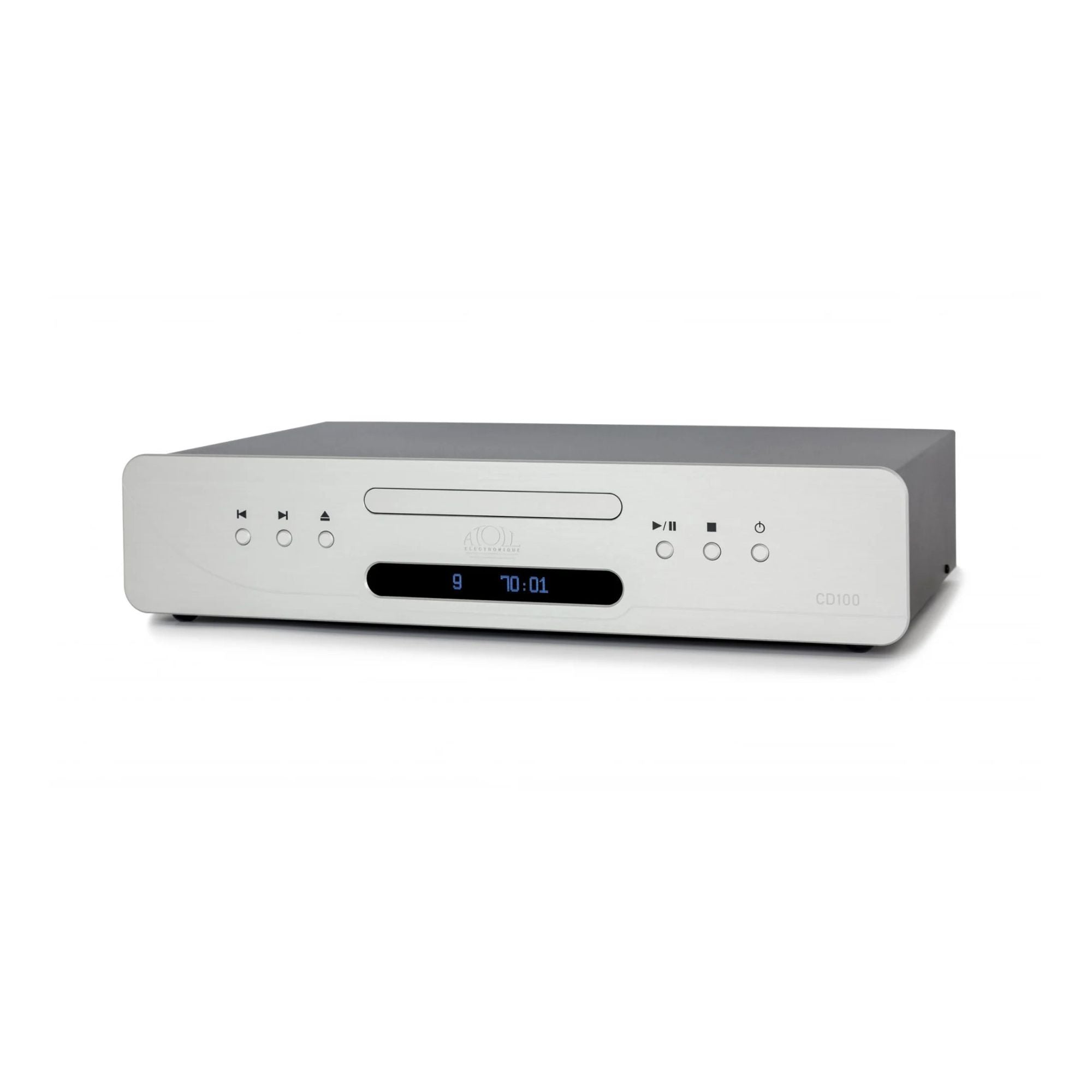

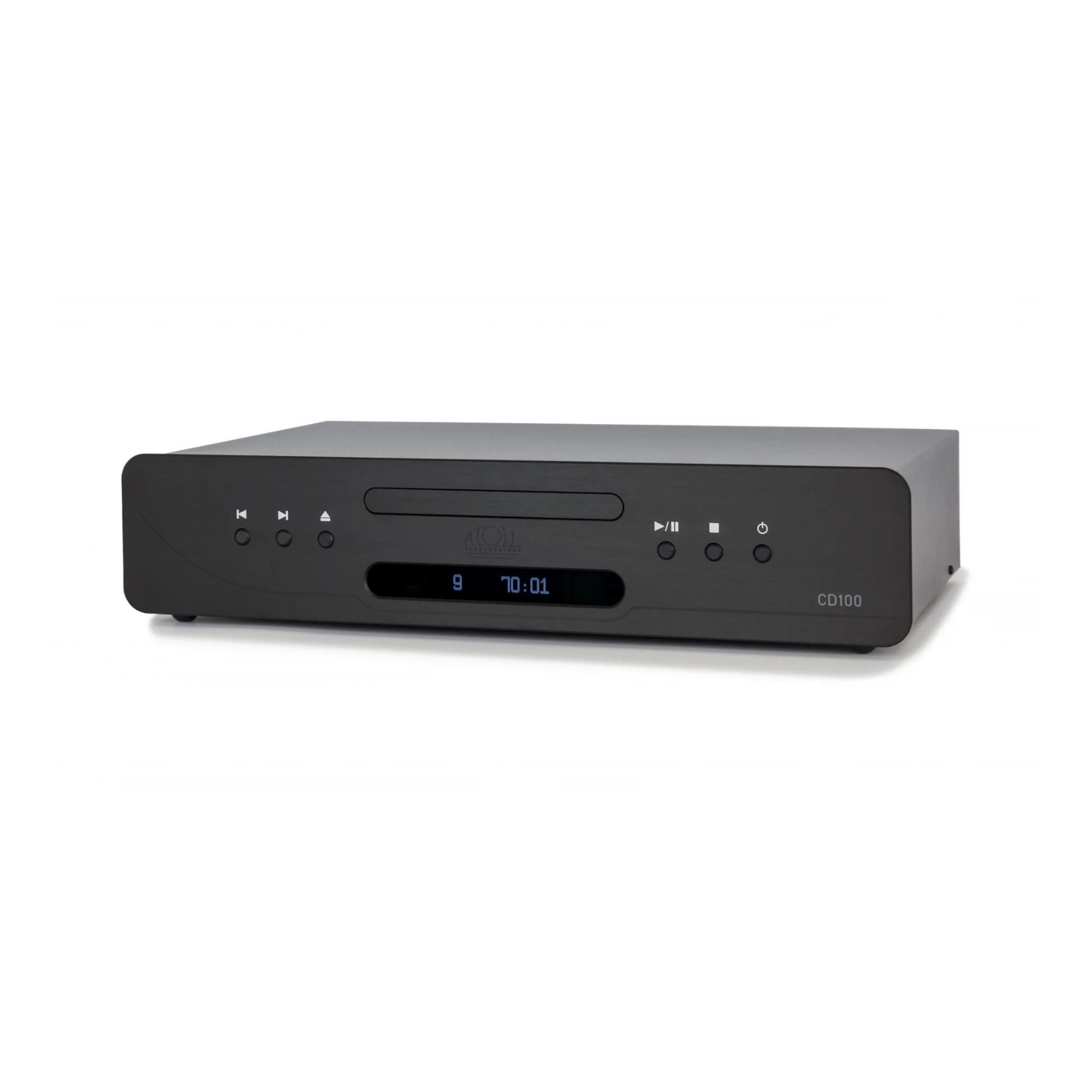

ATOLL Electronique CD100 Signature - CD Player
Tax included.
GET GST INPUT
Ever wondered why speakers, amplifiers, projectors etc. come with a slightly heftier price tag in India compared to their overseas counterparts? Well, part of the answer lies in our country's Goods & Services Tax (GST).
But here's the kicker: Don't let that GST input slip through your fingers! Especially when some of the products we supply carry a GST rate of 18% and 28%.
At AVStore, we provide you with a GST compliant invoice for every purchase.
Simply put in your GST number during the checkout to avail an offset.
- Description
- Specifications
- Reviews
The Signature Series CD players have benefited from many innovations in power supplies or audio and conversion stages. In addition, these devices can now accommodate a 24 bits/192 kHz DAC board relying on the player’s internal converter. The USB input is asynchronous.
Feature
- 4 mm brushed aluminium front.
- 8 regulated power supplies including a specific low-noise one for the converter.
- Separate 10 VA transformers for the audio stages.
- Current-voltage conversion stages designed by Atoll using bipolar transistors.
- BURR-BROWN PCM1796 converter:
– 24 bits/192 kHz.
– Dynamic: 124 dB.
– Signal/Noise ratio: 124 dB. - Original TEAC central CD mechanics.
- Pure audio CD player compatible: CD, CD-R, CD-RW, MP3, WMA-AAC.
- Linear power supply for digital stages with a specific 30 VA transformer.
- Separate linear power supply for the audio stages.
- Double-sided circuit boards with nickel/gold finish.
- Low consumption OLED display.
- Reading the CD-Text.
- Class A biased discrete component differential audio output stages.
- Optional 24 bits/192kHz digital board for all signature series CD players.

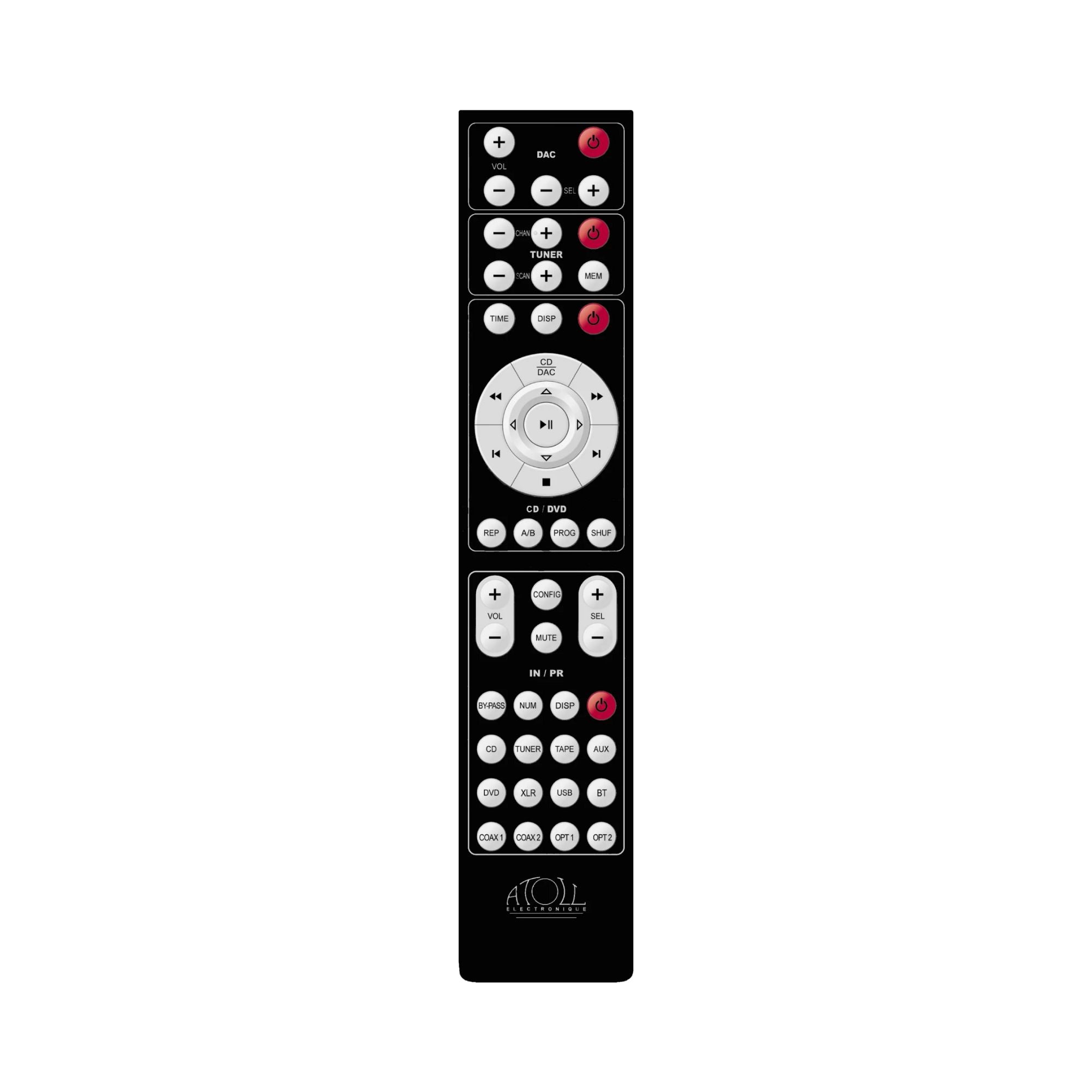

- ATOLL global remote control.
Connectivity

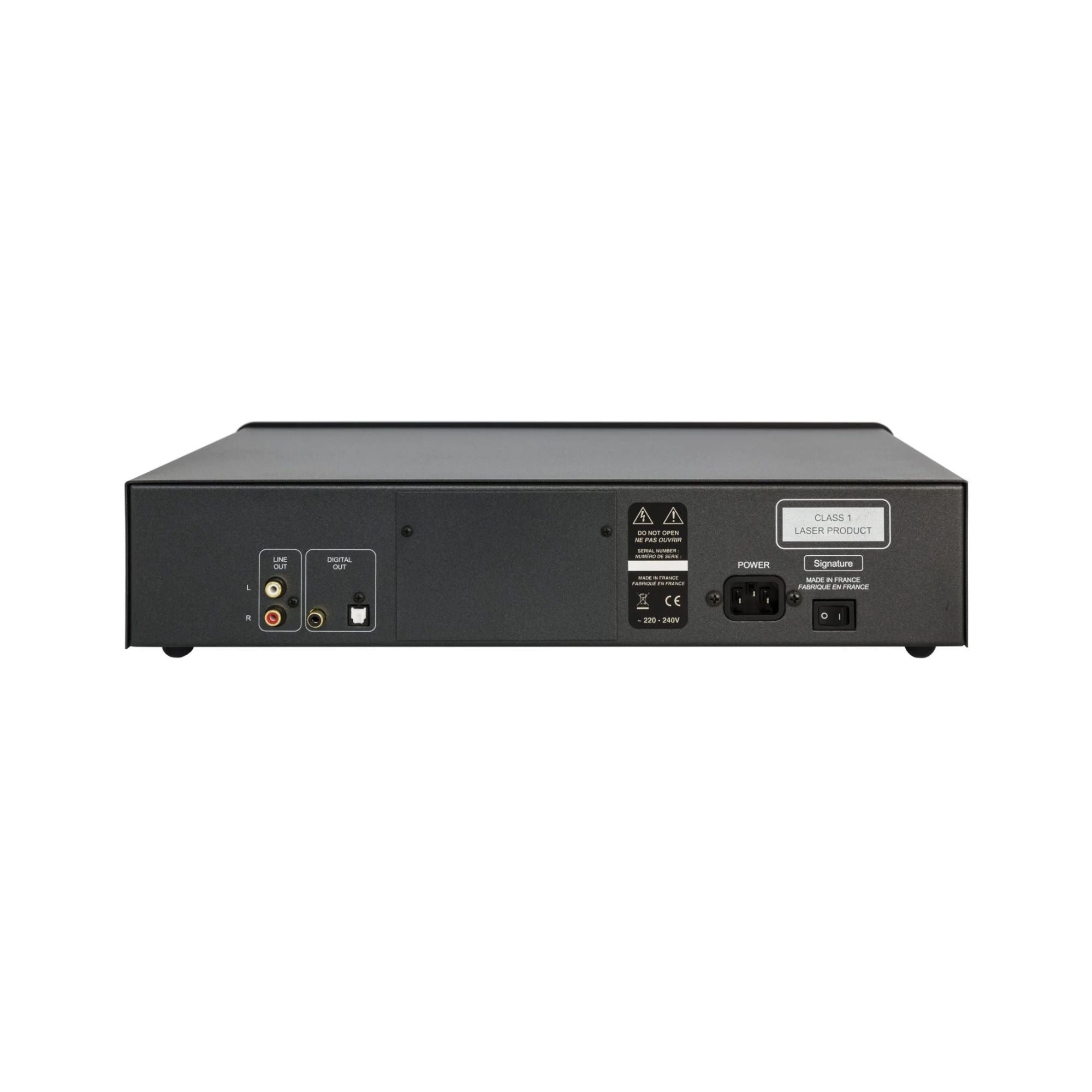

Outputs: 1 Line output (right and left). 1 Coaxial digital output. 1 Optical digital output.
|
Power supply |
30+10 VA |
|
Total of capacitors |
13 032 µF |
|
Output level |
2,10 Vrms |
|
Output impedance |
5,6 Ω |
|
Converter (D/A) |
PCM1796 |
|
Digital Output |
Coaxial & Optical |
|
Digital input |
24 bits/192 kHz |
|
USB input |
24 bits/192 kHz |
|
Signal/Noise ratio |
123 dB |
|
Distortion at 1 kHz |
0,0005% |
|
Bandwidth |
5 Hz – 20 kHz |
|
Rising time |
2,0 µs |
|
Dimensions (mm) |
440×280×95 |
|
Weight |
6 Kg |
