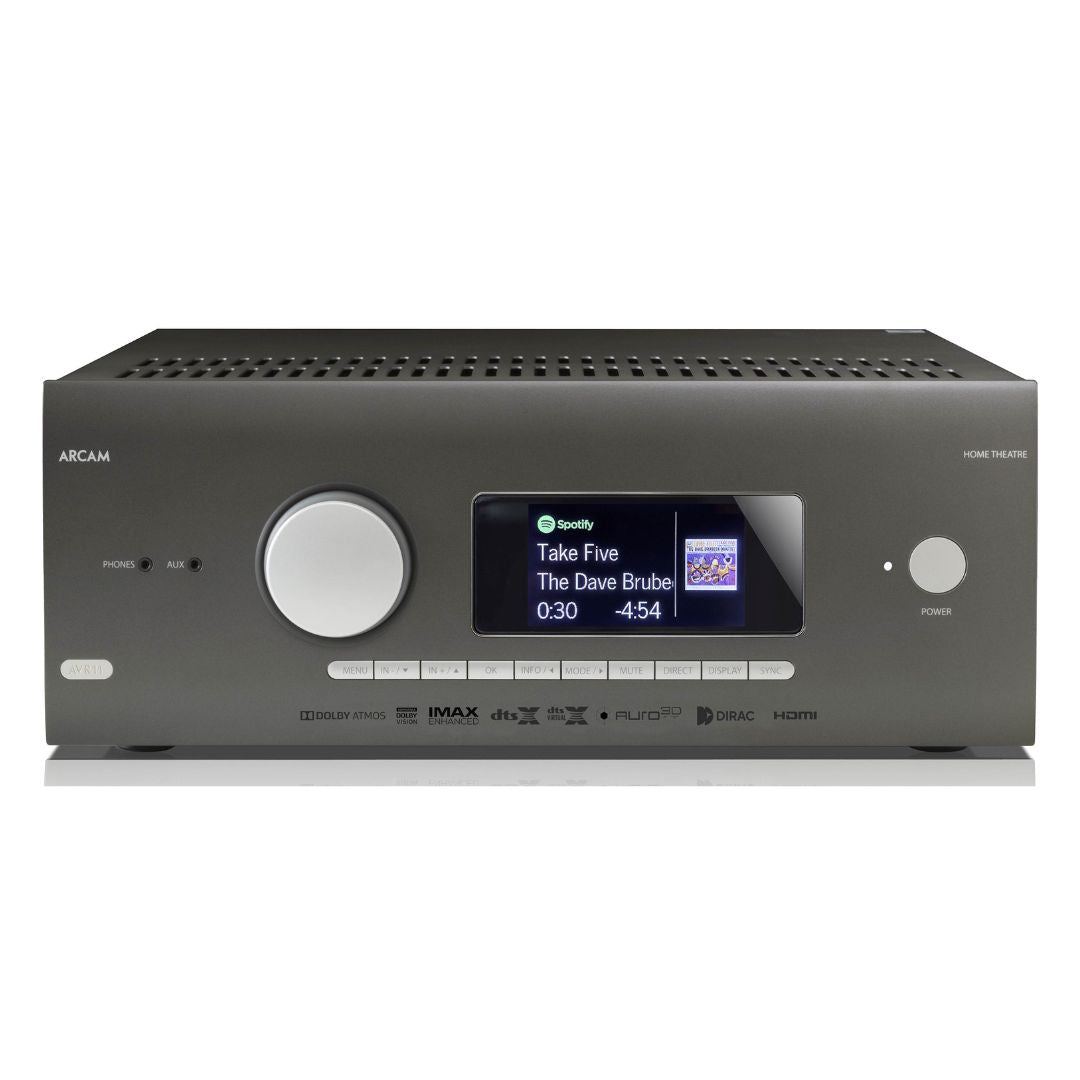

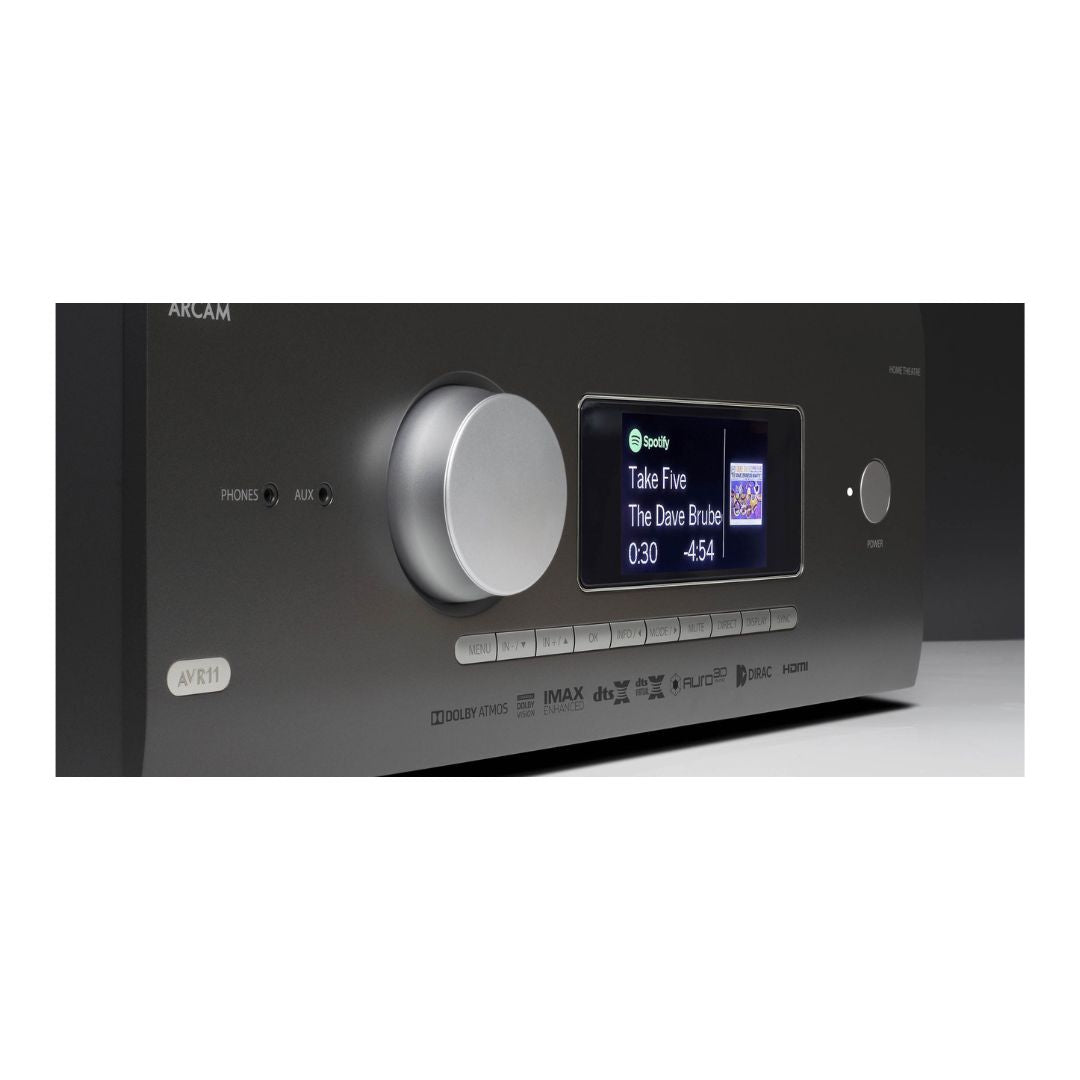

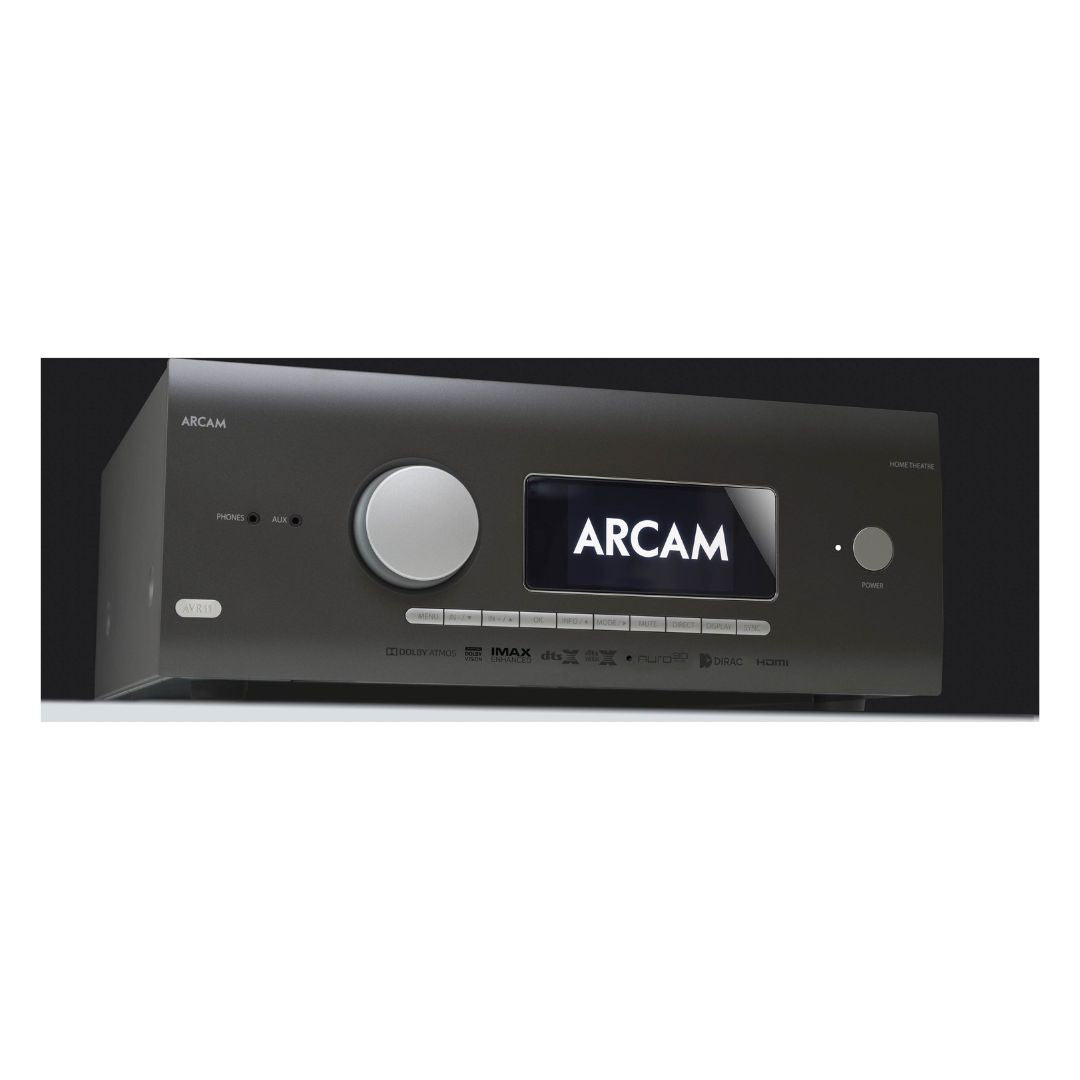

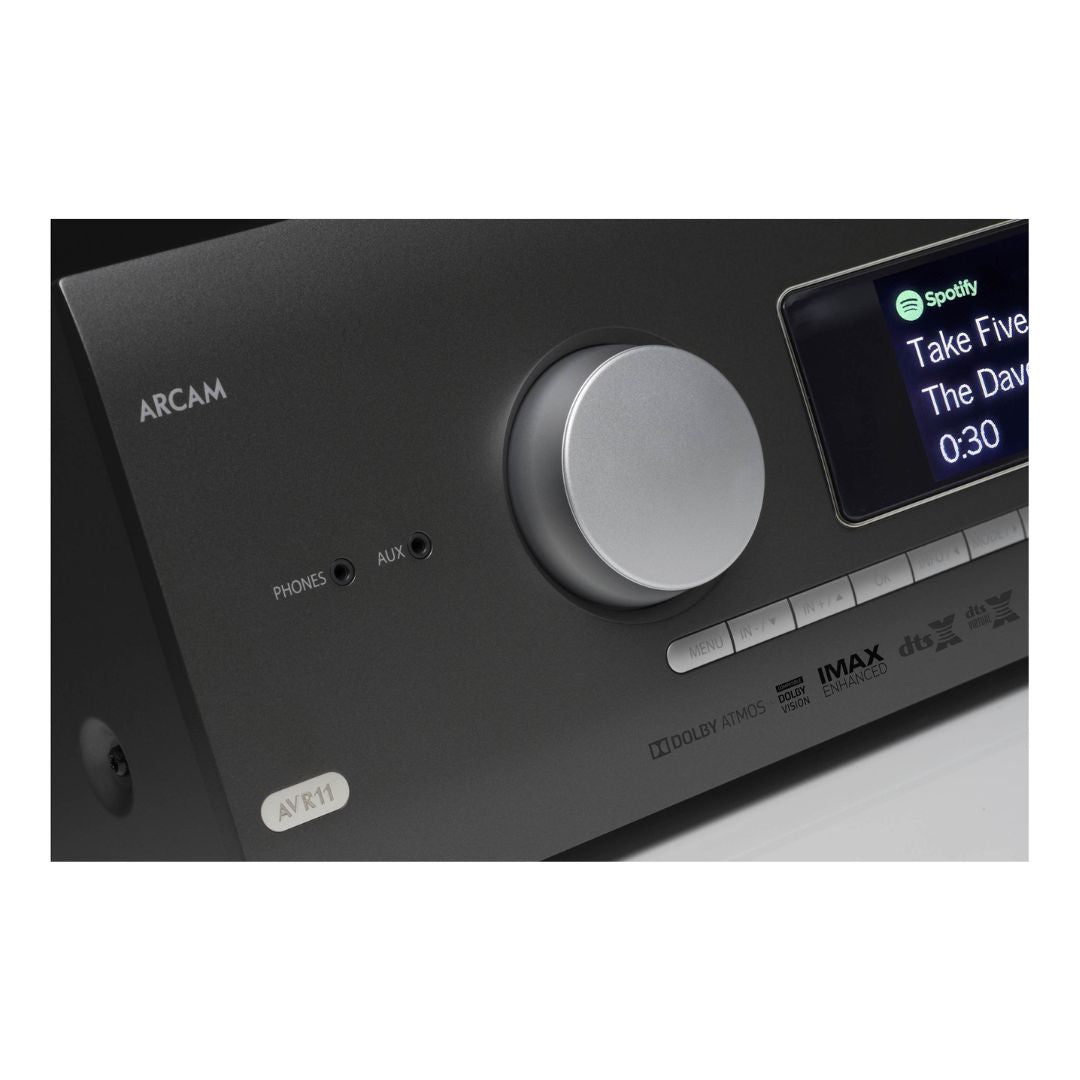

The AVR11 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. With native 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR11 can deliver incredible theatre experiences.
The Arcam AVR11 is designed with a passion for music and movies, bringing both to life with truly high fidelity. The AVR11 features an over-engineered power supply and transformer for real world power with low noise. The 7 channels of Class AB amplification are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.
The performance and musicality can be assured with Dirac Live® room optimisation included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX®HD, Spotify Connect and Tidal Connect.
Key Features
- Dolby Atmos, DTS:X & AURO-3D 7.1.4 decoding
- Dual ESS 9026PRO audiophile DACs with ESS reference voltage regulators
- 7 Channels of Class AB power amplification
- Includes Dirac Live® room correction
- Ready for Dirac Live Bass Control

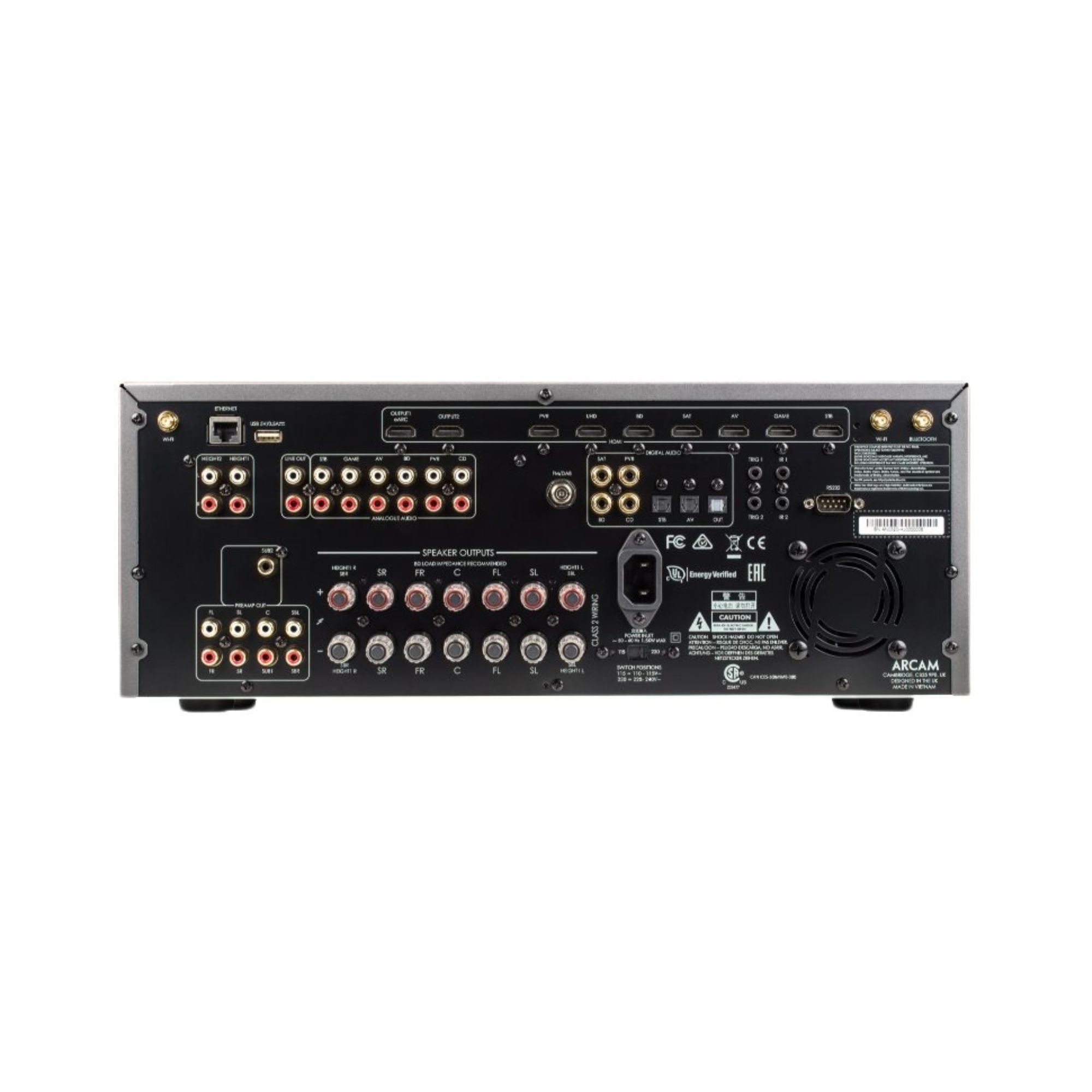

- 7 HDMI inputs, 2 HDMI outputs
- eARC compatible
- HDMI 2.1 with HDCP2.3
- All inputs support 8K@60fps and 4K@120fps
- Supports Dolby Vision, HDR10+, HDR10 and HLG
- Apple® Airplay2
- Google Chromecast® built-in
- Bluetooth aptX®HD
- Supports MQA
- Roon Ready
- Wi-Fi / Ethernet, RS232 and IR control
|
2 channels driven, 20Hz - 20kHz, <0.02% THD |
80W/100W |
|
2 channels driven, 1kHz, 0.2% THD |
85W/120W |
|
7 channels driven, 1kHz, 0.2% THD |
60W/85W |
|
Residual noise & hum (A-wtd) |
<0.15mV |
|
Maximum input |
4.5V rms |
|
Nominal sensitivity |
1V, 2V, 4V (user adjustable) |
|
Input impedance |
47ΚΩ |
|
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct |
93dB/110dB |
|
Frequency response |
20Hz - 20kHz plus/minus 0.2 * dB |
|
Nominal output level |
0.8V RMS |
|
Output impedance |
560Ω |
|
THD+N (20Hz-20kHz) |
-100dB |
|
Maximum output level into 320 |
5Vrms |
|
Output impedance |
< 100Omega |
|
Mains voltage |
110-120V or 220-240V, 50-60Hz |
|
Power consumption (maximum) |
1.5kW (Thermal dissipation approx. 5200 BTU/hour) |
|
Power consumption (idle, typical) |
90W (Thermal dissipation approx. 340 BTU/hour) |
|
Power consumption (standby) |
<0.5W |
|
Dimensions W x D (including speaker terminals) x H (including feet) |
433 x 425 x 171mm |
|
Weight (net) |
16.5kg |
|
Weight (packed) |
19.8kg |
|
Supplied accessories Mains lead |
Remote control with 2 x AAA batteries, Manual DAB/FM aerial 3 x WiFi/Bluetooth antennas Calibration microphone |
