AIRPULSE A100

OVERVIEW

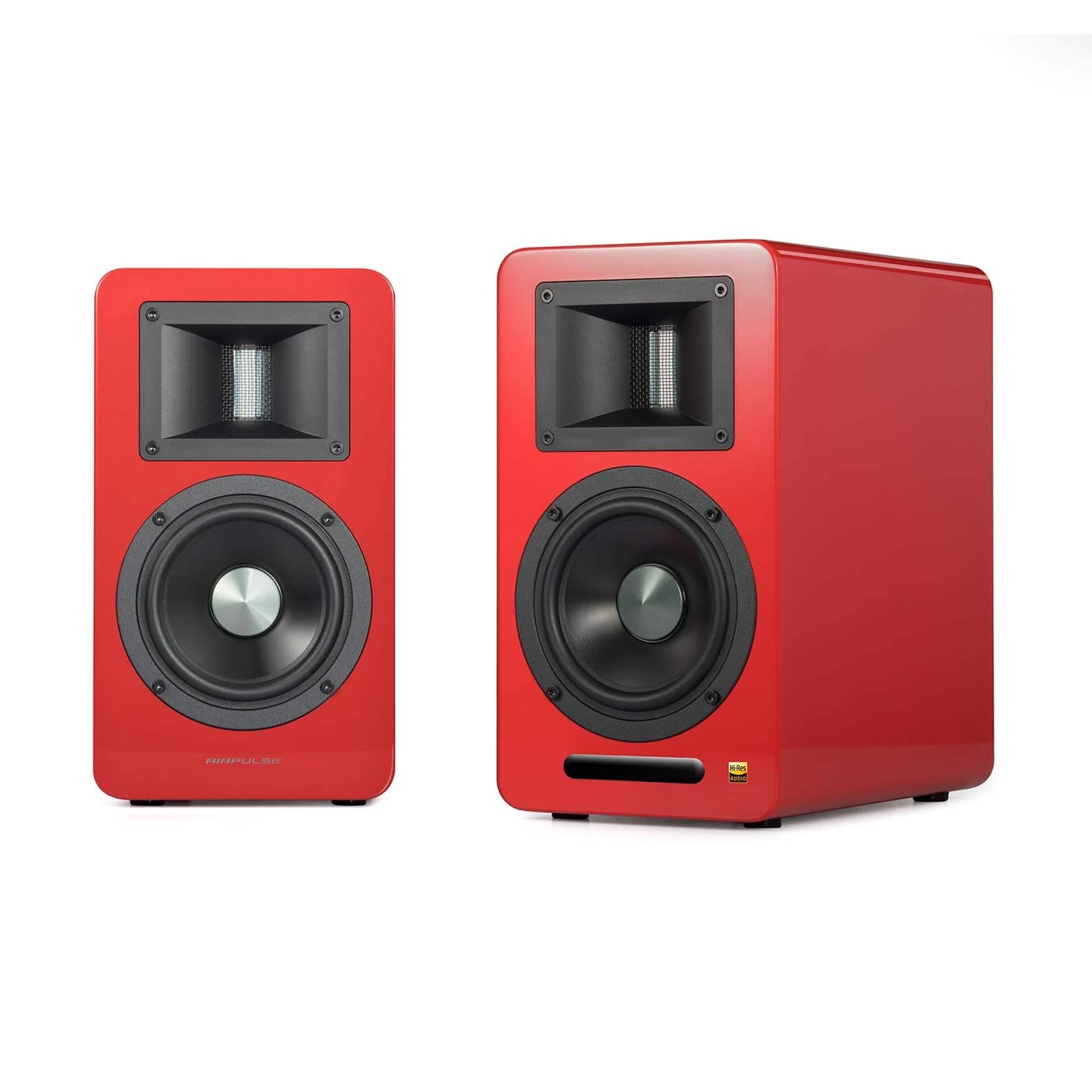

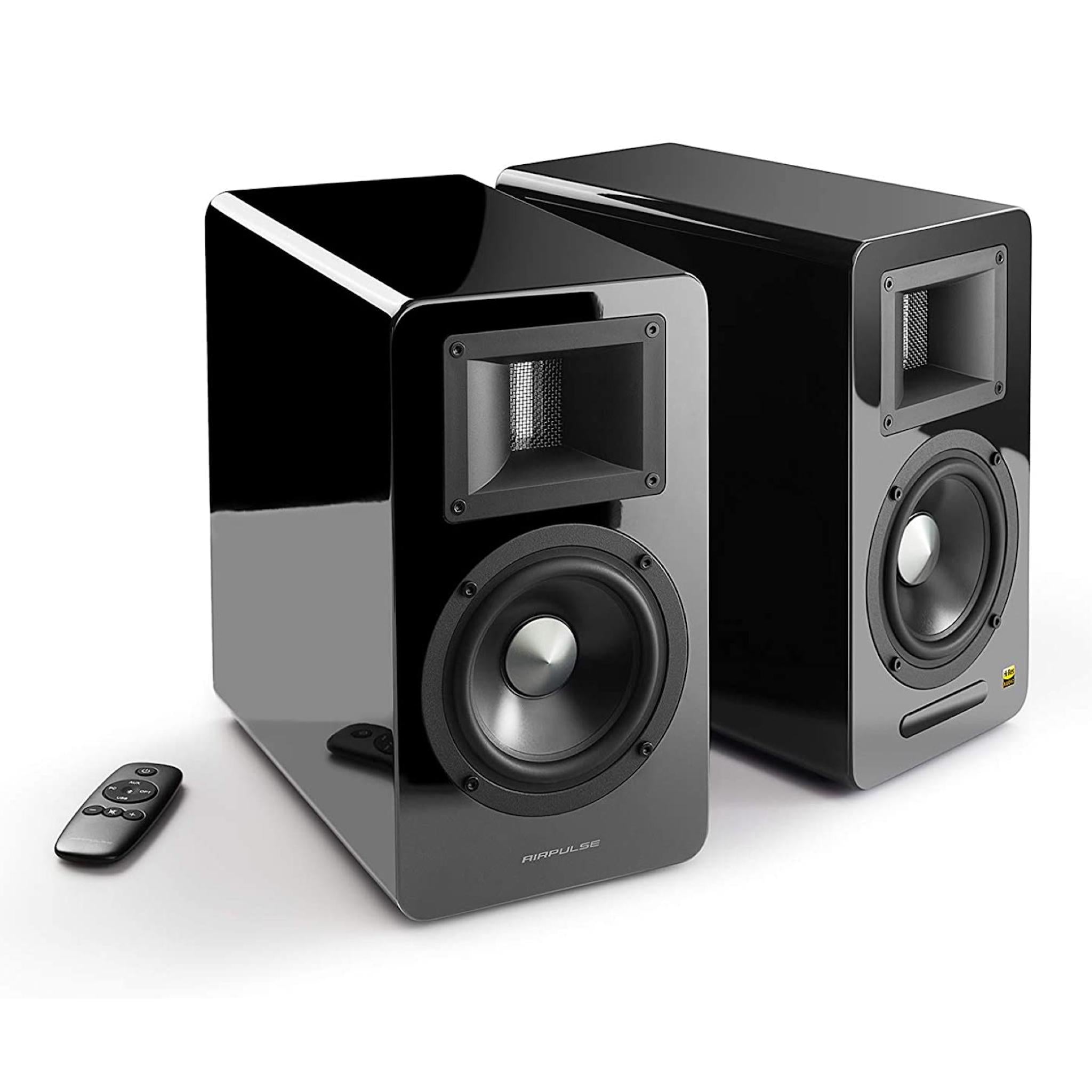

Following the successful launch of the A200 and A300, the all new A100 miniature bookshelf speakers with a 5” woofer now joins the AIRPULSE active speaker family. The perfect combination of Hi-Res digital audio processing technology and an aesthetic of understated elegance creates a High-Fidelity audio system with intoxicating sound quality and visual appeal.

The A100 has an exquisite piano lacquer appearance, inheriting the appearance and sound characters of our flagship model 7001 near-field monitor speakers designed by Phil Jones. Using the same XMOS core as its bigger brother A300, this unassumingly small cabinet delivers outstanding performance beyond your expectation.

The A100 continues to use AIRPULSE’s unique horn-loaded aluminium ribbon tweeter and a proprietarily-designed 5” aluminium chassis low-distortion bass and mid-range driver. They are housed in an 18-mm thick high-strength MDF cabinet finished with attractive piano black(or red) lacquer.

The well-known AmericanTRANSPARENT cable is used in A100 for internal connection to ensure minimum signal loss. The active speaker has a high efficiency Class D amplifier with digital signal processing (DSP) system, powered by an also efficient power supply.

The system in the A100 supports multiple inputs, including Bluetooth, AUX, PC, USB and fibre optic. Frequency response ranges from 52Hz to 40KHz. It supports Hi-Res high-quality audio playback, and has obtained a Hi-Res official certification.

Be Bold

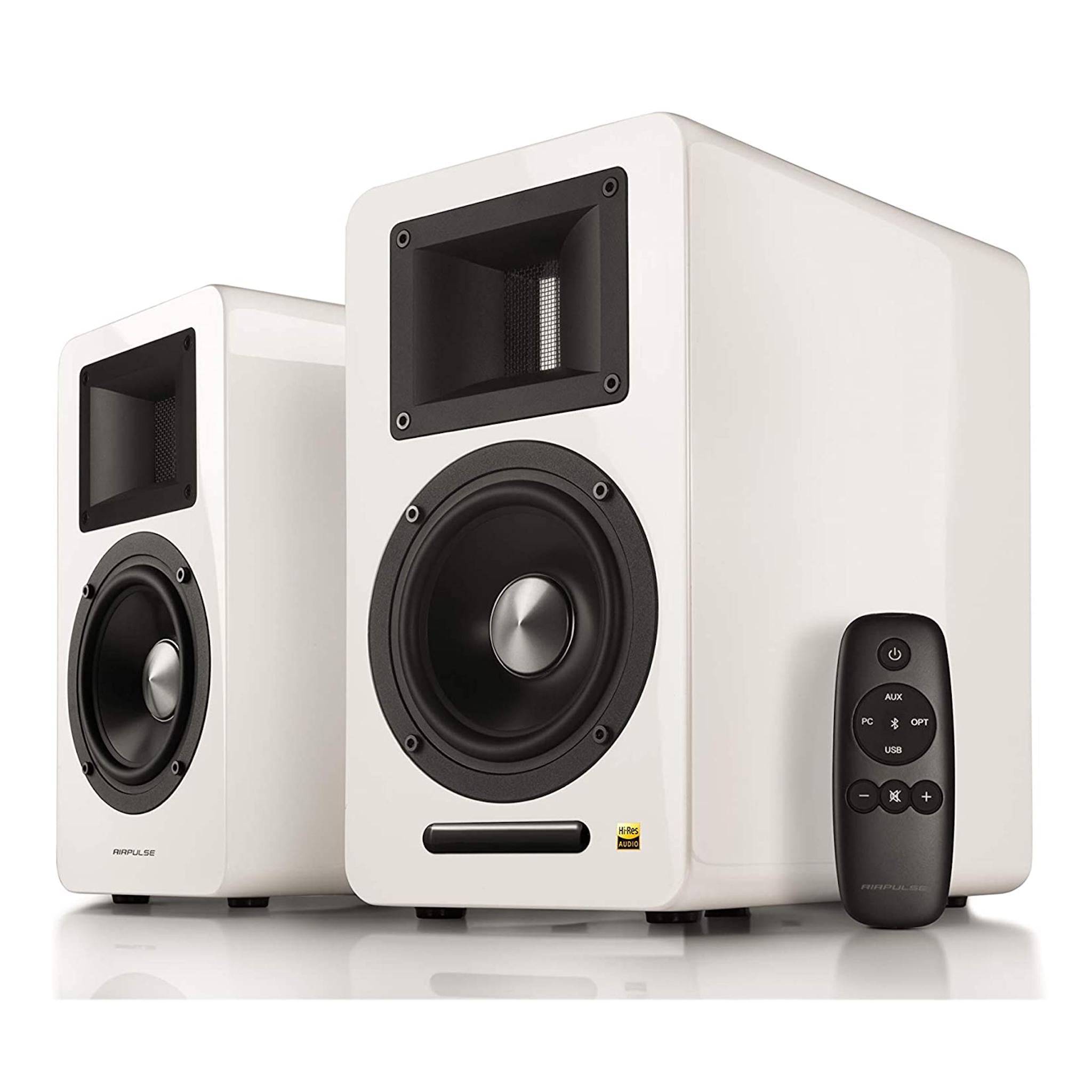

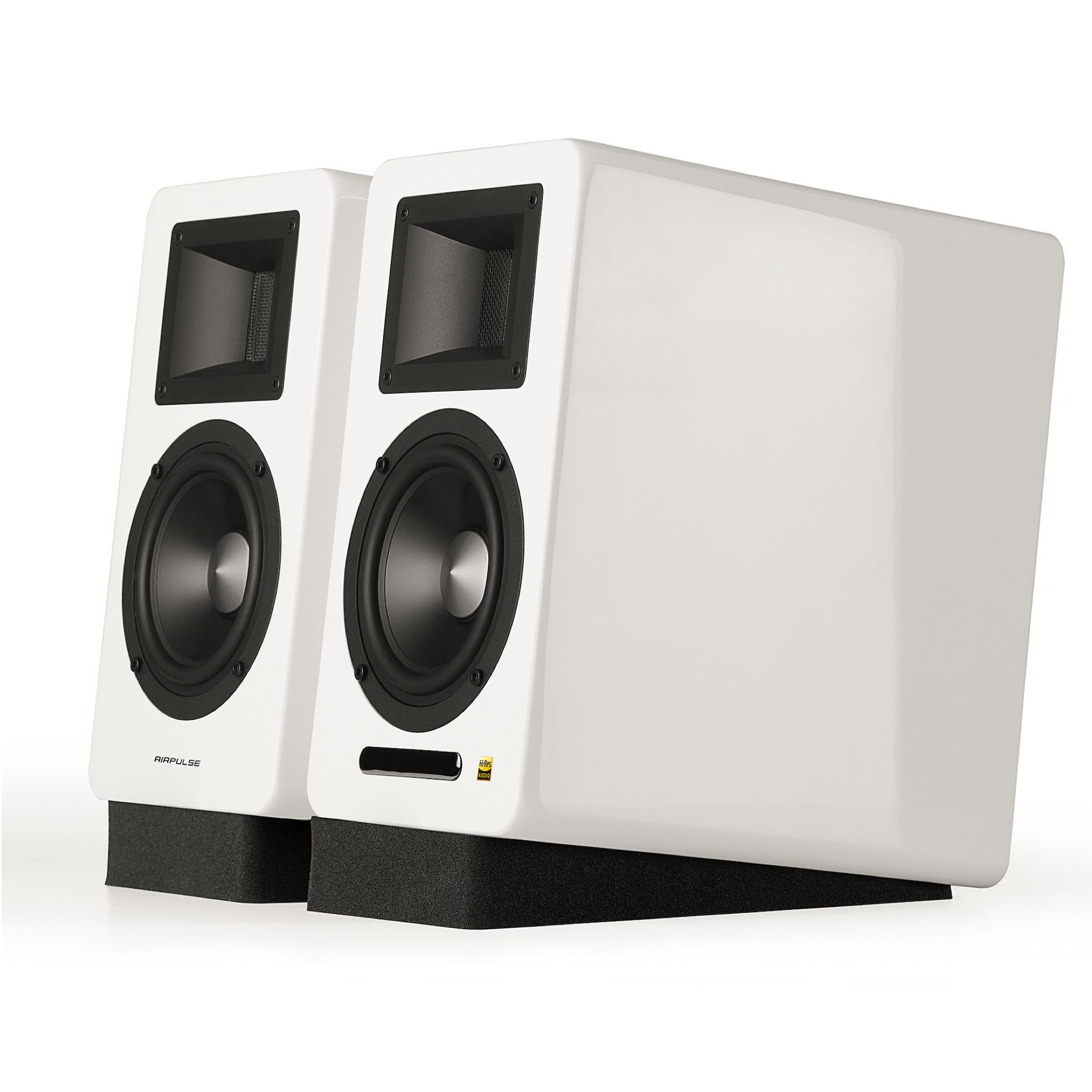

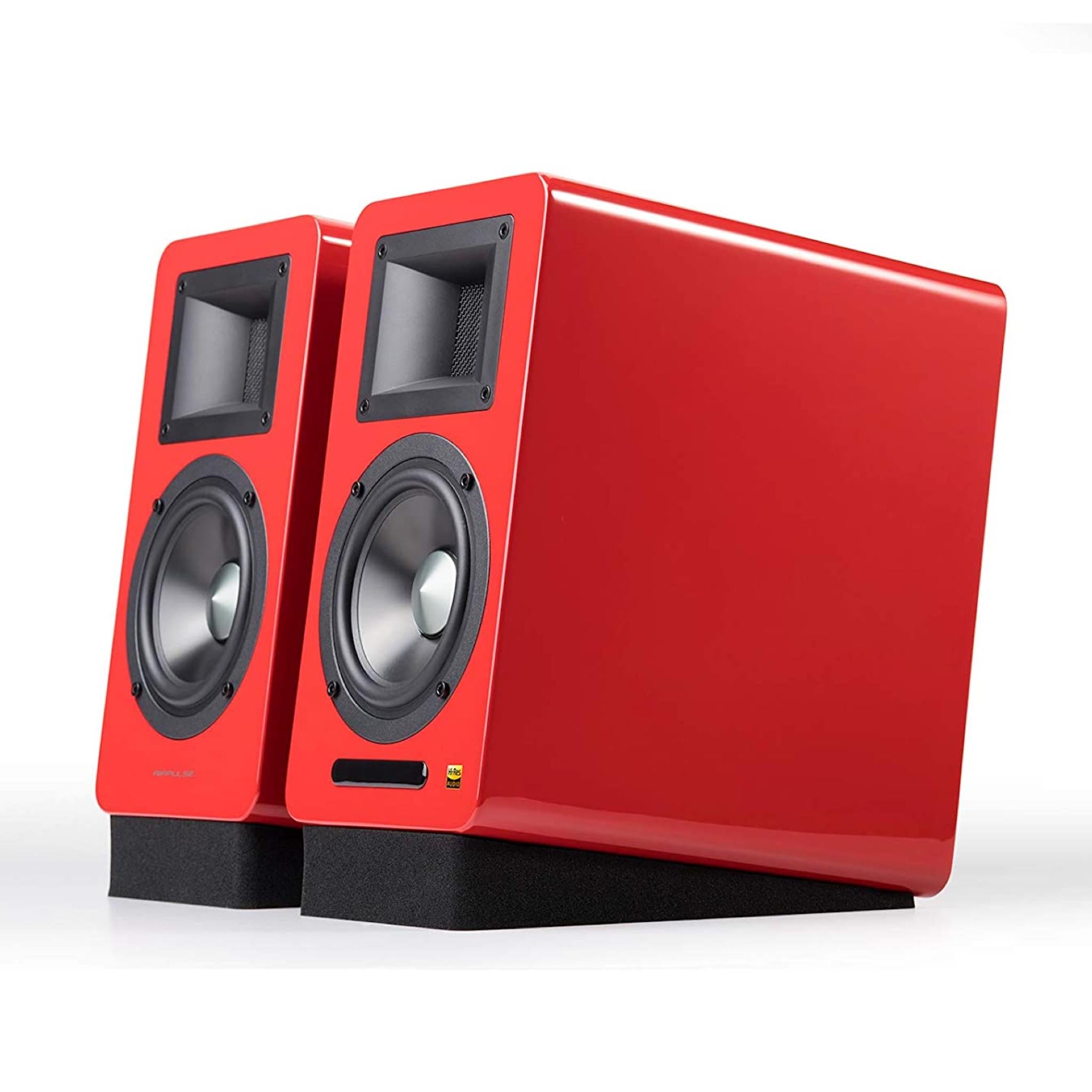

Stand out with the design of our speakers that speak to the modern-day sensibilities with its clean sleek angles. Choose from the striking black or stand out red and elegant white. The bold highlighted cabinet from AirPulse adds a modern day feel to the décor of the room.

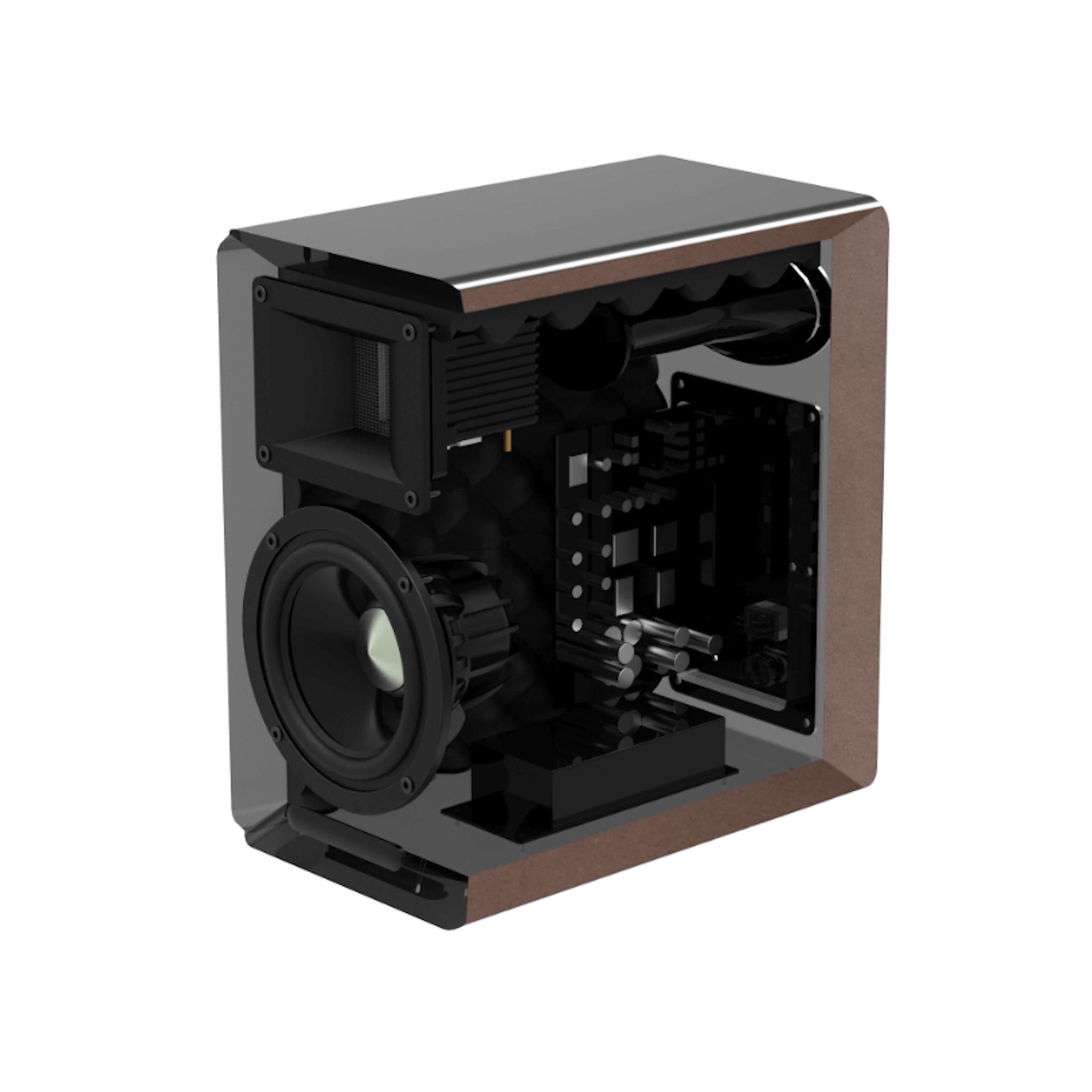

CABINET CONSTRUCTION

The A100 cabinet is built WITH 18-mm thick high-strength MDF finished with attractive piano lacquer. To further reduce coloration, the cabinet interior is fully lined with professional waved sound absorption material.

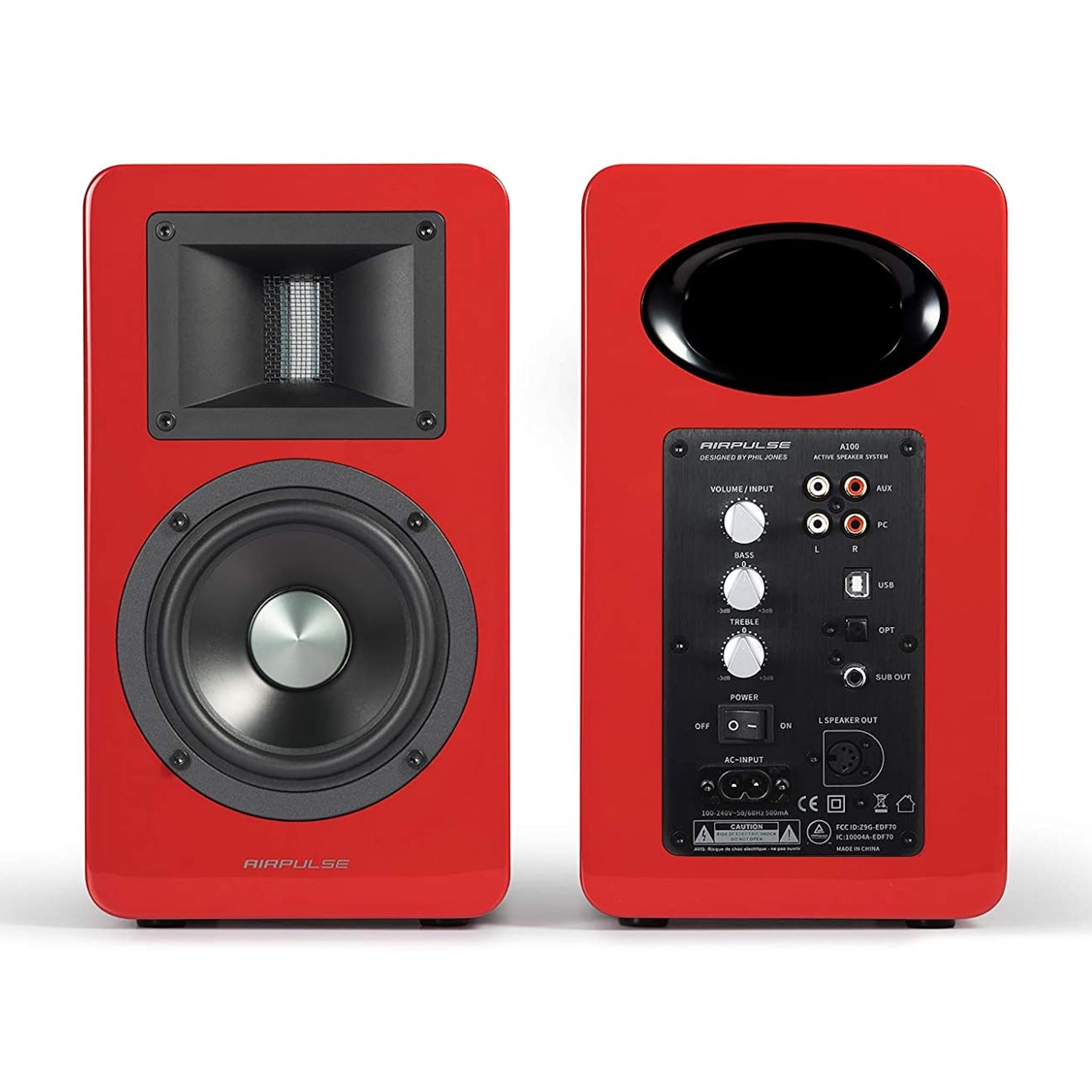

The oval shaped vent tube in the A100 is carefully designed to minimise wind noise.

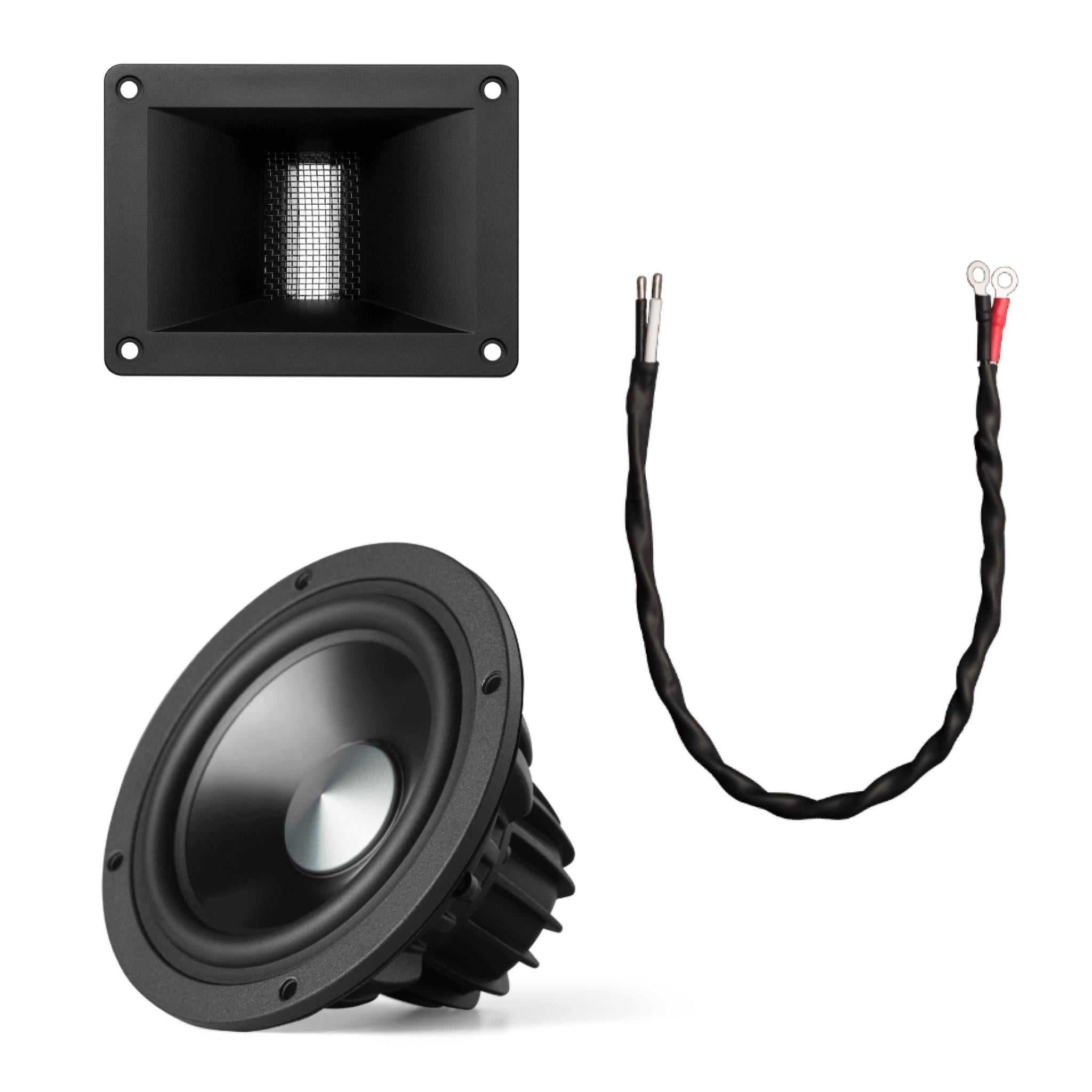

HORN LOADED RIBBON TWEETER

The A100 horn loaded ribbon tweeter inherits the mechanism of the tweeter in our flagship 7001 near-field monitor speaker. The thin aluminium ribbon diaphragm has high sensitivity, superb transient response, extended frequency range and well-defined resolution.

The meticulously formulated horn shape produces directional and optimised high frequencies from the ribbon tweeter, so they are aimed at the listeners, minimising unwanted effect from room reflection. This also leads to a superior imaging of the speaker. The result is full and three dimensional sound with each detail well defined.

5” ALUMINIUM CONE LOW-DISTORTION MID-WOOFER

The Mid-woofer is a 5” unit with a hard anodised aluminium alloy cone suspended in a heavy, ultra rigid cast magnesium alloy frame.

The Proprietary Aluminum Alloy Cone (PAAC) of mid-woofer was designed from painstaking analysis of all types of cone geometry and materials using a Klippel Laser Doppler Interferometer.

The 35mm diameter voice coil is unusually larger than most loudspeakers of this size. It has been shown that larger voice coils have less power compression because they run at a cooler operating temperature. Sonically this means a more realistic dynamic representation of the music. It is dynamics in music that gives it emotion and exhilaration. The cooler running temperature of the voice coil also has the side benefit of a more reliable loudspeaker since cooler voice coil means much less chance of speaker failure.

Most loudspeakers use round copper wire in the voice coil but we use a far better single layer edge-wound copper clad aluminium ribbon. Ribbon voice-coil wire gives more electrical conductor in the magnet gap and increases efficiency, power handling and lowers distortion.

It features a under-hung motor structure, a high power neodymium motor to provide a high magnetic flux to cover the whole voice coil of the loudspeaker. This type of magnet structure completely energies the whole voice coil with allowance for extreme cone excursion giving far better bass and considerably less inter-modulation distortion.

For un-compromised performance, the A100 woofer uses a hyper-rigid cast-magnesium alloy frame. Its rigidity greatly reduces speaker coloration; and its material helps to dissipate heat efficiently from the voice coil much faster than a typical steel speaker frame, which all in combination leads to increased dynamics and power handling and ultimately, a satisfying musical experience rarely gained from a system of this size price range.

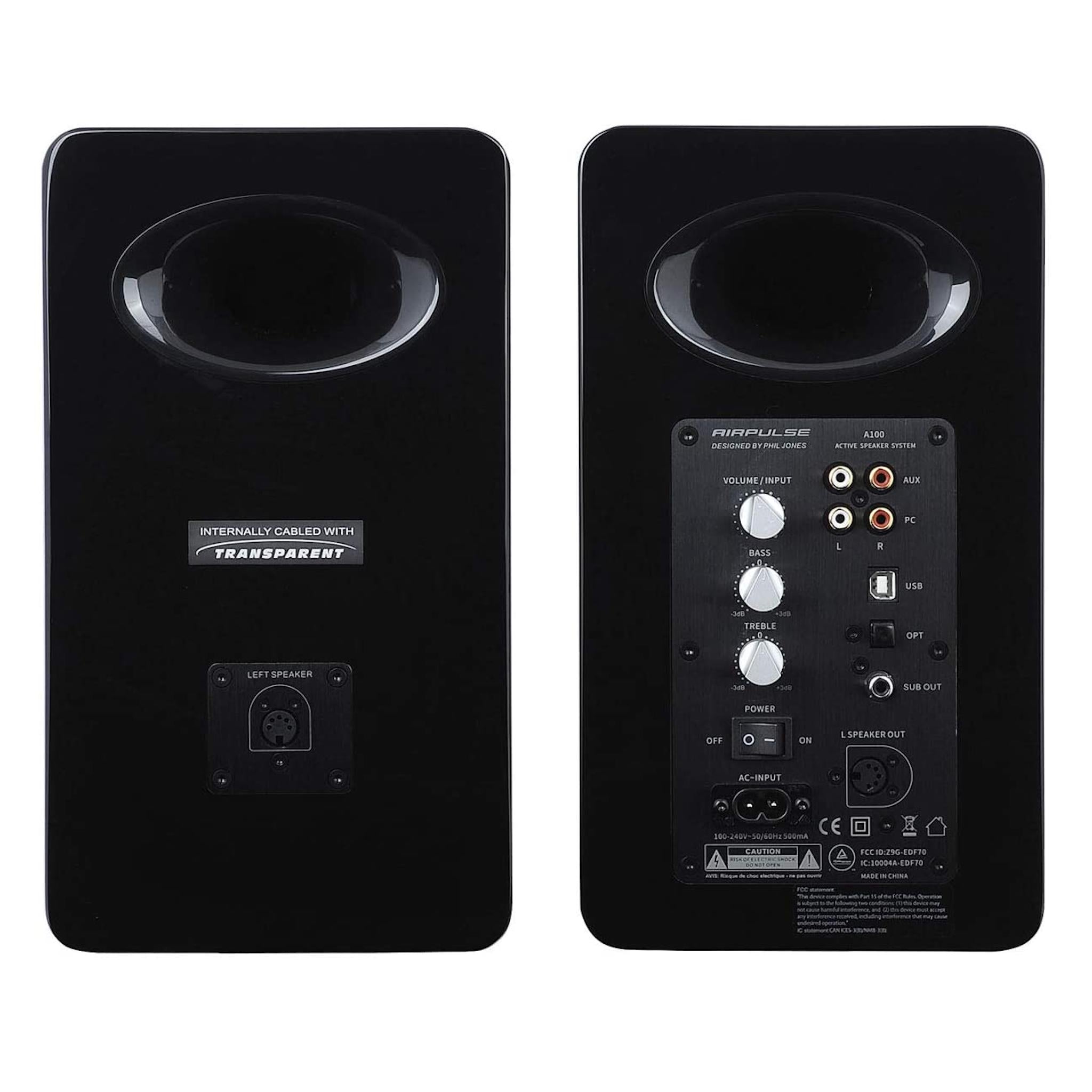

Internal Wiring Made By TRANSPARENT

The A100 cabinet is built WITH 18-mm thick high-strength MDF finished with attractive piano lacquer. To further reduce coloration, the cabinet interior is fully lined with professional waved sound absorption material.

The oval shaped vent tube in the A100 is carefully designed to minimise wind noise.

FULL DIGITAL AMPLIFIER

The power amplification part is built with 2 pieces of TAS5754 Class-D amplifier from Texas Instrument. This component is one of a handful of Class-D amplifiers in the market which combines high input sample rate support and high output PWM carrier frequency. These two characters are essential to achieve low background noise and low distortion. The up-to 192 KHz input sample rate support guarantees the entire link of digital processing run without any change of sample rate of signal. Its 768 KHz output PWM carrier frequency, twice to 384 KHz of traditional Class-D amplifier, is even more suitable to drive the high sensitivity ribbon tweeter. One TAS5754 is connected in bridge mode for left and right channel woofer and the other amp is connected in bridge mode for left and right channel ribbon tweeters.

The analog front end uses top-of-the-line components from Texas Instrument. With special configuration, the chipset work at 96 KHz to offer a frequency response up to 40 KHz. The wide range input frequency response guarantees thorough signal acquisition with very low distortion. To avoid cross-talk between the two analog ports, A100 uses relay instead of semiconductor switch.

The SPDIF receiver PCM9211 is also from Texas Instrument, which supports input sample rate up to 216 KHz. With very low output jitter, the unpacked audio signal can be delivered to XMOS processor with zero loss.

The power amplification part is built with 2 pieces of TAS5754 Class-D amplifier from Texas Instrument. This component is one of a handful of Class-D amplifiers in the market which combines high input sample rate support and high output PWM carrier frequency. These two characters are essential to achieve low background noise and low distortion. The up-to 192 KHz input sample rate support guarantees the entire link of digital processing run without any change of sample rate of signal. Its 768 KHz output PWM carrier frequency, twice to 384 KHz of traditional Class-D amplifier, is even more suitable to drive the high sensitivity ribbon tweeter. One TAS5754 is connected in bridge mode for left and right channel woofer and the other amp is connected in bridge mode for left and right channel ribbon tweeters.

The Bluetooth audio receiver is built on Qualcomm’s Bluetooth chipset, which supports APT-X decoder, and offers a far better audio playback quality than what a traditional Bluetooth SBC codec can present.

The system reserves a sub woofer signal output in case of situation that needs low frequency rendering with strong bass. Volume of the subwoofer can be adjusted by the master volume control.

AIRPULSE A100 Active Bookshelf Speaker system is a perfect combination of uniquely designed conventional loudspeaker and digital system o fXMOS. Meticulous tuning work enables theA100to accurately reproduce any type of music. Its XMOS integrated USB function makes life much easier, you can play high-quality sound sources without compression and enjoy lossless music by simply downloading and installing the software packages.

A100’s independent treble and bass adjustment function can help the user to easily set the brightness of highs-frequency and the amount of bass according to size of the listening environment.

Tweeter

Horn Loaded Ribbon Tweeter

Mid-Woofer

5 inch Aluminum Cone Underhung Design Neo. Power Mid-Woofer

Amplifier System

Digtal Amplifer With Xmos Processor

Power Output

  • L/R(Treble): 10W+10W
  • L/R(Woofer): 40W+40W

Frequency Range

52Hz - 40kHz

Signal-Noise Ratio

L/R: ≥ 90dB(A)

Input Mode

AUX, PC, USB, Optical, Bluetooth.

Sample Rate Input Sensitivity

  • AUX:450±50mV PC:550±50mV,
  • USB:400±50mFFs
  • Optical:400±50mFFs,
  • Bluetooth:500±50mFFs

Sub Out

1200mV(max)

Mains Voltage

100-240 V AC/50-60 Hz

Cabinet Size (WxHxD)

160x283x255mm

Net Weight

11 Kg(24.2lbs)

Gross Weight

13.4 Kg(29.5lbs)

Packing Size(HxWxD)

387x489x353mm
