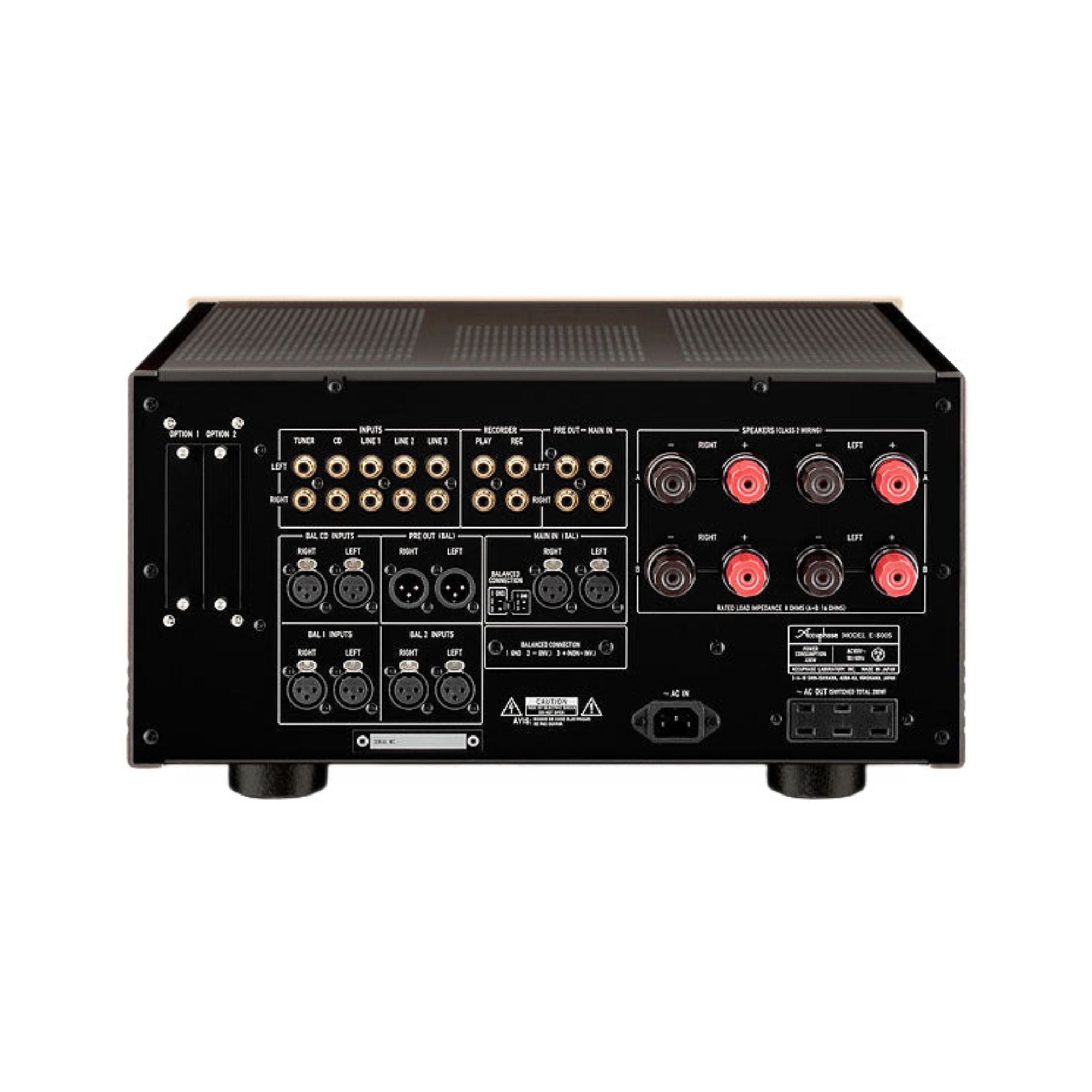

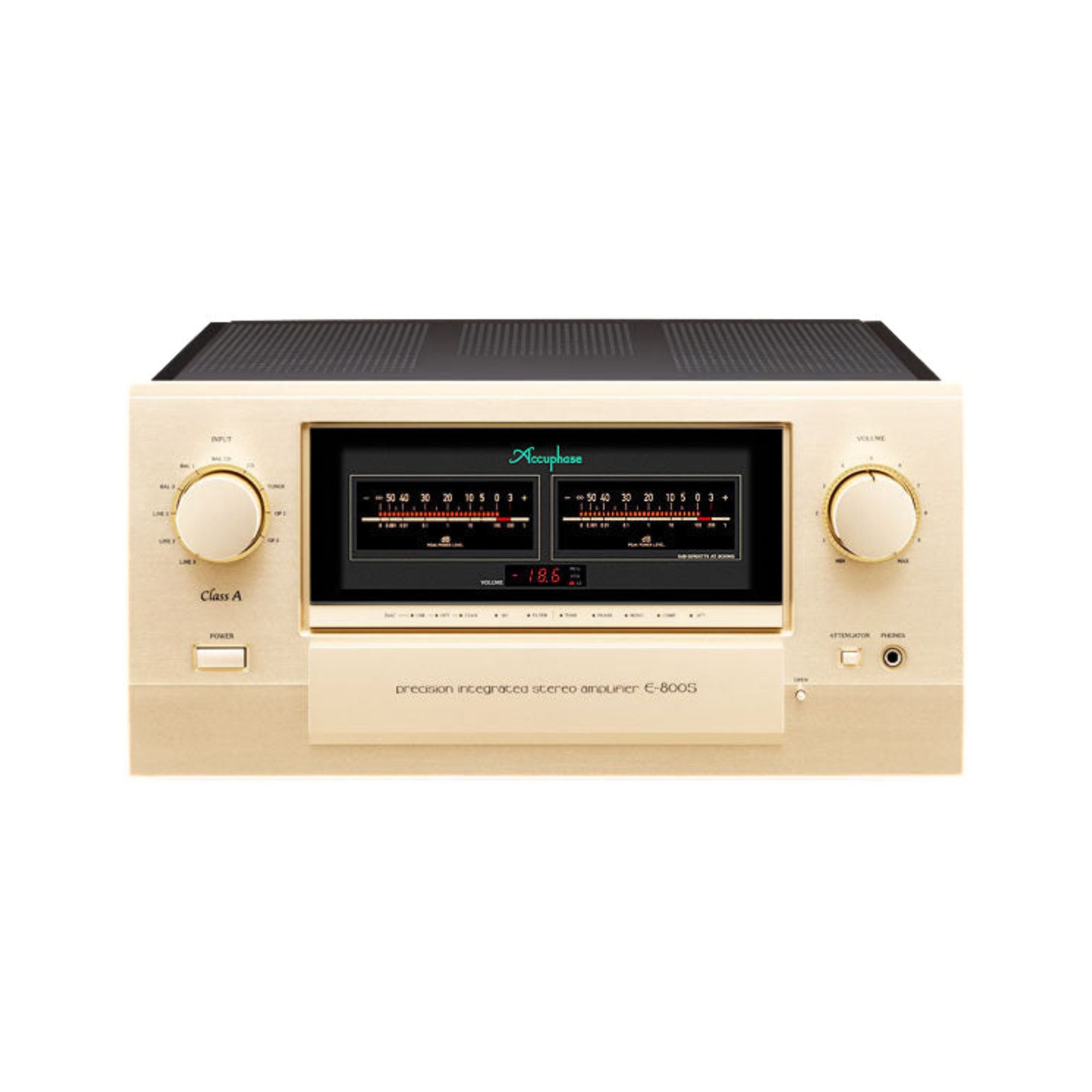

Accuphase Laboratory E-800S Class-A Precision Integrated Stereo Amplifier
Inclusive of all taxes
GET GST INPUT
Ever wondered why speakers, amplifiers, projectors etc. come with a slightly heftier price tag in India compared to their overseas counterparts? Well, part of the answer lies in our country's Goods & Services Tax (GST).
But here's the kicker: Don't let that GST input slip through your fingers! Especially when some of the products we supply carry a GST rate of 18% and 28%.
At AVStore, we provide you with a GST compliant invoice for every purchase.
Simply put in your GST number during the checkout to avail an offset.
- Description
- Specifications
- Reviews
The E-800S is Accuphase’s flagship model that incorporates the full breadth of Accuphase's accumulated knowledge on integrated amplifiers. The preamplifier section incorporates a Balanced AAVA type volume control, while the power amp stage relies on an instrumentation amplifier principle and six-fold parallel push-pull configuration using power MOS-FETs driven in Class A, driving any loudspeakers to higher dimensions of sound. Enjoy the blissful acoustic space provided during playback with the E-800S.
Features
- Integrated amplifier with fully balanced configuration from input to output
- Balanced AAVA type volume control
- High-accuracy, high-rigidity volume sensor construction
- Power amplification stage configured as an instrumentation amplifier
- Six-fold parallel push-pull configuration using power MOS-FETs driven in Class A
- Linear power output of 50 watts into 8 ohms, 100 watts into 4 ohms, or 200 watts into 2 ohms
- High damping factor of 1,000
- Strong power supply with massive high-efficiency toroidal transformer and large filtering capacitors
- Protection circuitry using MOS-FET switches
- Three sets of balanced inputs
- Dedicated, high-quality headphone amplifier with discrete circuitry
- Speaker output protection circuit guards against short-circuiting
- High-carbon cast iron insulators for superior vibration damping
- Two expansion slots for option boards
|
Power Output (Class A) |
50 W/ch (82), 100 W/ch (42), 200 W/ch (22), 300 W/ch (12 music signal). |
|
Total Harmonic Distortion |
0.03% (4-162 load), 0.05% (22 load). |
|
Damping Factor |
1,000 (EIA, 8 ohm load, 50 Hz) |
|
Signal-to-Noise Ratio |
105 dB (Balanced/Line), 120 dB (MAIN IN). |
|
Frequency Response |
20Hz – 20kHz (+0, -0.5dB). |
|
Volume Control |
Balanced AAVA with ANCC (Accuphase Noise and Distortion Canceling Circuit). |
|
Topology |
Instrumentation amplifier principle, 6-parallel push-pull power MOS-FETs. |
|
Inputs |
3x Balanced XLR, 5x RCA (Line), MAIN IN (XLR & RCA). |
|
Outputs |
2 sets of speaker terminals, Dedicated discrete headphone amp. |
|
Dimensions (H x W x D) |
239 x 465 x 502 mm |
|
Weight |
35.7kg |
