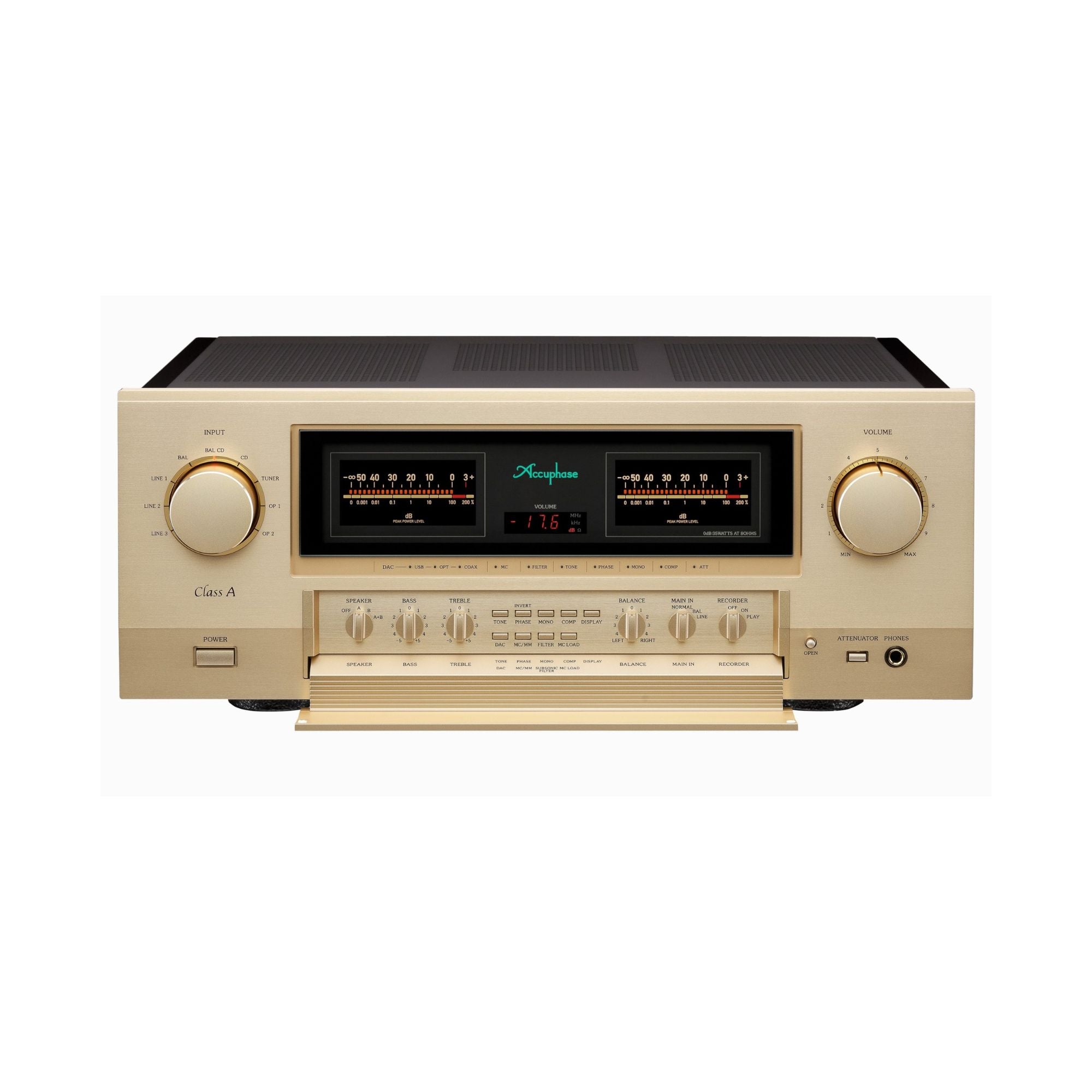

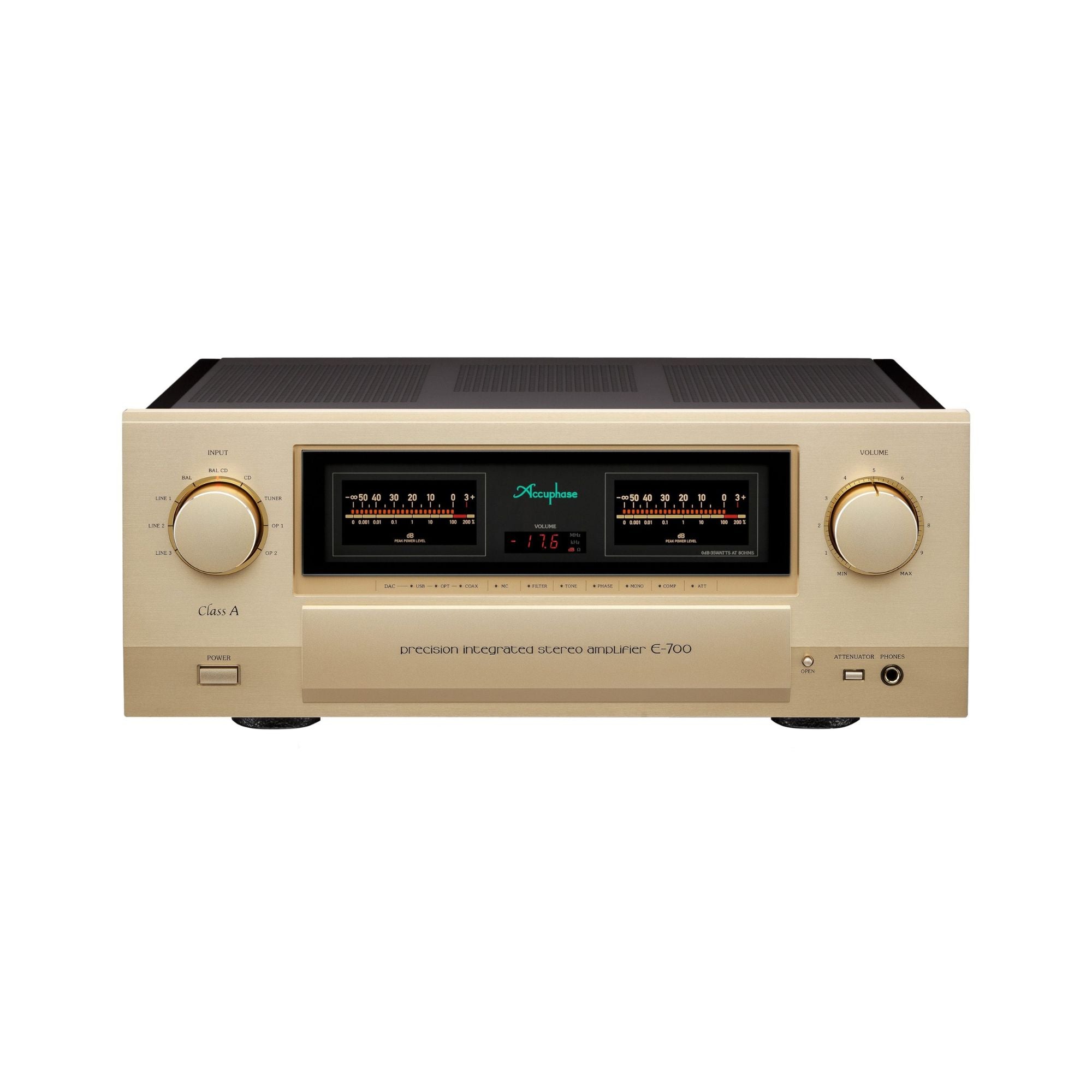

Accuphase Laboratory E-700 Class-A Precision Integrated Stereo Amplifier
Inclusive of all taxes
GET GST INPUT
Ever wondered why speakers, amplifiers, projectors etc. come with a slightly heftier price tag in India compared to their overseas counterparts? Well, part of the answer lies in our country's Goods & Services Tax (GST).
But here's the kicker: Don't let that GST input slip through your fingers! Especially when some of the products we supply carry a GST rate of 18% and 28%.
At AVStore, we provide you with a GST compliant invoice for every purchase.
Simply put in your GST number during the checkout to avail an offset.
- Description
- Specifications
- Reviews
The E-700 is an evolutionary integrated amplifier that incorporates numerous technologies from their 50th anniversary flagship model, the E-800. The preamplifier section uses a Balanced AAVA type volume control with ANCC to create a balanced configuration from input to output and achieve driving perfection. The power amp stage that drives the speakers has been fortified from three elements to four, further increasing reliability. Experience the full breadth of emotion in live performances with the E-700’s superior expression.
- Integrated amplifier with fully balanced configuration from input to output
- Balanced AAVA type volume control
- High-accuracy, high-rigidity volume sensor construction
- Power amplification stage configured as an instrumentation amplifier
- Four-fold parallel push-pull configuration using power MOS-FETs driven in Class A
- Linear power output of 35watts into 8ohms, 70 watts into 4ohms, or 140 watts into 2ohms
- 160 W output into 1-ohm load (music signals)
- High damping factor of 1,000
- Strong power supply with high-efficiency toroidal transformer and large filtering capacitors
- Protection circuitry using MOS-FET switches
|
Model |
Accuphase Laboratory |
|
Brand |
E-700 |
|
Power Output (Continuous Average) |
35W into 8 ohms, 70W into 4 ohms, 140W into 2 ohms, 160W into 1 ohm (music signal). |
|
Class A Operation |
Linear output assured across all impedances. |
|
Damping Factor |
1000 |
|
Frequency Response |
20Hz – 20kHz +0, -0.5dB. |
|
Total Harmonic Distortion (THD) |
0.03% (8–16 ohm load), 0.05% (2–4 ohm load). |
|
Single To Noise Ratio (SNR) |
103dB. |
|
Dimensions (HxWxD) |
191mm x 465mm x 428mm (7.5 x 18.3 x 16.9 inches). |
|
Weight |
24.9kg (approx. 54.9 lbs) |
