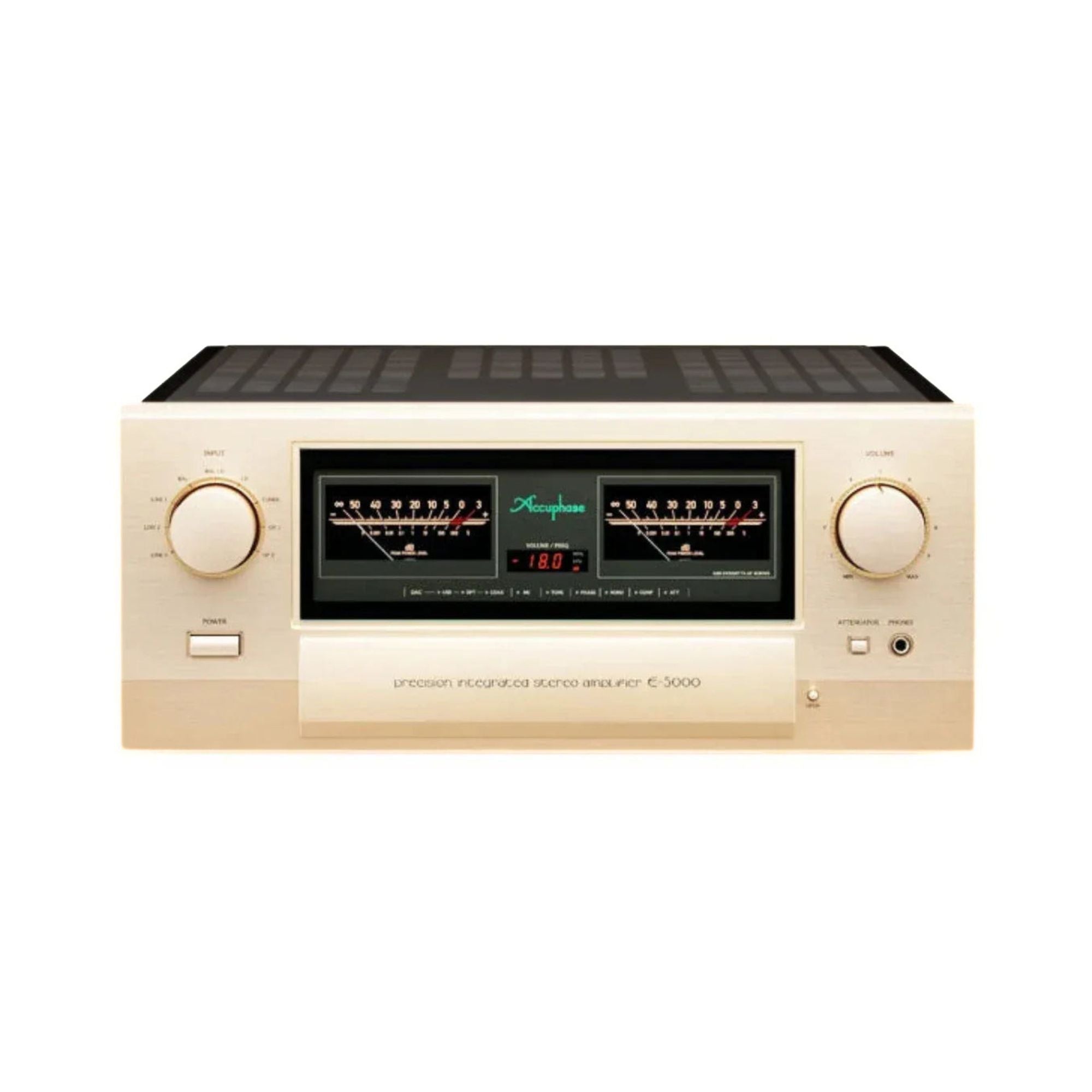

The E-5000 is the flagship high-power Class AB integrated amplifier developed to mark Accuphase’s 50-year anniversary. The preamplifier section features our superior Balanced AAVA volume control, while the power amplifier section includes an instrumentation amp and power transistors in a five-fold push-pull arrangement driven in Class AB. These circuits create a balanced circuit from input to output. With its precisely balanced circuits and solidly built output stage, the E-5000 integrated amplifier presents every piece of music in exquisite detail.
- Balanced AAVA volume control
- Highly reliable logic-control signal switching relays

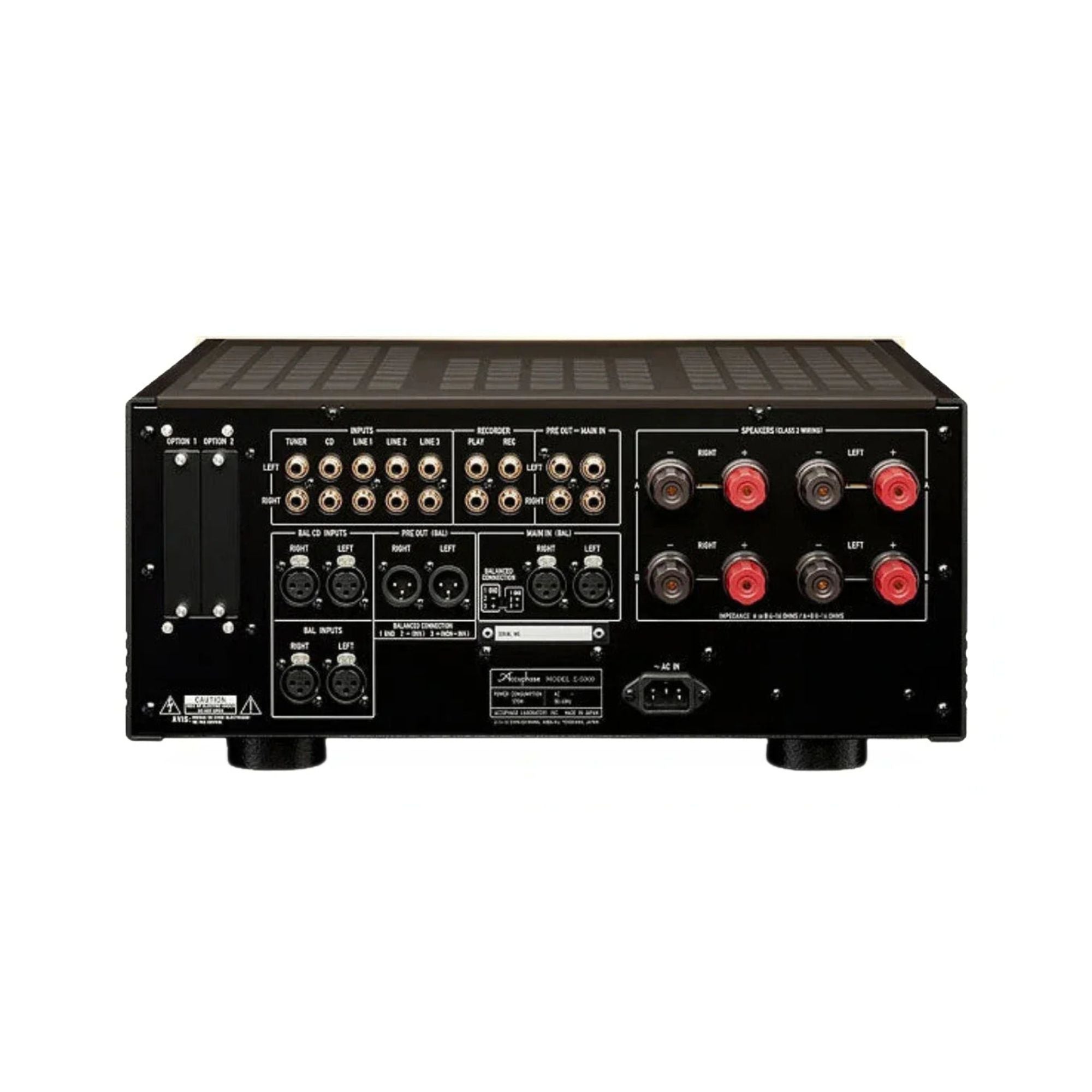

- Ample input connectors (Five line level and two balanced)
- Line level input and output connectors for a recorder
- Individual phase setting for each input
- Stereo signal can be switched to monophonic operation
- Left / right balance control through Balanced AAVA
- Volume attenuator that can instantly reduce sound as low as –20 dB
- Loudness compensator to adjust audible sonic balance
- Tone controls using summing active filters
- Power amplification stage employs instrumentation amplifier principle
- Current feedback amplification circuit topology assures excellent phase characteristics in high range
- Speaker output protection circuit guards against short-circuiting
- Protection circuitry using low impedance, highly reliable MOS-FET switches
- Two massive speaker connectors for output switching and simultaneous output
- Line level and balanced outputs at the preamplifier section support bi-amping connection
- Line level and balanced inputs at the power amp section allow use as a power amplifier
- Dedicated, high-quality headphone amplifier constructed with discrete components
- Two expansion slots for option boards
|
System |
Fully balanced pure Class A solid-state stereo integrated amplifier |
|
Rated Output Power |
320 W into 4 ohms, 240 W into 8 ohms |
|
Frequency Response |
3 Hz to 150 kHz |
|
Total Harmonic Distortion |
0.05% (20 to 20,000 Hz) |
|
Intermodulation Distortion |
0.01% |
|
Damping Factor |
1,000 |
|
Input Sensitivity |
220 mV (line) |
|
Input Impedance |
40 kilohms (balanced), 20 kilohms (line) |
|
Max. Input Voltage |
5.0 V |
|
Output Voltage |
1.74 V (pre out) |
|
Output Impedance |
50 ohms |
|
Gain |
18 dB (balanced / line) |
|
Tone Controls |
Bass: 30 Hz ±10 dB, Treble: 3 kHz ±10 dB, Loudness Compensator: +6 dB (100 Hz), Attenuator: –20 dB |
|
S/N Ratio |
111 dB (line) |
|
Power Meters |
Bar graph meters, Output voltage (dB) using 26 points, with ON/OFF switch |
|
Headphones Jack |
Compatible impedance: 8 ohms or higher |
|
Power Requirements |
120 V, 220 V, 230 V AC (voltage as indicated on rear panel) |
|
Power Consumption |
Idle: 54 W, Maximum: 248 W, Stand-by: 0.3 W |
|
Maximum Dimensions |
Width 465 mm (18.3”) × Height 211 mm (8.3”) × Depth 502 mm (19.8”) |
|
Weight |
Net: 33.8 kg (74.5 lbs), In shipping carton: 35 kg (77 lbs) |
