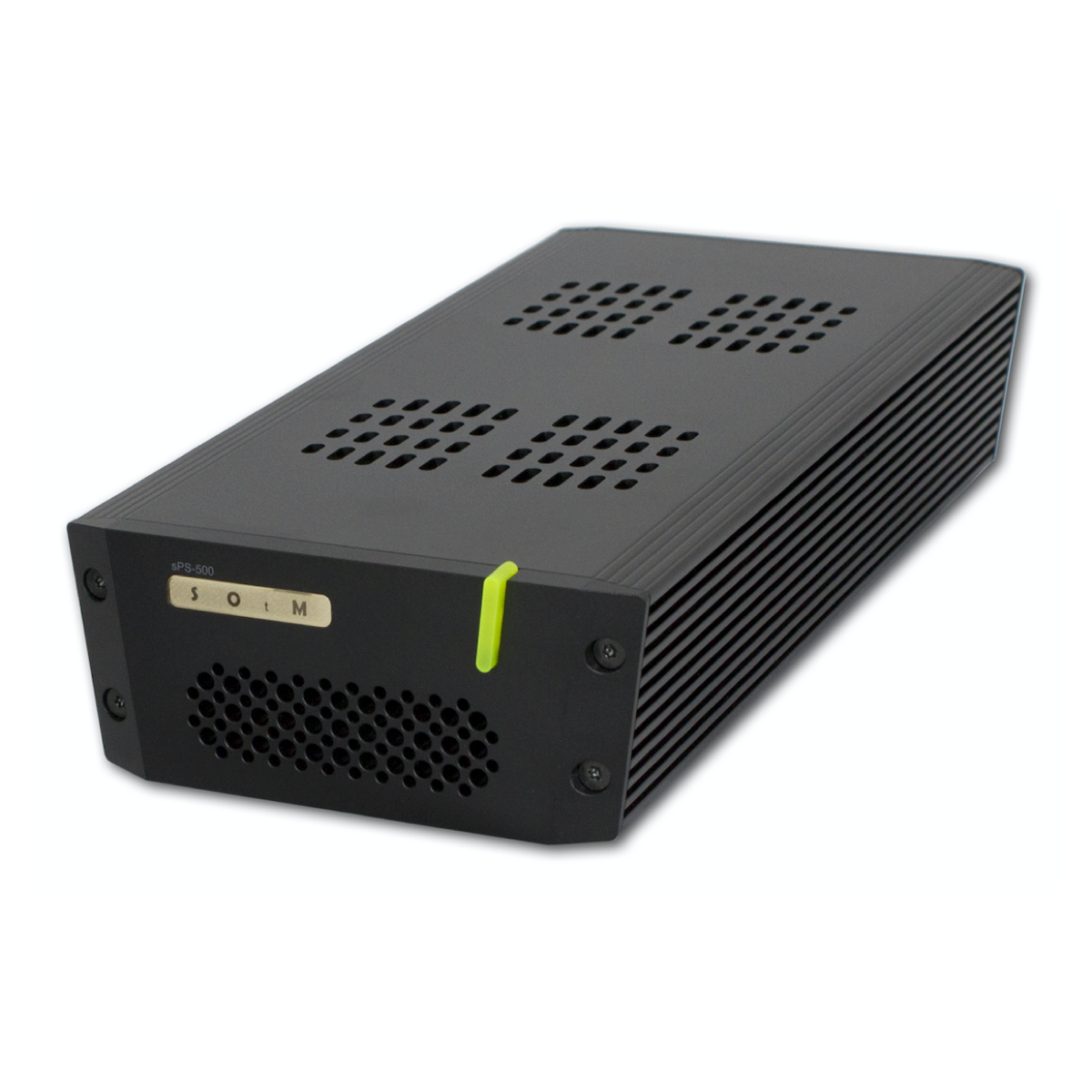

SOtM sPS-500 - Regulated Power Supply

Rs. 53,000.00 – Rs. 113,000.00

  • • Free Shipping (India)
  • • Brand New Unit(s)
  • • Price Includes GST
  • • Official Manufacturers Warranty
  • • EMI Payment Option Available
Basic + Standard Y DC CableBasic + Standard Y DC Cable
SE-C-EvoxSE-C-Evox
SE-C-Evox + Stranded Copper DC CableSE-C-Evox + Stranded Copper DC Cable
SE-C-Evox + Stranded Copper Y DC CableSE-C-Evox + Stranded Copper Y DC Cable
SE-S-EvoxSE-S-Evox
SE-S-Evox + Stranded Silver DC CableSE-S-Evox + Stranded Silver DC Cable
SE-S-Evox + Stranded Silver Y DC CableSE-S-Evox + Stranded Silver Y DC Cable
Rs. 53,000.00
Description

sPS-500

Key Features

  • 7Vdc, 9Vdc, 12Vdc, 19Vdc selectable output voltage
  • Eliminate noise generated by powered devices
  • 50W output power for NAS, fanless audio PCs and others
  • Support worldwide AC input voltage
  • Output short, over temperature protection

VARIANTS

  • sPS-500 Basic + Standard Y DC Cable - Switch based Linear Power Supply with standard Y DC Cable
  • sPS-500 SE-C-Evox - Switch based Linear Power Supply + EMI + Copper wiring + Evox Capacitors
  • sPS-500 SE-C-Evox with Stranded Copper DC Cable - Switch based Linear Power Supply with stranded copper DC cable + EMI + Copper wiring + Evox Capacitors
  • sPS-500 SE-C-Evox with Stranded Copper Y DC Cable - Switch based Linear Power Supply with stranded copper Y DC cable + EMI + Copper wiring + Evox Capacitors
  • sPS-500 SE-S-Evox - Switch based Linear Power Supply + EMI + Silver wiring + Evox Capacitors
  • sPS-500 SE-S-Evox with Stranded Silver DC Cable - Switch based Linear Power Supply with stranded silver DC cable + EMI + Silver wiring + Evox Capacitors
  • sPS-500 SE-S-Evox with Stranded Silver Y DC Cable - Switch based Linear Power Supply with stranded silver Y DC cable + EMI + Silver wiring + Evox Capacitors

The resolution, textures, transparency and expression of sound is greatly affected by how and what power is supplied to your audio devices. Which means a power supply unit affects the sound quality to the entire audio system, and should never be considered “just a power supply unit.”

The sPS-500 is an audio power supply designed specifically for high performance audio. It is built to eliminate noise generated by powered devices as well as to remove noise coming from an AC power source.

Using SOtM’s unique technologies for noise cancellation and sound enhancement, and high quality audio components that are already proven in sound quality, you will hear superior sound with the well-designed sPS-500.

The sPS-500 can easily cope with a wide range of AC power input – the output voltage can change to 7Vdc, 9Vdc, 12Vdc or 19Vdc depending on the power specification of your audio equipment – and the 50W output is flexible enough to be applied to various audio systems. It is also designed to provide more stable power through the input, output, overcurrent and overheat protection circuits.

The rich texture and detailed, luxurious sound created with the technology of the new sPS-500 will create a new listening experience with your audio system. A unique and impressive exterior design also makes the sPS-500 stand out from the crowd. The sPS-500 will help bring your audio system up to the next level.

SPECIFICATIONS

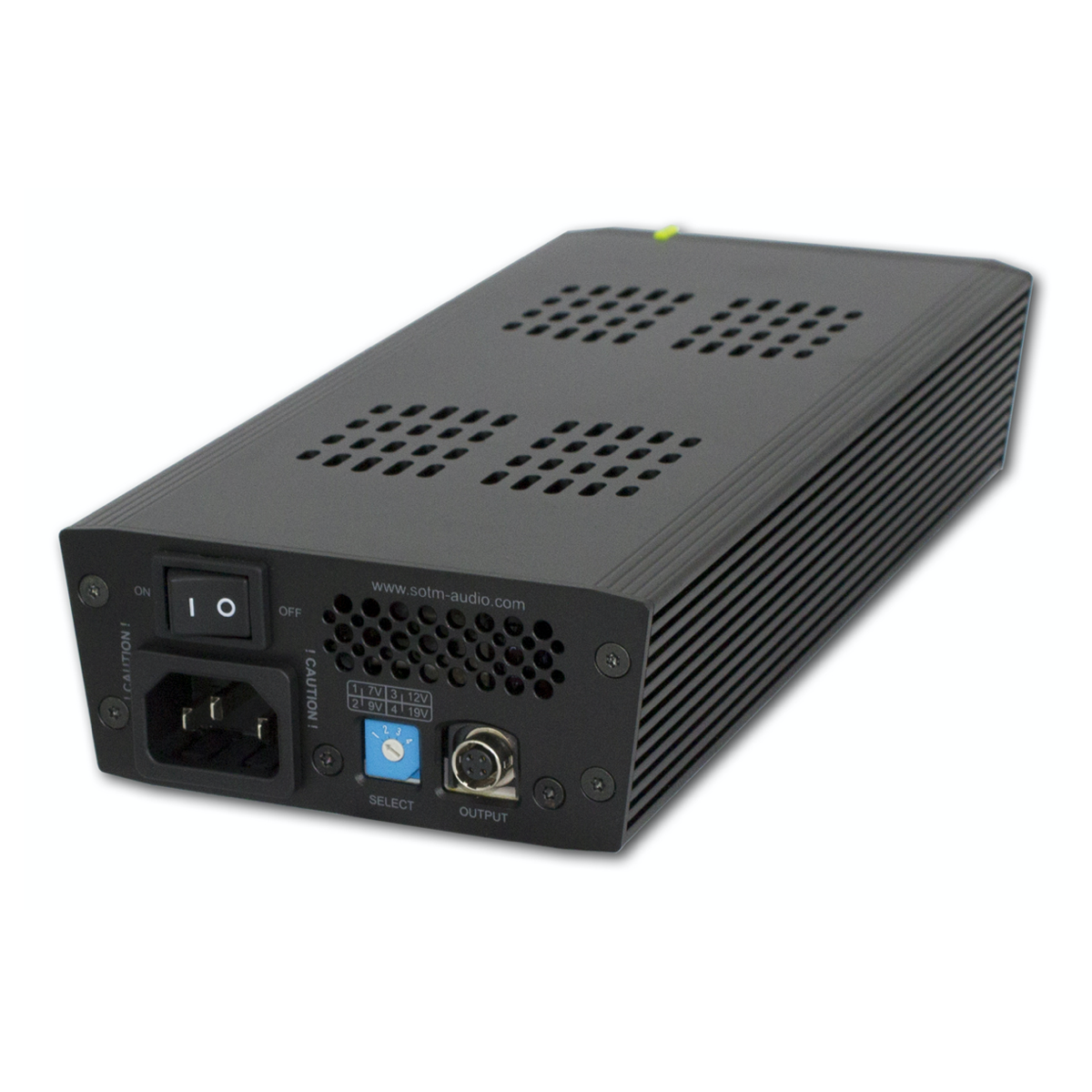

User interface

  • DC output on/off switch
  • Operating indicator LED x1
  • AC power input on/off switch (Rear panel)

AC power input

  • Voltage : 100Vac ~240Vac
  • Frequency : 50Hz / 60Hz
  • Current : 2.5A >

DC power output

  • Voltage : 7Vdc, 9Vdc, 12Vdc, 19Vdc selectable
  • Voltage tolerance: ±10%
  • Current limit: 5A@ 7Vdc, 9Vdc, 12Vdc 3.3A@ 19Vdc
  • Current tolerance: ±10%
  • Maximum output power : 50W@100Vac <, +50℃ > inside temperature

Protection

  • Output short
  • Over temperature

Operating environment

  • Operating temperature : +10 ~ +30℃
  • Storage temperature : 0 ~ +40℃
  • Operating & storage humidity : 10% ~ 90%

Dimension

106 x 48 x 230(mm)

Weight

2Kg
