Revel W383 - In-Wall Speaker - Piece

Sale priceRs. 32,990

Includes GST of Rs. 5,032

GET GST INPUT

Ever wondered why speakers, amplifiers, projectors etc. come with a slightly heftier price tag in India compared to their overseas counterparts? Well, part of the answer lies in our country's Goods & Services Tax (GST).

But here's the kicker: Don't let that GST input slip through your fingers! Especially when some of the products we supply carry a GST rate of 18% and 28%.

At AVStore, we provide you with a GST compliant invoice for every purchase.

Simply put in your GST number during the checkout to avail an offset.


  • Description
  • Specifications
  • Reviews

W383

This entirely new range of in-wall loudspeakers combines Revel’s best-in-class acoustics with a patented tool-less installation mechanism and a sleek look that integrates easily into any décor.

  • Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
  • 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis
  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
  • Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling
  • Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles

Depth

Mounting depth 3.7" (9.4cm)

Weight

2.2Kg

Features

  • Cutout dimensions (H x W) 11.9" x 8.9" (30.3 cm x 22.7 cm)

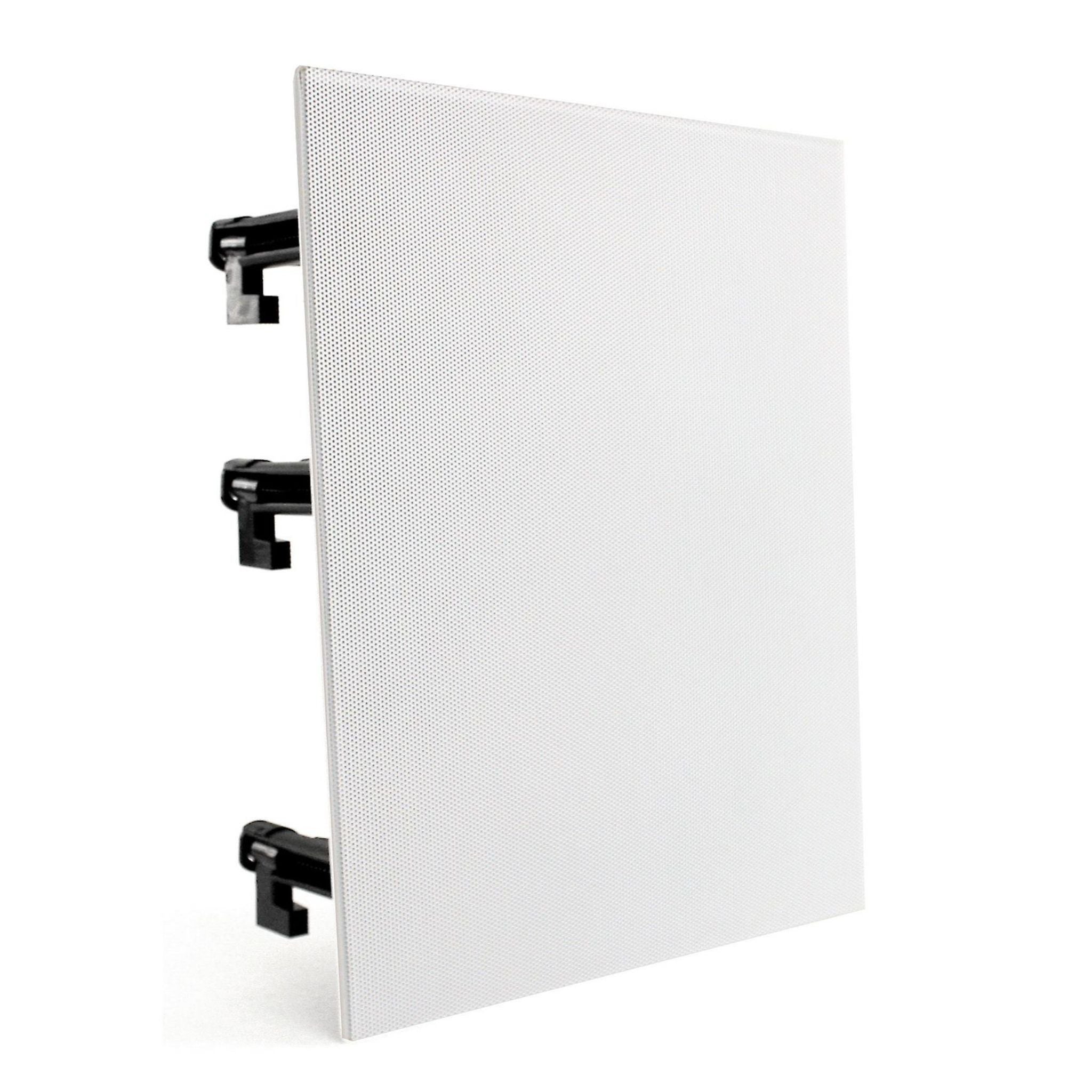

  • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 12.9" x 9.9" (32.8 cm x 25.2 cm

High Frequency Driver Components

1" aluminum dome swiveling tweeter with waveguide

Low Frequency Extension

High Frequency Extension  (-10dB) 3-position HF level control

Low Frequency Driver Components

8” Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer

Mounting

  • C-2 fastening mechanism
  • Compatible with wall material thickness range 0.5" – 1.0” (1.3 cm – 2.5 cm)

Recommended Amplifier Power

10 - 125 Watts RMS
