The Revel F226Be joins their award-winning PerformaBe series as a compact floorstanding loudspeaker. As part of the PerformaBe loudspeaker line, the F226Be includes a 1-inch (25mm) beryllium tweeter driven by massive 85mm dual ceramic magnets.

The Revel F226Be joins their award-winning PerformaBe series as a compact floorstanding loudspeaker. As part of the PerformaBe loudspeaker line, the F226Be includes a 1-inch (25mm) beryllium tweeter driven by massive 85mm dual ceramic magnets. The powerful tweeter and 5th-generation ceramic-coated, cast-aluminum Acoustic Lens waveguide seamlessly integrate with the directivity of the companion midrange driver resulting in greater efficiency, improved dynamic range, reduced distortion, and increased power handling compared to aluminum or titanium tweeters.

Beryllium - Element 4 on the Periodic Table - is a rare earth metal that is renowned for its remarkable physical properties that make it the ideal material for a high-frequency transducer. Compared to aluminum and titanium tweeter diaphragms, Beryllium offers 4.5 times the stiffness and three times more damping, and does so at only half of the weight. Beryllium tweeters are the centerpiece of the Revel PerformaBe loudspeaker series.

The 5.25-inch (130mm) midrange and dual 6.5-inch (165mm) aluminum cone woofers utilize Deep Ceramic Composite (DCC) cones for improved performance. DCC is a plasma electrolytic oxidation process that uses a plasma discharge to create a coarse ceramic coating on both sides of the aluminum core. The deep ceramic layers sandwiching the aluminum core provide constrained layer damping that push cone breakup modes outside of the passband allowing the driver to maintain ideal pistonic motion throughout its range. DCC cones combine with optimized motor magnetics to deliver improved mid- and low-frequency performance.

PerformaBe crossover networks utilize all film capacitors and air core inductors in the midrange and tweeter circuits. These premium components allow Revel's world-class engineers to extract nuances and details from music that would otherwise be lost. Combined with traditional Revel high-order crossover slopes and proprietary Acoustic Lens waveguide geometry, transducer integration is seamless.

F226Be top panels are painted in stylish metallic black with raised electroform badging. The loudspeakers are available in a choice of four high-gloss finishes for seamless integration into any décor: Black, White, Walnut, and Metallic Silver.

Award-winning sound

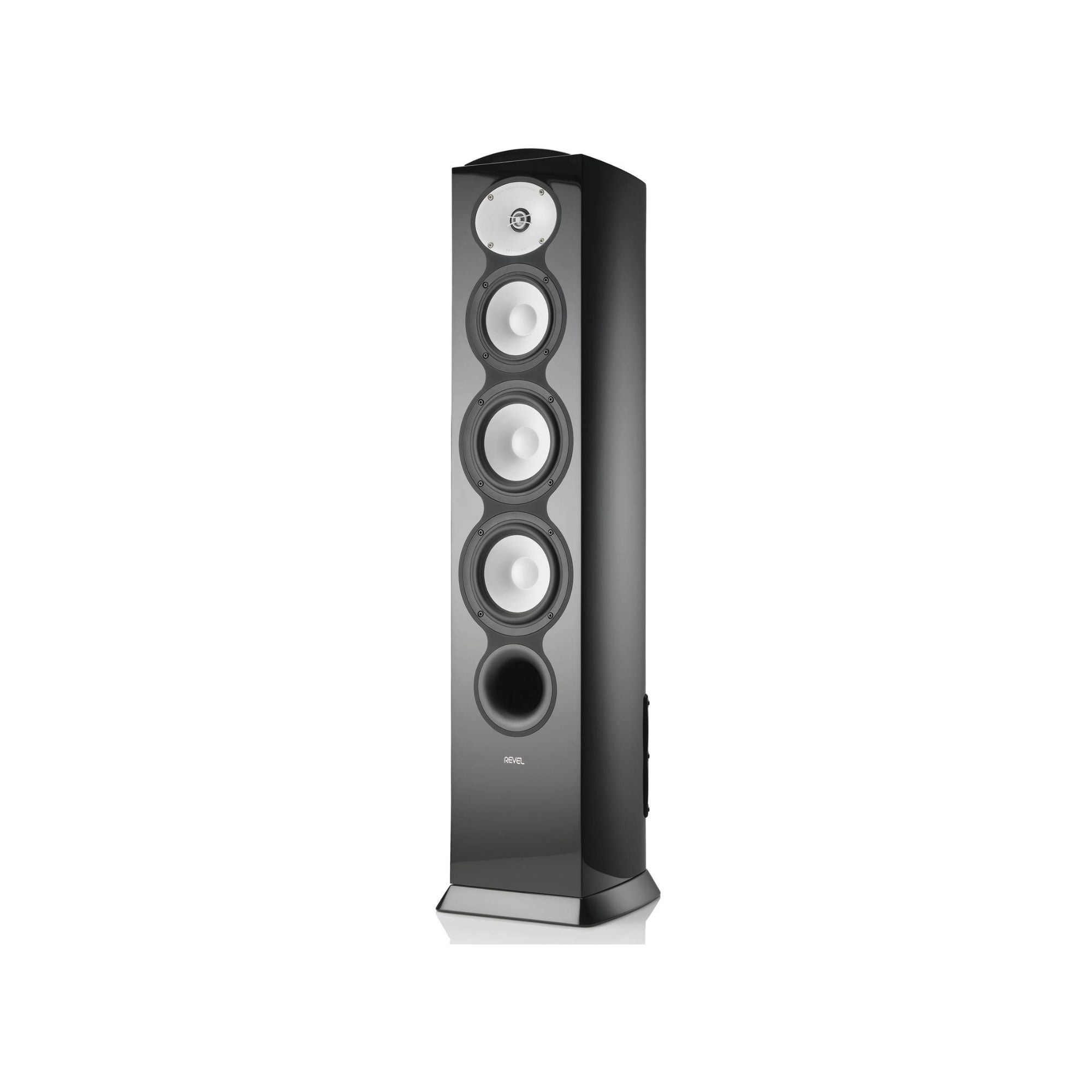

Revel's PerformaBe series wins awards for good reason. Speakers in the line reproduce music with authority, presence, and clarity. The PerformaBe F226Be features two 6-1/2" Deep Ceramic Composite (DCC) aluminum cone woofers and a 5-1/4" DCC midrange driver. The speaker's excellent 1" beryllium dome tweeter has a proprietary acoustic lens waveguide for consistent dispersion over a wide listening area. The drivers are housed in a beautiful cabinet with thick walls and vibration-reducing internal bracing, and you can choose one of four gorgeous finishes.

Exceptional dynamic range

This is a sensitive speaker that can faithfully reproduce every detail of a musical recording, at high or low volume. The F226Be can play whisper-quiet passages with subtlety and nuance. But it can also belt out super-charged beats and high-energy guitar or sax solos with zeal.

The magic all starts with the beryllium tweeter

One of the secrets to the F226Be's great sound is its uniquely designed beryllium tweeter.

Beryllium is several times stiffer than aluminum or titanium tweeter diaphragms. And it's also super-lightweight, so it moves quickly and in a very controlled fashion — two key attributes of a high-quality tweeter. These tweeters are used throughout the PerformaBe line for detailed, neutral, and non-fatiguing sound — even at extended high listening levels.

An acoustic lens waveguide for great sound in every seat

One of the best attributes of the F226Be is its off-axis listening. The beryllium tweeter uses an acoustic lens waveguide, which helps it produce remarkably accurate sound, even if you're sitting off to the side of the "sweet spot.”

When you invite friends over to listen to these beautiful speakers (and trust me, you'll want to), everyone in the room will enjoy terrific sound.

Impressively hard-hitting bass and accurate midrange

Revel paired its beryllium tweeter with two 6-1/2" Deep Ceramic Composite (DCC) aluminum cone woofers for deep, tightly controlled bass. A dedicated 5-1/4" DCC midrange driver bridges this speaker's lows and highs with smooth, well-blended sound.

Tested by instrument and by ear

Revel's world-class speaker design and testing facility features an anechoic chamber and the latest high-tech measurement gear. But some of their most critical test instruments are the ears of their trained listening panel. When working on a new design, Revel's engineers set up a series of controlled auditions comparing their design to several competing speakers.

Speakers under comparison sit on a rotating platform, and each model is moved into the identical position by a computer-controlled belt drive system. An acoustically transparent screen hides the speakers from the listeners to avoid visual bias. These double-blind listening tests provide an essential reality check, and help the engineers correlate measurements with what listeners actually hear and prefer.
