Revel C783- In-Ceiling Speaker - Piece

Sale priceRs. 67,990

Includes GST of Rs. 10,371


Ever wondered why speakers, amplifiers, projectors etc. come with a slightly heftier price tag in India compared to their overseas counterparts? Well, part of the answer lies in our country's Goods & Services Tax (GST).

But here's the kicker: Don't let that GST input slip through your fingers! Especially when some of the products we supply carry a GST rate of 18% and 28%.

At AVStore, we provide you with a GST compliant invoice for every purchase.

Simply put in your GST number during the checkout to avail an offset.

  • Description
  • Specifications
  • Reviews


Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.


  • Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion

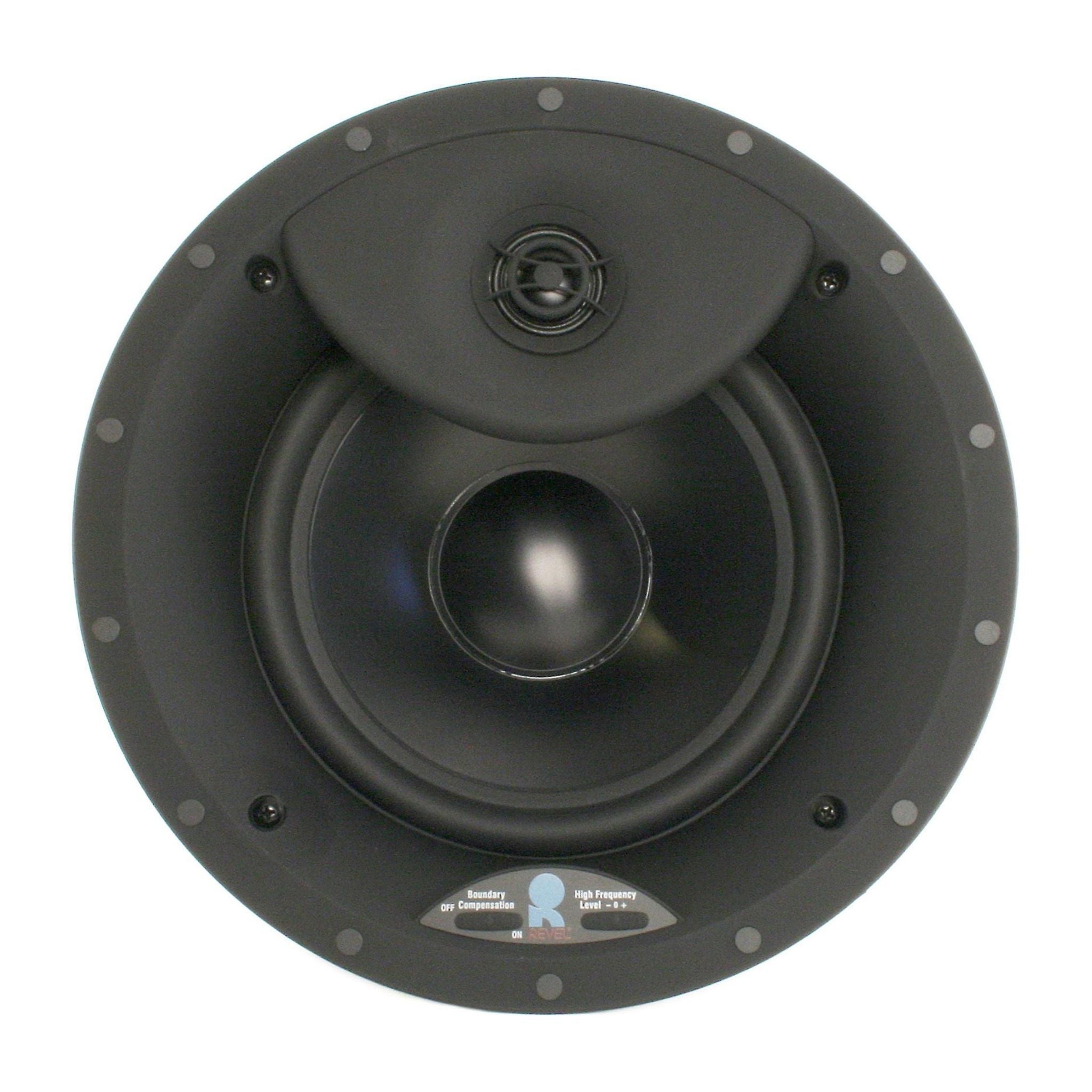

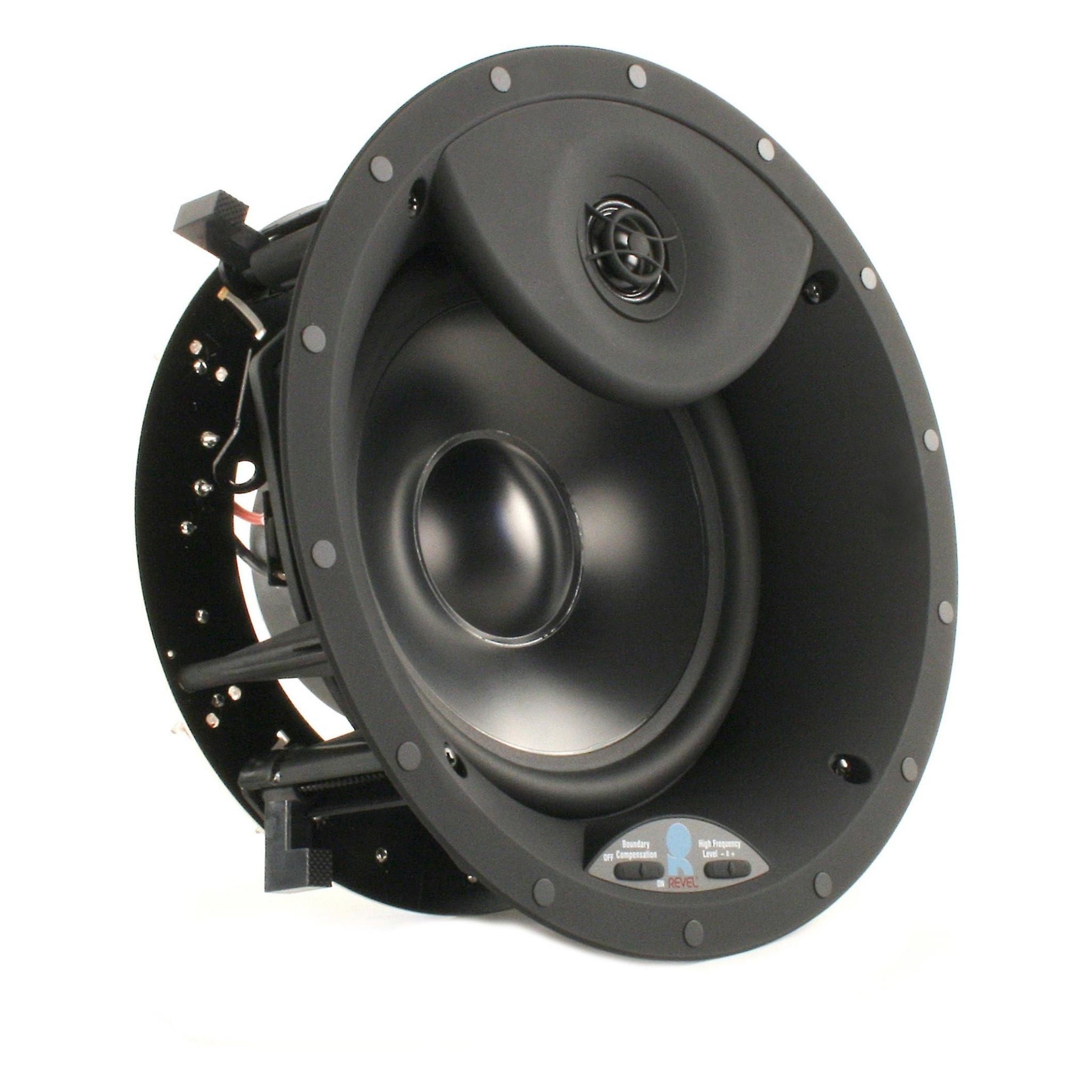

  • 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis

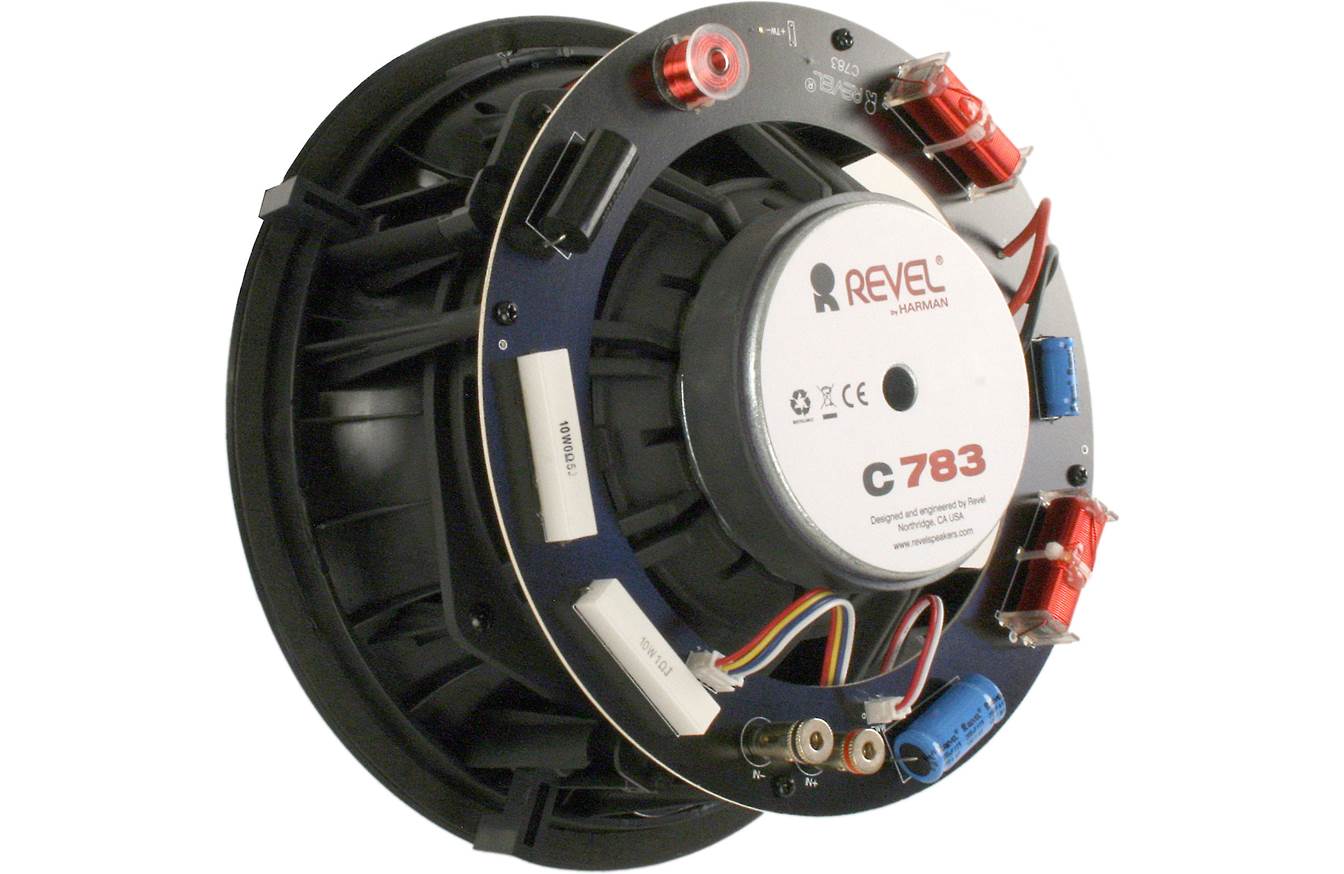

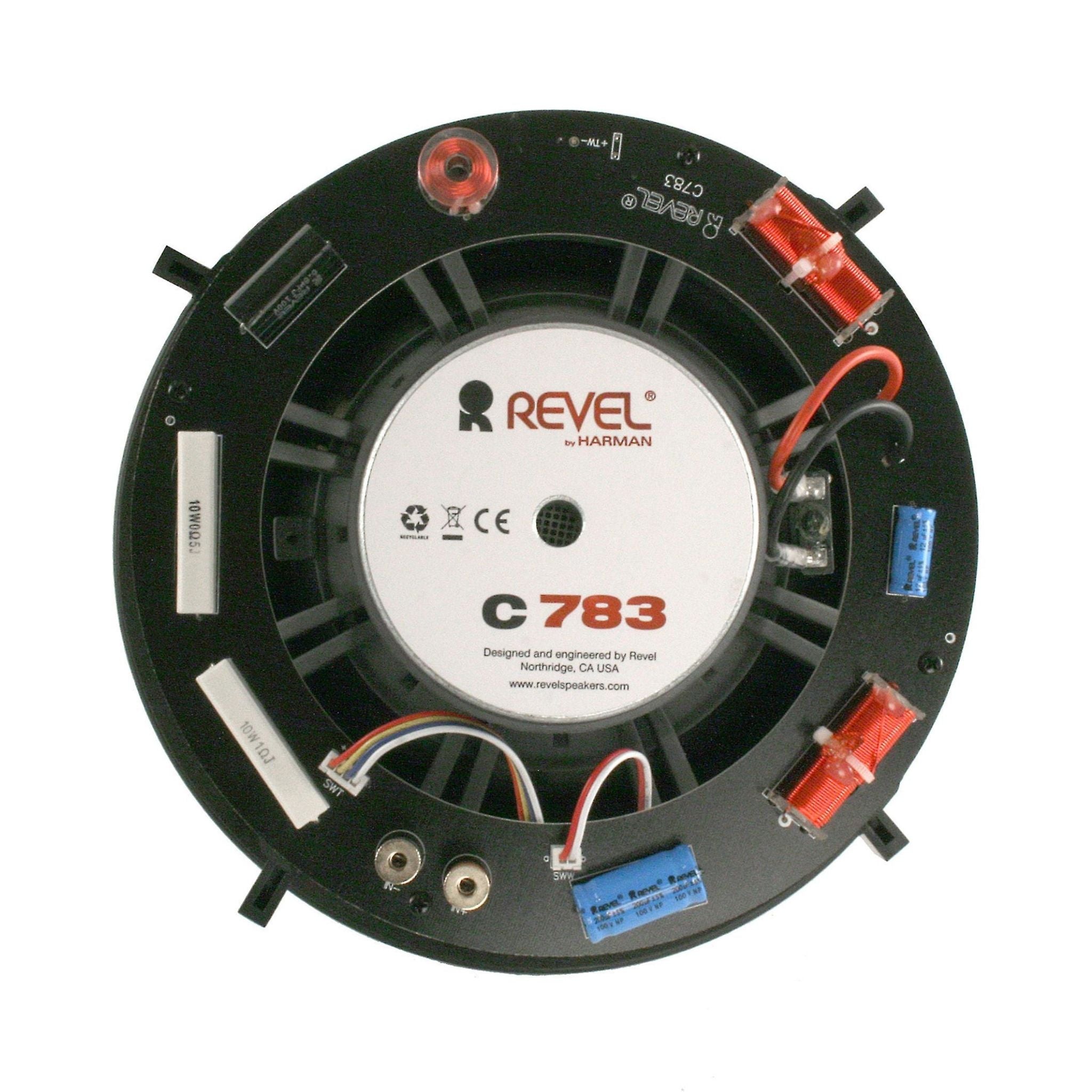

  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
  • Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles


  • Cutout dimensions (dia.) 9.6" (24.4 cm)

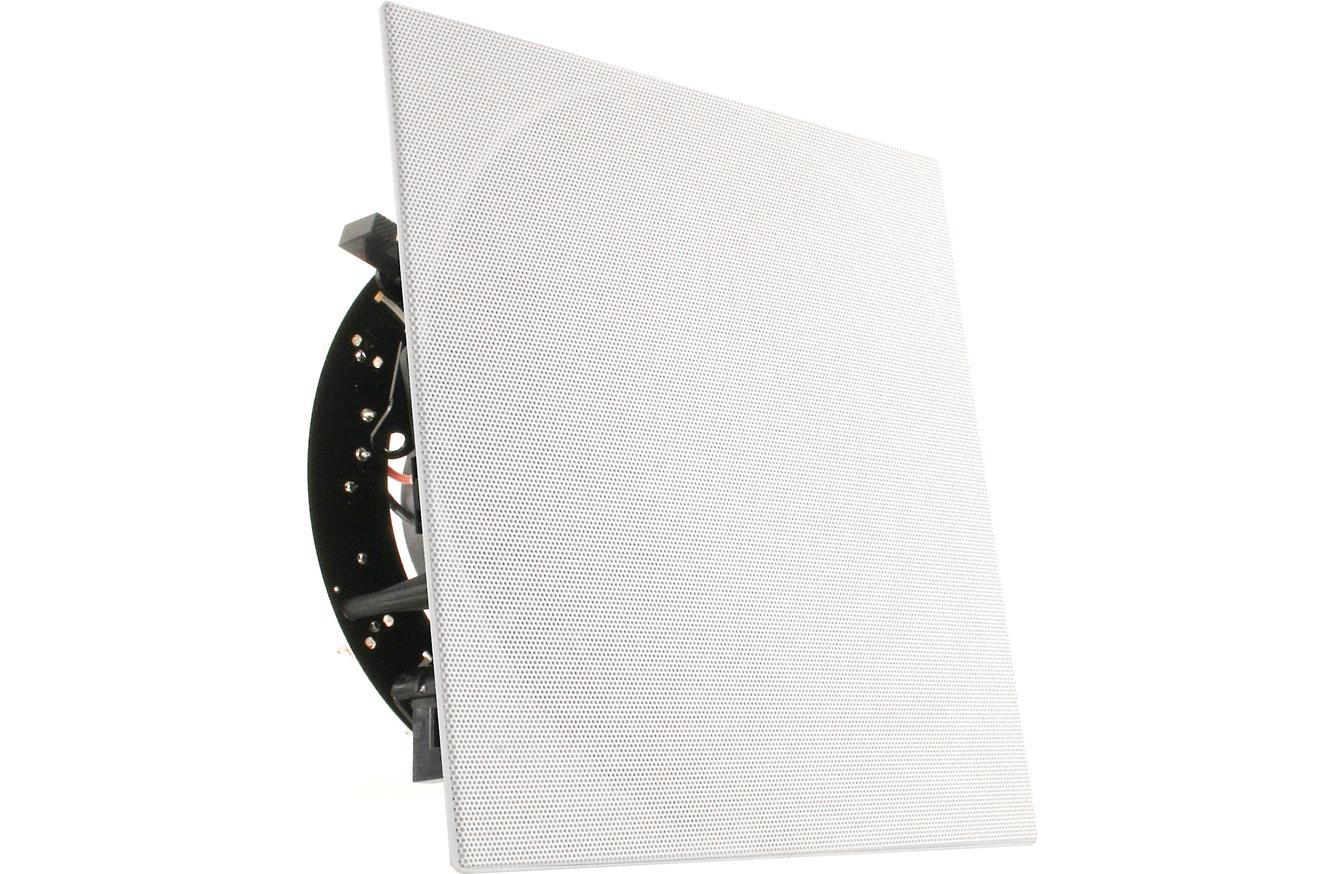

  • Square grille finished Height 10.7" (27.2 cm)


Square grille finished Width 10.7" (27.2 cm)


Mounting depth 5.2" (13.2 cm)

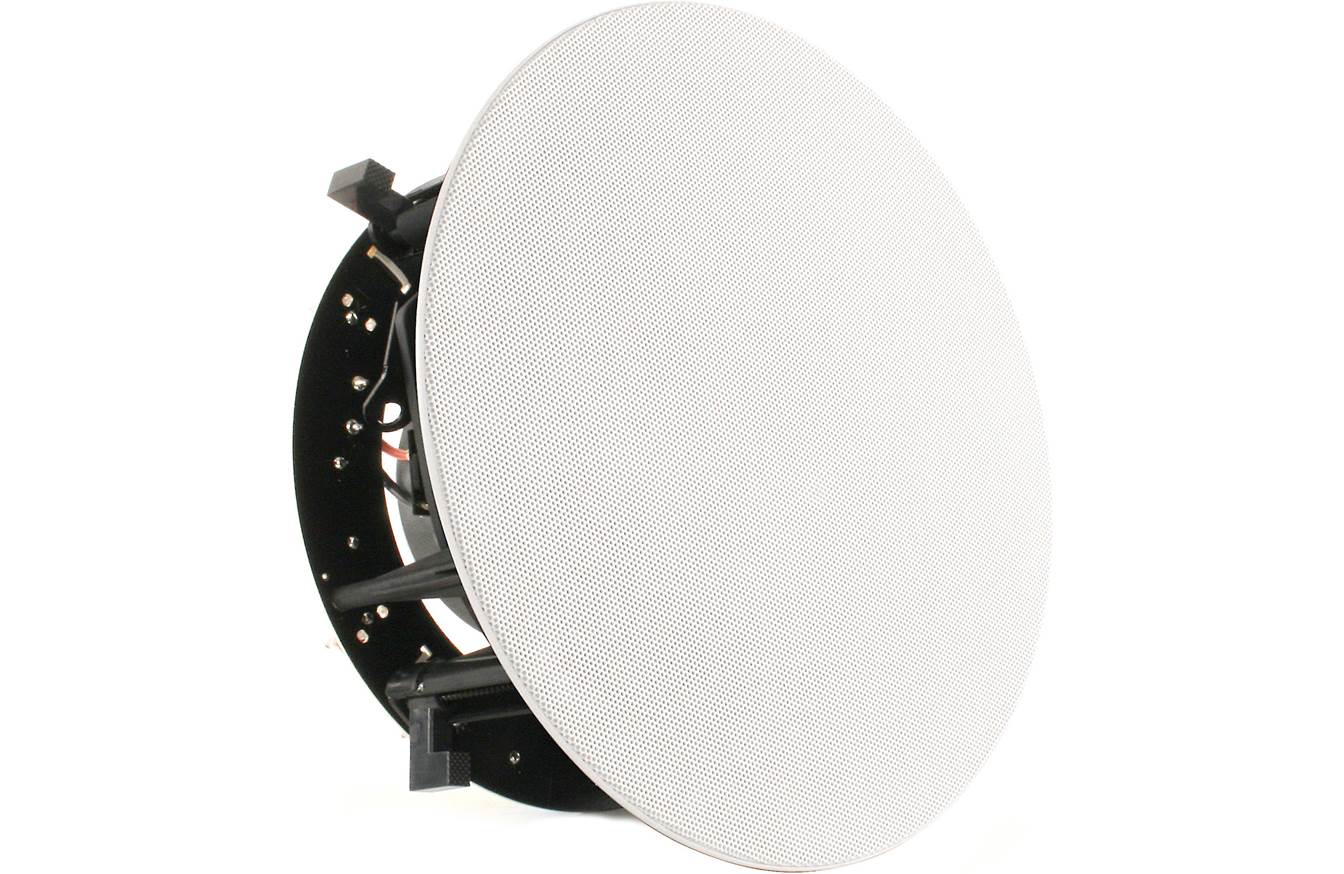

Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 10.7" (27.2 cm)

High Frequency Driver Components

1" aluminum dome swiveling high-output tweeter with wave

Low Frequency Extension

High Frequency Extension 3-position HF level control / Low Frequency Extension LF boundary compensation

Low Frequency Driver Components

  • 8" Micro-Ceramic Composite (MCC) Cone
  • Cast-Aluminum Frame High-Output Woofer


  • C-2 fastening mechanism
  • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm)

Recommended Amplifier Power

10 - 150 Watts RMS
