Revel C363DT - In-Ceiling Speaker

Rs. 21,177 excl. GST
Sale priceRs. 24,990
Quantity:

GET 18% GST INPUT

The products we provide carry a GST (Goods & Service Tax) of 18% or 28%.

This is one of the reasons the products you see in our portfolio may be more expensive than the price overseas.

Hence, it would be worthwhile for you to claim the GST input credit if you can avail of an offset on the item you are purchasing by providing us with a valid GST number while placing your order.

C363DT

Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.

C363DT Highlights

  • Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion.
  • 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.
  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction.
  • Boundary compensation switch (C783/C763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall.
  • Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles.

Height

  • Cutout dimensions (dia.) 8" (20.3 cm)
  • Square grille finished Height 9.1" (23.1 cm)

Width

Square grille finished Weight 9.1" (23.1 cm

Depth

Mounting depth 4.8” (12.2 cm)

Weight

1.9Kg

Features

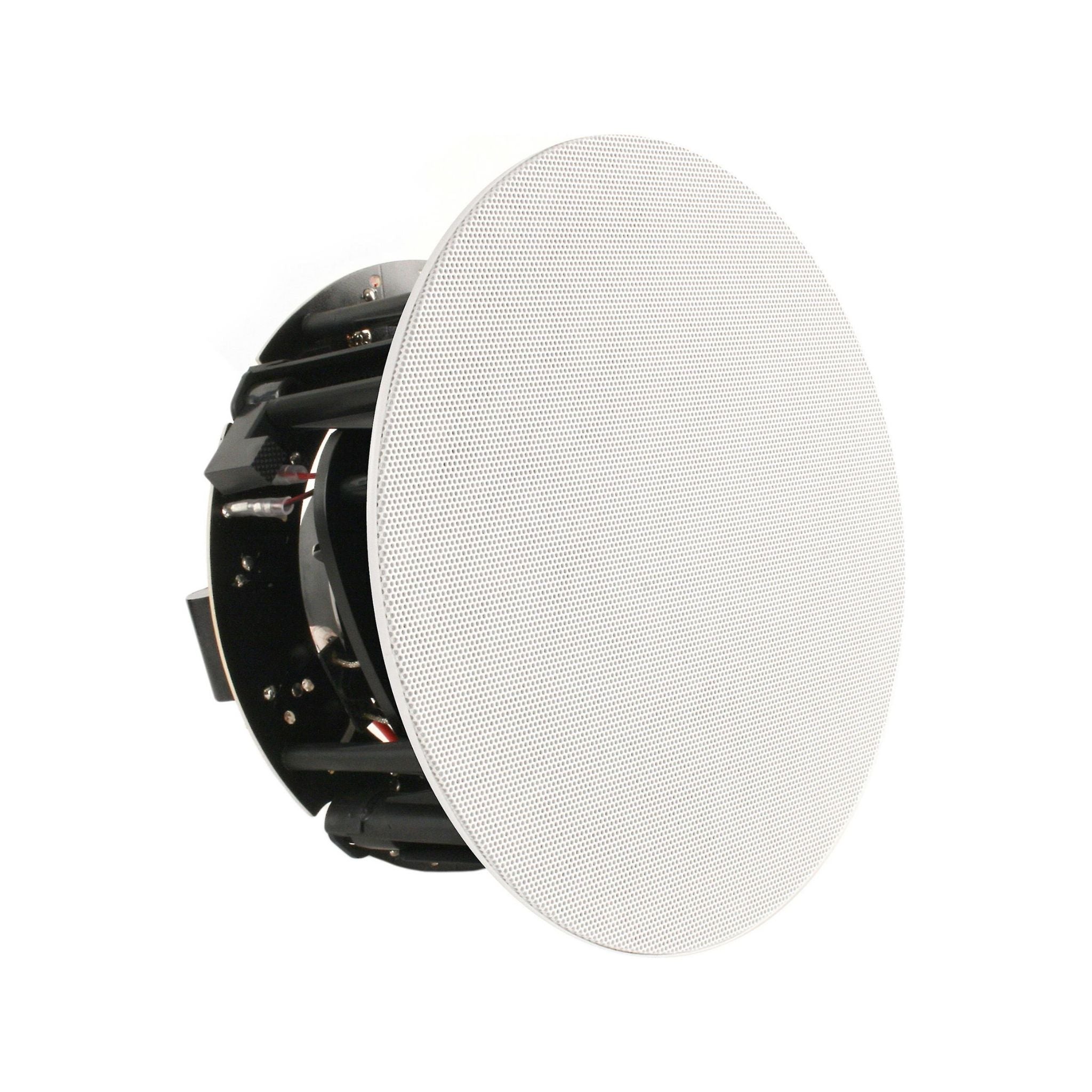

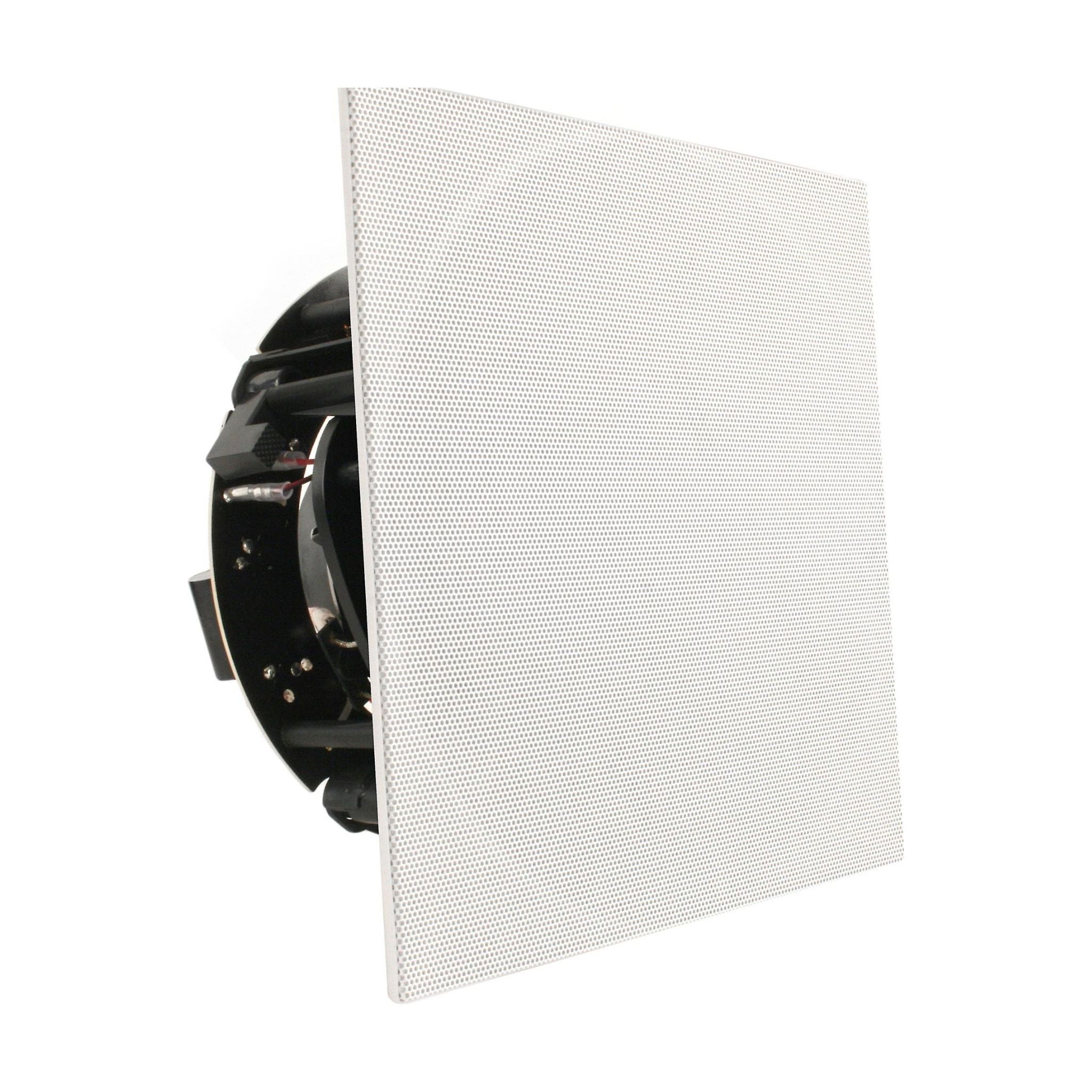

  • Includes both round and square zero-bezel magnetic grilles
  • Round grille finished dimension (dia.) 9.1" (23.1 cm)

High Frequency Driver Components

Two 1" aluminum dome tweeters with waveguides

Low Frequency Driver Components

  • 6 ½" Micro-Ceramic Composite (MCC) Cone
  • Cast-Aluminum Frame Woofer

Mounting

  • C-2 fastening mechanism
  • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm)

Recommended Amplifier Power

10 - 120 Watts RMS (per channel)
