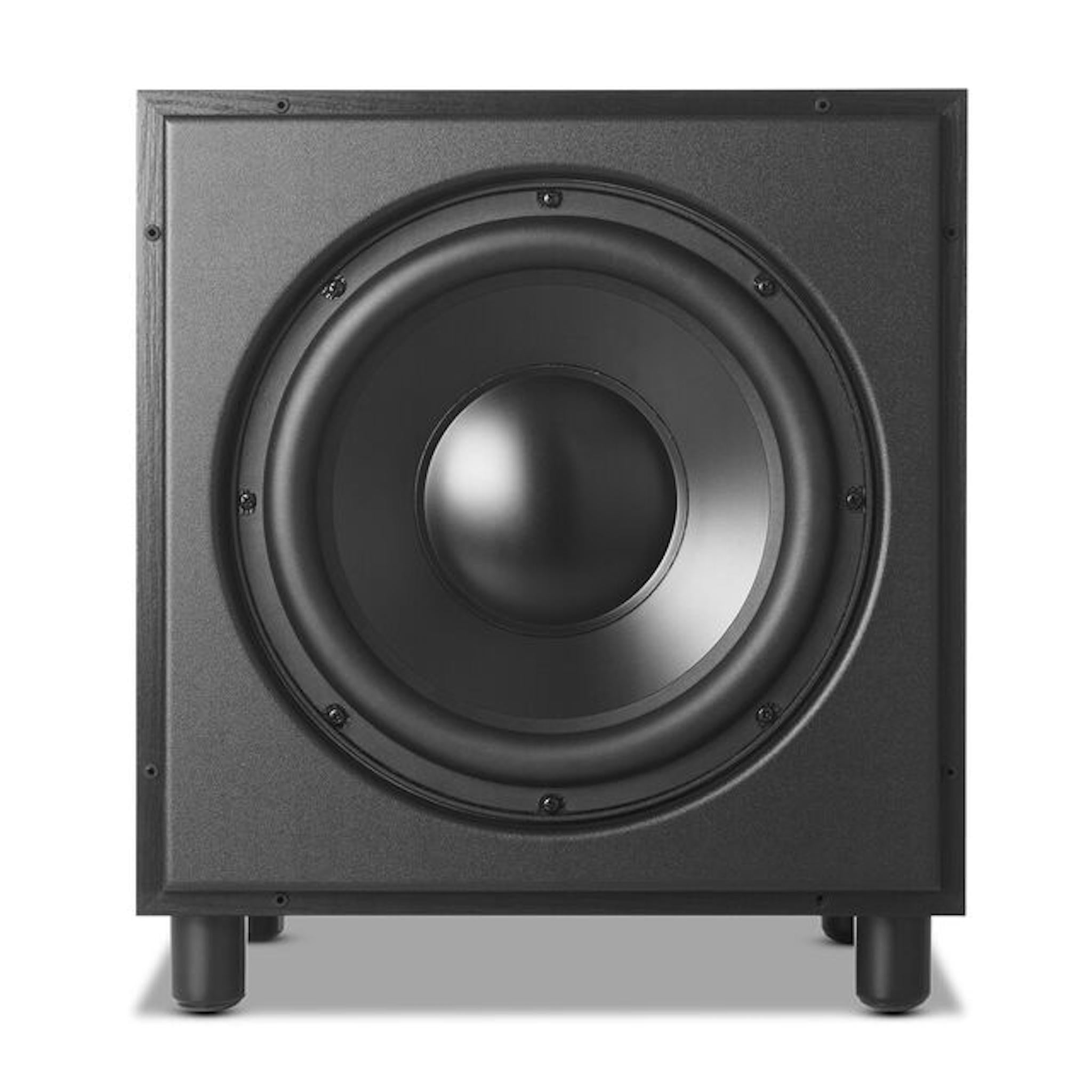

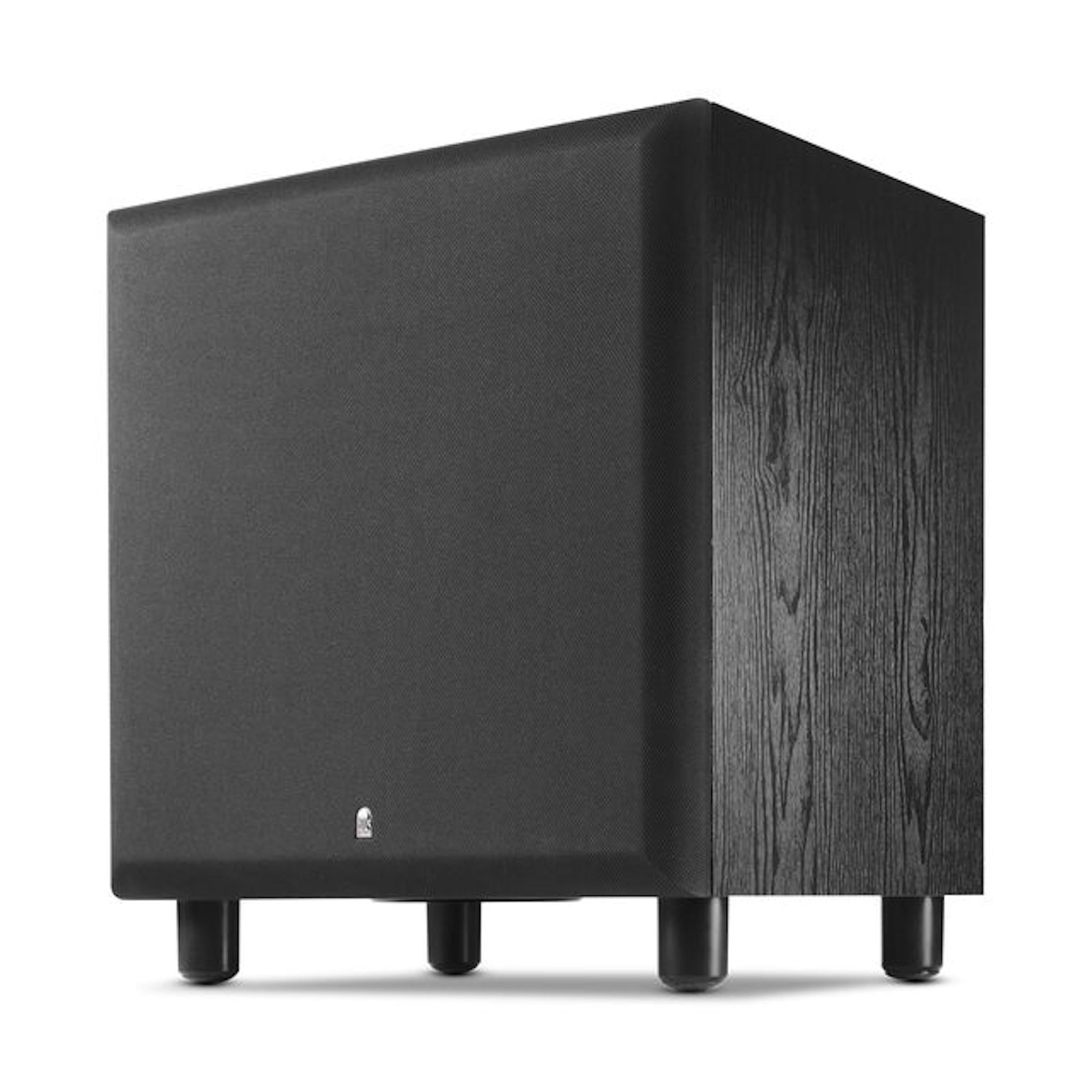

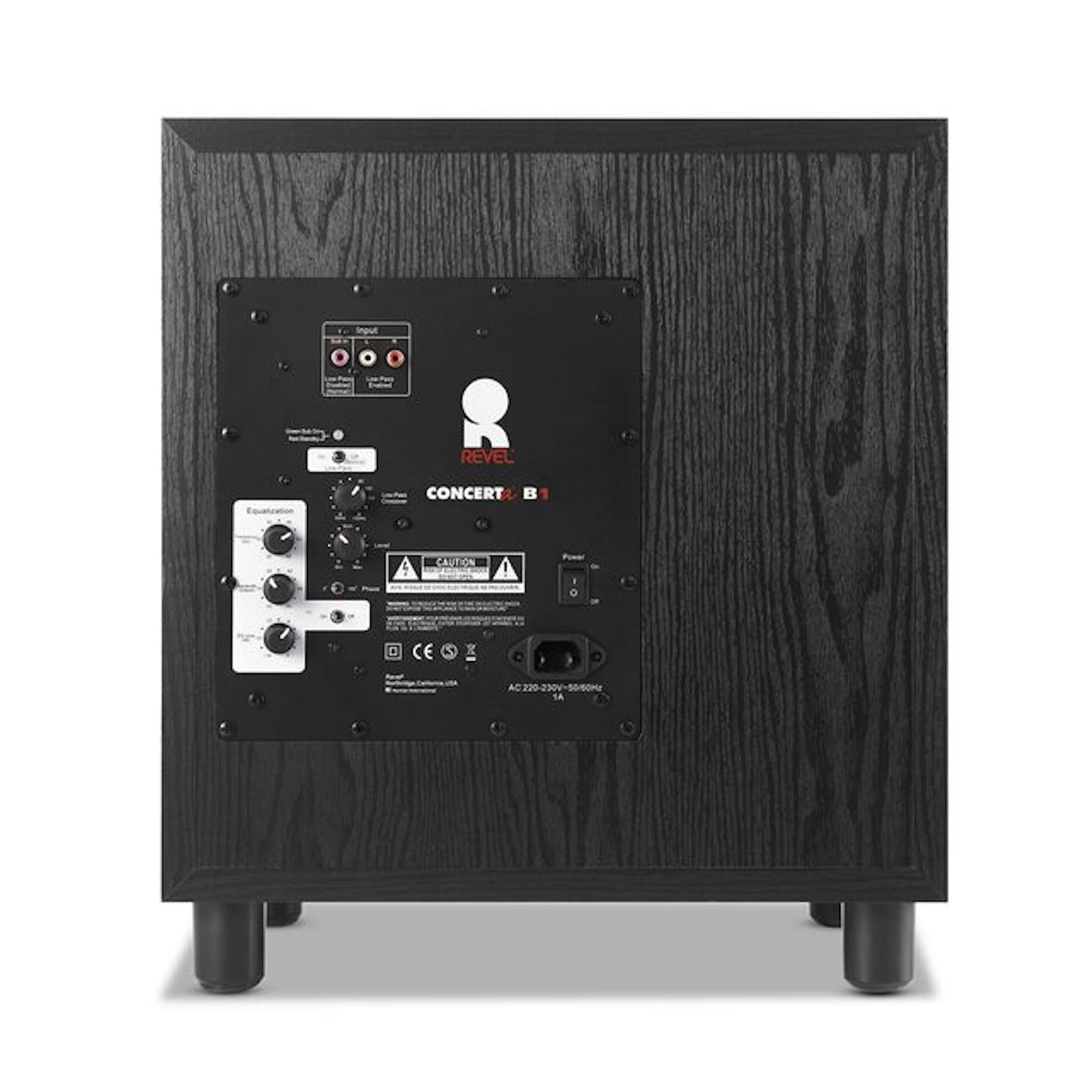

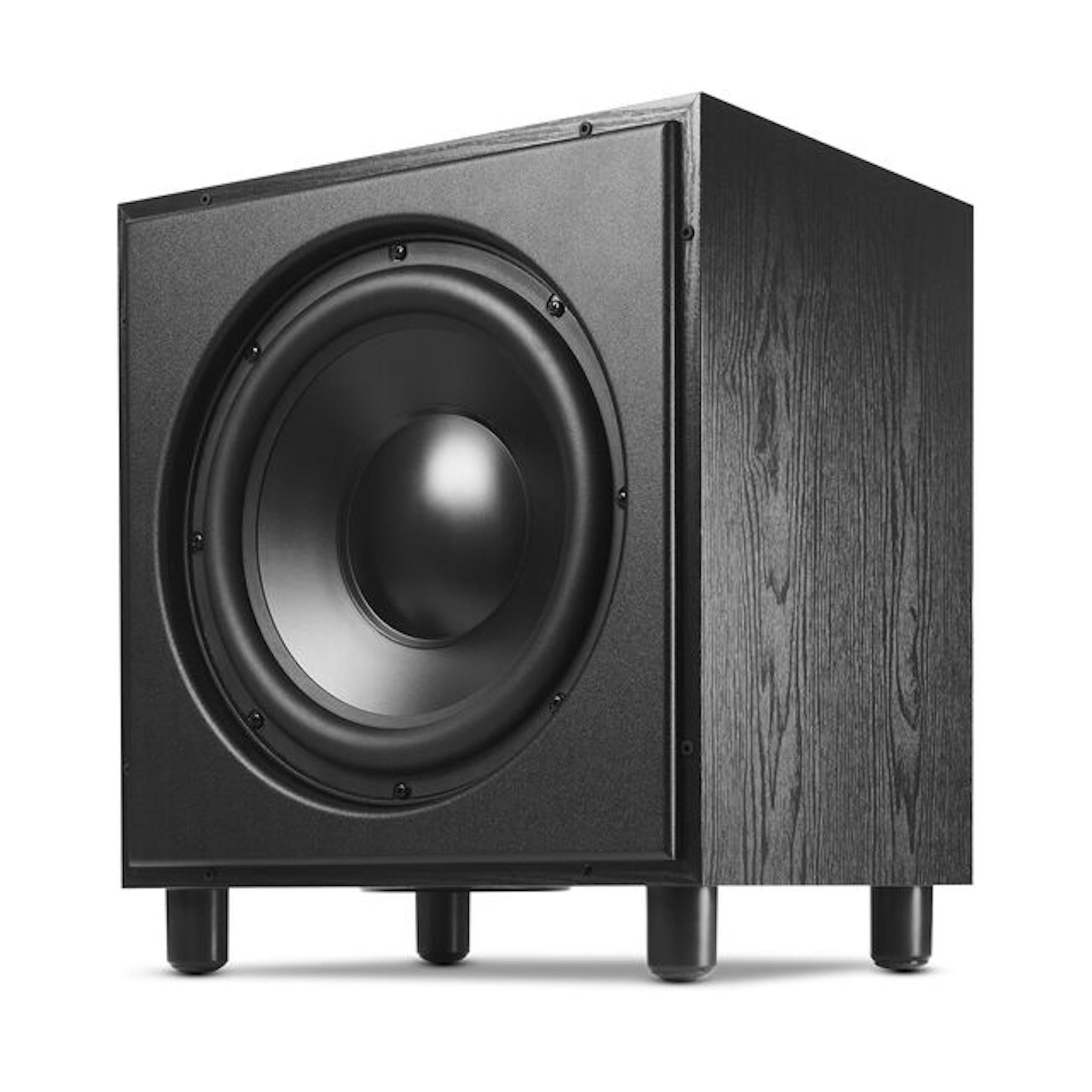

Revel B1 - Active subwoofer
B1
The Revel B1 is a high-performance powered subwoofer, designed to add essential bass response to any music or home theater system. The B1 subwoofer delivers accurate and authoritative bass from a surprisingly compact enclosure. Adjustable controls, parametric room equalization and multiple connection options provide unequalled placement flexibility and allow you to optimize low-frequency performance for any listening environment.
Features
- Woofer composed of micro ceramic composite (MCC) allows for strength and stiffness but very little weight
- Nomex/cotton blend spider for increased linearity
- 2” (51mm)-diameter copper voice coil would on a Kapton bobbin for impressive power handling
- Parametric room EQ functions
- Downward-firing port allows for placement against a wall or cabinet
|
Maximum output level |
|
|
Power Requirements |
|
|
Height |
17-3/4” (450mm) |
|
Width |
15-3/4” (400mm) |
|
Depth |
With grille |
|
Weight |
23.2kg |
|
Crossover Frequencies |
Low pass 50Hz – 150Hz, 24dB/octave, continuously variable |
|
Low Frequency Extension |
-3dB at 36Hz, -6dB at 32Hz, -10dB at 29Hz |
|
Maximum output level |
|
|
Power Requirements |
|
|
Height |
17-3/4” (450mm) |
|
Width |
15-3/4” (400mm) |
|
Depth |
With grille |
|
Weight |
23.2kg |
|
Crossover Frequencies |
Low pass 50Hz – 150Hz, 24dB/octave, continuously variable |
|
Low Frequency Extension |
-3dB at 36Hz, -6dB at 32Hz, -10dB at 29Hz |
