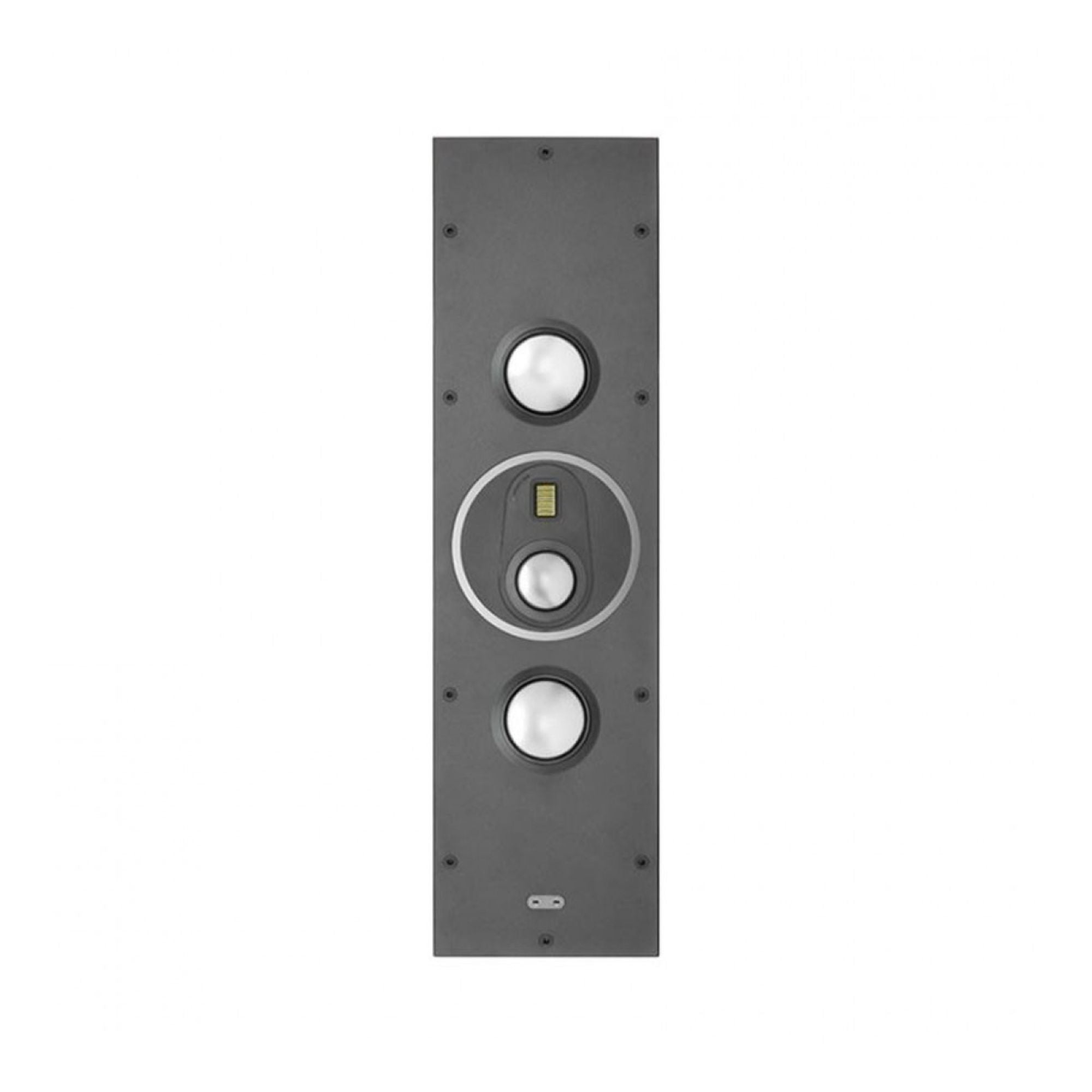

The Platinum In-Wall II is a three-way reference architectural speaker system, perfect for custom home theatre projects where lifelike scale and dynamics are demanded.

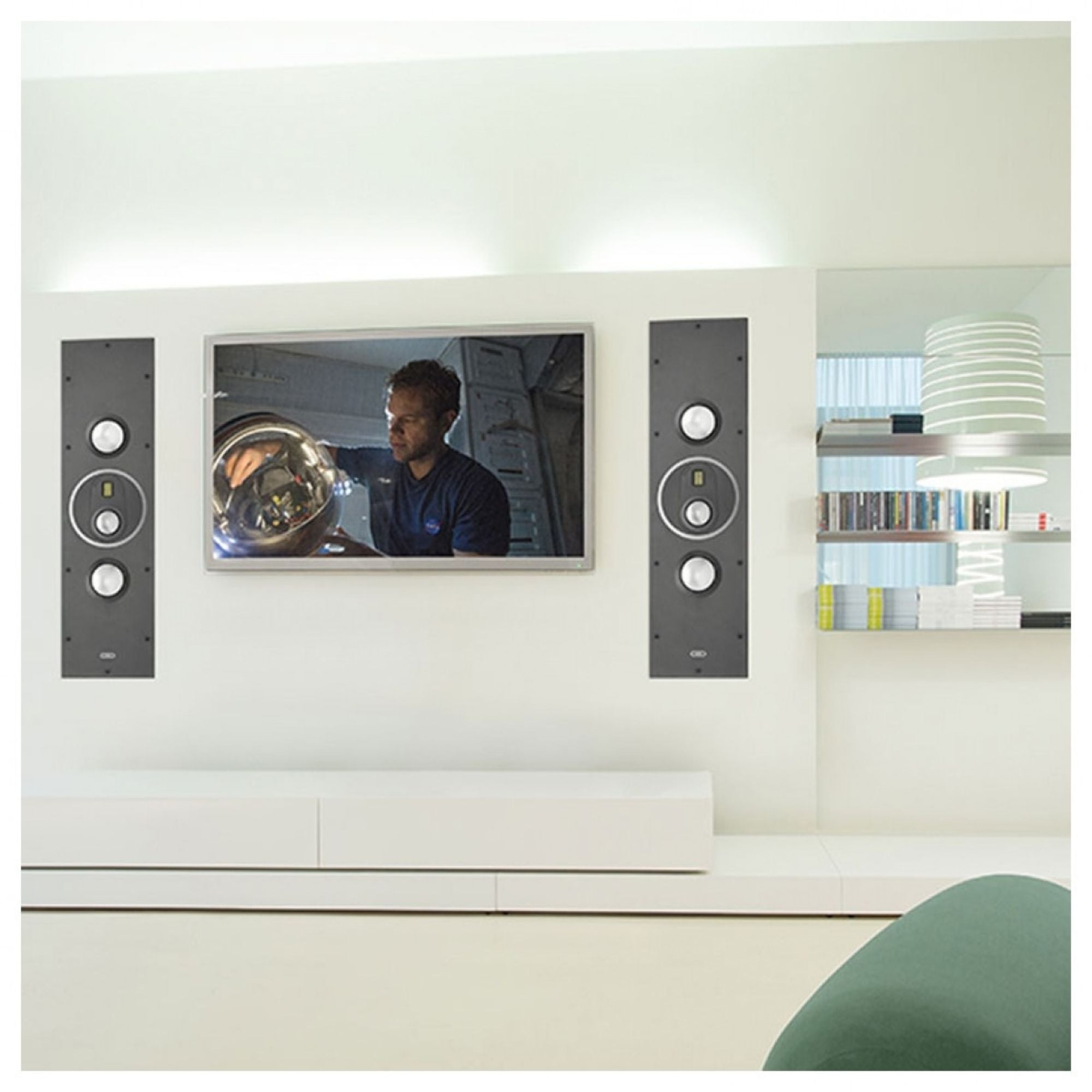

Equipped with an adjustable mid/high frequency driver array, the In-Wall is able to deliver pin-point audio imaging and consistency from both vertical or horizontal positions. By rotating the array though 90 degrees at the centre of a LCR configuration for instance, a soundstage of three Platinum In-Wall IIs will generate the seamless tonal integrity of the finest boxed systems from a stealthy in-wall location.

Features:

  • 2 x 6 1/2" RDT®II bass drivers
  • 4" RDT II mid-range driver

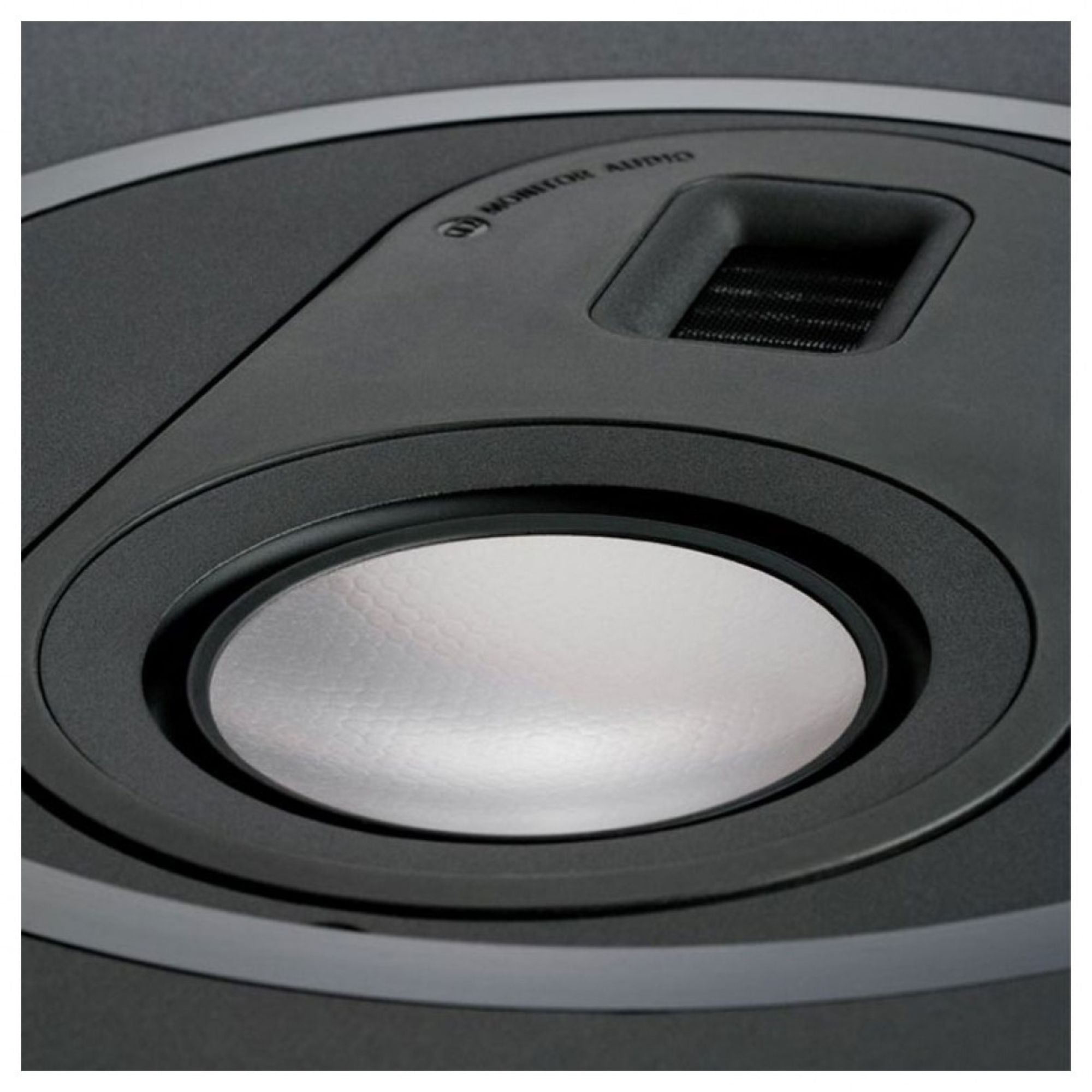

  • MPD (Micro Pleated Diaphragm) high frequency transducer designed specifically for Platinum II
  • New patented 'DCF' (Dynamic Coupling Filter) mechanism for more natural sound

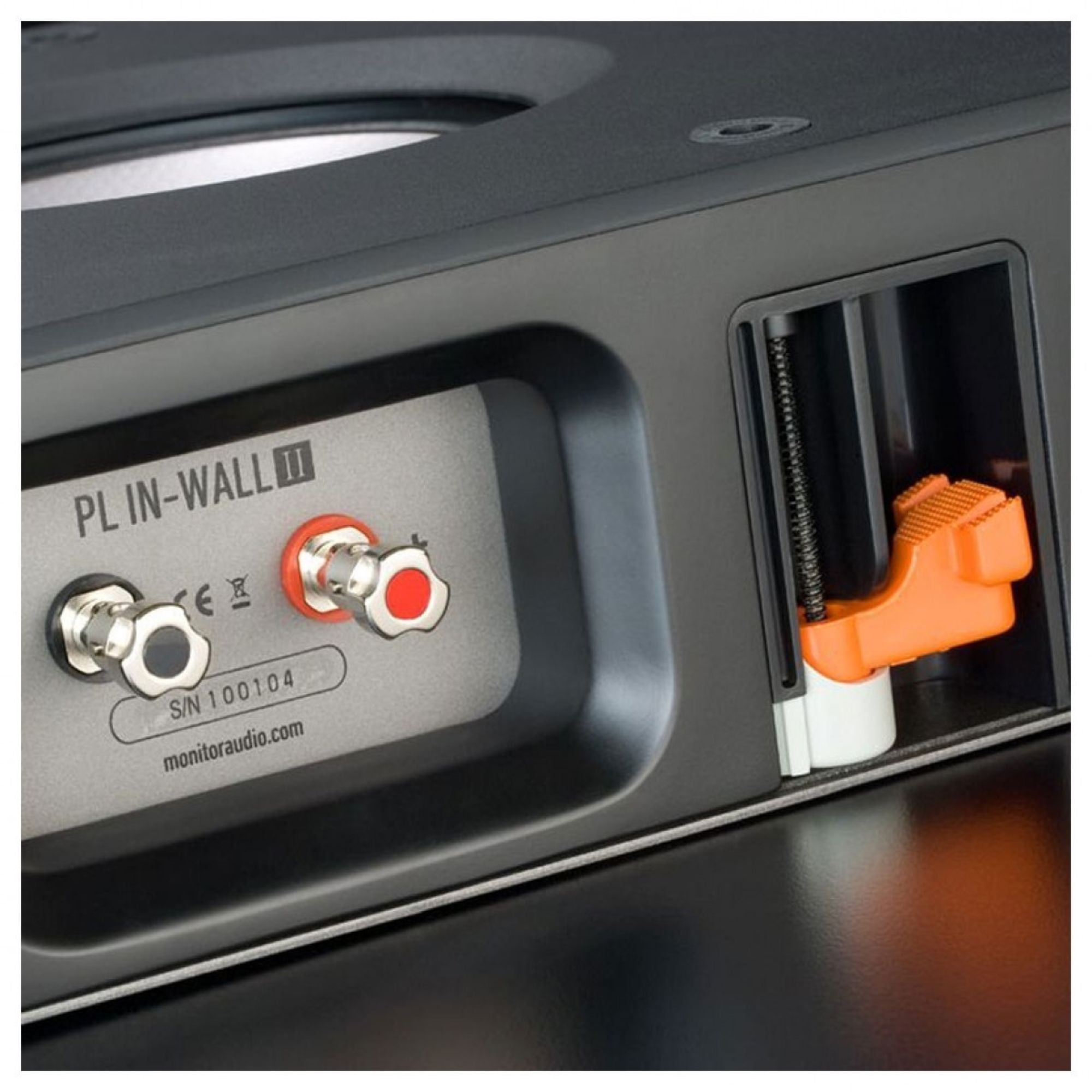

  • Bespoke speaker terminals and footings
  • Underhung, edge-wound voice coils: greater driver efficiency and lifelike dynamics, less distortion
  • Bolt through drivers: clearer sound and cleaner aesthetics
  • Rigid cabinet construction made from 25mm MDF with steel back
  • Extensive internal bracing using thick MDF cross bracing techniques
  • ARC baffle construction for ultimate rigidity and damping properties

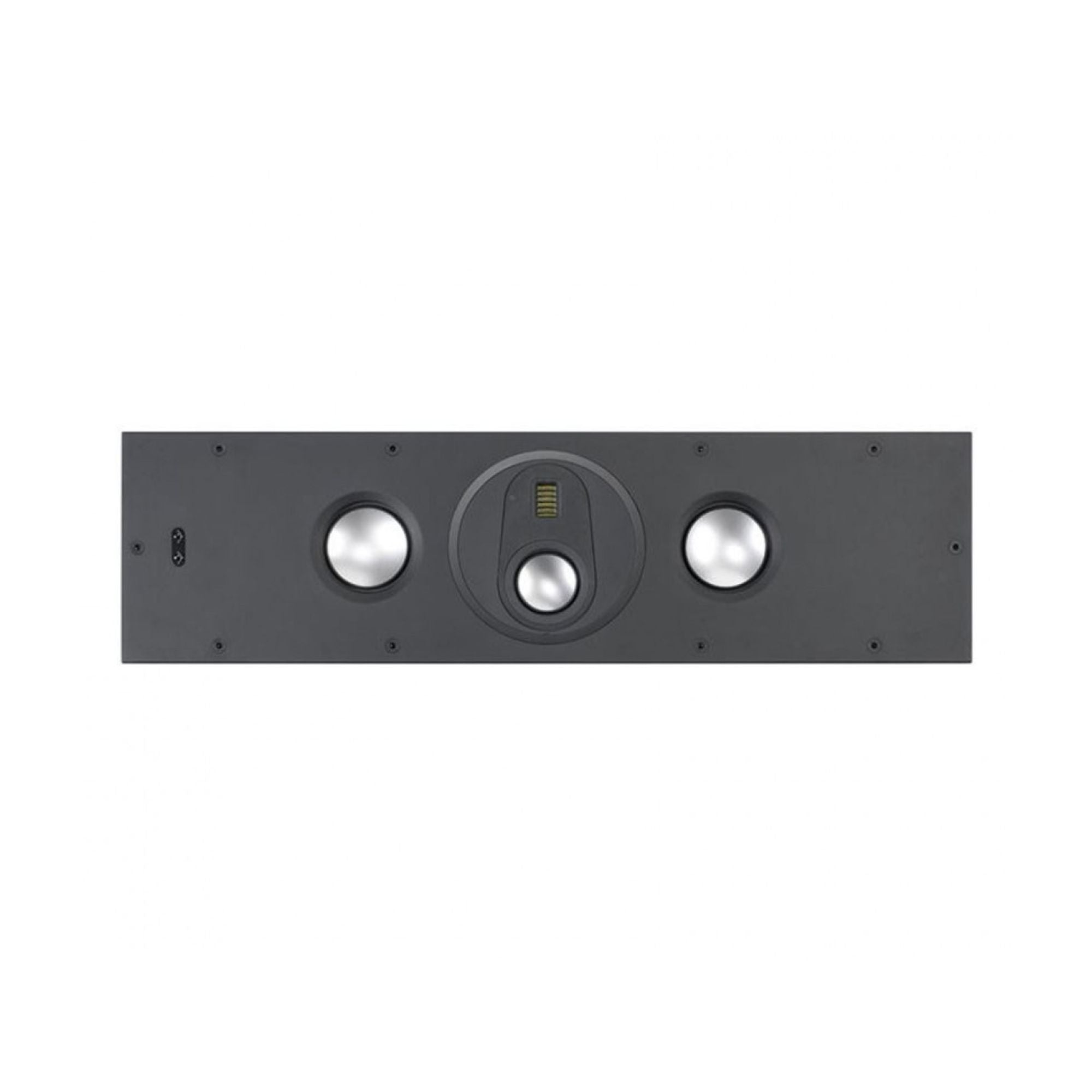

  • Rotating mid/H.F housing to provide optimum directivity pattern for horizontal or vertical installation
  • Mid-range and HF level adjustment switches (+1/0/-1) dB
  • Highest quality crossover design utilizing metalized polypropylene capacitors and low loss inductors
  • Patented Tri-Grip dog leg fixing provides ultimate security, ease of installation and servicing

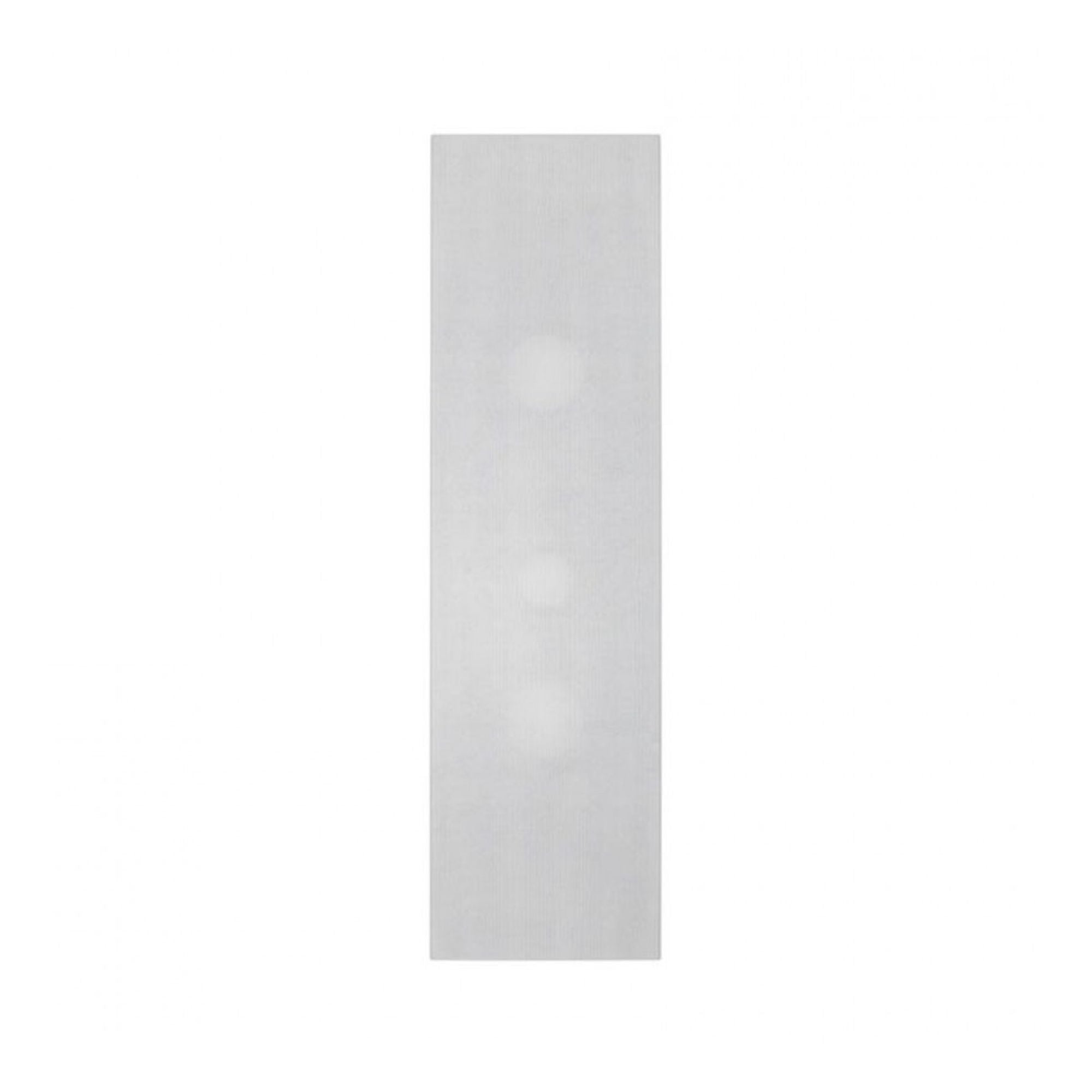

  • Magnetic trimless grille.



AVStore India is proud to be an authorized dealer of Monitor Audio, offering genuine products, official manufacturer warranty, and expert assistance before and after your purchase.

System Format

3 Way - 4 Driver

Frequency Response

(-6dB - IEC 268-13) 52Hz - 100kHz

Sensitivity

(1W@1M) 90dB

Maximum S.P.L.

117dBA (pair)

Nominal Impedance

4Ω (3.7Ω min. @ 2.8KHz)

Power Handling (RMS)

200W

Recommended Amplifier Requirements (RMS)

100 - 200W

Cabinet Design

Sealed Cabinet

Drive Unit Complement

  • 2 x 61/2" RDT®II bass drivers
  • 1 x 4" RDT II mid-range driver
  • 1 x MPD high frequency transducer

Mid/ H.F Crossover Frequency (Hz)

4.1KHz 3rd Order (18dB/Octave)

Bass/Midrange Crossover Frequency (Hz)

700Hz/ 2nd Order (12dB/Octave)

Fixings

10 x Tri-Grip dog leg type fixing system

Overall Dimensions (H x W x D)

1205mm x 330mm x 102mm (477/16 x 13 x 4 inch)

Cut Out Depth

97.5mm (313/16 In.)

Weight (each)

27KG (59.4lb)
