Matrix Audio Element M - Music Streamer

Sale priceRs. 159,990 Regular priceRs. 184,990

Tax included.

GET GST INPUT

Ever wondered why speakers, amplifiers, projectors etc. come with a slightly heftier price tag in India compared to their overseas counterparts? Well, part of the answer lies in our country's Goods & Services Tax (GST).

But here's the kicker: Don't let that GST input slip through your fingers! Especially when some of the products we supply carry a GST rate of 18% and 28%.

At AVStore, we provide you with a GST compliant invoice for every purchase.

Simply put in your GST number during the checkout to avail an offset.


  • Description
  • Specifications
  • Reviews

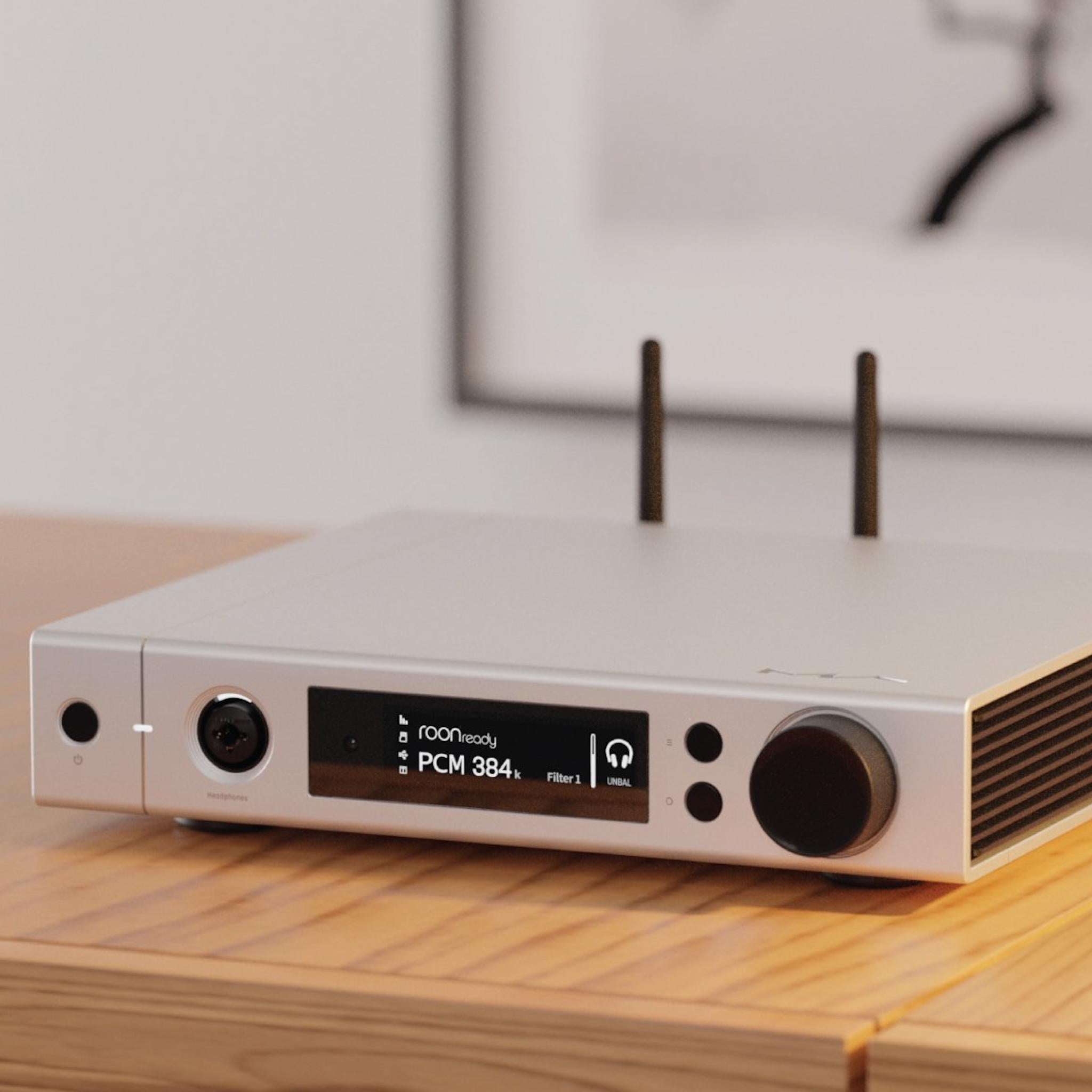

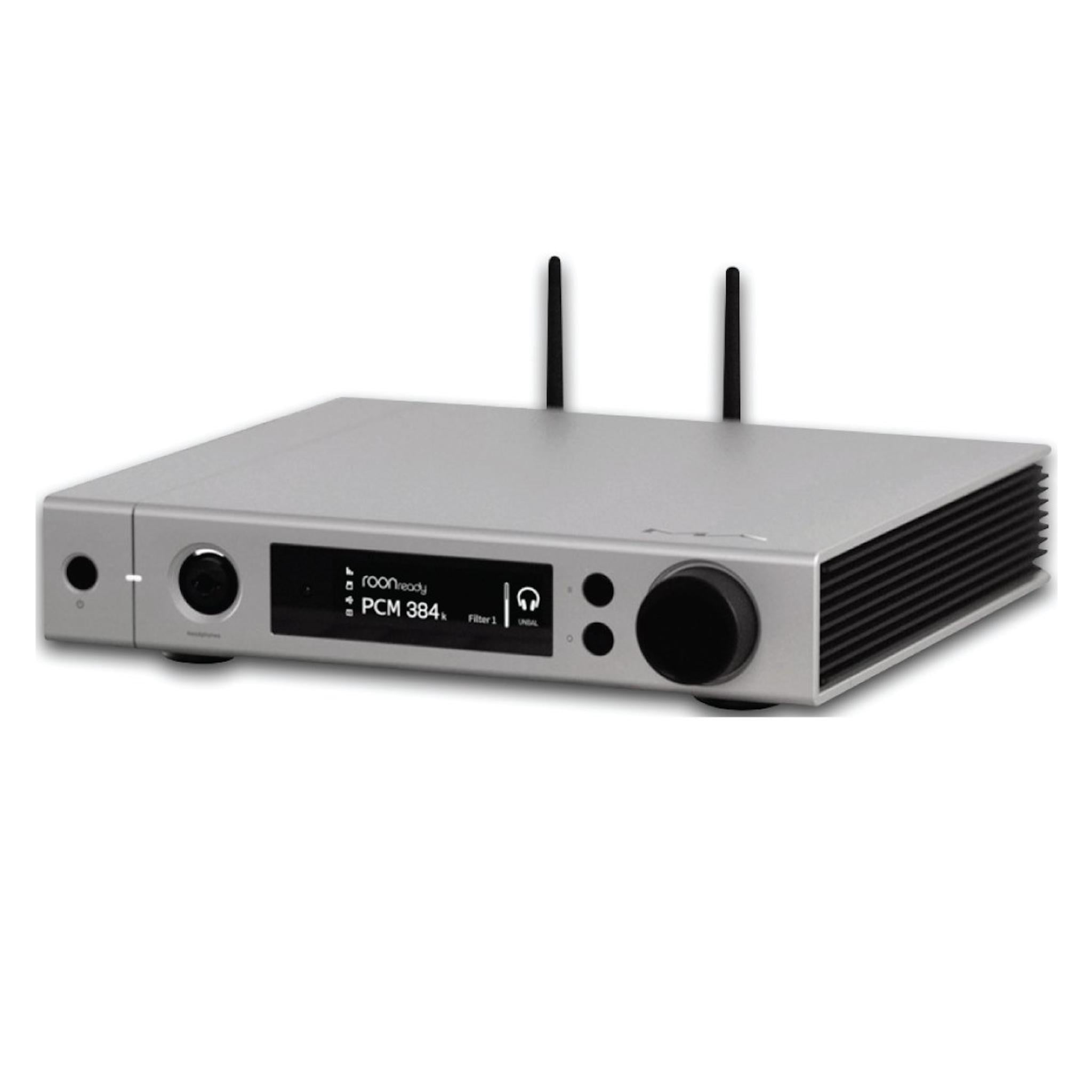

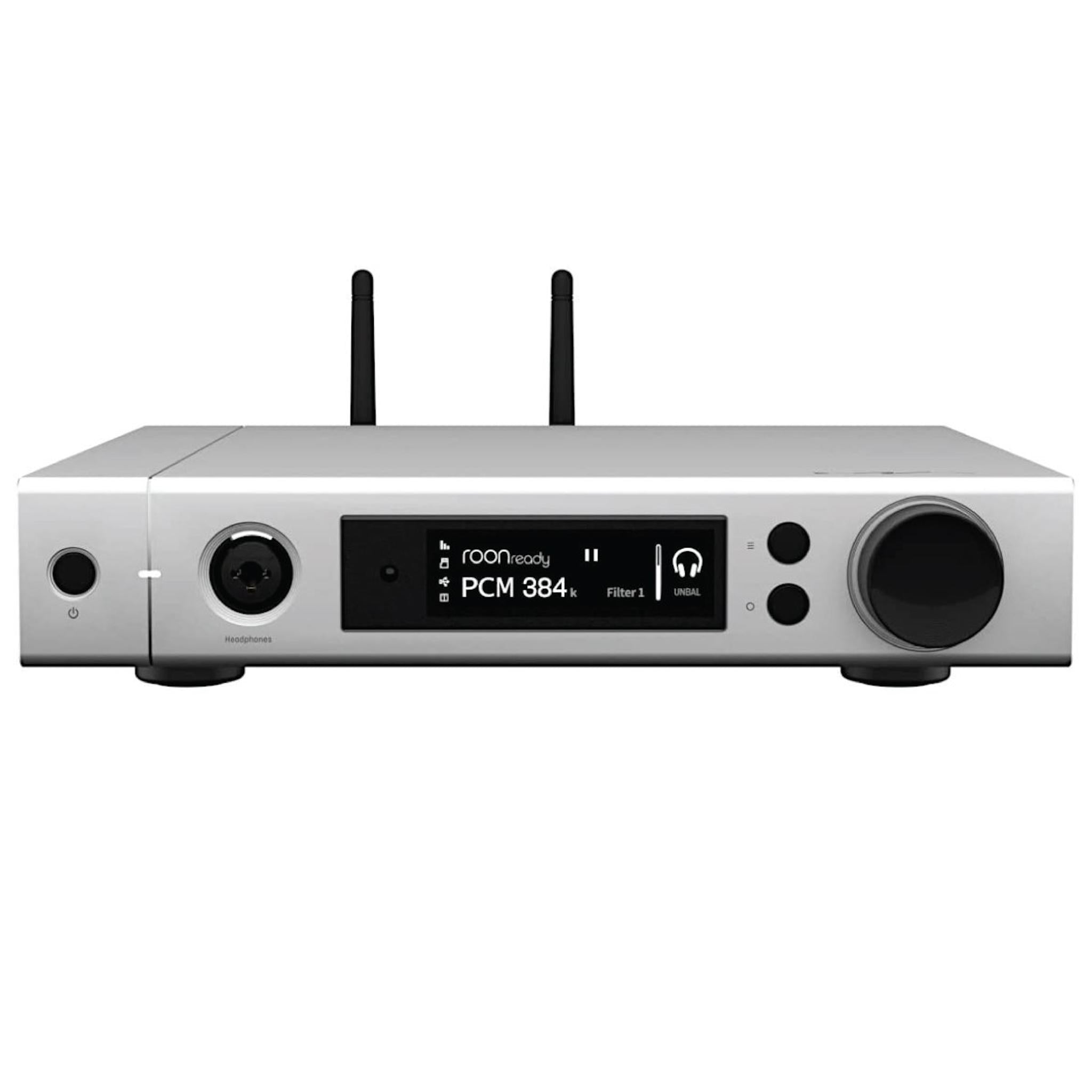

Element M

New member of the family

Element M is a new member of element family, it continues the design language of concise and steady. We look for a balance between performance, functionality and price on element M, hoping to provide a desktop two-channel stereo simplification solution for mid-range active speaker and headphone users.

MA player

The element M runs a powerful audio playback system that supports all the popular formats. Simply connect a USB drive or configure a NAS storage device to browse your music library and enjoy up to 768kHz PCM and 22.4MHz DSD.

MA Remote app

MA Remote app is available for iPhone, iPad and Android phones now. Browse and play your own high-quality digital audio, or enjoy hi-res streaming audio, whatever you want. MA Remote is now integrated with TIDAL and Qobuz streaming service. In addition, it’s also ROON Ready. Find Matrix device and control through ROON Remote, making playback faster.

AirPlay & DLNA

Listening to network streaming media has become a normal part of life today. The element series also enables you to play music from your smartphone or other mobile devices via AirPlay & DLNA for convenient wireless streaming.

MQA Decoding and Rendering

MQA (Master Quality Authenticated) is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to stream or download. The element series include MQA technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.

ESS Sabre

Element M is positioned as the mid-range of the entire series and is also the most cost-effective product. Matrix uses ES9028PRO advanced D/A solution and SiTime low phase noise clock, combine with their development experience with ESS chips, to maximize its potential performance.

High Quality Headphone AMP

Matrix Audio has developed a new low-impedance headphone amplifier consisting of discrete components for element M. This headphone amp has a bipolar input stage that effectively rejects common-mode distortion. The output stage is set in a high quiescent current state, giving you an intriguing mellow sound performance.

Multiple Control Methods

The RM3 infrared remote control is standard for element series products. They provide 5 different kinds of address code to avoid interference with other audio devices. On the other hand, MA Remote has 'Virtual Remote Control' feature, you can proceed all the setting operations of the unit through the app.

Double-shell Structure

Different materials have their own resonant frequency. The element X is designed as double-shell structure. The inner shell uses stamp galvanized steel with multi-strip reinforcing ribs to ensure excellent strength and the external shell is made of 4mm aluminum. The combination of the two metals eliminates the fixed resonant frequency of each material and greatly reduces the negative impact that case resonance can have on the sound quality.

CPU

NXP i.MX 6Quad 4x Cortex-A9 @1.2 GHz

D/A Chip

ES9028PRO

Clock Source

SiTime SiT8103

COAXIAL & OPTICAL

  • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
  • DSD 2.8MHz (DoP)

IIS LVDS

  • PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 906kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
  • DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP)
  • DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz, 45MHz (Native)

USB Audio

  • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz352.8kHz384kHz, 705.6kHz, 768kHz
  • MQA 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream
  • DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP)
  • DSD 2.8MHz, 5.6MHz, 11.2MHz22.4MHz (Native)

XLR

  • SNR: >-128dB
  • THD+N: <0.00022%@1k<0.00025%@20Hz-20kHz
  • Frequency Response: 20Hz-20kHz ±0.05 -3dB@150kHz
  • Channel Crosstalk: >-145dB
  • Amplitude: 4.0VRMS@0dB

RCA

  • SNR: >-125dB
  • THD+N: <0.00028%@1k<0.00045%@20Hz-20kHz
  • Frequency Response: 20Hz-20kHz ±0.05 -3dB@120kHz
  • Channel Crosstalk: >-128dB
  • Amplitude: 2.0VRMS@0dB

Single Ended

  • SNR: >-111dB@2VRMS
  • THD+N: <0.0006%@1VRMS
  • Frequency Response: 20Hz-20kHz ±0.1 -3dB@47kHz
  • Output Impedance: <0.6Ω
  • Output Power: 1320mW@33Ω248mW@300Ω124mW@600Ω1%THD
  • Gain: +12dB

LAN

10BASE-T/100BASE-TX

WLAN

2.4GHz/5GHz, IEEE 802.11 a/b/g/n standard

Power Voltage

  • 230V position is fit for AC220V-240V 50/60Hz
  • 115V position is fit for AC100V-120V 50/60Hz

Stand-by Power Consumption

<6 W

Sleep Power Consumption

<10W

Max Power Consumption

<25W

Dimension

275×281×60mm (L×W×H, including protruding parts)

Weight

3.7kgs

Accessories

  • RM3 remote control
  • Power cable
  • USB cable
  • Wi-Fi antenna x2
