Powerful, dynamic in-wall sound from JBL
Are you mapping out a new custom-installed home theater? JBL's Studio 6 88LCR in-wall speaker offers dynamic, revealing sound that's ideal for each channel of your system. Install it vertically as a left- or right-channel speaker, or horizontally as a center channel for seamless, voice-matched surround sound throughout your room. Its drivers are specially configured to sound great in both orientations.

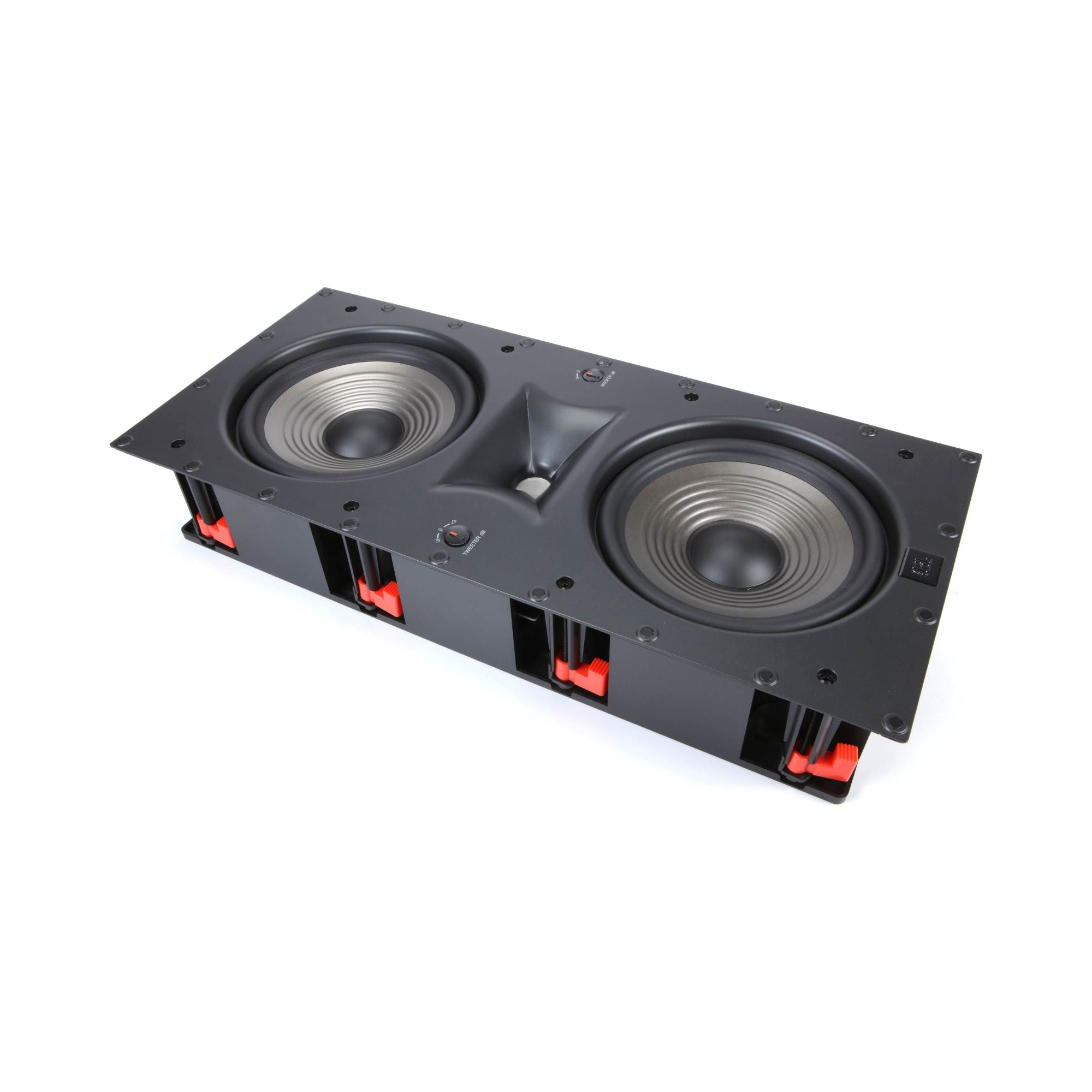

A unique driver array delivers superb sound
JBL uses horn-loaded compression drivers in speaker arrays at large concert venues — they're able to fill space with clear sound in a way a standard dome tweeter can't. This same technology is used in the Studio 6 88LCR for expansive, crystal-clear high frequencies.
JBL's proprietary HDI (High Definition Imaging) waveguide technology helps the compression driver deliver optimum sound quality throughout your room. Dual 8" PolyPlas® woofers complement the compression driver, serving up tight, clean bass and articulate midrange with movies, TV shows, and video game soundtracks.
Adjust the sound to your space
The Studio 6 88LCR has two front-panel level controls that let you adjust high- and low-frequency output to best suit your room's acoustics. Use them in conjunction with your home theater receiver's auto-calibration system to tailor the sound to your space.
DIY installation
If this is a do-it-yourself install, check out their guide to installing in-wall speakers, along with their selection of in-wall speaker wire. You can paint the included magnetic grille to have your speaker blend in with your decor.
Product highlights:
- ideal for use in a custom-installed home theater or in-wall stereo music system
- installs horizontally as a center channel, or vertically as a left- or right-channel speaker
- dual 8" PolyPlas woofers for crisp bass and articulate midrange
- two-position level control cuts low-frequency output to best match your room's acoustics
- 1" horn-loaded high-frequency compression driver
- HDI (High Definition Imaging) waveguide technology for smooth, uniform response across a wide listening area
- three-position level control cuts or boosts high-frequency output
- frequency response: 43-20,000 Hz
- recommended amplifier power: 50-175 watts RMS
- nominal impedance: 6 ohms
- sensitivity: 96 dB

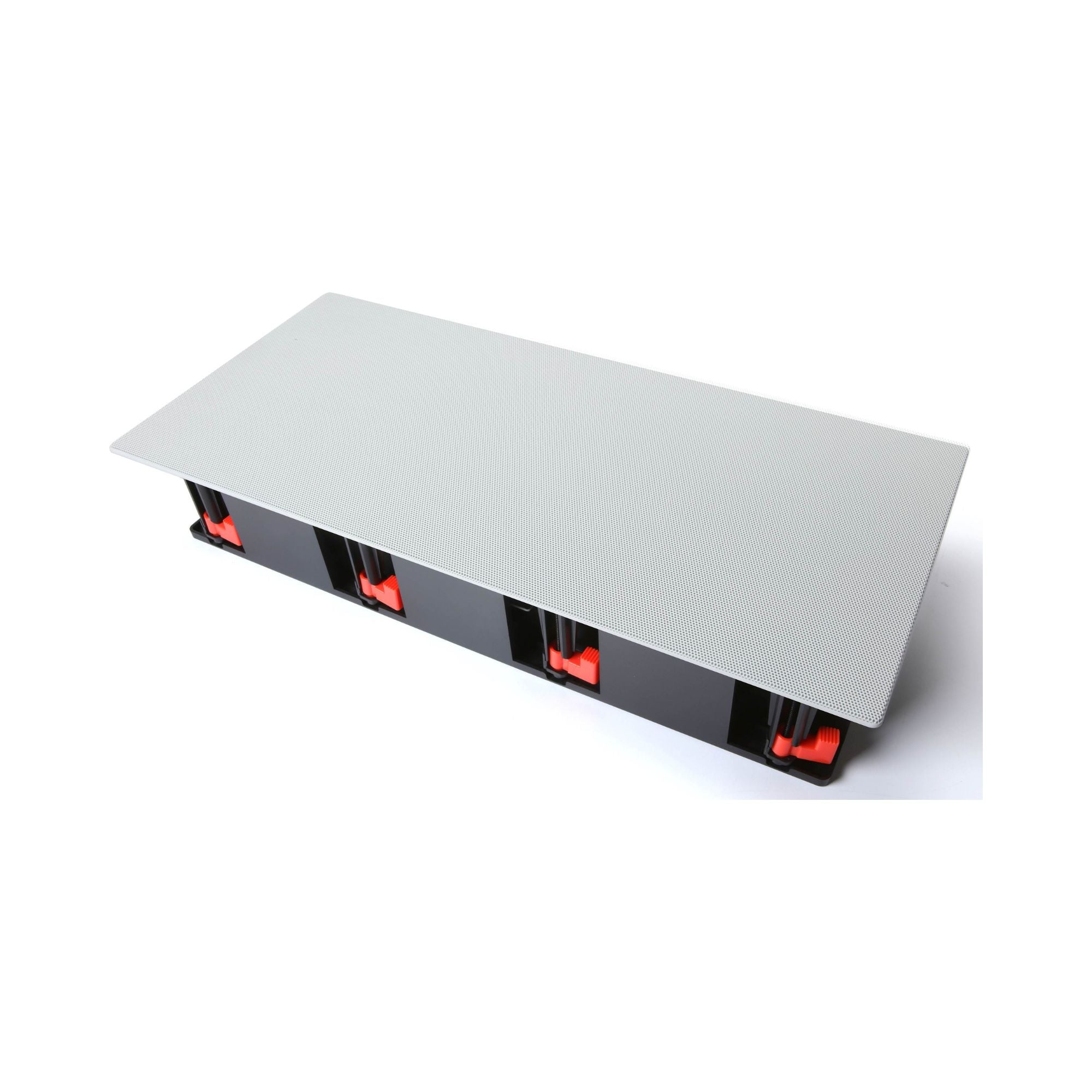

- includes paintable, zero-bezel magnetic grille
What's in the box:
- In-wall loudspeaker
- Grille
- Cut-Out Template
- Quick Start Guide
|
Quantity in Package |
Single |
|
Tweeter |
Horn-Loaded |
|
Aimable Tweeter |
No |
|
Woofer Composition |
PolyPlas |
|
Woofer Surround |
Rubber |
|
Connector Type |
Spring posts |
|
Bi-Amp Inputs |
No |
|
Built-in Back-box |
No |
|
Indoor (Moisture-resistant) |
No |
|
Outdoor (Partial Exposure) |
No |
|
Outdoor (Full Exposure) |
No |
|
Tweeter Size |
1 |
|
Midrange Size |
N/A |
|
Woofer Size |
8 |
|
Speaker Shape |
Rectangle |
|
Power Range (Watts) |
10-175 |
|
Sensitivity |
96 dB |
|
Impedance (Ohms) |
6 |
|
Frequency Response |
43-20kHz |
|
Parts Warranty |
5 Years |
|
Labor Warranty |
5 Years |
|
Cutout Width |
8.75 |
|
Cutout Height |
20.4375 |
|
Mounting Depth |
3.75 |
