JBL Studio 6 6IW - In-Wall Speaker - Piece
Includes GST of Rs. 5,643
GET GST INPUT
Ever wondered why speakers, amplifiers, projectors etc. come with a slightly heftier price tag in India compared to their overseas counterparts? Well, part of the answer lies in our country's Goods & Services Tax (GST).
But here's the kicker: Don't let that GST input slip through your fingers! Especially when some of the products we supply carry a GST rate of 18% and 28%.
At AVStore, we provide you with a GST compliant invoice for every purchase.
Simply put in your GST number during the checkout to avail an offset.
- Description
- Specifications
- Reviews
Stealthy, articulate sound
If you're planning a custom-installed audio system, check out JBL's Studio 6 Architectural 6IW. This high-quality in-wall speaker produces engaging sound without taking up any floor space.
Use a pair of the Studio 6 Architectural 6IWs for a stealthy in-wall stereo system, or as the left- and right-channel speakers in a JBL surround sound system.
Adjust the sound to your space

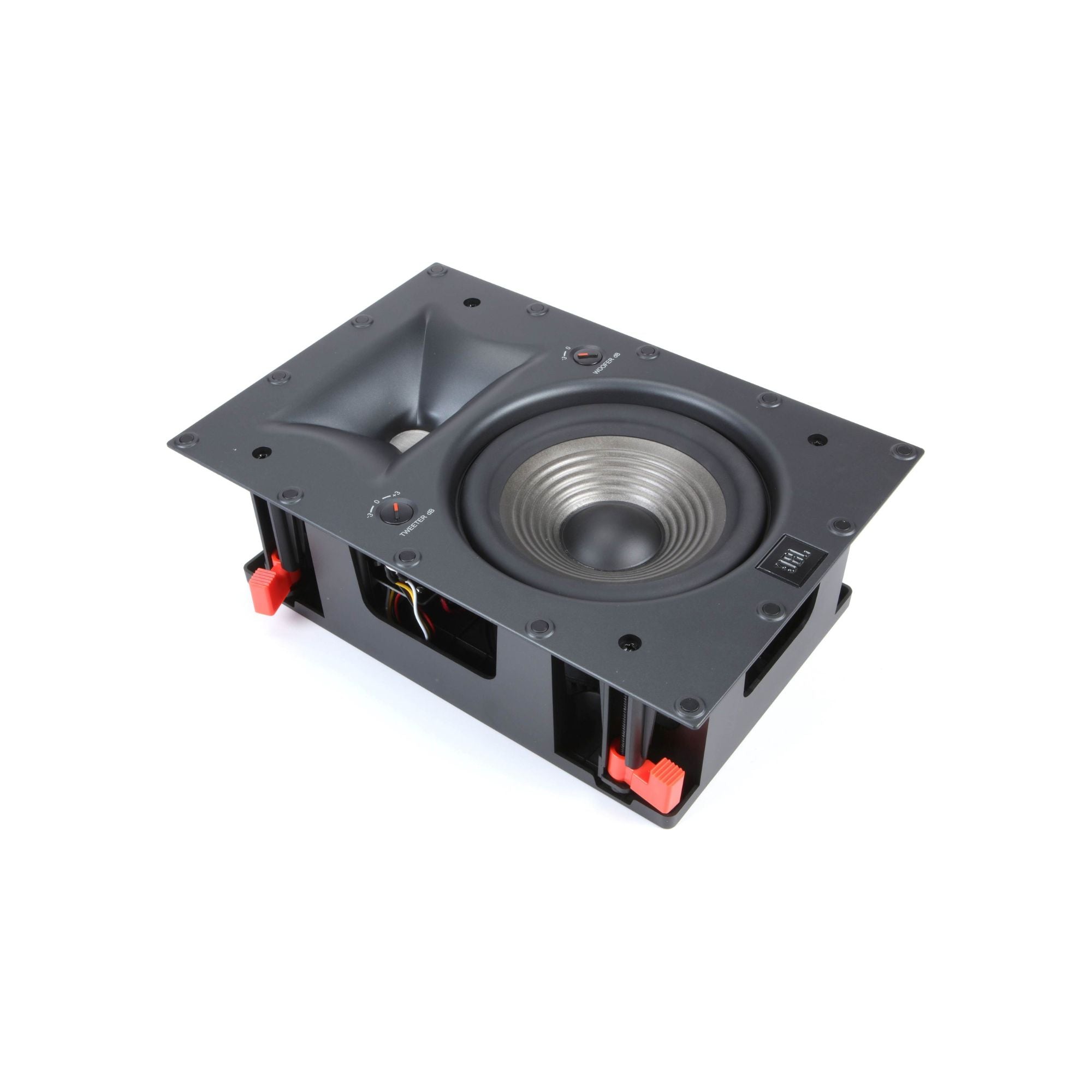

This speaker pairs a 6-1/2" woofer with a High Definition Imaging (HDI) waveguide and 1" high-frequency compression driver for tight, clean bass and smooth, dynamic highs.
Independent level-control knobs for the tweeter and woofer on the front baffle let you adjust output to ideally suit your room's acoustics.
Born from JBL's storied audio heritage
JBL famously pioneered horn-loaded compression drivers in speaker arrays at large concert venues — they're able to fill space with clear sound in a way a standard dome tweeter can’t.
The cornerstone of the Studio 6 Series' distinctive sound is JBL's 1" compression driver mated to a High-Definition Imaging (HDI) horn. The proprietary design helps this speaker deliver crystal-clear high frequencies throughout your room.
DIY installation
If this is a do-it-yourself install, check out their guide to installing in-wall speakers, along with their selection of in-wall speaker wire. You can paint the included magnetic grille to have your speaker blend in with your décor.
Product highlights:
- ideal for use in a custom-installed home theater or in-wall stereo music system
- 6-1/2" Polyplas® woofer
- High Definition Imaging (HDI) waveguide with 2414H-1 1" high-frequency compression driver
- independent tweeter and woofer level controls on front baffle
- tweeter: ±3dB
- woofer: 0/-3dB
- frequency response: 45-20,000 Hz
- recommended amplifier power: 10-70 watts
- nominal impedance: 6 ohms
- sensitivity: 91 dB

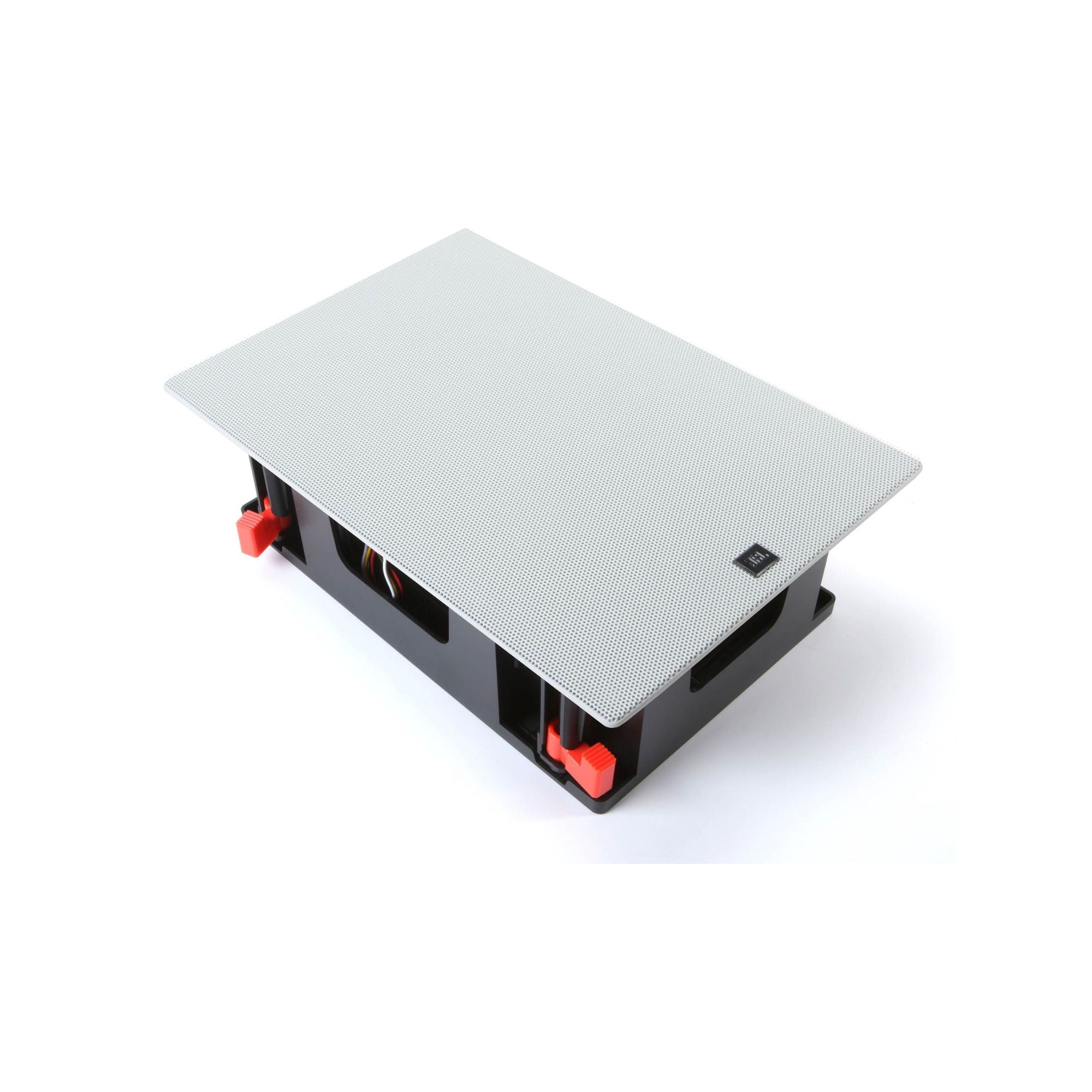

- includes zero-bezel paintable magnetic grille
What's in the box:
- In-wall loudspeaker
- Grille
- Cut-Out Template
- Quick Start Guide
|
Quantity in Package |
Single |
|
Tweeter |
Horn-Loaded |
|
Aimable Tweeter |
No |
|
Woofer Composition |
Polyplas |
|
Woofer Surround |
Rubber |
|
Connector Type |
Spring post |
|
Bi-Amp Inputs |
No |
|
Built-in Back-box |
No |
|
Indoor (Moisture-resistant) |
No |
|
Outdoor (Partial Exposure) |
No |
|
Outdoor (Full Exposure) |
No |
|
Tweeter Size |
1 |
|
Midrange Size |
N/A |
|
Woofer Size |
6.5 |
|
Speaker Shape |
Rectangle |
|
Power Range (Watts) |
10-70 |
|
Sensitivity |
91 dB |
|
Impedance (Ohms) |
6 |
|
Frequency Response |
45-20kHz |
|
Parts Warranty |
5 Years |
|
Labor Warranty |
5 Years |
|
Cutout Width |
7.125 |
|
Cutout Height |
10.8125 |
|
Mounting Depth |
3.6875 |
