HDFury 4K Vertex2 18Gbps - Video Processor

Sale priceRs. 49,000

Includes GST of Rs. 7,475


Ever wondered why speakers, amplifiers, projectors etc. come with a slightly heftier price tag in India compared to their overseas counterparts? Well, part of the answer lies in our country's Goods & Services Tax (GST).

But here's the kicker: Don't let that GST input slip through your fingers! Especially when some of the products we supply carry a GST rate of 18% and 28%.

At AVStore, we provide you with a GST compliant invoice for every purchase.

Simply put in your GST number during the checkout to avail an offset.

  • Description
  • Specifications
  • Reviews

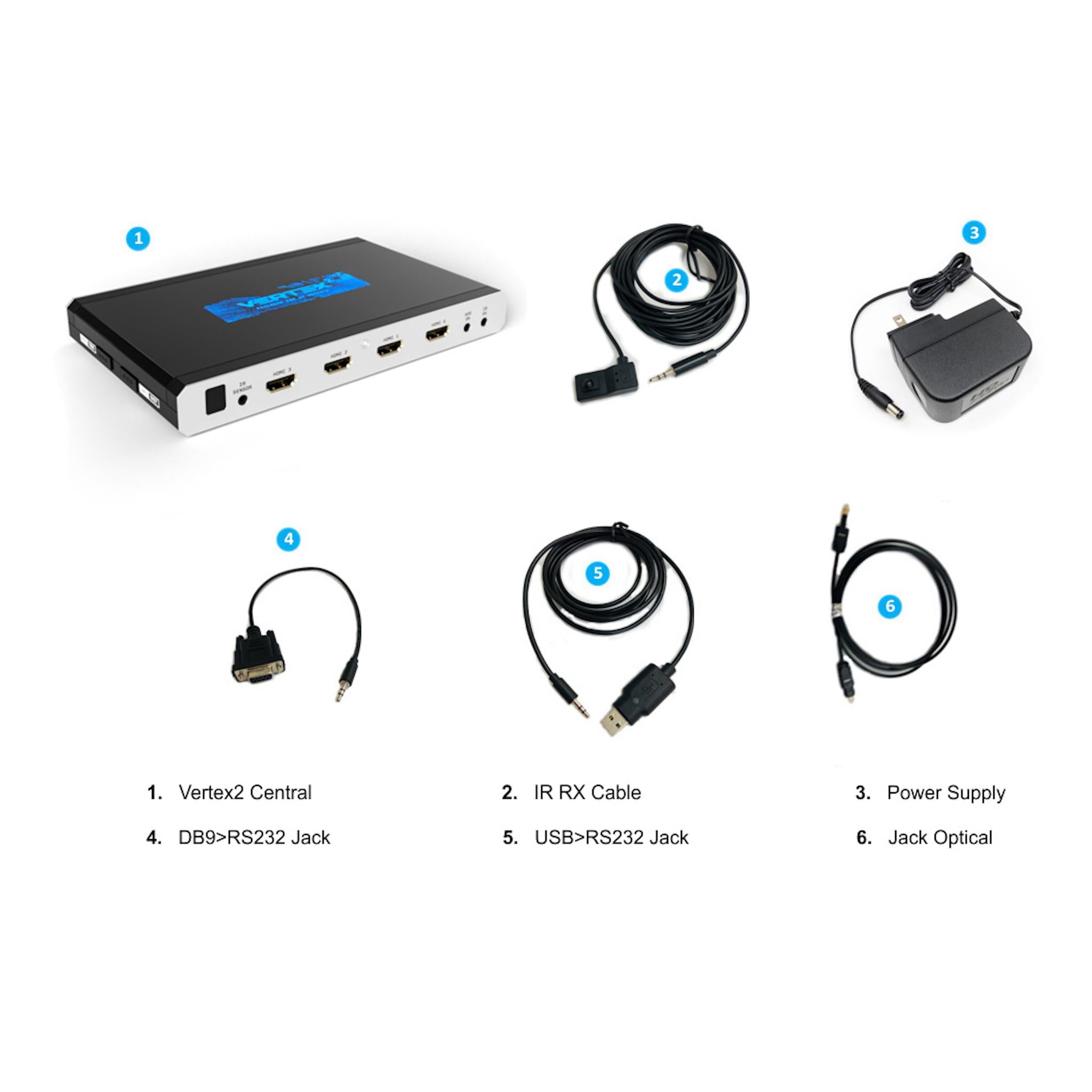

Vertex² Kit includes:

  • Vertex² central unit
  • Choice of power supply
  • IR RX Sensor cable (9ft)
  • DB9 > RS232 jack cable (1ft)
  • Jack Optical cable (4.5ft)


  • State of the art HDMI central with exclusive output management to accommodate Android TV and similar sink devices doing check while in standby mode.
  • Support any video and/or audio signal in existence today including DV, LLDV, HLG, HDR10+, DTS:X, ATMOS and more…
  • Vertex² allows any HDMI source (Blu-ray, UHD Blu-ray, media players, satellite receiver, game consoles, PCs, etc.) to be shown on any of the connected displays and any sources Full HDMI audio to be played on ANY AVR.
  • World First: Vertex² is also capable of extracting full audio from any TV ARC or eARC (HDMI2.1) up to Atmos High Bit Rate over True HD and forward it via 720p/1080p HDMI to ANY capable AVR input!

We are proud to announce the availability of Vertex2, successor of the award winning HDfury Vertex and more than ever tailored for AV purists.

4×2 Matrix/Splitter/Scaler for 4K HDR/DV 18Gbps/600MHz + Full HDMI Audio out (extract HDMI/ARC/eARC)

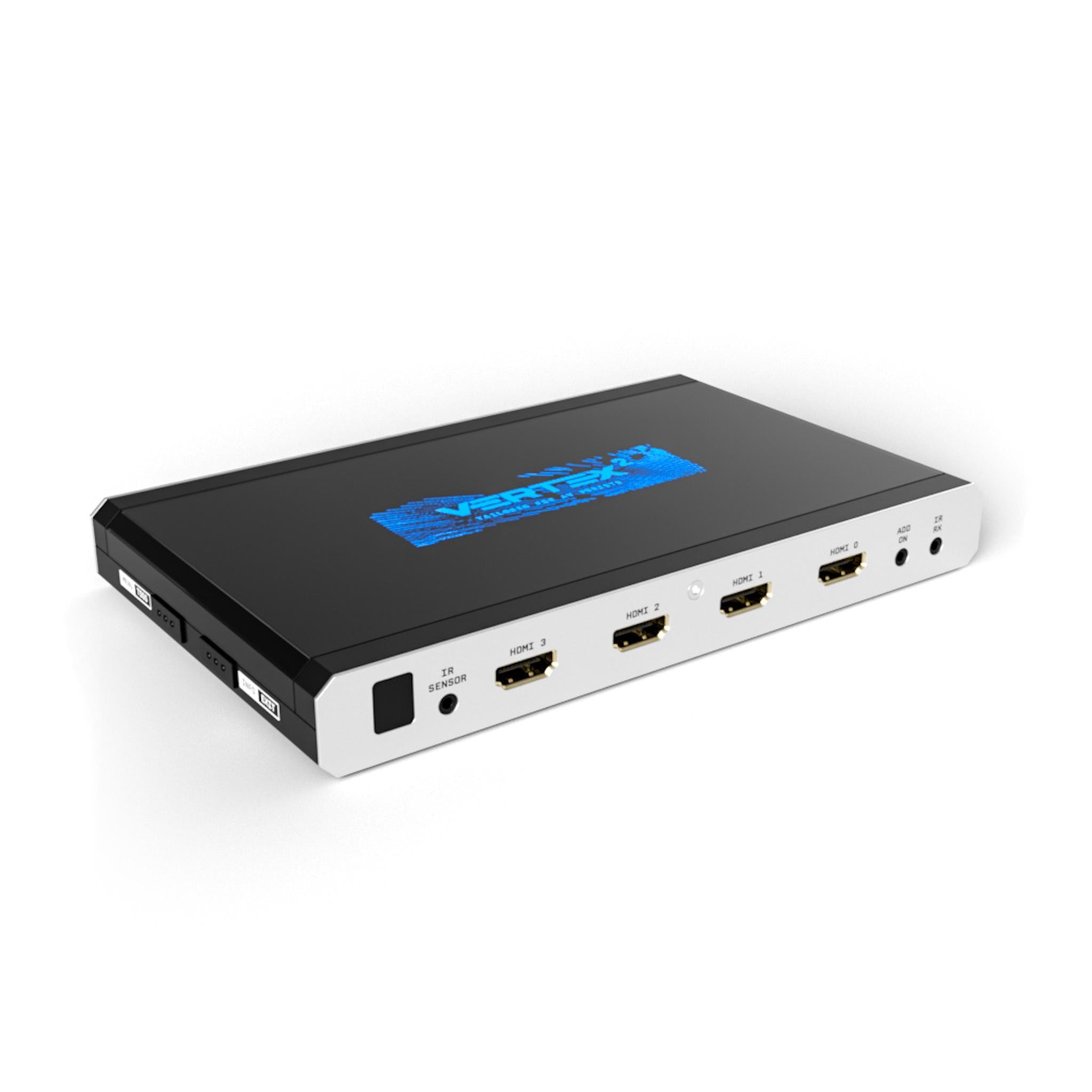

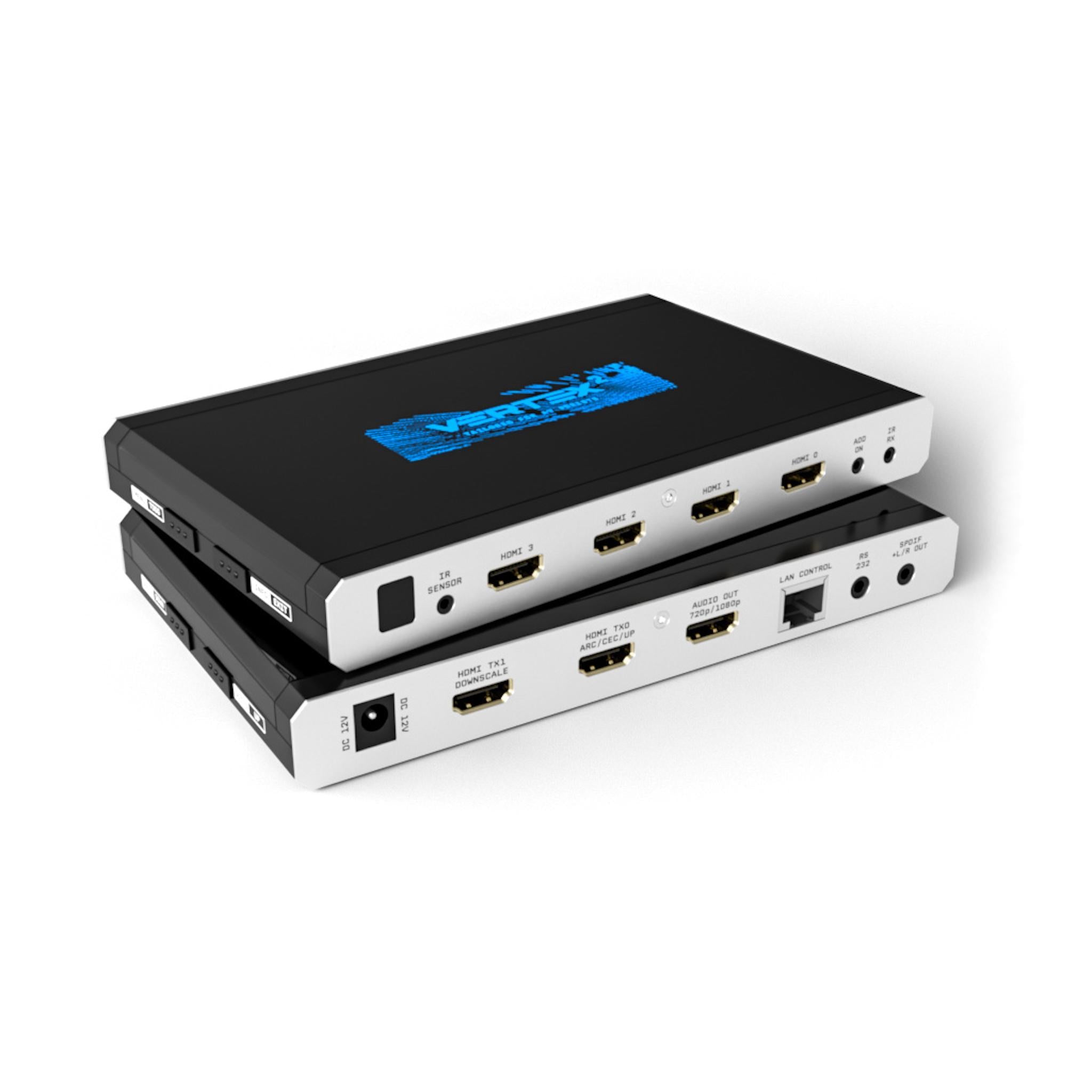

Hardware-wise, the Vertex² central is featuring 4 HDMI inputs, 2 HDMI video output with scaling option and 1 dedicated HDMI full audio output at 720p or 1080p, LAN Control, RS232, L/R stereo or Optical 5.1 output, IR RX, IR sensor, IR window, OLED display and 4 buttons on the side allowing to enter/exit and perform change in the device system menu. Vertex² offers an unique and exclusive output management to accommodate Android TV and such sink devices that perform annoying check in standby mode.

All inputs are capable of 4K HDR/HLG/DV/LLDV/HDR10+ up to 18Gbps for video and support any sound format in existence today, HDMI TX0 and TX1 video outputs are capable of outputting 18Gbps and all sound formats as well.

Vertex² is always running in a Matrix/Scaler mode ensuring your setup remains optimized at its best capabilities.Software-wise, Vertex² provides you full control via the embedded and brand new HDfury web-server! The need of a dedicated computer with special driver to run configuration software or update is now a thing of the past !

You can use any web browser based device such as any computer or smartphone to access, control and update Vertex² Central, the process is as easy as visiting a web page.

HDFury went further than anything they have ever made and full filled Vertex² with revisited and improved HDR management features. They also added some new features never seen before such as TMDS switching for all inputs which allow to auto-switch sources such as ATV4K, X1X or Shield that no other switch on the market are able to auto-switch. Additionally Vertex² can physically cut any output via software trigger.

World First eARC HDMI2.1 breakthrough: Vertex² now support ARC and eARC sound extraction from TV for up to Atmos high bit rate over TrueHD forwarded to any AVR input via Vertex² HDMI audio output (ARC-Key feature) !

All HDfury legacy features remain present, each input EDID can be set individually from a list of 100 EDID, HDCP conversion, Scaling and signal operations such as Chroma/Colour depth/Colour space, PJ&Display macro, Info-frames modes, CEC command, ARC, HTPC mode, special modes, sound extraction and more.

All setup informations are visible at first sight via OLED, On Screen Display or Webserver.Vertex² is the smart solution and converter for interoperability between any HDMI revision equipment, for content creators, calibrators, streamers, digital entertainment centres, UHDTV retail, show sites, data centres, schools, conference or home cinema and much more.

HDMI revision

HDMI 2.0b (Level A) 600Mcsc – 18Gbps

Vertex² Support

600MHz/18Gbps HDR, HDR10+, HLG, DV & LLDV, eARC, ALLM, IMAX

Max Resolution

4K60 4:4:4 8b, 4K60 4:2:2 12b, 4K120 4:2:0 8b or 8K30 4:2:0 8b


4 HDMI In, 3 HDMI Out, 1 RJ45, 2 IR, 1 RS232, 1 Analog Jack & Optical Out.

Upscale port TX0

FHD 1080p & 2K to UHD 2160p & 4K/DCI

Downscale port TX1

UHD/HDR 2160p & 4K/DCI to FHD/HDR 1080p & 2K

Full Audio port

Full HDMI/ARC/eARC Audio extraction via 720p/1080p self generated stream to feed any AVR input

TMDS Switching

Autoswitch support for ATV4K, X1X and others sources continuously sending +5V

Signal Conversion

Resolution, Chroma Subsampling, Color Space, Color Depth, HDCP

HDCP Conversion

Any HDCP to any HDCP with CST1 support

Operating Modes

18Gbps Matrix, Scaler, Splitter & Switcher with CEC, eARC, ARC and EDID management

Special Modes

CEC Command, HTPC, Disable or replace HDR/HLG, HDMI Doctor, RS232 Macro.

EDID Modes

13 EDID Flags, 5 EDID Algo, 100 EDID Banks (10 custom)

Infoframe Modes

  • Capture, edit, create, block or replace HDR/HLG metadata, AVI & VSIF.
  • Read SPD, Audio, HDMI Vendor, HDMI Forum

Control Modes

New HDfury Webserver, IR, IP, RS232 for Linux/MAC/Win or push buttons

Output Control

Fully disconnect any output via software when not in use.

On Screen Display

Editable with custom text and mask. (cover TV channel logo)


3.12″ Diagonal, 256×64, 16 blue colors

Vertex² Dimension

4.5″L x 7.3″W x 0.9″H – in CM: 11.5 x 18.5 x 2.4


520g – 1.15 LBS

Input Lag

<1ms (nanoseconds count)

Other info

3D Support, CEC Pass Through, DSD, eARC (HDMI2.1)
