4K MAESTRO 18GBPS TX/RX

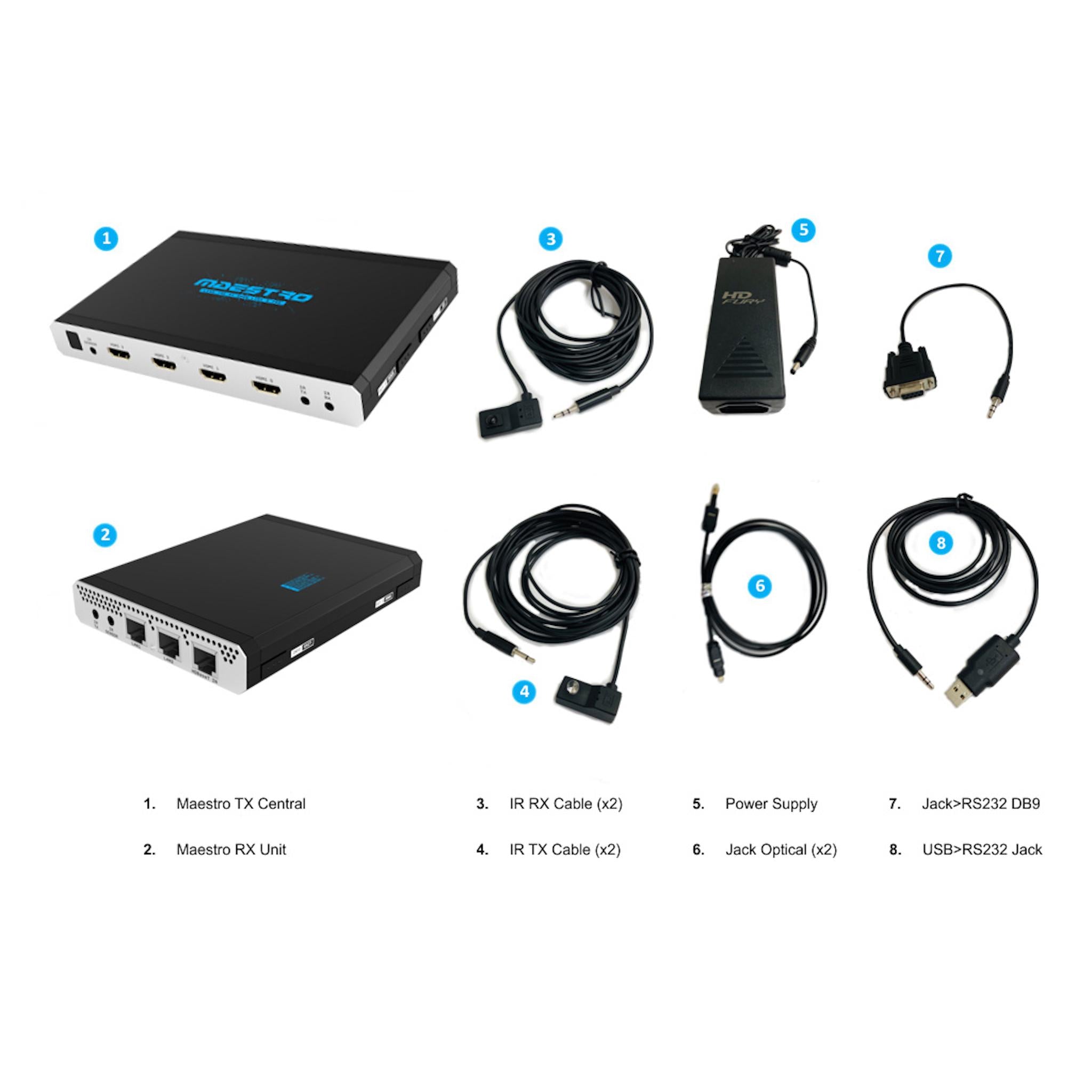

Maestro TX-Central Kit includes:

• Maestro TX Central unit
• Choice of power supply
• IR TX cable (9ft)
• IR RX cable (9ft)
• Jack Optical cable (4.5ft)

Maestro RX Kit includes:

• Maestro RX unit
• IR TX cable (9ft)
• IR RX cable (9ft)
• Jack > RS232 DB9 cable (1ft)
• Jack Optical cable (4.5ft)

FEATURES

• State of the art solution for long distance 4K HDR 18Gbps/600MHz transmission via Ethernet cable (HDBaseT)
• Support any video and/or audio signal in existence today including LLDV, HLG, HDR10+, DTS:X, ATMOS and more…
• Maestro allows any HDMI source (Blu-ray, UHD Blu-ray, media players, satellite receiver, game consoles, PCs, etc.) to be shown on any of the connected displays and any sources Full HDMI audio to be played on ANY AVR.
• World First: Maestro is also capable of extracting full audio from any TV ARC or eARC (HDMI2.1) up to Atmos High Bit Rate over True HD and forward it via 720p/1080p HDMI to ANY capable AVR input!

After having released the world first and features rich 600MHz splitter in 2015 with Integral and what stands today as the world best and award winning pocket sized splitter/scaler design with Vertex in 2017.

We are proud to announce the availability of the HDFury Maestro, another masterpiece of work from HDFury, build to disrupt and revolutionize the HDbaseT segment of the AV World.

4K HDR 18Gbps/600MHz transmission via Ethernet cable (HDBaseT) have never been so powerful.

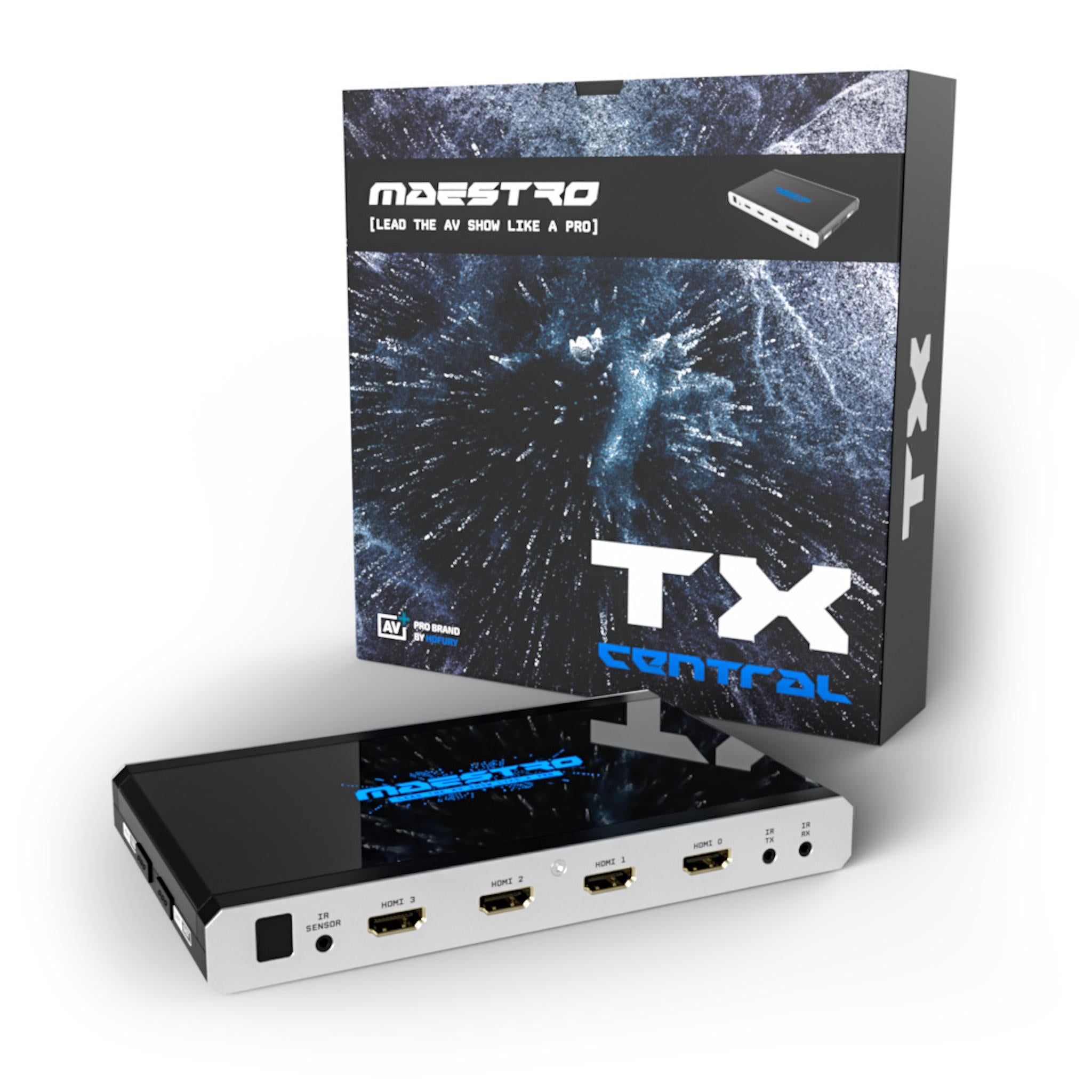

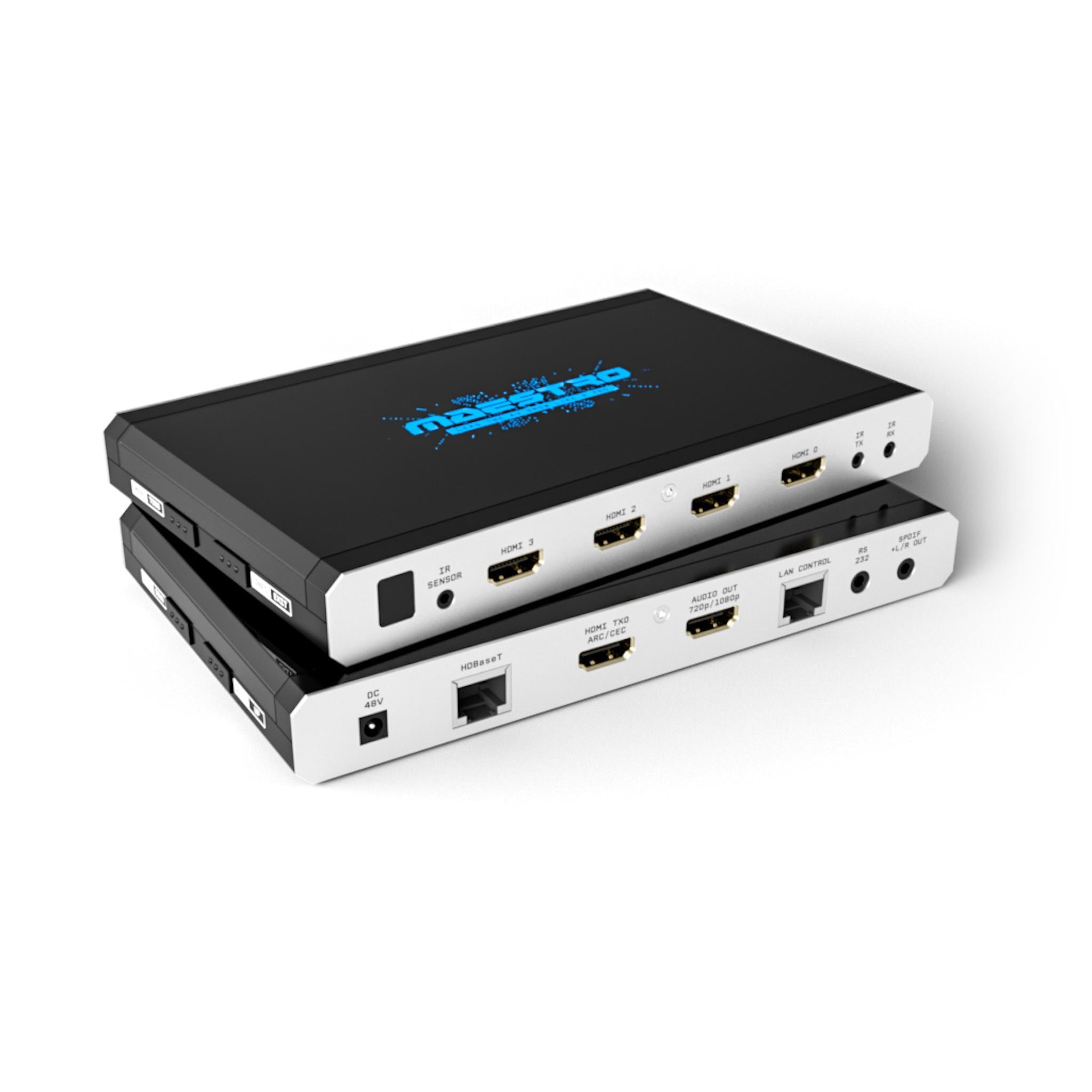

Hardware-wise, you have the Maestro TX (Central) featuring 4 HDMI inputs, 1 HDMI video output with scaling option and 1 dedicated HDMI full audio output at 720p or 1080p, LAN Control, HDbaseT output, RS232, L/R stereo or Optical 5.1 output, IR TX, IR RX, IR sensor, IR window, OLED display and 4 buttons on the side allowing to enter/exit and perform change in the device system menu.

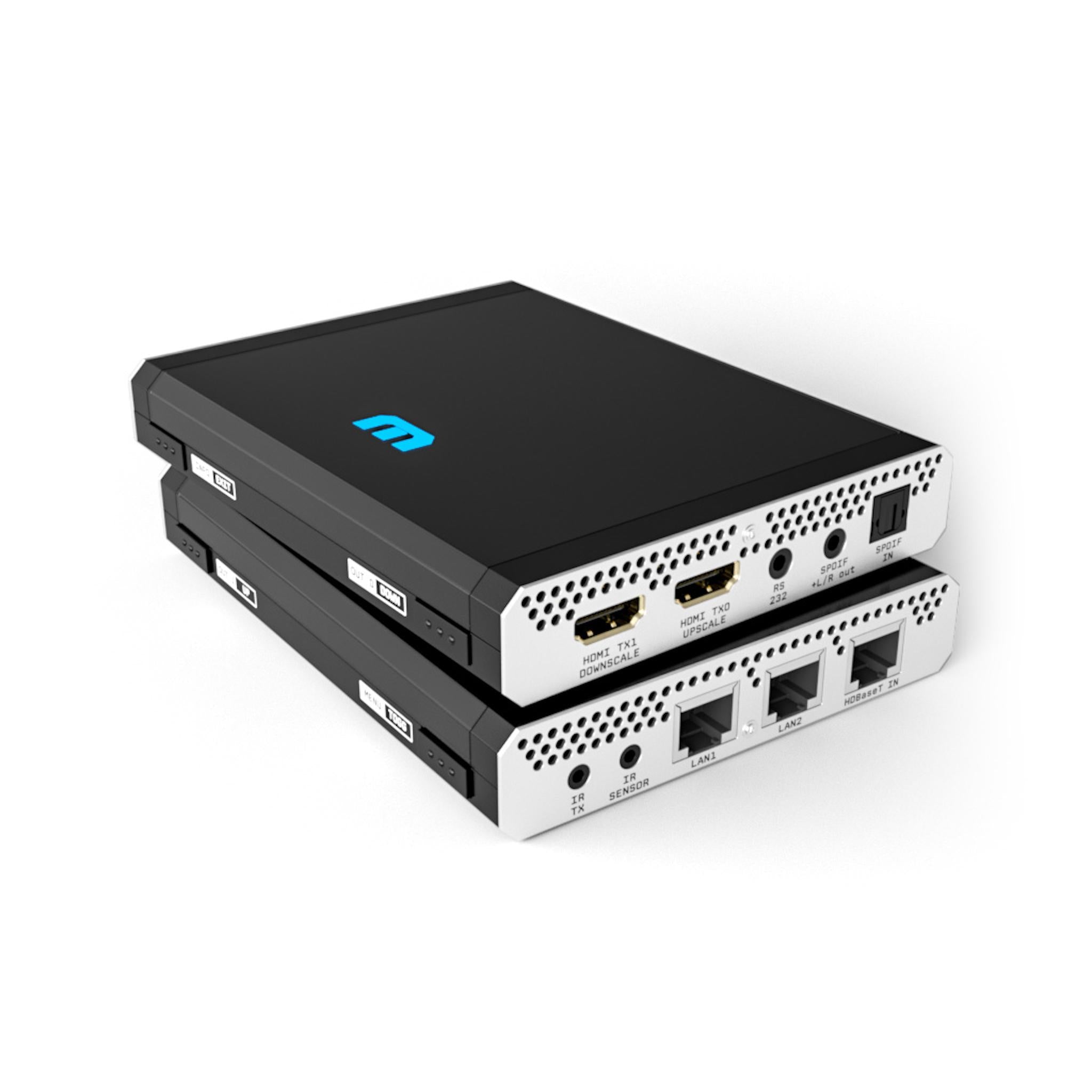

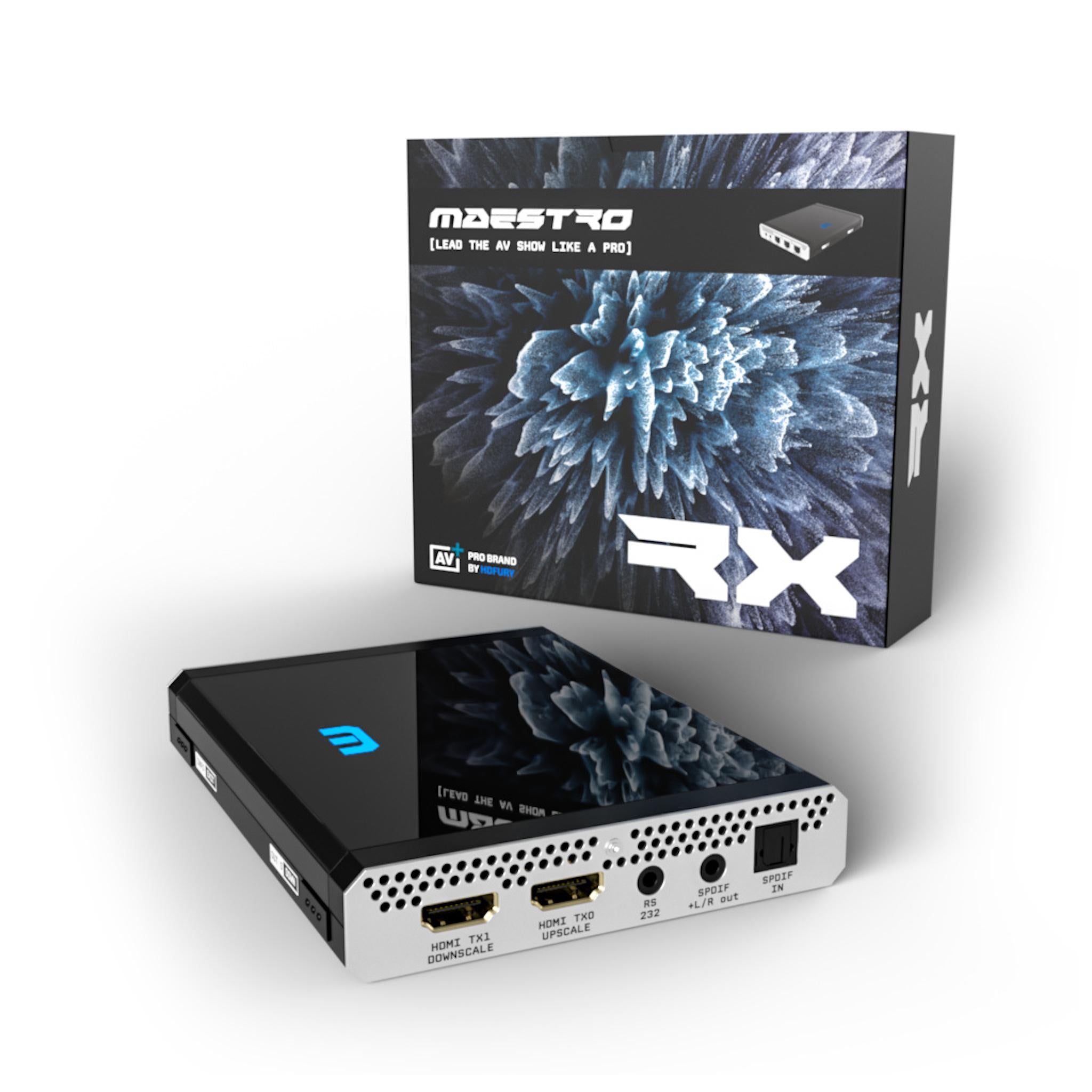

On the other end, the Maestro RX device self-powered by the TX-Central is featuring HDbaseT input, 2 LAN port to share Internet connection with game console, TV or media player, 2 HDMI outputs with scaling capabilities, RS232, L/R stereo or Optical 5.1 output, SPDIF input, IR sensor, IR TX, OLED display and 4 buttons on the side to enter/exit system menu and perform changes in settings.

All inputs are capable of 4K HDR/HLG/DV/HDR10+ up to 18Gbps for video and support any sound format in existence today, all video outputs are capable of outputting 18Gbps and all sound formats as well whether they are on the TX-Central or the RX one.

Both units are always running in a Matrix/Scaler mode ensuring your setup remains optimized at its best capabilities.

Both Maestro TX Central and RX Unit are providing real time signal info on their respective OLED screens.

OLED are also used to display system menu and allow navigation via push buttons on each unit.

Software-wise, Maestro is the first device to provide you full control via the embedded and brand new HDfury web-server ! The need of a dedicated computer with special driver to run configuration software or update is now a thing of the past !

You can use any web browser based device such as any computer or smartphone to access, control and update Maestro TX Central and Maestro RX (each one have its own web-server), the process is as easy as visiting a web page.

HDFury went further than anything they have ever made and full filled Maestro with revisited and improved HDR management feature. They also added some new features never seen before such as TMDS switching for all inputs which allow to auto-switch sources such as ATV4K, X1X or Shield that no other switch on the market are able to auto-switch.

[16-JAN-2019] World First eARC HDMI2.1 breakthrough: Maestro TX now support ARC and eARC sound extraction from TV for up to Atmos high bit rate over TrueHD forwarded to any AVR input via Maestro TX HDMI audio output (ARC-Key feature) !

All HDfury legacy features remain present, each input EDID can be set individually from a list of 100 EDID, HDCP conversion, Scaling and signal operations such as Chroma/Colour depth/Colour space, PJ&Display macro, Info-frames modes, CEC command, ARC, HTPC mode, special modes, sound extraction and more.

All setup informations are visible at first sight via OLED, On Screen Display or Webserver.

Maestro is the HDbaseT smart solution and converter for interoperability between any HDMI revision equipment, for content creators, calibrators, streamers, digital entertainment centres, UHDTV retail, show sites, data centres, schools, conference or home cinema and much more.

You can purchase and use the Maestro Central alone if you need 4 inputs + 4K HDR/HLG/HDR10+ or DV pass-through and Full HDMI audio extraction to feed older AVR at 720p or 1080p while still enjoying unrestricted 4K on your main display.
