HDFury 4K DIVA 18GBPS - Video Processor

Sale priceRs. 59,000
Quantity:

4K DIVA 18GBPS

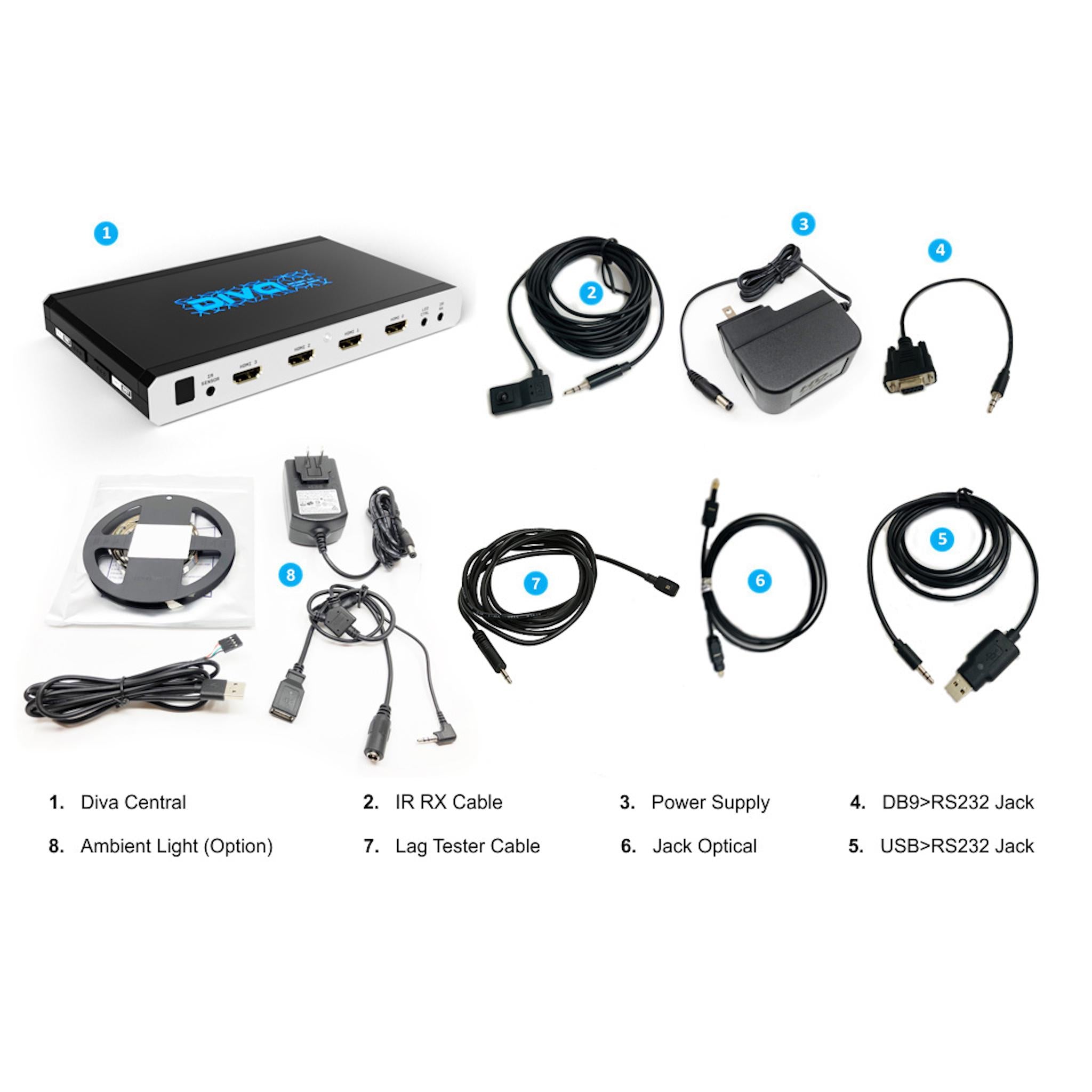

Diva Kit includes:

  • Diva central unit
  • Choice of power supply
  • IR RX Sensor cable (9ft)
  • Input Lag Tester cable (9ft)
  • DB9 > RS232 jack cable (1ft)
  • Jack Optical cable (4.5ft)

FEATURES

  • State of the art HDMI central with HDR/SDR converter included, input lag tester and an optional 4K HDR/LLDV Ambient Light solution for an immersive experience!
  • Play 4K HDR and stream perfect 1080p with SDR colours for capture card or 1080p SDR equipment.
  • Support any video and/or audio signal in existence today including DV, LLDV, HLG, HDR10+, DTS:X, ATMOS and more…
  • Diva allows any HDMI source (Blu-ray, UHD Blu-ray, media players, satellite receiver, game consoles, PCs, etc.) to be shown on any of the connected displays and any sources Full HDMI audio to be played on ANY AVR.
  • World First: Diva is also capable of extracting full audio from any TV ARC or eARC (HDMI2.1) up to Atmos High Bit Rate over True HD and forward it via 720p/1080p HDMI to ANY capable AVR input!

We are proud to announce the availability of Diva, another masterpiece of work from our dev team, build to disrupt, revolutionize and bring delight to the AV World.

4K HDR 18Gbps/600MHz + 1080p SDR + Full Audio out (extract HDMI/ARC/eARC) + Ambient Light + LAG Tester.

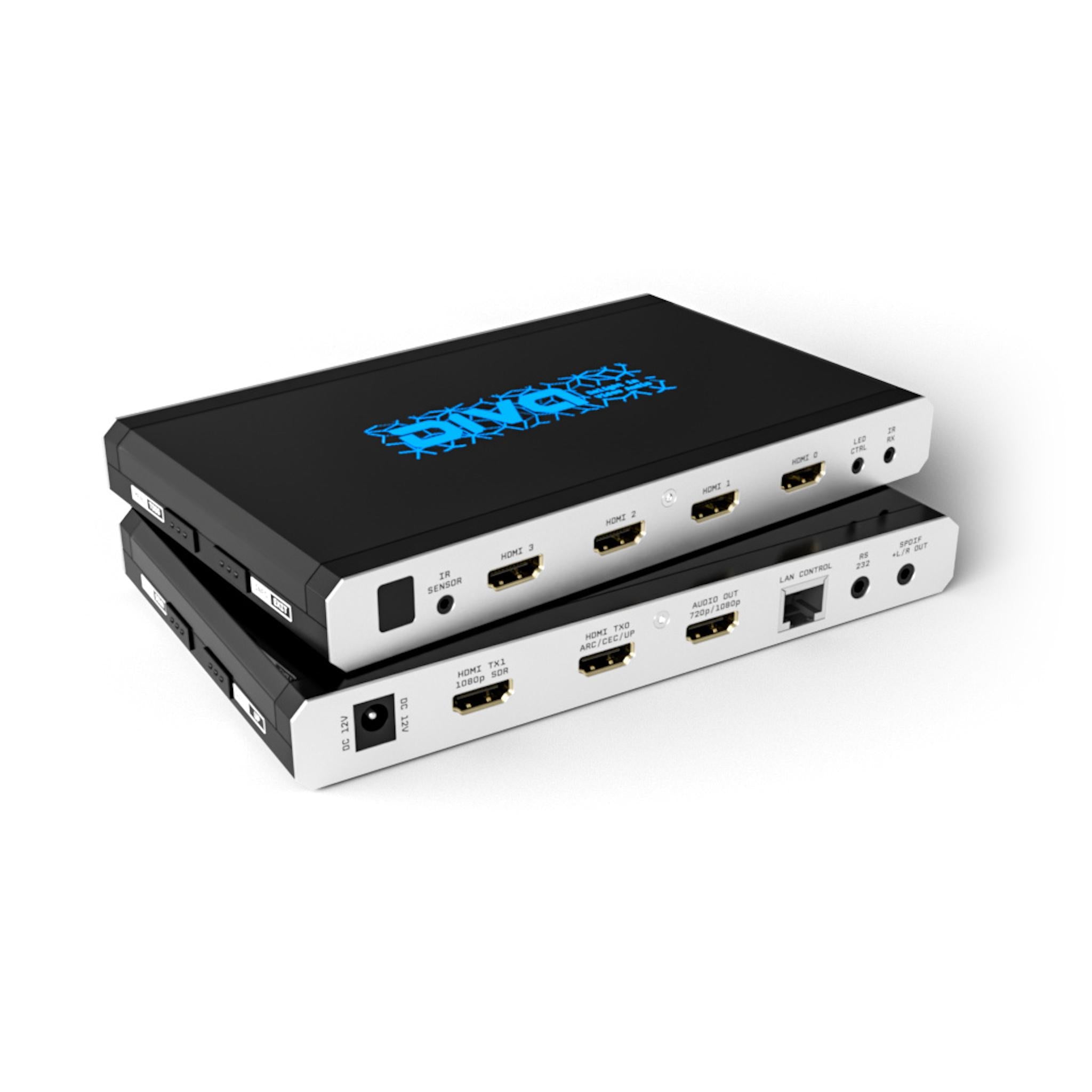

Hardware-wise, the Diva central is featuring 4 HDMI inputs, 1 HDMI video output with scaling option, 1 HDR>SDR 1080p output and 1 dedicated HDMI full audio output at 720p or 1080p, LAN Control, RS232, L/R stereo or Optical 5.1 output, Led Control, IR RX, IR/Light sensor, IR window, OLED display and 4 buttons on the side allowing to enter/exit and perform change in the device system menu.

All inputs are capable of 4K HDR/HLG/DV/LLDV/HDR10+ up to 18Gbps for video and support any sound format in existence today, HDMI TX0 video output is capable of outputting 18Gbps and all sound formats as well.

Diva is always running in a Matrix/Scaler mode ensuring your setup remains optimized at its best capabilities.

Optionally, you can add ambient light solution up to 4K HDR/LLDV available in 6 different length to match your display size.

Software-wise, Diva provides you full control via the embedded and brand new HDfury web-server ! The need of a dedicated computer with special driver to run configuration software or update is now a thing of the past !

You can use any web browser based device such as any computer or smartphone to access, control and update Diva Central, the process is as easy as visiting a web page.

HDFury went further than anything they have ever made and full filled Diva with revisited and improved HDR management features. They also added some new features never seen before such as TMDS switching for all inputs which allow to auto-switch sources such as ATV4K, X1X or Shield that no other switch on the market are able to auto-switch.

World First eARC HDMI2.1 breakthrough: Diva now support ARC and eARC sound extraction from TV for up to Atmos high bit rate over TrueHD forwarded to any AVR input via Diva HDMI audio output (ARC-Key feature) !

All HDfury legacy features remain present, each input EDID can be set individually from a list of 100 EDID, HDCP conversion, Scaling and signal operations such as Chroma/Colour depth/Colour space, PJ&Display macro, Info-frames modes, CEC command, ARC, HTPC mode, special modes, sound extraction and more.

All setup informations are visible at first sight via OLED, On Screen Display or Webserver.

Diva is the smart solution and converter for interoperability between any HDMI revision equipment, for content creators, calibrators, streamers, digital entertainment centres, UHDTV retail, show sites, data centres, schools, conference or home cinema and much more.

HDMI revision

HDMI 2.0b (Level A) 600Mcsc – 18Gbps

Diva Support

600MHz/18Gbps HDR, HDR10+, HLG, DV & LLDV, eARC, ALLM, IMAX

Max Resolution

4K60 4:4:4 8b, 4K60 4:2:2 12b, 4K120 4:2:0 8b or 8K30 4:2:0 8b

TOTAL I/O

4 HDMI In, 3 HDMI Out, 1 RJ45, 2 IR, 1 RS232, 1 Analog Jack & Optical Out.

Upscale port TX0

FHD 1080p & 2K to UHD 2160p & 4K/DCI

Downscale port TX1

UHD/HDR 2160p & 4K/DCI to FHD/SDR 1080p & 2K

Full Audio port

Full HDMI/ARC/eARC Audio extraction via 720p/1080p self generated stream to feed any AVR input

TMDS Switching

Autoswitch support for ATV4K, X1X and others sources continuously sending +5V

Signal Conversion

Resolution, Chroma Subsampling, Color Space, Color Depth, HDCP, HDR>SDR Tone Mapping

HDCP Conversion

Any HDCP to any HDCP with CST1 support

Operating Modes

18Gbps Matrix, Scaler, Splitter & Switcher with CEC, eARC, ARC and EDID management

Special Modes

CEC Command, HTPC, Disable or replace HDR/HLG, HDMI Doctor, RS232 Macro, upload eARC CDS

EDID Modes

10 EDID Flags, 5 EDID Algo, 100 EDID Banks (10 custom)

Infoframe Modes

  • Capture, edit, create, block or replace HDR/HLG metadata, AVI & VSIF.
  • Read SPD, Audio, HDMI Vendor, HDMI Forum

Control Modes

New HDfury Webserver, IP, IR, RS232 for Linux/MAC/Win or push buttons

Ledstrips Length

56x PCH 12b Leds with:

  • 2cm gap for 21-25″ (H:24cm/9.5″ – W:40cm/15.5″)
  • 3cm gap for 27-35″ (H:34cm/13.5″ – W:60cm/23.5″)
  • 4cm gap for 38-50″ (H:46cm/18″ – W:79cm/31″)
  • 6cm gap for 55″ (H:67cm/26.5″, W:117cm/46″)
  • 7cm gap for 60-65″ (H:76cm/30″, W:132cm/52″)
  • 8cm gap for 70-85″ (H:84cm/33″, W:154cm/60.5″)
  • It is recommended to select a kit at least 5cm or 2″ less than your display dimension.

More led strip kit options with up to 112 LEDs are available here.

Input LAG Tester:

Accurate HDMI/HDCP up to 4K HDR input lag measurements.

On Screen Display:

Editable with custom text and mask. (cover TV channel logo)

Oled:

3.12″ Diagonal, 256×64, 16 blue colors

Diva Dimension:

4.5″L x 7.3″W x 0.9″H – in CM: 11.5 x 18.5 x 2.4

Diva Weight:

520g – 1.15 LBS

Input Lag:

<1ms (nanoseconds count)

Other info:

3D Support, CEC Pass Through, DSD, eARC (HDMI2.1)
