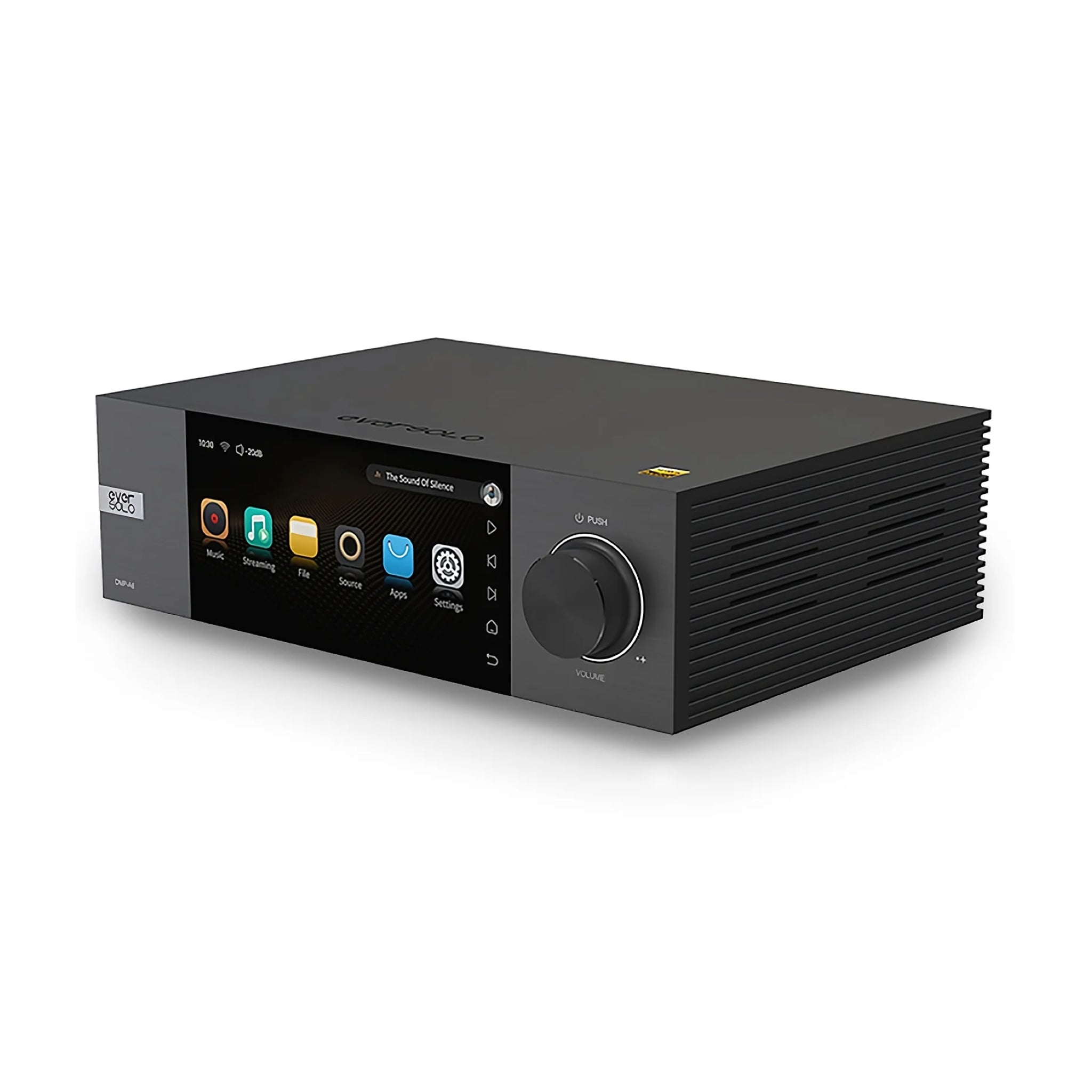

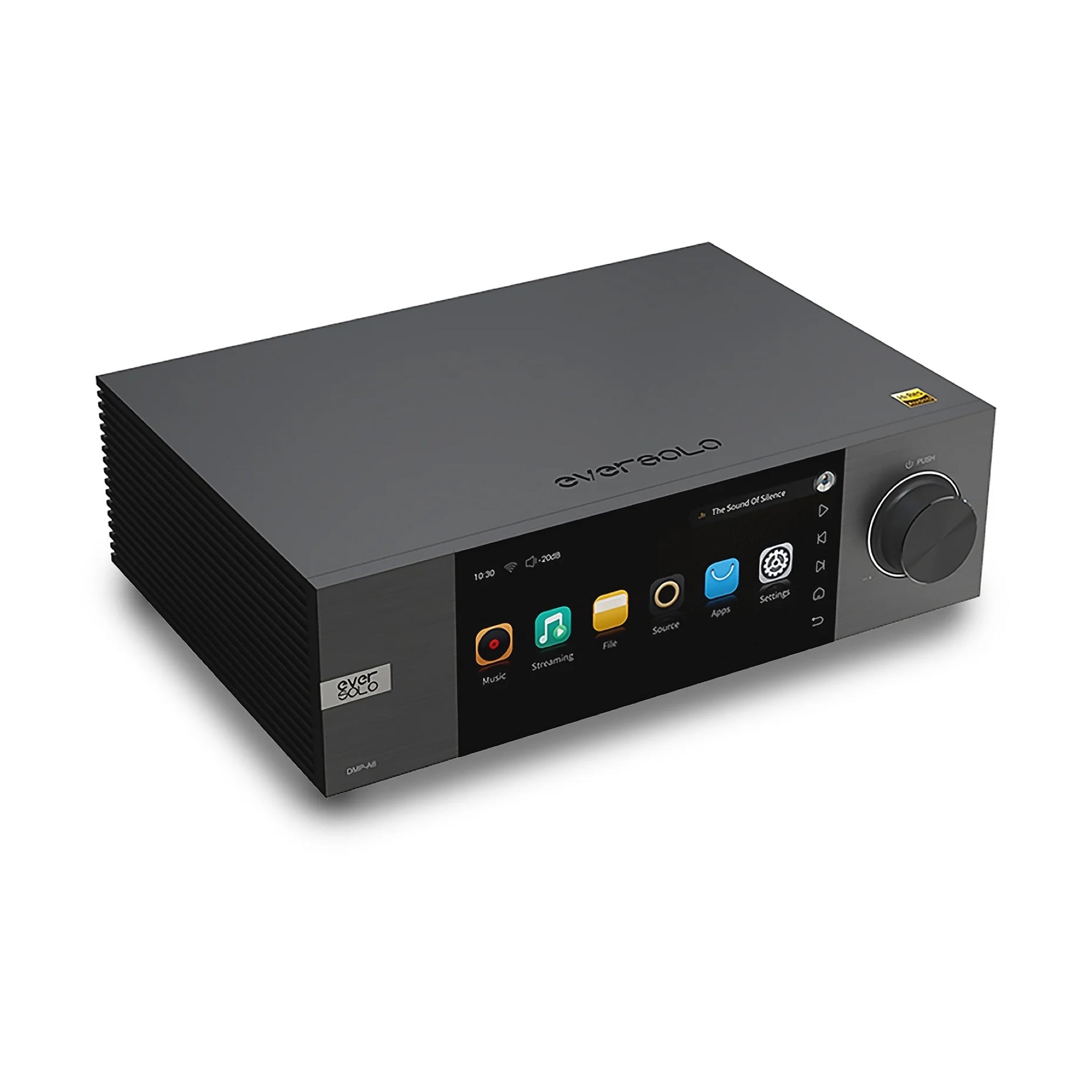

Eversolo DMP-A6 - Music Streamer

With years of development, DMP-A6 has reformed traditional streamers by solving pain points across the industry, it implies the beginning of a new epoch. DMP-A6 is an all-in-one player, with quad-core processor and large memory, tailored for lossless music playback. Rich digital input and output ports, HDMI DSD multi-channel output, dual ESS9038Q2M professional DAC, fully balanced differential circuit and professional audio tuning, all of them contribute to the superior performance of DMP-A6. Unprecedented experience is offered to music lovers with music streaming services, local music management, mobile APP and exclusive control system.

EOS (Eversolo original sampling -rate audio engine) is developed by Eversolo engi- neers, with the support of outputting original sampling rate, that is, audio playback completely bypasses the Android SC restriction, supporting the Direct audio output of third-party apps (Apple Music hi-res Direct output).

Almost all ultra-high sampling master recording formats are supported by DMP-A6, including CD-quality formats (FLAC, WAV, APE), DSD512 (.dsf/.dff/.iso/.dst) stereo/multichannel and MQA etc.

Almost all ultra-high sampling master recording formats are supported by DMP-A6, including CD-quality formats (FLAC, WAV, APE), DSD512 (.dsf/.dff/.iso/.dst) stereo/multichannel and MQA etc.

Equipped with a large 6" LCD high-definition touchscreen, DMP-A6 has a professional streamer system, simple but exquisite user interface, as well as on-screen intuitive touch controls for system settings, local music library and third-party apps, it runs smoothly as a mobile phone.

As a multi-channel streamer, DMP-A6 adopts DOH processing chips for HDMI audio especially to play and output master DSD music. Except for the support of DSD Native multi-channel raw output and D2P output (PCM multi-channel output) decoding, it also provides regenerated high-precision independent clock for HDMI. So that it can also be used as a digital turntable.

A M.2 NVME 3.0 2280 SSD slot is built in to install SSD without removing the cover, the maximum storage is 4TB. Faster, stable and no noise, it is the key for local
high-quality music playback.

The DMP-A6 is equipped with a low-noise regulated switching power supply module and several dedicated audio capacitors with less ripple and interference. Choke filter circuit is specifically made for AC input, reducing high-frequency line noise in the region of 100 KHz to 5 MHz, ensuring cleaner power, a softer background noise, and clearer musical details.

DMP-A6 can be used as a digital turntable to connect with various high-end decoding devices by digital output ports including HDMI, USB, Optical and Coaxial. As a decoder, DMP-A6 can connect with audio source equipment like PC and mobile devices by Coaxial, Optical, Type-C inputs and APT HD Bluetooth. XLR and RCA outputs are to connect with active speakers or power amplifiers.

With 3rd generation XMOS 316 audio processor, DMP-A6 has faster speed and higher USB bandwidth, ensuring the lossless transmission of high-definition audio data. USB port supports DSD512 Native, PCM768@32bit and MQA full decoding. Optical and Coaxial ports support DSD 64 (DoP), PCM 192@24Bit.

Low-jitter high-precision dual clocks are designed for DMP-A6. Two high-precision crystal oscillators (45.1584MHz and 49.152MHz) respectively correspond to 44.1 kHz and 48KHz multiplied sampling, effectively reducing jitter and achieving
more precise audio decoding.

DMP-A6 analog circuit adopts fully balanced design from DAC chip to the XLR and RCA stereo output. It provides better noise immunity, improves channel separation by eliminating shared loops for stronger and more consistent signal quality.

2x ES 9038Q2M are used to establish Double Differential Quadruple Converter for DMP-A6 DAC decoding. Two DAC chips correspond to two channels for D/A conversion output independently. So that it effectively avoids the interference between channels, reduces the background noise, obtains better signal-to-noise ratio, and greatly improves the dynamic range and other audio indicators. Supporting DSD512, PCM768@32bit, and MQA hard decoding.

Sound quality of DMP-A6 analog output is monitor-level. The primary elements of the audio circuit are excellent, including WIMA capacitors from Germany, NICHCON dedicated audio capacitors, Murata chip capacitor and Omron relays from Japan, TI Audio Operational Amplifiers from the USA etc. The goal is to provide more authentic and pure sound performance.

The DMP-A6 has been expertly tuned, and the circuit has been thoughtfully con- structed, thanks to the wealth of knowledge from engineers at Eversolo who have been actively involved in the audio industry for many years. THD+N is -120 dB (0.00009%), SR is 128 dB and dynamic range is 128 dB. The leading indicators provide a strong base for high sound quality.

The Qualcomm QCC5125 Bluetooth audio receiving module used by the DMP-A6
supports BC/AAC/apt×/apt LL/apt HD/LDAC and is compatible with Bluetooth 5.0. Connecting with mobile phones, tablets, and laptops via Bluetooth allows for
simple music playback and CD-quality sound DMP-A6 includes MQA (Master Quality Authenticated) technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording.

The DMP-A6 incorporates popular music services like TIDAL, Qobuz, HIGHRESAUDIO, Amazon music etc. You can take advantage of numerous high-quality online music services and revel in the allure of limitless streaming music. Roon Ready, Tidal Connect, DNA are supported by the DMP-A6. High quality music can be streamed online to mobile devices in the same LAN, make it simpler to enjoy online music services and easier to play back music at home.

DMP-A6 not only has two high-speed USB 3.0 ports, an SSD slot for local storage expansion, but also supports NFS, SMB v1/v2/v3, and UnP sharing protocols, allowing users to browse and play multimedia content saved on NAS or network drives connected in the same LAN with gigabit network. Even high data rate DSD512 master files can be played without stuttering.

FEATURES

• Solid aluminium alloy chassis, brushed panel.
• Quad-core ARM Cortex-A55 professional processor.
• 6" large LCD colour touchscreen, easy control.
• Based on Android 11, deeply tailored system.
• 4GDDR+32GeMMC large memory for masses of applications.
• Support M.2 NVME 3.0 SSD (not included), up to 4TB.
• 2xES9038Q2M DAC for independent stereo decoding.
• Support DSD512 Native, PCM768KHz@32Bit, MQA full decoding.
• The 3rd generation XU316 for higher performance and processing speed.
• Low-jitter dual clock synchronous processing with higher accuracy.
• Fully balanced circuit, XLR balanced and RCA single-ended hi-fi pre-out.
• 2x DOH chips, support HDMI DSD Native and D2P multi-channel output(Up to 5.1).
• Qualcomm QCC5125 Bluetooth 5.0 module with APTX HD.
• Low noise, high quality power supply, providing pure power source for audio circuits.
• Support mastering audio formats DSD (.dsf/.dff/.iso/.dst), APE, FLAC, WAV, MQA, etc.
• Support 2-channel and Multi-channel Gapless playback(FLAC,WAV)
• Personalised music management, lyric matching and music data matching.
• EOS audio engine developed by Eversolo, globally bypassing SRC restrictions.
• Support Direct audio in 3rd party APPs (Apple Music hi-res direct output).
• Full decoding and rendering support for MQA on Optical, Coaxial and USB input etc.
• Support USB, Optical, Coaxial, HDMI digital audio Bit-perfect output.
• Support external USB optical drive for CD disc playback and CD ripping.
• Music services Tidal, Qobuz, Highresaudio, Amazon etc.
• Support Roon ready, Tidal Connect, etc.
• Support music playback from DLNA.
• Support NFS, SMB, Web DAV, UPnP protocols to access storage devices shared in the LAN.
• Support built-in SMB network media sharing service for easy local media sharing.
• Exclusive mobile APP for Android/IOS mobile phones and tablets.
