Emotiva XPA-7 Gen3 - 7 Channel Power Amplifier

Sale priceRs. 350,000

Includes GST of Rs. 53,390


Ever wondered why speakers, amplifiers, projectors etc. come with a slightly heftier price tag in India compared to their overseas counterparts? Well, part of the answer lies in our country's Goods & Services Tax (GST).

But here's the kicker: Don't let that GST input slip through your fingers! Especially when some of the products we supply carry a GST rate of 18% and 28%.

At AVStore, we provide you with a GST compliant invoice for every purchase.

Simply put in your GST number during the checkout to avail an offset.

  • Description
  • Specifications
  • Reviews

XPA-7 Gen3

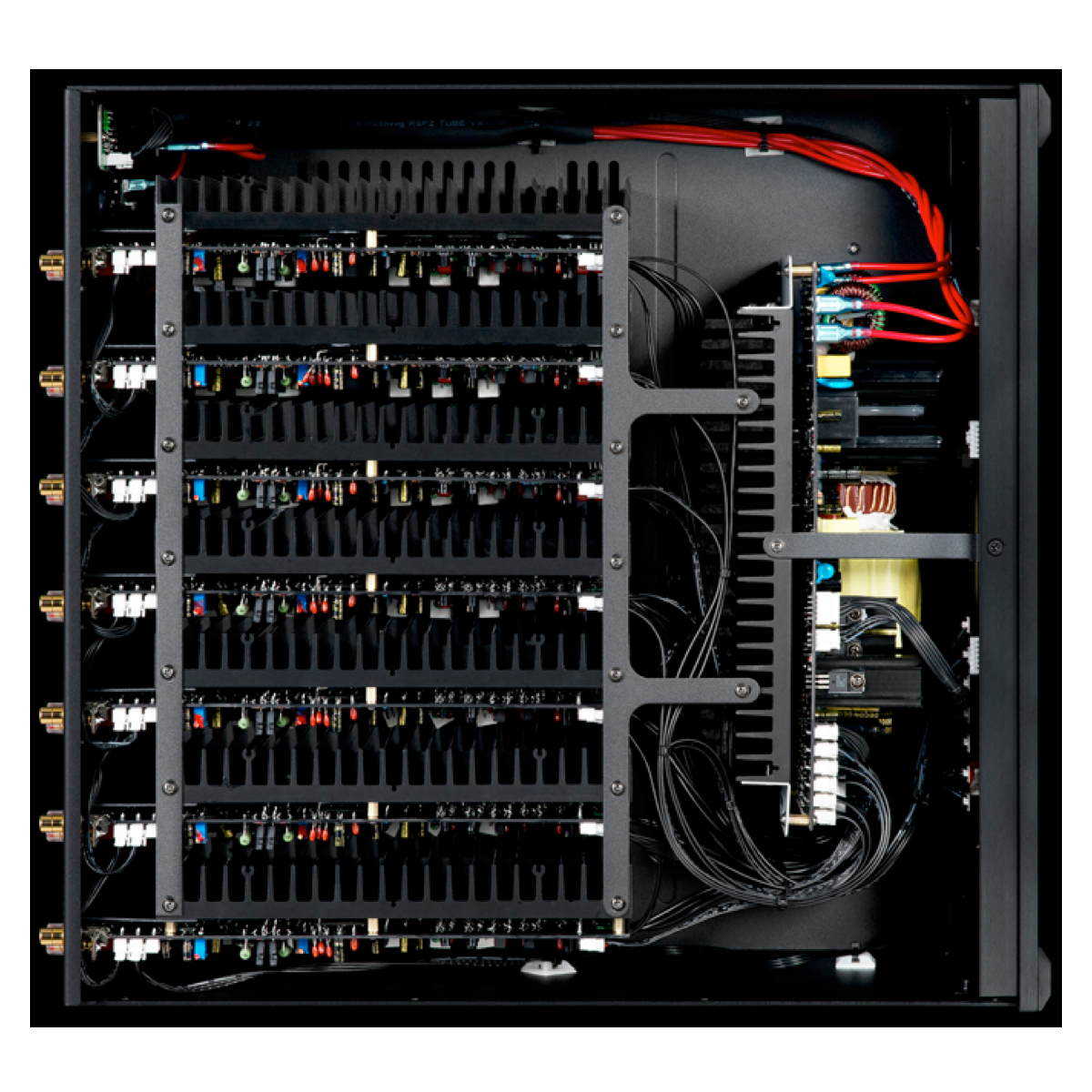

The power amplifier performs the simple but critical job of boosting the output signals from each channel of your stereo preamp or surround sound processor to the level necessary to drive your loudspeakers. While this may seem trivial, a really good power amp is essential to having a great audio system, because any flaws in the performance of your power amp are going to limit the performance of your entire system. Every amplifier in the new Third Generation XPA series was carefully designed to deliver superb technical performance, unsurpassed sound quality, and an exceptionally accurate and dynamic rendition of all types of music, thus ensuring that your entire system will sound its absolute best. Each individual XPA amplifier is modular, and can be customized to provide exactly the power and number of channels you need today, and expanded later if your needs change; and multiple matching chassis enable you to add even more channels, or more power, for a near endless variety of options.

The new XPA-7 is a seven-channel audiophile quality power amplifier, and is perfect for powering:

  • All 7 main channels in a superb 7.1 channel home theater system
  • A high-end 5.1 channel system with bi-amped front speakers
  • The 7 main channels in an Atmos or DTS-X system with height speakers

Configuration: 7 x High-Powered Single-Channel Modules (all slots populated)

Power output:

  • 200 watts/channel RMS into 8 Ohms; all channels driven
  • 300 watts/channel RMS into 8 Ohms; two channels driven
  • 490 watts/channel RMS into 4 Ohms; two channels driven

      Regulated Switch Mode Power Supply (SMPS)

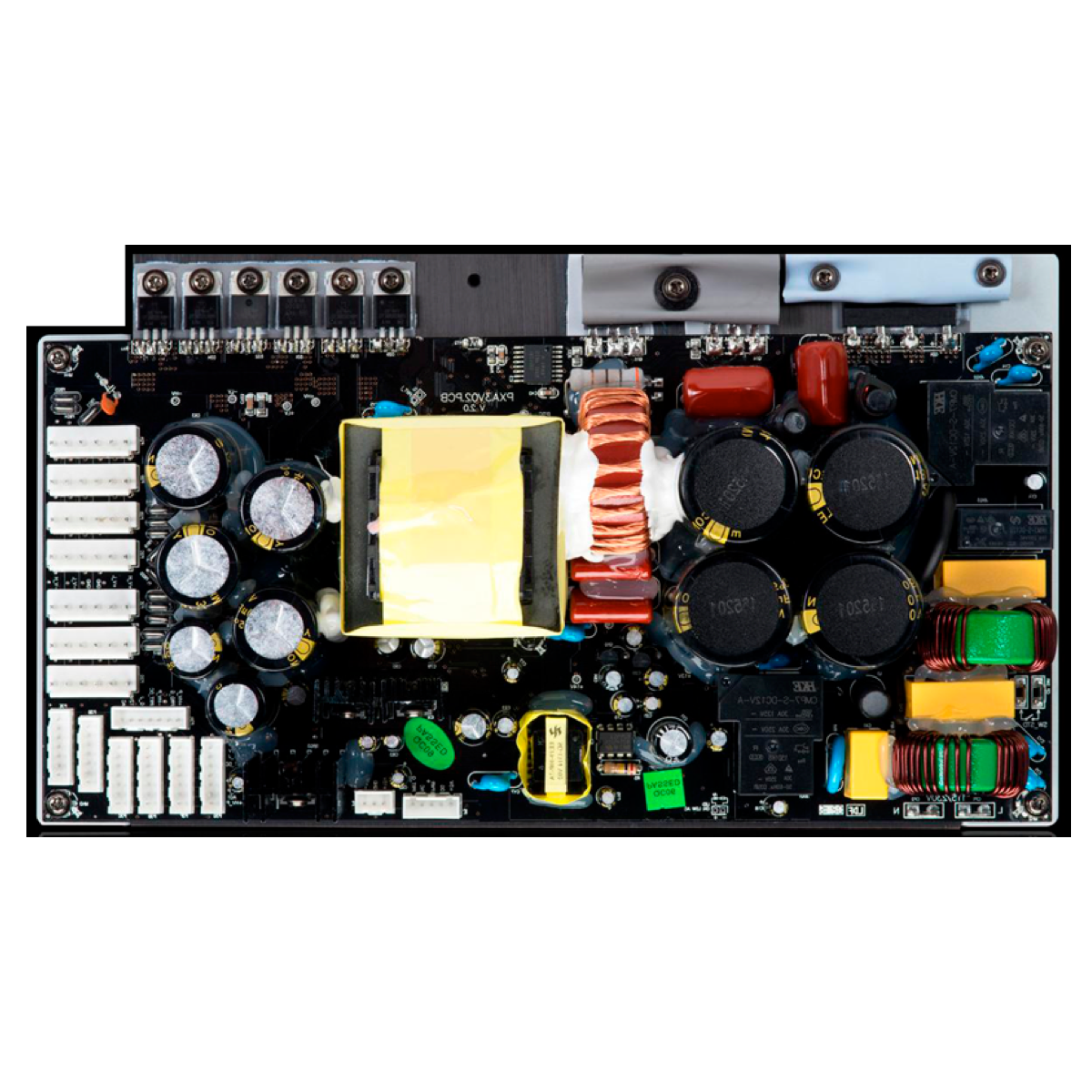

      One of the design enhancements shared by all of Emotiva’s new XPA power amplifiers is their new, specially designed, high current, switch mode power supply (SMPS). Emotiva’s powerful, intelligent new power supply offers all of the benefits of a classic transformer-based design, but avoids virtually all of the limitations. It can deliver over 3 kW of fully regulated power, which ensures optimum performance under a wide range of load conditions, and plenty of dynamic power to ensure that musical peaks will never be compressed or limited. However, it’s also more efficient, more reliable, and much lighter.

      Class A/B Sound Quality Meets Optimized Class H Efficiency

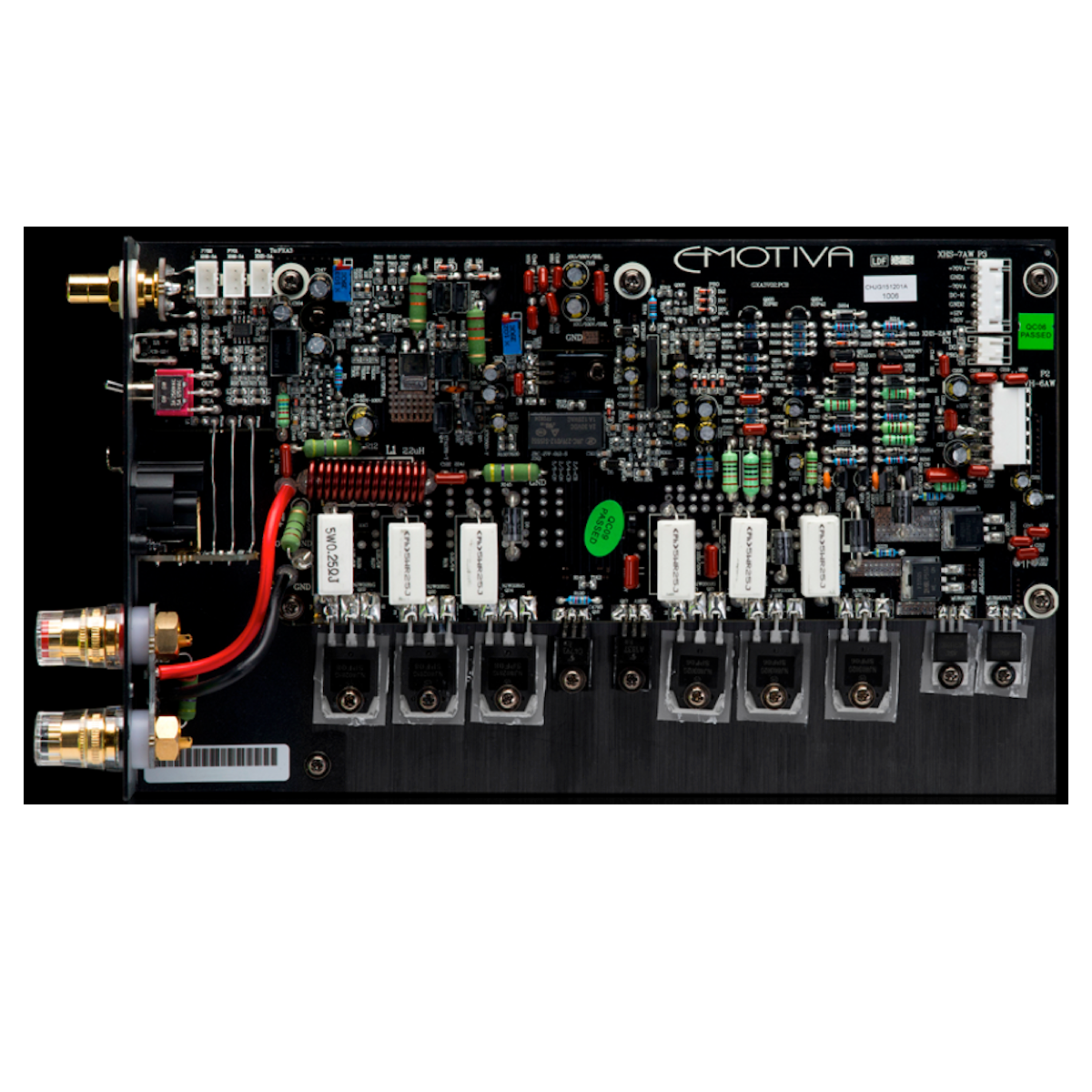

      The High-Powered Single Channel Modules used in the XPA-7 utilize a fully analog Class A/B output stage, and Emotiva’s highly regarded Soft-Switch™ Optimized Class H power supply topology, which increases their efficiency significantly without compromising their superb Class A/B performance and sound quality. At low power levels, each channel operates on a relatively low supply voltage, to minimize quiescent power consumption and standby power losses. Then, when the demand for power increases, it instantly and seamlessly switches to a higher voltage rail to ensure that the signal passes cleanly and without clipping. This process happens on a continuous basis - in real time, allowing greater overall efficiency, cooler operation, longer component life, reduced power consumption, and increased reliability.


      • Audiophile-grade fault protection is entirely transparent under normal listening conditions, yet protects the amp and your other equipment from virtually all common faults.
      • The XPA-7 Gen3 is protected from AC line faults by a rugged resettable rear panel push-button circuit breaker.
      • Full five-year warranty ensures that you’ll be able to enjoy your XPA-7 Gen3 amplifier for years to come.

      Power Output

      • 300 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven
      • 550 watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven
      • 300 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven
      • 490 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven
      • 200 watts RMS/channel; THD<0.1%; 8 Ohms; ALL SEVEN channels driven

      Power Bandwidth (at rated power; 8 Ohm load)

      20 Hz to 20 kHz (+ / – 0.1 dB)

      Broad Band Frequency Response

      5 Hz to 80 kHz +0/-2 dB

      THD + noise:

      < 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms

      Signal to Noise Ratio (8 Ohm load)

      > 117 dB; ref FTC rated power; unbalanced input (A-weighted). > 91 dB; ref 1 watt; unbalanced input (A-weighted)

      Minimum Recommended Load Impedance (per channel)

      4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads)

      Damping Factor (8 Ohm load)

      > 500

      Input Sensitivity (for rated power; 8 Ohm load)

      1.5 V


      29 dB

      Input Impedance

      • 33 kOhms (balanced)
      • 23.5 kOhms (unbalanced)

      Input Connections (High-Powered Single Channel Modules)

      Unbalanced (RCA); balanced (XLR); one each per channel, independently selectable

      Input Connections (Stereo Modules)

      2 Unbalanced (RCA); 2 balanced (XLR); two per channel, independently selectable

      Speaker Output Connections

      Audiophile grade, gold plated, 5-way binding posts


      • Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required
      • Trigger Output: 12 VDC; can drive any load up to 120 mA.


      push button (halo ring changes color to indicate Standby or On)

      Status LEDs

      one per channel; blue. Status LEDs change to red to indicate a fault condition

      AC Power switch

      rocker switch (switches AC main power)

      Status LEDs switch

      disables front panel Status LEDs and dims Standby button halo

      Input selector switches (one per channel)

      metal toggle switches; select between balanced and unbalanced inputs

      Circuit Breaker

      press button to reset circuit breaker


      The XPA Gen3 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.


      • 17” wide x 8” high x 19” deep (unboxed; including feet)
      • 17” wide x 7” high x 19” deep (unboxed; without feet)
      • 24-1/2” wide x 12” high x 24-3/4” deep (boxed)


      • 53 lbs (unboxed)
      • 58 lbs (boxed)
