EMOTIVA X SERIES STEALTH PA-1

BALANCED CLASS-D MONOBLOCK POWER AMPLIFIER

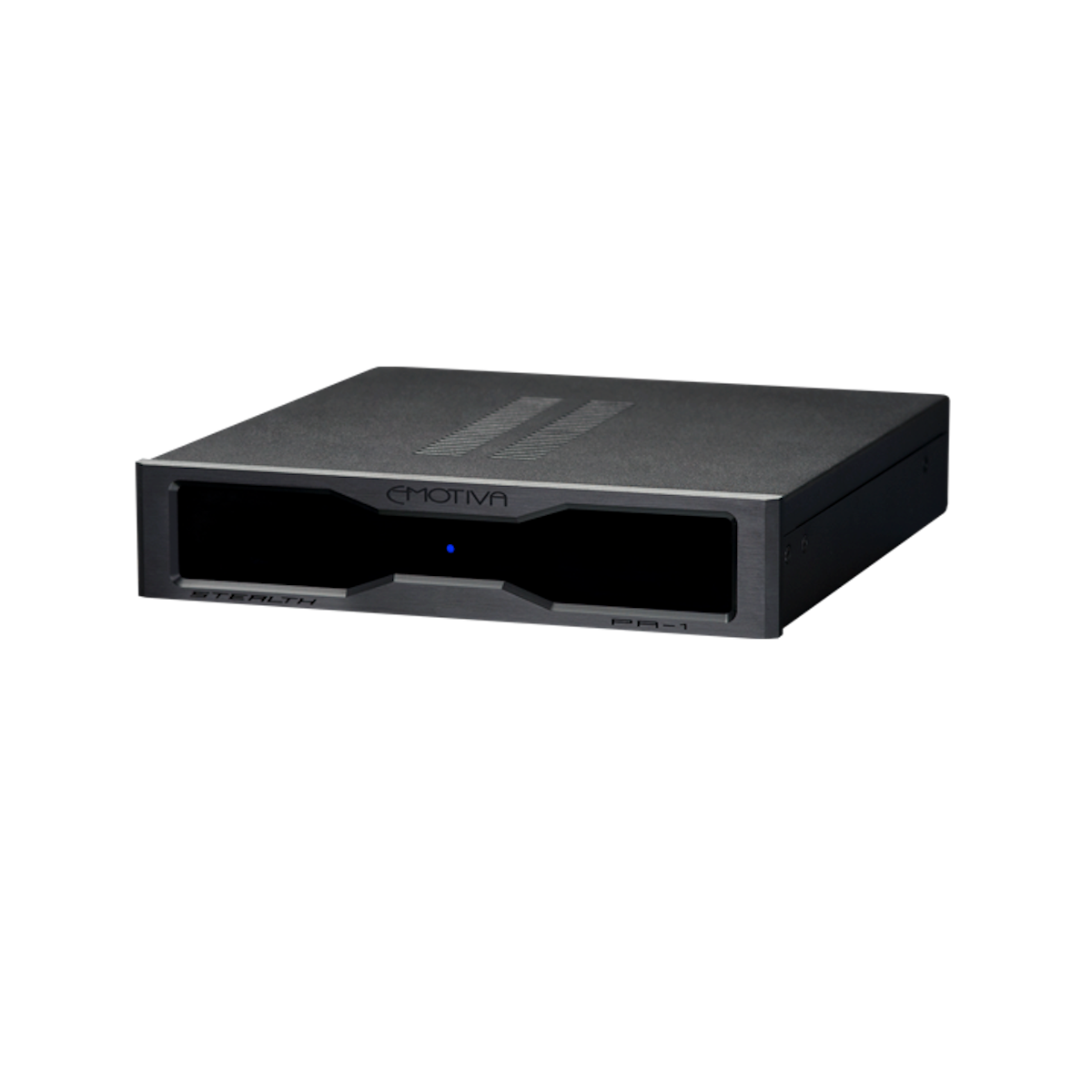

The X Series Stealth PA-1 is a high performance balanced Class-D monoblock power amplifier. The PA-1 combines compact size, high efficiency, and excellent sound quality in a single convenient package.

The X Series Stealth PA-1 is a high performance balanced Class-D monoblock power amplifier. The PA-1 combines compact size, high efficiency, and excellent sound quality in a single convenient package.

The Stealth PA-1 is the ideal solution anywhere a small great sounding monoblock power amplifier is needed. Use one to power a center channel speaker, use a full set to power your entire home theater system, or use several of them to add extra channels to your current audio system.  Each PA-1 delivers 140 watts RMS into 8 Ohms, or 300 watts RMS into 4 Ohms. They are cool running and only require minimal ventilation. Because it’s so small, the PA-1 monoblock fits conveniently on any shelf, and rack mount kits are available to mount a single PA-1, or a pair of them side by side, in a single 1U rack space.

Not only does the Stealth PA-1 sound great, but it’s also simple to configure and use. The PA-1 runs on any line voltage between 100 VAC and 264 VAC, accepts a balanced input using either an XLR or balanced 1/4” connector, and can be configured to remain on continuously or to automatically switch itself on when it detects an incoming audio signal. Comprehensive protection circuitry protects the PA-1 from a variety of faults, without intruding on the quality of your music during normal operation, and automatically resets itself once the fault is removed.

Stealth Series: Designed For The Studio; But Great For Studio Or Home

All of the components in the Emotiva X Series Stealth line were designed from the ground up with the demanding requirements of a professional recording studio in mind. All of the Stealth components incorporate the rugged construction, rock-solid engineering, and outstanding technical performance demanded by professionals. However, because they designed them to deliver true audiophile sound quality, they’re right at home in either a home studio or a high-end home theater or stereo audio system.

Stealth Quality

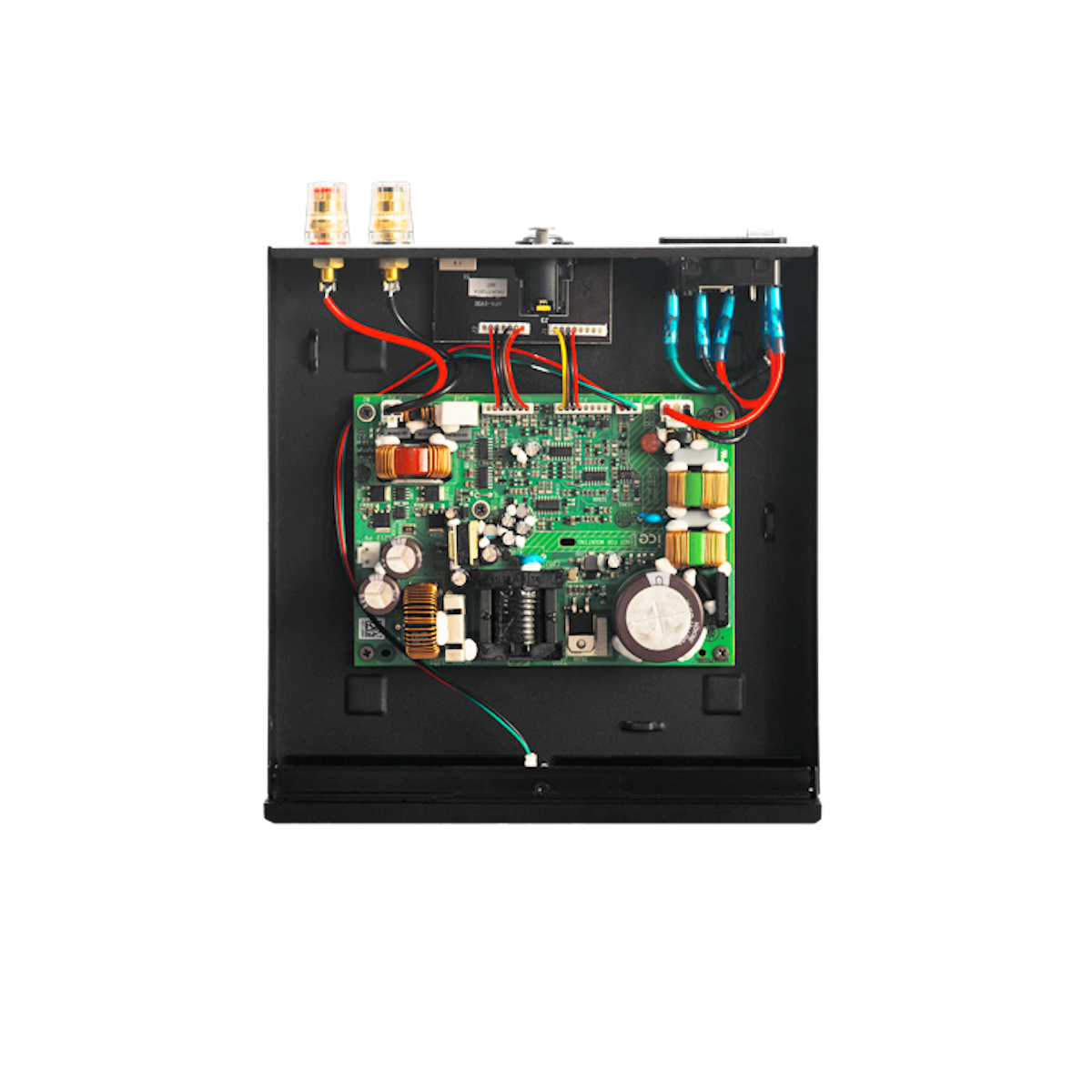

The Stealth PA-1 monoblock power amp is built to last, with a heavy duty steel chassis, solid milled aluminum faceplate, and high-quality parts and construction throughout. The high performance ICEpower module, which incorporates virtually all of the active circuitry in the PA-1, including the amplifier section and integral SMPS power supply, has a proven track record of performance and reliability. We expect you to enjoy your PA-1 for a long time – and we back that up with a full five-year warranty.

Designed and Assembled in the USA

All of Emotiva’s new PA-1 amplifiers are designed, assembled, and tested in the USA. Designing and assembling in the USA with globally sourced components gives us exceptional control over every facet of the design and production process, which helps them build the highest quality products for customers while minimizing unnecessary complications and production delays. Each Emotiva amplifier is carefully designed with premium components to deliver a stunningly capable, reliable, and refined system.

Channels

1

Output power

  • 140 watts RMS into 8 Ohms at 1 kHz at 1% THD;
  • 135 watts RMS into 8 Ohms at 0.1% THD.
  • 300 watts RMS into 4 Ohms at 1 kHz at 1% THD;
  • 270 watts RMS into 4 Ohms at 0.1% THD.
  • 450 watts RMS into 2.7 Ohms at 1 kHz at 1% THD

Input impedance

47k Ohms (balanced)

Voltage gain

28 dB

Full power bandwidth

20 Hz to 20 kHz

THD+N

0.005% at 1 kHz at 1 watt into 4 Ohms

S/N ratio

  • Referenced to 1 watt (A-weighted): 91 dB.
  • Referenced to full output (A-weighted): 112 dB.

Frequency response

20 Hz to 20 kHz +/- 1 dB (worst case; 4 Ohm load)

Damping factor

>500

Rated load

From 2.5 Ohms to 8 Ohms

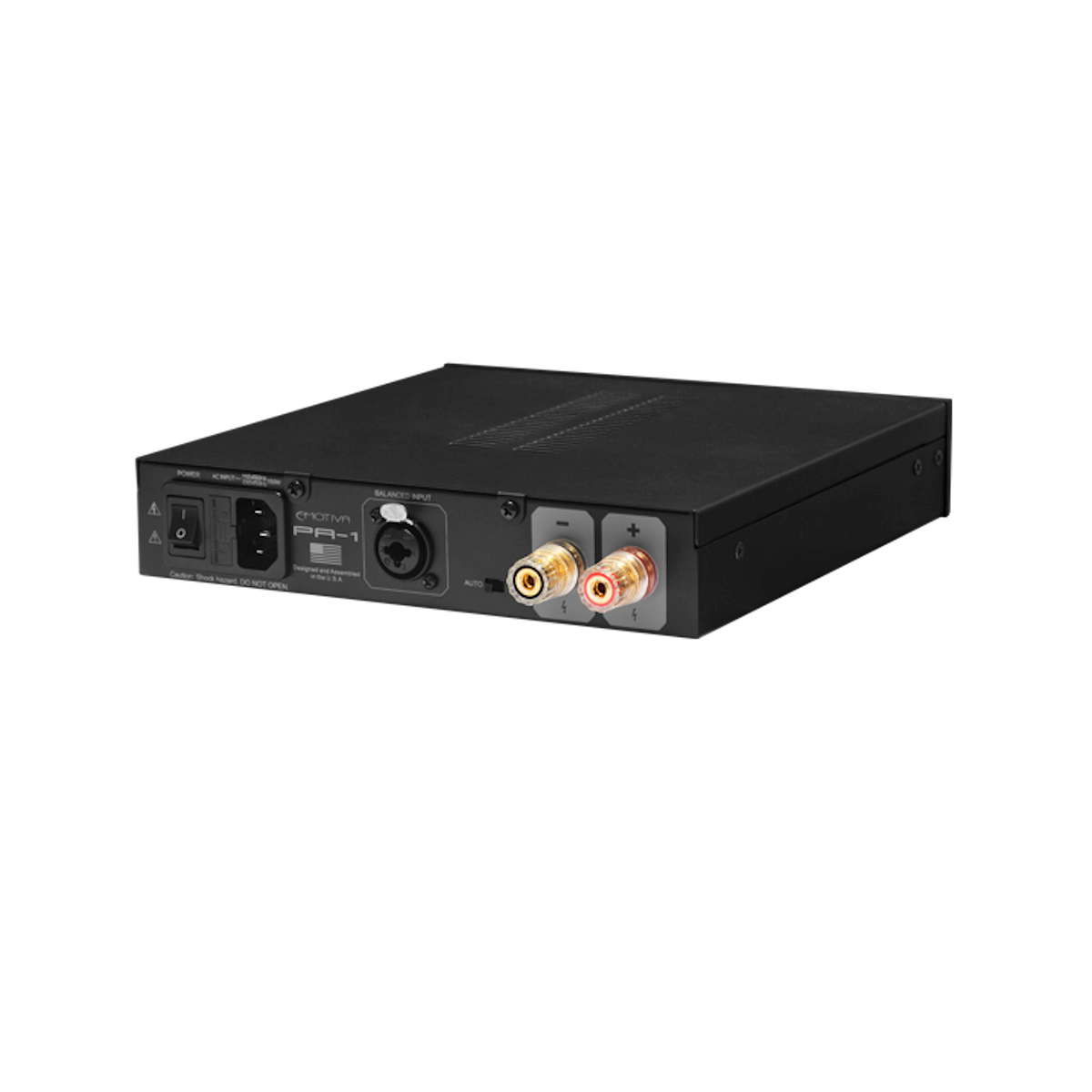

Input Connections

Balanced; (accepts XLR, balanced ¼”, unbalanced ¼”)

Speaker Output Connections

Audiophile grade 5-way binding posts

Trigger

The Stealth PA-1 can be configured to turn on when an audio signal is detected.

Dimensions

  • 8-1/2” wide x 1-7/8” high x 9” deep (unboxed, including feet, not including connectors).
  • 8-1/2” wide x 1-3/4” high x 9” deep (unboxed, without feet).

Weight

3 lbs (unboxed) 6 lbs (boxed)
