Emotiva TA-100 - Stereo Preamp/DAC/Tuner with Integrated Amplifier

Sale priceRs. 63,500
Sold out

TA-100

The BasX TA-100 combines the features and capabilities of an audiophile quality stereo preamplifier, a high-performance FM tuner, and a high-quality power amplifier – all in one convenient package. The preamp section includes line level analog inputs for a CD player or line-level source, a built-in USB DAC with plenty of digital inputs for your computer and other digital stereo sources, a high-quality phono preamp that supports both moving magnet and moving coil cartridges, and provisions for an optional high-quality AptX Bluetooth input module. The tuner offers full digital control, and 50 station presets. The fully complementary, all discrete Class A/B amplifier section delivers plenty of clean power to drive a pair of high-quality stereo speakers to satisfying listening levels; and the TA-100 includes line level outputs for a powered subwoofer, or for connecting an external power amplifier. The TA-100 can be operated via the simple front panel controls, or by the included infrared remote control. The intuitive menu system makes the TA-100 simple to configure and operate, and the big, easy to read, VFD display on the TA-100’s front panel shows you exactly what’s going on at all times.

BasX Performance

The BasX TA-100 offers the type of performance you might expect to find on expensive components costing many times its modest price. Unlike many other affordable audio components these days, the TA-100 delivers the superb sound and build quality you expect from a true high-end audiophile component. It has vanishingly low noise and distortion and features a wide-bandwidth design allowing you get the most out of your HD sources. Don’t be fooled by the conservative power ratings. Unlike the “throw-away” amplifiers you get in many low-powered receivers, the beefy fully complementary, all-discrete power amplifiers in the TA-100 have plenty of power reserves to drive all but the most inefficient speakers. Like all Emotiva amplifiers, they work very well with both 8 Ohm and 4 Ohm speakers.

BasX Quality

The BasX TA-100 is built to last, with a heavy-duty steel chassis, solid milled aluminum faceplate, and high-quality parts and construction… We expect you to enjoy your BasX TA-100 for a long time – and we back that up with a full three-year warranty.

FEATURES

Sound Quality First

  • Highly optimized circuit layout ensures the best possible sound quality, with low distortion, wide bandwidth, and a virtually silent noise floor.

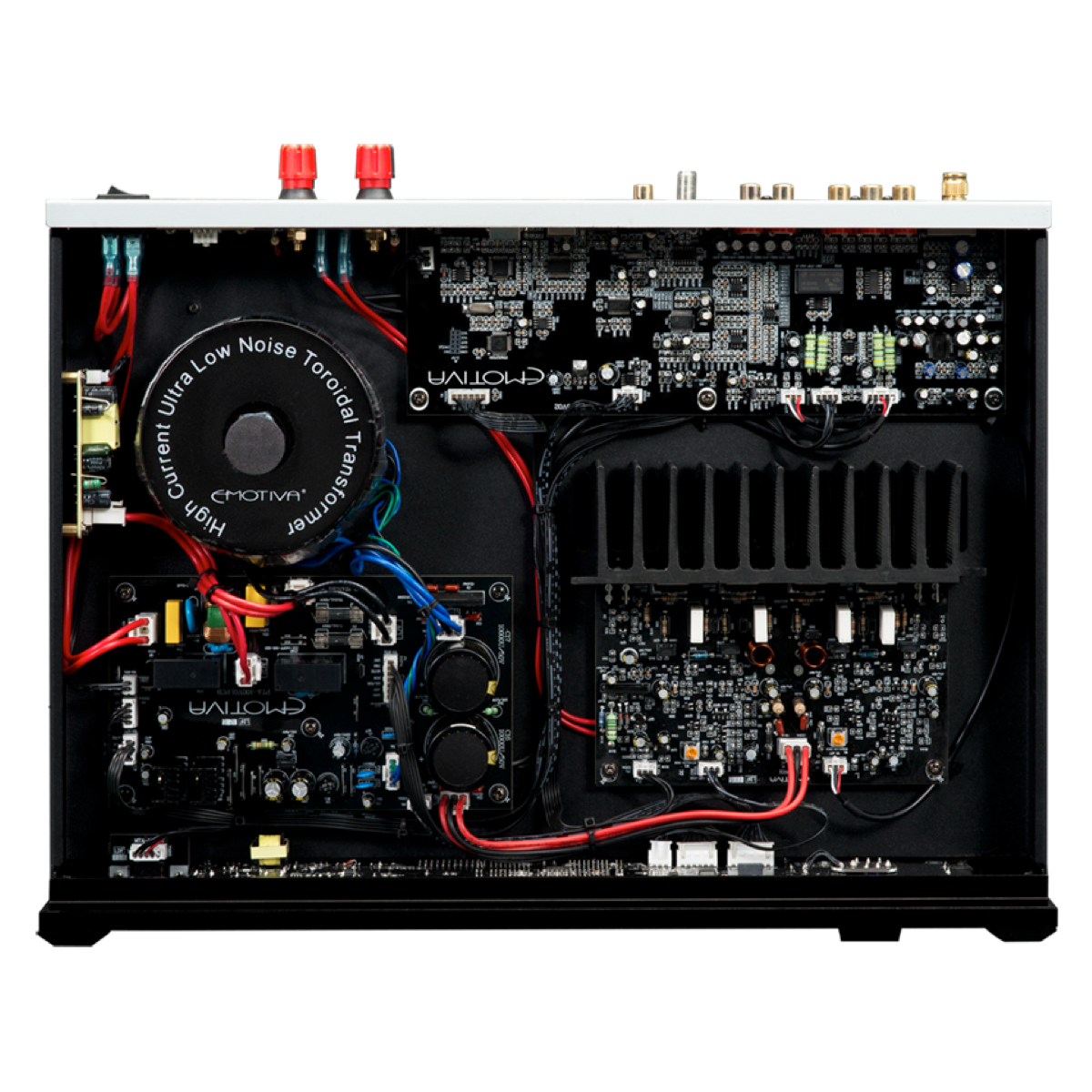

  • Audiophile quality, fully complementary, all discrete Class A/B amplifiers, with plenty of power to drive a pair of high quality stereo speakers to satisfying listening levels.

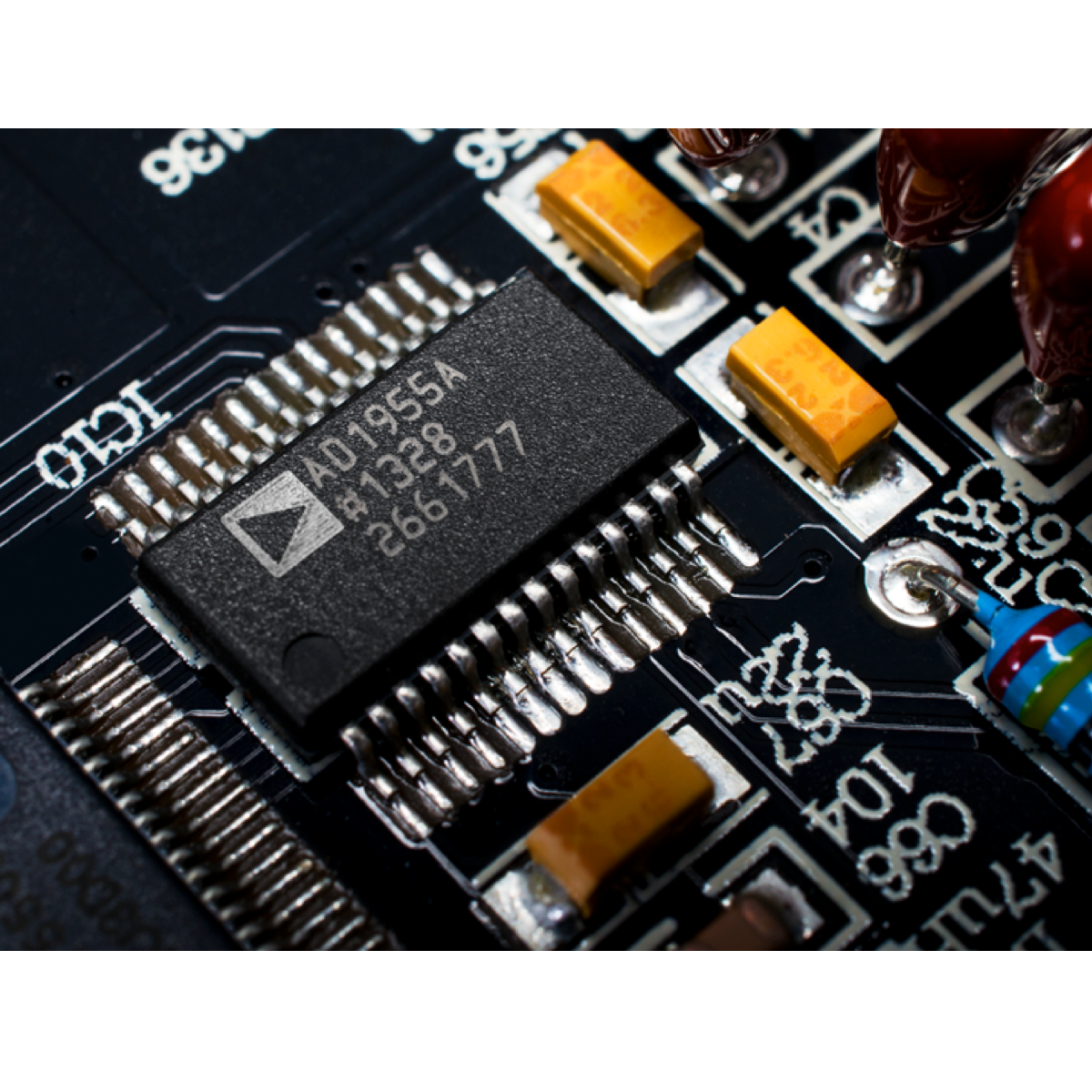

  • Precision digital conversion on all digital inputs is provided by the legendary Analog Devices AD1955 24/192 DAC.
  • Sensitive FM tuner, which features 50 station presets and a Mono mode to help make even weak stations listenable.

Flexible Input And Output Options

  • A full complement of analog inputs, including two line level inputs, and a high quality phono input that supports both moving coil and moving magnet cartridges.
  • A full complement of digital inputs, including one 24/96k USB input, 24/192 coax and optical S/PDIF inputs, and an optional Bluetooth receiver.
  • An independent, high current, direct coupled headphone amplifier provides a high quality signal to drive your favorite headphones for personal listening.
  • Line level main stereo outputs allow you use the TA-100 as a tuner/preamp with a separate stereo power amp.
  • In addition to the main stereo outputs, a separate pair of summed outputs are provided for connecting your favorite subwoofer.

Intelligent Display And Control Options

  • Bass and Treble controls provide a familiar way to adjust your system to sound just the way you like it.
  • VFD display provides a simple and easy to read display with 3 dimmable levels.
  • Our unique balance control simultaneously adjusts the levels of both channels so the overall sound level in your room remains constant.
  • The intelligent Mute control allows you to mute the audio output on your system, and then return precisely to your previous listening level.
  • Our intelligent headphone level control independently remembers the level you set for your headphones and your main outputs.
  • The included full function remote control lets you operate all the controls on the TA-100 without getting out of your favorite listening seat.
  • A flexible menu system makes the BasX TA-100 easy to configure and simple to operate.

Universal Line Voltage Operation

  • The BasX TA-100 is designed to operate on either 115 VAC or 230 VAC at 50/60 Hz, and automatically detect and configure itself to operate with your local line voltage.

Great Sound – Now And For Years To Come

  • full three year warranty ensures that you’ll be able to enjoy your BasX tuner/amplifier for years to come.

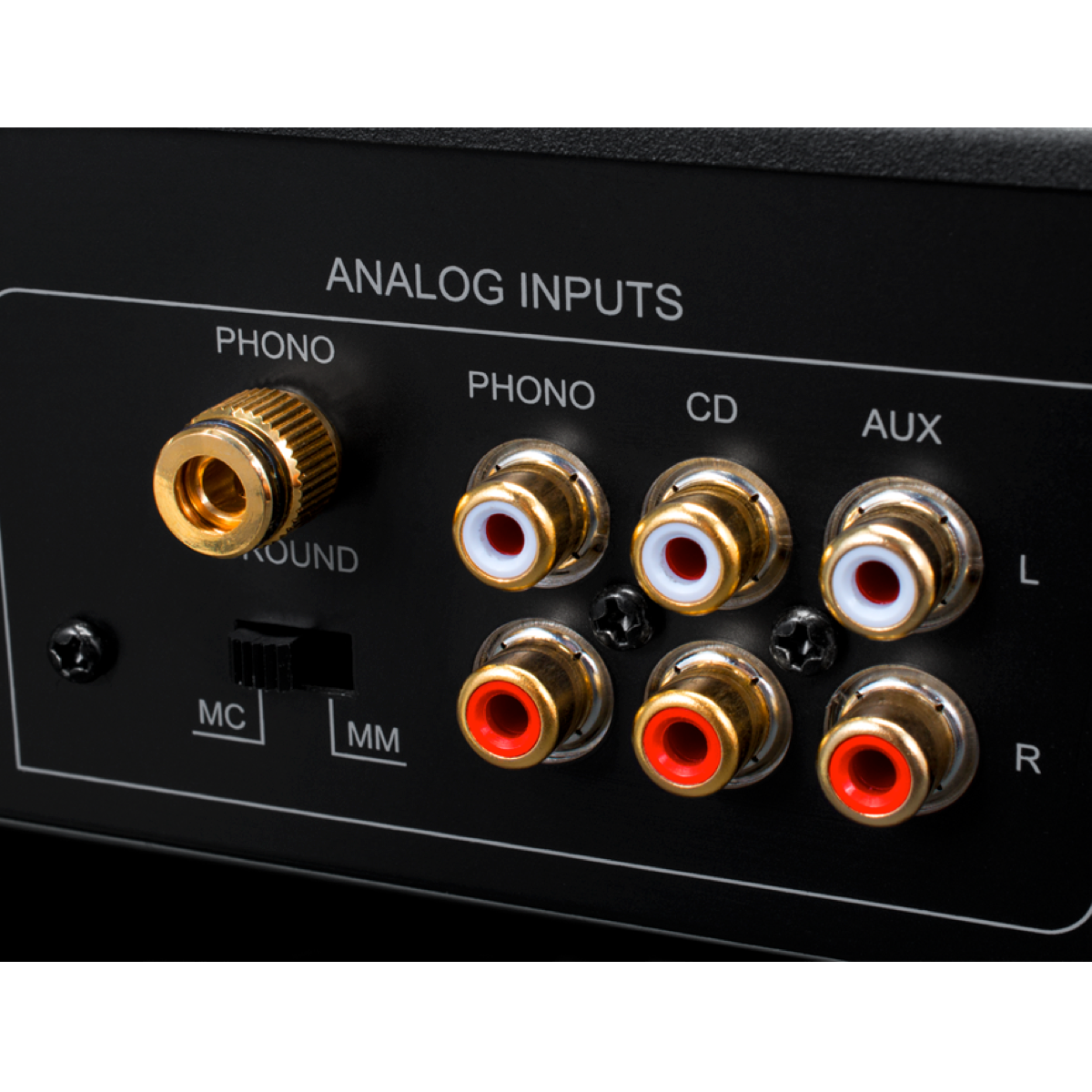

Analog Inputs

  • 2 pairs; stereo analog line level inputs (CD, Aux).
  • 1 pair; stereo phono inputs (switchable; moving magnet or moving coil).
  • 1 tuner; FM (with external antenna input; 50 station presets).

Digital Inputs

  • 1; digital coax (S/PDIF); 24/192k.
  • 1; digital optical (Toslink); 24/192k.
  • 1; digital USB (DAC input); 24/96k; no drivers required.
  • 1; Bluetooth receiver (requires optional AptX Bluetooth dongle).

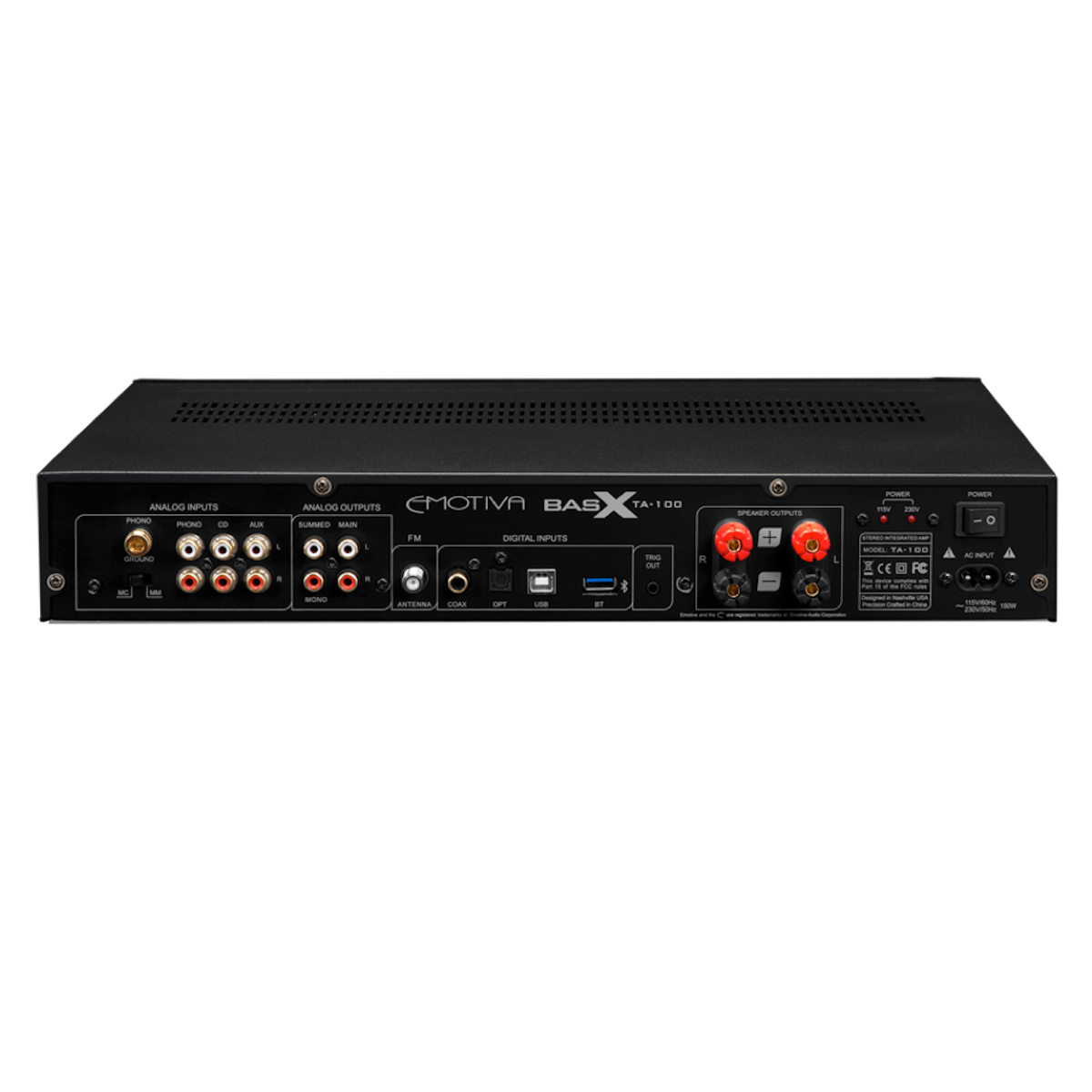

Outputs

  • 1 pair; main line level output; stereo, unbalanced.
  • 1 pair; speaker outputs; stereo, 5-way binding post.
  • 2; summed full range outputs (for connecting one or two subwoofers), unbalanced.
  • 1; stereo headphone output (front panel).

Analog Performance (line level)

  • Maximum output level: 4 VRMS.
  • Frequency response: 5 Hz to 50 kHz +/- 0.04 dB.
  • THD+noise: < 0.0015% (A-weighted).
  • IMD: < 0.004% (SMPTE).
  • S/N ratio: > 115 dB.
  • Crosstalk: < 90 dB.

Analog Performance (to speaker outputs; both channels driven)

Output Power:

  • 50 watts RMS per channel (20 Hz – 20 kHz; THD < 0.02%; into 8 Ohms)
  • 90 watts RMS per channel (1 kHz; THD < 1%; into 4 Ohms).

Power bandwidth:

  • 20 Hz to 20 kHz + 0 dB / – 0.25 dB (at rated power; into 8 Ohms).

Broadband frequency response:

  • 20 Hz to 80 kHz + 0 dB / – 3 dB.

THD+noise:

  • < 0.05% (A-weighted).

S/N ratio:

  • > 100 dB (A-weighted; ref full power)
  • > 85 dB (A-weighted; ref 1 watt).

Analog Performance (phono)

  • Frequency response (MM and MC): 20 Hz to 20 kHz; ref standard RIAA curve.
  • THD+noise: < 0.015% (MM; A-weighted), < 0.06% (MC; A-weighted).

S/N ratio: > 90 dB (MM), > 68 dB (MC).

Analog Performance (headphone)

Output Power:

  • 8 Ohms: 23 mW / channel.
  • 33 Ohms: 90 mW / channel.
  • 47 Ohms: 127 mW / channel.
  • 150 Ohms: 145 mW / channel.
  • 300 Ohms: 114 mW / channel.
  • 600 Ohms: 75 mW / channel.

Digital Performance

Frequency response:

  • 5 Hz to 20 kHz +/- 0.15 dB (44k sample rate).
  • 5 Hz to 80 kHz +/- 0.25 dB (192k sample rate).

THD+noise:

  • < 0.003% (A-weighted; all sample rates).
  • IMD:
  • < 0.007% (SMPTE).

S/N ratio:

  • > 110 dB ref rated output.

Trigger

12 VDC trigger output.

Controls And Indicators

  • Power: rocker switch; rear panel.
  • Standby: one front panel push button; halo ring changes color to indicate status.
  • Two front panel pushbuttons: Input Select; menu operation.
  • One front panel knob: Volume; Tuning; menu operation.
  • Display: high visibility blue alphanumeric VFD display (dimmable).

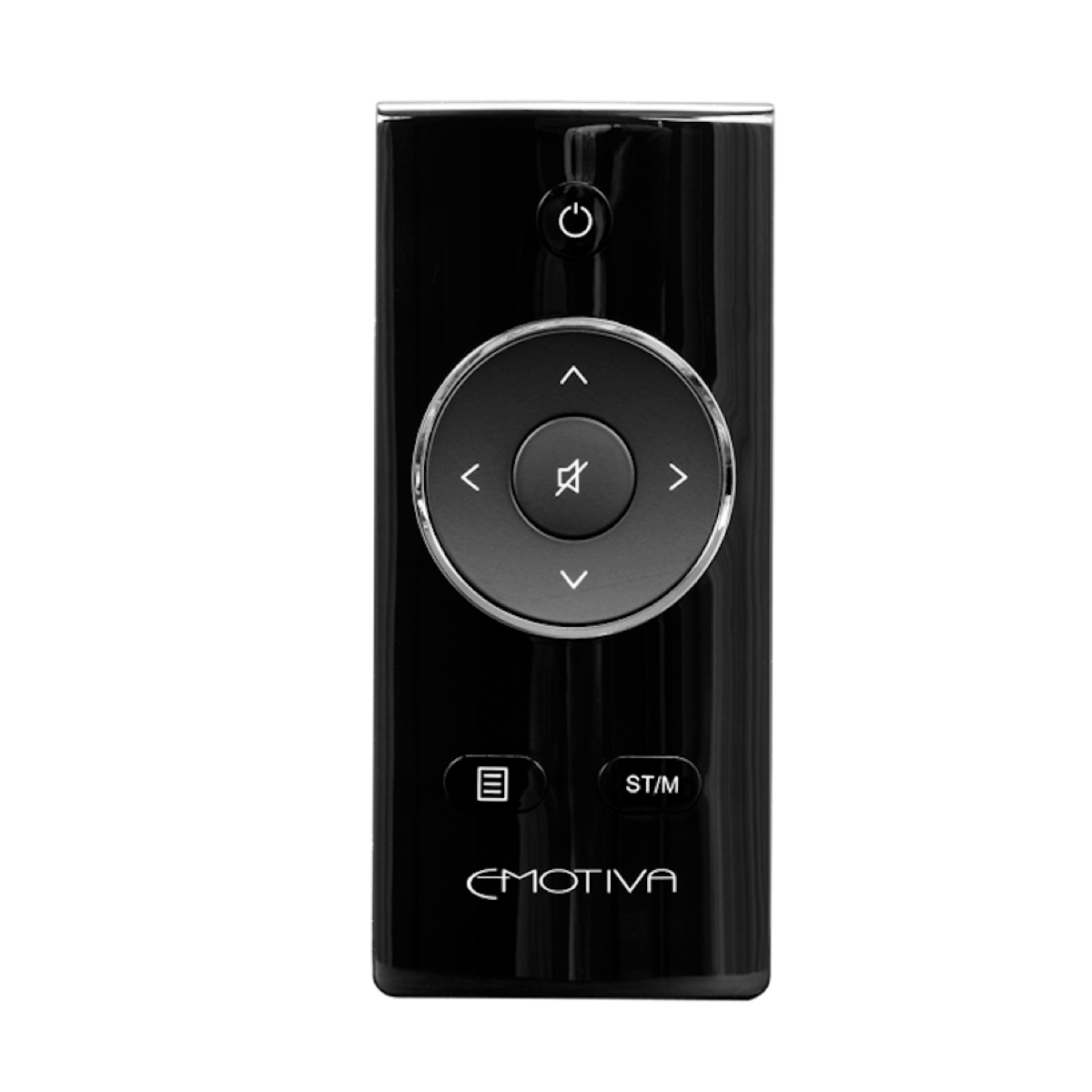

  • Remote Control: compact full-function infrared remote control.
  • Menu and Control System; simplified, highly intuitive menu system
  • (includes Setup options, Bass, Treble, and Balance controls)

Dimensions

  • 17” wide x 2-5/8” high x 12-1/2” deep (unboxed; without connectors)
  • 21” long x 7” high x 17-1/2” deep (boxed)

Weight

  • 15 lbs (unboxed)
  • 19.5 lbs (boxed)
