Emotiva A-150 - Stereo Power Amplifier

Rs. 44,500

  • • Free Shipping (India)
  • • Brand New Unit(s)
  • • Price Includes GST
  • • Official Manufacturers Warranty
  • • EMI Payment Option Available

Description

A-150

The BasX A-150 is a two channel power amplifier that offers true audiophile sound quality at an affordable price. The BasX A-150 includes a carefully chosen set of important features, including a heavy-duty power supply, high-quality Class A/B amplification, transparent audiophile-quality fault protection, a trigger input and output, and industry standard unbalanced audio inputs. Modern manufacturing techniques, and careful design and parts selection, have enabled Emotiva to deliver all of this performance and great sound quality in the BasX A-150 at a far lower price than you might imagine.

Sound Quality First

  • Designed first and foremost to sound great in all types of audio systems with all types of music.
  • Great sounding Class A/B output stage ensures smooth, detailed sound and incredibly natural imaging, without a trace of harshness or strain.
  • Low noise, wide bandwidth design lets you hear everything your high definition sources have to offer.
  • Totally stable with real world speakers in real systems; not just on a test bench.

Solid Engineering And Quality Construction

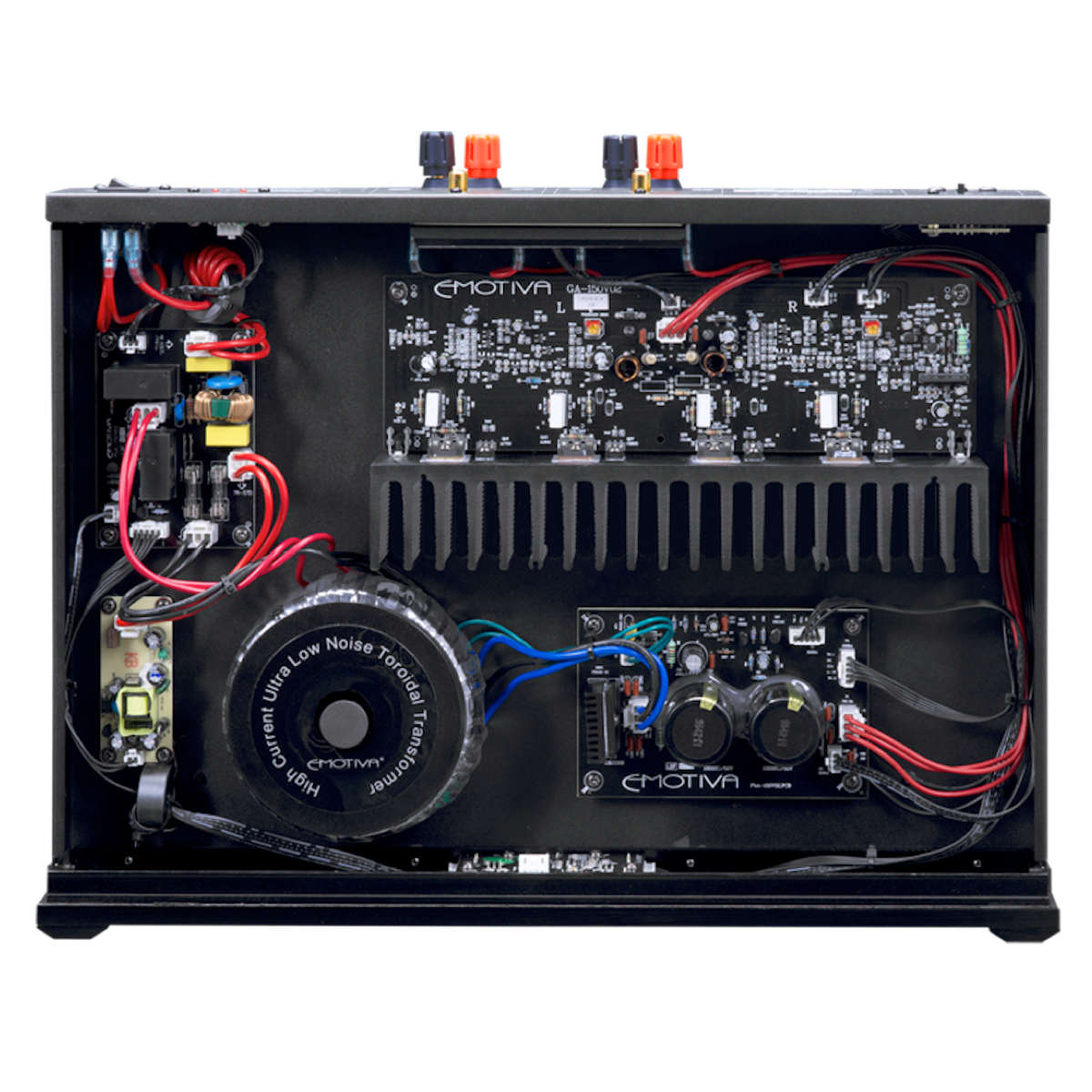

  • A heavy duty linear power supply with an oversized toroidal power transformer delivers plenty of current to drive even difficult speakers.
  • Top quality parts and construction throughout for years of reliable trouble-free service.
  • Heavy steel 2RU chassis with milled aluminum faceplate offers strength and rugged good looks.
  • Double sided FR4 circuit boards with plated-through holes help optimize signal paths and minimize the need for point-to-point wiring.

Flexible Signal Connections and Power Options

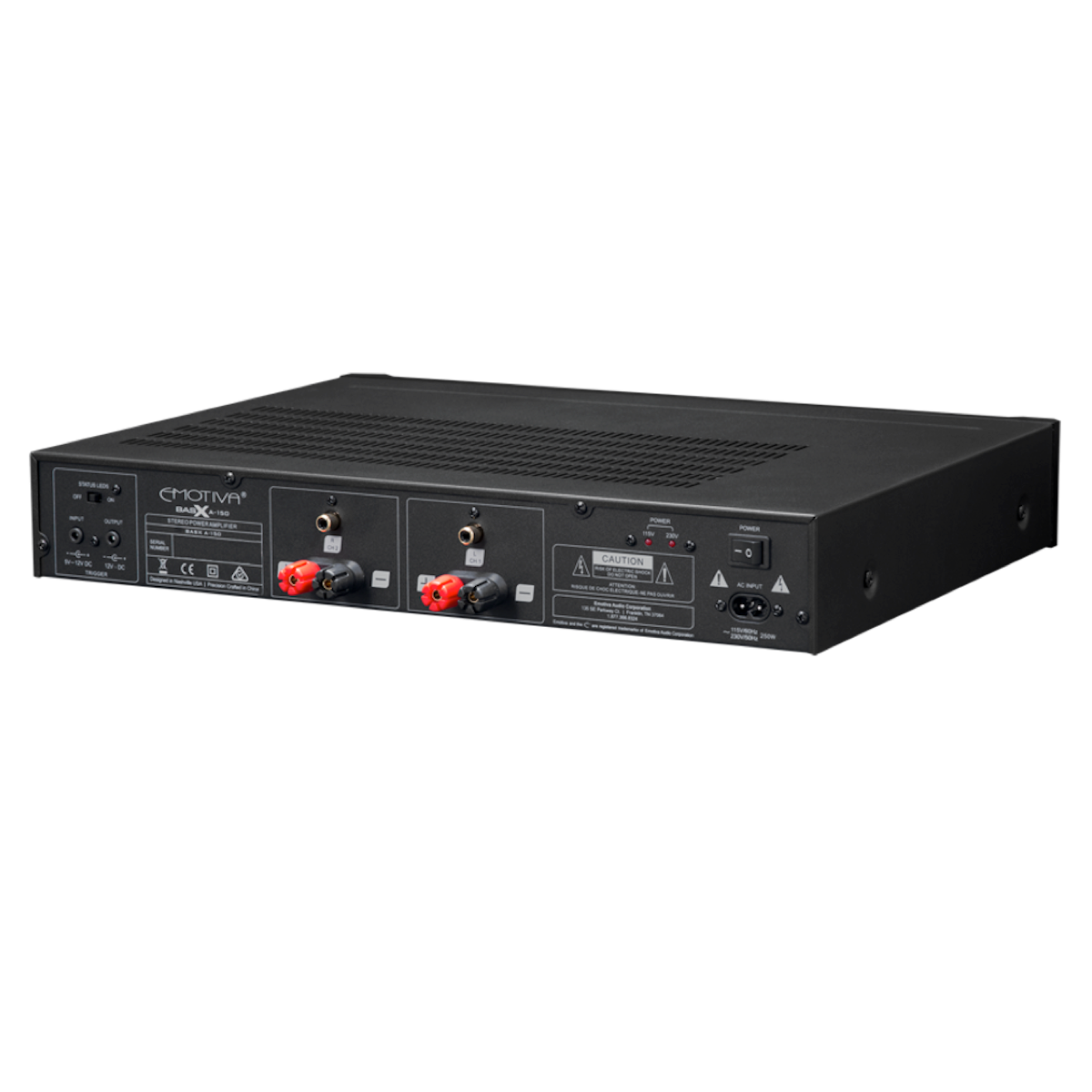

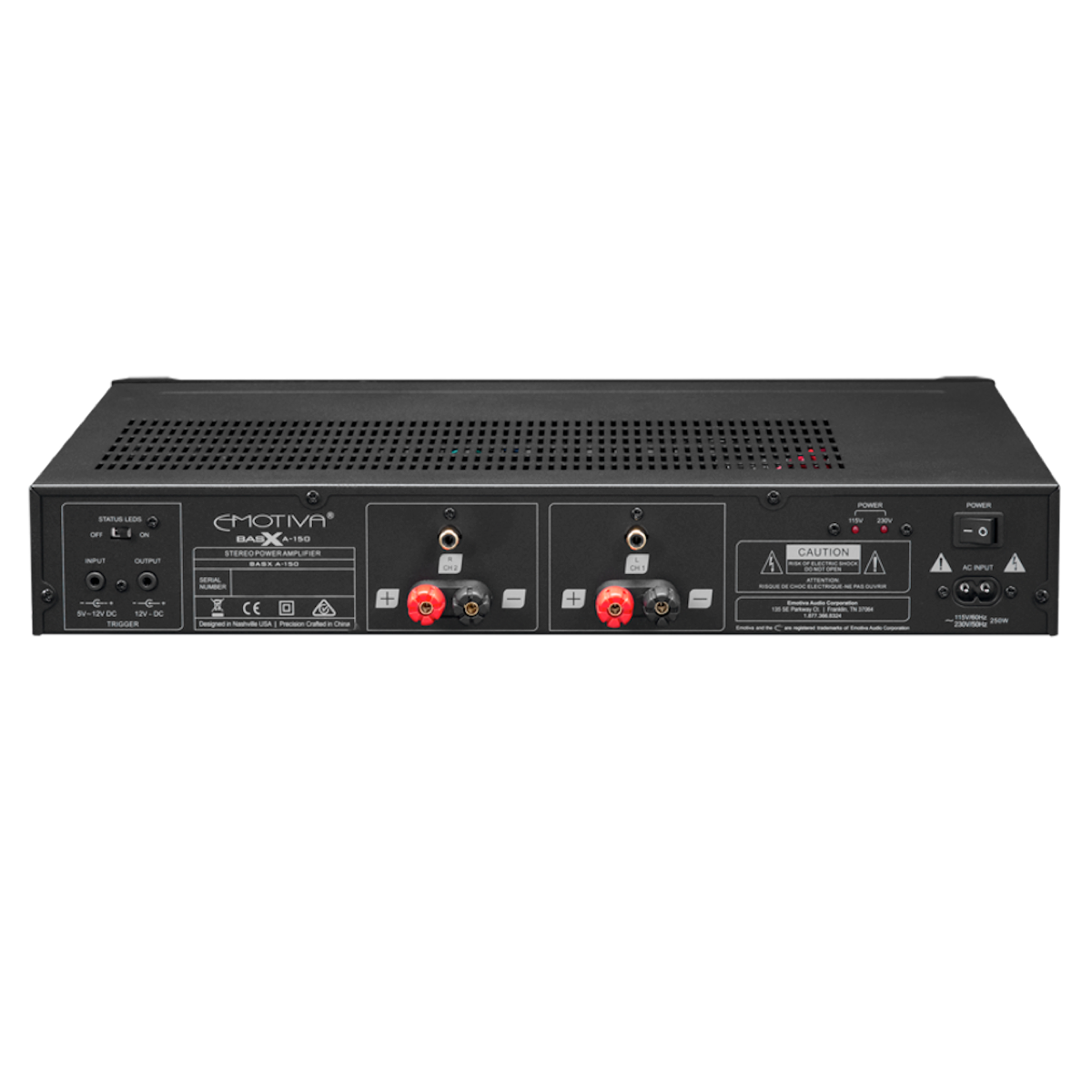

  • Unbalanced inputs via industry standard RCA connectors accept all standard unbalanced interconnects.
  • Heavy duty insulated five-way speaker binding posts allow you to use a wide range of speaker cables with bare wires, lugs, or banana plugs.
  • Remote trigger input and output allow the BasX A-150 to control and be controlled by other trigger-enabled equipment.
  • The BasX A-150 is designed to operate on either 115 VAC or 230 VAC at 50/60 Hz and will automatically detect and configure itself for the proper line voltage.

Protection

  • Audiophile-grade fault protection is entirely transparent under normal listening conditions, yet protects the amp and your other equipment from virtually all common faults.
  • Full three-year warranty ensures that you’ll be able to enjoy your BasX power amplifier for years to come.

SPECIFICATIONS

Power Output (both channels driven)

  • 75 watts RMS per channel; 20 Hz – 20 kHz; THD < 0.1%; into 8 Ohms.
  • 150 watts RMS per channel; 1 kHz; THD < 1%; into 4 Ohms.

Power Bandwidth (at rated power; 8 Ohm load)

20 Hz to 20 kHz (+ / – 0.07 dB)

Broad Band Frequency Response

5 Hz to 80 kHz +0/-1.8 dB

THD + noise

< 0.02% (A-weighted); ref rated power

Signal to Noise Ratio (8 Ohm load)

> 120 dB; ref rated power; (A-weighted).
> 100 dB; ref 1 watt; (A-weighted).

Minimum Recommended Load Impedance (per channel)

4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads).

Damping Factor (8 Ohm load)

> 500.

Input Sensitivity (for rated power; 8 Ohm load)

1.2 V.

Gain

29 dB.

Input Impedance

27 kOhms.

Input Connections

Unbalanced (RCA); one each per channel.

Speaker Output Connections

Audiophile grade 5-way binding posts.

Trigger

  • Trigger Input: 5 – 12 V (AC or DC); <10 mA input current required.
  • Trigger Output: 12 VDC; can drive any load up to 120 mA.

Power Requirements

115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected).

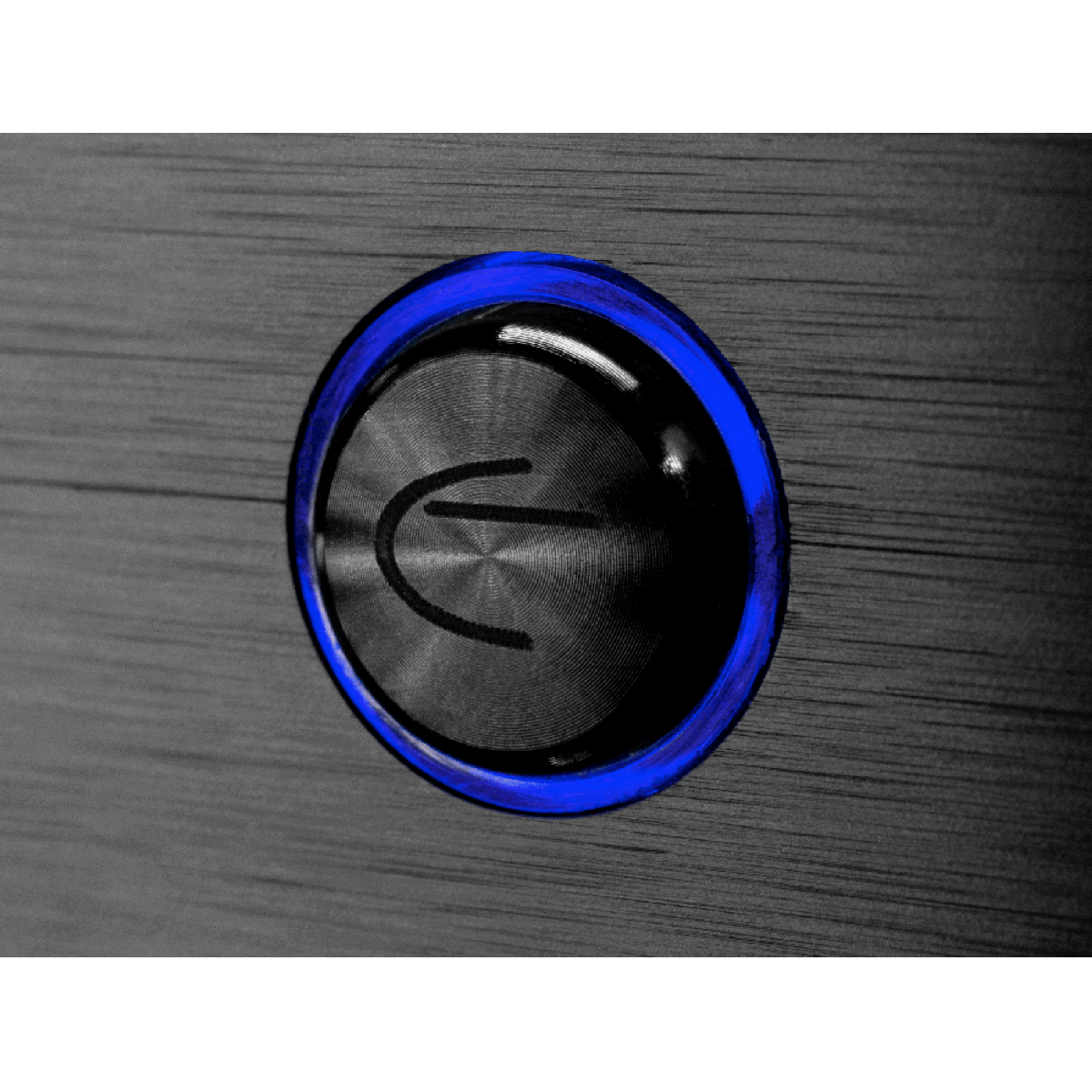

Standby

push button (halo ring changes color to indicate Standby or On).

Status LEDs

  • one per channel; blue.
  • Status LEDs change to red to indicate a fault condition.

AC Power switch

rocker switch (switches AC main power).

Status LEDs switch

disables front panel Status LEDs.

Protection

The BasX A-150 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions.

Dimensions

  • 17” wide x 3-1/8” high x 13-1/2” deep (not including connectors).
  • 21-1/2” wide x 7” high x 21-1/4” deep (boxed).

Weight

  • 7.03 Kg (unboxed)
  • 9.93 Kg (boxed)
