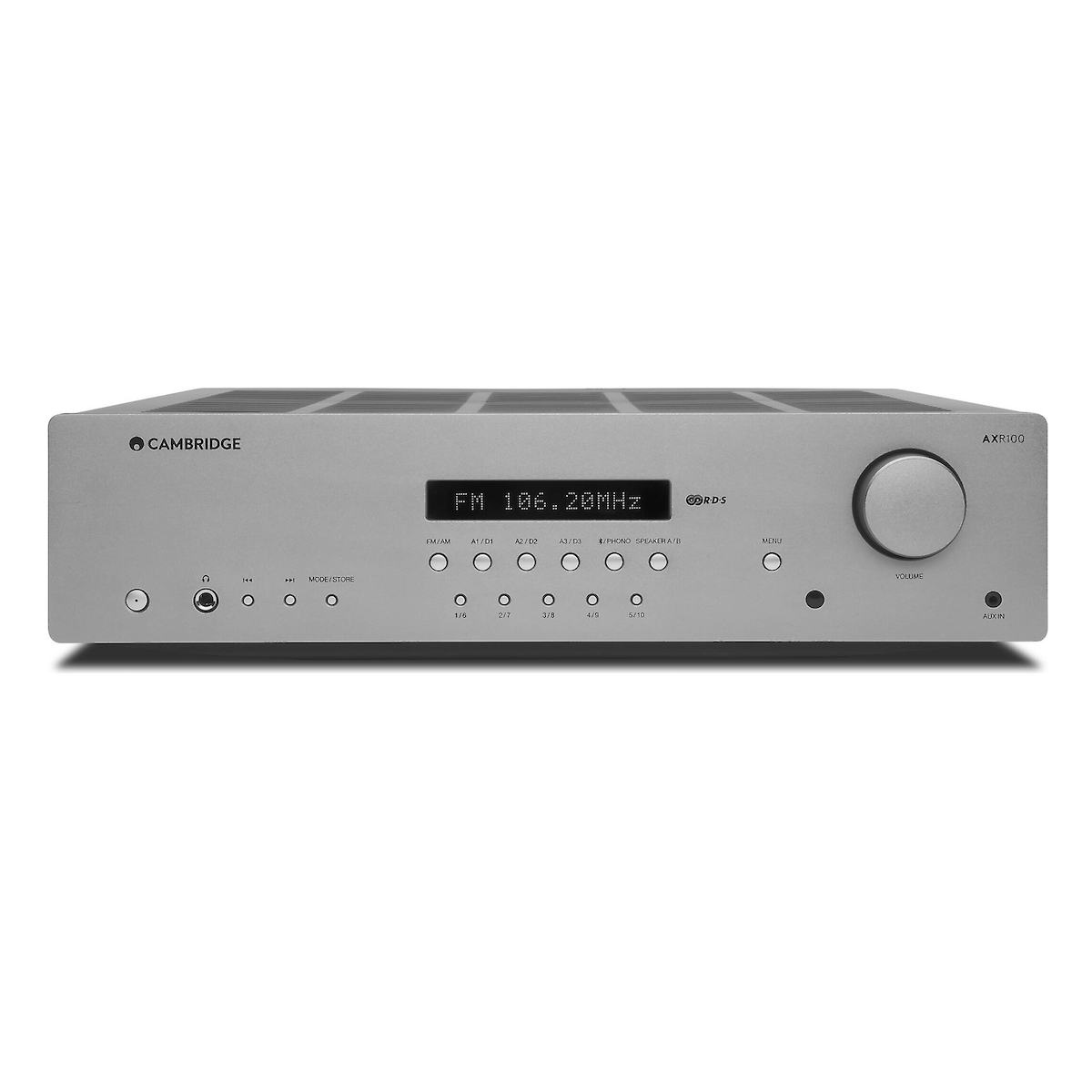

Cambridge Audio AX-R100 - FM/AM Stereo Receiver
Includes GST of Rs. 11,898
GET GST INPUT
Ever wondered why speakers, amplifiers, projectors etc. come with a slightly heftier price tag in India compared to their overseas counterparts? Well, part of the answer lies in our country's Goods & Services Tax (GST).
But here's the kicker: Don't let that GST input slip through your fingers! Especially when some of the products we supply carry a GST rate of 18% and 28%.
At AVStore, we provide you with a GST compliant invoice for every purchase.
Simply put in your GST number during the checkout to avail an offset.
- Description
- Specifications
- Reviews
AX-R100
The most powerful amplifier in the AX range offers a massive 100 watts per channel, a dedicated subwoofer speaker output for improving bass and two sets of speaker outputs. It also features analogue inputs, digital inputs, a phono stage, an FM/AM receiver with RDS and a 3.5mm input. In addition, the built-in bluetooth receiver allows you stream your favourite music from your smartphone, tablet or PC.
SPECIFCATIONS
|
POWER OUTPUT |
100 watts (into 8Ω) |
|
THD (UNWEIGHTED) |
<0.01% @ 1kHz, 80% of rated power <0.15% 20Hz - 20kHz, 80% of rated power |
|
FREQUENCY RESPONSE (-1DB) |
5Hz - 50kHz |
|
S/N RATIO (REF 1W) |
>82dB (unweighted) |
|
INPUT IMPEDANCES |
47k ohms |
|
POWER AMP DAMPING FACTOR |
>50 |
|
STANDBY POWER CONSUMPTION |
<0.5W |
|
MAX. POWER CONSUMPTION |
550W |
|
BASS/TREBLE CONTROLS |
Shelving, ultimate boost/cut +/- 10dB @ 100Hz and 20kHz |
|
SUBWOOFER OUTPUT |
200Hz 2nd order L+R Level follows volume setting |
|
DIGITAL INPUTS |
PCM 16-24-bit S/P DIF Co-axial 32-192kHz TOSlink Optical 32-192kHz |
|
DIMENSIONS |
110 x 430 x 340mm (4.3 x 16.9 x 13.4”) |
|
WEIGHT |
8.1kg (17.8lbs) |
|
BLUETOOTH |
5.0 A2DP/AVRCP supporting SBC |
|
TUNER BANDS |
European AM (522-1629kHz) FM (87.5-108MHz) / US AM (530-1710kHz) FM (87.5-108MHz) |
|
AERIAL INPUTS |
FM 75 ohms, Coaxial. AM 300 ohms wire loop/ single wire |
|
SIGNAL TO NOISE (TUNER) |
60dB typical (FM) |
|
DISTORTION (TUNER) |
<0.4% @ 1kHz 50kHz deviation (FM mono) <0.6% @ 1kHz 50kHz deviation (FM stereo) |
