Bowers & Wilkins CT8 SW - In-Wall Speaker - Piece


  • Description
  • Specifications
  • Reviews

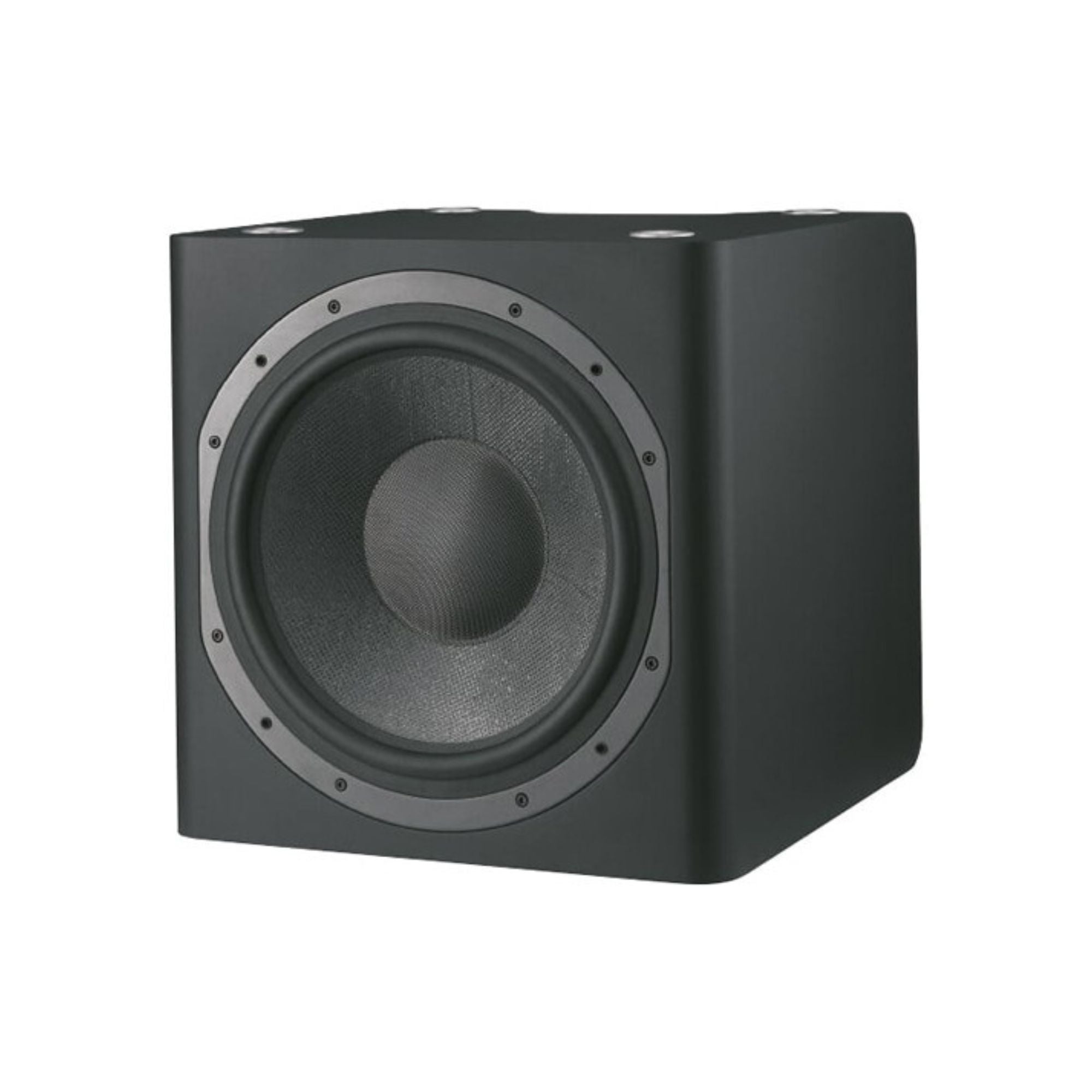

Bowers & Wilkins CT8 SW Closed-Box Subwoofer with 1x15" Rohacell Bass Speaker

Integral to the system’s no-compromise approach to bass management is the subwoofer, illustrated here with a pair deployed at extreme left and right for low frequencies that will push your sound envelope to the limit. The CT8 SW features a 15” driver. Like all the bass drivers in the range it features a rigid composite sandwich cone.

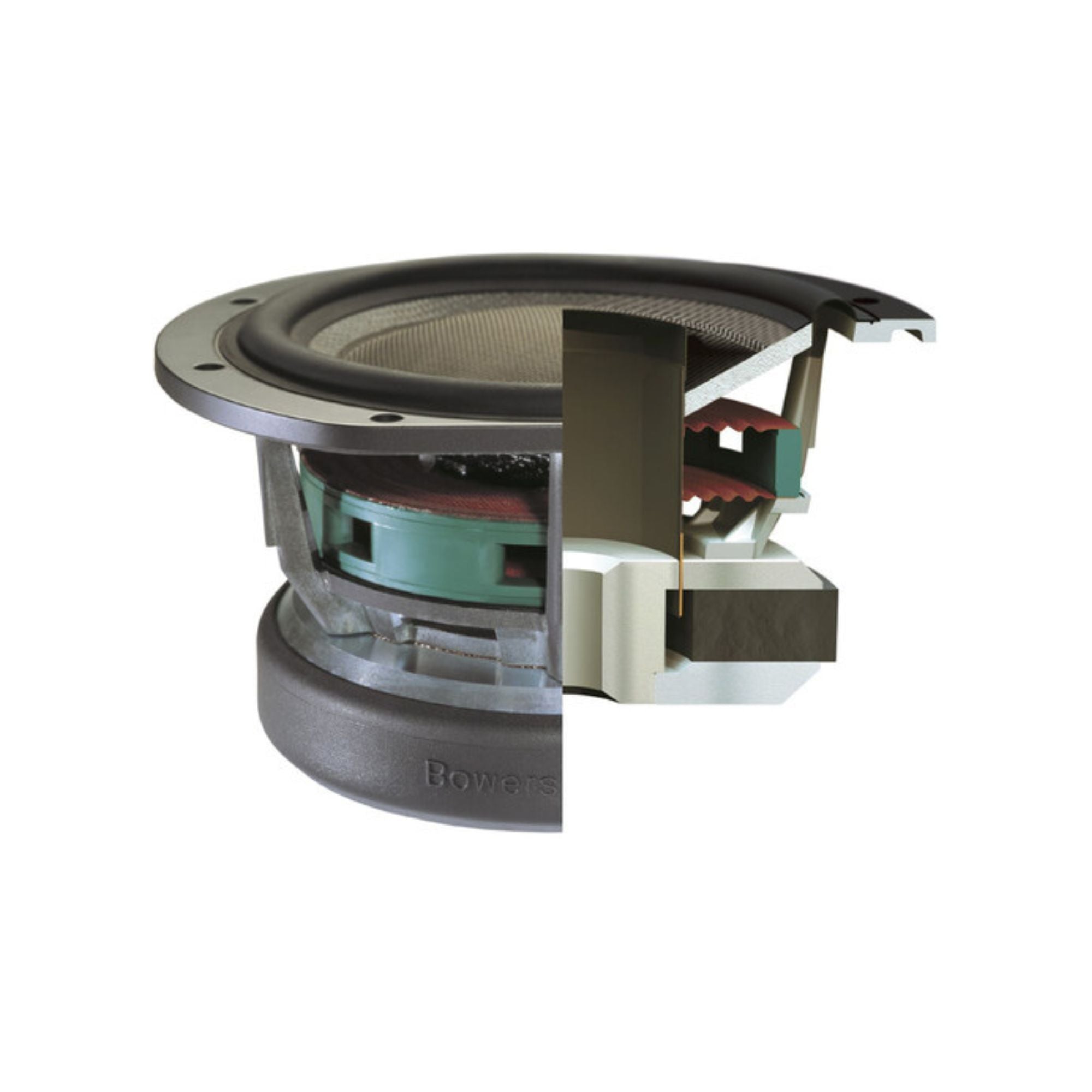

Bass drivers

As you might imagine, one of the secrets of developing a high performance bass driver is finding a cone material with high enough strength to keep its shape under the heaviest of strain, yet not too heavy that it loses its responsiveness. B&W’s choice is a modern carbon fibre and rigid foam sandwich construction used in car and aircraft bodies. Its outstanding mechanical properties and relatively low mass make it tailor-made for the job of turning low frequency effects into real-life sound.

Technical features

Composite sandwich

cone bass

Matrix cabinet

Active bass crossover

Description

Closed-box subwoofer

Frequency range

-6dB at 13Hz and 750Hz

-3dB at 18Hz and 500Hz

Sensitivity

93dB spl (2.83V, 1m)

Nominal impedance

8Ω (minimum 4Ω)

Recommended

50W – 1000W into 8Ω

amplifier power

on unclipped programme Max. recommended

cable impedance

0.1Ω

Dimensions

Height: 475mm (18.7 in)

Width: 475mm (18.7 in)

Depth: 475mm (18.7 in)

Net weight

35kg (177 lb)
