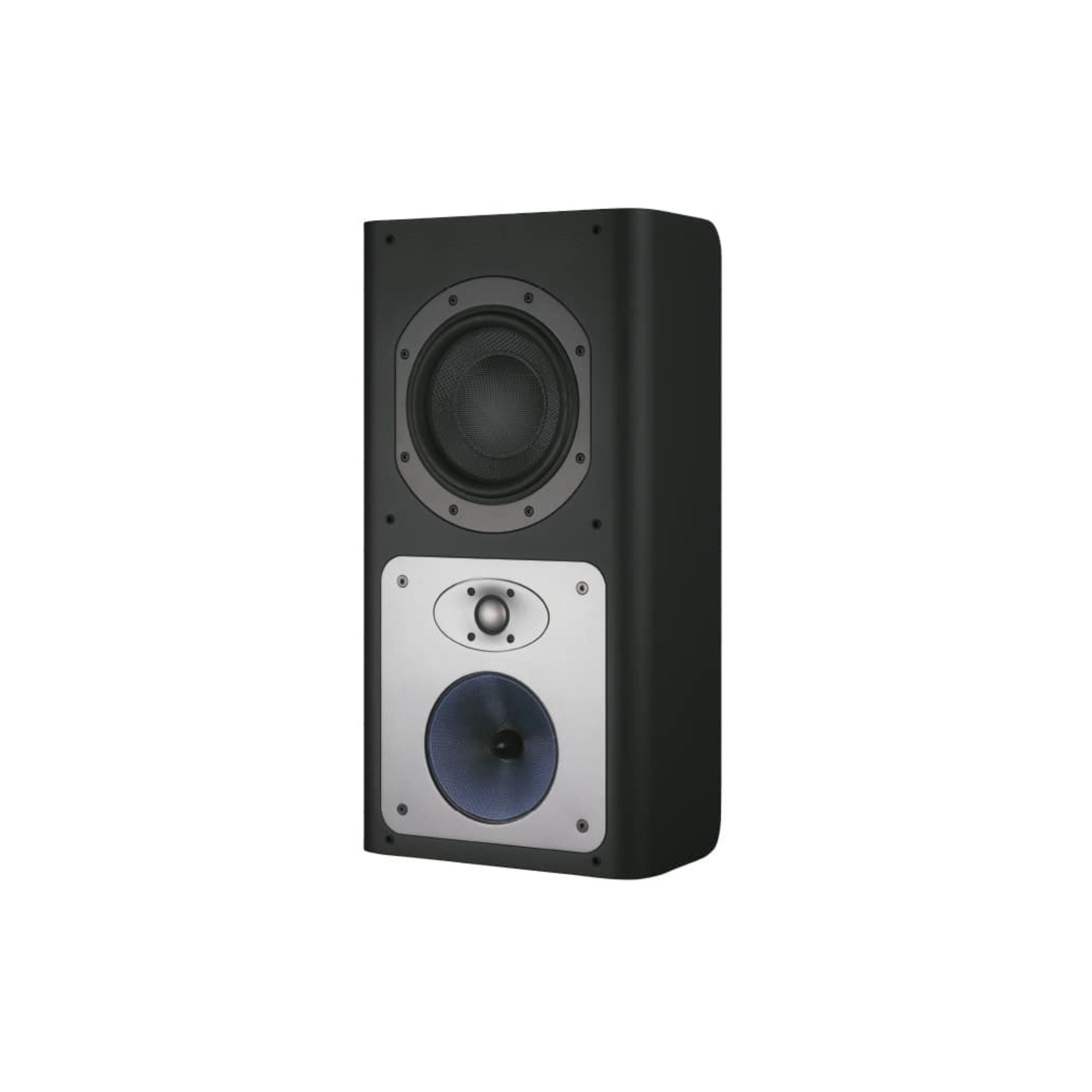

Bowers & Wilkins CT8.4LCRS - In-Wall Speaker - Piece
- Description
- Specifications
- Reviews
Bowers & Wilkins CT8.4 LCRS 3-Way Home Theater LCRS with 8"Bass Unit, 6"FST Midrange, 1.25"Dome Tweeter
An addition to B&W’s top-of-the-range Custom Theatre 800 Series, which brings the same legendary technology used in B&W’s 800 Series of stand-alone speakers to your home theatre set-up. The CT8.4 LCRS is designed as an alternative to the CT8 DS side/rear channel speaker when space is at a premium: it’s a smaller, more compact vertical surround sound speaker that generates exactly the same authentically three-dimensional listening experience. The CT8.4 LCRS also packs enough power to act as a stand-alone loudspeaker positioned front, side and rear within a complete custom theatre system.
|
Technical features |
Nautilus™ tube-loaded tweeter Aramid Fibre FST midrange cone Carbon fibre/Rohacell® bass unit cone Speakon® and binding post connectors |
|
Description |
3-way closed-box system |
|
Drive units |
1x ø32mm (1.2 in) tube loaded aluminium dome high-frequency 1 x ø150mm (6 in) woven Aramid Fibre FST™ mid-range 1 x 200mm (8 in) carbon fibre/Rohacell® sandwich cone bass |
|
Frequency range |
-6dB at 39Hz and 40kHz |
|
Frequency response |
49Hz – 24kHz ±3dB on reference axis |
|
Dispersion |
Within 2dB of reference response Horizontal: over 60º arc Vertical: over 10º arc |
|
Sensitivity |
88dB spl (2.83V, 1m) |
|
Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m) <1% 80Hz – 20kHz <0.5% 200Hz – 20kHz |
|
Nominal impedance |
8Ω (minimum 3.0Ω) |
|
Crossover frequency |
380Hz, 4kHz |
|
Recommended amplifier power |
50W – 200W into 8Ω on unclipped programme |
|
Max. recommended cable impedance |
0.1Ω |
|
Dimensions |
Height: 630mm (24.8 in) Width: 325mm (12.8 in) Depth: 185mm (7.3 in) Depth with grille: 227mm (9 in) |
|
Net Weight |
21.0kg (46.3 lb) |
