Bowers & Wilkins CT8 LR - 3-Way Closed-Box System with 1x1.25"Tweeter/6"FST Midrange/2x10"Bass Speakers

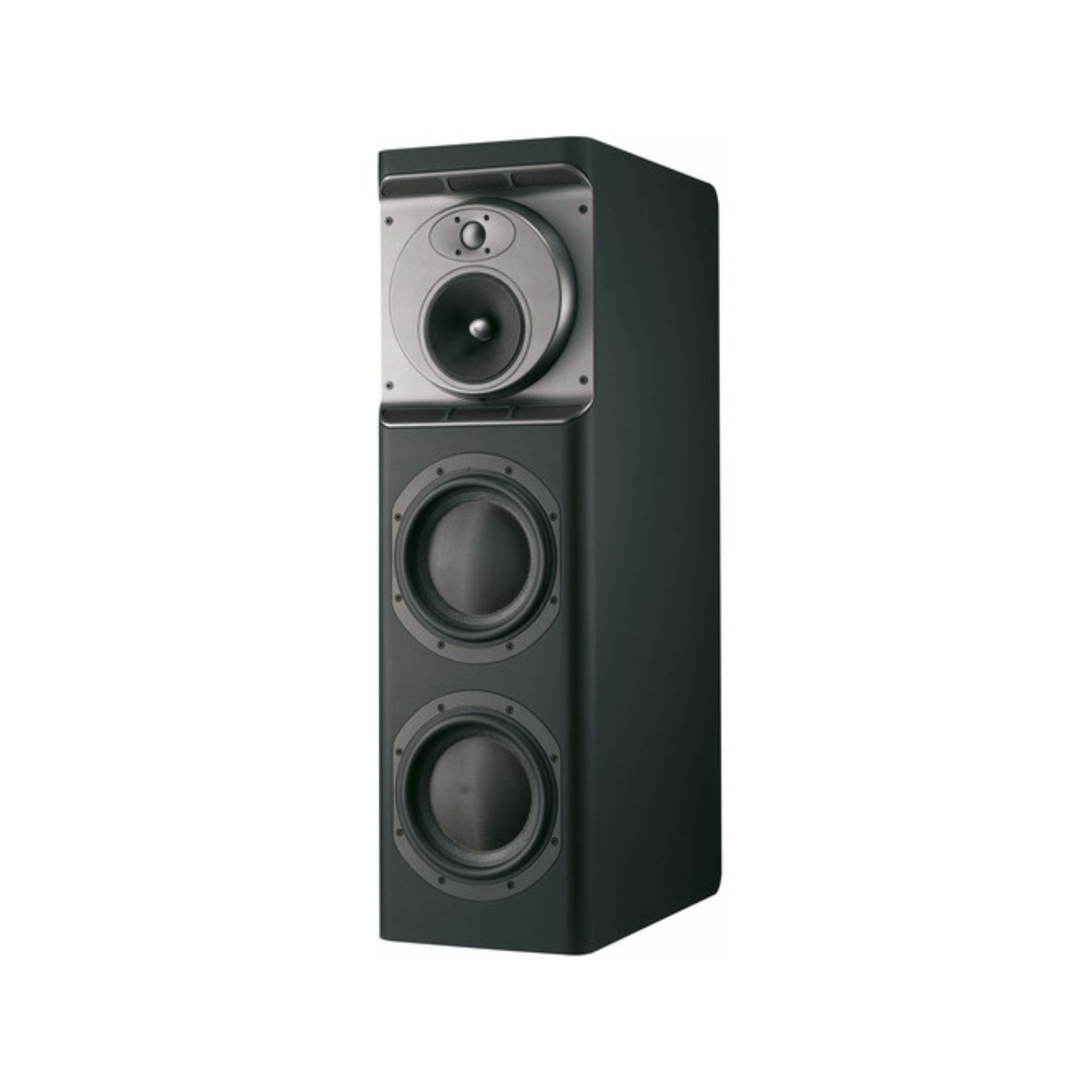

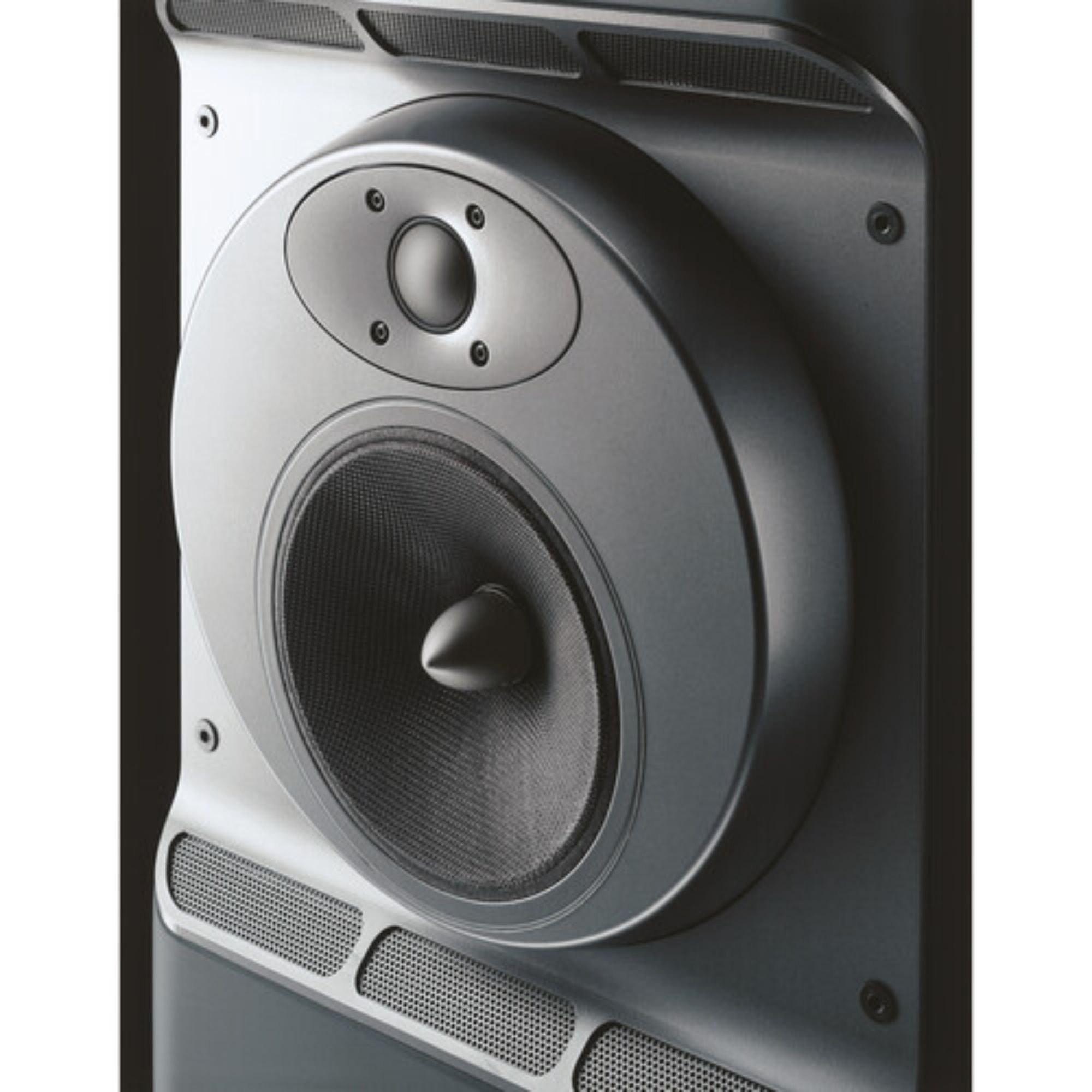

Stationed to the left and right of the screen are two upright speakers. The CT8 LR features a spherical midrange/tweeter head that can be tilted towards the listener to retain a focused delivery, plus twin 10” bass units, as in the surround speaker.

Tweeter

For the Custom Theatre range they have taken their development of the Nautilus™-derived tubeloaded tweeter a stage further. Following the same principle as their adaptation of the midrange tube (see opposite), Bowers & Wilkins’s have replaced the single, long tube with a whirl of tightly-packed, smaller channels contained in a shallow cup, each of which absorbs a portion of the unwanted sound energy from the back of the diaphragm. Even at frequencies well beyond human hearing, this tweeter sings like a bird.

Technical features Adjustable midrange/

tweeter head

Kevlar® brand fibre cone

FST™ midrange

Composite sandwich

cone bass

Matrix cabinet

Active bass crossover

Laser alignment device

Description

3-way closed-box system

Frequency range

-6dB at 23Hz and 40kHz

Sensitivity

93dB spl (2.83V, 1m) (mf/hf)

Nominal impedance

8Ω (minimum 4Ω)

Recommended

50W – 1000W into 8Ω

amplifier power

on unclipped programme Max. recommended

cable impedance

0.1Ω

Dimensions

Height: 1100mm (43.3 in)

Width: 325mm (12.8 in)

Depth: 550mm (21.65 in)

Net weight

85kg (187 lb)
