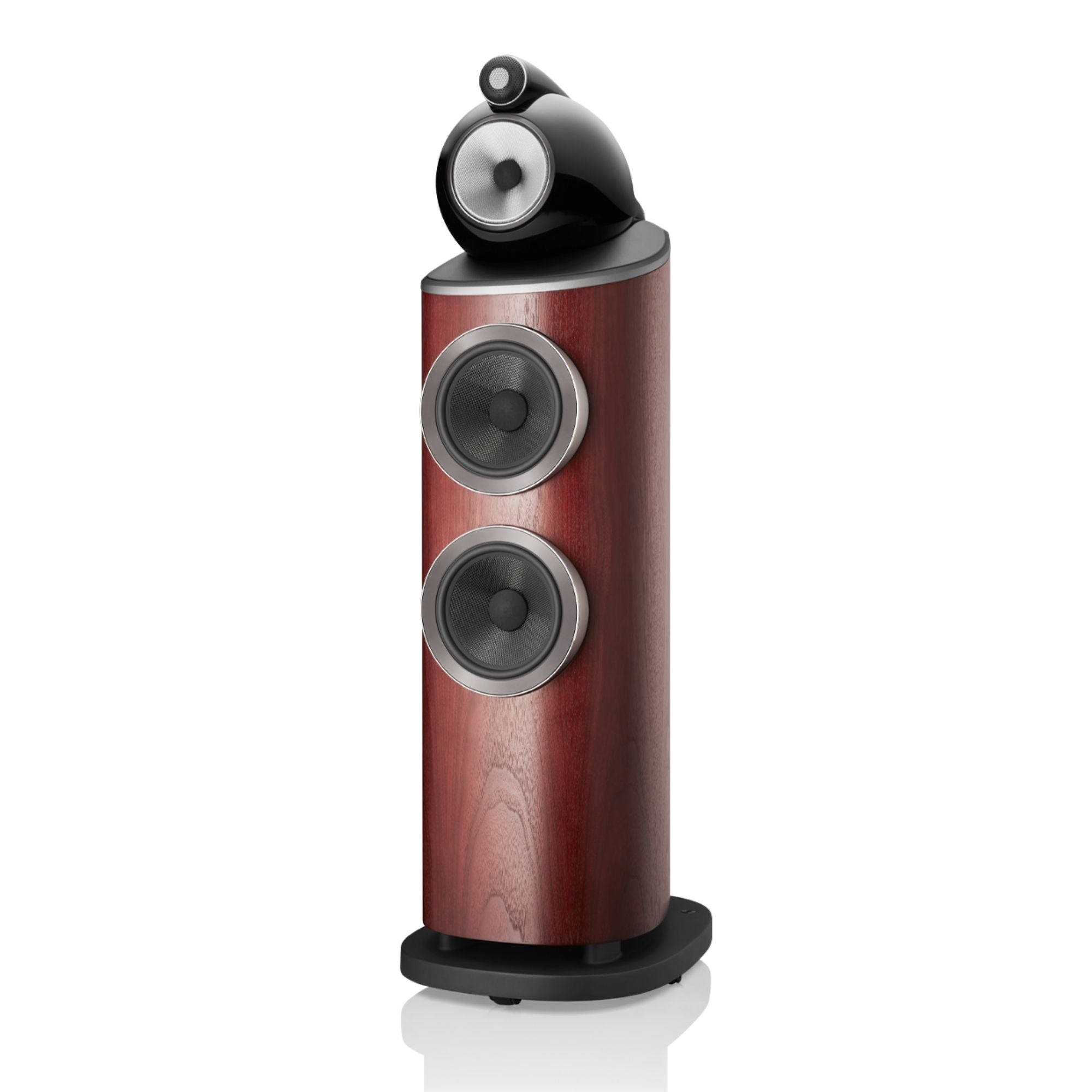

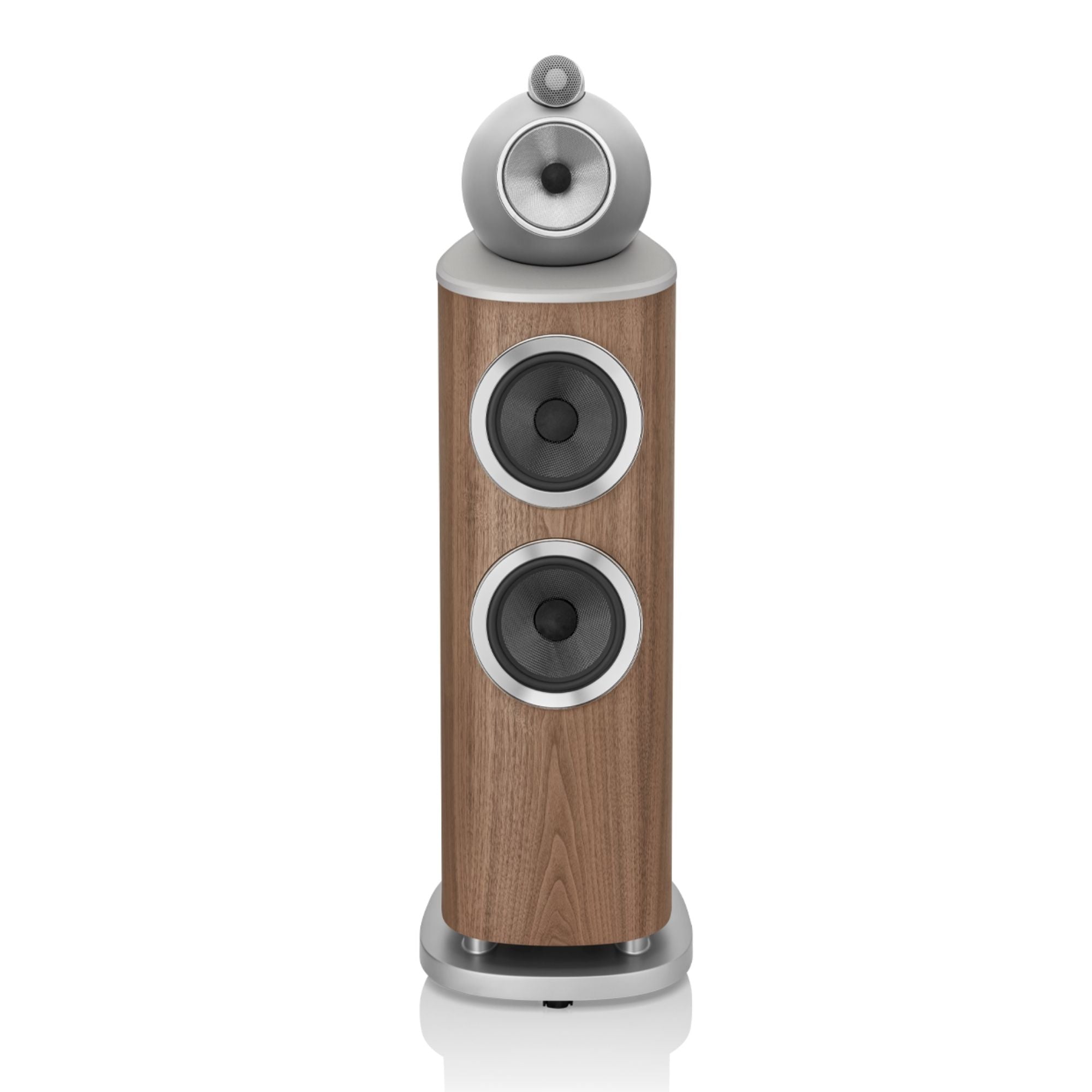

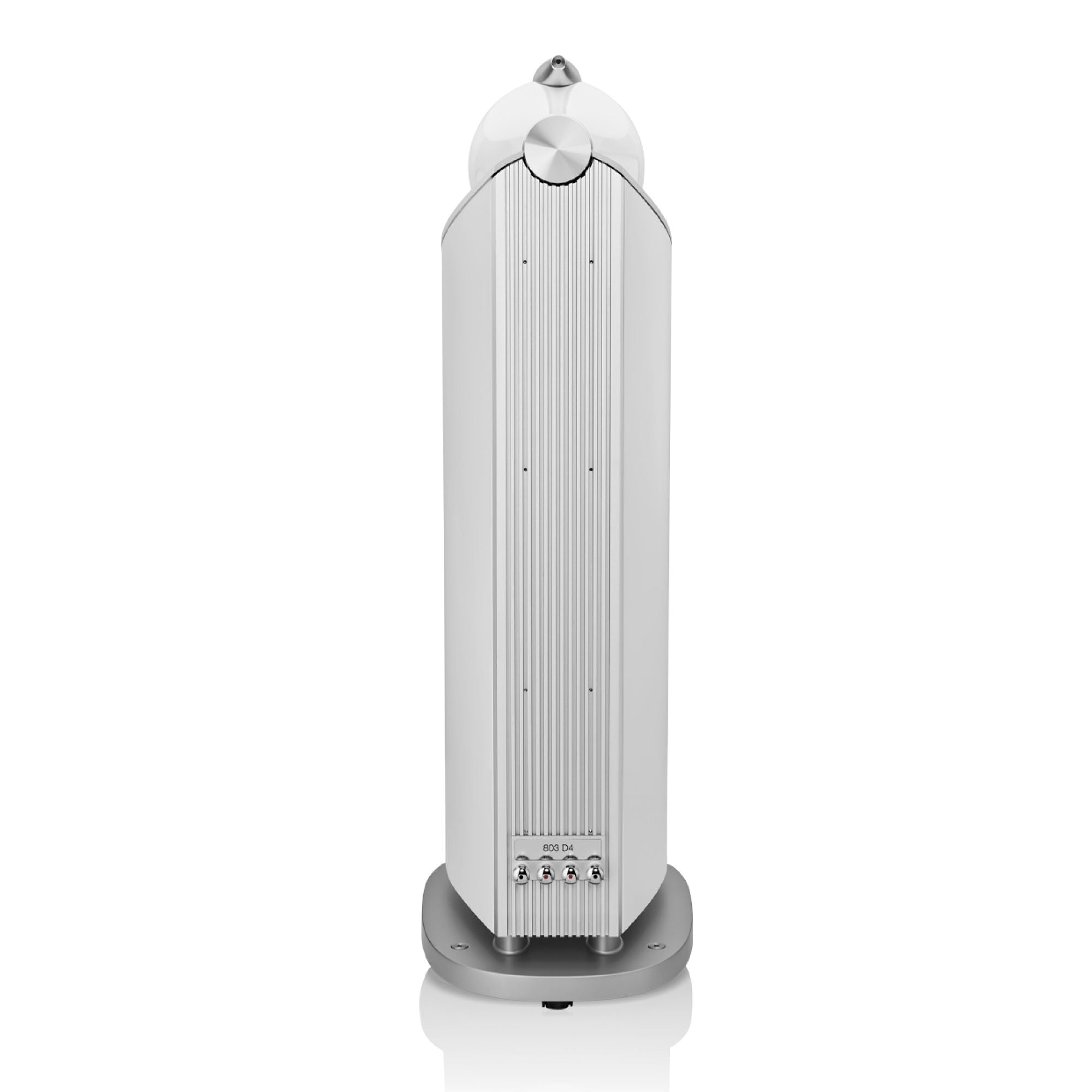

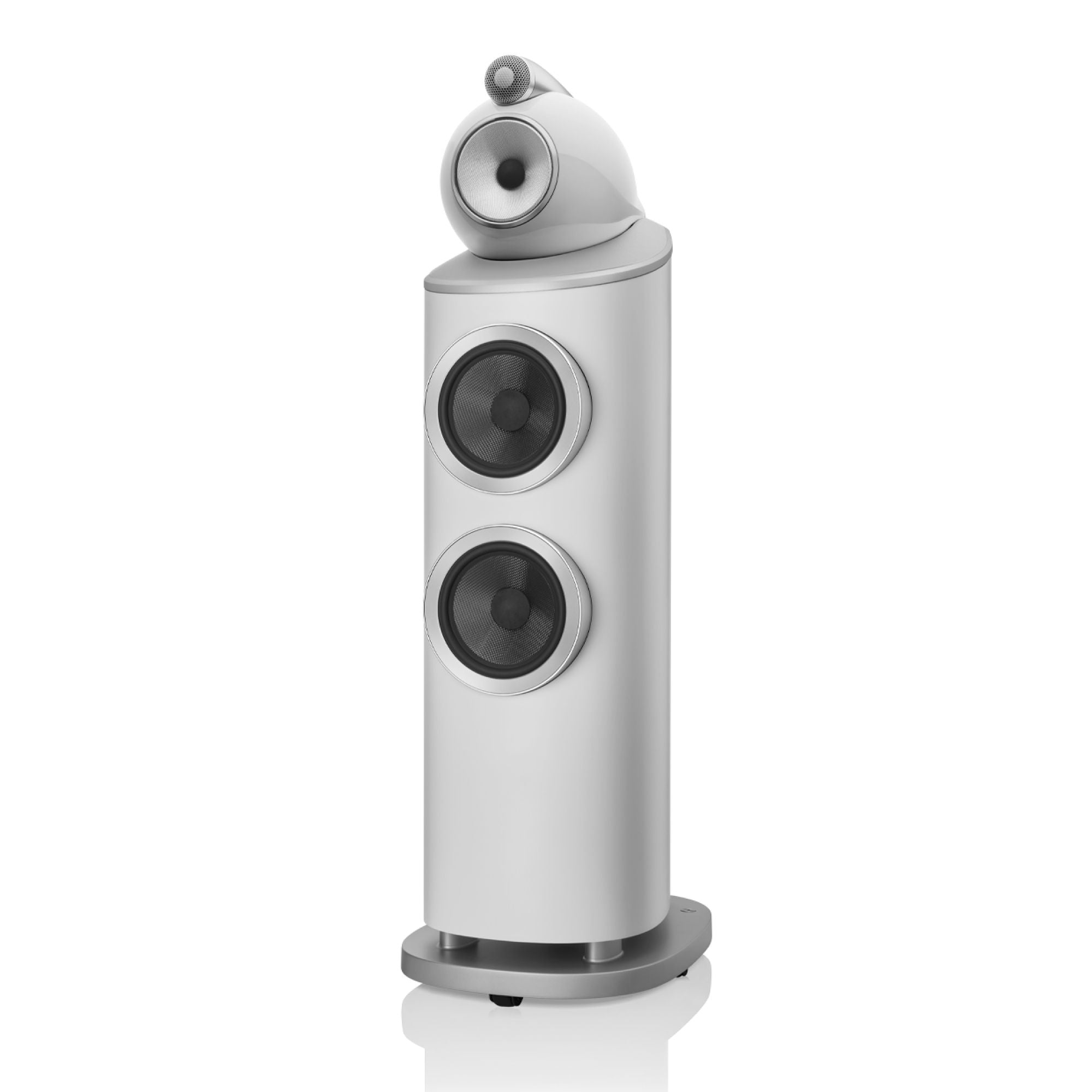

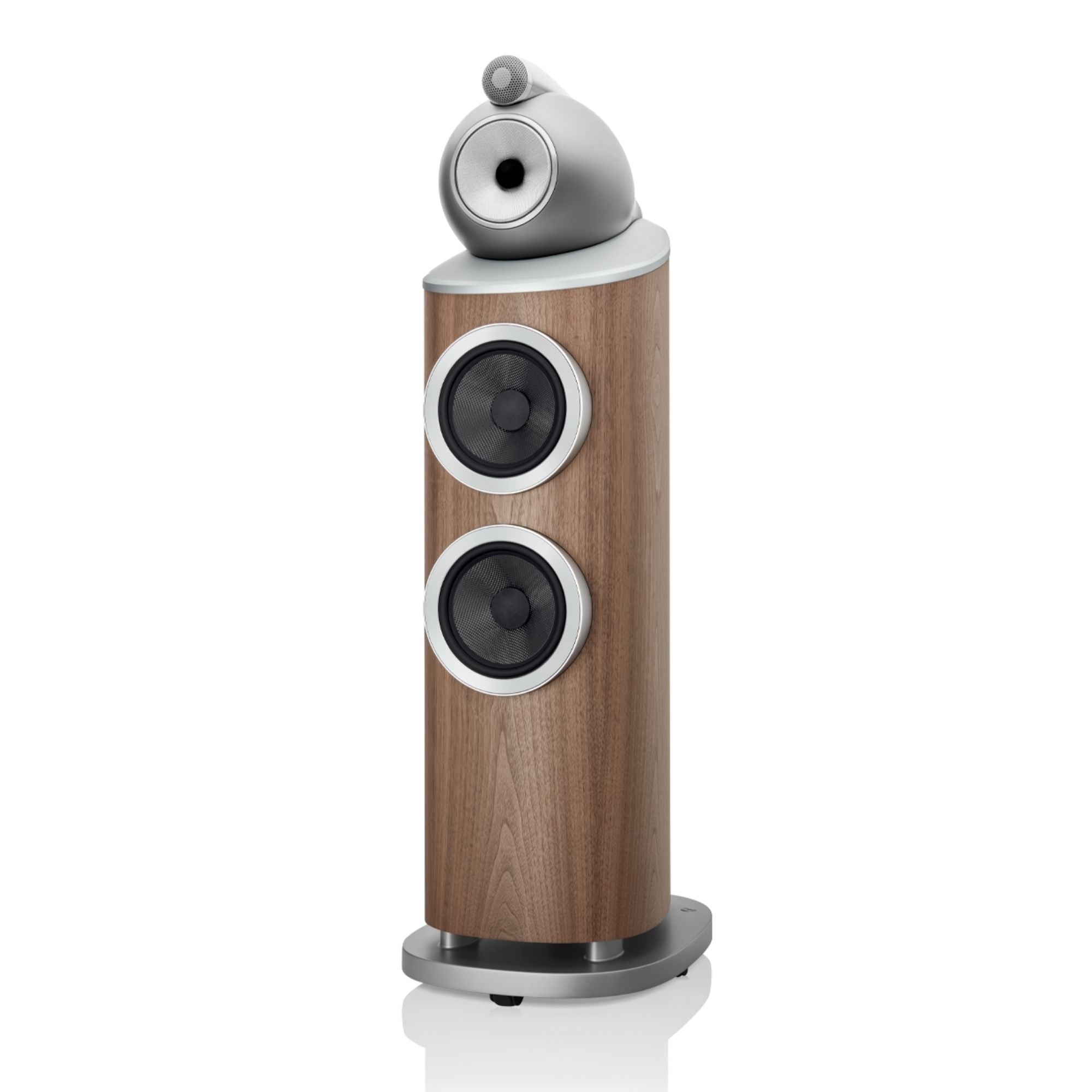

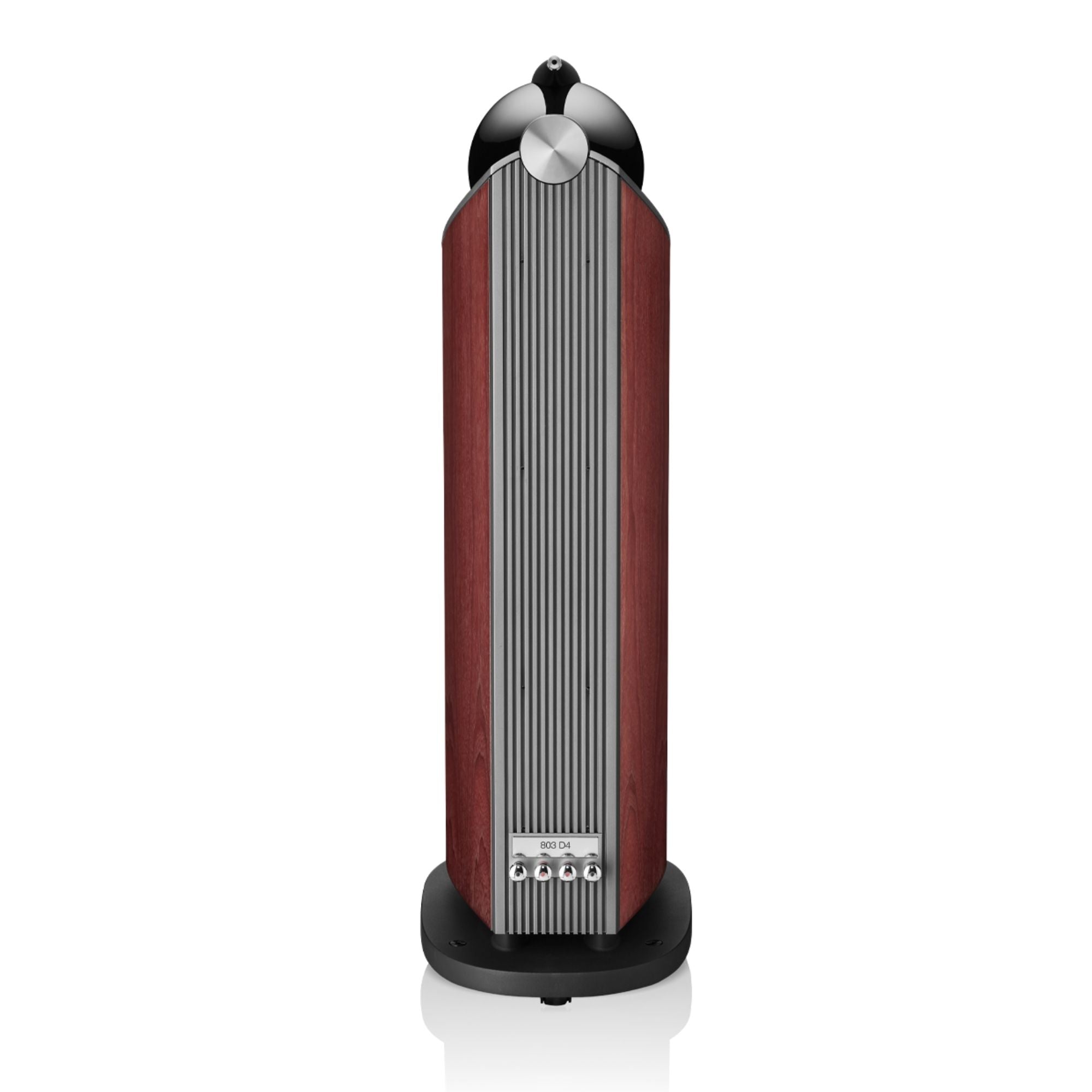

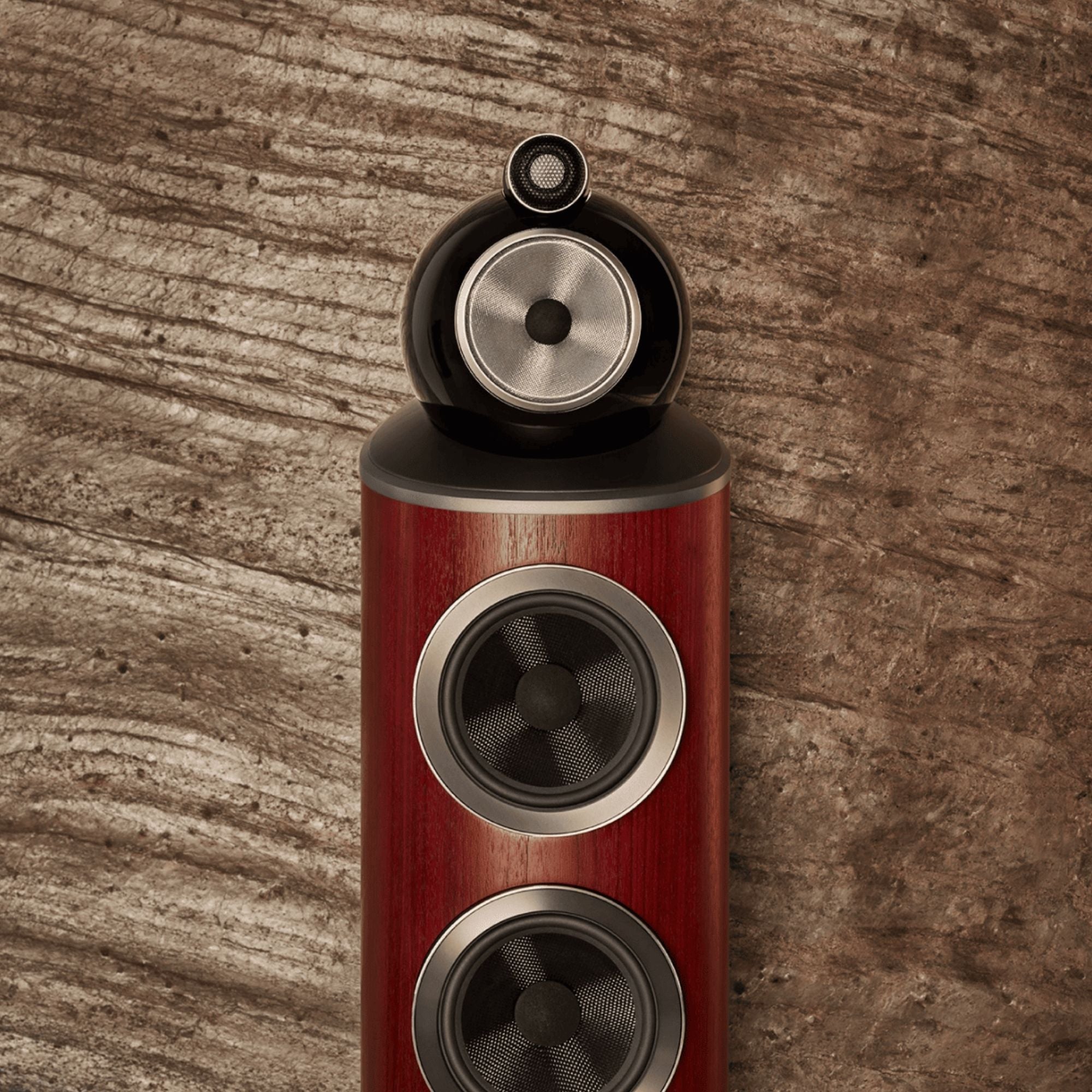

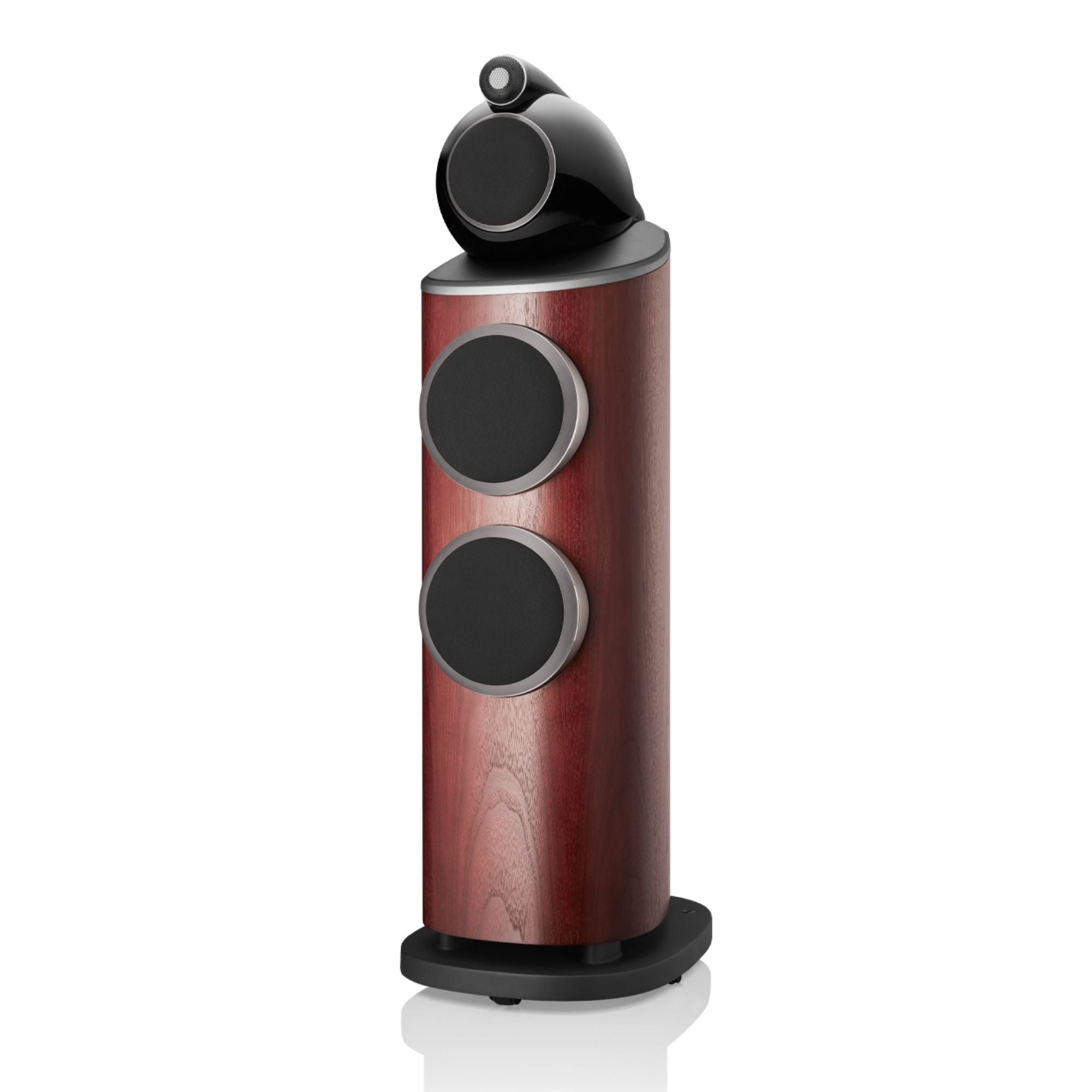

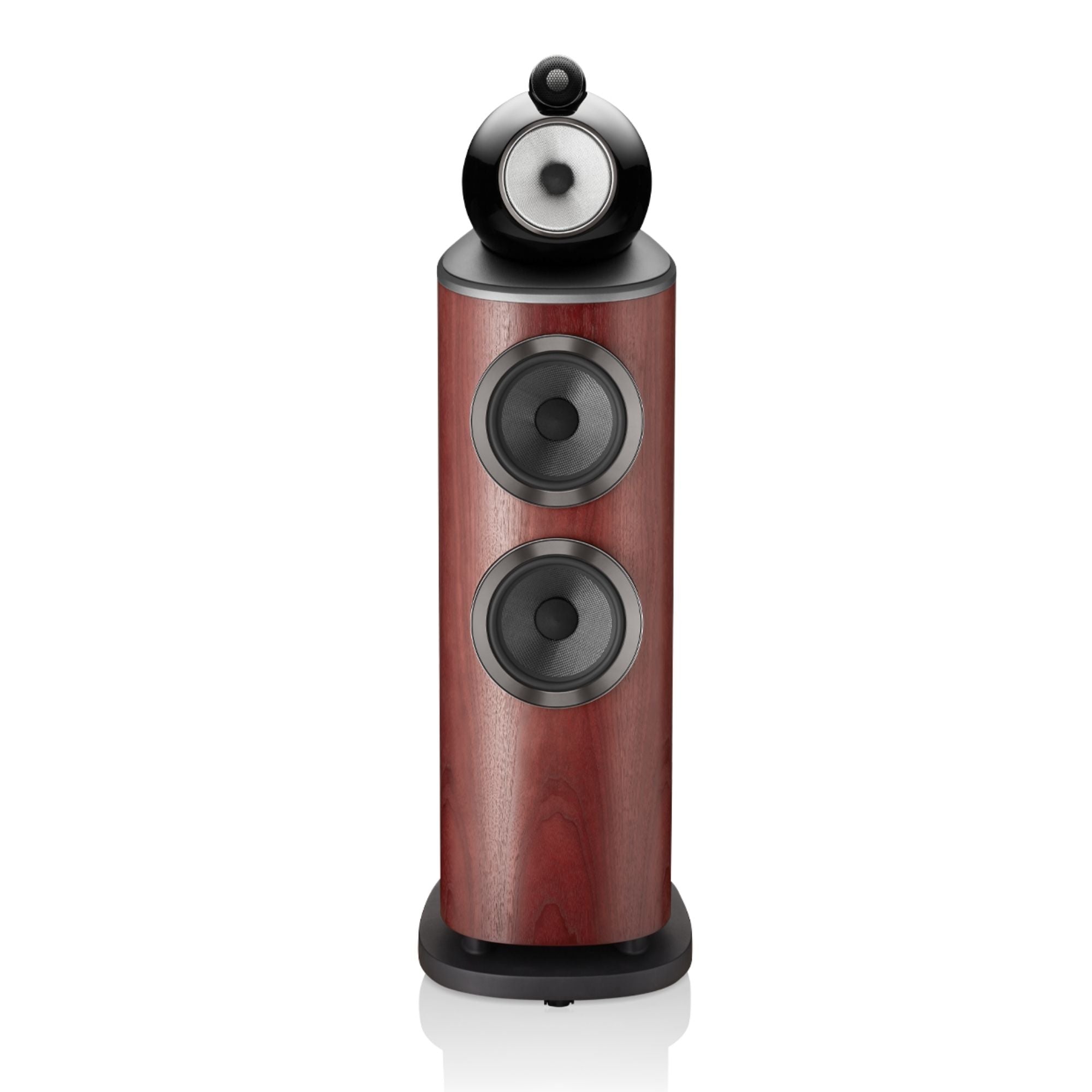

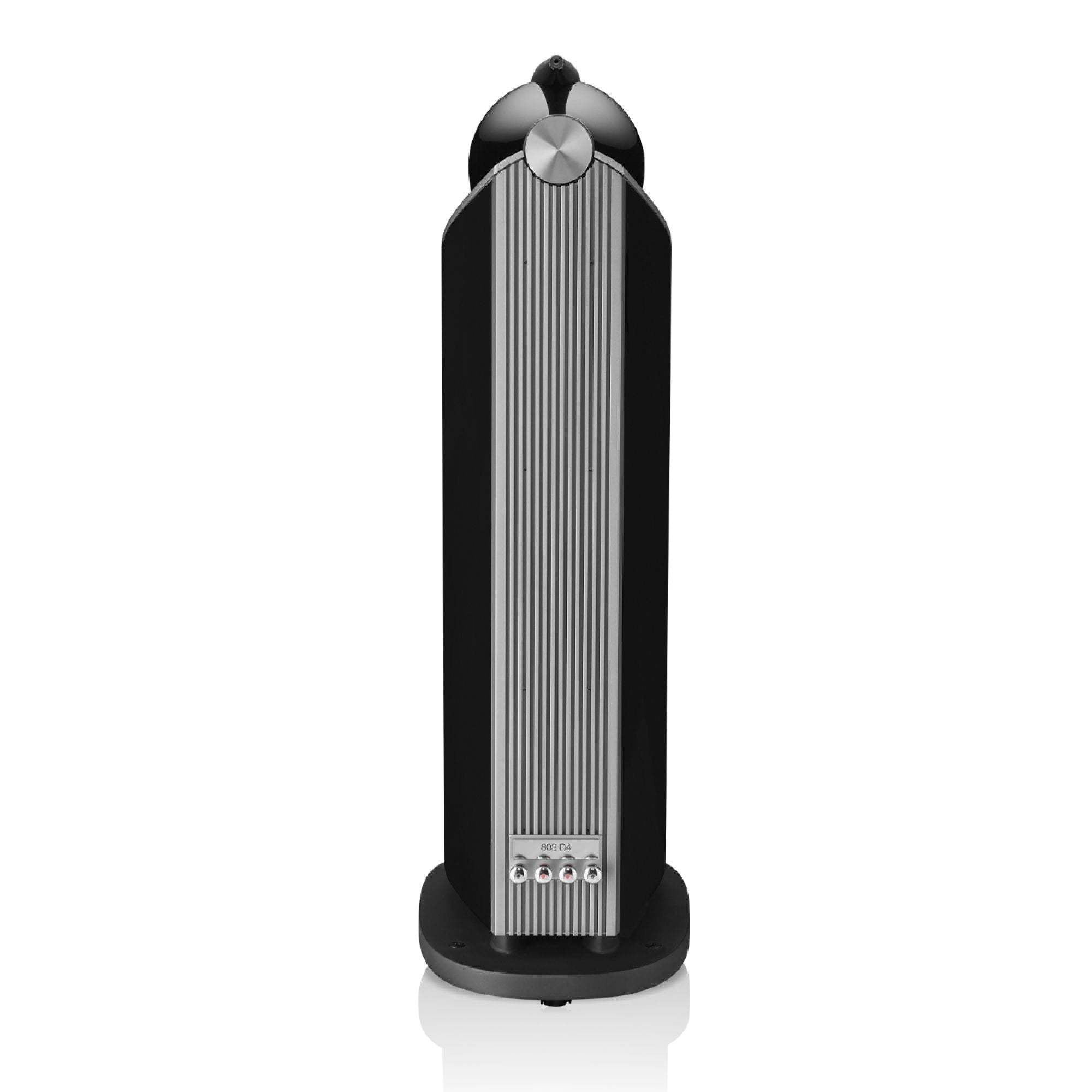

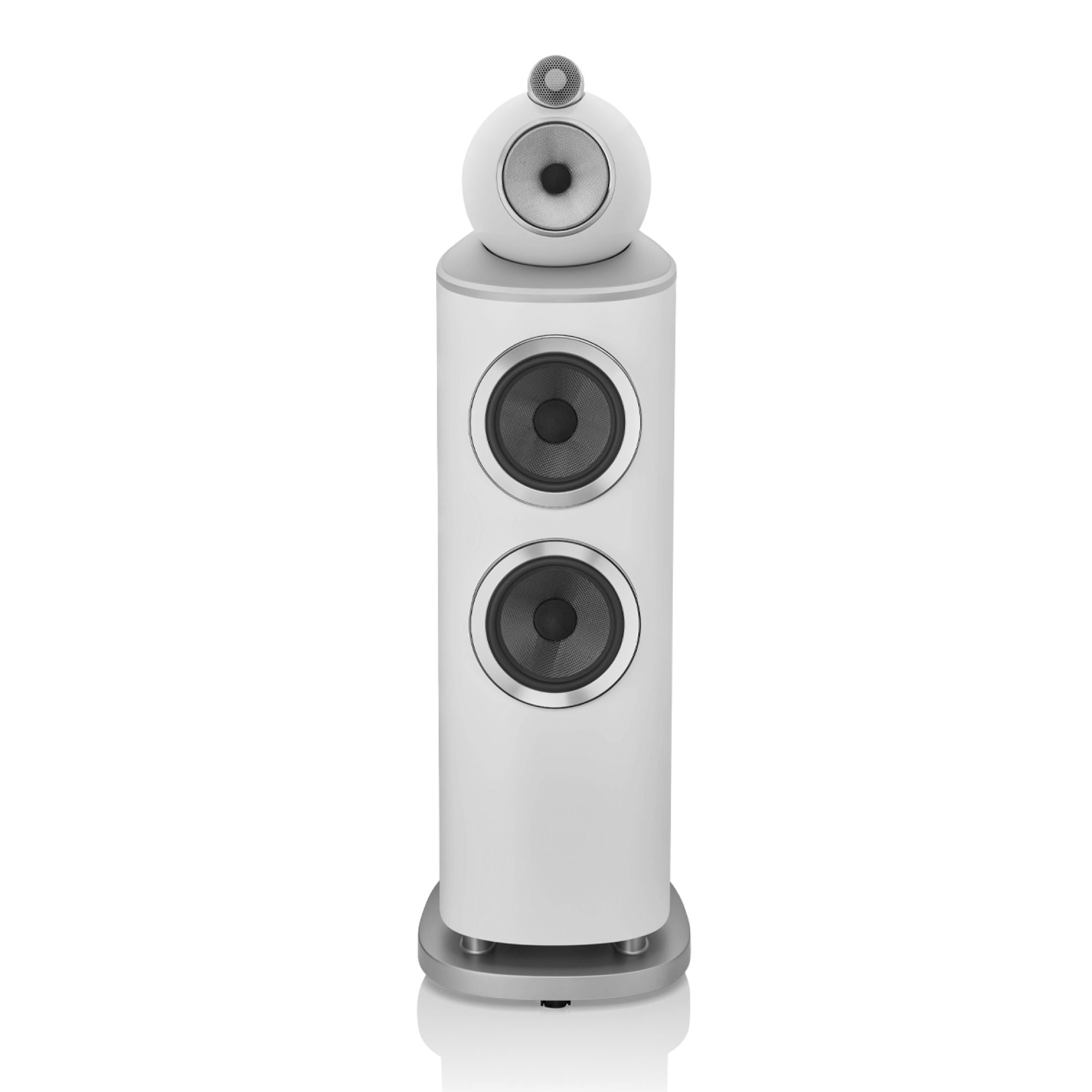

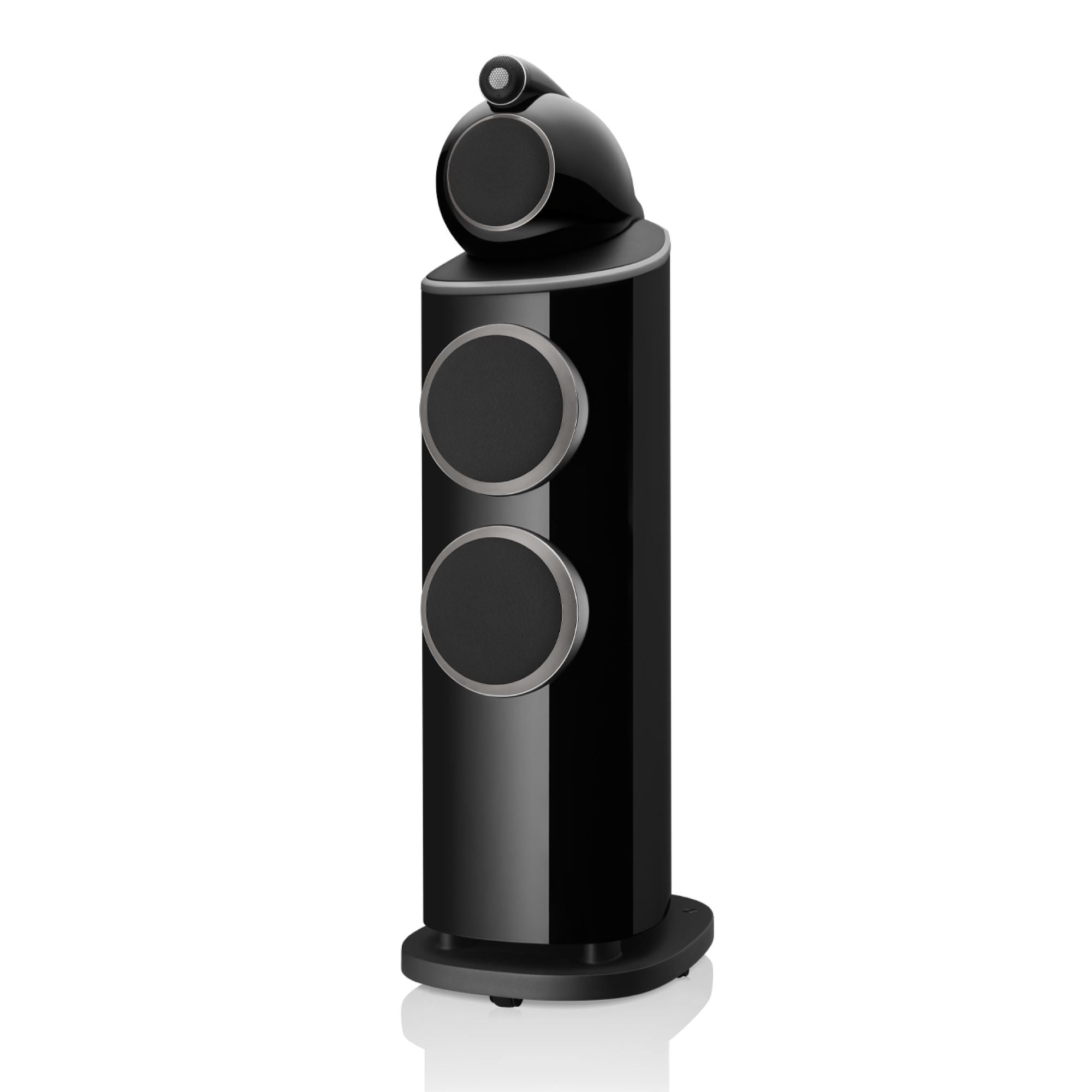

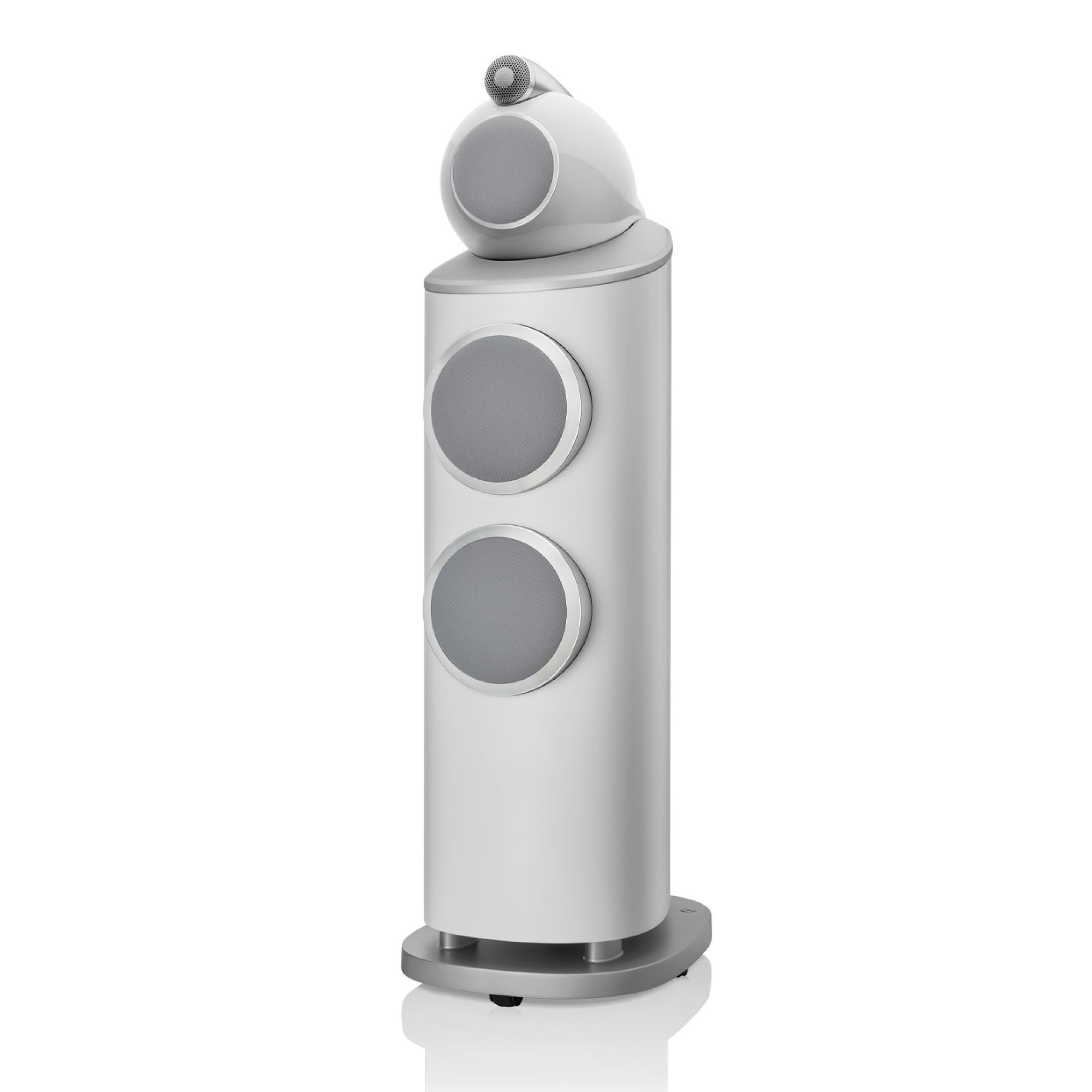

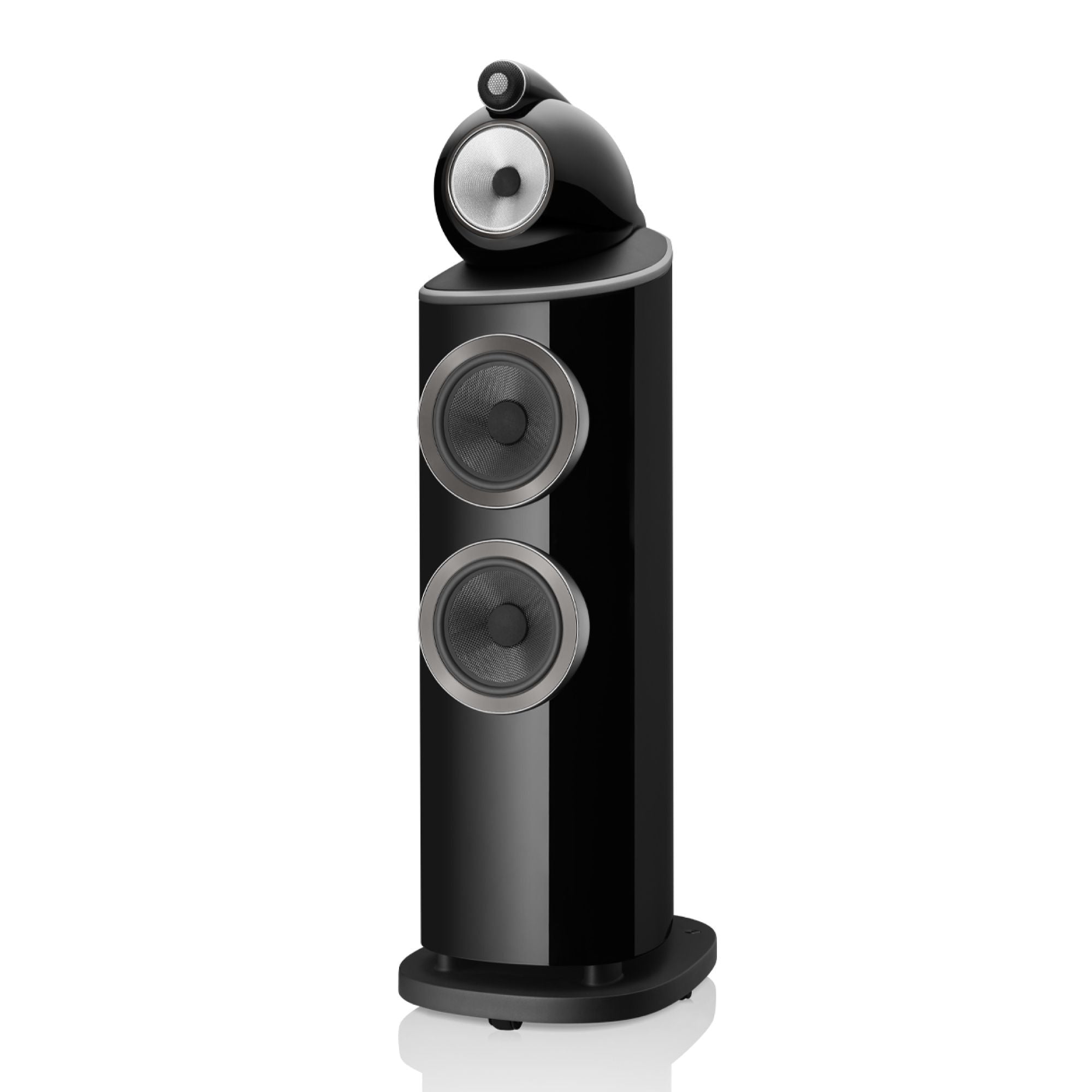

Bowers & Wilkins 803 D4 - Floor Standing Speaker - Pair

Rs. 3,000,000

Gloss BlackGloss Black
WhiteWhite
Satin RosenutSatin Rosenut
Satin WalnutSatin Walnut
Description

803 D4

Bowers & Wilkins’ most compact headed model brings all the technical advantages of a dedicated midrange enclosure – the Turbine™ Head, with its decoupled midrange cone – to a smaller footprint that’s easily accommodated in any home.

Small wonder

803 D4 may be notably more compact than the 801 D4 or 802 D4, but it still bristles with technical innovation, most obviously in its use of a three-box construction. Its 130mm (5-in) midrange cone is carefully isolated from the impact of its bass cones thanks to its Turbine Head enclosure.

Reverse Wrap cabinet

Instead of a conventional loudspeaker box, B&w cabinets are made from a continuous curved section of wood, with the drive units mounted at the heart of the curvature. This stiffer, more inert structure resists mechanical resonances far better and also ensures better dispersion of sound.

Enhanced Matrix™

Matrix bracing uses interlocking panels to reinforce loudspeaker cabinet walls in all directions internally, reducing resonance and creating a more believable soundstage. The Matrix assembly in 803 D4 is B&w’s best yet, ensuring optimum scale, power and intelligibility.

Aluminum bass pods

803 D4 mounts two Aerofoil™ bass cones in twin solid aluminum bass pods, each of which is clamped into an aluminum plate fixed to the stiffest part of its curved cabinet. Formed as single pieces of metal, these stiff structures provide the perfect mechanical location for those powerful bass cones.

The science of sound

Innovation is at the heart of everything B&w do. They question, examine, understand and then evolve. Bowers & Wilkins use computer modelling to explore and reimagine every aspect of loudspeaker design.

Step up for more power

803 D4 features all the most iconic ingredients in the 800 Series Diamond range including, of course, that famous headed enclosure. It is, however, smaller than its other siblings. Step up to the 802 D4, and you’ll get both larger 200mm (8-in) bass cones and a larger 150mm (6-in) midrange driver.

SPECIFICATIONS

Dimensions

  • Height: 1165mm (45.9 in)
  • Width: 357mm (14.1 in)
  • Depth: 511mm (20.1 in)

Net weight

62.15kg (137 lb)

Technical features

  • Diamond tweeter
  • Solid body Tweeter-on-Top
  • Continuum™ cone FST
  • Anti-Resonance plug
  • Biomimetic Suspension
  • Turbine™ Head
  • Matrix™
  • Aerofoil™ cone bass units
  • Flowport

Description

3-way vented-box system

Drive units

  • 1x ø25mm (1in) Diamond dome high-frequency
  • 1x ø130mm (5in) Continuum cone FST midrange
  • 2x ø180mm (7in) Aerofoil cone bass units

Frequency range

16Hz to 35kHz

Frequency response

19Hz to 28kHz (+/-3dB from reference axis)

Sensitivity

90dB (on axis at 2.83Vrms at 1m)

Harmonic distortion

  • 2nd and 3rd harmonics (90dB,1m on axis)
  • <1% 80Hz – 20kHz
  • <0.3% 100Hz – 20kHz

Nominal impedance

8Ω (minimum 3.0Ω)

Recommended amplifier power

50W – 500W into 8Ω on unclipped programme

Max recommended cable impedance

0.1Ω

Cabinet finishes

  • Gloss Black
  • White
  • Satin Rosenut
  • Satin Walnut

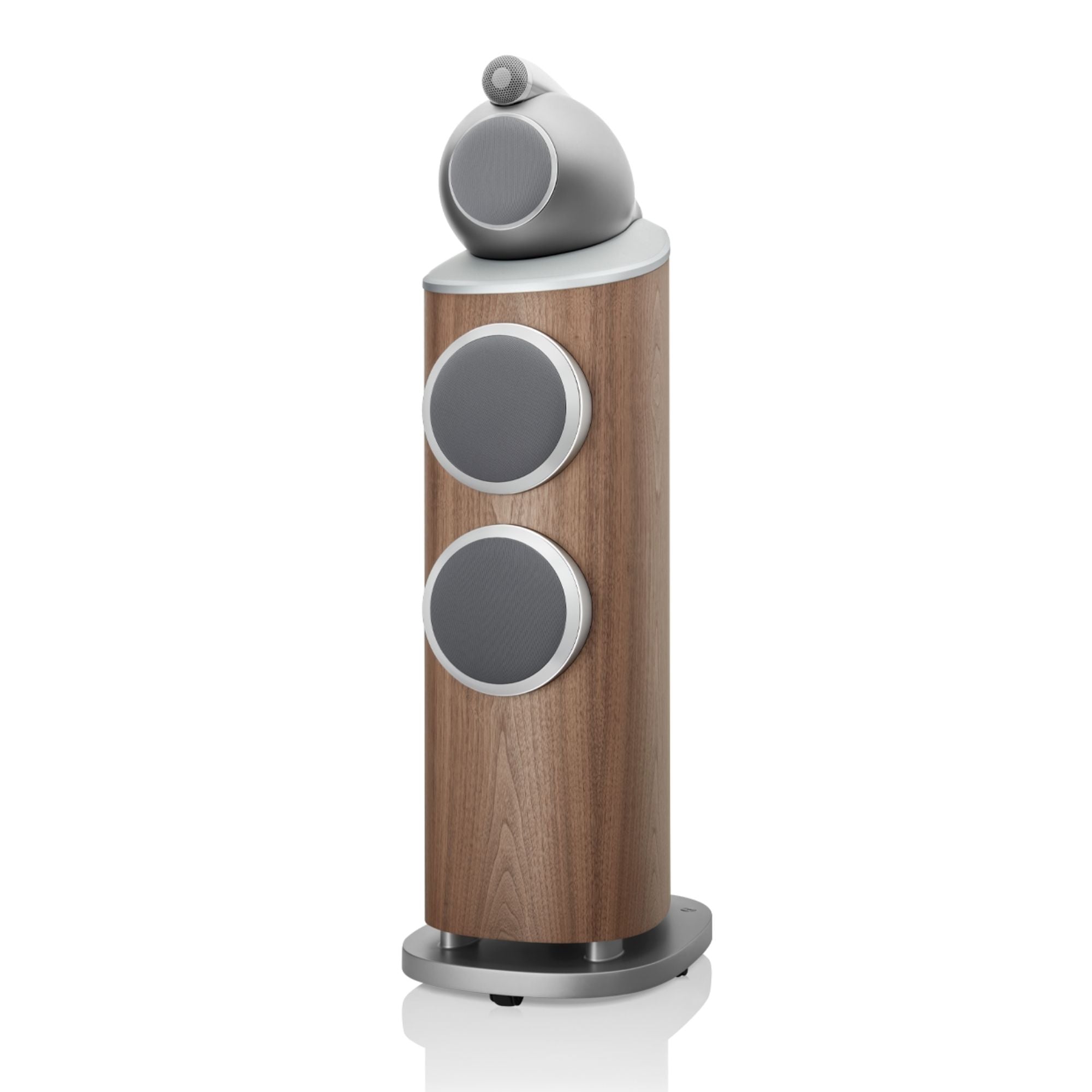

Grille finishes

  • Black
  • Grey
  • Black
  • Grey
