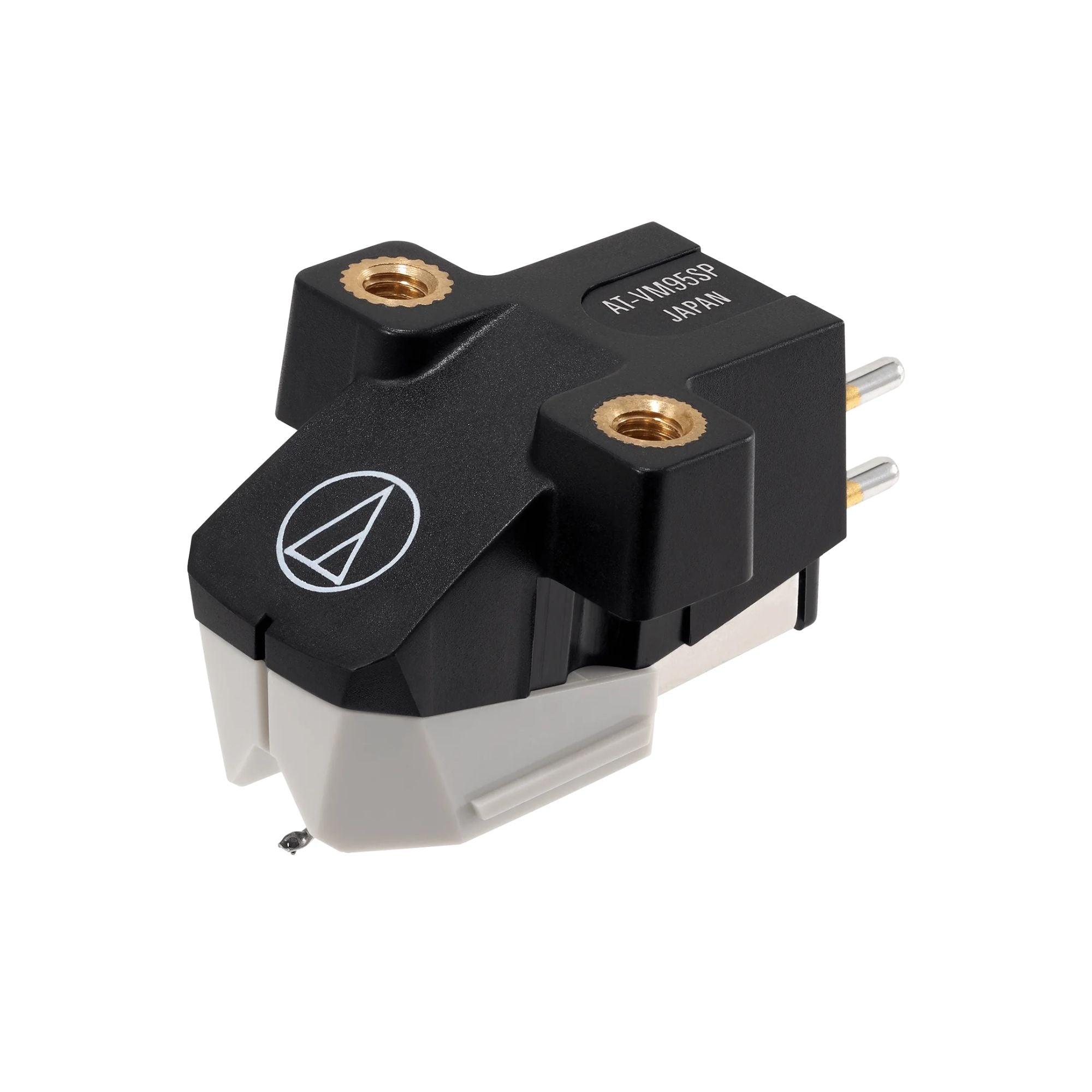

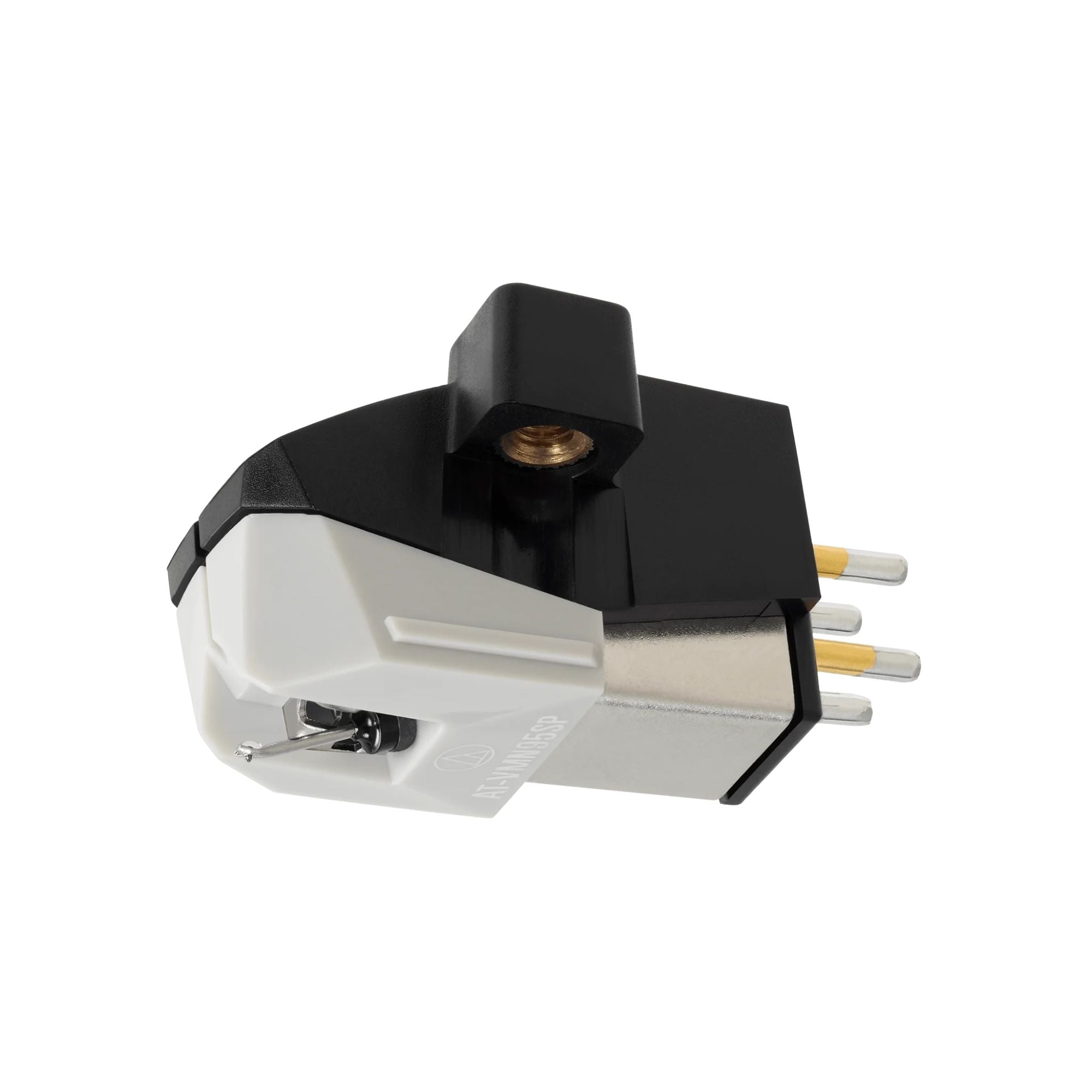

This VM95 Series cartridge with 3.0 mil conical stylus fits half-inch mount turntables. While this cartridge is designed to play 78 RPM mono records, it is, nevertheless, a stereo cartridge, allowing users to choose between the left and right channels, which can be especially helpful in archiving applications to minimize noise and distortion. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws - no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Features
- VM95 Series dual magnet cartridge with 3.0 mil conical stylus for 78 RPM records
- Aluminum cantilever
- Durable low-resonance polymer housing
- Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws - no nuts or washers required
- Compatible with any AT-VMN95 replacement stylus
|
Frequency Response |
20 - 20,000 Hz |
|
Vertical Tracking Angle |
23° |
|
Vertical Tracking Force |
4.5 to 5.5g (standard 5.0g) |
|
Stylus Construction |
Bonded Round Shank |
|
Recommended Load Impedance |
47,000 Ω |
|
Coil Impedance |
3.3 kΩ (1 kHz) |
|
DC Resistance |
485 Ω |
|
Coil Inductance |
550 mH (1 kHz) |
|
Output Voltage |
2.7 mV (@ 1 kHz, 5 cm/sec) |
|
Output Channel Balance |
1.5 dB (1 kHz) |
|
Stylus Shape |
SP 3 mil Conical Bonded |
|
Cantilever |
Aluminium Pipe |
|
Static Compliance |
12 x 10 – 6 cm / dyne |
|
Dynamic Compliance |
2 x 10 – 6 cm / dyne (100 Hz) |
|
Mounting |
1/2” centres |
|
Accessories Included |
Two 11 mm installation screws; Two 8 mm installation screws; Two washers |
|
Model |
AT-VM95SP |
|
Recommended Load Capacitance |
100-200 pF |
|
Replacement Stylus |
AT-VMN95SP |
|
Stylus Size |
3 mil |
|
Type |
VM Stereo Dual Magnet |
|
Wire Used for Coil |
T.P. Copper |
|
Dimensions |
17.2 x 18.9 x 28.3 ( H x W x D mm) |
|
Cartridge Weight |
6.1g |
