Audio Technica AT-VM95SH/H Headshell/Cartridge Combo Kit
Inclusive of all taxes
GET GST INPUT
Ever wondered why speakers, amplifiers, projectors etc. come with a slightly heftier price tag in India compared to their overseas counterparts? Well, part of the answer lies in our country's Goods & Services Tax (GST).
But here's the kicker: Don't let that GST input slip through your fingers! Especially when some of the products we supply carry a GST rate of 18% and 28%.
At AVStore, we provide you with a GST compliant invoice for every purchase.
Simply put in your GST number during the checkout to avail an offset.
- Description
- Specifications
- Reviews

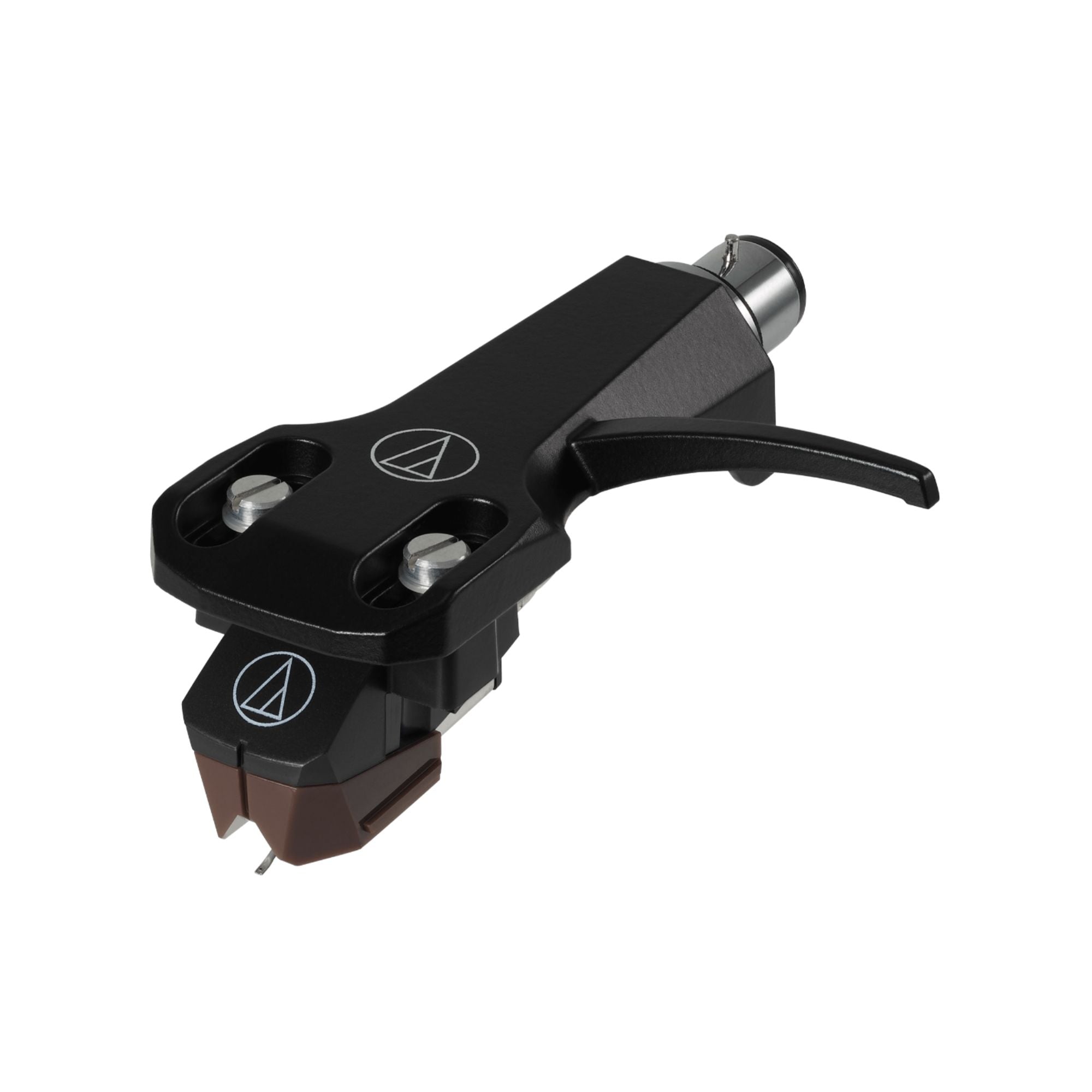

The AT-VM95SH/H combo kit includes the AT-VM95SH dual moving magnet cartridge premounted on the AT-HS6BK headshell.
Key Features
- VM dual magnet cartridge with 2.7 x 0.26 mil Shibata stylus
- Aluminum cantilever

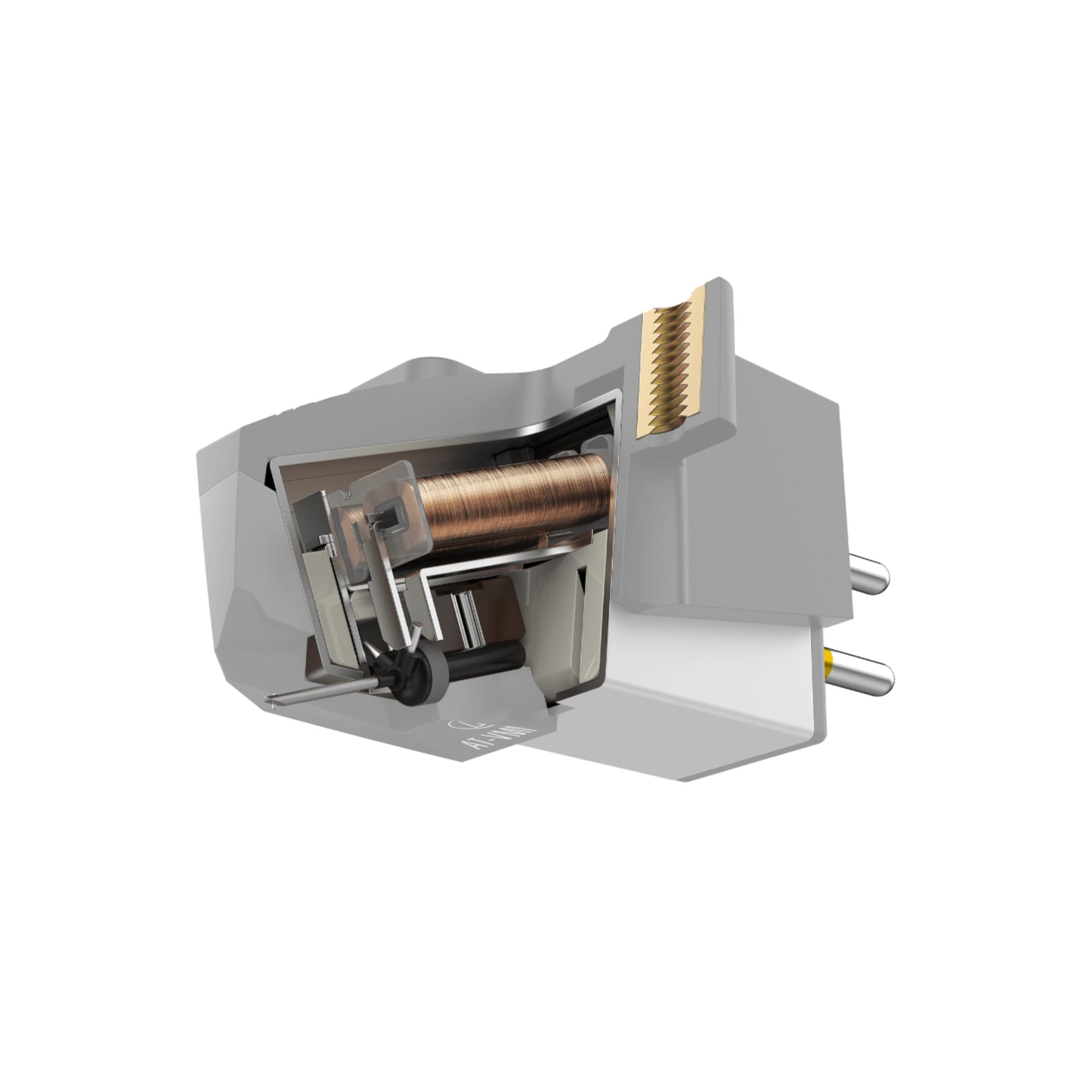

- Specially wound coils increase output voltage
- Durable low-resonance polymer housing

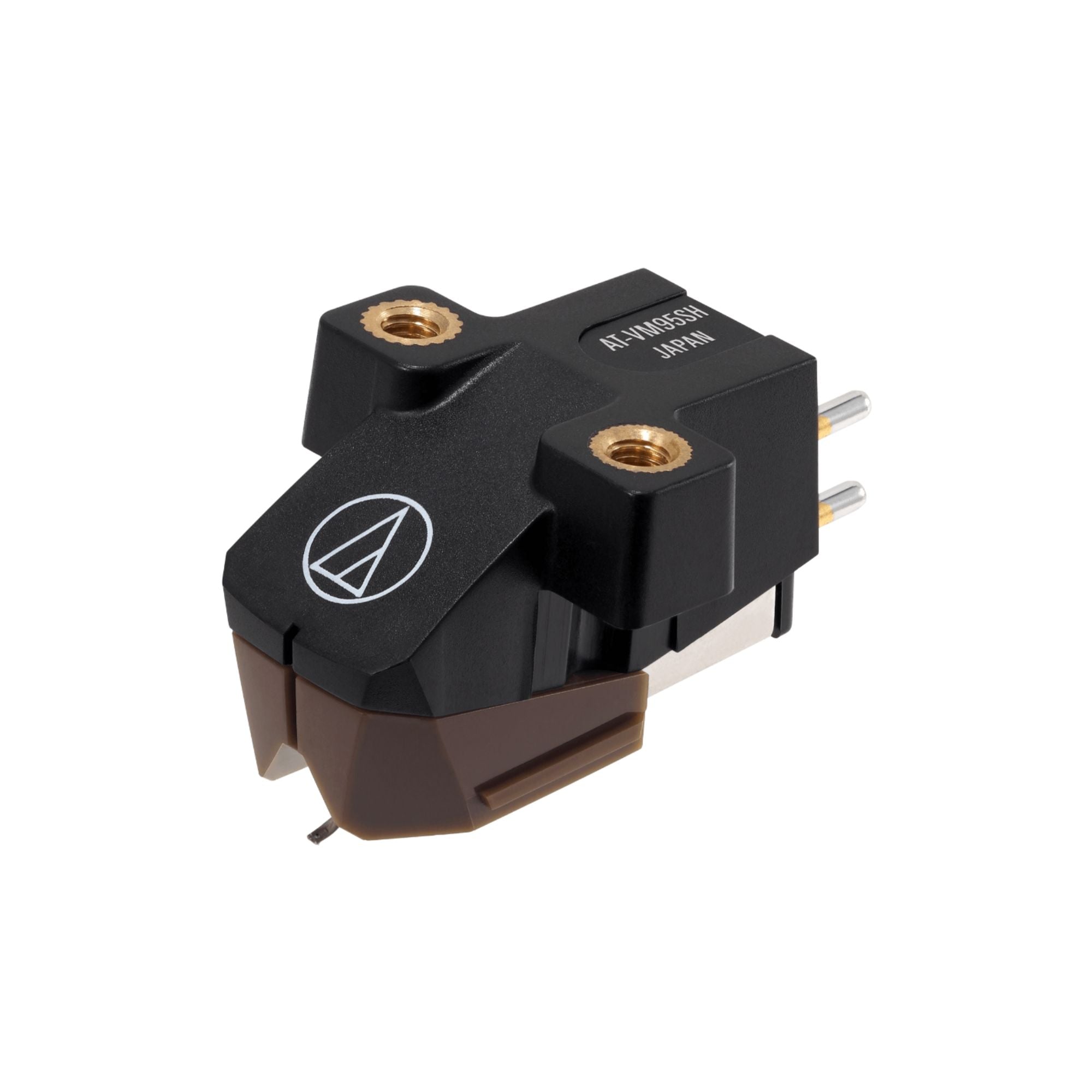

- Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws - no nuts or washers required
- Compatible with any AT-VMN95 replacement stylus

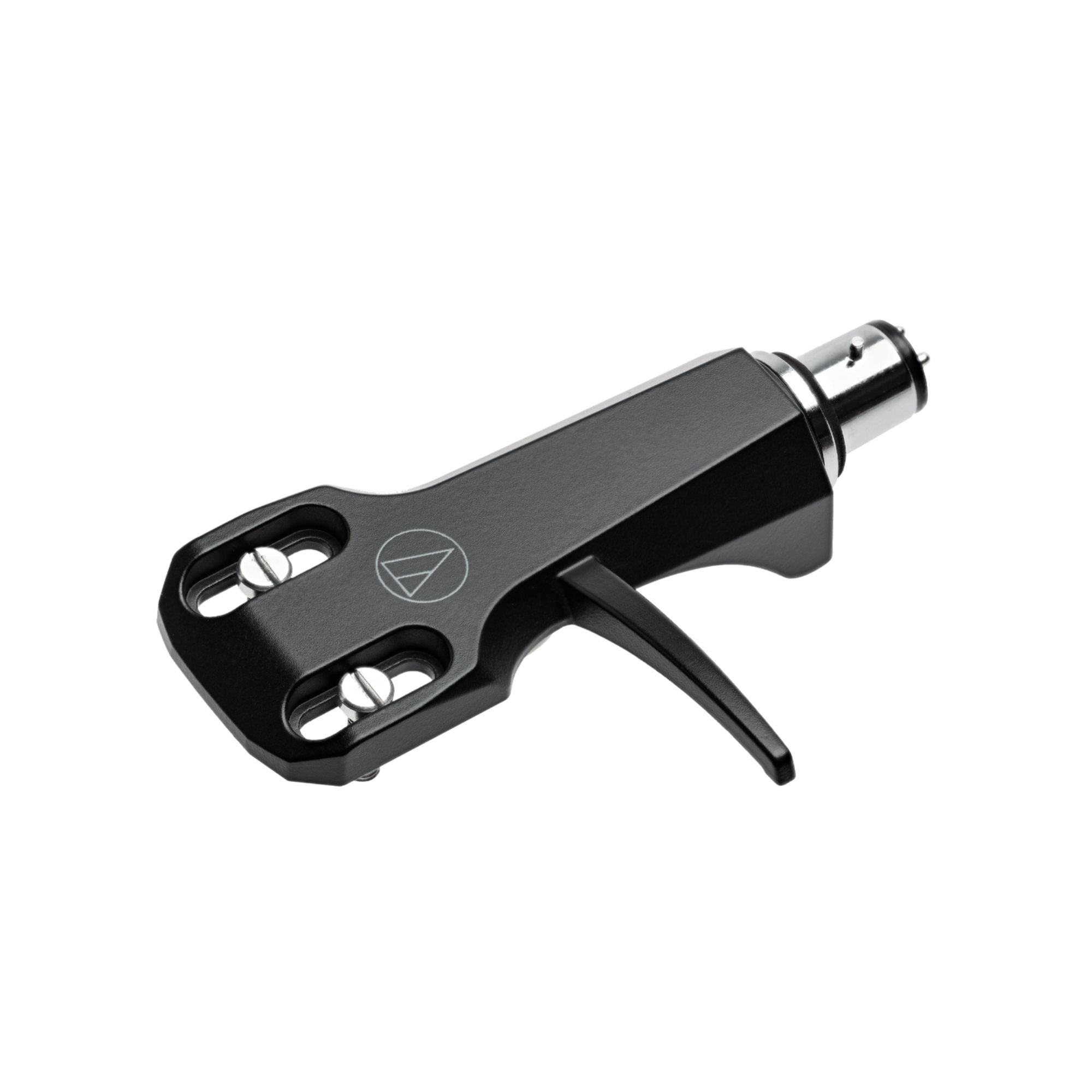

- Universal ½”-mount headshell for 4-pin turntable cartridges
|
Frequency Response |
20-25,000 Hz |
|
Channel Separation |
23 (dB at 1 kHz) |
|
Vertical Tracking Angle |
23° |
|
Vertical Tracking Force |
1.8-2.2 g (2.0 g standard) |
|
Stylus Construction |
Nude square shank |
|
Recommended Load Impedance |
47,000 ohms |
|
Coil Impedance |
3.3 k ohms (1 kHz) |
|
DC Resistance |
485 ohms |
|
Coil Inductance |
550 mH (1 kHz) |
|
Output Voltage |
3.5 mV (1 kHz, 5 cm/sec.) |
|
Output Channel Balance |
1.5 dB (1 kHz) |
|
Stylus Shape |
2.7 x 0.26 mil Shibata |
|
Cantilever |
Aluminum pipe |
|
Static Compliance |
20 x 10 – 6 cm / dyne |
|
Dynamic Compliance |
10 x 10 – 6 cm / dyne (100 Hz) |
|
Mounting |
Half-inch |
|
Accessories Included |
Two 11 mm installation screws, two 8 mm installation screws, two washers, nonmagnetic screwdriver |
|
Recommended Load Capacitance |
100 to 200 pF |
|
Replacement Stylus |
AT-VMN95SH |
|
Stylus Size |
2.7 x 0.26mil |
|
Type |
VM Stereo Dual Magnet |
|
Dimensions |
Cartridge 17.2 mm (0.68″) H × 18.9 mm (0.74″) W × 28.3 mm (1.20″) D; Cartridge & Headshell 21.2 mm (0.83″) H × 21.4 mm (0.84″) W × 62.4 mm (2.46″) D |
|
Weight |
Cartridge 6.1 g (0.22 oz); Cartridge & Headshell 15.5 g (0.55 oz) |
|
Wire Used for Coil |
T.P. Copper |
