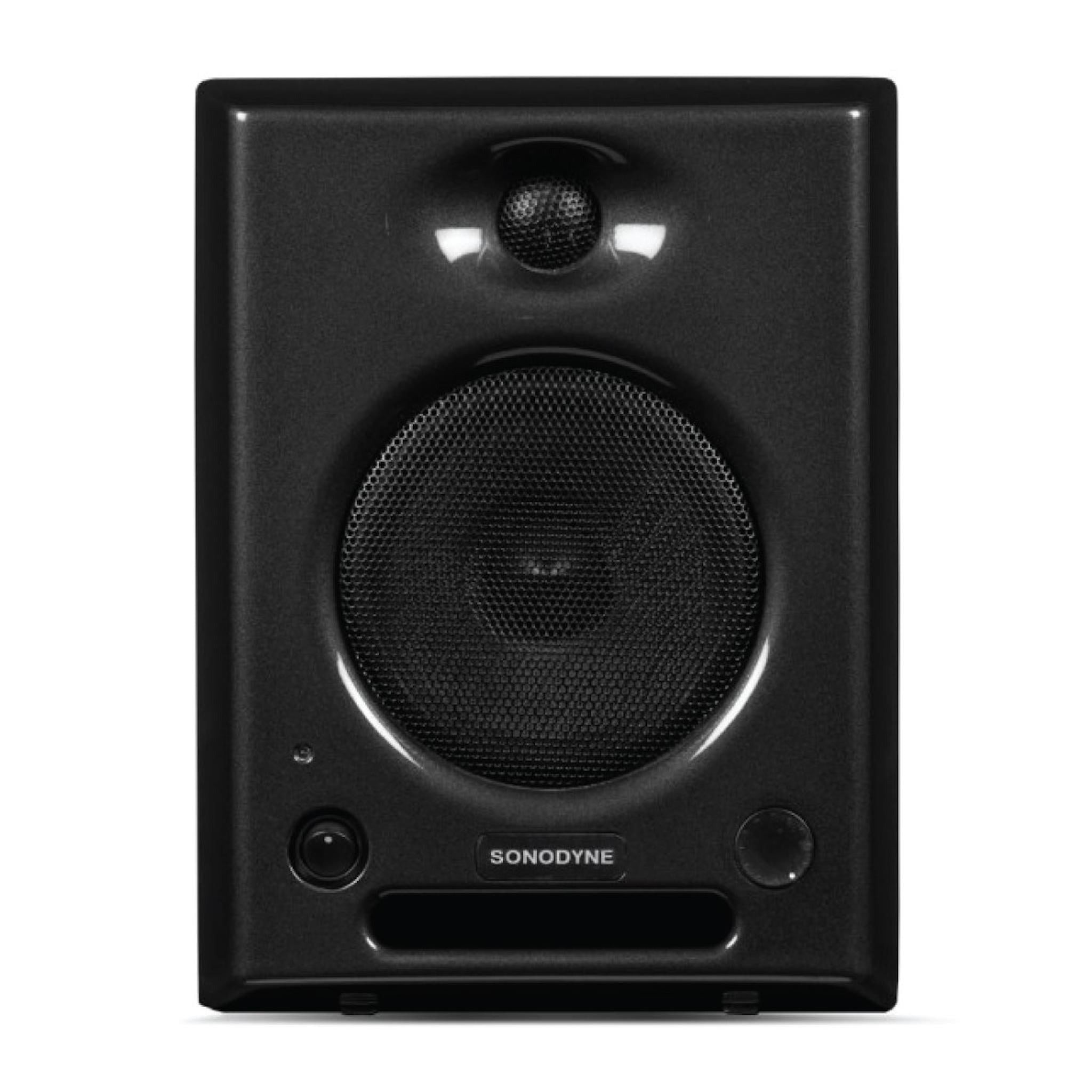

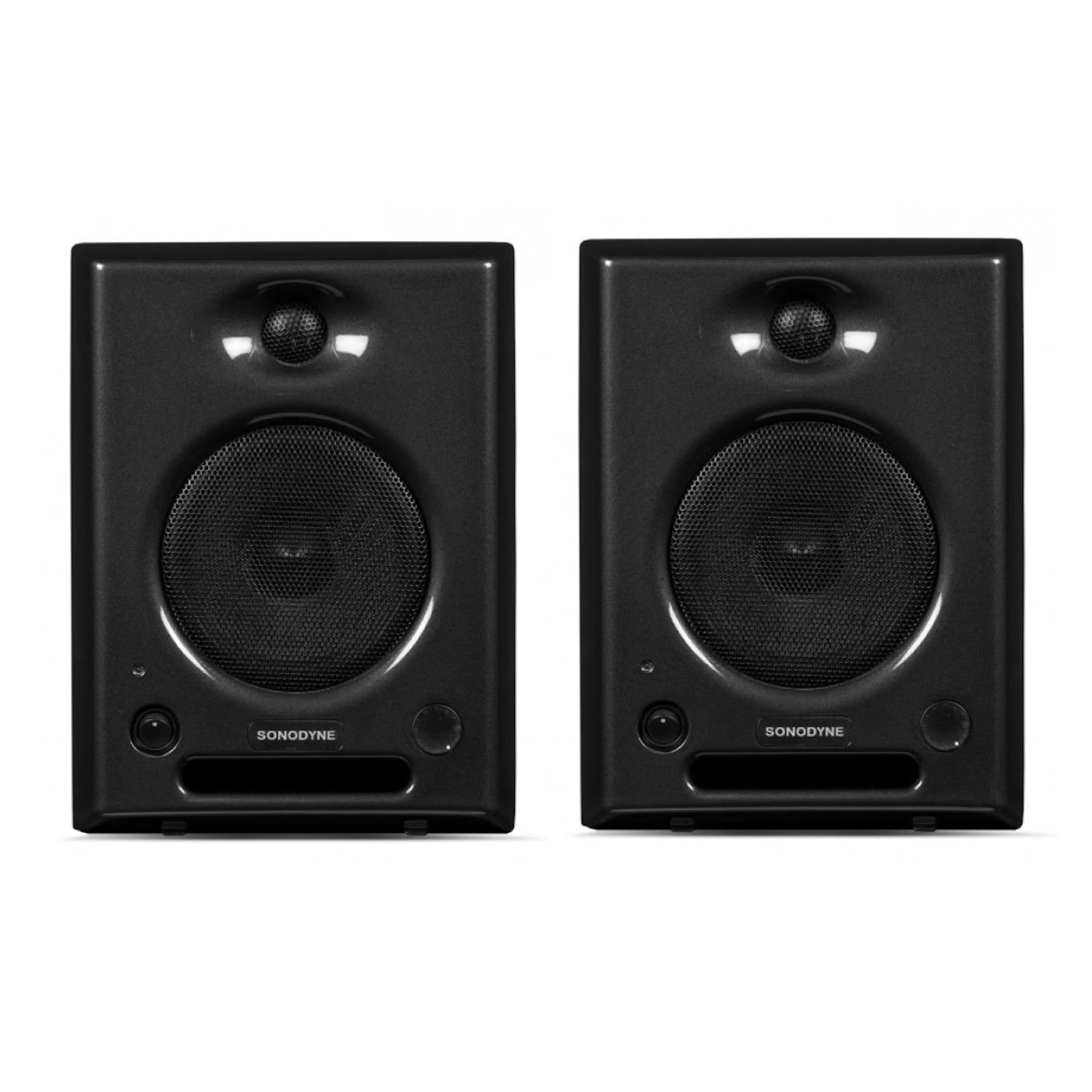

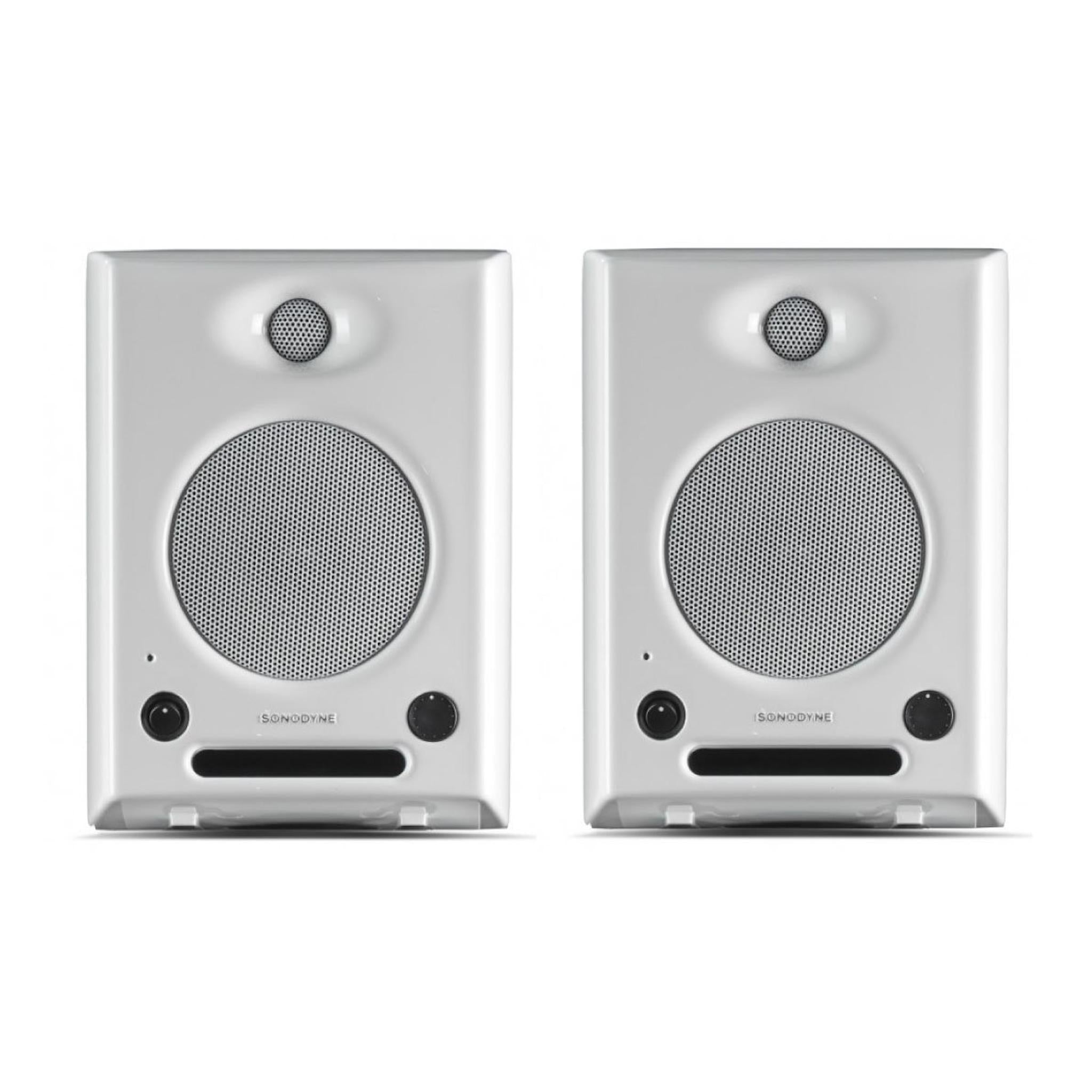

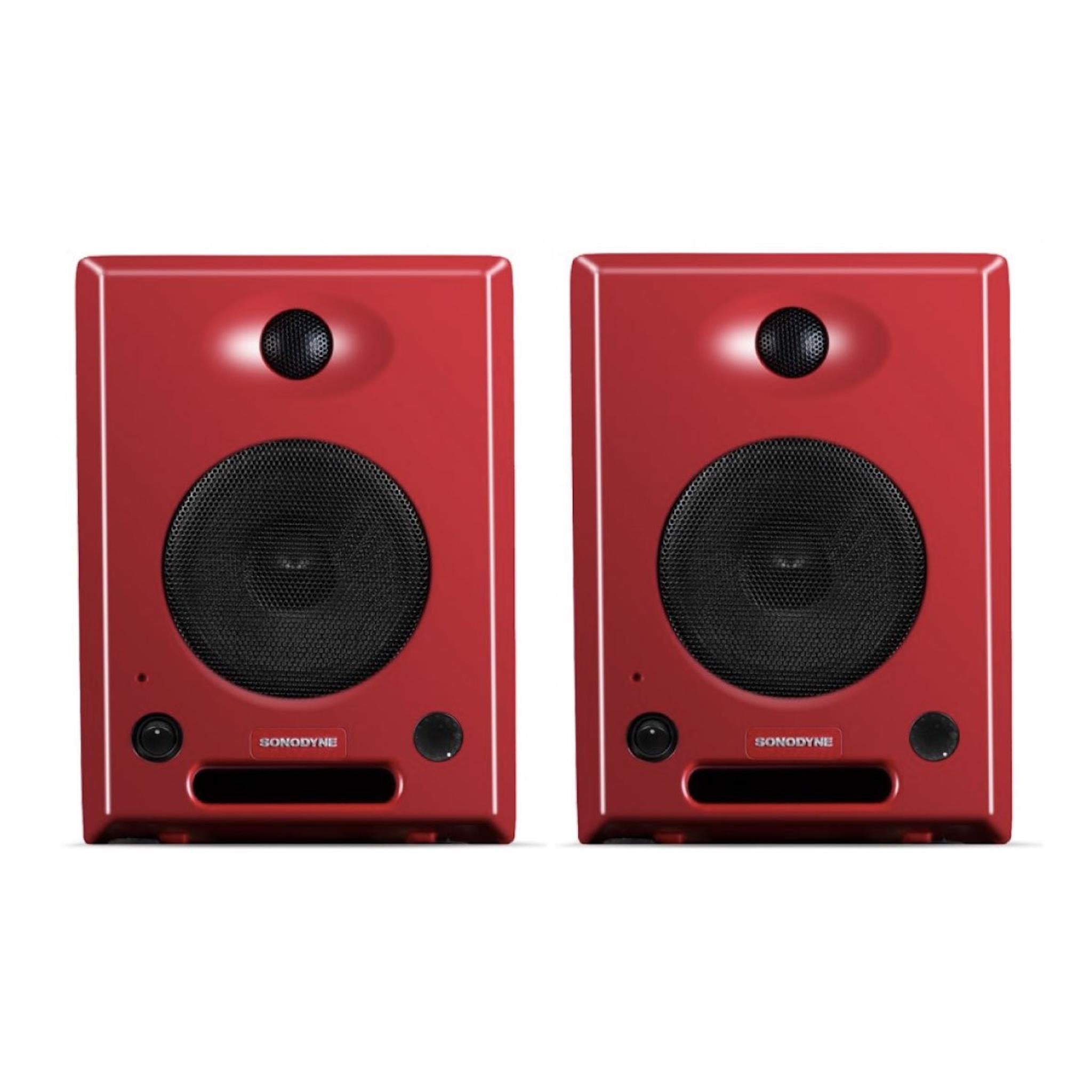

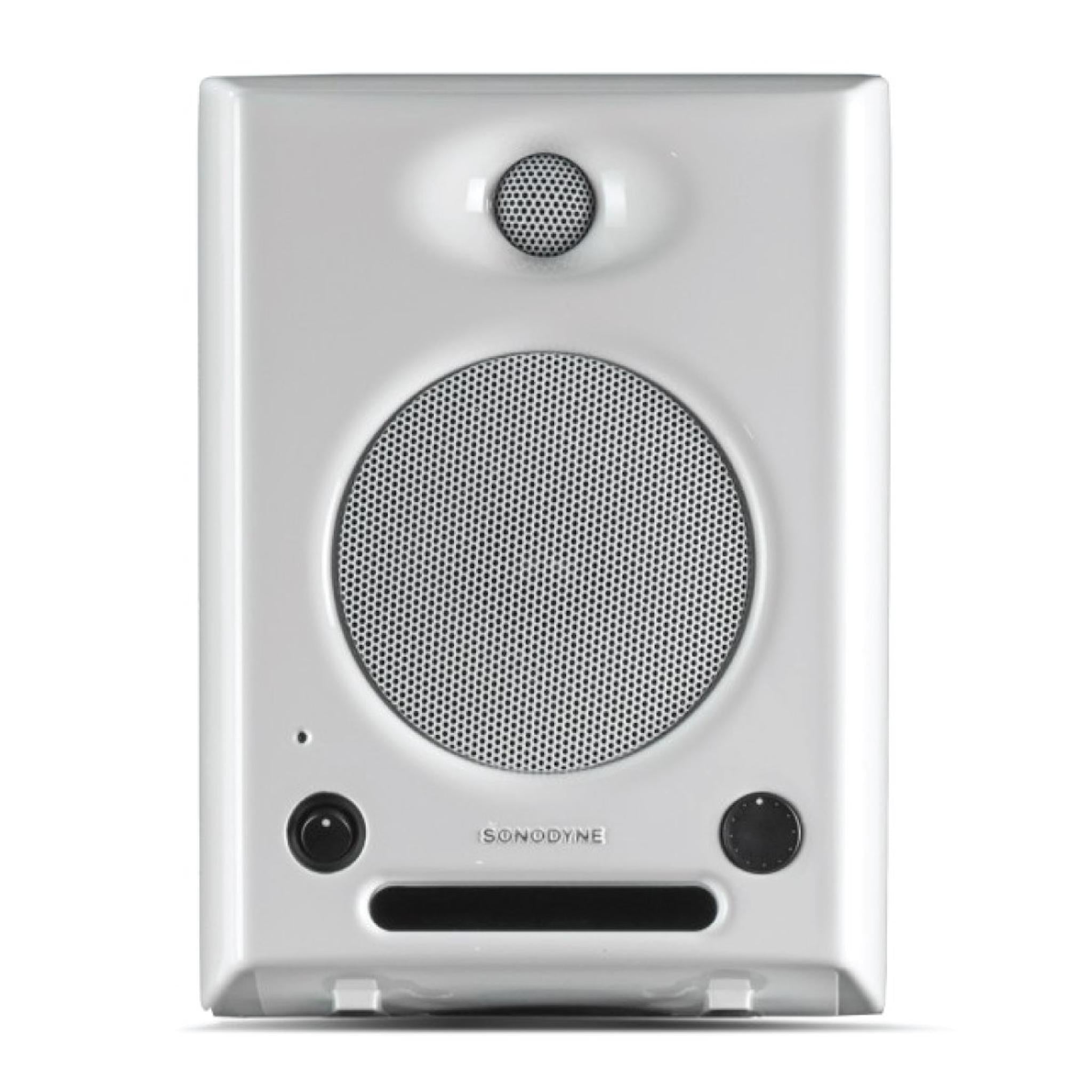

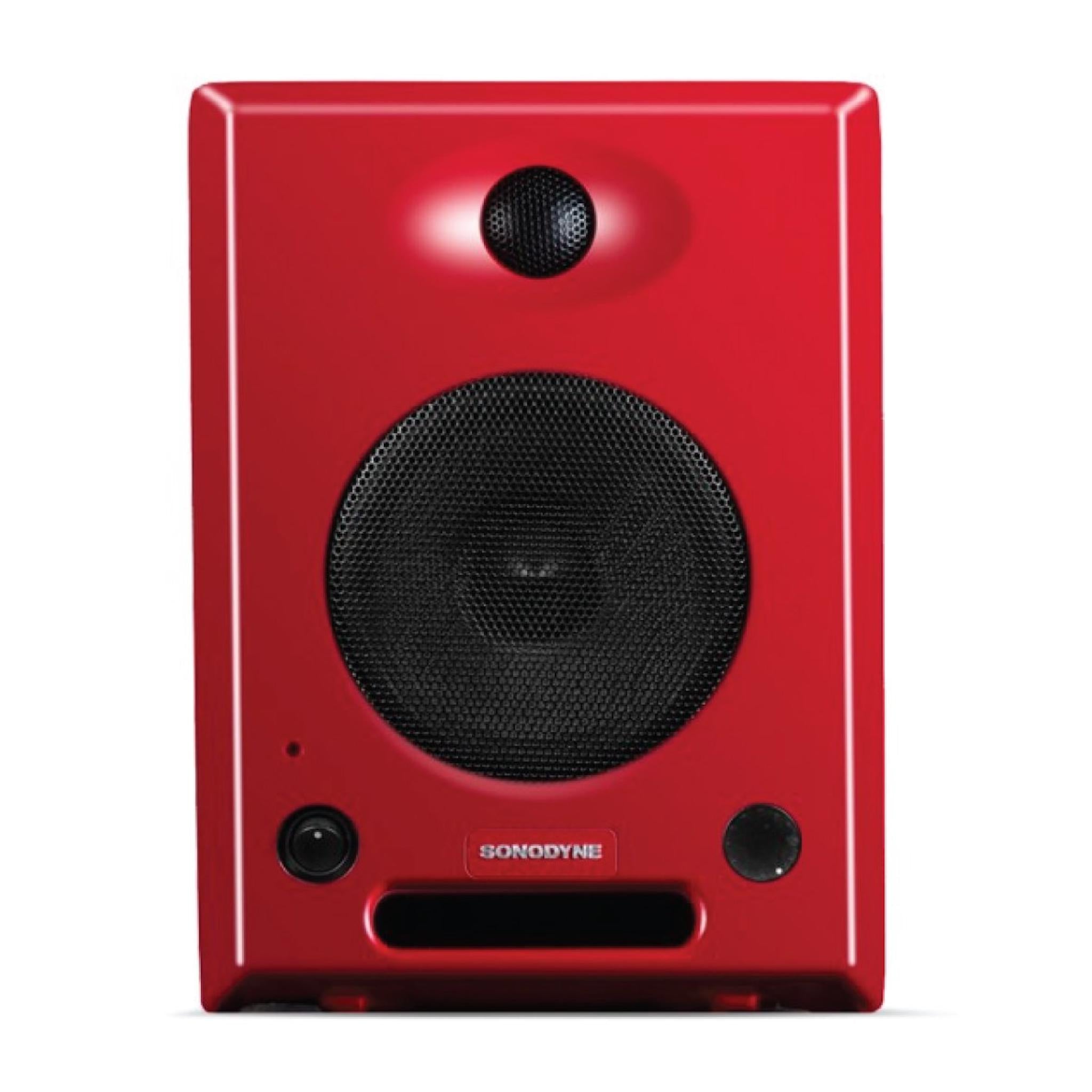

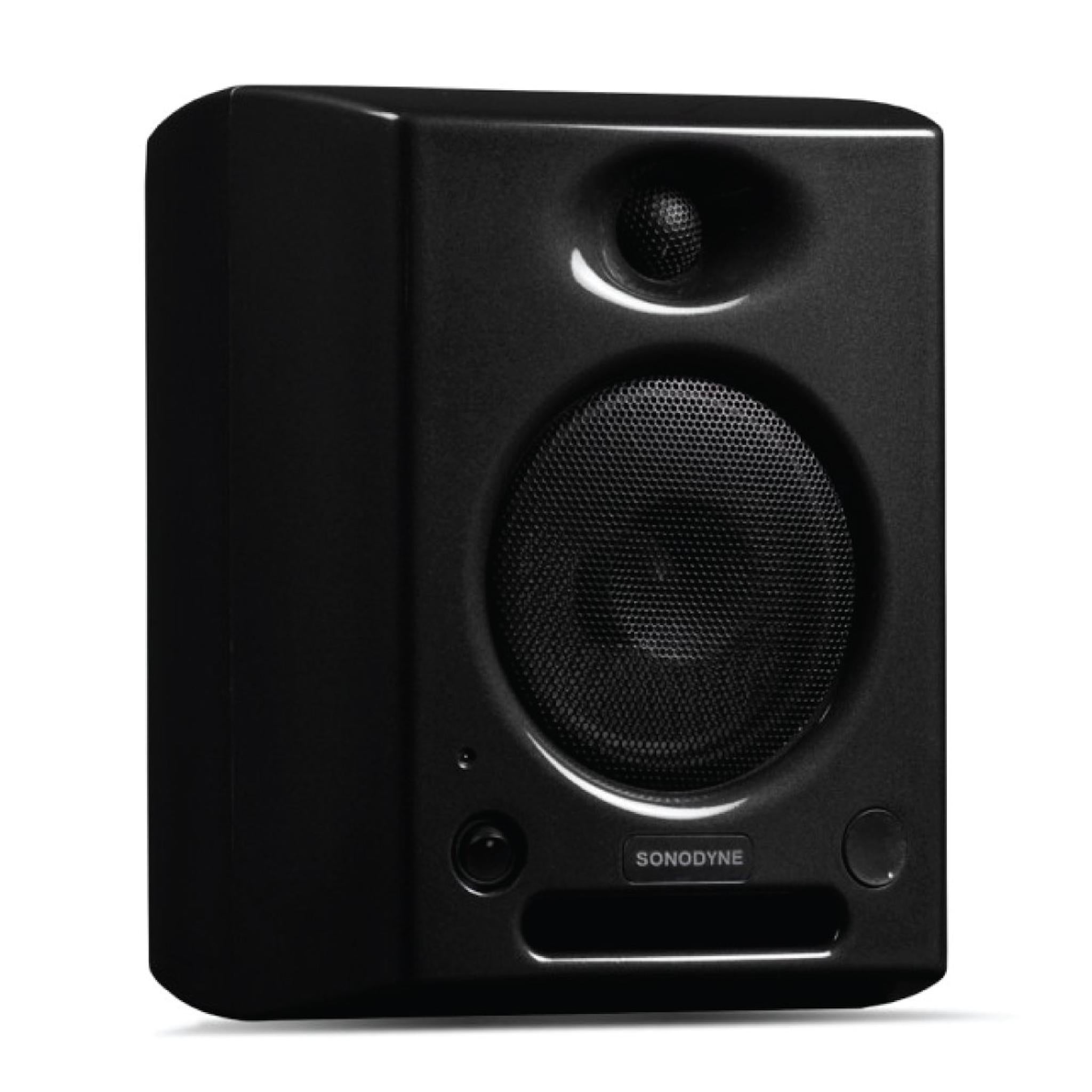

Sonodyne SRP 203 - Active Bookshelf Speaker - Pair
SRP 203
Overview
With the SRP 203, things start getting more serious. You have a largish room, and you don’t want any compromise. Call on the 203 to deliver uncoloured, undistorted, loud sound that will make the performer proud. And your ears happy.
Highlights
- Aluminium die-cast enclosure
- Inbuilt 100 watt bi -amplifier with DSP balance
- Kevlar woofer
- Custom HF waveguide
- Detailed midrange
- Tight & defined bass response
- Stand, wall mounts (optional)
|
DESCRIPTION |
2 way biamplifier speaker |
|
ENCLOSURE |
Pressure die-cast aluminum |
|
TRANSDUCER COMPLEMENTS: HF |
Magnetically shielded 26mm silk dome tweeter with custom waveguide |
|
TRANSDUCER COMPLEMENTS: LF |
Magnetically shielded 5.25" Kevlar cone woofer in die-cast chassis |
|
AMPLIFIER THD |
< 0.04% |
|
RECOMMENDED AMPLIFIER POWER |
LF: 50W, HF: 50W |
|
MAX SPL @ 1M |
104 dB |
|
FREQUENCY RESPONSE (-3 dB) on axis |
65 Hz ~ 22 kHz |
|
FREQUENCY EXTENSION (-10 dB) |
50 Hz ~ 25 kHz |
|
CROSSOVER FREQUENCY |
2.5 kHz |
|

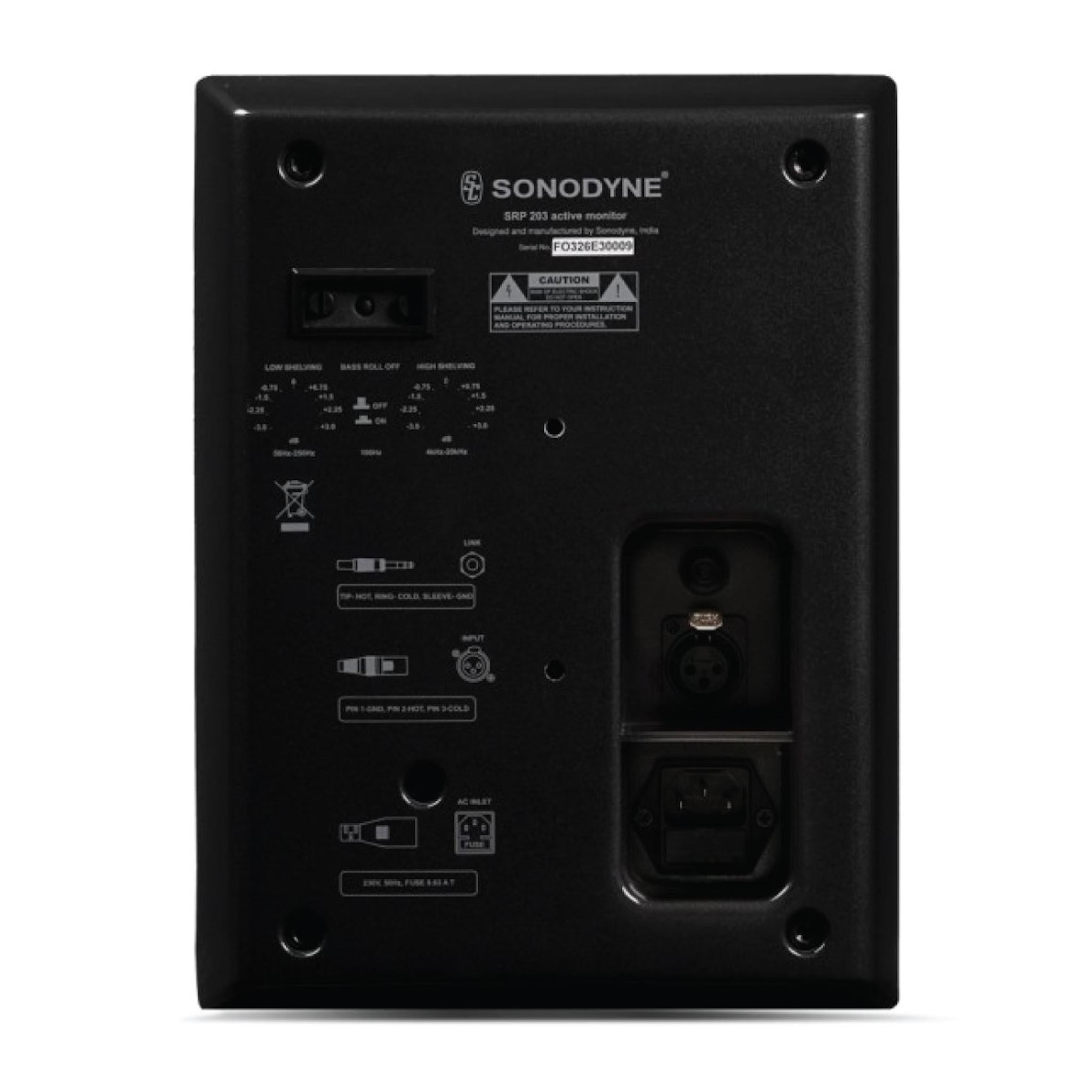

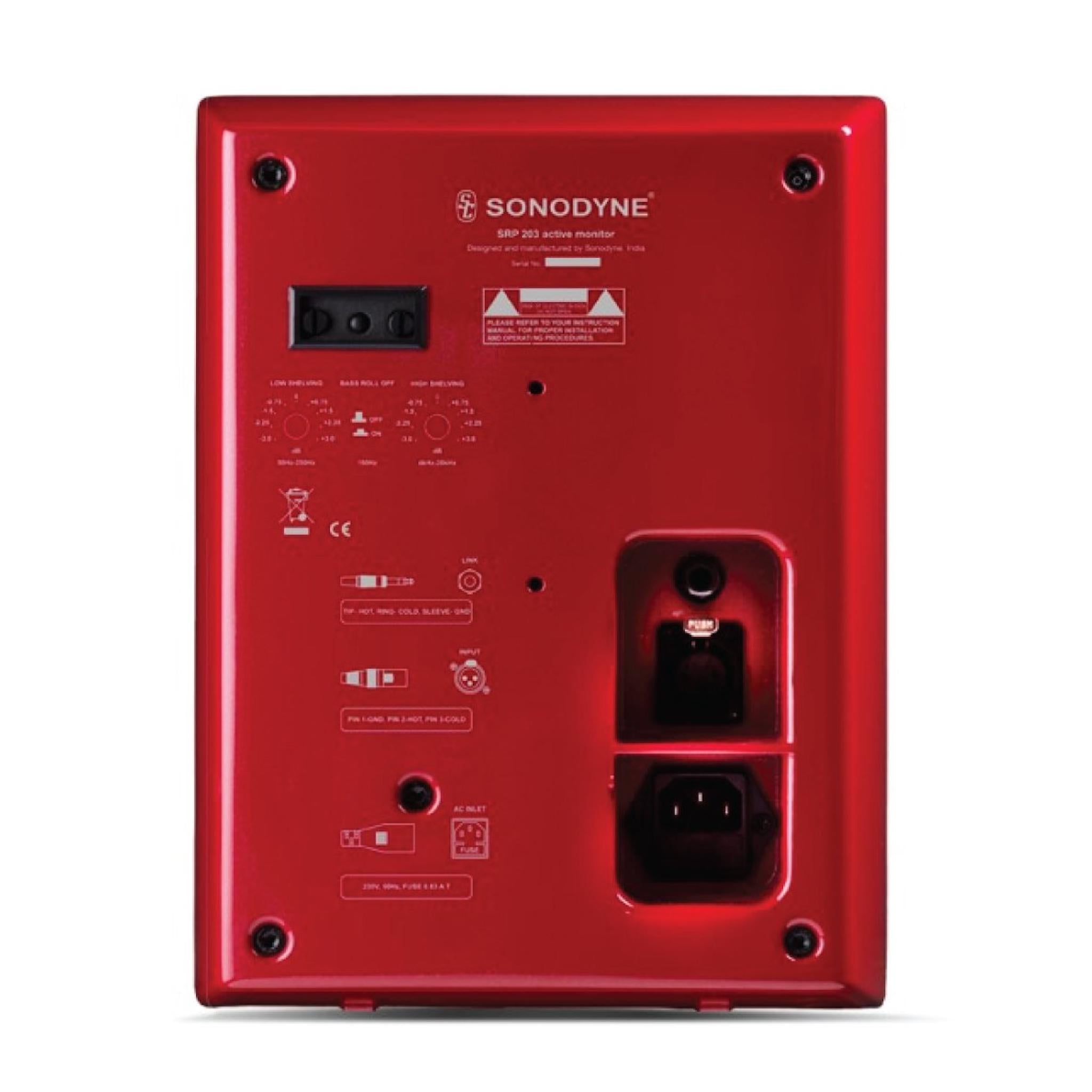

INPUTS |
1 x fully balanced XLR, 1 x unbalanced RCA socket |
|
FINISH |
Paint (black/ white/ red) |
|
COLOURS |
Black/ white/ red |
|
DIMENSIONS (HxWxD) mm |
279 x 210 x 181 |
|
POWER CONSUMPTION |
100 VA max. |
|
NET WEIGHT |
6.8 kg |
|

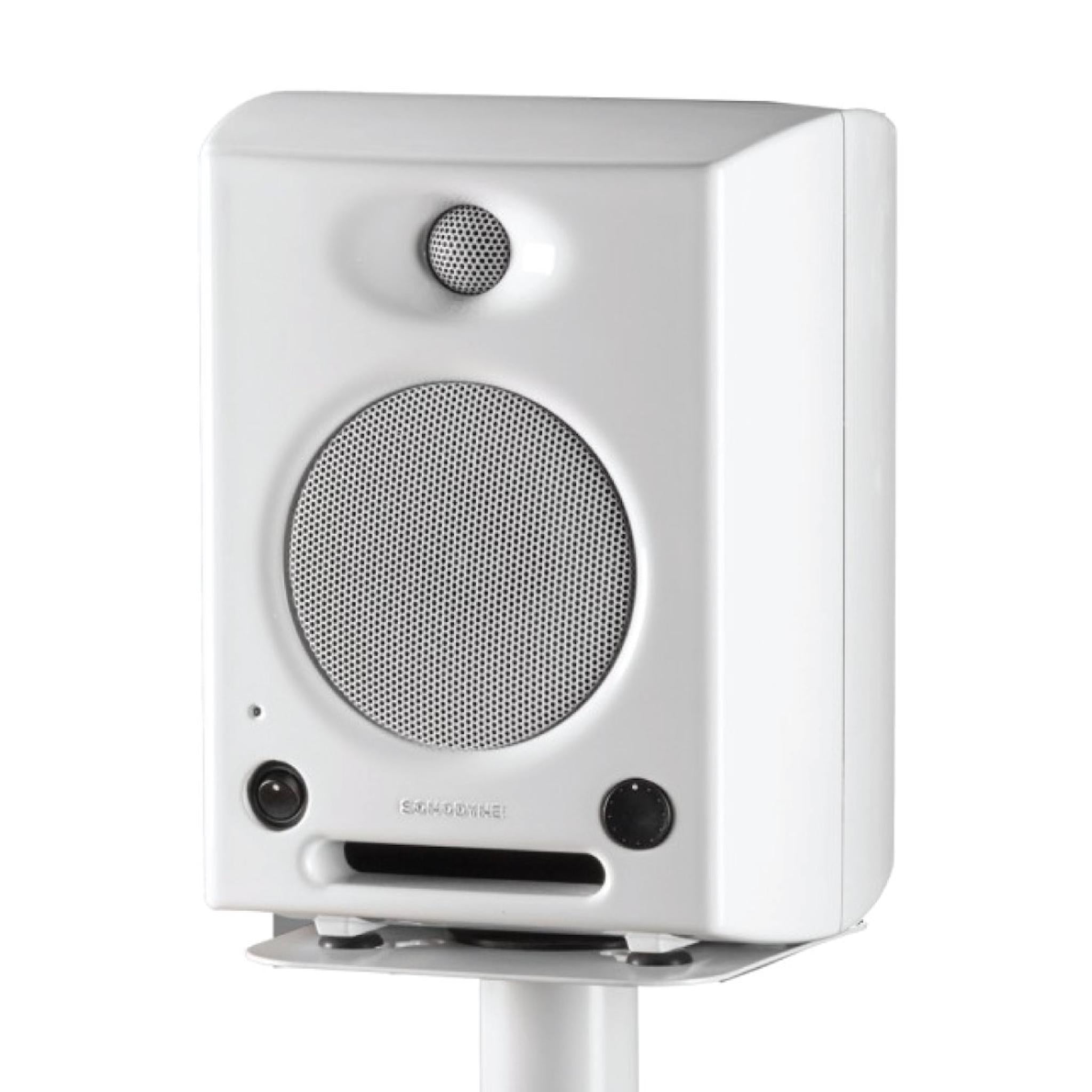

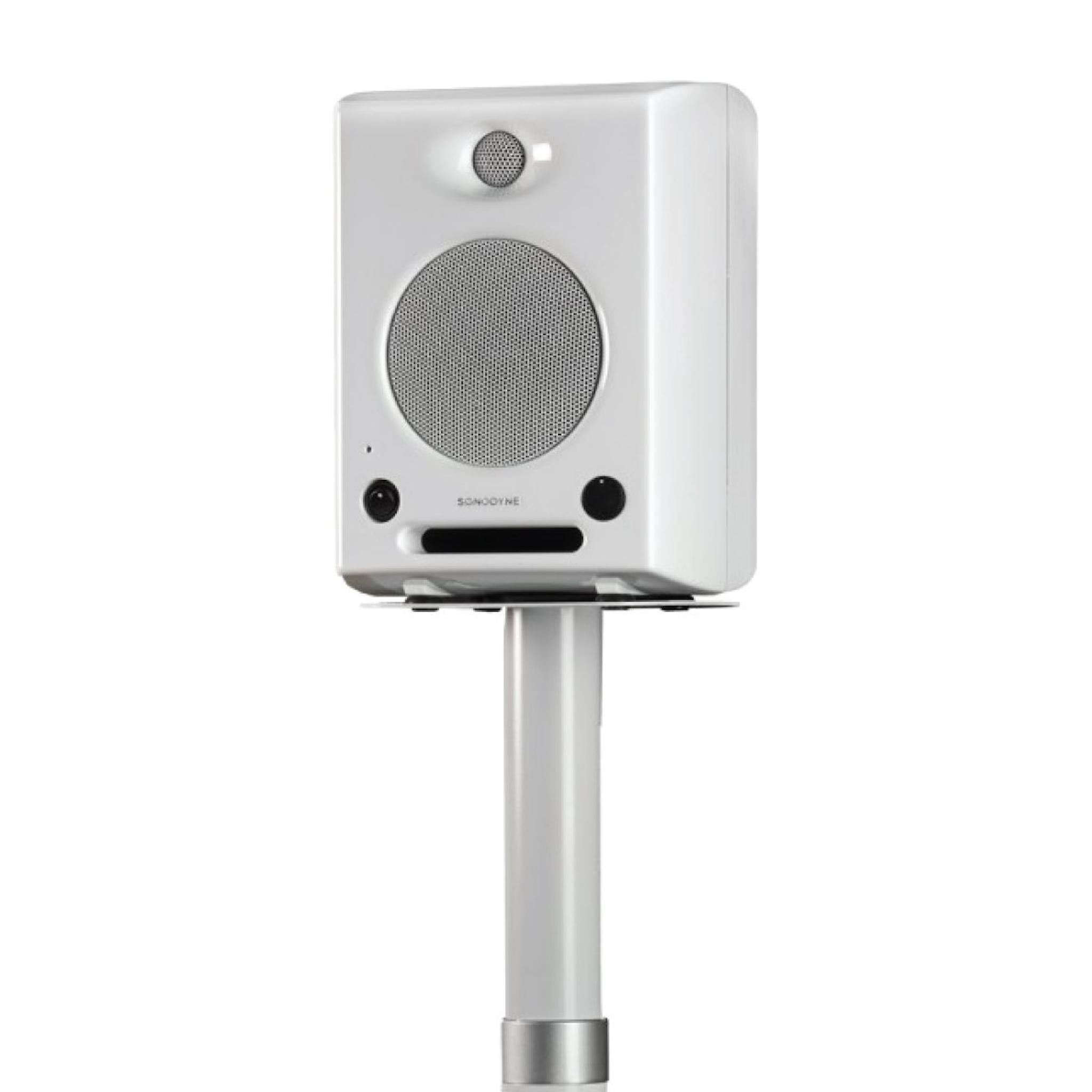

FLOOR MOUNT STAND MODEL |
SRP FS 1 W/B |
|
WALL MOUNT BRACKET |
SRP WB2 |
|
