Sonodyne Micro HTS1 - 5.1 Channel Speaker System

Rs. 45,000

  • • Free Shipping (India)
  • • Brand New Unit(s)
  • • Price Includes GST
  • • Official Manufacturers Warranty
  • • EMI Payment Option Available

Out of stock



Notify Me

Categories: Home Cinema, Home Theatre Packages, Shop, Sonodyne, Speakers Country of Origin: India
Description

MICRO HTS1

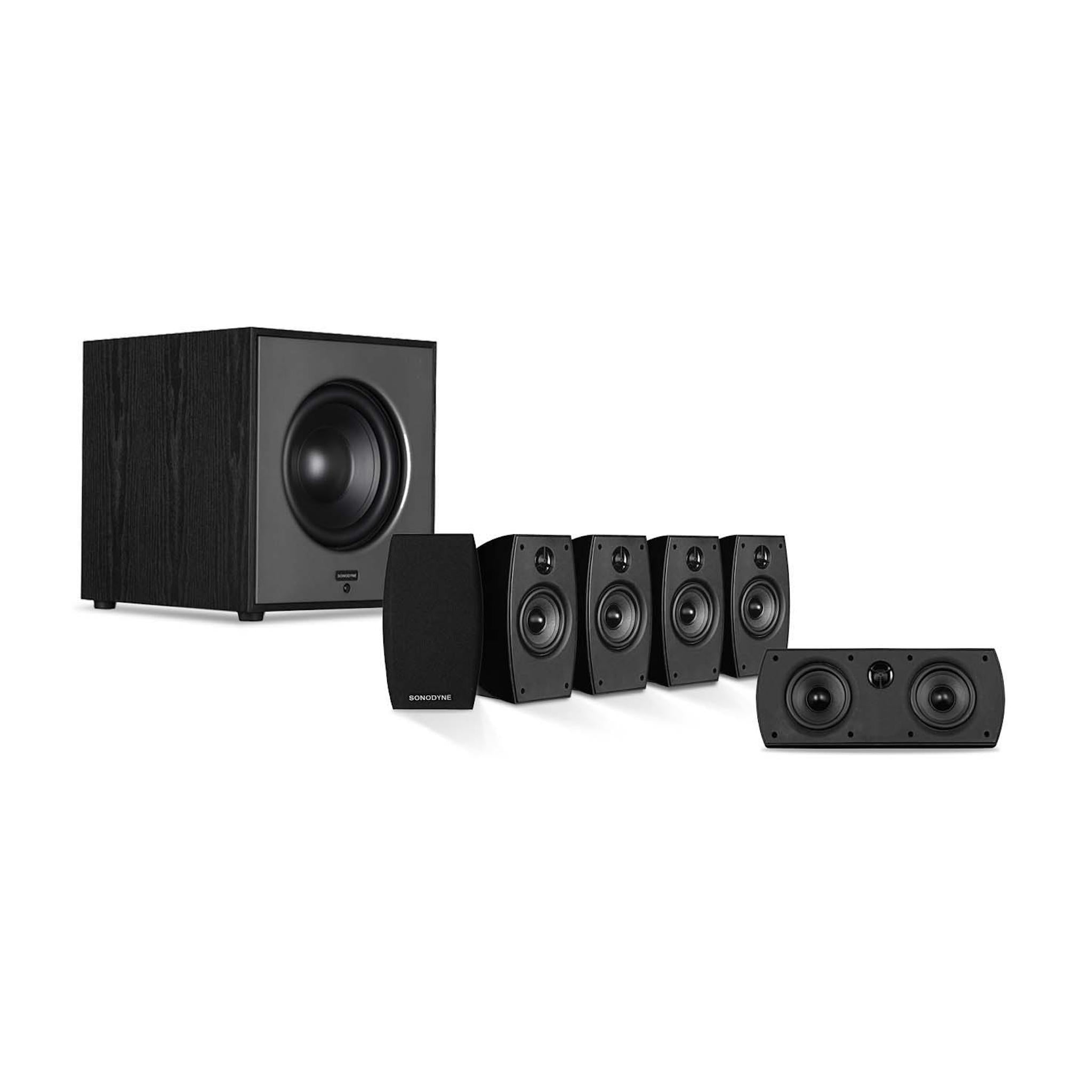

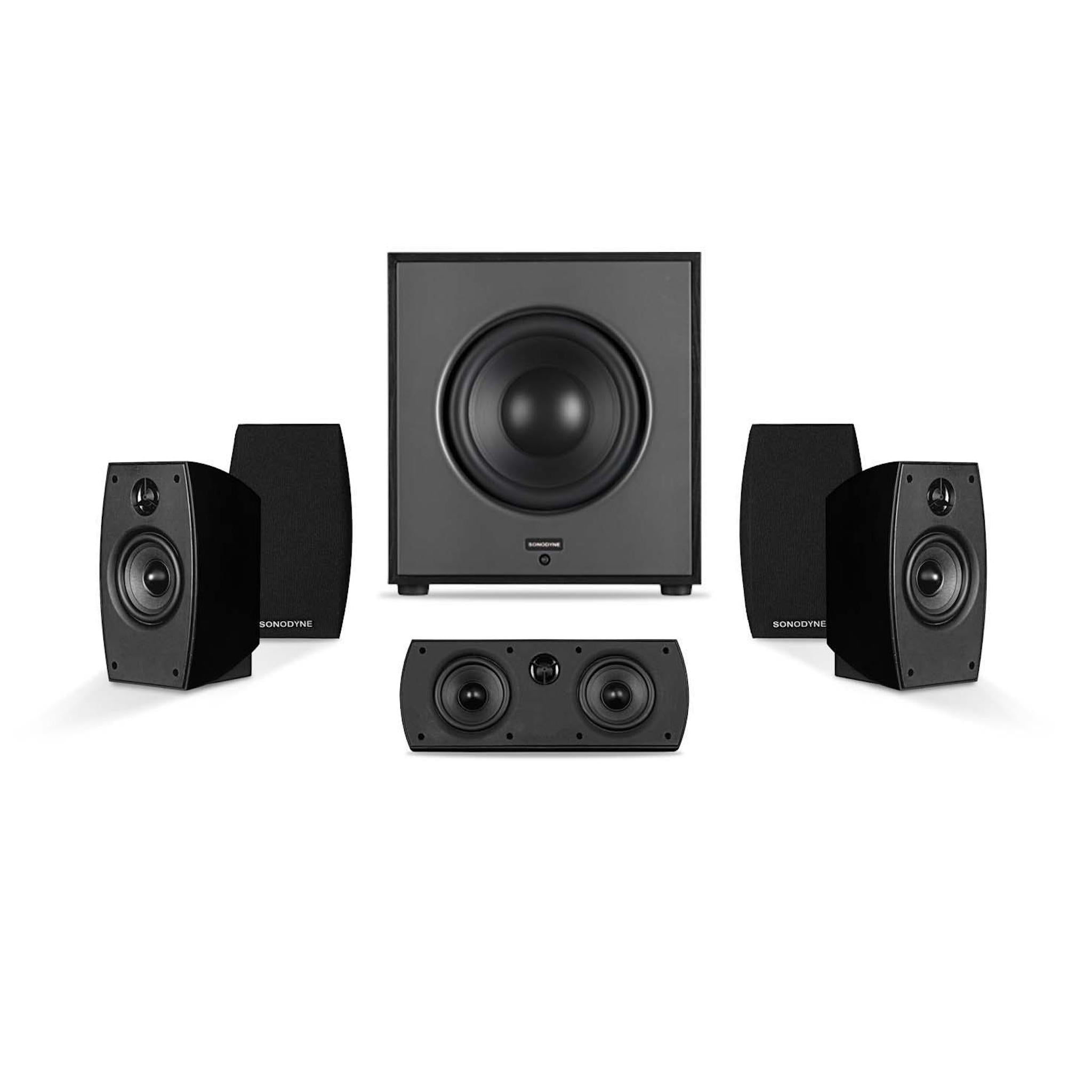

The Micro HTS1 is a complete 5.1 speaker system comprising main channel speakers and a powered subwoofer. The centre channel is Micro 3002 and the LR and surrounds, Micro 3001. The Subwoofer is 100 watt, 8” device, Together, this system is tone matched and produces spectacular multichannel audio in premium spaces.

In the box:

  • 4 x Micro 3001 with brackets
  • 1 x Micro 3002 with bracket
  • 1 x 100 watt powered subwoofer

Highlights

  • 4 x Micro 3001 satellites
  • 1 x Macro 3002 centre
  • 1 x 100 watt, 8” powered subwoofer
  • Wall mount included
  • Recommended AVR : 60 ~ 100 watt per channel, 8 ohm

SURROUND SOUND SET-UP

For positioning the Micro 3001 main left and right speakers, place them at ear level, with at least 6 - 8 ft between and angled slightly toward the listening position or the sweet spot. For positioning the Micro 3001 surround left and surround right speakers, place the speakers to the left and right of your listening position. Angle them so that they point towards you for the best sound. If side placement is not possible, place them a few foot behind your listening position and face them forward. For details of mounting, please refer to the manual of Micro 3001. Experiment for best results.

For positioning the Micro 3002 center speaker place it at ear level, in the middle between the left and right speakers. For details of mounting, please refer to the manual of Micro 3002.

ACOUSTICS OF THE LISTENING ROOM

The acoustical makeup of your listening room is key in determining how good (or bad) is the sound that reaches your ear. The contents of a room (carpets, curtains, furniture etc.), its shape, and the material of which the boundaries are made, make or break your sound. The idea is to have a listening area where the absorptions and reflections are calibrated to attain, as far as possible, a neutral environment. While there are no 'quick fix' formulae to convert a room to an 'ideal listening room', here are some things that you might try to attain optimal performance.

In your listening room, clap your hands, snap your fingers, and jingle a ring of keys. If the resulting sound is unintelligible (muffled), and resonating, your room is inclined toward being reflective. In this event, you might want to: Hang up curtains/ lay a carpet or rug / introduce book cases/ other racks. In the event that the resulting sound is too damped your room is inclined toward being absorptive. You might want to remove some of the absorptive material (like those given above).

MICRO 3002 SPECIFICATIONS

DESCRIPTION

2 way speaker, ported

ENCLOSURE

ABS

TRANSDUCER COMPLEMENTS: HF

0.5 inch polycone tweeter

TRANSDUCER COMPLEMENTS: LF

2 x 3 inch woofer

RECOMMENDED AMPLIFIER POWER

40 - 120 watt

NOMINAL IMPEDANCE

8 Ohm

SENSITIVITY (1 W 1M)

90 dB

FREQUENCY RESPONSE (-3 dB)

100Hz - 20kHz

FREQUENCY RANGE (-10 dB)

70Hz - 22kHz

CROSSOVER FREQUENCY

3.5 kHz

INPUTS

Binding post

COLOURS

Black / White

DIMENSIONS (HXWXD)

100 mm x 261 mm x 100 mm

NET WEIGHT

1.3 kg

MOUNTING OPTIONS

Wall mount bracket (inlcuded)

PACKED IN

Single

MICRO 3001 SPECIFICATIONS

DESCRIPTION

2 way speaker , ported

ENCLOSURE

ABS

TRANSDUCER COMPLEMENTS: HF

0.5 inch polycone tweeter

TRANSDUCER COMPLEMENTS: LF

3 inch woofer

RECOMMENDED AMPLIFIER POWER

40 - 100 watt

NOMINAL IMPEDANCE

8 Ohm

SENSITIVITY (1 W 1M)

87 dB

FREQUENCY RESPONSE (-3 dB)

100Hz - 20kHz

FREQUENCY RANGE (-10 dB)

80Hz - 22kHz

CROSSOVER FREQUENCY

6.5 kHz

INPUTS

Binding post

COLOURS

Black / White

DIMENSIONS (HXWXD)

171 mm x 100 mm x 108 mm

NET WEIGHT

0.75 kg

MOUNTING OPTIONS

Wall mount bracket (inlcuded)

PACKED IN

pairs

ROARR 1008 SPECIFICATIONS

DESCRIPTION

Front firing powered subwoofer ,vented

ENCLOSURE

MDF

TRANSDUCER COMPLEMENTS

1 x 8'' high excursion subwoofer

AMPLIFIER CLASS

Class AB

AMPLIFIER POWER

100 W

AMPLIFIER THD

0.1% at rated power

MAX SPL

109 dB

FREQUENCY RESPONSE

35 Hz (-3 dB)

FREQUENCY EXTENSION (-10 DB)

30 Hz

LOW PASS FILTER

50 Hz ~ 150 Hz

PHASE

Switchable: 0 degrees and 180 degrees

INPUTS

Left and Right unbalanced RCA type

INPUT SENSITIVITY

80 mV at level control max

CONTROLS

Level control, frequency control

FINISH

Front: Ash; Outer skin: Option of Black ash or Rosewood

DIMENSIONS (HXWXD) MM

330 x 330 x 429

POWER CONSUMPTION

130 W Max.

NET WEIGHT

11.7 kg

IN THE BOX

Mains cord, user's manual, Screw-on spike, disc and tightening lever
