Emotiva PT-100 - Stereo Pre-Amplifier/DAC/Tuner

Rs. 49,500

  • • Free Shipping (India)
  • • Brand New Unit(s)
  • • Price Includes GST
  • • Official Manufacturers Warranty
  • • EMI Payment Option Available

Description

PT-100

The BasX PT-100 is a high-performance stereo preamplifier that includes a high-performance FM tuner, line level analog inputs for a CD player or line-level source, a built-in USB DAC with plenty of digital inputs for your computer and other digital stereo sources, a high-quality phono preamp that supports both moving magnet and moving coil cartridges, and provisions for an optional high-quality AptX Bluetooth input module. The tuner offers full digital control, and 50 station presets. The PT-100 can be operated via the simple front panel controls, or by the included infrared remote control. The intuitive menu system makes the PT-100 simple to configure and operate, and the big, easy to read, VFD display on the PT-100’s front panel shows you exactly what’s going on at all times.

Sound Quality First

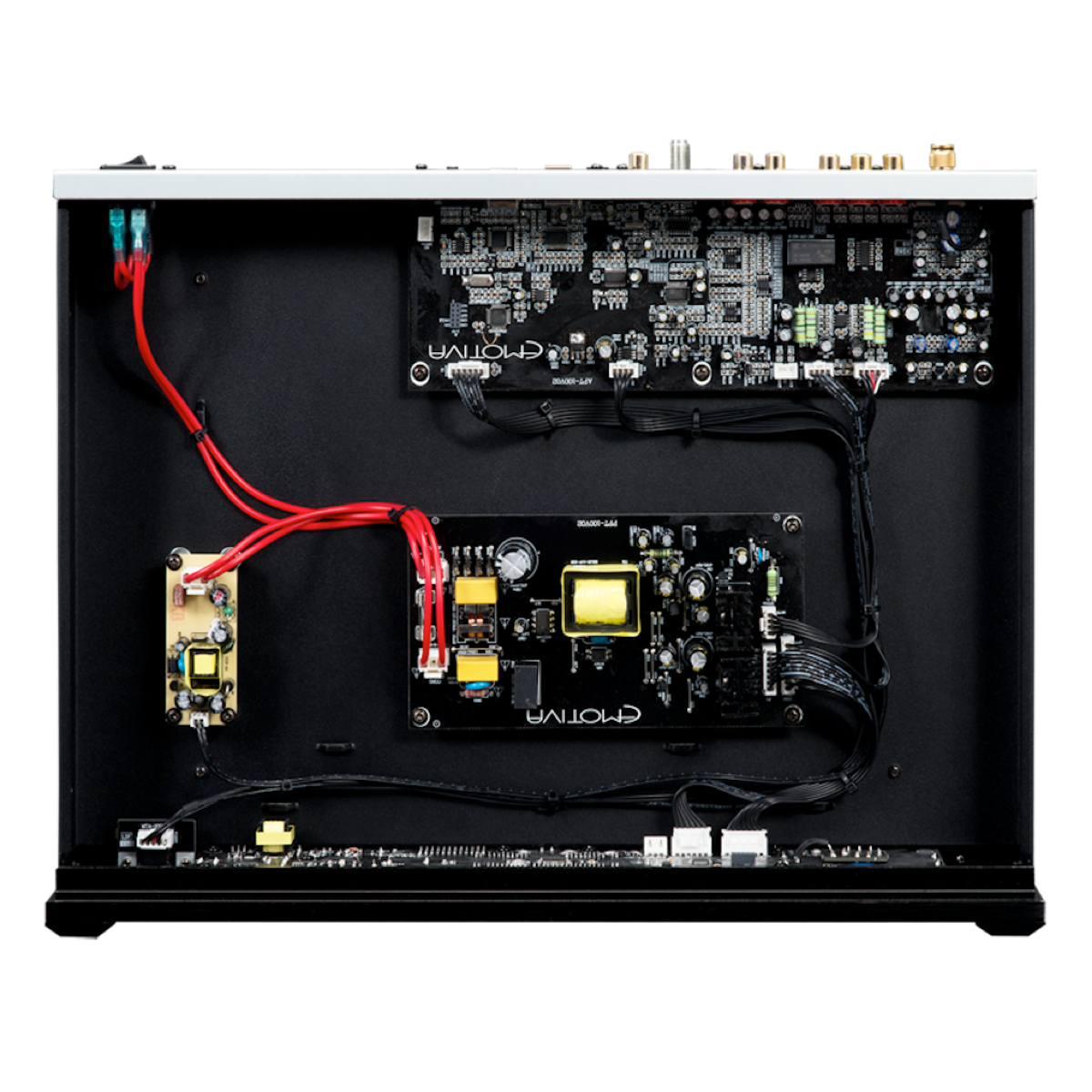

  • Highly optimized circuit layout ensures the best possible sound quality, with low distortion, wide bandwidth, and a virtually silent noise floor.
  • Precision digital conversion on all digital inputs is provided by the legendary Analog Devices AD1955 24/192 DAC.
  • Sensitive FM tuner, which features 50 station presets and a Mono mode to help make even weak stations listenable.

Flexible Input And Output Options

  • A full complement of analog inputs, including two line level inputs, and a high quality phono input that supports both moving coil and moving magnet cartridges.
  • A full complement of digital inputs, including one 24/96k USB input, 24/192 coax and optical S/PDIF inputs, and an optional Bluetooth receiver.
  • An independent, high current, direct coupled headphone amplifier provides a high quality signal to drive your favourite headphones for personal listening.
  • Line level main stereo outputs allow you use the PT-100 as a tuner/preamp with a separate stereo power amp.
  • In addition to the main stereo outputs, a separate pair of summed outputs are provided for connecting your favourite subwoofer.

Intelligent Display And Control Options

  • Bass and Treble controls provide a familiar way to adjust your system to sound just the way you like it.
  • VFD display provides a simple and easy to read display with 3 dimmable levels.
  • Our unique balance control simultaneously adjusts the levels of both channels so the overall sound level in your room remains constant.
  • The intelligent Mute control allows you to mute the audio output on your system, and then return precisely to your previous listening level.
  • Our intelligent headphone level control independently remembers the level you set for your headphones and your main outputs.
  • The included full function remote control lets you operate all the controls on the PT-100 without getting out of your favourite listening seat.
  • A flexible menu system makes the BasX PT-100 easy to configure and simple to operate.

Universal Line Voltage Operation

  • The BasX PT-100 is designed to operate on either 115 VAC or 230 VAC at 50/60 Hz, and automatically detect and configure itself to operate with your local line voltage.

Great Sound – Now And For Years To Come

  • A full three year warranty ensures that you’ll be able to enjoy your BasX tuner/amplifier for years to come.

SPECIFICATIONS

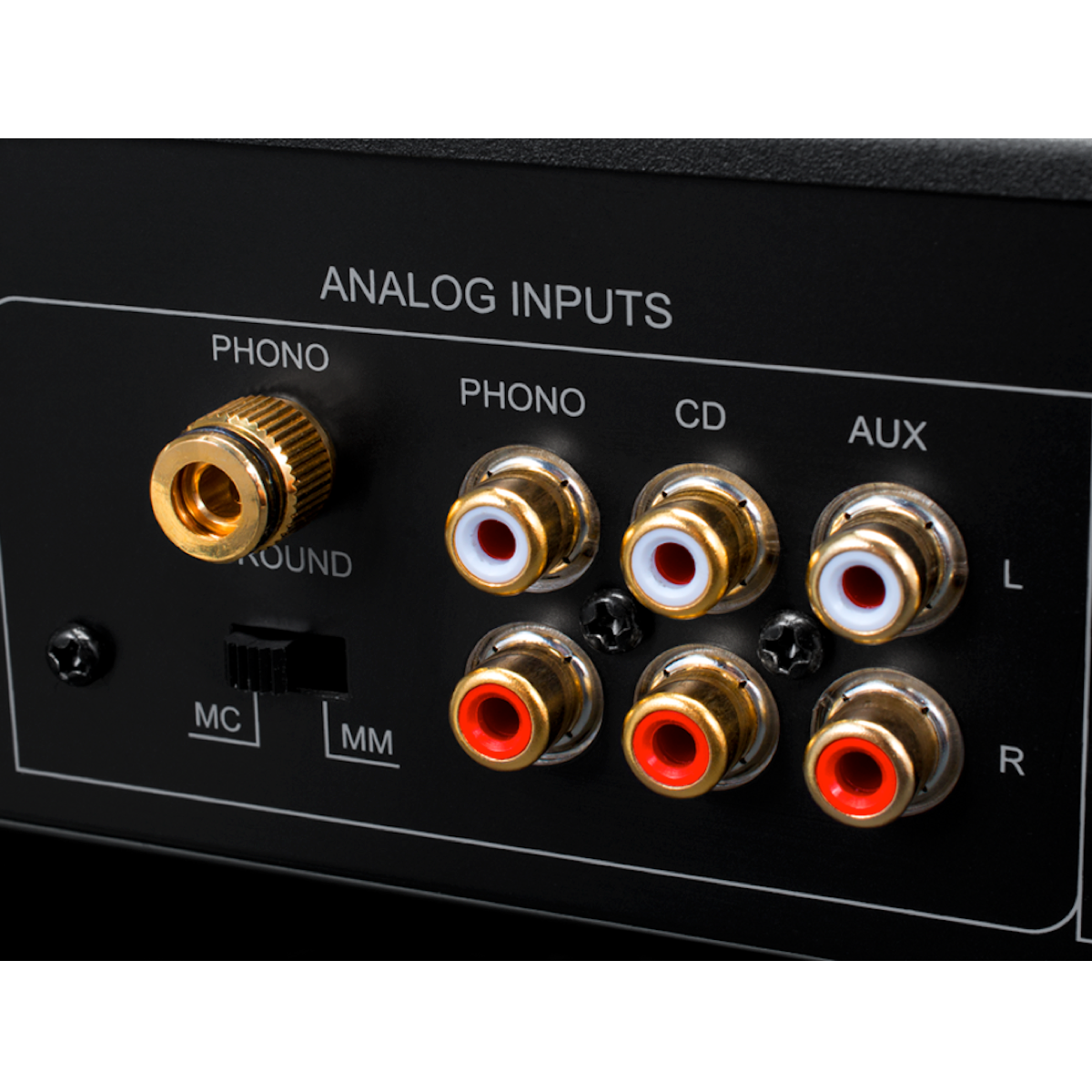

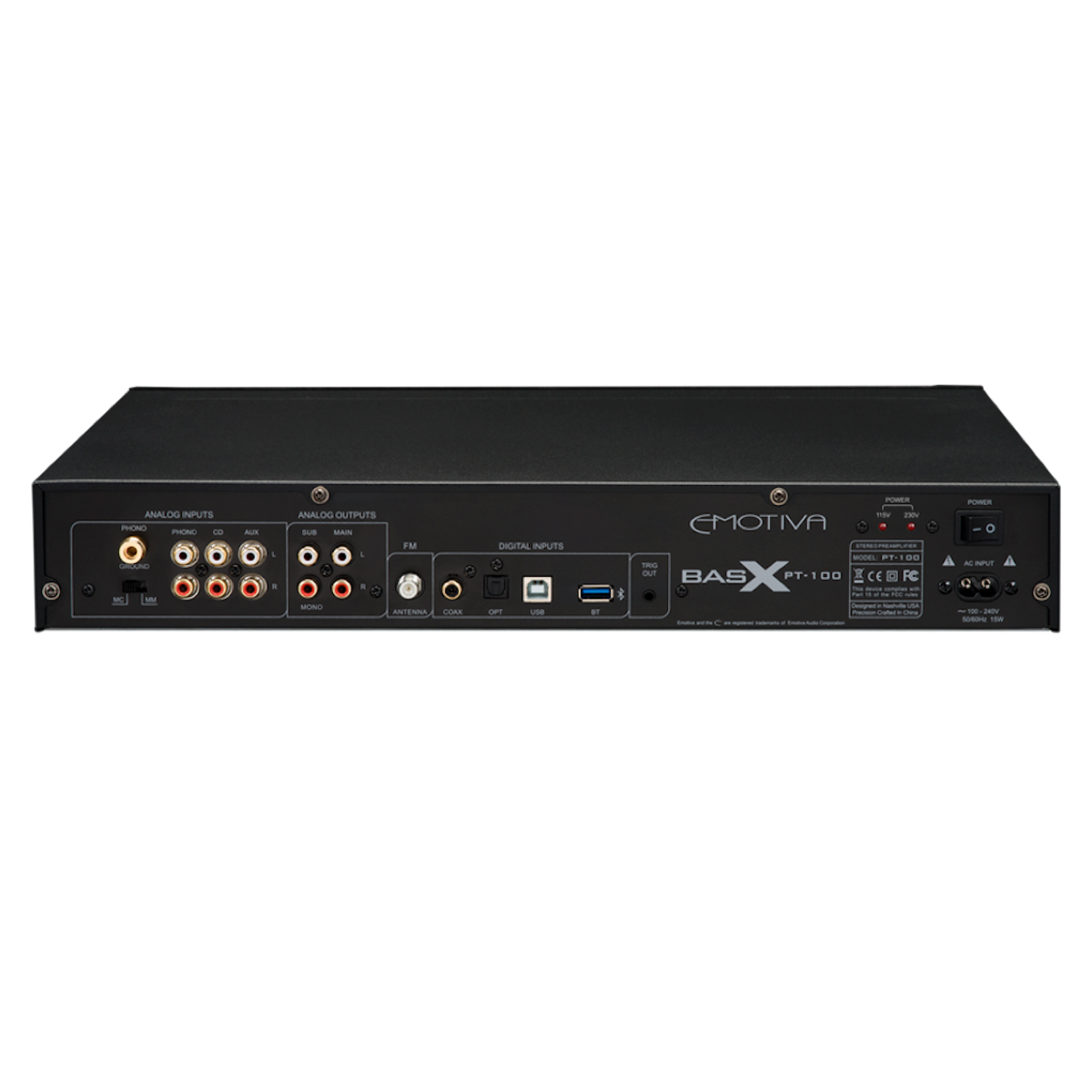

Analog Inputs

  • 2 pairs: stereo analog line level inputs (CD, Aux).
  • 1 pair: stereo phono inputs (switchable; moving magnet or moving coil).
  • 1 tuner: FM (with external antenna input; 50 station presets).

Digital Inputs

  • 1 pair: main line level output; stereo, unbalanced.
  • 2: summed full range outputs (for connecting one or two subwoofers), unbalanced.

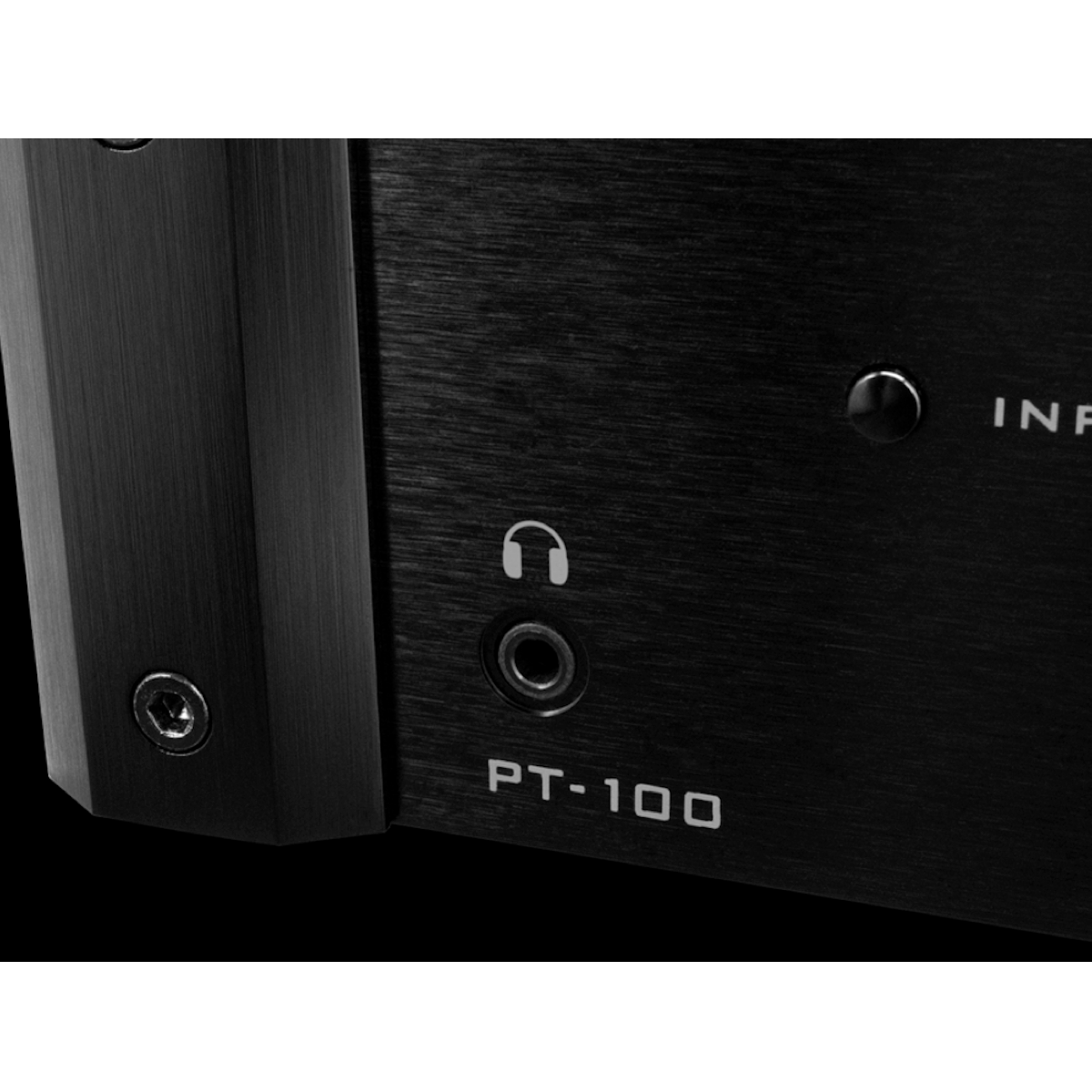

  • 1: stereo headphone output (front panel).

Analog Performance (phono)

  • Frequency response (MM and MC):
    20 Hz to 20 kHz; ref standard RIAA curve.
  • THD+noise:
    < 0.015% (MM; A-weighted).
    < 0.06% (MC; A-weighted).
  • S/N ratio:
    > 90 dB (MM).
    > 68 dB (MC).

Analog Performance (headphone)

Output Power:

  • 8 Ohms: 23 mW / channel.
  • 33 Ohms: 90 mW / channel.
  • 47 Ohms: 127 mW / channel.
  • 150 Ohms: 145 mW / channel.
  • 300 Ohms: 114 mW / channel.
  • 600 Ohms: 75 mW / channel.

Digital Performance

  • Frequency response:
    5 Hz to 20 kHz +/- 0.15 dB (44k sample rate).
    5 Hz to 80 kHz +/- 0.25 dB (192k sample rate).
  • THD+noise:
    < 0.003% (A-weighted; all sample rates).
  • IMD:
    < 0.007% (SMPTE).
  • S/N ratio:
    > 110 dB ref rated output.

Trigger

12 VDC trigger output.

Power Requirements

115 VAC or 230 VAC @ 50 / 60 Hz (automatically detected).

Controls And Indicators

  • Power: rocker switch; rear panel.

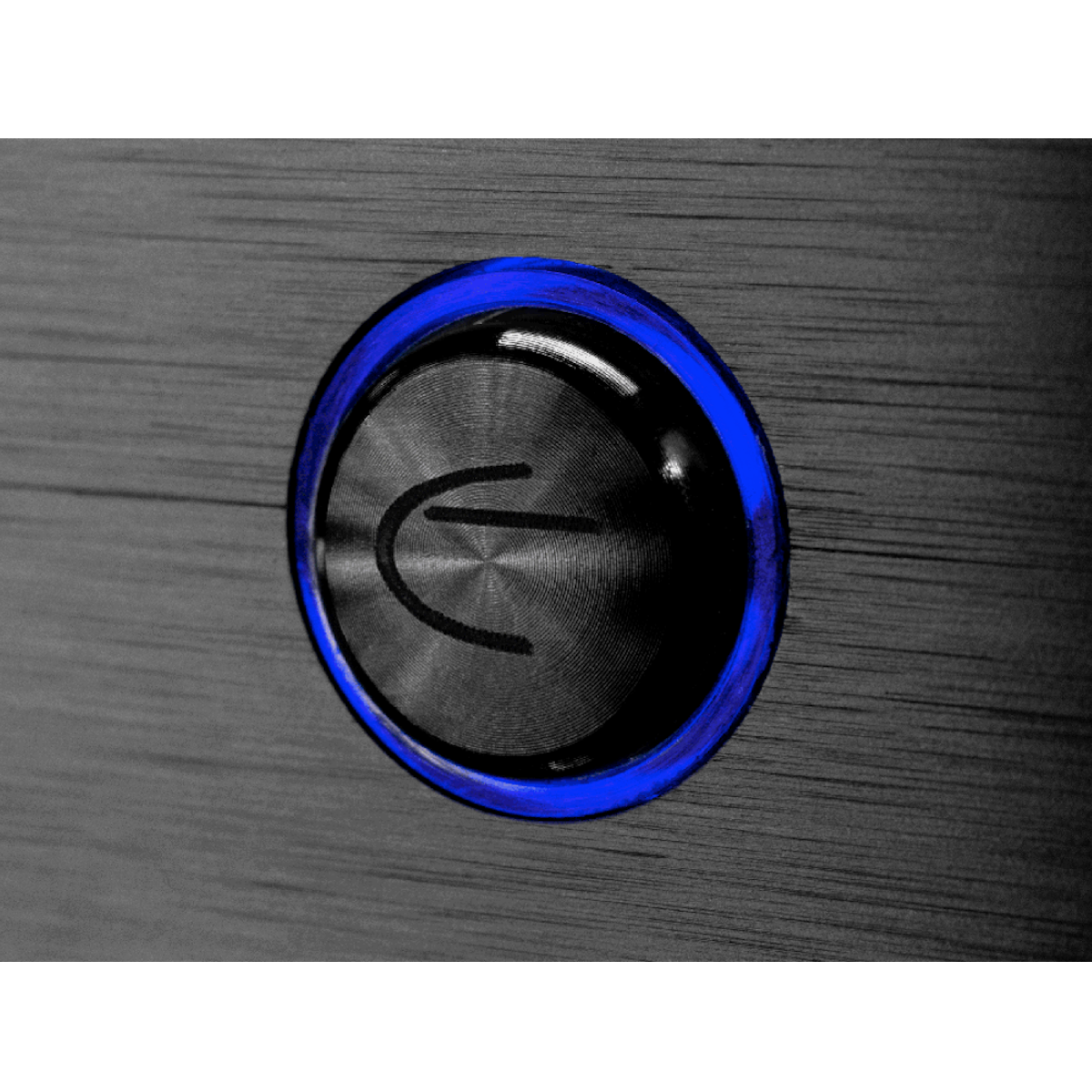

  • Standby: one front panel push button; halo ring changes color to indicate status.
  • Two front panel pushbuttons: Input Select; menu operation.
  • One front panel knob: Volume; Tuning; menu operation.

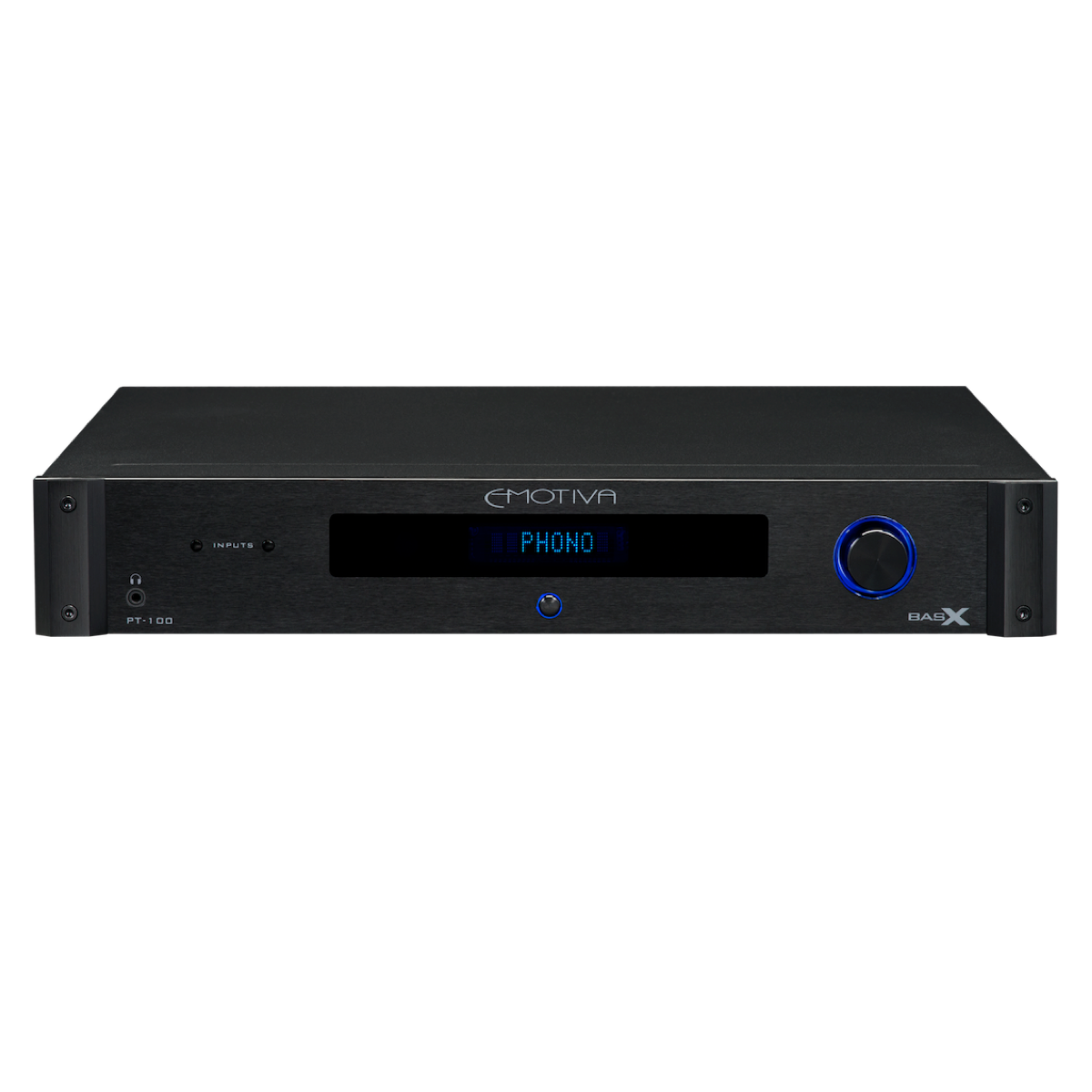

  • Display: high visibility blue alphanumeric VFD display (dimmable).

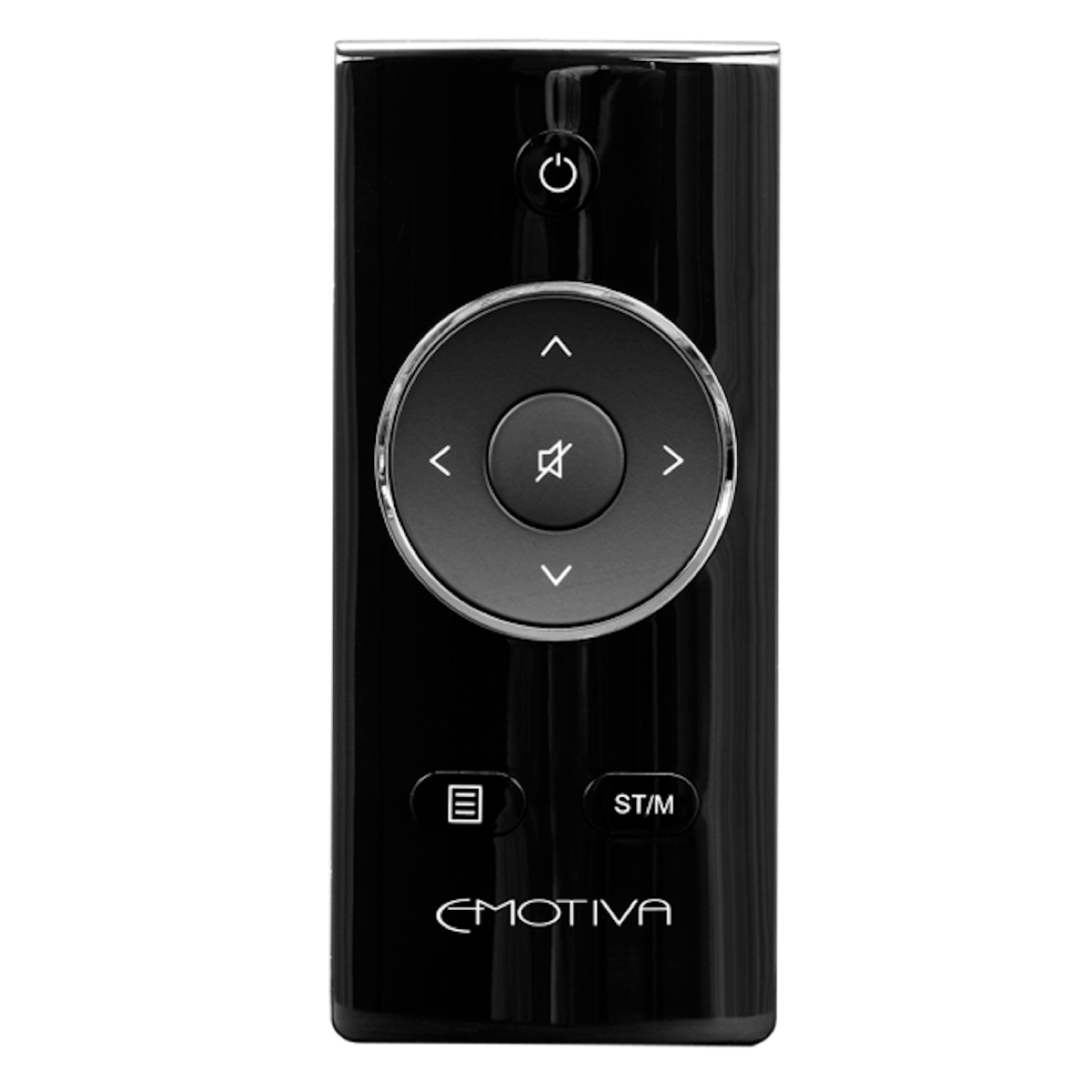

  • Remote Control: compact full-function infrared remote control.
  • Menu and Control System; simplified, highly intuitive menu system
    (includes Setup options, Bass, Treble, and Balance controls).

Dimensions

  • 17” wide x 2-5/8” high x 12-1/2” deep (unboxed; without connectors).
  • 21” long x 7” high x 17-1/2” deep (boxed).

Weight

  • 4.08 Kg (unboxed).
    6.12 Kg (boxed).
